Cornelius NORDIC B230-AP Manuale utente
Plastic Storage Bins Adapter Installation Instructions
© 2007-2014, Cornelius Inc. - 1 - Publication Number: 620204714INS
INSTALLATION INSTRUCTIONS
NORDIC B230-AP PLASTIC BINS
SAFETY
!
WARNING:
Before starting installation, read and understand all safety label and warnings on the machine. Also review and
understand all safety instructions in the owners, installation and service manuals.
Failure to comply could result in serious injury, death or damage to the equipment.
QUALIFIED SERVICE PERSONNEL
!
WARNING:
Only trained and certified electrical, plumbing and refrigeration technicians should service this unit.
All wiring and plumbing must conform to national and local codes. Failure to comply could
result in serious injury, death or equipment damage.
SAFETY PRECAUTIONS
This unit has been specifically designed to provide protection against personal injury. To ensure continued
protection observe the following:
!
WARNING:
Disconnect power to the unit before servicing. Follow all lock out/tag out procedures established by the user. Verify all
power is off to the unit before performing any work.
Failure to comply could result in serious injury, death or damage to the equipment.
CAUTION:
!
Always be sure to keep area around the unit clean and free of clutter.
Failure to keep this area clean may result in injury or equipment damage.
Revision Date: March 17, 2014 www.cornelius.com Revision: C
Plastic Storage Bins Adapter Installation Instructions
Publication Number: 620204714INS - 2 - © 2007-2014, Cornelius Inc.
1. Remove the screw at left front and set aside.
2. Set the adapter in place on the left end of the bin and mark the location. Remove the 1/4 x 5/8 gasket
under the adapter and clean the surface with rubbing alcohol. Remove protective paper from the tape
and set it in place on the adapter, press down firmly, and reinstall the screw.
3. Add two strips of 1/8 x 1/2 gasket on top of the adapter right side.
4. Seal the edges of the adapter with silicone, as shown.

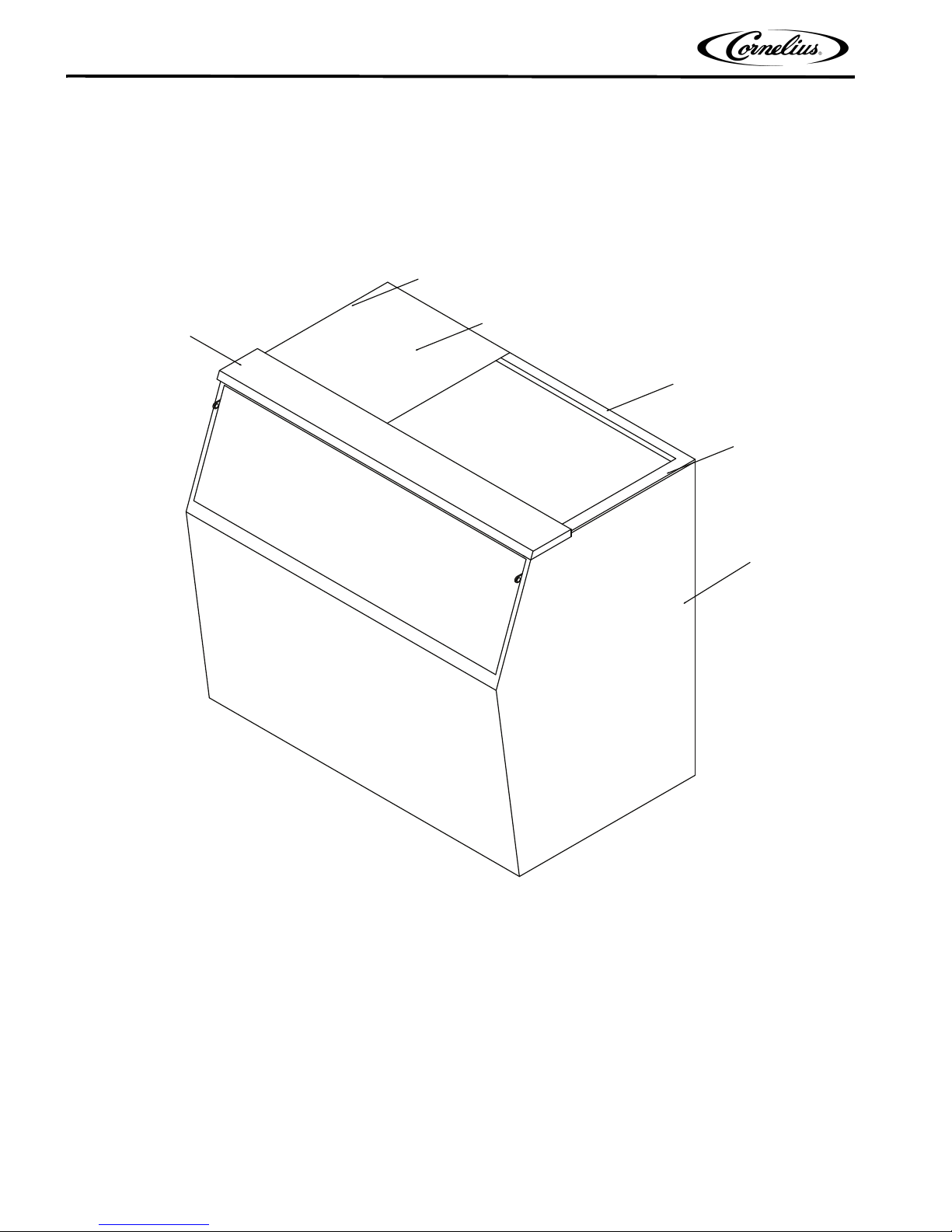

Figure 1.
GASKET
TOP FRONT
ASSEMBLY
BIN
GASKET
GASKET
ADAPTER
