OWNER’S

INSTRUCTION MANUAL

CENTURION

BASIC TELEPHONE

CENTURION

BASIC TELEPHONE

• Desk/Wall Mountable • Line In-Use

Indicator • Visual Ringing Indicator • Tone/

Pulse Switchable Dialing • FLASH • Last Num-

ber Redial • PAUSE • Ringer Volume Control

• Hearing-Aid Compatible

Congratulations on purchasing the

CENTURION BASIC telephone. All products

in the CENTURION family of telephones

combine the lastest technology to provide

sophisticated solutions to your complex

communication needs.

Your new telephone was made

by people who take a great deal

of PRIDE in producing quality

products to assure you years of

trouble-free service.

We want you to know all about your new

telephone, how to install it, the features it

provides, and the services you can expect

from its use. We have included this information

in your Owner’s Instruction Manual.

PLEASE READ BEFORE INSTALLING

AND USING YOUR NEW TELEPHONE.

Contents

Important Safety Instructions ....................................... 2

Features Of Your Telephone ......................................... 4

Installing Your Telephone .............................................. 6

Unpacking Your Telephone .............................................. 6

Modular Wall Jacks .......................................................... 6

Desk Installation ............................................................... 7

Wall Installation ................................................................ 7

Check For Dial Tone ........................................................ 8

Before Using Your Telephone ....................................... 9

Maintenance Information ............................................... 9

Telephone Service Problems ..................................... 10

No Dial Tone ................................................................... 10

Dial Tone But No Ringing ................................................ 10

Dial Tone But No Dialing ................................................. 10

Repair of Your Telephone ............................................ 11

The FCC Wants You To Know ...................................... 12

IMPORTANT SAFETY INSTRUCTIONS

Always follow basic safety precautions when

using your telephone equipment to reduce the

risk of fire, electrical shock, and injury.

1. Read and understand all instructions in

the Owner’s Instruction Manual.

2. Read all warnings and follow all instructions

marked on the product.

3. Unplug this product from the wall outlet

before cleaning. Use a damp cloth for

cleaning. Do not use liquid or aerosol

cleaners.

4. Do not use the telephone near water. For

example, do not use near a bathtub, wash

bowl, kitchen sink, laundry tub, swimming

pool, or in a wet basement.

5. Do not place this product on an unstable

cart or stand. The product may fall causing

serious damage to the product.

6. Do not place any objects on the

telephone line cord. Do not locate the

telephone where the line cord will be walked

on.

7. Do not block or cover ventilation slots

and openings in the bottom of the

telephone.The openings should never be

blocked by placing the telephone on a bed,

sofa, rug, or other similar surfaces. This tele

phone should never be placed near or over a

radiator or heat register. This telephone should

never be placed in a built-in installation unless

proper ventilation is provided.

8. Never spill liquid on the telephone or

push objects of any kind through ventila-

tion slots. Liquid or objects may touch

dangerous voltage points or short out parts

that could result in a risk of fire or electrical

shock.

9. Do not disassemble this product. Opening

or removing covers may expose you to

dangerous voltages or other risks. Incorrect

reassembly can cause electrical shock when

the product is subsequently used.

10. Avoid using a telephone during a local

thunderstorm. There may be a remote risk

of electrical shock from lightning.

11. Do not use a telephone in the vicinity of a

gas leak to report the leak, or otherwise.

12. Unplug the telephone from the wall outlet

and refer servicing to qualified service

personnel under the following conditions:

• When the line cord is frayed or plugs

damaged.

• If liquid has been spilled into the tele-

phone.

• If the telephone has been exposed to rain

or water.

• If the telephone does not operate

properly by following the operating

instructions.

• If the telephone has been dropped or the

housing damaged.

• If the telephone exhibits distinct change

in performance.

SAVE THESE INSTRUCTIONS

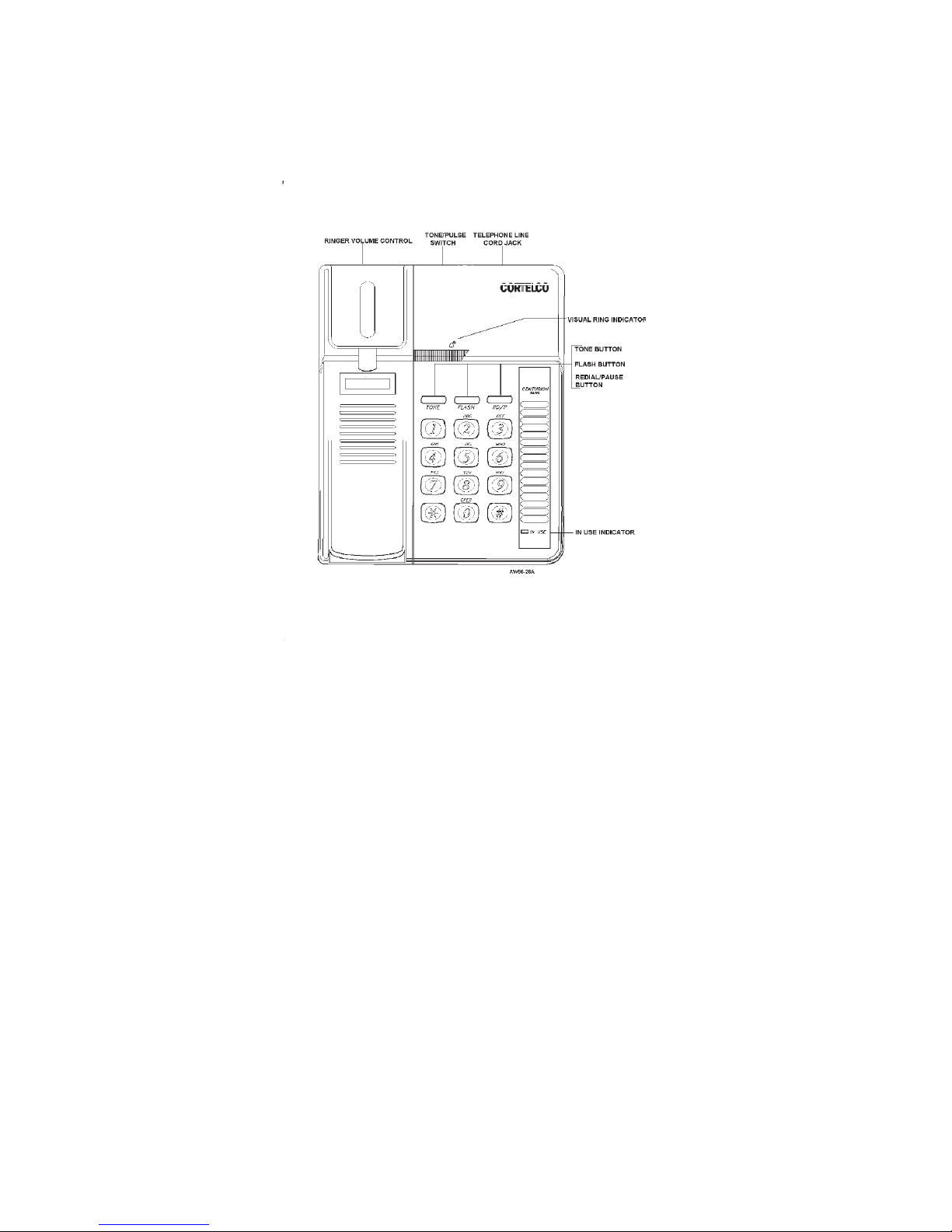

FEATURES OF YOUR TELEPHONE

Hearing-Aid Compatible Handset The handset on your Cen-

turion telephone works with magnetically-coupled hearing aids.

Ringer Volume Control The 3-position switch (located on the

back of the telephone) is used to set ringer volume. Set control on

the left side for high ring volume or toward the right for low or off.

TONE/PULSE Switch The TONE/PULSE switch, located on the

back of your telephone, is used to set the type of dialing for your

telephone to match the local service from your telephone company.

The 'P' position is for Pulse dialing service. The 'T' position is for Tone

dialing service. (Some telephone companies cannot accept Tone

dialing.)

Telephone Line Cord Jack Connect the modular line cord

supplied with your telephone at this jack: long cord for desk

installation; short cord for wall installation.

VISUAL RING INDICATOR The Visual Ring Indicator will light when

a ringing signal is applied to the telephone.

TONE BUTTON The tone button is used to change the dialing mode

from pulse to tone during a dialing sequence, when your local

service is set for rotary dial service.

FLASH Button The FLASH button sends an interrupt signal to the

distant office. The interrupt is a 600-millisecond, timed line discon-

nect which tells the distant office that you wish to use an available

feature. The results of a FLASH signal will depend on the services

you have available.

FEATURES OF YOUR TELEPHONE

RD/P Button (Redial/Pause) Your Centurion telephone stores in

memory the last number dialed (31 digits maximum). You can redial

the last number dialed by lifting the handset and pressing the RD/

P button. It must be the first button pressed after lifting the handset

to activate the redial feature.

You can erase the number stored in memory by lifting the

handset and dialing any digit.

To use the Pause feature, press the RD/P button while dialing your

number to insert a two-second pause.

Pushbutton Dial The pushbutton dial is used to dial numbers using

either pulse or tone dialing.

IN-USE Indicator The in-use indicator will light when the handset

is lifted from the cradle.

VOLUME CONTROL Your telephone

complies with the latest FCC part 68

regulations by having a switch in its

handset (see location of switch as shown

in pictorial) that allows the user to

increase the subset's receive volume.

This increased volume should allow

persons with hearing impairments to carry

on normal conversations by adjusting the

receive volume to its proper level.

RJ11C RJ11W

AW04-59

INSTALLING YOURTELEPHONE

UNPACKING YOUR TELEPHONE

Check the contents of the carton. Make sure you have a

telephone, a baseplate, a 7-foot handset cord, a long modular line

cord, and a short modular line cord.

If anything is missing or damaged, contact the place of

purchase.

MODULAR JACKS

To install your telephone, you must have a modular wall jack

at the desired location, or a 4-prong jack that can be modified with

a 4-prong adapter. If your telephone line does not have a modular

wall jack, or a jack that can be modified, you must have one installed.

DANGER: To reduce the risk of electrical shock and

personal injury, observe the following when install-

ing station wiring:

1. Never install telephone wiring during a light-

ning storm.

2. Never install telephone jacks in wet locations

unless the jack is specifically designed for wet

locations.

3. Never touch uninsulated telephone wires or

terminals unless the telephone line has been

disconnected at the network interface.

4. Use caution when installing or modifying

telephone lines.

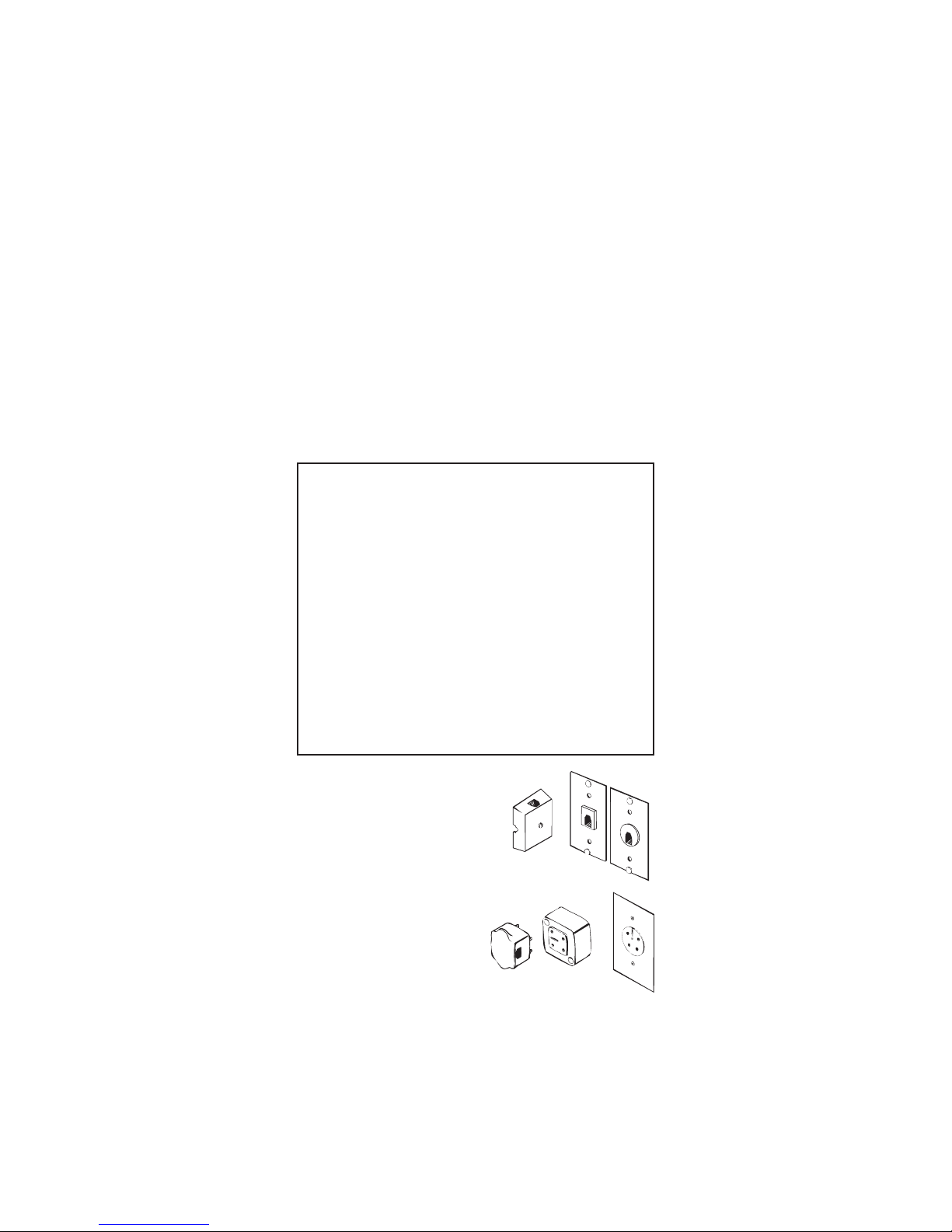

Various types of modular wall

jacks are shown to the right. The

USOC RJ11C modular wall jack is

for desk telephones and the USOC

RJ11W modular wall jack is for

modular wall telephones.

Various types of 4-prong wall

jacks are shown to the right along

with a 4-prong adapter. The 4-

prong adapter plugs into the wall

jack for modular wall jack service.

INSTALLING YOUR T ELEPHONE

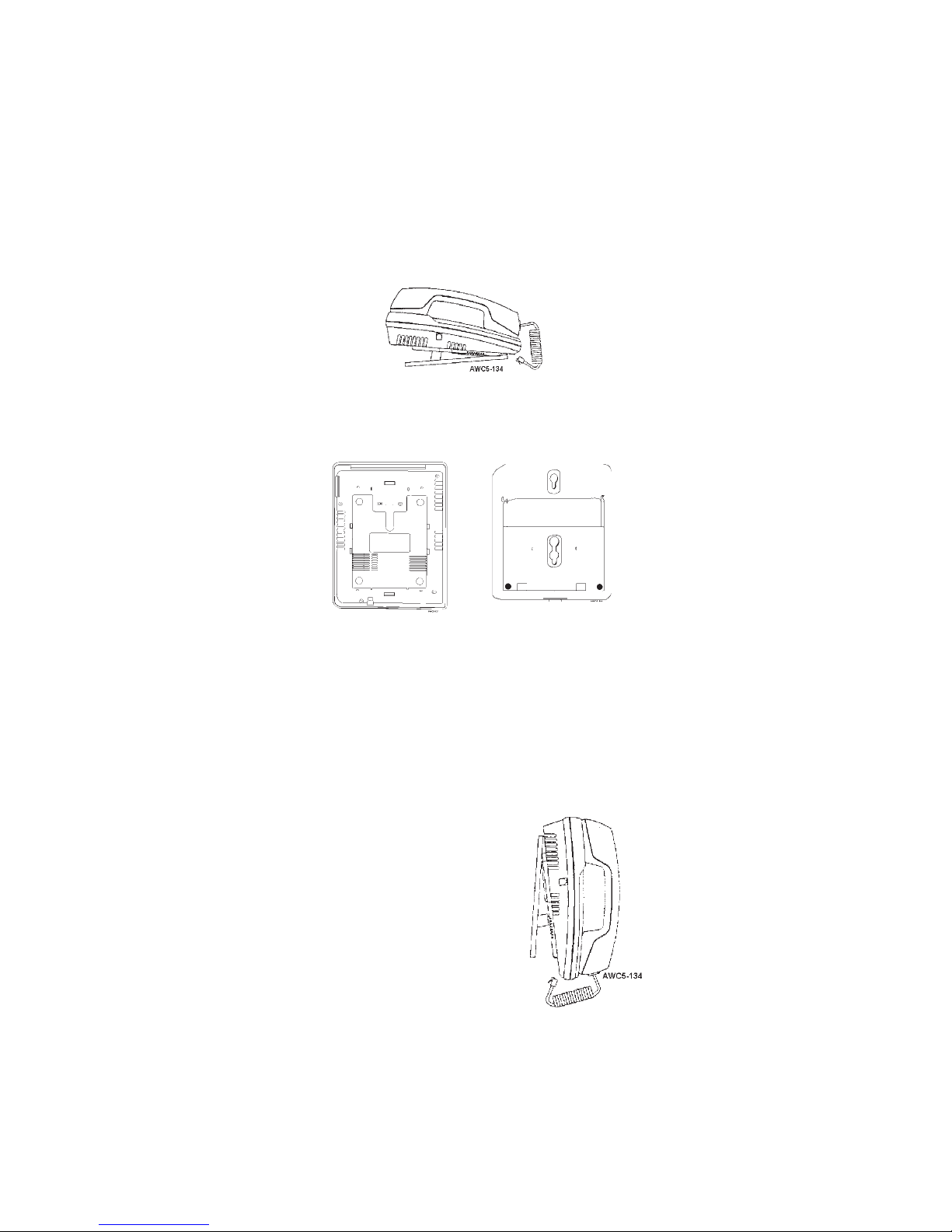

DESK INSTALLATION

To install as a desk telephone, refer to the diagram.

•Insert the baseplate mounting posts into the mounting

holes and locking slot on the housing.

Housing Baseplate

•Connect the line cord into the jack on the back of the phone.

•Plug the unattached end of the line cord into the modular

wall jack.

WALL INSTALLATION

To install a wall telephone, refer to the diagram.

•Plug the line cord into the jack

and route the free end down

through the channel on the

baseplate.

•Insert the baseplate mounting

posts and latch into the

mounting holes and locking slot.

•Plug the line cord into the

wallplate.

•Slip the eyelets of the baseplate

down onto the wallplate posts in

a downward direction.

INSTALLING YOURTELEPHONE

•Adjust the wall mount clip, located on the face of the housing,

by lifting up the clip and rotating it 180 degrees.

Complete the Desk/Wall mounting by installing the handset and

handset cord.

CHECK FOR DIAL TONE

Lift the handset and listen for dial tone.

•When you hear dial tone, your telephone is ready to use.

•If you do not hear dial tone, refer to the Telephone Service

Problems part of your manual.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Cortelco Telefono

Cortelco

Cortelco Medallion 3220 Guida all'installazione

Cortelco

Cortelco 9225 Guida all'installazione

Cortelco

Cortelco Patriot 2193 Guida all'installazione

Cortelco

Cortelco Tel-Flash 2500 Guida all'installazione

Cortelco

Cortelco 2750 Guida all'installazione

Cortelco

Cortelco 2730 Guida all'installazione

Cortelco

Cortelco 6150 Manuale utente

Cortelco

Cortelco Colleague 2205 Guida all'installazione

Cortelco

Cortelco COLLEAGUE 2220 Guida all'installazione

Cortelco

Cortelco Patriot II 2192 Guida all'installazione

Cortelco

Cortelco CENTURION EXTENDED BASIC TELEPHONE Guida all'installazione

Cortelco

Cortelco Tel-Flash 2554 Manuale utente

Cortelco

Cortelco 9150 Manuale utente

Cortelco

Cortelco VALUE 2500 VBA-20MD Series Manuale utente

Cortelco

Cortelco Patriot 2191 Guida all'installazione

Cortelco

Cortelco 2720 Guida all'installazione

Cortelco

Cortelco Patriot Guida all'installazione

Cortelco

Cortelco 2750 Guida all'installazione

Cortelco

Cortelco Sentry 879015TP227S Manuale utente

Cortelco

Cortelco 7150 TRENDLINE CALLER ID TYPE II Guida all'installazione

Cortelco

Cortelco Colleague 2210 Manuale utente

Cortelco

Cortelco Colleague 2203 Guida all'installazione

Cortelco

Cortelco Sentry 8790 Manuale utente

Cortelco

Cortelco 5150 Guida all'installazione

Manuali Telefono popolari di altre marche

GE 2-9480 Manuale utente

Geemarc

Geemarc PHOTOPHONE 155 Manuale utente

D-Link

D-Link DWR-720/PW Manuale utente

Interquartz

Interquartz Gemini IQ333 Manuale utente

SSS Siedle

SSS Siedle HT 840-0 Manuale utente

Motorola

Motorola TITANIUM Manuale utente

Panasonic

Panasonic ICX Manuale utente

LG H870DS Manuale utente

Samsung

Samsung GT-I9500 Manuale utente

AT&T

AT&T Trimline 205 Manuale utente

Selta

Selta zenyth 600 Manuale utente

Doro

Doro AFTI 20 Manuale utente

UNIQCELL

UNIQCELL A1 Manuale utente

Panasonic

Panasonic KX Series Manuale utente

Jabra

Jabra SP5050 - Bluetooth hands-free Speakerphone Manuale utente

BT Decor 425 Manuale utente

NEC

NEC SV8500 Manuale utente

Teledex

Teledex PEARL Manuale utente
