Cortelco Ez TOUCH Guida all'installazione

OWNER’S

INSTRUCTION MANUAL

MULTI-FEATURE TELEPHONE

THANK YOU

FOR PURCHASING THE

ez TOUCH

MULTI-FEATURE TELEPHONE

We want you to know all about your new ez TOUCH Telephone,

how to install it, the features it provides, and the services you can

expect from its use. We have included this information in your Owner’s

Instruction Manual.

PLEASE READ BEFORE INSTALLING

AND USING YOUR NEW TELEPHONE EQUIPMENT.

TABLE OF CONTENTS

IMPORTANT SAFETY INSTRUCTIONS ............................................................. 2

TELEPHONE USAGE ............................................................................................ 4

SETUP/INSTALLATION ................................................................................ 4

WALL MOUNT INSTRUCTIONS ................................................................... 5

TELEPHONE PART IDENTIFICATION ................................................................ 6

TELEPHONE FEATURES ..................................................................................... 7

PULSE AND TONE DIALING ........................................................................ 7

RECEIVING A PHONE CALL ....................................................................... 7

PLACING A PHONE CALL ........................................................................... 7

REDIAL BUTTON ......................................................................................... 7

BRAILLE CHARACTERS ............................................................................. 7

VISUAL RING INDICATOR ........................................................................... 7

DATA PORT ................................................................................................. 7

FLASH BUTTON .......................................................................................... 8

RINGER VOLUME CONTROL ...................................................................... 8

HANDSET VOLUME CONTROL ................................................................... 8

STORE BUTTON ........................................................................................... 8

MEMO BUTTON ........................................................................................... 8

ONE-TOUCH PHOTOMEMORY .................................................................... 8

TWO-TOUCH MEMORY ............................................................................... 8

ERASING NUMBERS IN MEMORY .............................................................. 8

TELEPHONE SERVICE PROBLEMS ................................................................... 9

MAINTENANCE INFORMATION ......................................................................... 9

TELEPHONE REPAIR ........................................................................................ 10

FCC INFORMATION ......................................................................................... 10

INDEX ............................................................................................................. 12

IMPORTANT SAFETY INSTRUCTIONS

Always follow basic safety precautions when using your telephone equip-

ment to reduce the risk of fire, electrical shock, and injury.

1. Read and understand all instructions in the Owner’s Instruction Manual.

2. Read all warnings and follow all instructions marked on the product.

3. Unplug this product from the wall outlet before cleaning. Use a damp

cloth for cleaning. Do not use liquid or aerosol cleaners.

4. Do not use the telephone near water. For example, do not use near a

bathtub, wash bowl, kitchen sink, laundry tub, swimming pool, or in a wet

basement.

5. Do not place this product on an unstable cart or stand. The product may

fall causing serious damage to the product.

6. Use only the type power source indicated on the label. If you are not sure

of the type power supply to your home, consult your dealer or local power

company.

7. Do not place any objects on the telephone line cord. Do not locate the

telephone where the line cord will be walked on.

8. Do not block or cover ventilation slots and openings in the bottom of

the telephone. The openings should never be blocked by placing the

telephone on a bed, sofa, rug, or other similar surfaces. The telephone

should never be placed near or over a radiator or heat register. The

telephone should never be placed in a built-in installation unless proper

ventilation is provided.

9. Never spill liquid on the telephone or push objects of any kind through

ventilation slots. Liquid or objects may touch dangerous voltage points

or short out parts that could result in a risk of fire or electrical shock.

10. Do not disassemble this product. Opening or removing covers may

expose you to dangerous voltages or other risks. Incorrect reassembly

can cause electrical shock when the product is subsequently used.

11. Do not overload outlets and extension cords. Some telephones

require AC power from an outlet. Overloading the outlets can result in

the risk of fire or electric shock.

12. Avoid using a telephone during a local thunderstorm. There may be a

remote risk of electrical shock from lightning.

13. Do not use a telephone to report a gas leak in the vicinity of the leak.

14. Unplug the telephone from the wall outlet and refer servicing to

qualified service personnel under the following conditions:

• When the line cord is frayed or plugs damaged.

• If liquid has been spilled into the telephone.

• If the telephone has been exposed to rain or water.

• If the telephone does not operate properly by following the operating

instructions. (Adjust only those controls covered by the operating

instructions. Improper adjustment of other controls may result in

damage and will often require extensive work by a qualified

technician to restore the product to normal operation.)

• If the telephone has been dropped or the housing damaged.

• If the telephone exhibits distinct change in performance.

SAVE THESE I NSTRUCTIONS

15-101-613

TELEPHONE USAGE

SET UP/INSTALLATION

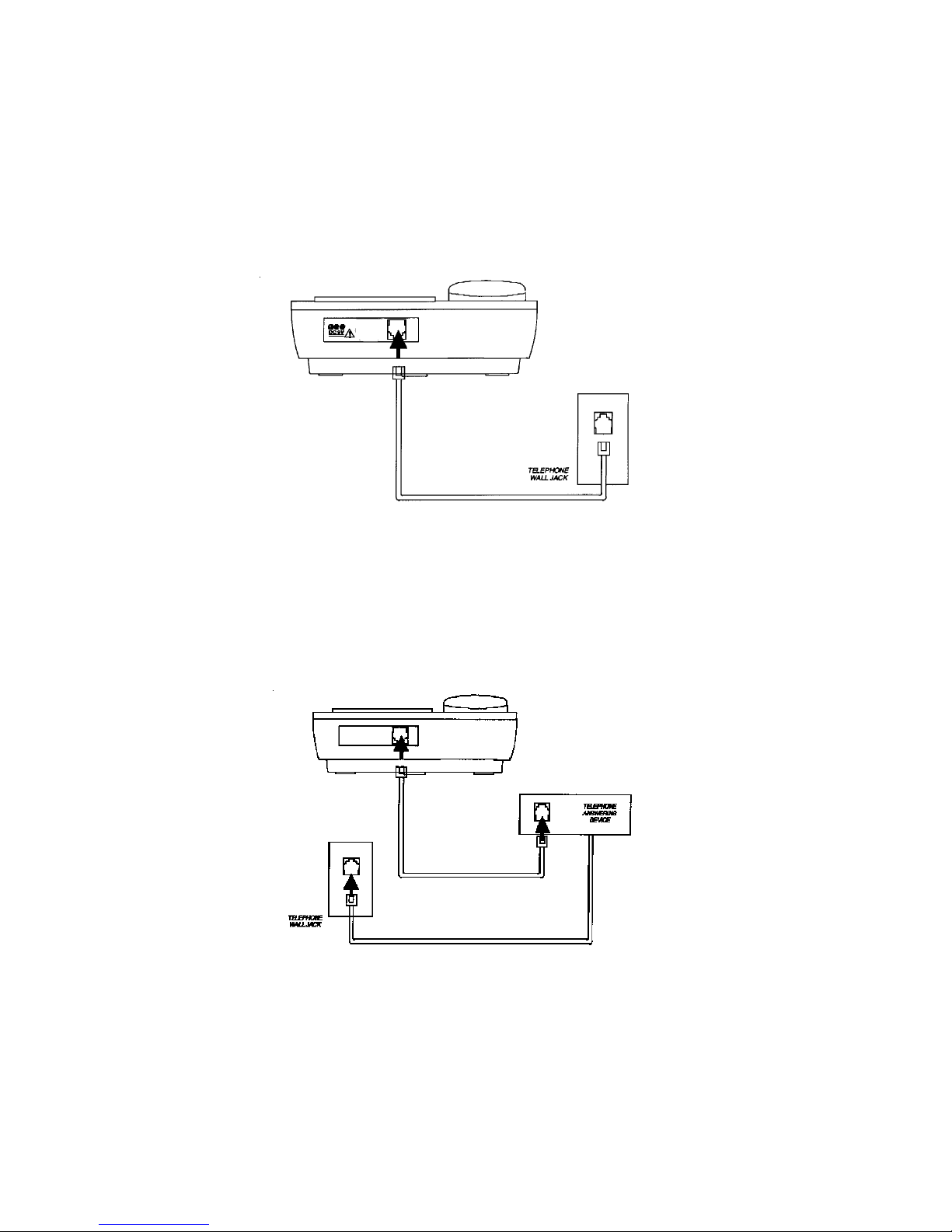

1. Connect the telephone line cord.

a. To connect without an answering machine.

•Use the new line cord to connect the PHONE jack of your new phone

to the modular wall jack.

b. To connect with an existing answering machine.

•Use the existing line cord supplied to connect the LINE jack of your answering

machine to the wall modular line jack.

•Use the new line cord supplied to connect the telephone’s jack of your new

phone to the PHONE jack of your answering machine.

•Set your answering machine to answer the phone after 2 or more rings.

2. Follow the procedure “Unit Setup” to set up your unit.

3. Place the unit on a flat table or mount it on a wall. If you desire to place it on a wall,

use the wall mount bracket and short line cord supplied to accomplish the wall

mounting.

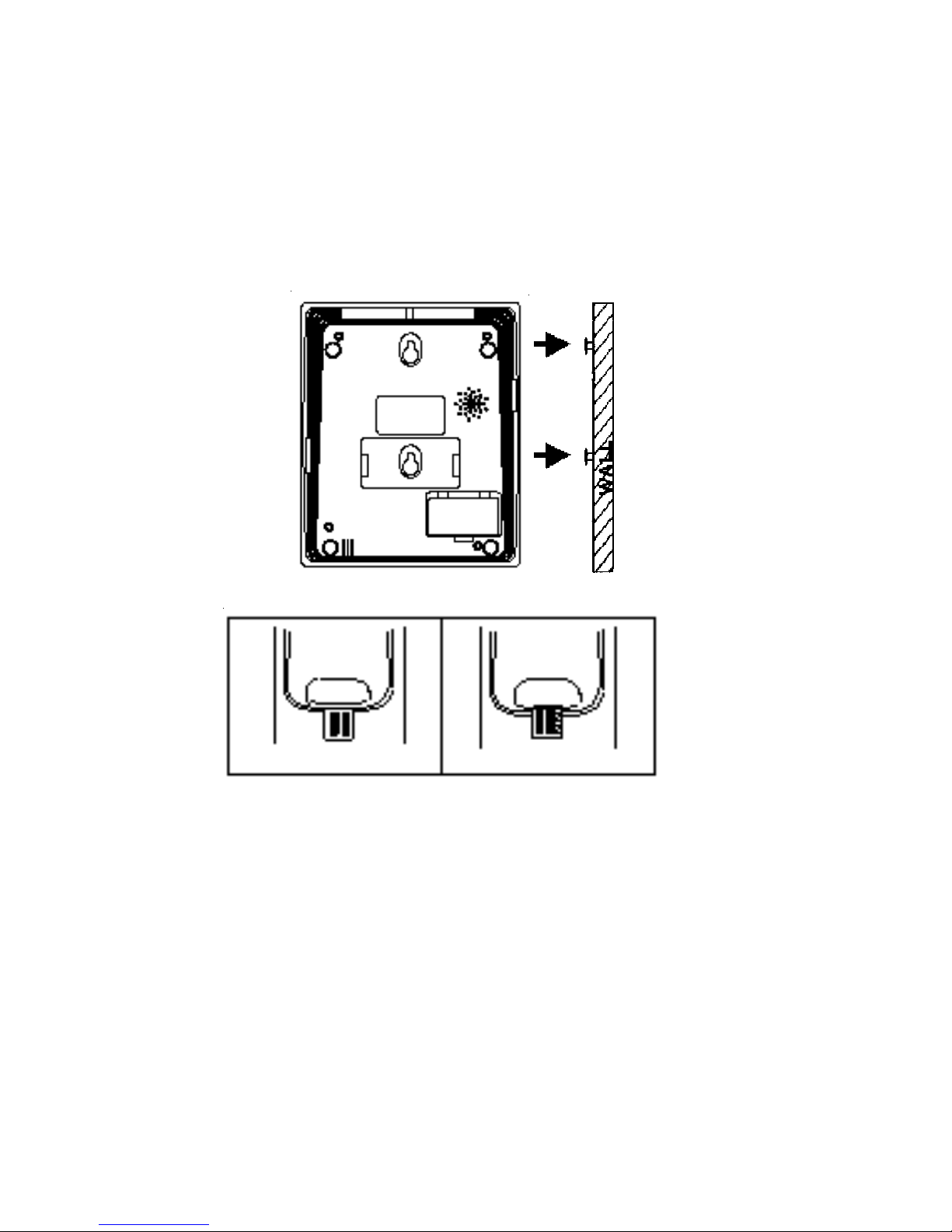

WALL MOUNT INSTRUCTIONS

Before mounting, select a wall with sufficient strength. Install wall mount bracket in

wall mount position. Connect the line cord. See Step 1 on preceding page for

specific instructions. Push out the handset hook and reattach in opposite direction

for the wall mount position, plug the coiled cord into the handset, and then plug the

other end of the cord into the base. Place the handset on the base.

Desk Top Position Wall Mount Position

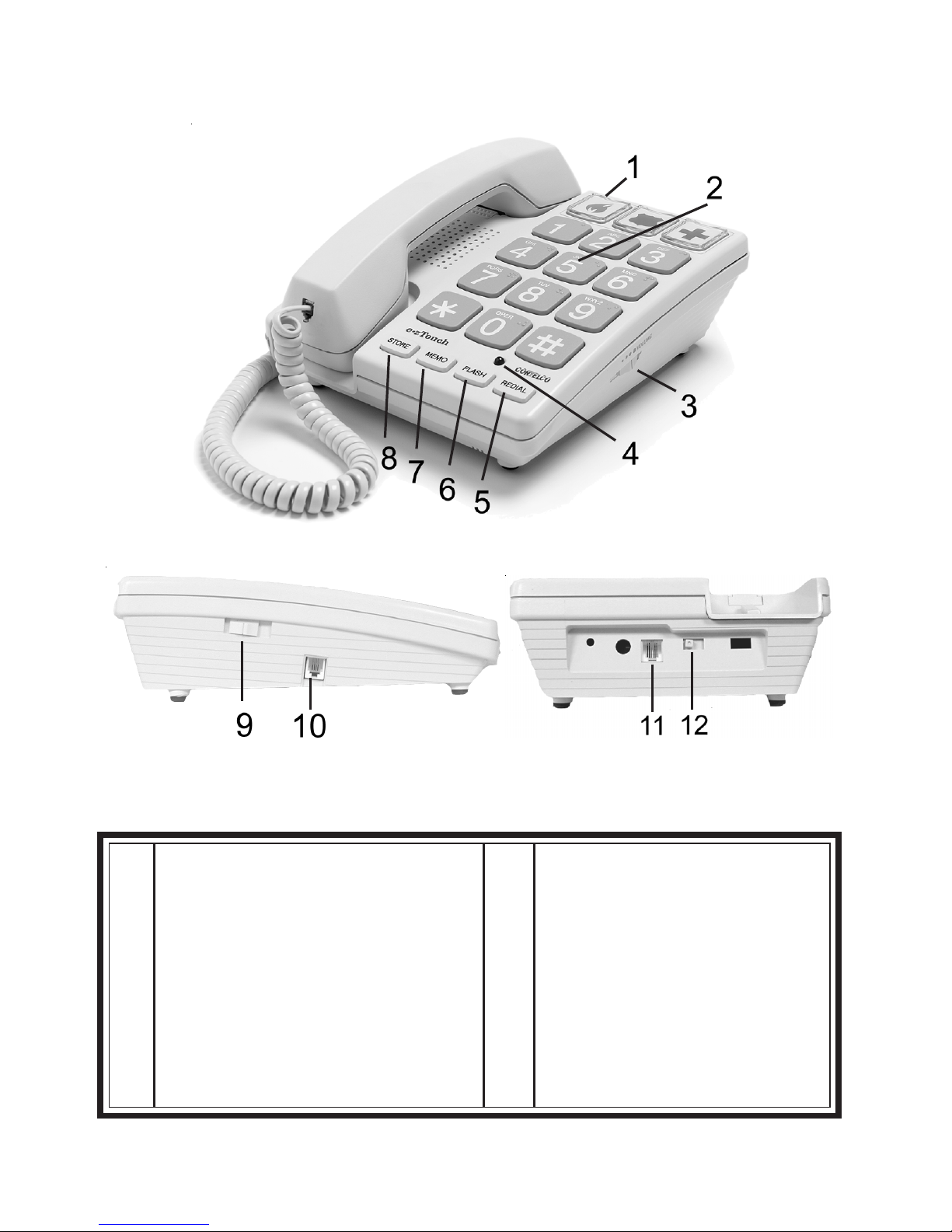

TELEPHONE PART IDENTIFICATION

1 One Touch PHOTOMemory 7 Memo Button

2 Dial Keys With Braille 8 Store Button

3 Handset Volume Control 9 Ringer Volume Control

4 Visual Ring Indicator 10 Handset Cord Jack

5 Redial Button 11 Telephone Line Jack

6 Flash Button 12 Pulse/Tone Switch

TELEPHONE FEATURES

PULSE AND TONE DIALING

1. If your telephone line accepts a touch-tone dialing, set the PULSE/TONE

switch to the Tone position.

2. If your telephone line requires a rotary (pulse) dialing, set the PULSE/TONE

switch to the Pulse position.

3. If you are unsure which system you have, set the switch to the TONE position. Lift

the handset. When you get a dial tone, dial a telephone number. If the dial tone

continues, move the switch to PULSE, and then dial the telephone number again.

RECEIVING A PHONE CALL

1. Be sure the RINGER switch is set to the HI or LOW position.

2. When the phone rings, lift the handset.

3. Set the Ringer switch to the OFF position when you do not want to be interrupted

by the phone ringing. Remember to set the Ringer switch back to Hi or Low when

you want to receive calls again.

PLACING A PHONE CALL

1. Lift the handset and wait for a dial tone.

2. Dial the telephone number you wish to call.

REDIAL BUTTON

1. If the number you dialed is busy, or you want to call the last number dialed again,

lift the handset, or press and release the hookswitch for a new dial tone.

2. Press REDIAL.

3. The last number called will automatically be redialed.

BRAILLE RAISED CHARACTERS

The braille raised characters on each key are a very important feature for the visually

impaired.

VISUAL RING INDICATOR

The Indicator flashes when you have an incoming call.

DATA PORT

This is a connection which is in parallel with the telephone line. It allows the connection

of a device such as a modem, Caller ID, or an answering machine.

FLASH BUTTON

If you have Call Waiting service, you can alternate the Call Waiting function per the

following instructions.

1. While having a conversation, another party calls and you hear a tone.

2. Press the FLASH button once and release. The first conversation is placed on hold

and the second call can be answered.

3. Press FLASH button again and release. The first caller can be spoken to again and

the second call is placed on hold.

RINGER VOLUME CONTROL

The Ringer Volume switch allows you to turn the telephone ringer Off, or to set it to ring

at Lo or Hi volume. You can dial or answer calls with the ringer off. Other telephones

in your home will still ring; they are not affected by the switch.

HANDSET VOLUME CONTROL

This allows you to adjust the voice of the incoming call for your best listening level using

the volume control switch on the side of your telephone.

STORE BUTTON

To store a number in memory, lift the handset and press the STORE button. Dial the

number you wish to store and press the STORE button again. Next press the selected

memory location button. The ezTouch telephone can store 13 different telephone num-

bers, each up to 16 digits long. To store a “Pause” in memory, use the “Redial” button.

MEMO BUTTON

The MEMO button is used to dial stored numbers. To access this feature lift the handset,

press the MEMO button and select the desired memory location (0-9). The stored

number will be dialed automatically.

Note: The MEMO button is not used with One-Touch PHOTOMemory Dialing.

ONE-TOUCH PHOTOMEMORY

Allows you to store 3 numbers in our one-touch memory buttons. Simply place your

favorite persons photo in the button faceplate.

TWO-TOUCH MEMORY

Ten telephone numbers can be stored in standard speed dialing locations. You can dial

any of these numbers by pressing memo and then the desired memory location (0-9).

ERASING NUMBERS IN MEMORY LOCATIONS

To remove a number from a memory location, lift the handset, press the STORE button

and select the desired memory location that you wish to clear.
