Cortelco Trendline 8150 Guida all'installazione

TRENDLINE

MODEL 8150 TELEPHONE

WITH VOLULME CONTROL

OWNER’S

INSTRUCTIONMANUAL

TRENDLINE

MODEL 8150 TELEPHONE

• Desk/Wall Mountable • Dial Light • Tone/

PulseSwitchableDialing•FLASH•LastNum-

berRedial•MUTE•RESET•RingerVolume

Control • Hearing-Aid Compatible

THANKYOU

FORPURCHASINGTHISTELEPHONE

Your new telephone was made

by people who take a great deal

of PRIDE in producing quality

products to assure you years of

trouble-freeservice.

We want you to know all about your new

telephone, how to install it, the features it

provides, and the services you can expect

fromitsuse.Wehaveincludedthisinformation

inyourOwner’sInstructionManual.

PLEASE READ BEFORE INSTALLING

AND USING YOUR NEW TELEPHONE.

TableOfContents

Important Safety Instructions .......................................2

Features Of Your Telephone .........................................4

Installing Your Telephone ..............................................6

Unpacking Your Telephone..............................................6

Modular Wall Jacks..........................................................6

Desk Installation...............................................................7

Wall Installation ................................................................7

Position The Cradle Tab ..................................................8

Check For Dial Tone ........................................................8

Directory Card .................................................................8

Before Using Your Telephone.......................................9

Maintenance Information ...............................................9

Telephone Service Problems .....................................10

No Dial Tone ...................................................................10

Dial Tone But No Ringing ................................................10

Dial Tone But No Dialing .................................................10

Repair of Your Telephone ............................................11

The FCC Wants You To Know ......................................12

IMPORTANTSAFETYINSTRUCTIONS

Always follow basic safety precautions when

using your telephone equipment to reduce the

risk of fire, electrical shock, and injury.

1. Read and understand all instructions.

2. Follow all warnings and instructions marked

on the product.

3. Unplug this product from the wall outlet

before cleaning. Use a damp cloth for

cleaning. Do not use liquid or aerosol

cleaners.

4. Do not use the telephone near water. For

example, do not use near a bathtub, wash

bowl, kitchen sink, laundry tub, swimming

pool, or in a wet basement.

5. Do not place this product on an unstable

cart, stand or table. The product may fall

causing serious damage to the product.

6. Use only the type power source indicated

on the label. If you are not sure of the type

of power supply to your home, consult your

dealer or local power company.

7. Donotplaceanyobjectsonthetelephoneline

cord. Do not locate this product where the

line cord will be walked on.

8. Do not block or cover ventilation slots and

openingsinthebottomofthetelephone. Never

spillliquidonthetelephoneorpushobjectsof

any kind through ventilation slots. Liquid or

objects may touch dangerous voltage points

or short out parts that could result in a risk of

fire or electrical shock.

9. To reduce the risk of electric shock, do not

disassemble this product, but take it to a

qualified serviceman when service or

repair work is required. Opening or remov-

ing covers may expose you to dangerous

voltage or other risks. Incorrect reassem-

bly can cause electrical shock when the

appliance is subsequently used.

10. Unplug this product from the wall outlet

and refer servicing to qualified service

personnel under the following conditions:

a. When the line cord is frayed or plugs

damaged.

b. If liquid has been spilled into the tele

phone.

c. Ifthetelephonehasbeenexposedtorain

or water.

d. If the product does not operate properly

by following the operating instructions.

(Adjust only those controls, that are

covered by the operating instructions

because improper adjustment of other

controls may result in damage and will

oftenrequireextensivework byaqualified

technician to restore the product to

normal operation.)

e. If the telephone has been dropped or the

cabinet damaged.

f. If the telephone exhibits distinct change

in performance.

11. Avoidusingatelephone(otherthanacordless

type) during an electrical storm. There may

be a remote risk of electrical shock from

lightning.

12. Do not overload wall outlets and extension

cords as this can result in the risk of fire or

electrical shock.

13. Donotuseatelephonetoreportagasleakin

the vicinity of the leak.

SAVETHESEINSTRUCTIONS

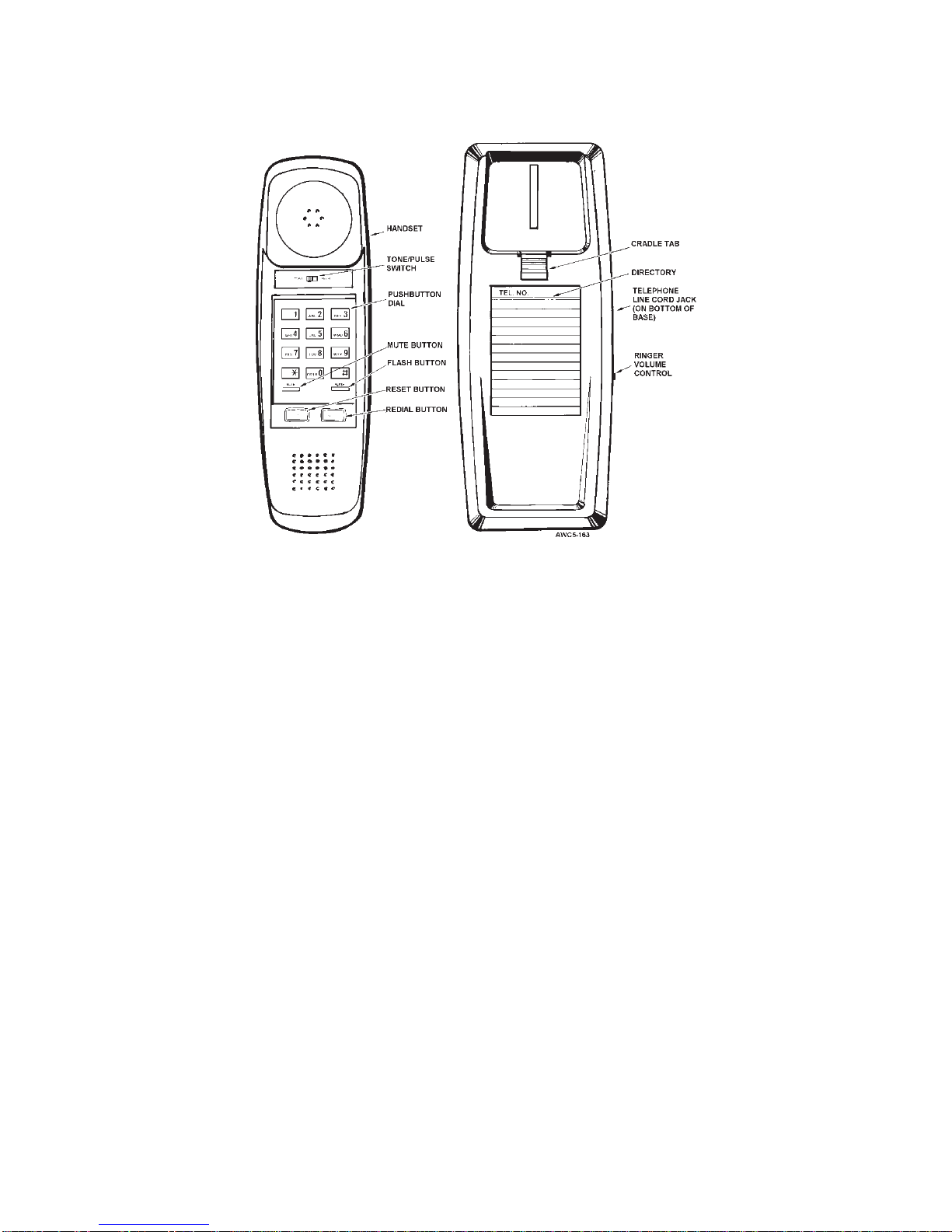

FEATURESOFYOURTELEPHONE

Hearing-AidCompatibleHandset ThehandsetonyourTrendline

telephone is equipped with a TONE/PULSE switch, a lighted dial,

MUTE, FLASH, RESET AND REDIAL buttons, and a receiver that

works with magnetically-coupled hearing aids.

TONE/PULSESwitch TheTONE/PULSE switchisusedtosetthe

type of dialing for your telephone to match the local service from

your telephone company. The PULSE position is for Pulse dialing

service. The TONE position is for Tone dialing service. (Some

telephone companies cannot accept Tone dialing.)

PushbuttonDial Thepushbuttondialisusedtodialnumbersusing

either pulse or tone dialing. The dial light is on when you lift the

handset.

MUTE Button You can press and hold the MUTE button so that

the other party cannot hear the conversation at your telephone.

You can continue to listen to the other party.

FLASH Button The FLASHbuttonsends aninterruptsignal to the

distant office. The interrupt is a 600-millisecond, timed line discon-

nect which tells the distant office that you wish to use an available

feature. The results of a FLASH signal will depend on the services

you have available.

RESET Button Use the RESET button to disconnect a call and

receive dial tone for making another call. The line remains discon-

nected for as long as you press the RESET button.

FEATURESOFYOURTELEPHONE

REDIAL Button Your Trendline telephone stores in memory the

last number dialed (32 digits maximum). You can dial the stored

number by lifting the handset and pressing the REDIAL button.

You can erase the number stored in memory by lifting the

handset and dialing any digit.

Cradle Tab The cradle tab can be positioned for desk installation

of the telephone base, or to hold the handset in place for wall

installation.

Directory Use the directory on the telephone base to record

emergency and frequently-called numbers.

Telephone Line Cord Jack Connect the modular line cord

supplied with your telephone at this jack: long cord for desk

installation; short cord for wall installation.

Ringer Volume Control The 3-position switch (located on the

side of the telephone base) is used to set ringer volume. You can

select high volume (HI), low volume (LO), or you can silence the

ringer (OFF).

Receiver Volume Control can be adjusted by use of thumb

wheel, on back of handset, to achieve an acceptable sound level

for the hearing impared user.

RJ11C RJ11W

AW04-59

INSTALLINGYOURTELEPHONE

UNPACKINGYOURTELEPHONE

Check the contents of the carton. Make sure you have a

telephone, a 12-foot handset cord, a long modular line cord, and

a short modular line cord.

If anything is missing or damaged, contact the place of

purchase.

MODULAR JACKS

To install your telephone, you must have a modular wall jack

at the desired location, or a 4-prong jack that can be modified with

a 4-prong adapter. If your telephone line does not have a modular

walljack,orajackthatcanbemodified,youmusthaveoneinstalled.

DANGER: Toreducetheriskofelectricalshockand

personalinjury,observethefollowingwheninstall-

ingstationwiring:

1. Never install telephone wiring during a light-

ningstorm.

2. Never install telephone jacks in wet locations

unless the jack is specifically designed for wet

locations.

3. Never touch uninsulated telephone wires or

terminals unless the telephone line has been

disconnected at the network interface.

4. Use caution when installing or modifying

telephonelines.

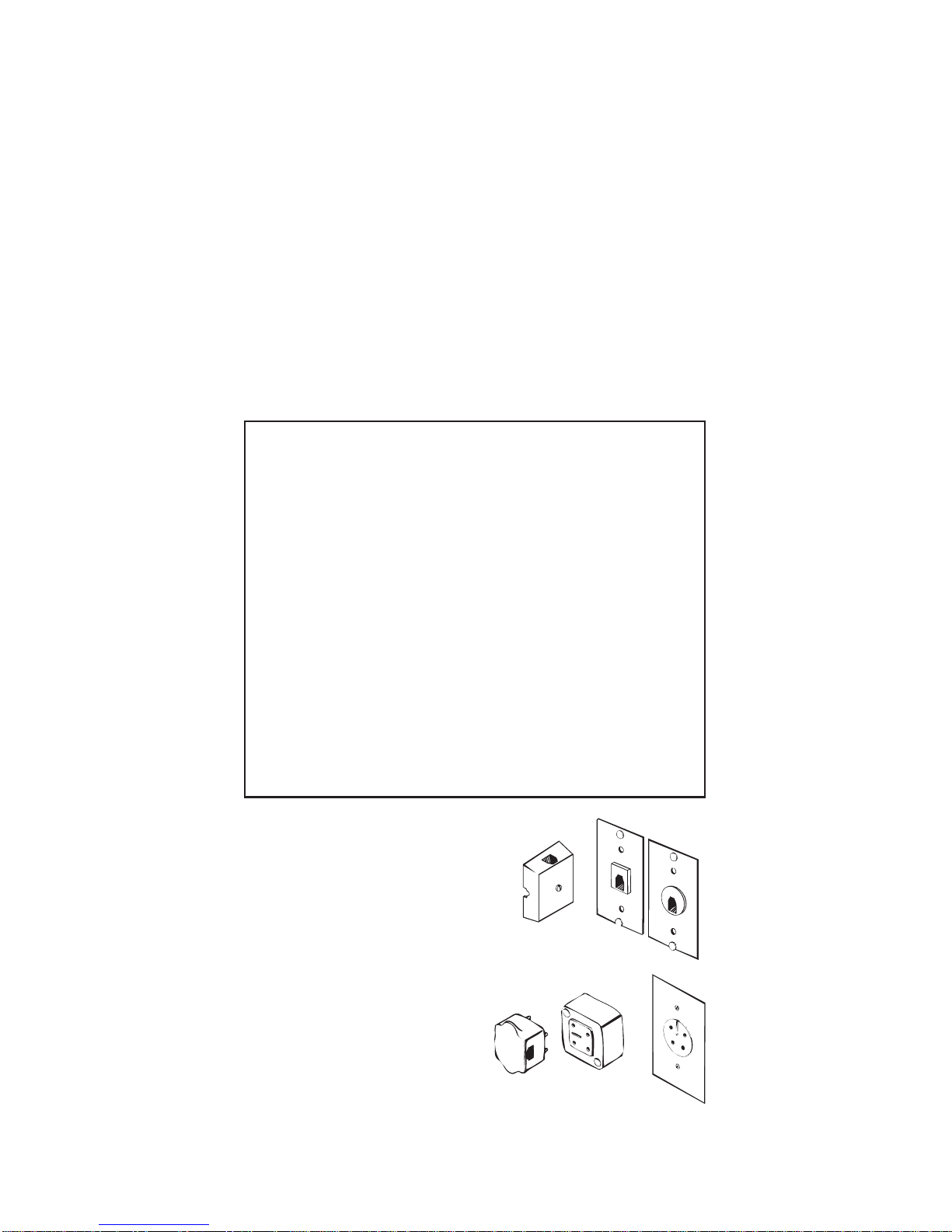

Various types of modular wall

jacks are shown to the right. The

USOCRJ11Cmodularwalljackis

fordesktelephonesandtheUSOC

RJ11W modular wall jack is for

modular wall telephones.

Various types of 4-prong wall

jacks are shown to the right along

with a 4-prong adapter. The 4-

prong adapter plugs into the wall

jack for modular wall jack service.

INSTALLINGYOURTELEPHONE

DESKINSTALLATION

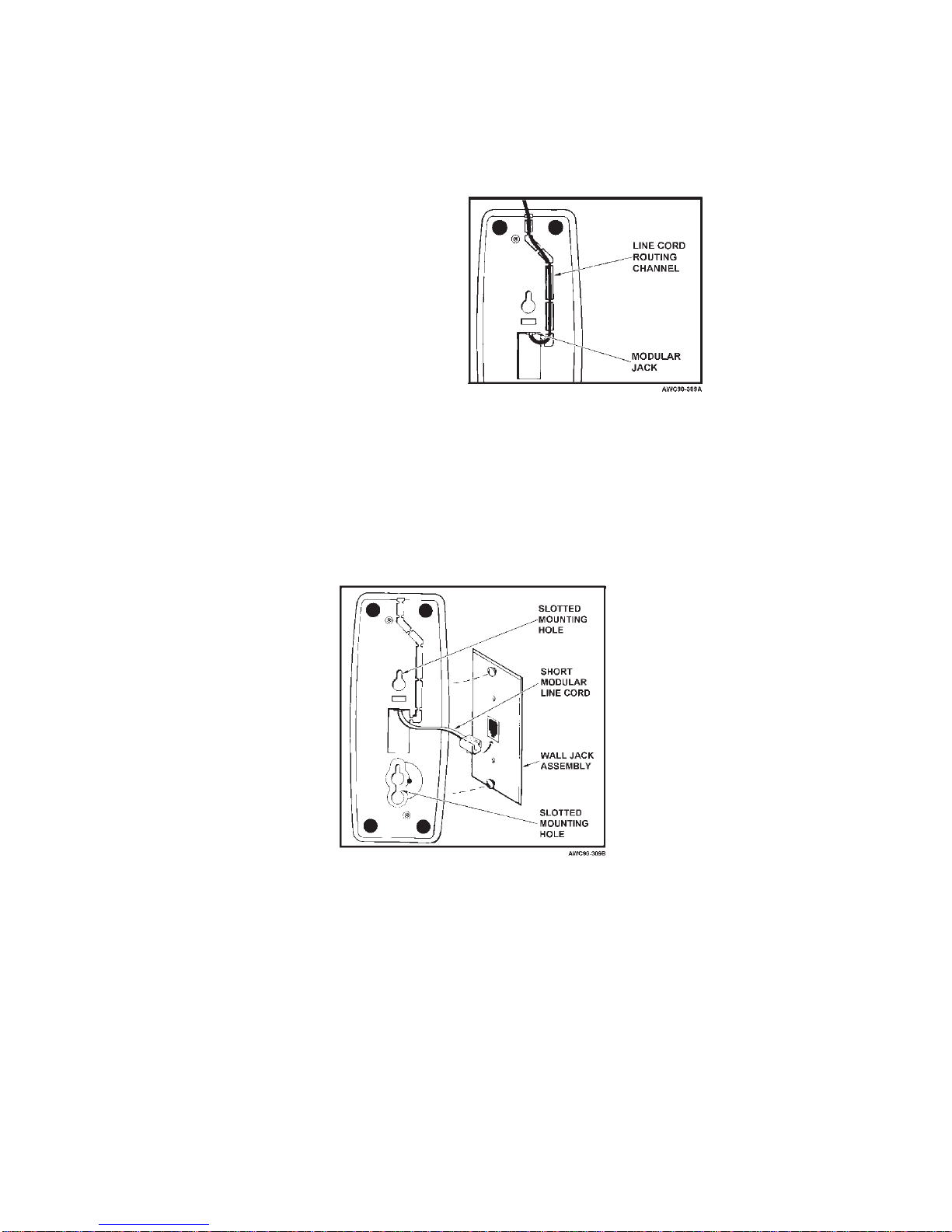

To install as a desk telephone, use the long modular line cord

provided and refer to the diagram.

•On the bottom of the

telephone base, locate

themodularjackinsidethe

cavity.Plug one endofthe

line cord into the jack.

•Route the cord as

shown through the chan-

nel to the back of the tele-

phone base.

•Plug the unattached end of the line cord into the modular

wall jack.

WALL INSTALLATION

To install a wall telephone, use the short modular line cord

provided and refer to the diagram.

•On the bottom of the telephone base, locate the modular

jack inside the cavity. Plug one end of the short line cord into

the jack.

•While holding the telephone base close to the mount-

ing location, plug the unattached end of the line cord into the

modular wall jack. Excess line cord must be folded into the

cavity.

•Note the two mounting studs on the modular wall jack.

Alignthetelephonesothat the twomounting studsare inserted

into the two slotted holes in the telephone base. Slide the

telephone down until it is tightly seated.

INSTALLINGYOURTELEPHONE

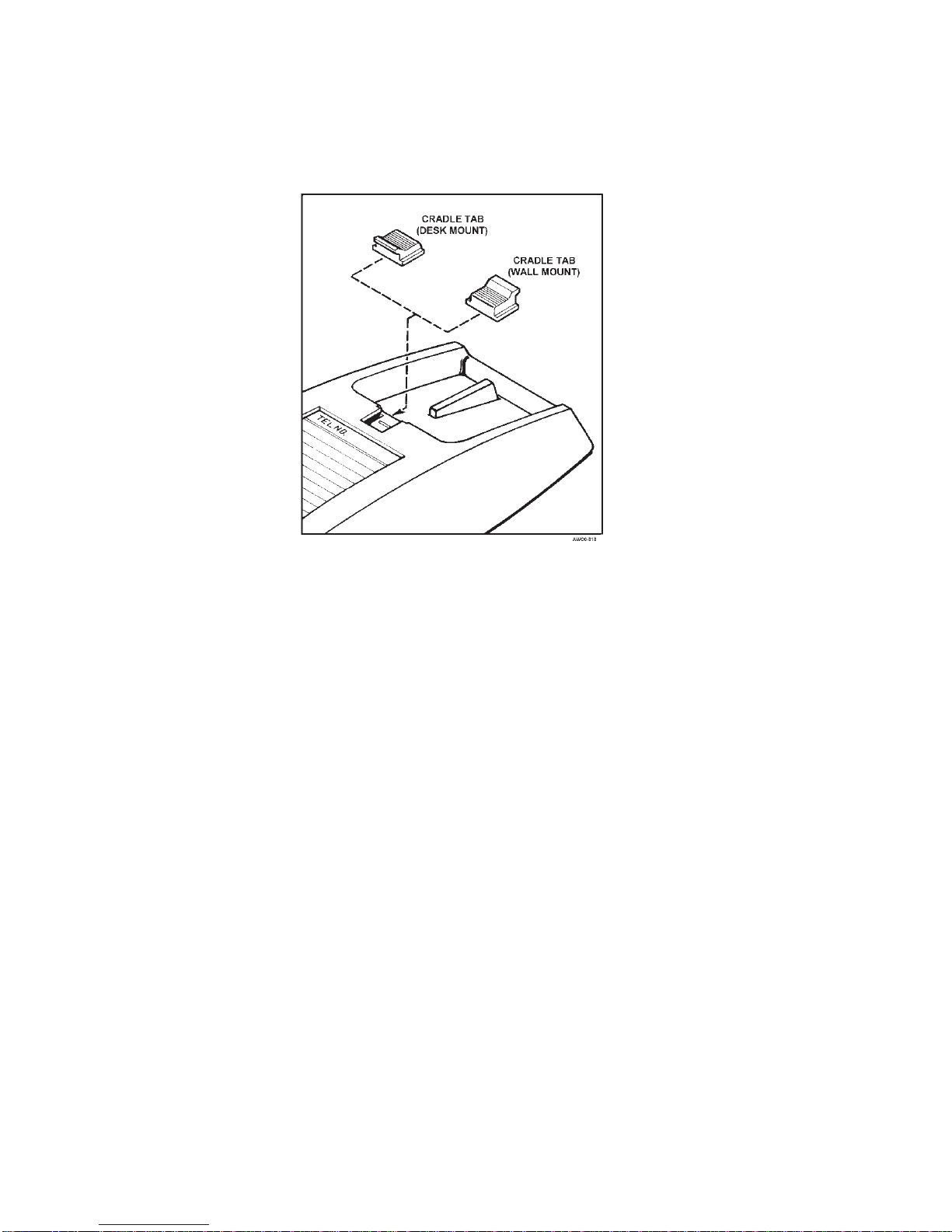

POSITIONTHECRADLETAB

To position the cradle tab for the type of installation

desired, refer to the diagram.

• Apply upward pressure on the serrated area to loosen and

remove the cradle tab.

• Rotate the cradle tab for the desired position. The tab should

be up for hanging the handset in a wall installation or down for

a desk installation.

• Apply downward pressure on the serrated area to lock the

cradle tab in place.

CHECKFORDIALTONE

Lift the handset and listen for dial tone.

•When you hear dial tone, your telephone is ready to use.

•If you do not hear dial tone, refer to the Telephone Service

Problems part of your manual.

DIRECTORYCARD

Remove the clear plastic cover from the directory card

tray, and remove the card. Record your frequently called and

emergency telephone numbers. Place the card into the tray and

reinstall the plastic cover.

Indice

Altri manuali Cortelco Telefono

Cortelco

Cortelco Select 3719 Manuale utente

Cortelco

Cortelco 2705 Guida all'installazione

Cortelco

Cortelco Patriot Guida all'installazione

Cortelco

Cortelco VALUE 2500 VBA-20MD Series Manuale utente

Cortelco

Cortelco Tel-Flash 2500 Guida all'installazione

Cortelco

Cortelco 2730 Guida all'installazione

Cortelco

Cortelco ITT-9150-ASH Manuale utente

Cortelco

Cortelco Tel-Flash 2554 Manuale utente

Cortelco

Cortelco 122000TP227S Manuale utente

Cortelco

Cortelco 9150 Manuale utente

Cortelco

Cortelco Patriot II 2194**V0E27S Guida all'installazione

Cortelco

Cortelco CENTURION EXTENDED BASIC TELEPHONE Guida all'installazione

Cortelco

Cortelco 1201 Guida all'installazione

Cortelco

Cortelco Select 3719 Guida all'installazione

Cortelco

Cortelco Colleague 2210 Manuale utente

Cortelco

Cortelco 2730 Manuale utente

Cortelco

Cortelco ez TOUCH Guida all'installazione

Cortelco

Cortelco 915044V0E21J Manuale utente

Cortelco

Cortelco Sentry 8790 Manuale utente

Cortelco

Cortelco 2730 Guida all'installazione

Cortelco

Cortelco Patriot II Guida all'installazione

Cortelco

Cortelco Colleague 2204 Guida all'installazione

Cortelco

Cortelco 2194**VOE27S Guida all'installazione

Cortelco

Cortelco 2500XX-VBA-20MD Manuale utente

Manuali Telefono popolari di altre marche

GE 2-9480 Manuale utente

Geemarc

Geemarc PHOTOPHONE 155 Manuale utente

D-Link

D-Link DWR-720/PW Manuale utente

Interquartz

Interquartz Gemini IQ333 Manuale utente

SSS Siedle

SSS Siedle HT 840-0 Manuale utente

Motorola

Motorola TITANIUM Manuale utente

Panasonic

Panasonic ICX Manuale utente

LG H870DS Manuale utente

Samsung

Samsung GT-I9500 Manuale utente

AT&T

AT&T Trimline 205 Manuale utente

Selta

Selta zenyth 600 Manuale utente

Doro

Doro AFTI 20 Manuale utente

UNIQCELL

UNIQCELL A1 Manuale utente

Panasonic

Panasonic KX Series Manuale utente

Jabra

Jabra SP5050 - Bluetooth hands-free Speakerphone Manuale utente

BT Decor 425 Manuale utente

NEC

NEC SV8500 Manuale utente

Teledex

Teledex PEARL Manuale utente
