Cosco VENUTRA Manuale utente
COMMUTER, VENUTRA, HIGH BACK
BOOSTER CAR SEAT
Forward Facing: 22-40 lb and 34-43 in.
And at least 1 year old
(10.1-18 kg and 85.1-110 cm)
Belt-Positioning Booster: 40-80 lb and 43-52 in.
And at least 3 years old
(18.1-36.3 kg and 110.1-132.1 cm)
KEEP INSTRUCTIONS FOR FUTURE USE.
Read all instructions before using this child restraint.
Failure to follow the warnings on the labels and in the
instruction manual can result in serious injury or death
to your child.
LOWER
ANCHOR
Page 19
TETHER
Page 26
FUNSMARTSIMPLE
©2016 Dorel Juvenile.All Rights Reserved.
www.coscokids.com
4358-7082 9.20.16
FORWARD FACING
with internal harness
22-40 lb (10.1-18 kg)
34-43 in. (85.1-110 cm)
At least 1 year old

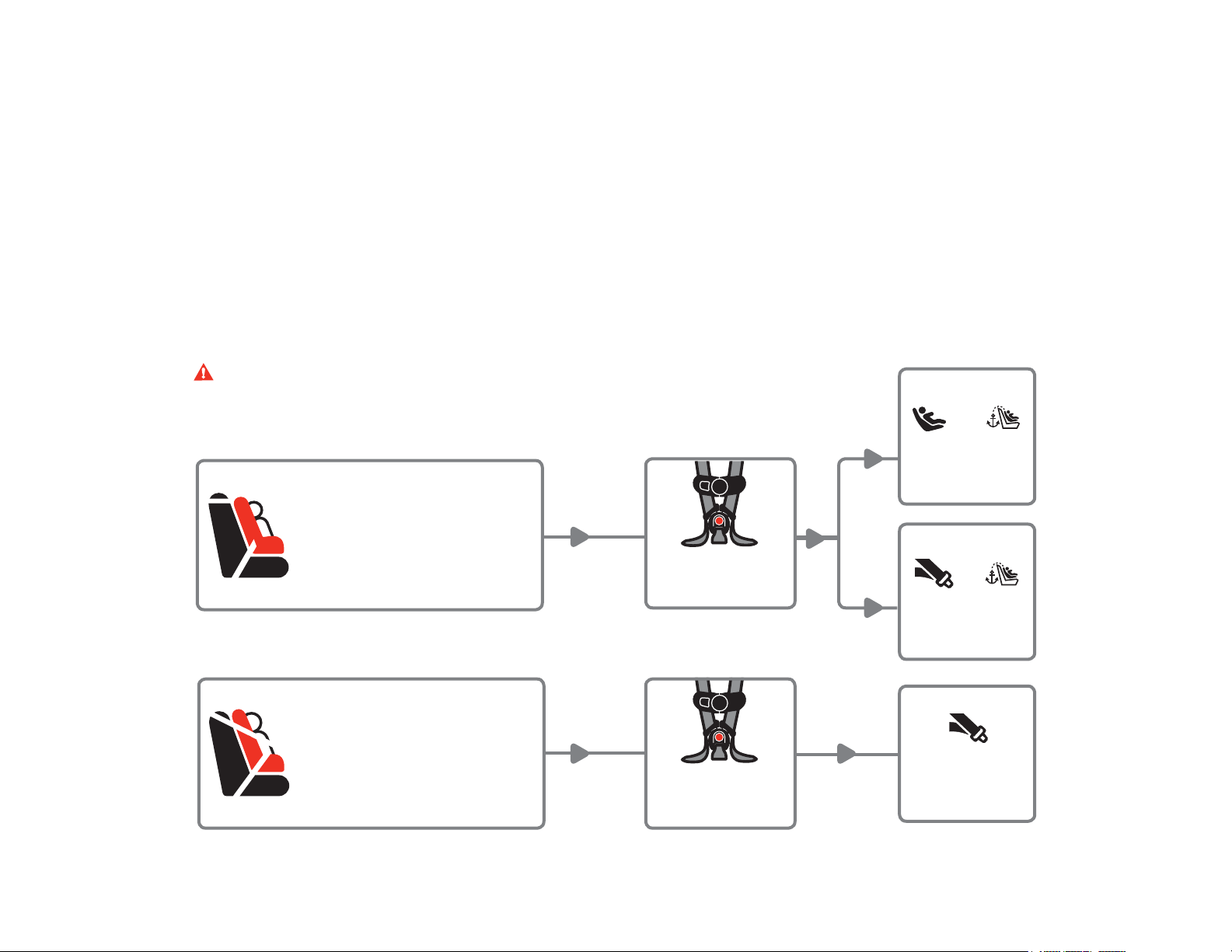

Choosing Forward Facing or Booster Seat
Your child’s height, weight, and age determine how your child
restraint should be placed in the vehicle.
Children up to 1 year of age must ride rear facing.
The American Academy of Pediatrics recommends that children
should remain rear facing until they are at least 2 years old.
Please talk to your doctor about the best option for your child.
This child restraint must always be used forward facing-
with the internal harness system or as a booster seat.
WARNING: Verify your child’s weight and height
(do not guess) before choosing the child restraint’s
placement.
Vehicle Belt Install
Page 30
Lap and Shoulder
Belt Install
Page 33
+
BOOSTER SEAT
40-80 lb (18.1-36.3 kg)
43-52 in. (110.1-132.1 cm)
At least 3 years old
See page 3 to
adjust internal
harness system
See page 9 to
remove internal
harness system
Lower Anchor Install
Page 27
+
Table of Contents
Getting Started......................................1
Parts of the Child Restraint.................................1
Prepare Child Restraint to Fit Your Child..............3
How Does Your Child Fit?...................................4
Changing Position of Shoulder Harness Strap........5
Securing Child in Child Restraint.........................7
General Use............................................9
Removing Harness System.................................9
Removing Seat Pad for Cleaning.........................11
Installing Harness System..................................13
Accessories......................................................16
Safety Information .................................17
Child Restraint Use............................................17
Installation in Vehicle.........................................17
Vehicle Seating Position.....................................18
Vehicle Information................................ 19
Choosing Lower Anchor or Vehicle Belts..............19
Knowing Your Vehicle Belts.................................21
Aircraft Information ...........................................24
Forward Facing......................................25
Tether Use..................................................26
Lower Anchor Installation.............................27
Vehicle Belt Installation................................30
Booster Seat...........................................32
Lap and Shoulder Belt Installation.................33
Important Information ........................... 34
Using a Locking Clip..........................................34
Dorel Juvenile Group Information........................37
Troubleshooting.................................................38
Registration and Safety Notices..........................39
Replacement Parts Order Form...........................40
Warranty...........................................................42

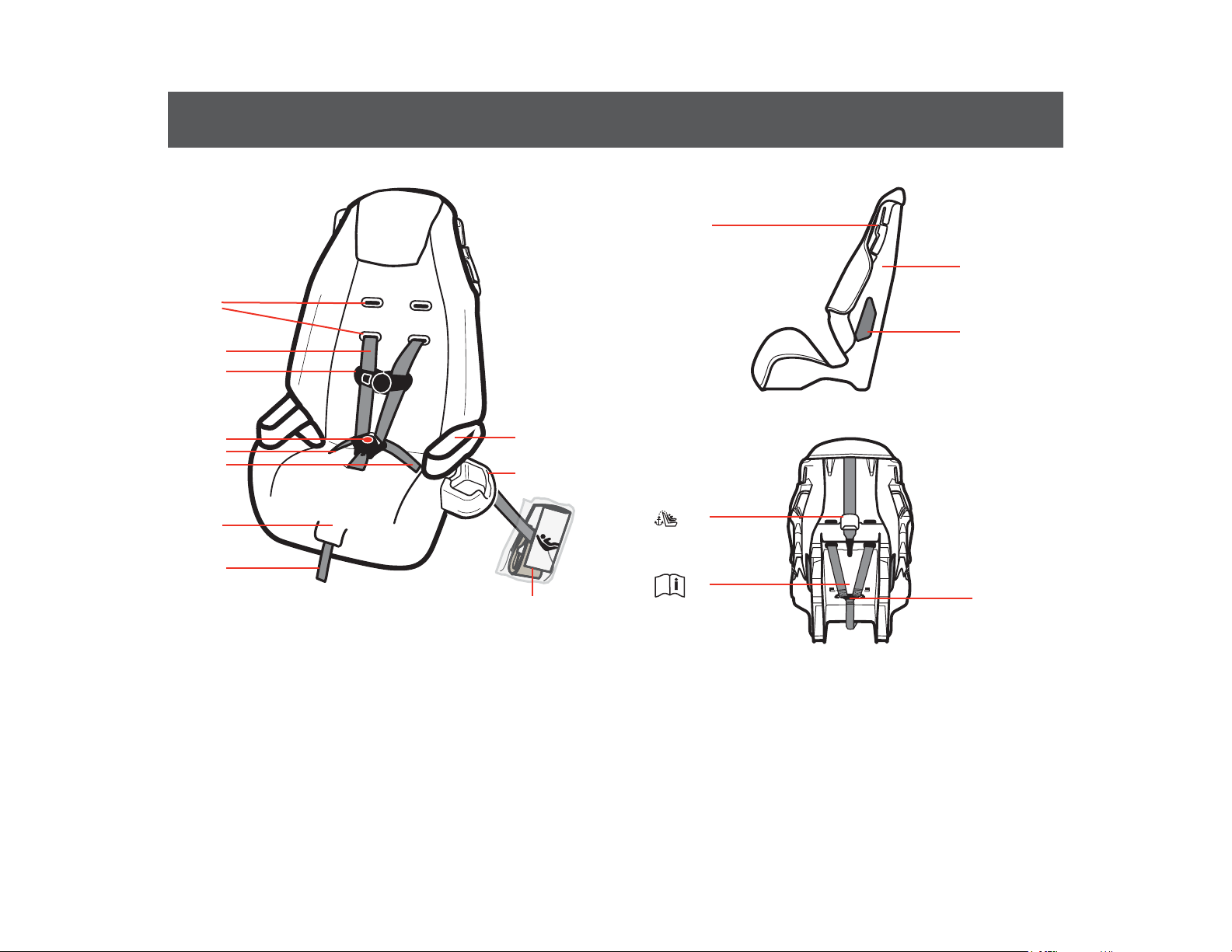

Parts of the Child Restraint
1 2
Side View
Front View
Back View
K
N
O
M
L
P
B
A
C
D
E
F
G
I
H
K. Belt-Positioning
Guide
L. Shell (child restraint)
M. Forward-Facing
Belt Path
N. Tether (see page 26)
O. Instruction Manual
Storage
P. Splitter Plate
A. Shoulder Harness
Slots
B. Harness Strap
C. Chest Clip
D. Buckle
E. Hip Harness Slots
F. Harness Release
Lever (under flap)
G. Harness
Adjustment Strap
H. Armrests
(on select models)
I. Cup Holder
(see page 16)
J. LowerAnchor Belt
(see page 19)
J
Prepare Child Restraint to Fit Your Child How Does Your Child Fit?
3 4
1. Fully Loosen Harness
Strap
Push down on harness release lever
(under flap on front of seat pad)
while pulling out on harness straps
as shown.
3. Release Chest Clip
Press on chest clip release button
and pull apart.
Place harness straps out of the way.
2. Unbuckle Harness
Press in towards the top of the red
button.
Pull buckle tongues out.
4. Place Child in Child
Restraint to Determine
Proper Harness Fit
The child’s bottom and back should
be flat against the child restraint.
See page 4 for fit guidelines.
FORWARD FACING
with Internal Harness

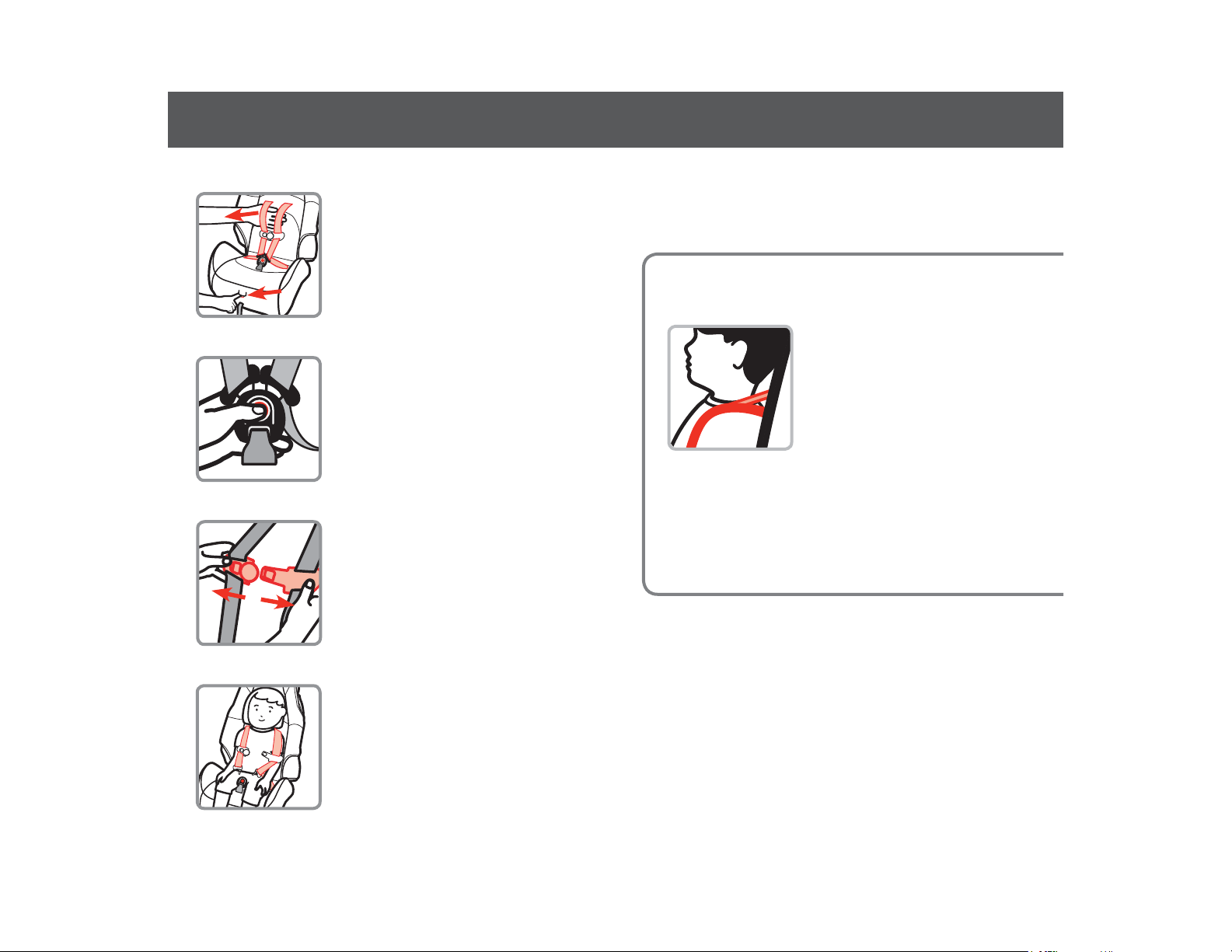

Use the guidelines below to determine if the harness strap
is in the right place for your child.
Always choose the shoulder harness
slot that is closest to your child’s
shoulder height.
Harness strap MUST be at or
slightly above shoulders.To make
changes to the harness strap,see
pages 5-6.
If the highest shoulder harness slots are below the child’s
shoulders,and the child weighs at least 40 lb (18 kg) and is
at least 3 years old,you must convert the child restraint to a
booster seat.
To prepare seat as a booster,see pages 9-10.

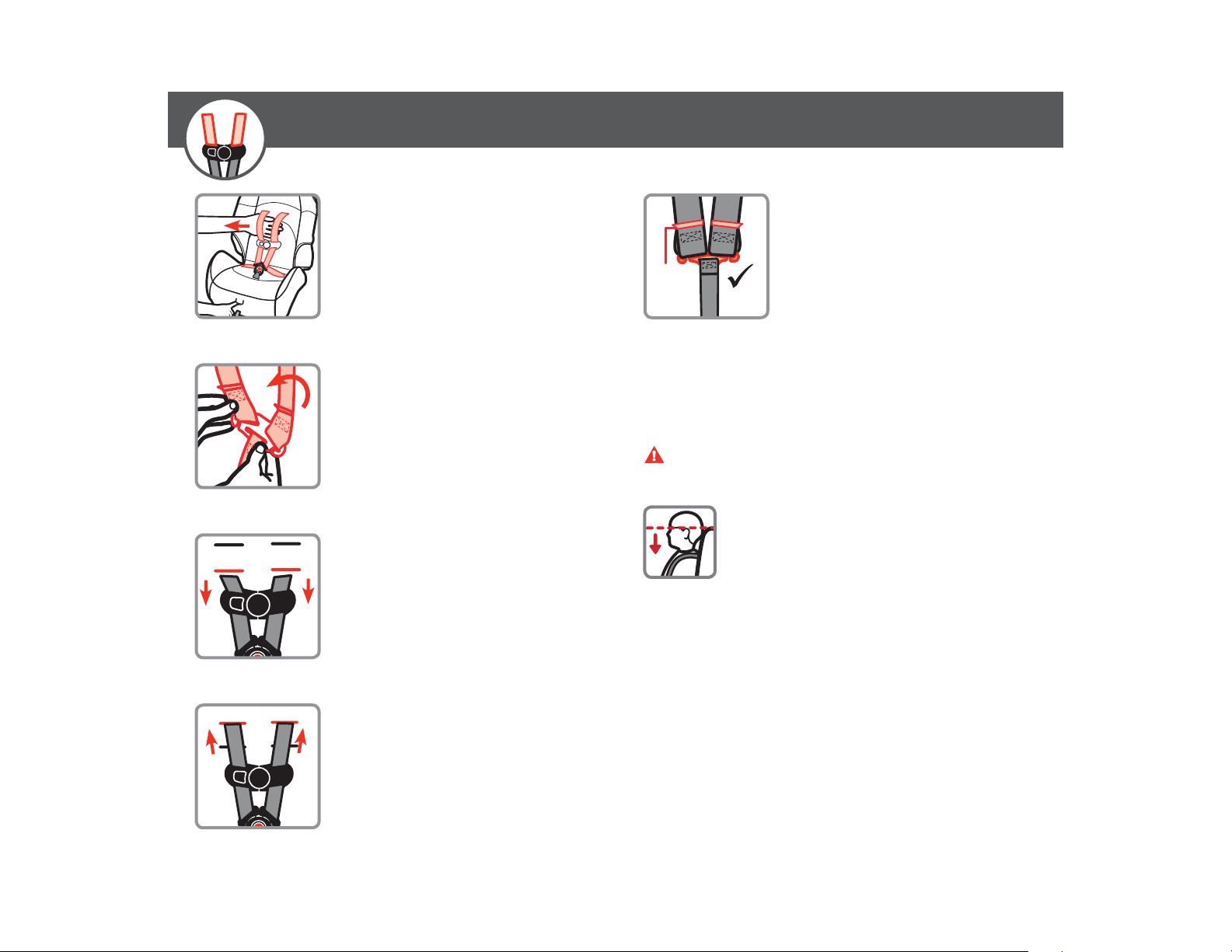

Changing Position of Shoulder
Harness Strap
5 6
1. Fully Loosen Harness
Strap
Push down on harness release lever
(under flap on front of seat pad)
while pulling out on harness straps
as shown.
2. From Back, Remove
Harness Strap Loops
From Splitter Plate
3. Pull Harness Strap Out of
Shoulder Harness Slots
4. Rethread Harness Strap
into Correct Shoulder
Harness Slots For Your
Child
See page 4 for fit guidelines.
5. Attach Harness Strap
Loops to Splitter Plate
As Shown
Sewn ends of the harness strap
loops MUST face towards you.
DO NOT twist harness strap or
harness adjustment strap.
Make sure the loops are fitted
COMPLETELY ON both sides of
the splitter plate.
sewn
end
WARNINGS: Make sure that harness height is correct
for your child’s size.
Do not use this child restraint forward facing if
the tops of your child’s ears are above the top
of the child restraint.
Failure to follow these steps can result in serious injury or
death.

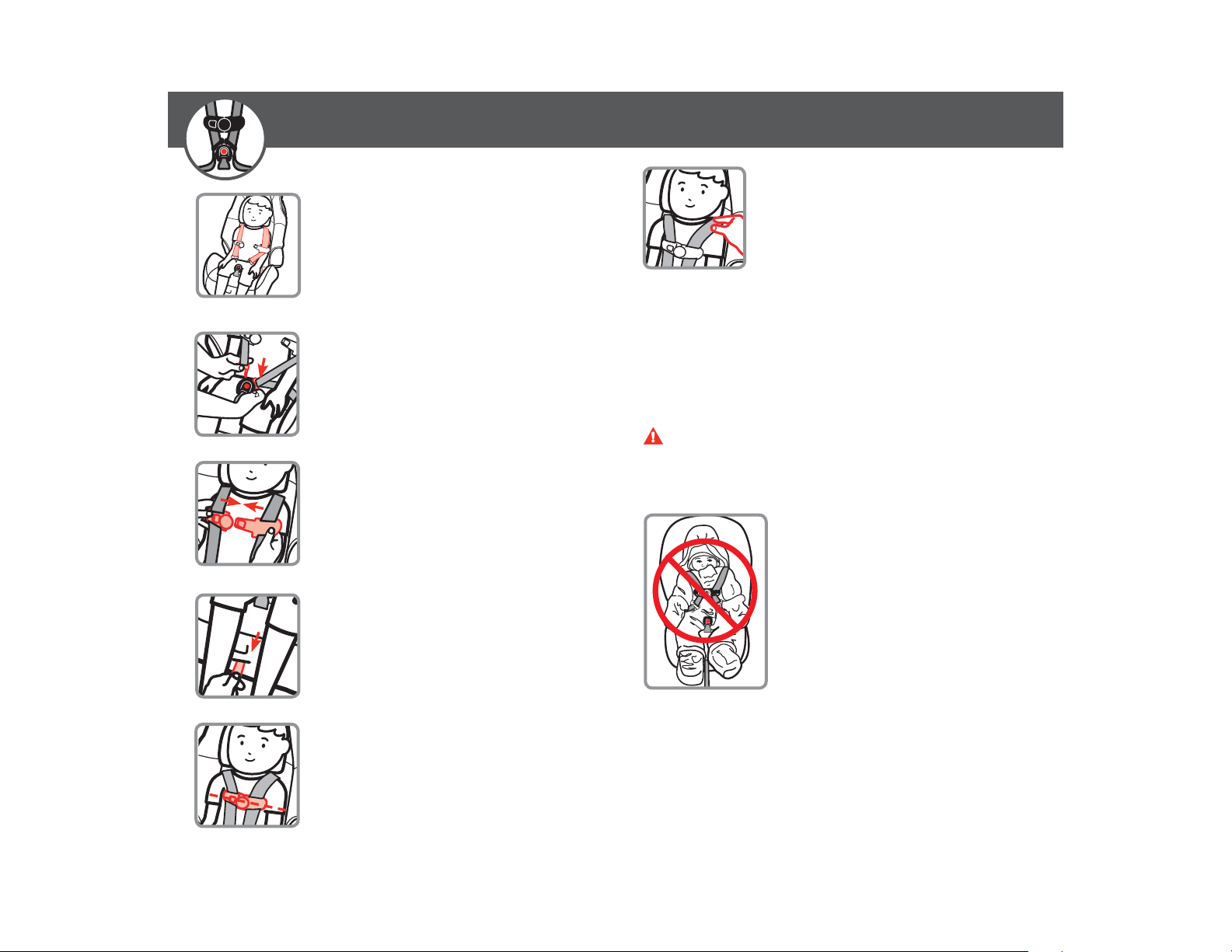

Securing Child in Child Restraint
7
1. Place Child in Child
Restraint
The child’s bottom and back should
be flat against the child restraint.
Position harness strap over child’s
shoulders and upper thighs.
3. Close Chest Clip
Insert right half of chest clip into
left half and snap together.
2. Buckle Harness
Push buckle tongues into buckle
until you hear them “click.”
Pull up on harness strap to make
sure buckle is locked.
4. Tighten Harness
Pull on harness adjustment strap to
tighten harness snugly.
8
6. Check Harness Tightness
Try to pinch the harness at the shoulders
vertically between index finger and thumb
as shown.
If your fingers slip off, the harness is
tight enough.
If you can pinch the harness strap, tighten more.The harness
strap should be snug throughout their length.
A snug strap should not allow any slack.It lies in a relatively
straight line without sagging.It does not press on the child’s
flesh or push the child’s body into an unnatural position.
5. Position Chest Clip
The chest clip must be placed at
mid-chest (even with armpits) and
away from the child’s neck.
WARNINGS: Failure to fasten and tighten the harness
system correctly may allow the child to be ejected from the
child restraint in a crash or sudden stop causing serious
injury or death.
Do not mistake comfort for safety.
Harness system must be snugly
adjusted.
DO NOT put snowsuits or bulky
garments on your child when placing
them in the child restraint.
Bulky clothing can prevent the har-
ness straps from being tightened
properly.
To Remove Child From Child Restraint
1.Loosen Harness Strap
2.Unbuckle Harness
3.Release Chest Clip
4.Remove Child

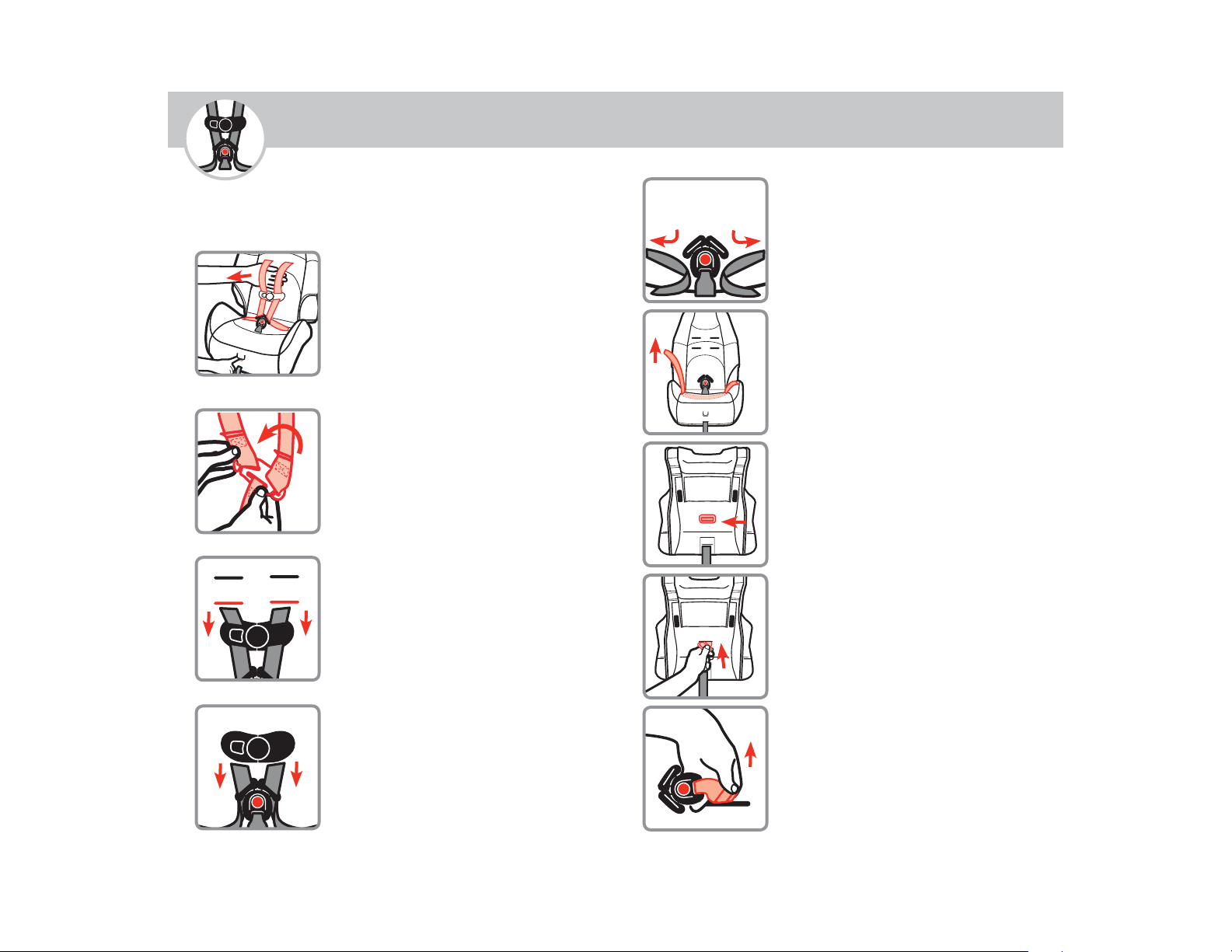

Removing Harness System
109
Only remove the harness system to clean seat pad or when
changing child restraint to a booster seat.
1. Fully Loosen Harness
Straps
Push down on harness release lever
(under flap on front of seat pad)
while pulling out on harness straps
as shown.
2. From Back, Remove
Harness Strap Loops
From Splitter Plate
3. Pull Harness Strap Out of
Shoulder Harness Slots
4. Unthread Chest Clip
8. Rotate Metal Retainer
and Push It Up Through
Shell and Pad
9. From Top of Seat,
Pull Buckle Out of Shell
Store the buckle and harness strap in
a safe place for future use.
7. Turn Seat Over
Locate buckle’s metal retainer on
bottom of shell.
6. Pull Harness Strap Out of
Seat
5. Unthread Buckle
Do not unbuckle the buckle.
12

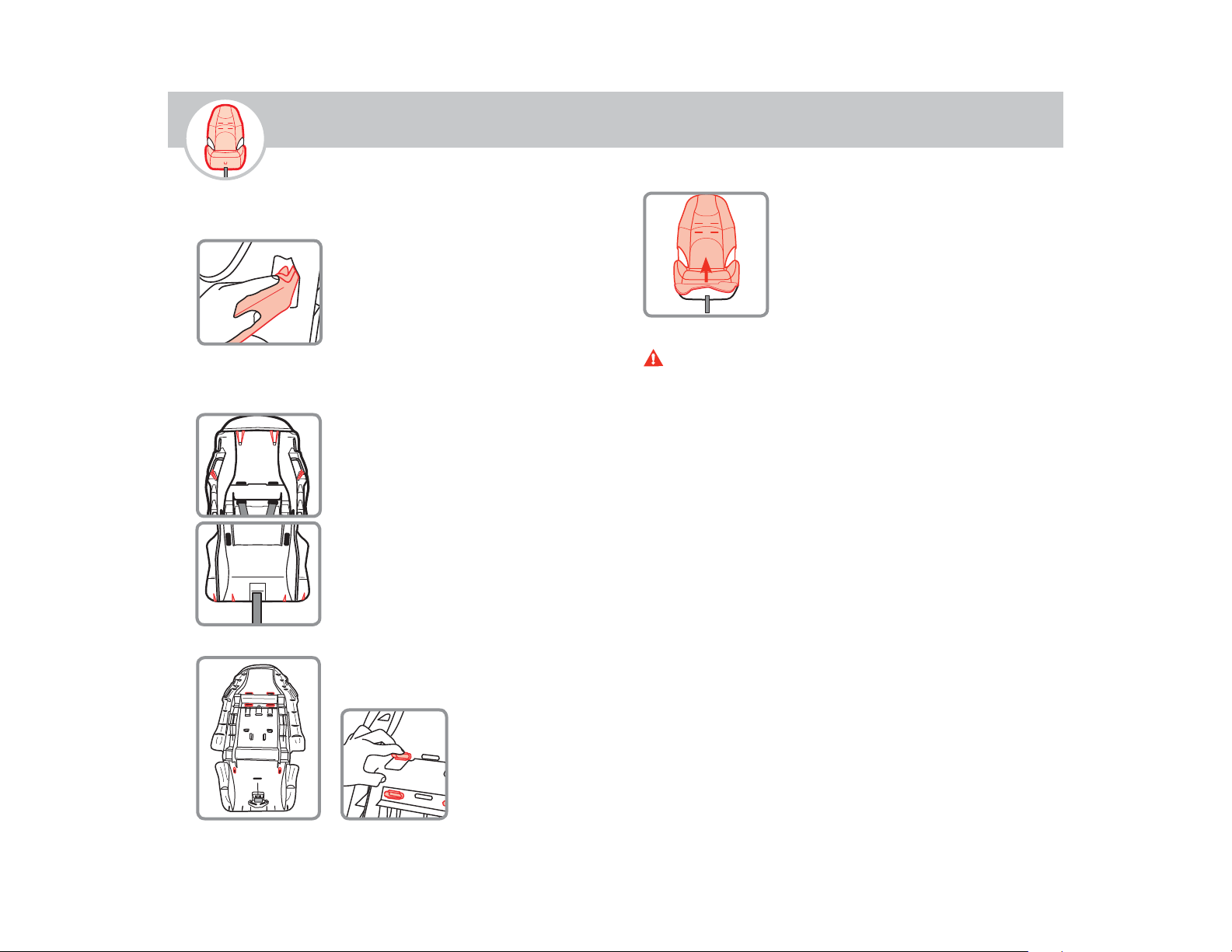

XXXXXXRemoving Seat Pad for Cleaning
2. Release Elastic Straps on
Back and Bottom of the
Shell
4. Remove Pad
Pull pad off the bottom of child
restraint and remove pad.
You must remove the harness system to remove the pad
from the shell. See pages 9-10.
WARNINGS: Do not use child restraint without the seat
pad. Failure to do this can result in serious injury or death.
If your seat pad has machine washable tag:
Machine wash separately with cold water on a gentle cycle. Do
not use bleach. Tumble dry separately for 10-12 minutes on low
heat. Remove immediately.
If your seat pad does not have machine washable tag:
Hand wash pad with warm sudsy water, rinse clean and air dry.
Spot clean the harness straps. Do not use bleach or use other
harsh cleaners. Do not dry clean.
Cleaning Harness Straps
Spot clean using warm sudsy water and damp cloth.
Replace Pad
Starting from bottom of child restraint, slip pad on shell. Pull
harness adjustment strap through pad. Wrap pad around the top
of shell. Attach all of the elastic straps. Install harness guides and
armrest covers (onselect models).
Install harness system, see pages 13-15.
11
3. Remove Harness Guides
(on select models)
Push down on one
edge with one hand
and pulling out from
the front side with
the other.
1. Remove Armrest
Covers (on select
models)
If your child restraint has
armrests, pull armrest covers off
armrests and pull through hole in
back of shell.
13 14

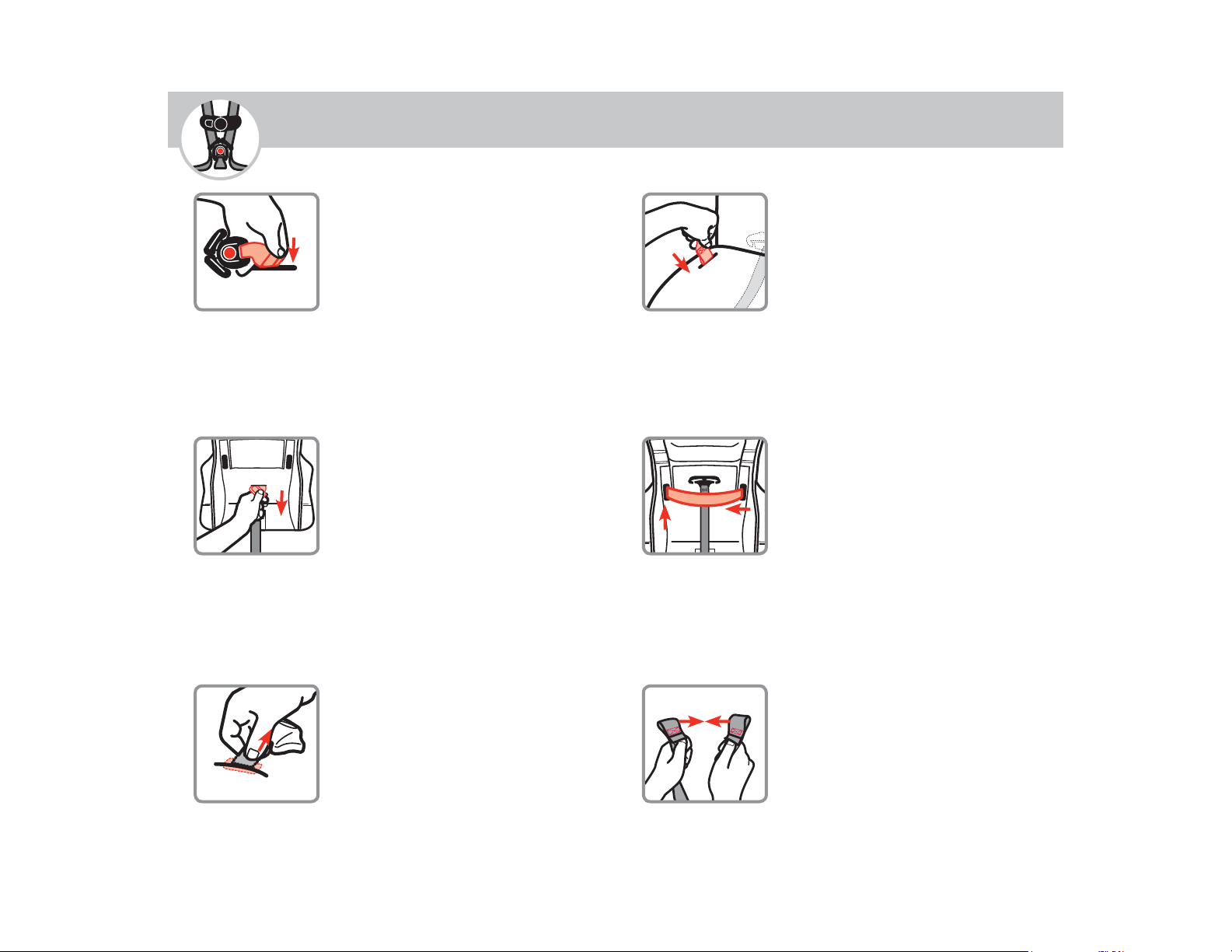

Installing Harness System
1. Insert Buckle’s Metal
Retainer into Slot
Buckle MUST face out.
3. Check Buckle
Pull up on buckle to make sure it is
secured.
The buckle MUST not pull out.
4. Rethread Harness Strap
With sewn end of harness strap
loop facing the buckle, thread
harness strap down through hip
harness slot.
2. Pull Metal Retainer
Completely Through
Pad and Shell
5. Pull Harness Strap Across
Bottom of Shell
Harness strap MUST lay in front
harness adjustment strap as shown.
Push harness strap up through other
hip harness slot.
6. Make Harness Strap Even
Sewn ends of harness strap loops
MUST face each other.
continued on next page
Questo manuale è adatto per i seguenti modelli
2
Indice
Altri manuali Cosco Seggiolino auto
Cosco
Cosco Commuter Manuale utente
Cosco
Cosco MIGHTYFIT LX Manuale utente
Cosco
Cosco Scenera Next Manuale utente
Cosco
Cosco Apt 40RF Manuale utente
Cosco
Cosco Scenera Next Manuale utente
Cosco
Cosco 22859 Manuale utente
Cosco
Cosco Scenera Next Manuale utente
Cosco
Cosco BC027ASW Manuale utente
Cosco
Cosco RISE Manuale utente
Cosco
Cosco Light 'n Comfy Manuale utente
Cosco
Cosco Scenera Next Manuale utente
Cosco
Cosco Stack-It! Manuale utente
Cosco
Cosco MIGHTY FIT 65 Manuale utente
Cosco
Cosco FINALE Manuale utente
Cosco
Cosco Pronto Manuale utente
Cosco
Cosco LIGHT 'N COMFY 35 Manuale utente
Cosco
Cosco HIGHBACK 2-in-1 Istruzioni per l'installazione
Cosco
Cosco Pronto Manuale utente
Cosco
Cosco EASY ELITE Manuale utente
Cosco
Cosco APT 50 Manuale utente
