Costar Video Systems Central Point CR08CI00 Manuale utente

Quick Guide

4/8/16/32 Channel NVR

(Network Video Recorder)

Please read this manual thoroughly before use and keep it handy for future reference.

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EX-

POSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY

METALLIC OBJECT THROUGH THE VENTILATION GRILLS OR OTHER

OPENNINGS ON THE EQUIPMENT.

CAUTION

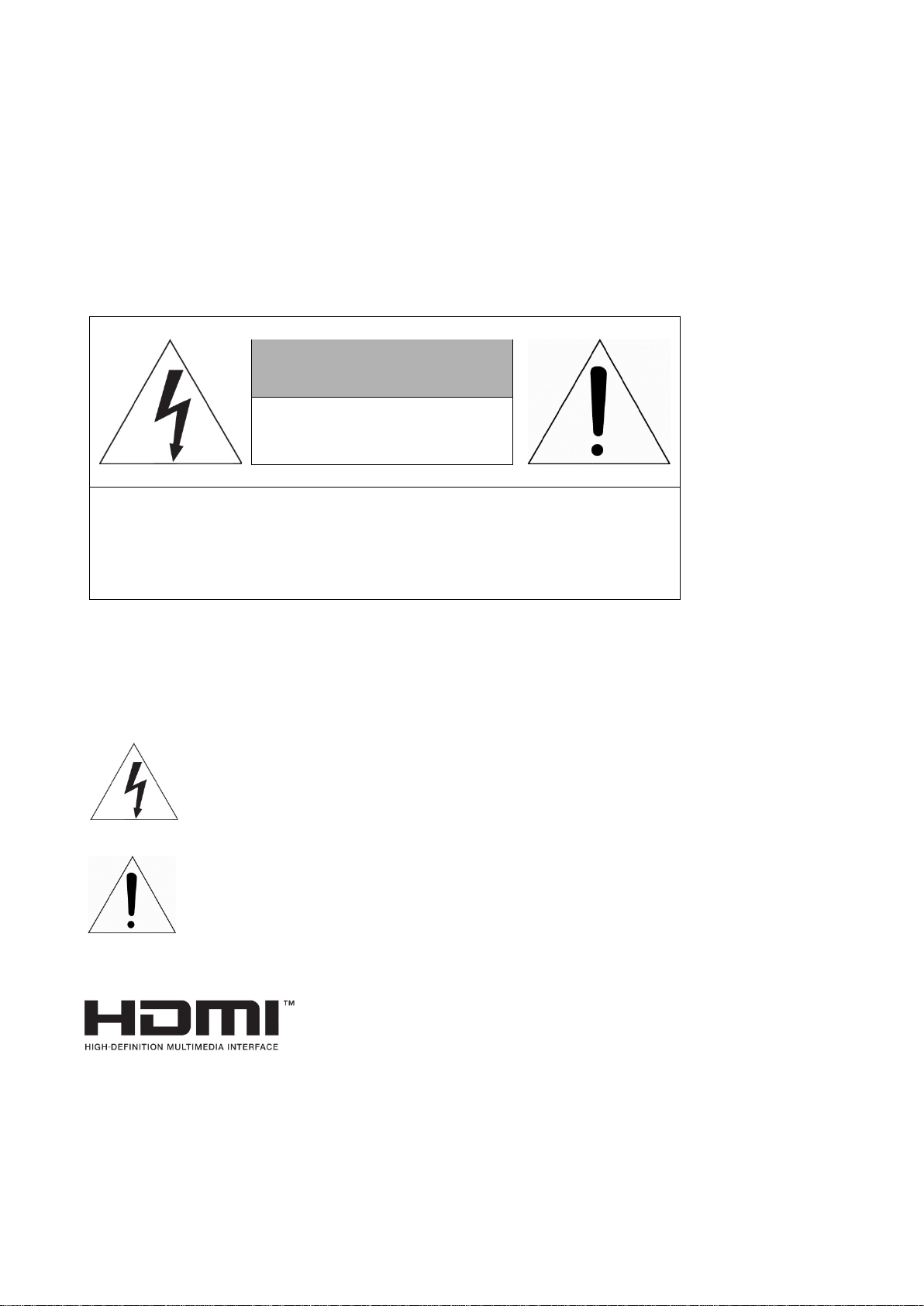

EXPLANATION OF GRAPHICAL SYMBOLS

The lightning flash with arrowhead symbol, within an equilateral triangle, is in-

tended to

alert the user to the presence of dangerous voltage within the products

enclosure that may be

of sufficient magnitude to constitute a risk of electric shock

to persons.

The exclamation point within an equilateral triangle is intended to alert the user

to the

presence of important operating and maintenance (servicing) instructions

in the literature

accompanying theproduct.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

WARNING: TO REDUCE THE RISK OF ELECTRICSHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

FCC COMPLIANCE STATEMENT

CE COMPLIANCE STATEMENT

This device complies with Part 15 of the FCC Rules. Operation is subject

to the following two conditions: (1) this device may not cause harmful inter-

ference, and (2) this device must accept any interference received, including

interference that may cause undesired operation.

FCC INFORMATION: This equipment has been tested and found to

comply with the limits for a Class A digital device, pursuant to Part 15 of

the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated in a commer-

cial environment. This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance with the in-

struction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful in-

terference in which case the user will be required to correct the interference

at his own expense.

CAUTION: Changes or modifications not expressly approved by the party

responsible for compliance could void the user’s authority to operate the

equipment.

This ClassA digital apparatus complies with Canadian ICES-003.

Cet

appareil

nume

rique

classe

est

conforme

norme

NMB-003

Canada.

WARNING

This is a Class A product. In a domestic environment this product may cause

radio interference in which case the user may be required to take adequate

measures.

CAUTION

RISK OF EXPLOSION IF BATTERY IS REPLACED BYAN INCORRECT TYPE.

DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s

instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other

apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized

plug has two blades with one wider than the other. A grounding type plug has two

blades and a third grounding prong. The wide blade or the third prong is provided for

your safety. If the provided plug does not fit into your outlet, consult an electrician for

replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified

by the manufacturer, or sold with the apparatus. When a cart is

used, use caution when moving the cart/apparatus combination to

avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused

for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is

required when the apparatus has been damaged in any way, such as power-supply

cord or plug is damaged, liquid has been spilled or objects have fallen into the

apparatus, the apparatus has been exposed to rain or moisture, does not operate

normally, or has been dropped.

15. CAUTION – THESE SERVICING INSTRUCTIONS ARE FOR USE BY QUALIFIED

SERVICE PERSONNEL ONLY. TO REDUCE THE RISK OF ELECTRIC SHOCK DO

NOT PERFORM ANY SERVICING OTHER THAN THAT CONTAINED IN THE

OPERATING INSTRUCTIONS UNLESS YOU ARE QUALIFIED TO DO SO.

16. Use satisfy clause 2.5 of IEC60950-1/UL60950-1 or Certified/Listed Class 2

power source only.

17. ITE is to be connected only to PoE networks without routing to the outside plant.

Quick Guide 1

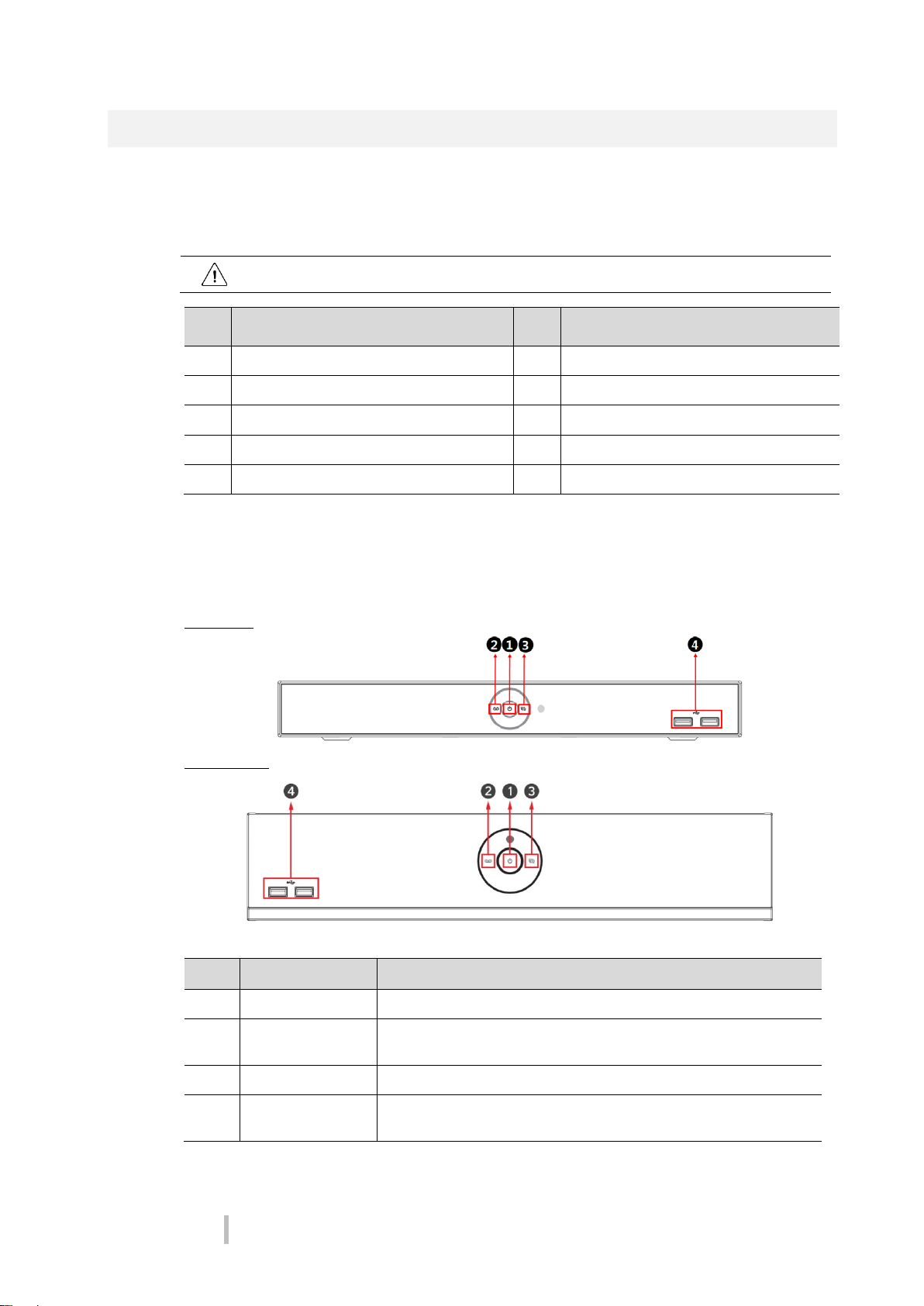

1. Overview

1.1 Package Contents

The device package contents consist of the following:

Note Please check all components involved.

No Name

번호

Name

1 NVR 6 SATA cable

2 DC Adapter(4/8ch) & Power cord 7 SATA power cable

3 Mouse 8 HDD fixing screw

4 Quick guide 9 Rack mount bracket(16/32ch)

5 Program CD 10 Bracket fixing screw(16/32ch)

1.2 NVR Description

Each part is listed in the below:

4/8CH NVR

16/32CH NVR

No. Name Function

1 Power status LED Pointing out device ON/OFF

2 Recording status

LED Pointing out recording in process

3 Network LED With a network viewer, pointing out network in connection

4 USB port USB port is connected for USB mouse or firmware upgrade, and data

back-up.

Quick Guide 2

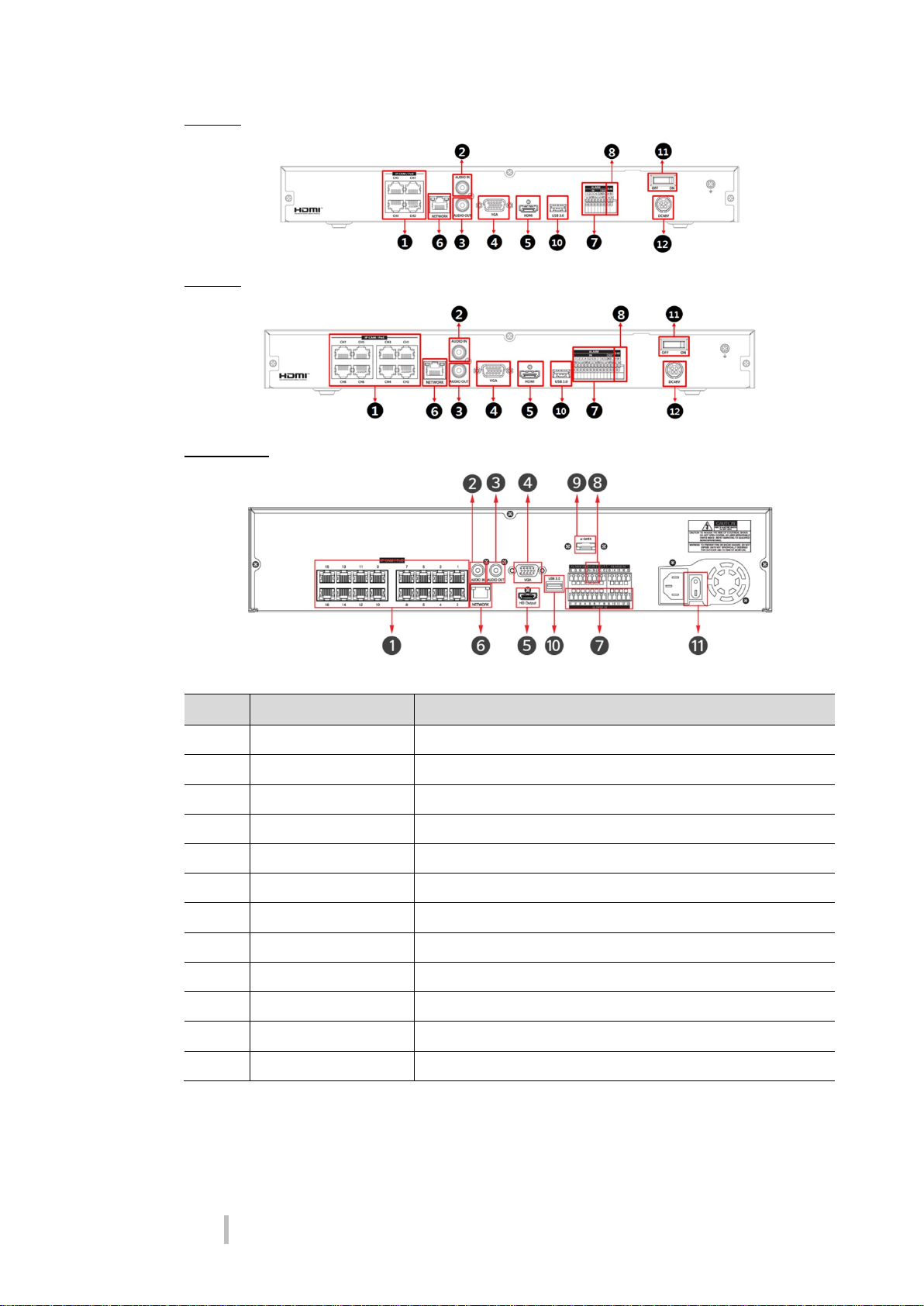

4CH NVR

8CH NVR

16/32CH NVR

No. Name Function

1 IP CAM / PoE IP camera input port, IEEE802.3at PoE support.

2 Audio In Audio input port.

3 Audio Out Audio output port.

4 VGA VGA output port.

5 HDMI HDMI output port.

6 Network Network connector.

7 Alarm In/Out Alarm connector.

8 RS485 RS-485 communication connector.

9 e-SATA e-SATA storage connection connector.

10 USB 3.0 USB 3.0 port is connected for data back-up.

11 Power Switch Power On-Off.

12 DC48V DC Adapter input port.

Quick Guide 3

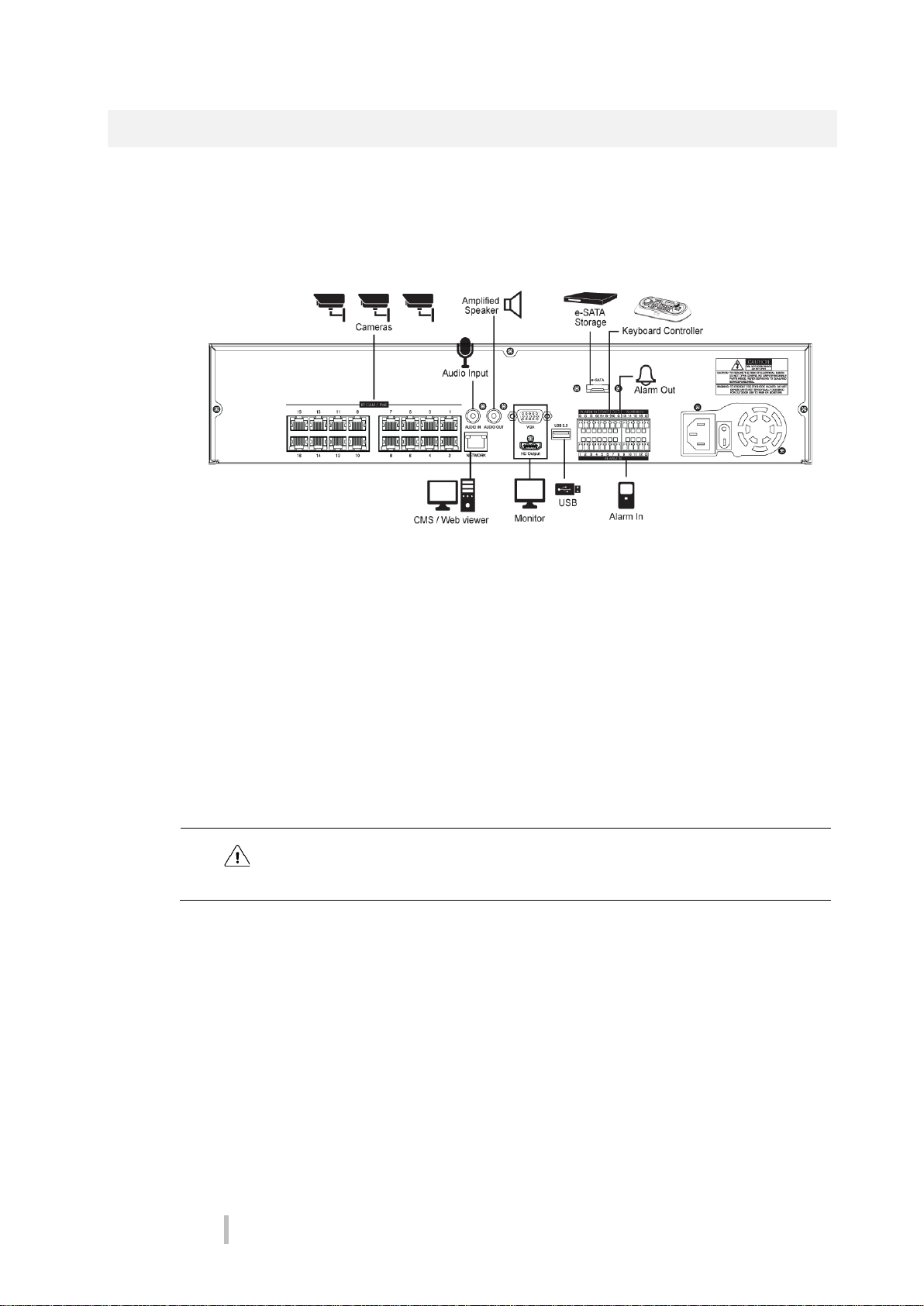

2. Installation

This chapter describes the way to install NVR.

When installing a device, connect rear of the device with each port on the basis of below connection map.

The device starts first like below sequences:

1 Installing HDD

2 Connecting with an exterior device

3 Starting a system

4 Setting an quick setup

2.1 Installing HDD

How to install HDD in the device:

Attention

Withdraw the mains plug before installing HDD to reduce the risk of injury or

electrical shock, or device malfunction.

Make sure to check the compatibility of HDD with the device.

1 Always switch off and unplug the unit.

2 Unscrew with a screw driver (+) and open the unit cover.

3 Unscrew HDD set screws of the bracket to disassemble.

4 Install HDD in the HDD bracket.

5 Fix the HDD-installed bracket with the unit.

6 Connect a data cable and power cable with HDD.

7 Close the cover and tighten screws.

Quick Guide 4

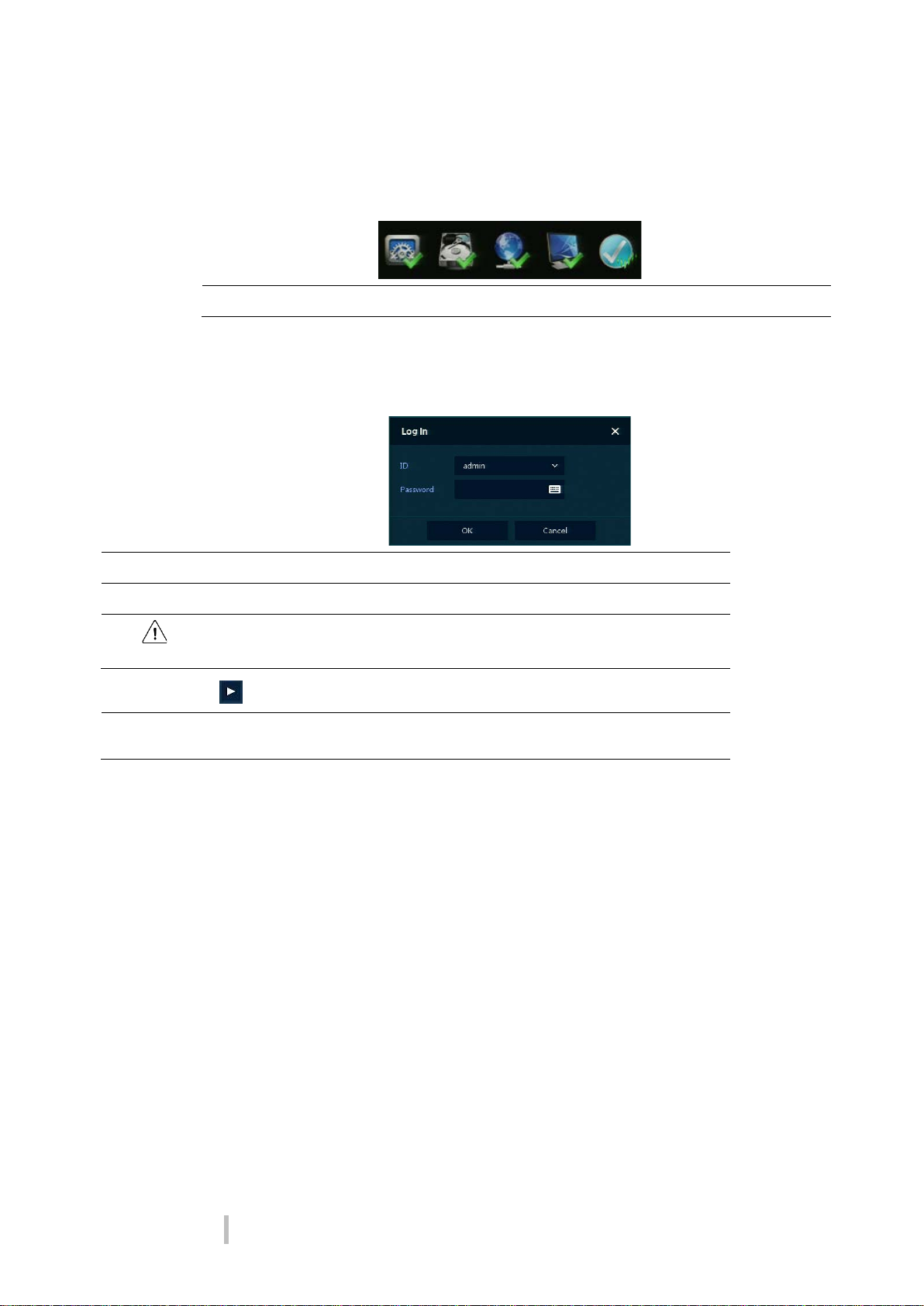

2.2 Starting System

Power supply begins with system operation as follows:

1 Switching on initialize with below icons in order.

Note Installing new HDD might take more initialize time.

2 With buzzer sounds, the start screen is presented.

3 In Log inscreen, enter the ID, Password and press OK.

Note Default ID & Password is admin/admin

Attention Please change password after login due to security.

Click to see the MAC address.

Note If lost password, inform the MAC address to supplier to create temporary

password.

Quick Guide 5

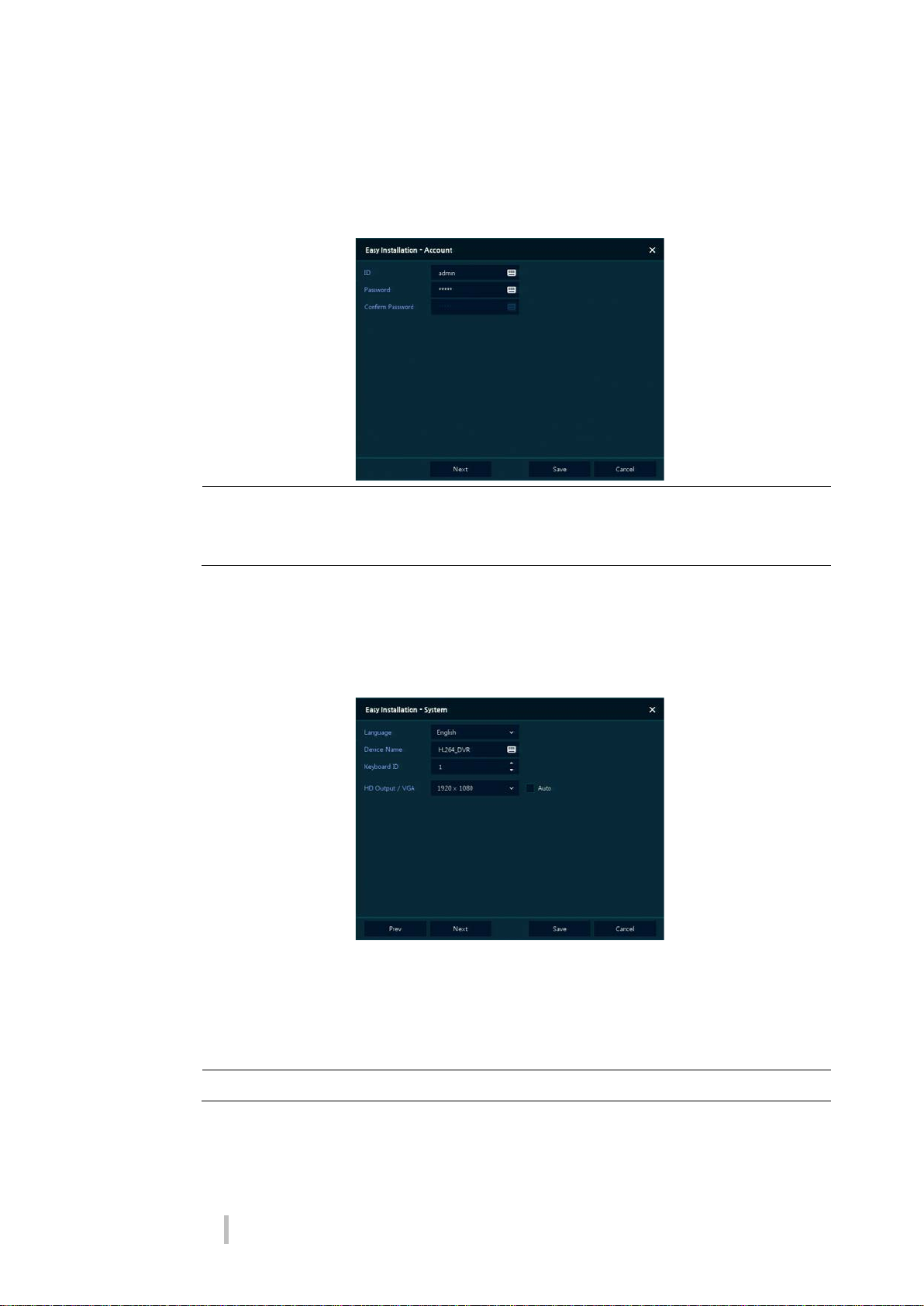

2.3 Quick Setup

2.3.1 Account

1 Set ID and Password.

Note

Default ID/Password is admin/admin.

Change the password for security.

Max character length is 16.

2.3.2 System

How to set the system of Easy Installation:

1 Set each item in System setting screen.

Language: Select system language.

Device Name: Enter the device name.

Keyboard ID: To identify device usages in controlling NVR with RS485 through a keyboard

Selecting the device ID. In case of simultaneous use of equipment, set ID with difference.

Note As for using many NVRs, set ID with difference.

HDMI/VGA: Set resolution of a monitor connected to the device.

Quick Guide 6

Note

Video is not displayed through VGA port if set 3840x2160 resolution.

If resolution is set to 3840x2160 and a monitor that does not support this

resolution is connected to the HDMI port, it will automatically change to

1024x768 resolution.

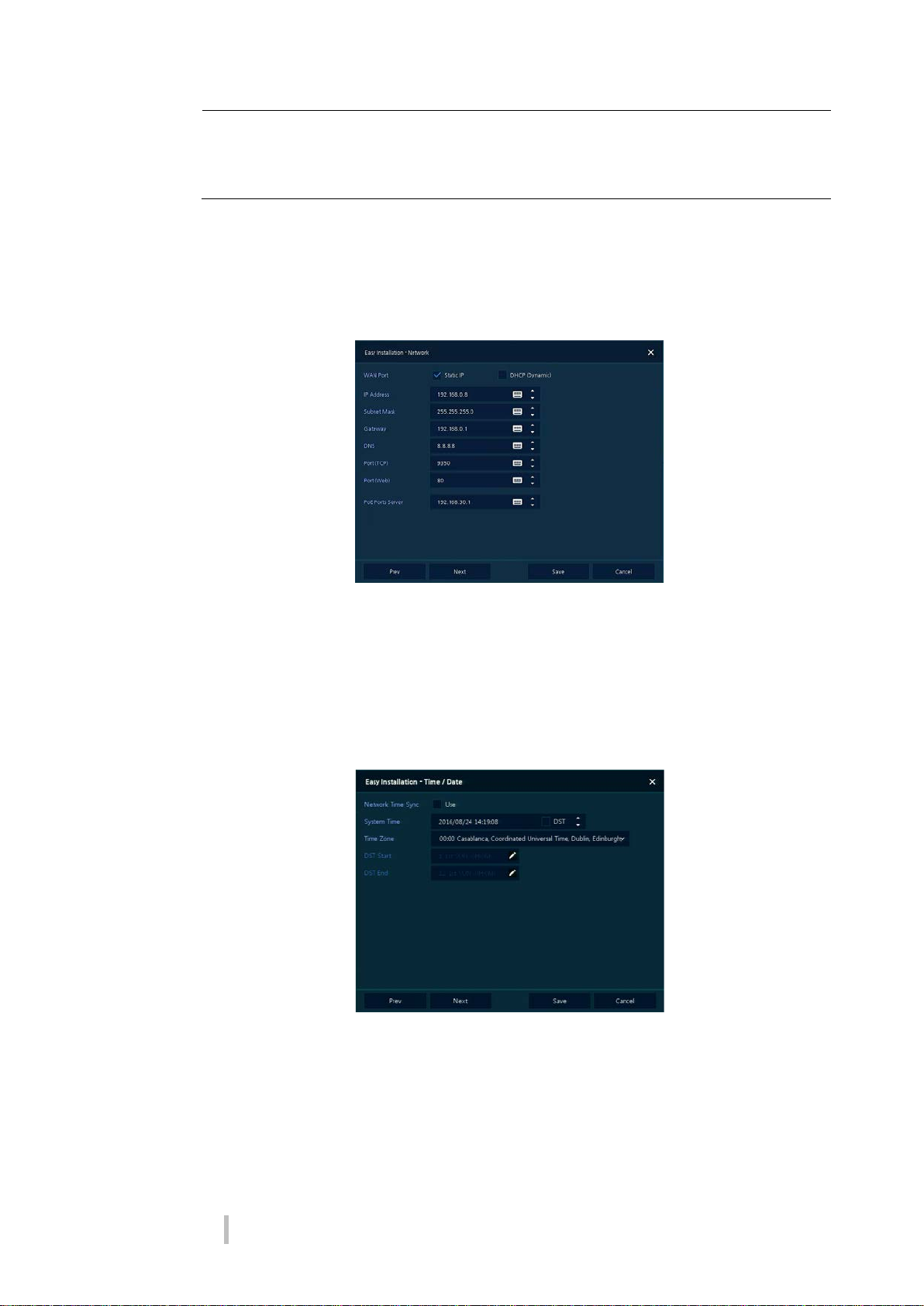

2.3.3 Network

How to set the network of Easy Installation:

1 Set each item in Network setting screen.

WAN Port: Select whether to use static IP or dynamic IP.

IP Address, Subnet Mask, Gateway, DNS, and Port: As for dynamic IP, enter information in each

space.

2.3.4 Time/Date

1 Set each item in Time/Date setting screen.

Network Time Sync: Select network for synchronizing with time server.

System Time: Not for synchronizing with network time server, set the device time; otherwise

(applying for Daylight saving time), select DST.

Time Zone: Select time zone for the system being installed.

DST Start/End: For applying Daylight saving time, set the application period.
