USER’S MANUAL
POWER RACK
SP36550
2
www.costway.com
3
www.costway.com
Contact Us!
Do NOT return this item.
Contact our friendly customer service department for help first.
E-mail
US: cs.us@costway.com
UK: cs.uk@costway.com
Before You StartBefore You Start
Please read all instructions carefully.
Retain instructions for future reference.
Seperate and count all parts and hardware.
Read through each step carefully and follow the proper order.
We recommend that, where possible, all items are assembled near to the
area in which they will be placed in use, to avoid moving the product
unnecessarily once assembled.
Always place the product on a flat, steady and stable surface.
Keep all small parts and packaging materials for this product away from
babies and children as they potentially pose a serious choking hazard.
PARTS LIST
Pre-assembled Pre-assembled
4
www.costway.com
5
www.costway.com

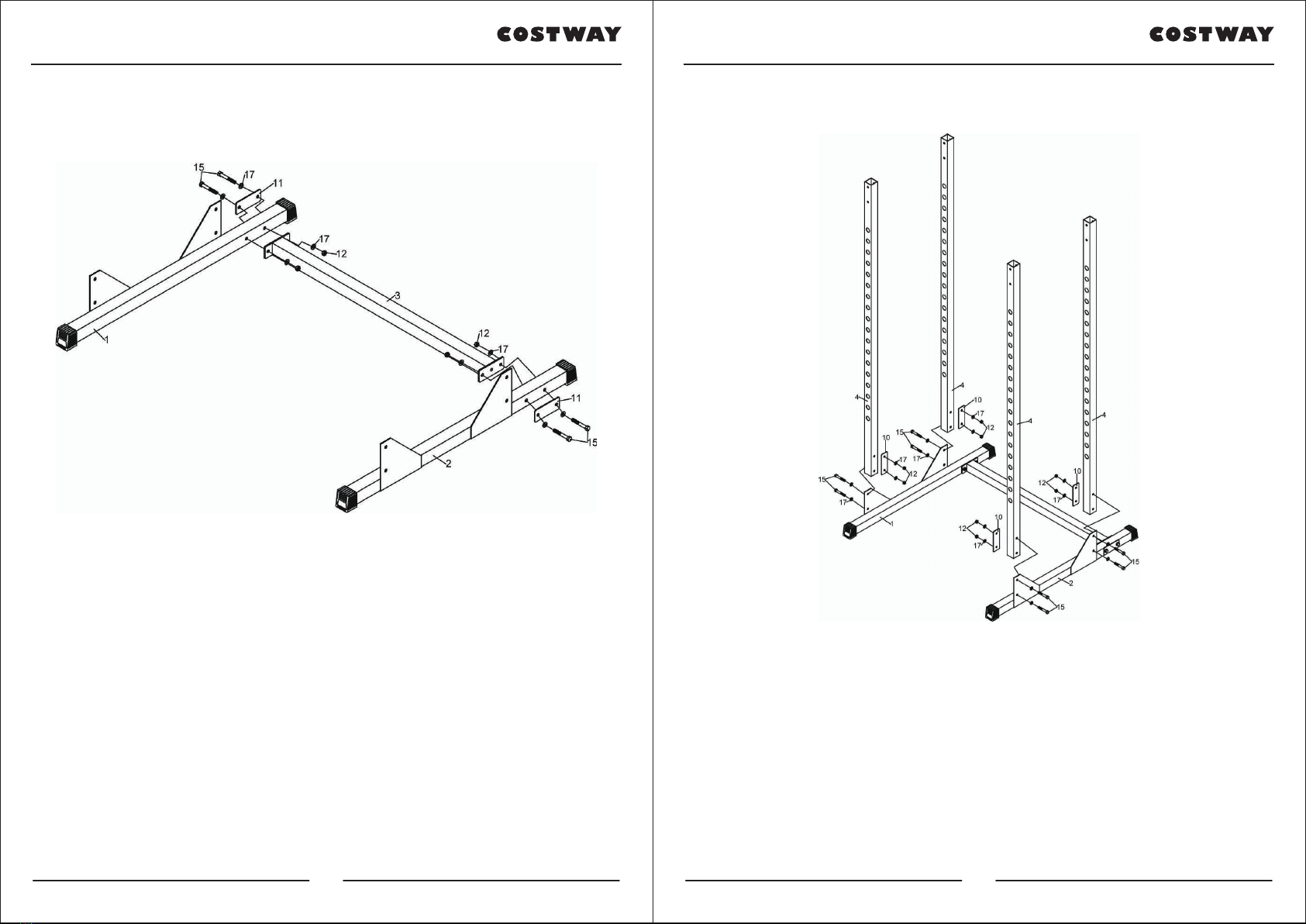

STEP 1
Attach the Bottom Connection Tube (3) to the Right Bottom Tube(1) and
the Left Bottom Tube (2), using 2PCs x (11) Plates (120mmL), 4PCs x
(15) Hex Bolts (M10 x 70mm), 8PCs x (17) M10 Washers, 4PCs x (12)
M10 Nylon Nuts.
STEP 2
Attach 4PCs x (4)Uprights to the Right Bottom Tube (1) and the Left
Bottom Tube (2), using 4PCs x (10) Plates (150mmL), 8PCs x (15) Hex
Bolts (M10 x 70mm),16PCs x (17) M10 Washers, 8PCs x (12) M10 Nylon
Nuts.
6
www.costway.com
7
www.costway.com
STEP 3.
1. Attach two Top Tubes (5) to the Upper Rear Connection Tube (6), using
2PCs x (16) Hex Bolts (M10 x 65mm), 4PCs x (17) M10 Washers,2PCs x
(12) M10 Nylon Nuts.
2.Attach the Top Tubes (5) and the Upper Rear Connection Tube (6) to
4PCs x (4) Uprights using 4PCs x (10) Plates (150mmL), 8PCs x (15)
Hex Bolts (M10 x 70mm), 16PCs x (17) M10 Washers, 8PCs x (12) M10
Nylon Nuts.
STEP 4:
1.Attach the Upper Front Connection Tube (7) to the Top Tube (5), using
2PCs x (11) Plates (120mmL), 4PCs x (15) Hex Bolts (M10 x 70mm),
8PCs x (17) M10 Washers, 4PCs x (12) M10 Nylon Nuts.
2. Insert 2PCs x (8) Weight Rests (Long) and 2PCs x (9) Weight Rests
(Short) into the Upright (4).
EXPLODED DRAWING
