Cotek ST Series Manuale utente

ST Series

Pure Sine Wave

Power Inverter

User’s Manual

e13

Contents

1. Important Safety Instructions……………………………………………………………………. 2

1-1 General safety precautions…………………………………………………………………… 2

1-2 Precautions when working with Batteries…………………………………………………… 2

2. Functional Characteristics.………………………………………………………………………. 3

2-1 General Information…………………………………………………………………………. 3

2-2 Application……………………………………………………………………………………. 3

2-3 Features………………………………………………………………………………………. 3

2-4 Electrical Performance………………………………………………………………………. 5

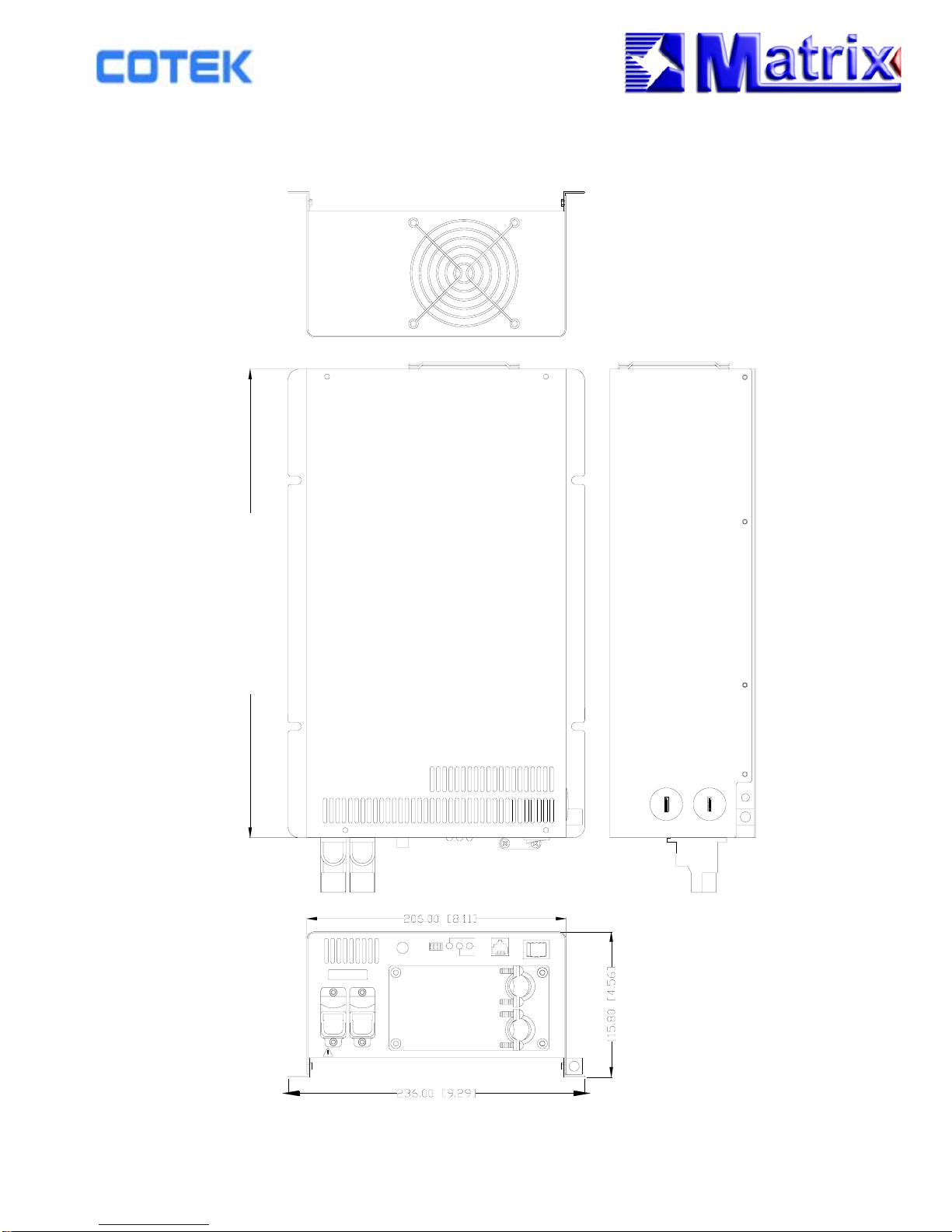

2-5 Mechanical drawings………………………………………………………………………... 6

3. Installation…………………………………………………………………………………………… 7

3-1 Where to install………………………………………………………………………………. 7

3-2 Hard-wire Installation………………………………………………………………………... 8

3-3 DC Wiring Connections………….…………………………………………………………. 9

4. Introduction…………………………………………………………………………………………. 11

4-1 Inverter Operation……………………………………………………………………………... 11

4-2 Front Panel Operation.……………………………………………………………………….. 12

4-3 Protection Features….……………………………………………………………………….. 16

4-4 Rear Panel Operation.……………………………………………………………………….. 17

5 Information………………………………………………………………………………………….. 17

5-1 Troubleshooting…………………….……………………………….…………………………. 17

5-2 Maintenance………………………………………………………..………………………….. 18

5-3 Warranty………………………………………………………………………………………... 18

6. Appendices………………………………………………………………………………………….. 19

6-1 FCC (ClassA) Declaration of Conformity………………………………………………… 19

6-2 CE (LVD EN60950) Declaration of Conformity…………………………………………... 20

6-3 e-mark (e13) Declaration of Conformity………………………………………………….. 21

6-4 UL (UL458) NOTICE OF COMPLETION….……………………………………………... 22

©Copyright :This manual is the copyright of COTEK Electronic lnd. Co., Ltd. And may not be reproduced or copiedwithout

the express permission of the owner.

1. Important Safety Instructions

WARNING !

Before using the Inverter, read and save the safety

instructions.

1-1. General Safety Precautions

1-1-1.Do not expose the Inverter to rain, snow, spray, bilge or dust.

To reduce risk of hazard, do not cover or obstruct the ventilation

openings. Do not install the Inverter in a zero-clearance

compartment. Overheating may result.

1-1-2.To avoid a risk of fire and electronic shock. Make sure that existing

wiring is in good electrical condition; and that wire size is not

undersized.

Do not operate the Inverter with damaged or substandard wiring.

1-1-3.This equipment contains components which can produce arcs or

sparks. To prevent fire or explosion do not install in compartments

containing batteries or flammable materials or in locations which

require ignition protected equipment. This includes any space

containing gasoline-powered machinery, fuel tanks, or joints, fittings,

or other connection between components of the fuel system.

1-2. Precautions When Working with Batteries

1-2-1.If battery acid contacts skin or clothing, wash immediately with soap

and water. If acid enters eye, immediately flood eye with running

cold water for at least 20 minutes and get medical attention

immediately.

1-2-2.Never smoke or allow a spark or flame in vicinity of battery or

engine.

1-2-3.Do not drop a metal tool on the battery. The resulting spark or

short-circuit on the battery of other electrical part may cause an

explosion.

1-2-4.Remove personal metal items such as rings, bracelets, necklaces,

and watches when working with a lead-acid battery.

A lead-acid battery produces a short-circuit current high enough to

weld a ring or the like to metal, causing a severe burn.

2. Functional Characteristics

2-1. General Information

ST-series completes with stand –alone power inverter with AC transfer

switch and is suitable for RV, Marin and Emergency appliances.

When utility AC power cutoff, the transfer relay is de-energized and the

load is automatically transferred to the Inverter output. Once the AC utility

is restored, the relay is energized and the load is automatically

reconnected to AC utility.

This power inverter series is a member of the most advanced line of

mobile AC power systems available.

To get the most out of the power inverter, it must be installed and used

properly. Please read the instructions in this manual before installation and

operation this model.

2-2. Application

2-2-1 Power tools–circular saws, drills, grinders, sanders, buffers, weed and

hedge trimmers, air compressors.

2-2-2. Office equipment – computers, printers, monitors, facsimile machines,

scanners.

2-2-3. Household items – vacuum cleaners, fans, fluorescent and incandescent

lights, shavers, sewing machines.

2-2-4. Kitchen appliances – coffee makers, blenders, ice markers, toasters.

2-2-5 Industrial equipment – metal halide lamp, high – pressure sodium lamp.

2-2-6. Home entertainment electronics – television, VCRs, video games,

stereos, musical instruments, satellite equipment.

2-3. Features

2-3-1. Pure sine wave output (THD < 3%) to operate higher-end electronic

Equipments.

2-3-2. Output frequency：50 / 60Hz switch selectable

2-3-3. Built in 16A or 25A rating transfer switch.

2-3-4. Speed up transfer time and synchronized operation with the AC source

at all times that allows the transfer to be interruption-free for sensitive

equipments.

2-3-5. Built in advance microprocessor to make friendly interface with user.

2-3-6. Low power “ Power Saving Mode “ to conserve energy

2-3-7. Capable of driving highly reactive & capacitive loads at start moment.

2-3-8. Hardwire AC connection model option.

2-3-9. Loading controlled cooling fan.

2-3-10. Smart remote controller.

2-3-11. 3 LED indicators with tri-color display all operation status.

2-3-12. High efficiency 88 ~ 93%.

2-3-13. Protection:

Input over voltage and Input low voltage protection.

Low battery alarm

Over temperature protection.

Over load protection

Short Circuit protection

Reverse polarity protection.

AC circuit breaker (6Amp to 30Amp)

2-4. Electrical Performance

Specification Model No.

Item ST1000-112 ST1000-124 ST1000-148 ST1000-212 ST1000-224 ST1000-248

Continuous Output Power 1000W

Maximum Output Power (3Min.) 1150W

Surge Rating 2000W

Input Voltage 12V 24V 48V 12V 24V 48V

Output Voltage 100 / 110 / 120V ± 3% 220 / 230 / 240V ± 3%

Frequency

(Switch Selectable) 50 / 60Hz +/- 0.05%

Output Waveform Pure Sine Wave (THD < 3%)

Efficiency (full load) 88% 91% 92% 90% 93% 94%

No Load Current Draw 1.43A 0.75A 0.38A 1.25A 0.65A 0.35A

Stand-By Current Draw 0.25A 0.15A 0.09A 0.25A 0.15A 0.09A

Input Voltage Regulation 10.5-15

VDC 21.0-30

VDC 42.0-60

VDC 10.5-15

VDC 21.0-30

VDC 42.0-60

VDC

Input Level Indicator

Load Level Indicator Red / Orange / Green LED

Failure Indicator Red LED

Protection Overload, Short Circuit, Reverse Polarity (Fuse),Over Temperature

Over/Under Input Voltage, AC Input Circuit Breaker

Circuit Breaker 12 Amp 6 Amp

Remote Control Unit CR6 / CR7 / CR8 Optional

Synchronous AC transfer YES

Transfer switch 16 Amp

Transfer Time 4~8 msec.

Safety Meet UL458 Meet EN60950-1

EMC FCC Class A

EN55022: 1997

EN55024: 1997

EN61000-3-2: 1998

EN61000-3-3: 1995

e-Mark

022967

Operating Temperature Range 0 - 40℃

Storage Temperature Range -30℃to 70℃

Cooling Loading controlled cooling fan

Dimensions 373(L)*236(W)*115(H) mm / 14.7(L)*9.29(W)*4.53(H) Inch

Weight 6.2 kgs. / 13.6 Lbs.

Note: The specifications are subject to change without notice.

2-4. Electrical Performance

Specification Model No.

Item ST1500-112 ST1500-124 ST1500-148 ST1500-212 ST1500-224 ST1500-248

Continuous Output Power 1500W

Maximum Output Power (3Min.) 1725W

Surge Rating 3000W

Input Voltage 12V 24V 48V 12V 24V 48V

Output Voltage 100 / 110 / 120V ± 3% 220 / 230 / 240V ± 3%

Frequency

(Switch Selectable) 50 / 60Hz +/- 0.05%

Output Waveform Pure Sine Wave (THD < 3%)

Efficiency (full load) 88% 91% 92% 90% 93% 94%

No Load Current Draw 1.45A 0.75A 0.40A 1.40A 0.70A 0.40A

Stand-By Current Draw 0.28A 0.15A 0.09A 0.28A 0.15A 0.09A

Input Voltage Regulation 10.5-15

VDC 21.0-30

VDC 42.0-60

VDC 10.5-15

VDC 21.0-30

VDC 42.0-60

VDC

Input Level Indicator

Load Level Indicator Red / Orange / Green LED

Failure Indicator Red LED

Protection Overload, Short Circuit, Reverse Polarity (Fuse),Over Temperature

Over/Under Input Voltage, AC Input Circuit Breaker

Circuit Breaker 16 Amp 10 Amp

Remote Control Unit CR6 / CR7 / CR8 Optional

Synchronous AC transfer YES

Transfer switch 25 Amp 16 Amp

Transfer Time 4~8 msec.

Safety Meet UL458 Meet EN60950-1

EMC FCC Class A

EN55022: 1997

EN55024: 1997

EN61000-3-2: 1998

EN61000-3-3: 1995

Meet

e-Mark

Operating Temperature Range 0 - 40℃

Storage Temperature Range -30℃to 70℃

Cooling Loading controlled cooling fan

Dimensions 403(L)*236(W)*115(H) mm / 15.9(L)*9.29(W)*4.53(H) Inch

Weight 7.0 kgs. / 15.4 Lbs.

Note: The specifications are subject to change without notice.

2-4. Electrical Performance

Specification Model No.

Item ST2000-112 ST2000-124 ST2000-148 ST2000-212 ST2000-224 ST2000-248

Continuous Output Power 2000W

Maximum Output Power (3Min.) 2300W

Surge Rating 4000W

Input Voltage 12V 24V 48V 12V 24V 48V

Output Voltage 100 / 110 / 120V ± 3% 220 / 230 / 240V ± 3%

Frequency

(Switch Selectable) 50 / 60Hz +/- 0.05%

Output Waveform Pure Sine Wave (THD < 3%)

Efficiency (full load) 88% 91% 92% 90% 93% 94%

No Load Current Draw 2.6A 1.50A 0.70A 2.3A 1.1A 0.65A

Stand-By Current Draw 0.60A 0.30A 0.2A 0.60A 0.3A 0.15A

Input Voltage Regulation 10.5-15

VDC 21.0-30

VDC 42.0-60

VDC 10.5-15

VDC 21.0-30

VDC 42.0-60

VDC

Input Level Indicator

Load Level Indicator Red / Orange / Green LED

Failure Indicator Red LED

Protection Overload, Short Circuit, Reverse Polarity (Fuse),Over Temperature

Over/Under Input Voltage, AC Input Circuit Breaker

Circuit Breaker 25 Amp 12 Amp

Remote Control Unit CR6 / CR7 / CR8 Optional

Synchronous AC transfer YES

Transfer switch 25 Amp 16 Amp

Transfer Time 4~8 msec.

Safety Certification Meet UL458 Meet EN60950-1

EMC FCC Class A

EN55022: 1997

EN55024: 1997

EN61000-3-2: 1998

EN61000-3-3: 1995

Meet

e-Mark

Operating Temperature Range 0 - 40℃

Storage Temperature Range -30℃to 70℃

Cooling Loading controlled cooling fan

Dimensions 433(L)*332(W)*115(H) mm / 17(L)*13(W)*4.53(H) Inch

Weight 11.2 kgs. / 24.6 Lbs.

Note: The specifications are subject to change without notice.

2-4. Electrical Performance

Specification Model No.

Item ST2500-112 ST2500-124 ST2500-148 ST2500-212 ST2500-224 ST2500-248

Continuous Output Power 2500W

Maximum Output Power (3Min.) 2875W

Surge Rating 5000W

Input Voltage 12V 24V 48V 12V 24V 48V

Output Voltage 100 / 110 / 120V ± 3% 220 / 230 / 240V ± 3%

Frequency

(Switch Selectable) 50 / 60Hz +/- 0.05%

Output Waveform Pure Sine Wave (THD < 3%)

Efficiency (full load) 88% 91% 92% 90% 93% 94%

No Load Current Draw 2.35A 1.3A 0.7A 2.4A 1.5A 0.65A

Stand-By Current Draw 0.5A 0.35A 0.19A 0.6A 0.35A 0.19A

Input Voltage Regulation 10.5-15

VDC 21.0-30

VDC 42.0-60

VDC 10.5-15

VDC 21.0-30

VDC 42.0-60

VDC

Input Level Indicator

Load Level Indicator Red / Orange / Green LED

Failure Indicator Red LED

Protection Overload, Short Circuit, Reverse Polarity (Fuse),Over Temperature

Over/Under Input Voltage, AC Input Circuit Breaker

Circuit Breaker 30 Amp 16 Amp

Remote Control Unit CR6 / CR7 / CR8 Optional

Synchronous AC transfer YES

Transfer switch 25 Amp

Transfer Time 4~8 msec.

Safety Certification Meet UL458 Meet EN60950-1

EMC FCC Class A

EN55022: 1997

EN55024: 1997

EN61000-3-2: 1998

EN61000-3-3: 1995

Meet

e-Mark

Operating Temperature Range 0 - 40℃

Storage Temperature Range -30℃to 70℃

Cooling Loading controlled cooling fan

Dimensions 463(L)*332(W)*115(H) mm / 18.2(L)*13(W)*4.53(H) Inch

Weight 12 kgs. / 26.4 Lbs.

Note: The specifications are subject to change without notice.

2-5. Mechanical drawings

NEG(-)

REVERSE POLARITY

WILL DAMAGE UNIT

POWER

STATUS

1LOAD

LEVEL

BREAKER

POS(+)

DC INPUT

AC INPUT

0INPUT

LEVEL

PORT

REMOTE ON-OFF-REMOTE

POWER

ST1000 373.00 [14.69]

ST1500 403.00 [15.87]

Altri manuali per ST Series

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Cotek Invertitore

Cotek

Cotek SR series Manuale utente

Cotek

Cotek SK Series Manuale utente

Cotek

Cotek SD2500-112 Manuale utente

Cotek

Cotek S600 Series Manuale utente

Cotek

Cotek SE200-124 Manuale utente

Cotek

Cotek SP-700-148 Manuale utente

Cotek

Cotek S Series Manuale utente

Cotek

Cotek SP Series Manuale utente

Cotek

Cotek S1500-112 Manuale utente

Cotek

Cotek SK120 Series Manuale utente

Cotek

Cotek SR-1600 Plus-124 Manuale utente

Cotek

Cotek SK700-112 Manuale utente

Cotek

Cotek SD Series Manuale utente

Cotek

Cotek S150 Series Manuale utente

Cotek

Cotek SR1000 Manuale utente

Cotek

Cotek SR1000 Manuale utente

Cotek

Cotek SK120 Series Manuale utente

Cotek

Cotek SR-1600 Plus -148 Manuale utente

Cotek

Cotek S600 Series Manuale utente

Cotek

Cotek S150 Series Manuale utente

Cotek

Cotek S1500-112 Manuale utente

Cotek

Cotek SK700-112 Manuale utente

Cotek

Cotek ST Series Manuale utente

Cotek

Cotek S600R Series Manuale utente

Manuali Invertitore popolari di altre marche

Fourgroup

Fourgroup Easy Manuale utente

Velleman

Velleman PI300M Manuale utente

Sungrow

Sungrow SG350HX-US Manuale utente

WilTec

WilTec 61897 Manuale utente

SMA

SMA SUNNY BOY STORAGE 2.5 Manuale utente

Simplicity

Simplicity LANDLORD 316 Manuale utente

Santak

Santak SMAX 3000 Manuale utente

ATON

ATON RA.Store-3 Manuale utente

ZIEHL-ABEGG

ZIEHL-ABEGG FXET4AMQ Manuale utente

Tektronix

Tektronix CFG250 Manuale utente

Champion

Champion 200989 Manuale utente

Vanner

Vanner 20-500 Series Manuale utente

GE GEP Manuale utente

Astrel Group

Astrel Group Power Reducer Guida rapida

MULTIQUIP

MULTIQUIP GDP-5H Guida

GoWISE

GoWISE PS1007 Manuale utente

Promate

Promate PM13500D ES Manuale utente

Mastervolt

Mastervolt WHISPER 3.5M3000 RPM Manuale utente
