Cottinch SP6143 Manuale utente

Assembly Instructions

IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep

this manual for future reference.

03.Three-sided Electric Fireplace

Professional fireplace manufacturer

MODEL # SP6143

www.echamphome.com

Table of ContentsImportant Safety Instructions

Important Safety Instructions

Assembly

Cleaning and Maintenance

Warranty

Table of Contents

Parts List

Operating Instructions

Troubleshooting Guide

Warning! To reduce the risk of serious injury, read the following safety instructions before

assembling and operating this ﬁreplace.

IMPORTANT: RETAIN FOR FUTURE REFERENCE, AND READ CAREFULLY.

This equipment has been tested and found to comply with the limits for Class B digital devices, pursuant to part

15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference

in a residential installation. The equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on. The user is encouraged to try and

correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and the receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesired

operation.

equipment.

This Class B digital apparatus complies with Canadian ICES-003.

3Model No. SP6143

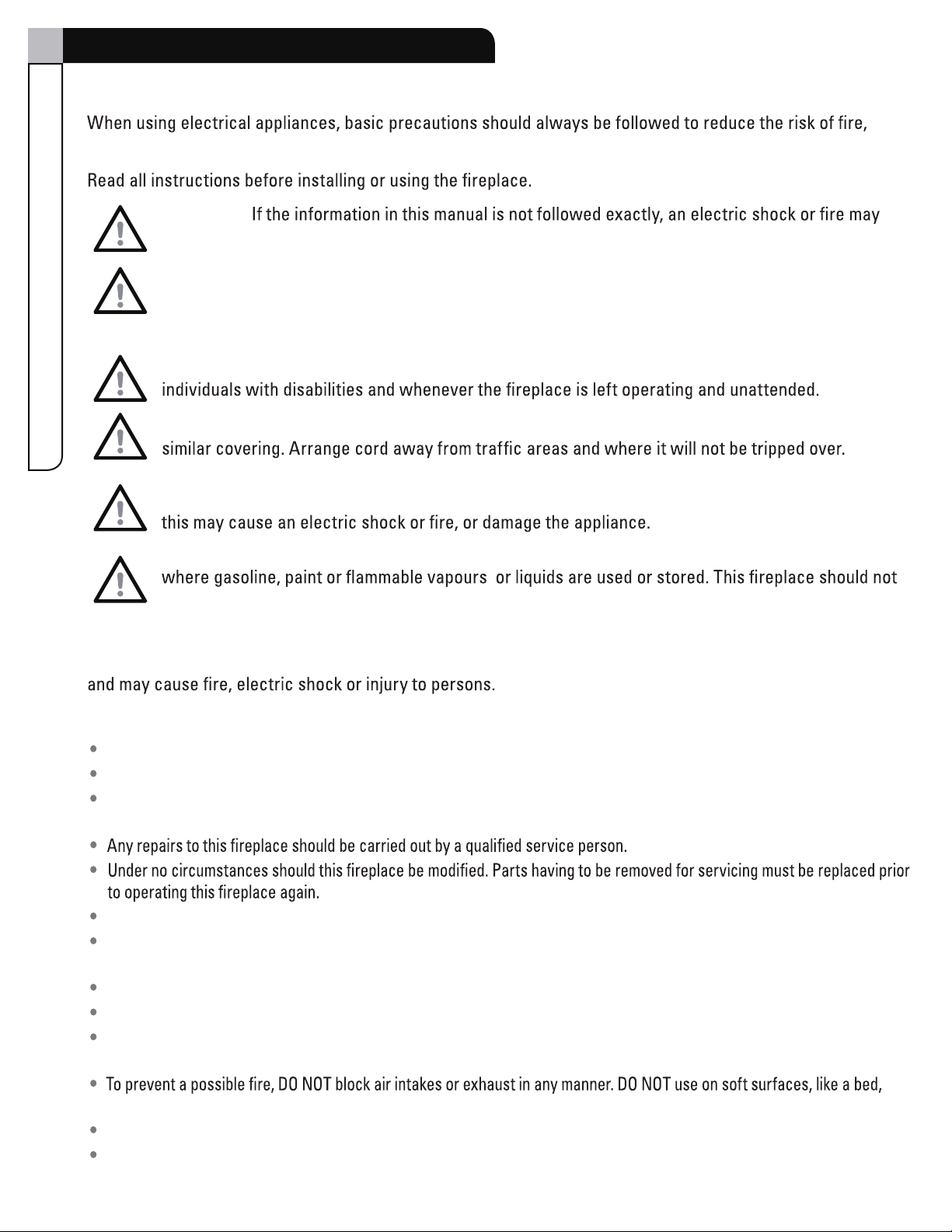

Important Safety Instructions

electric shock and injury to persons, including the following:

Use this appliance only as described in the manual. Any other use is NOT recommended by the manufacturer

WARNING: This appliance is hot when in use. To avoid burns, DO NOT let bare skin touch hot

surfaces. Keep combustible material, such as furniture, pillows, bedding, papers, clothes and

curtains, at least 3’ (1 m) from the front of the heater and keep them away from the side and rear.

DANGER:

result causing property damage, personal injury or loss of life.

WARNING: Extreme caution is necessary when any heater is used by or near children or

WARNING: DO NOT run cord under carpeting. DO NOT cover cord with throw rugs, runners, or

WARNING: Do NOT insert or allow foreign objects to enter any ventilation or exhaust opening as

WARNING: This appliance has hot and arcing or sparking parts inside. DO NOT use it in areas

be used as a drying rack for clothing. Christmas stockings or decorations should not be hung in the

area of it.

CAUTION!

If possible, ALWAYS unplug this appliance when not in use.

DO NOT operate any heater with a damaged cord or plug or after the heater malfunctions.

DO NOT operate any heater if it has been dropped or damaged in any manner. Disconnect power at service panel and

have heater inspected by a reputable electrician before reusing.

DO NOT use outdoors.

This heater is not intended for use in bathrooms, laundry areas and similar indoor locations. NEVER place heater where it

may fall into a bathtub or other water container.

To disconnect this appliance, turn controls to the off position, then remove plug from outlet.

ONLY connect to properly grounded outlets.

This appliance, when installed, must be electrically grounded in accordance with local codes, with the current CSA C22.1

Canadian Electrical Code or follow the National Electrical Code, ANSI/NFPA NO.70.

where opening may become blocked.

The heaters MUST NOT be located immediately below a wall outlet/receptacle.

ALWAYS plug heaters directly into a wall outlet/receptacle. NEVER use with an extension cord or re-locatable power tap

(outlet/power strip).

Important Safety Instructions

Grounding Pin

Grounding Means

Adaptor

Metal Screw

Cover of

Grounding Box

SAVE THESE INSTRUCTIONS

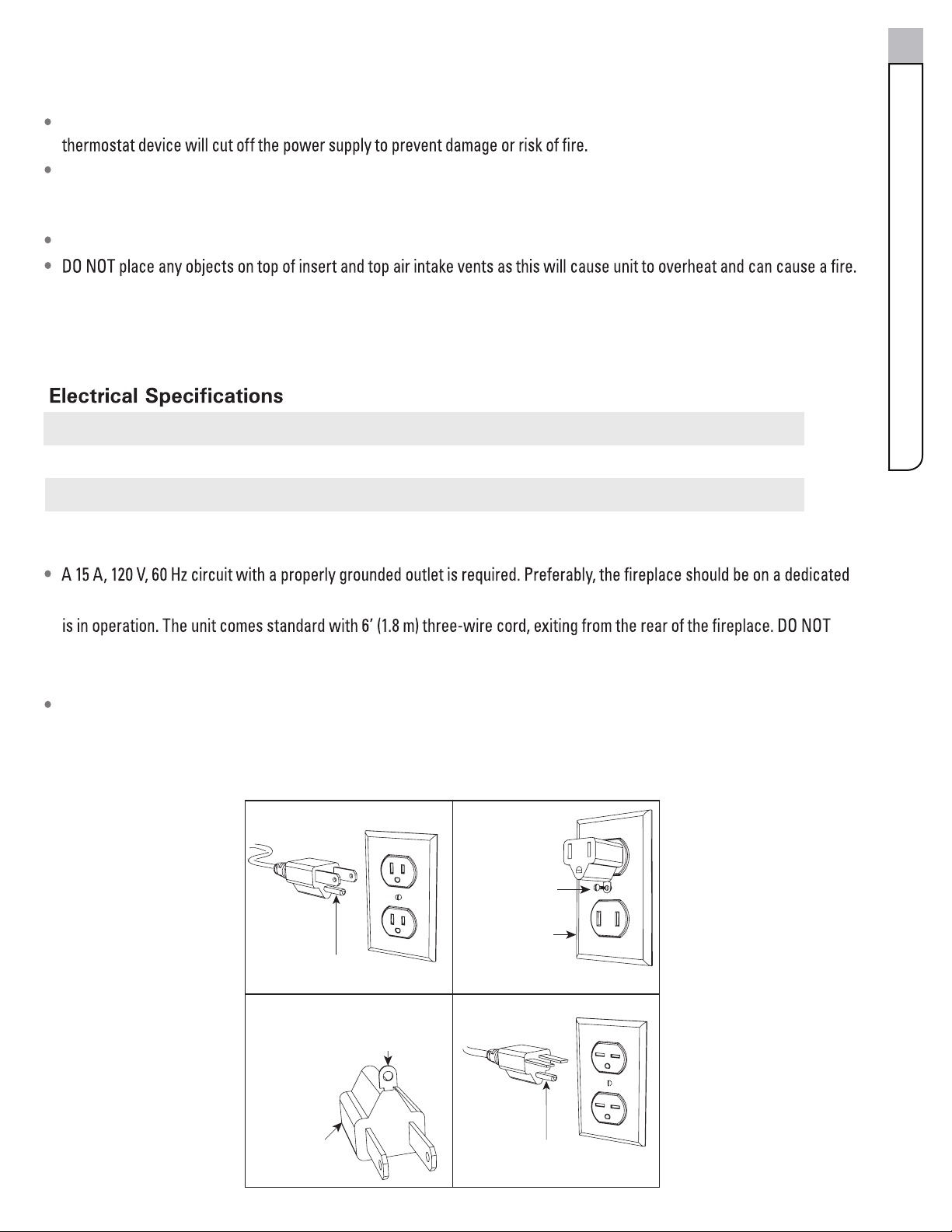

Electric Connection

circuit as other appliances on the same circuit may cause the circuit breaker to trip or the fuse to blow when the heater

exceed the current rating of the current tap. ALWAYS plug heaters directly into a wall outlet/receptacle. NEVER use with

an extension cord or re-locatable power tap (outlet/power strip).

This heater is for use on a120 V outlet. The cord has a plug as shown below. See illustration for grounding instruction. An

adaptor as shown in Fig. C is available for connecting three-blade grounding type plugs to two-slot receptacles. The

green grounding plug extending from the adaptor must be connected to a permanent ground such as a properly grounded

outlet box. The adaptor should not be used if a three-slot grounded receptacle is available .

Voltage 120 V AC, 60 Hz

Amps 11.7 A

Watts 1400 W

There is a thermostat device provide inside of the unit. If the inner temperature overheats or abnormal heating occurs, the

This heater may include a visual alarm to warn that parts of the heater are getting excessively hot. If the E1 is displayed

on control panel with a beep sound, immediately turn the heater off and inspect for any object on or adjacent to the heater

that may cause high temperatures. DO NOT OPERATE THE HEATER WITH THE ALARM FLASHING.

DO NOT slide insert on top of wood to avoid scratching wood surface.

5Model No. SP6143

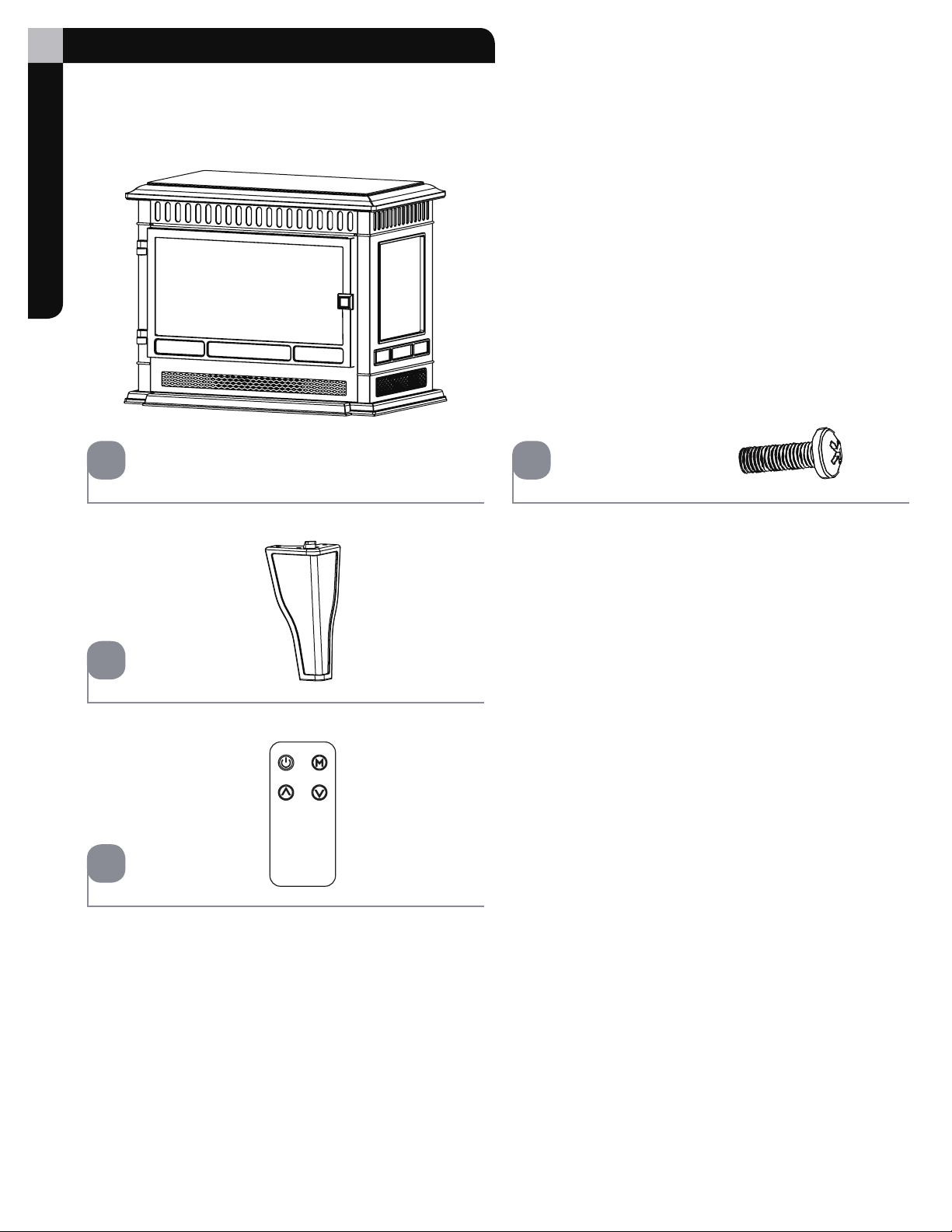

Parts List

Electric Stove - 1

Legs - 4

Remote - 1

Screw - 12 + (1)

Assembly

Let us help you!

DO NOT RETURN YOUR PRODUCT TO THE STORE. CALL US FIRST!

If you have questions regarding your product, require warranty assistance, or have damaged or

missing parts, please call our customer service toll-free helpline. Contact us for assistance, we’re

here to help .

IMPORTANT: Please read and understand this manual before any assembly. Before beginning assembly of product,

make sure all parts are present. Compare parts with packaging contents list. If any part is missing, or if you have

any questions, contact the service centre at

Place all parts from the box in a cleared area and position them on theﬂoor in front of you. Remove all packing

materials and place them back into the box. Do not dispose of the packing materials until assembly is complete.

Read each step carefully before beginning any assembly and make sure you understand each step. If you are

missing a part, please call our toll-free number for assistance SER[email protected]

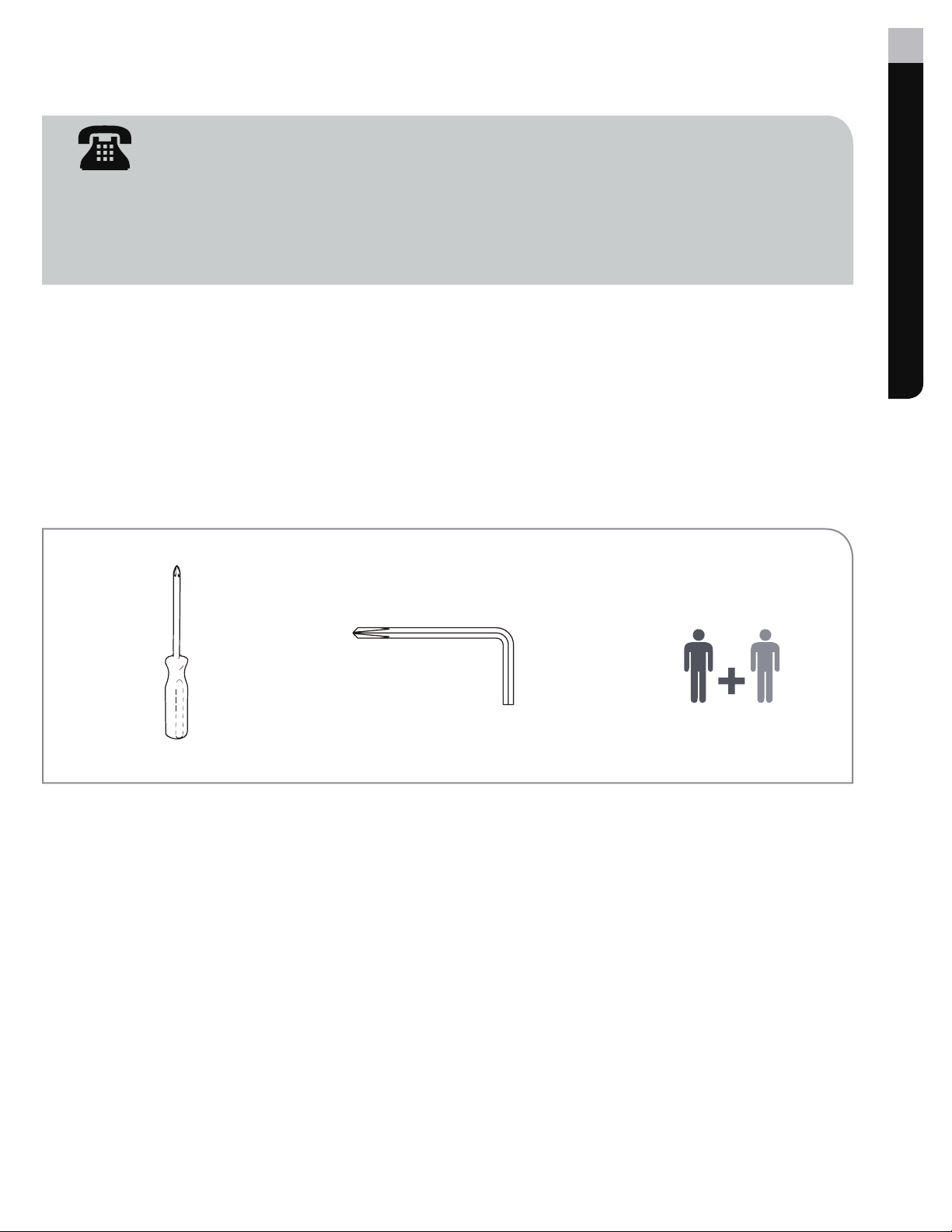

Needed for assembly:

Phillips Screwdriver 2 People

Hex Key

[email protected]

7Model No. SP6143

Assembly

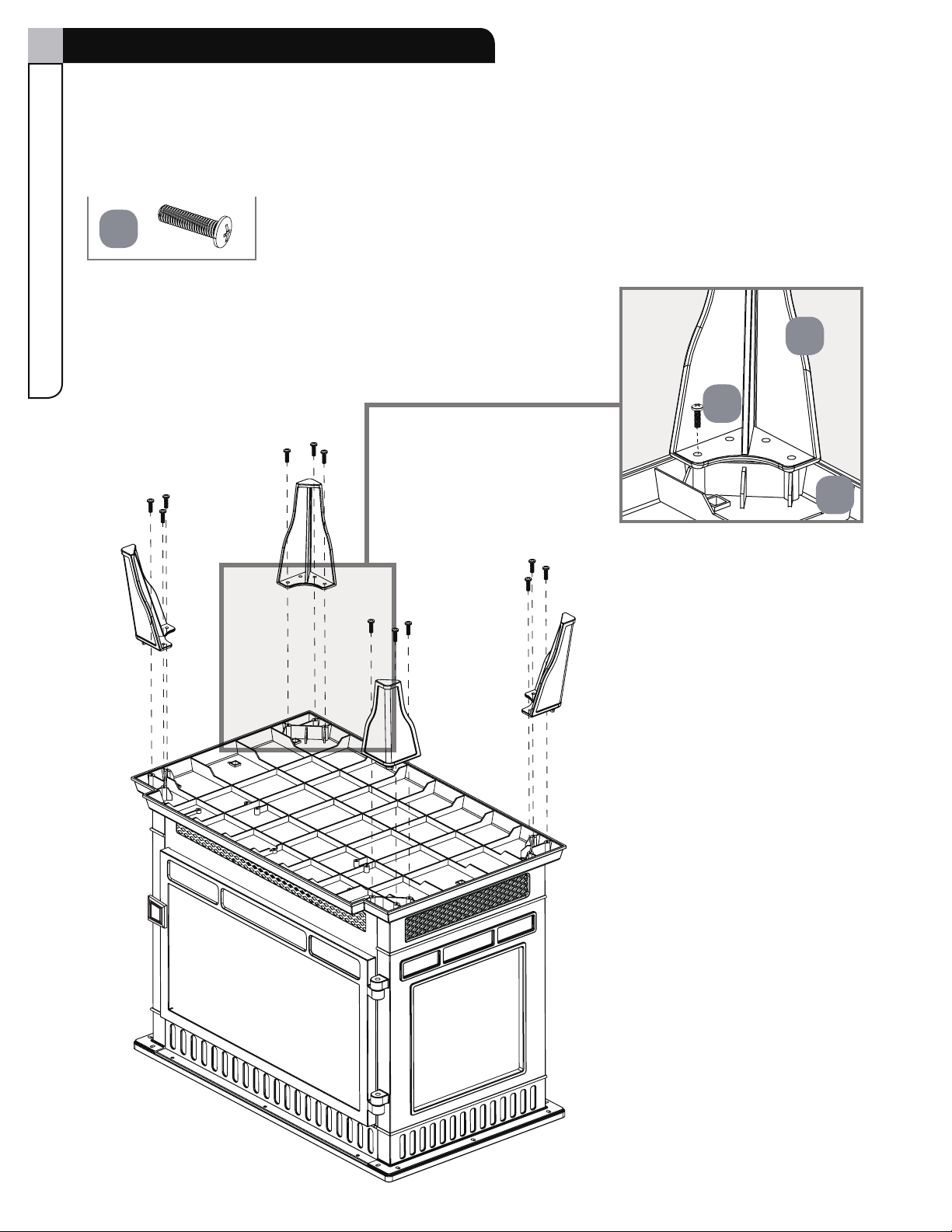

Step 1

Requires A, B, AA

Insert the legs B into the holes in the base of the body A . Attach each leg with three screws AA .

Not actual size

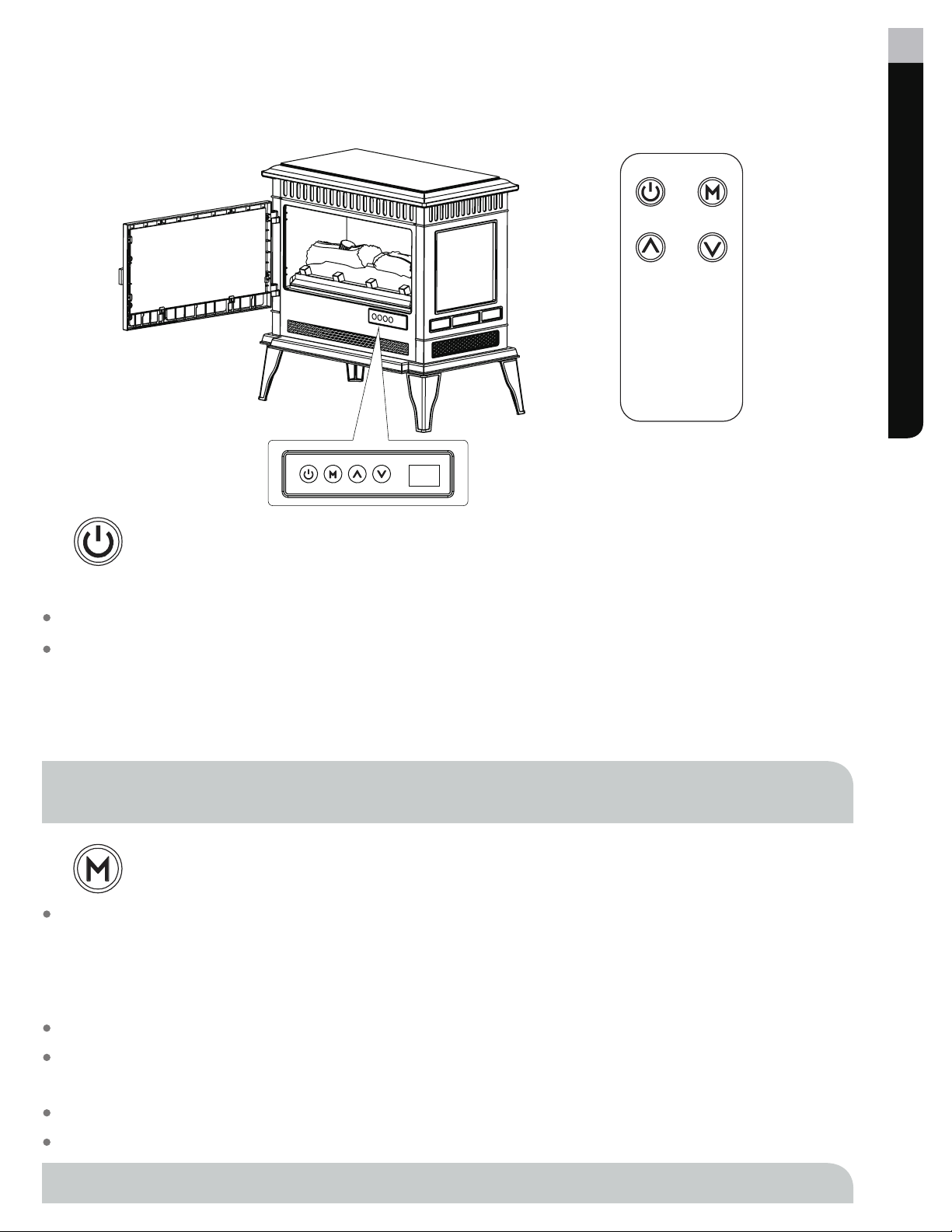

Operating Instructions

Power Button

Pressing the power button will turn the unit ON or OFF.

When the unit is in ON mode, the power icon indicator light will glow green.

When the unit is in OFF mode, the power icon indicator light will glow red. If the heater is working when the unit is

powered OFF, the fan will continue to run for another 20 seconds to ensure heat will not be trapped inside the unit.

Note: Each time the unit is plugged in, the fan and heater will turn on for few seconds as a programmed internal check.

Note: Unless the main power is interrupted, the unit will remember the last heating level and ﬂame brightness settings.

Remote Control

Note: This function is only available if using the control panel.

Mode Button

Press the mode button to cycle through the different functions. Each time the mode button is pressed, the mode will

rotate through temperature, timer orﬂame brightness modes.

Temperature Setting

The temperature mode controls the heater’s thermostat setting.

Press the up arrow button or down arrow button to scroll through the pre-set temperature range from 15 to 30°C (59

to 86°F).

When the ambient temperature is higher than the set temperature, heater will turn off automatically.

Hold the mode button for 3 seconds. This allows the unit to change from °C to °F or °F to °C. The unit default is °F.

Note: The remote control may be used on the unit with the door closed, however for best visibility of the

thermostat and timer settings, adjust on the control panel directly.

9Model No. SP6143

Timer Setting

The timer mode should be used to set the countdown for the unit’s main power.

Press the up arrow button or down arrow button to adjust the timer setting from 0 hour (OFF) to 9 hours with

30 minute intervals.

Flame Brightness Setting

The ﬂame brightness mode is used to set the ﬂame brightness.

Use the up arrow button or down arrow button to scroll through the ﬂame brightness settings: F0 (ﬂame off, lowest

brightness of ember bed), F1, F2, F3, F4, F5 (brightest).

Up Arrow Button

Use up arrow button to increase the setting of the selected function.

Down Arrow Button

Use down arrow button to decrease the setting of the selected function.

Operating Instructions

Child Lock

Activate Child Lock

When the unit is ON, hold the POWER button for 10 seconds to activate the child lock function. E3 will be displayed

and the unit will beep 3 times indicating that the child lock function is activated. All function keys are locked. When

any button is pressed, E3 will show on the display indicating that the child lock function is activated.

Deactivate Child Lock

To deactivate the child lock function, hold the POWER button for 10 seconds.

Note: The child lock function is only available if using the control panel.

Make sure the unit is turned OFF, unplugged and the heating elements of heater are cool whenever you are cleaning

the heater.

Clean the metal trim using a water-dampened soft, clean cloth. DO NOT use brass polish or household cleaners as

these products will damage the metal trim.

The motors used on the fan and the ame generator assembly are pre-lubricated for extended bearing life and

require no further lubrication. However, periodic cleaning/vacuuming of the fan/heater and air intake/ output vents is

recommended.

Any other servicing should be performed by an authorized service representative.

When the heater is not in use, the heater should be stored in a dry location, away from possible damage. The power

cord should be stored properly to avoid contact with hot or sharp objects.

Cleaning and Maintenance

Warning! Make sure the power is turned off before proceeding. Any electrical repairs

or rewiring of this unit should be carried out by a licensed electrician in accordance with

national and local codes. If repairing or replacing any electrical component or wiring, the

original wire routing, colour coding and securing locations must be followed.

Warning! Do not use this ﬁreplace if any part of it has been under water. Immediately call

a qualiﬁed service technician to inspect the ﬁreplace and replace any part of the electrical

system.

Warning! During any service of this appliance, the power to the unit must be turned off.

First turn the main power switch to the “OFF” position. Then remove the electrical plug from

the wall outlet.

Warning! Electrical outlet wiring must comply with local building codes and other

applicable regulations to reduce the risk of ﬁre, electric shock and injury to persons.

Warning! Disconnect power before attempting any maintenance or cleaning to reduce the

risk of ﬁre, electric shock or personal injury.
