Quick Start Guide

Hardware Installation CP-VTA-T2124-CR

Version 1.01

Quick guide for hardware installation

Step:-1 Hardware Installation

Step:-1.1->

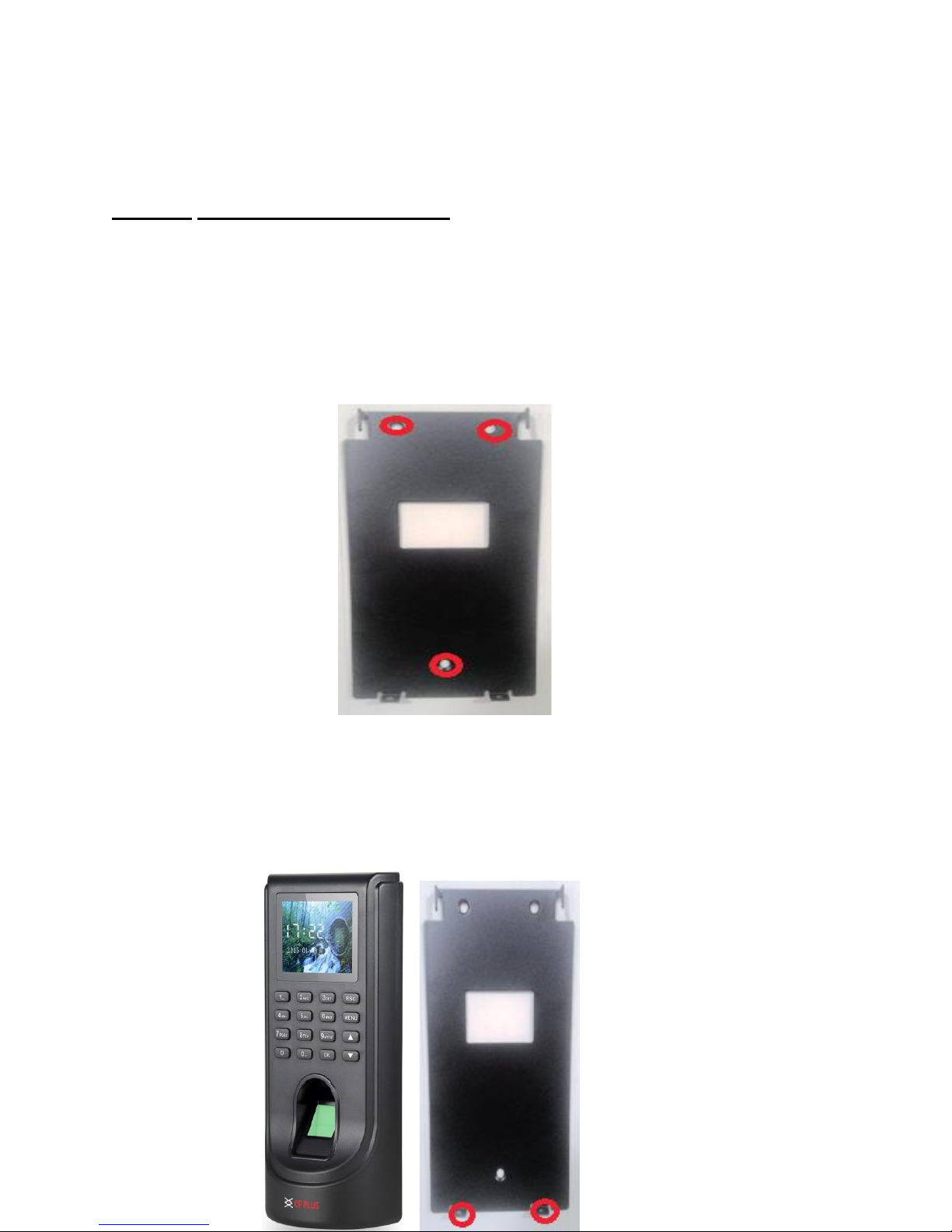

First we have to open Back plate from the device, after that we have to

fix it on the wall with three screws.

Step:-1.2 ->

After fixing of the back plate on the wall “we have to tighten the screw

on device with back plate in bottom side.

Step: - 2 Power On device with following connection.

Connect the power plug with the power connectors provided at the

back side of the device then machine will start, and if you want to

connect EM Lock and Exit button then you can follow the below wiring

diagram for the same.

Step:-3 How to enroll finger print in the device.

Step:-3.1->

Press “Menu” button then go to “Register”.

Step:-3.2->

Then select “New Reg” then Press “OK”button on the device.

Step:-3.3->

Enter your employee ID no.

Step:-3.4 ->

Now, go to 3rd option “Finger”, and click on Unset for registering your

finger. Now, Place your any 1 finger 3 times at the “sensor” (scanner).

Then press “ESC” button on the device for saving the fingerprint.

Step:-3.5->

How to enroll “Proximity card in device.”

Go to the 3rd option “Card”, and click on Unset for registering your card.

Now, show your any 1 card at the “sensor” (scanner).

Step: - 4 Communication Management.

How to connect device with CP-tams Software.

Step:-4.1 ->

Press “Menu” on the device then select “set comm” after that press

“OK” Button on the device.

Step: - 4.2->

Then select “Ethernet option”

Step: - 4.3->

Put your Local “LAN IP address” and press “OK” Button on the Device

Step:->5 Verifying Machine ID.

After Configuring IP address we have to check Machine ID. Of the

Device

Step:-5.1->

You have to Press “Menu” on the device then select “Advanced

Option”

Step: - 5.2->

After that we have select “Machine ID”. We need to make sure that the

Machine id is same in the device as well as in CP-TAM software.

After selecting machine ID you can connect device with CPTAMs

software.

(You can go with help manual enclosed with CPTAMs software for

further assistance).

Website: - www.cpplusworld.com

Email id: - sales@cpplusworld.com; support@cpplusworld.com
