User Manual

Drop-In

Induction Range

with Remote Control Panel

REVISED 11/2023

351IDCPG19A, 351IDCPG38M

. www.cookingperformancegroup.com

User Manual

Congratulations on your purchase of Cooking Performance Group commercial cooking equipment!

At Cooking Performance Group, we take pride in the design, innovation, and quality of our products.

To ensure optimal performance, we have outlined the following instructions and guidelines in this

manual carefully for your review. Cooking Performance Group declines any responsibility in the event

users DO NOT follow the instructions or guidelines stated here.

Contents

Safety Precautions ........................................3

Before First Use ..........................................4

Installation Instructions ....................................5

Induction Cooking ........................................7

Control Panel.............................................7

Operation ................................................8

Troubleshooting ..........................................9

Cookware Guide ..........................................9

Cleaning & Maintenance ................................. 10

4010671 4010671

NEMA

5-20P

NEMA

6-20P

Conforms to UL STD. 197

Conforms to NSF/ANSI STD. 4

IDCPG19A IDCPG38M

www.cookingperformancegroup.com 3

User Manual

• These units are designed for commercial use and not for household use.

• Turn off and disconnect the unit from the power supply prior to servicing.

• DO NOT use if glass surface is damaged.

• DO NOT use if power cord or electrical wires are frayed or worn.

• Exterior surfaces on unit will get hot. Use caution when touching these areas. DO NOT touch any surfaces

labeled "CAUTION HOT" while the product is in use.

• DO NOT leave the appliance unsupervised when in use. This appliance is not intended for use by persons

(including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge

unless they have been given instruction concerning use of the appliance by a person responsible for their safety.

• DO NOT leave packaging components within the reach of children - danger of suffocation!

• DO NOT immerse cord, plug, or appliance in water or other liquid. Do not leave appliance on wet surface.

• DO NOT pour or drip any liquids at the motor base or cord. When liquids are spilled on the motor base,

immediately switch OFF, unplug, and let the motor base dry thoroughly.

• DO NOT wash the appliance and power cord in the dishwasher.

CAUTION

CAUTION DANGER OF ELECTRIC SHOCK

THIS APPLIANCE IS NOT A TOY

IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION, SERVICE, OR MAINTENANCE CAN CAUSE

PROPERTY DAMAGE, INJURY, OR DEATH. READ THE INSTALLATION, OPERATING, AND MAINTENANCE

INSTRUCTIONS THOROUGHLY BEFORE INSTALLING OR SERVICING THIS EQUIPMENT.

KEEP WATER AND OTHER LIQUIDS FROM ENTERING THE INSIDE OF THE UNIT. LIQUID INSIDE THE

UNIT COULD CAUSE AN ELECTRIC SHOCK.

IF LIQUID SPILLS OR BOILS OVER ONTO THE UNIT, IMMEDIATELY UNPLUG THE UNIT AND REMOVE

COOKWARE. WIPE UP ANY LIQUID WITH A PADDED CLOTH.

WARNING

DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS OR LIQUIDS IN THE VICINITY

OF THIS OR ANY OTHER APPLIANCE.

FOR YOUR SAFETY

WARNING ELECTRICAL SHOCK HAZARD

Safety Precautions

. www.cookingperformancegroup.com

User Manual

• DO NOT touch heated surfaces with your hands or other parts of your skin.

• DO NOT place empty pots or other empty cookware on the appliance when it is in operation.

• ALWAYS use handles or pot holders, as this unit can cause cookware and products to become extremely hot.

• ALWAYS place the unit on heat-resistant surfaces.

• Maintain required clearances for combustible and non-combustible surfaces.

• DO NOT block the air supply and ventilation of the appliance.

• DO NOT overheat the cookware.

• DO NOT pull on the cord to move the appliance.

• DO NOT move the appliance while in operation or with hot cookware on it. Danger of burning!

• In case of ames, DO NOT try to extinguish with water. Use a damp cloth.

• DO NOT place any other magnetic objects near the appliance (i.e. TV, radio, credit cards, cassettes etc.).

• DO NOT operate the appliance if any parts of it are damaged to avoid all risks. The appliance is damaged when

there are any cracks, excessively broken or frayed parts, or leaks. In this case, immediately stop using the

appliance and return the entire appliance (including any parts and accessories).

• Make sure to store the appliance in a dry, clean place, safe from frost, excessive strain (mechanical or electrical

shock, heat, moisture), and out of the reach of children.

• The use of accessories and spare parts that are not recommended by the manufacturer may cause damage to

the device or injuries to person.

• Unplug the appliance:

- After each use and when the appliance is not in use.

- Before changing accessories or cleaning the appliance.

- To unplug the appliance, never pull on the cord. Take the plug directly at the outlet and unplug.

• From time to time, check the cord for damages. Never use the appliance if cord or appliance shows any signs of

damage, as it could be dangerous.

• DO NOT operate appliance when:

- Power cord is damaged.

- If product has fallen down and shows visible damage or malfunction.

• This appliance requires a dedicated circuit.

• All installation and repairs must be performed by a certied and insured foodservice equipment technician.

CAUTION DANGER OF BURNING AND FIRE

www.cookingperformancegroup.com 5

User Manual

Installation Instructions

TO BE COMPLETED BY A CERTIFIED AND INSURED FOODSERVICE EQUIPMENT TECHNICIAN

• Installation must conform to all applicable codes. Improper installation will void the manufacturer’s warranty.

Do not obstruct or reduce the airflow of the ventilation openings on the sides, bottom, or the rear of the unit.

Blocking airflow could cause the unit to overheat.

• Do not install near any combustible surfaces. There must be a minimum of 4" between the induction range and

any non-combustible surface to allow sufficient airflow around the unit. There must be at least ¾″ between the

bottom of the induction range and the surface. Avoid placing on soft surfaces that could restrict the airflow to

the bottom of the unit. There must be at least 12″ of clearance on the sides and back from combustible surfaces.

• Do not operate this product in high heat environments. Avoid placing this product near gas equipment. The

maximum ambient room temperature must not exceed 100°F. Temperatures are measured in ambient air while

all appliances in the kitchen are in operation.

• The power supply must comply with the rated voltage, frequency, and plug specified on the data plate and must

be grounded. Do not use an extension cord with plug and cord models.

• This product conforms to UL-197 standards and must be installed under a ventilation hood for operation.

Consult local laws and regulations for exhaust and ventilation. A 48" clearance above this unit. Please ensure

your electrical connection matches the specifications indicated on the serial plate.

• As a precaution, persons using a pacemaker should stand back 12″ from an operating unit. Studies have shown

that the induction element will not disrupt a pacemaker. Keep all credit cards, driver licenses, and other items

with a magnetic strip away from an operating unit. The unit’s magnetic field might damage the information on

these strips.

• All models are equipped with an "overheating protection" feature. If the temperature of the cooking surface

becomes too hot, the unit will turn off. All models are equipped with a pan detection system and a "Safety Off"

feature so that when cookware is removed, the unit is switched to Standby Mode until a pot or pan is placed

back on the hob.

Before First Use

• Remove all packaging components and make sure that the appliance is in perfect condition.

• Clean the unit surface with a slightly moist cloth and dry.

. www.cookingperformancegroup.com

User Manual

FRONT

TOP

2 4

Drop-In Model Installation

1. Ensure the installation location has proper ventilation. There must be at least 7" of available space under the

mounted induction range, and the inside temperature of the cabinet must not exceed 90°F.

2. Drop-in models feature remote control. The control panel will be mounted separately for easy access.

3. Use and place the provided template in the intended installation location, allowing at least 4" of countertop space

on each side. Cut the countertop using the template and cutout dimensions illustrated. (Fig. 1)

4. Insert the induction range into the cutout and apply a thin layer of silicone sealant around the surface.

5. Repeat similar instructions for the control panel. Center the control panel to the induction range whenever possible.

6. Connect the control panel cable to the induction range.

• Countertop thickness must not exceed 2".

• Drop-in models should only be installed by professionals.

FIG. 1 AMax. 2"

Countertop Depth

BMin. 7"

Cabinet Clearance

CMin. 4"

Countertop Clearance

112.99"

Range Cutout Height

212.2"

Range Cutout Width

32.87"

Controller Cutout Height

46.1"

Controller Cutout Width

www.cookingperformancegroup.com 7

User Manual

Special Notes for Your Safety:

• This unit has been designed to meet the applicable standards for non-interference with other electronic devices.

Make sure other electronic devices in the vicinity, including pacemakers and other active implants, have been

designed to meet their corresponding applicable standards. As a precaution, persons using a pacemaker should

stand back 12" (30cm) from an operating unit. Studies have shown that the induction element will not disrupt

a pacemaker.

• To avoid any risks, do not place very big magnetic objects (i.e. griddles) onto the cooking zone of the glass eld.

Do not place other magnetic objects other than cookware (i.e. credit cards, TV, radio, cassettes) near or on the

glass surface of the induction cooking plate when it is in operation.

• It is recommended not to put metallic utensils (i.e. knives, pot or pan covers, etc.) on the cooking plate in case of

switching on the appliance. They might get hot.

• Do not insert any objects (i.e. wires or tools) into the ventilation slots. This may cause electrical shock.

• Do not touch the hot surface of the glass eld. Please note: Even though the induction cooking plate does not

heat up during cooking, the temperature of the heated cookware heats up the cooking plate.

Induction Cooking

• The induction cooking plate and the cookware placed on it become connected via electromagnetism.

• Heat is generated in the bottom of the cookware and immediately directed into the food. The energy is absorbed

immediately into the cookware. This guarantees extremely high cooking speed and minimal heat loss.

• High effectiveness during parboiling and minimum power consumption during cooking reduces total energy

consumption up to 30%.

• Precise controlling (by 2 different adjustable functions) guarantees quickly and tightly focused heat input.

• As the induction cooking plate is only heated up by the heated cookware, the risk of scorching or burning of food

residues is reduced. The induction cooking plate does not stay hot as long as standard cooking plates for easy cleaning.

• When the cookware is removed, the device automatically switches into the Standby Mode.

• The device detects whether suitable cookware is placed on the cooking plate.

NOTE: The cookware must be magnetic. Before switching on the appliance, always place the magnetic cookware

centered onto the cooking eld.

How Induction Cooking Works:

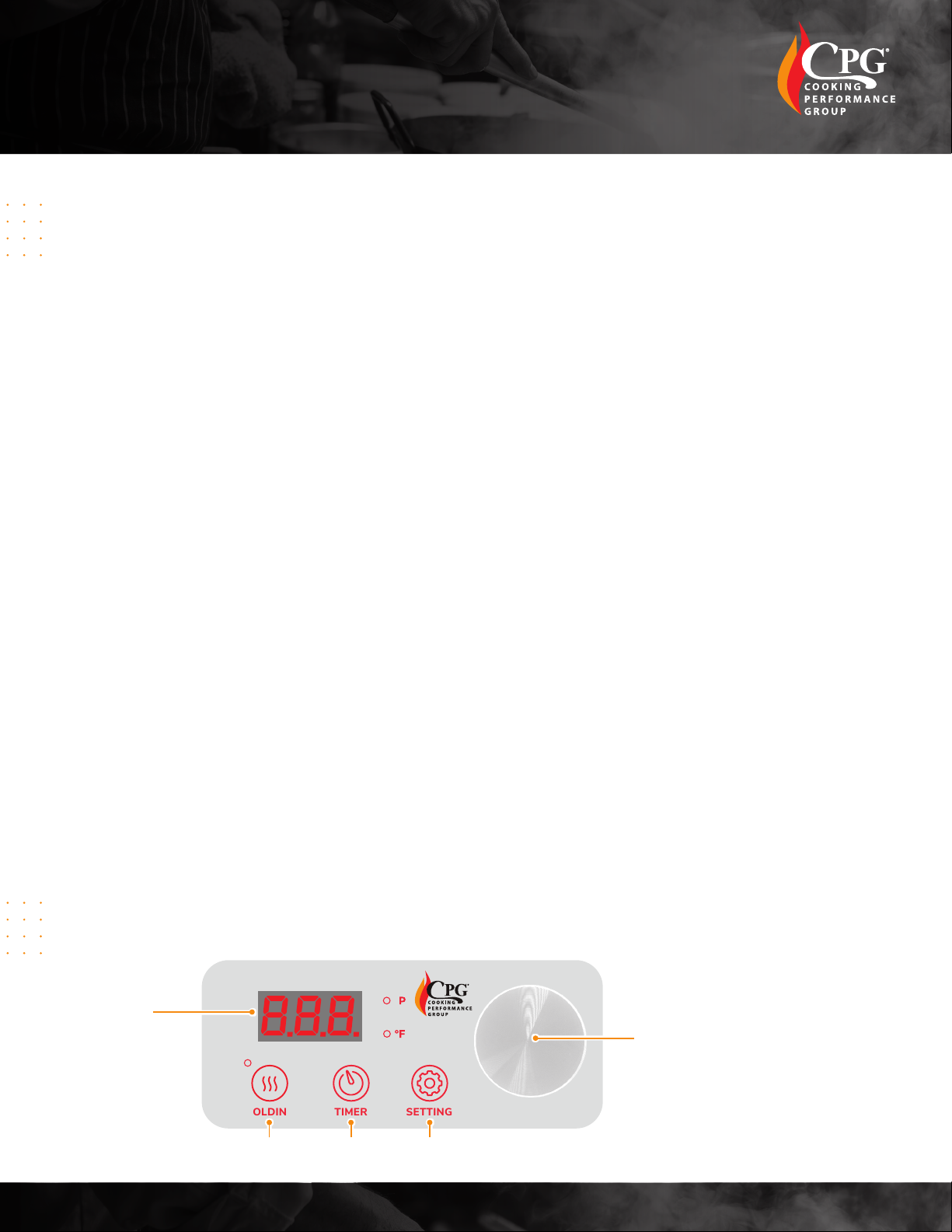

Control Panel

SETTINGHOLDING TIMER PUSH (ON/OFF)

21 MM ON/OFF Button & Rotating Knob

LED Display

Holding

Function Button

Timer

Button

Setting

Button

. www.cookingperformancegroup.com

User Manual

Operation

1. Always place suitable cookware filled with food centered onto the induction cooking plate before plugging in

unit or error function will occur (See Troubleshooting on Page 8).

2. Insert the plug into a suitable socket. After the unit it plugged in, a long acoustic signal will sound and the display

will show “----".

3. Pushing the Rotating Knob will switch the device into Standby Mode. The display will show “0000” and a short

acoustic signal will sound. Whenever you press button again or new button, a short acoustic signal will sound.

4. Pressing the button will turn on the inside fan automatically. The display will now show 15, this is an

automatic setting. The appliance is now in power mode. Set the desired power (1-30) by rotating the knob.

5. Press the button to program the temperature model. Set the desired temperature (90 - 450°F) by rotating

the knob.

6. If desired, press the button to program the cooking time. Adjust the desired cooking time (0 - 180 min.) by

rotating the knob in 1 minute increments. This is an optional timer. If you do not set the timer, it will default to

180 minutes.

7. The function is a quick-select low-medium temperature (~155°F) for holding the product.

8. Cooking time will be indicated at the display by counting down the minutes. When cooking time is finished, this

will be indicated by several acoustic signals and the unit will keep working.

9. This unit will heat continuously until the “OFF” switch is pressed. It is recommended that you only use the unit

for 2-3 hours at a time to lengthen the life of the unit. The fans will continue to run for 20 minutes after the unit

is turned OFF. DO NOT restrict airflow to cooling fans.

Please follow the sequence below when adjusting the appliance. You can adjust power level, temperature, and

cooking time (minutes) by using the rotating knob to increase or decrease.

• Power Levels: 1/2/3/4/5/6/7/8/9/10...30. Defaults to 15.

• Temperature Levels: 90/95/100/105/110/115/120...460°F. Defaults to 200°F.

• Time Pre-Setting: 0 – 180 minutes (in 1 minute increments). Defaults to 180 minutes if not set.

• DO NOT use the appliance if it shows any sign of damage or malfunction. Please contact customer service.

• DO NOT place empty cookware on the appliance and DO NOT leave cookware on the appliance for too long to avoid

liquid cooking off completely. Overheating the cookware will activate the boil dry protection of the device.

• The unit will automatically shut OFF after 10 continuous hours of use as a built-in safety feature. You may turn it

back ON and continue using it.

www.cookingperformancegroup.com 9

User Manual

Troubleshooting

ERROR

CODE INDICATES SOLUTION

No cookware or non-usable cookware.

(The unit will not switch ON to heat. The unit will

switch to standby mode after 1 minute.)

Make sure to use the correct, high-quality, induction-ready

cookware. Steel, cast iron, enameled iron, or stainless steel

with at bottom pans/pots with diameter of 5 - 10".

E1 Low voltage (< 100V). Ensure voltage is higher than 100V.

E2 High voltage (> 280V). Ensure voltage is lower than 280V.

Top plate sensor is overheating or short circuiting.

(The unit's overheat/boil dry protection will trip if

the temperature of cookware rises above 450°F.)

The unit will need to be turned off, unplugged, and allowed

to cool.

Turn the unit back on.

If error code persists, the sensor has failed. Please contact

customer service.

Top plate sensor has an open circuit or is without

connection.

The sensor has been damaged. (Could have

occurred during shipping.)

Bad sensor and PCB connection due to loose

fasteners.

If you see loose wires, contact customer service.

E5 IGBT sensor is overheating or short circuiting.

Fan without connection.

If the error occurs but the fan is still functioning, contact

customer service.

If the error occurs and the fan has stopped functioning, or is

not running well, turn the unit off and check to see if debris is

lodged in the fan.

E6 IGBT sensor open circuit. Contact customer service.

Cookware Guide

• Induction-ready cookware must be used with these units.

• The quality of the cookware will have an impact on the equipment's performance.

TIP:

Test with a magnet if the cookware you plan to use is suitable for induction cooking.

Examples of Usable Pans

• Steel or cast iron, enameled iron, stainless steel, pans/pots

with flat bottoms.

• Flat bottom diameter from 4¾" to 10¼" (9" recommended).

Examples of Non-Usable Pans

• Heat-resistant glass, ceramic, copper, aluminum pans/pots.

• Pans/pots with rounded bottoms.

• Pans/pots with bottom measuring less than 4¾" or greater than 10¼".

. www.cookingperformancegroup.com

User Manual

Cleaning & Maintenance

1. Wipe the plates and stainless steel surface with a damp cloth only.

2. Use of additional non-abrasive cleaning liquids is recommended for induction cooking plates to extend their lifetime.

3. When not in use, store the device in a dry place.

• Clean the device after each use to remove food residues.

• Make sure that no water gets into the device.

• To avoid any danger or risk of electrical shock, never immerse the device or the cord into water or any other liquid.

• DO NOT put the device and the cord into the dishwasher!

• To avoid damaging the surface of the unit, never use abrasive cleaners, cleaning pads, or any sharp objects (i.e. metal

scouring pads). If using metal objects to clean, the sensitive surface can be damaged easily by scratches.

• Always handle the appliance with care and without any force.

• DO NOT use any petrol products to clean the device to avoid damaging the plastic parts and the control panel.

• DO NOT use any ammable acid or alkaline materials or substances near the device, as this may reduce the service life

of the device.

• The appliance must be stored in a place which is not within reach of children.

• ALWAYS SWITCH OFF AND UNPLUG THE APPLIANCE AFTER USE AND BEFORE CLEANING.

• LET THE APPLIANCE COOL DOWN BEFORE CLEANING AND STORAGE.

• NEVER IMMERSE THE APPLIANCE IN WATER OR CLEAN IT UNDER RUNNING WATER.

CAUTION DANGER OF BURNING AND ELECTRIC SHOCK

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali CPG Allineare

CPG

CPG 351CPGSPR18 Manuale utente

CPG

CPG 351S24 Series Manuale utente

CPG

CPG 351WOKR13L Manuale utente

CPG

CPG HP212 Istruzioni per l'installazione

CPG

CPG 351SRCPG12NL Manuale utente

CPG

CPG 351RCPG12NL Manuale utente

CPG

CPG 351S24(L/N) Manuale utente

CPG

CPG 351RCPG12NL Manuale utente

CPG

CPG 351CPGSPR18L Manuale utente

CPG

CPG 351S24(L/N) Manuale utente

Manuali Allineare popolari di altre marche

Samsung

Samsung FCQ321HTUW Manuale utente

Kenmore

Kenmore 790.45712 Manuale utente

Wolf

Wolf CHR CHSSR Manuale utente

Smeg

Smeg Built-in Microwave Oven Manuale di istruzioni

Zanussi

Zanussi ZCG054G Manuale utente

Whirlpool

Whirlpool 8575985-W Manuale elenco delle parti

Frigidaire

Frigidaire 316000635 Manuale utente

GE JCSS630 Manuale utente

Samsung

Samsung NX58M9960P series Manuale utente

Hotpoint

Hotpoint RB524R Guida all'installazione

Whirlpool

Whirlpool Roper FGP305KW3 Manuale utente

Amana

Amana ART6610 SERIES Manuale utente

Maytag

Maytag MERH770WB Manuale utente

Fulgor Milano

Fulgor Milano SOFIA Manuale utente

Premier

Premier EF-4358GH Manuale utente

Kenmore

Kenmore 790.9010 Series Manuale utente

KitchenAid

KitchenAid KESC300 Manuale utente

Frigidaire

Frigidaire FFEF3012LS Guida utente
