Craftsman 919.155730 Manuale utente

S_ RS

PARTS

MANUAL

MODEL NO.

919.155730

Important:

Before using this

equipment, read all

Safety Precautions

and both manuals.

Retain for future use.

CRAFTSMAN

PERMANENTLY LUBRICATED

AIR COMPRESSOR

SPECIFICATION CHART

Model No,

Horsepower

DisplacementCFM

Bore

Stroke

Voltage-Single Phase

Minimum Branch Circuit Requirement

Fuse Type

Air Tank Capacity - GAL

Approximate Cut-in Pressure

Approximate Cut-out Pressure

SCFM @ 40 psig

SCFM @ 90 psig

UL Listed

919.155730

3 1/2

11.9

2 3/8"

1.35"

120/240

15 amps

"Fusetron"

Type T

25 gal. A.S.M.E.

100

125

8,5

6.8

Yes

Sears, Roebuck and Co., Chicago, IL 60684 U.S.A.

IM-155730 10/16/91 !

AIR COMPRESSOR DIAGRAM

44 45 46 47

32 30 30A

-2-

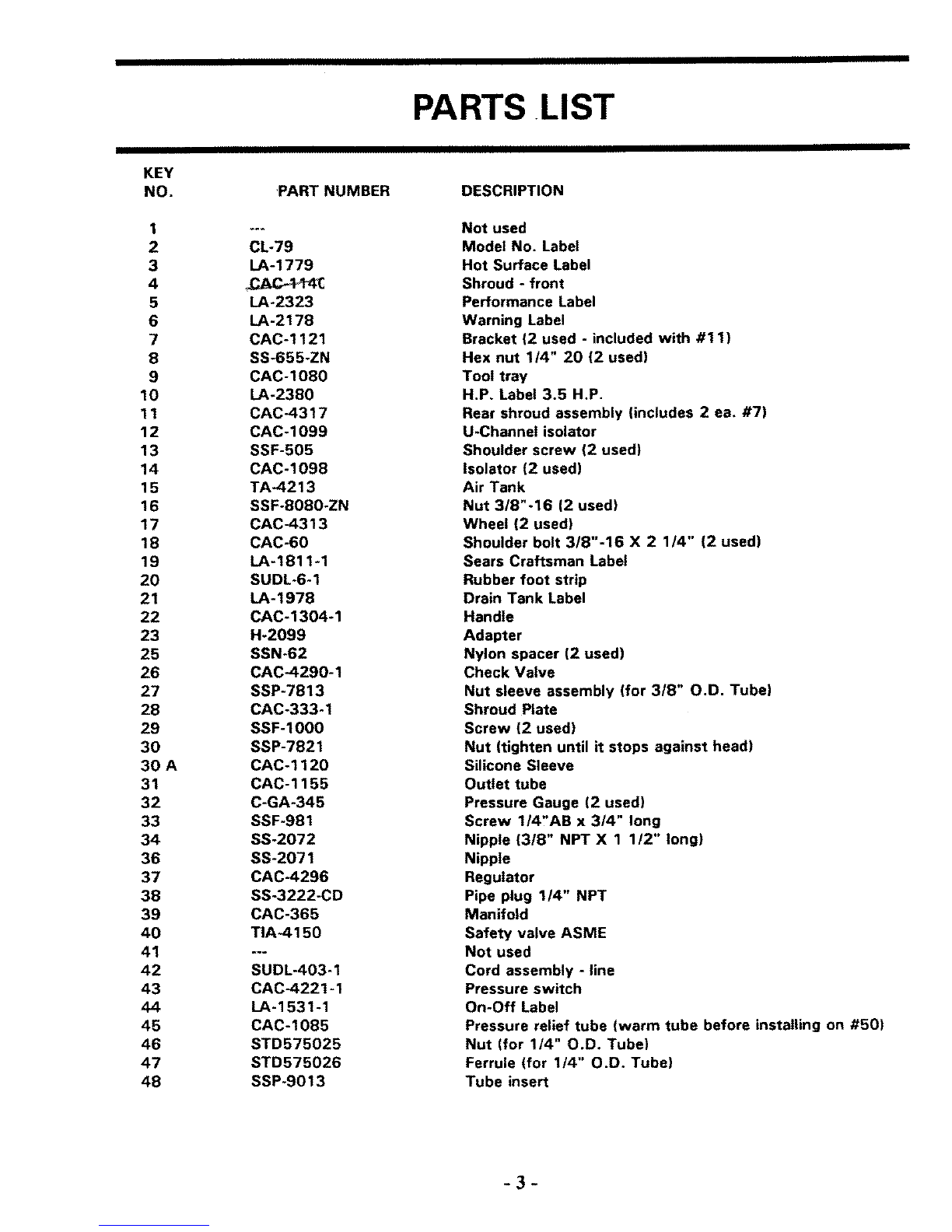

PARTS .LIST

KEY

NO.

30 A

'PART NUMBER

CL-79

LA-1779

LA-2323

LA-2178

CAC-1121

SS-655-ZN

CAC- 1O80

LA-2380

CAC-4317

CAC-1099

SSF-505

CAC-1098

TA-4213

SSF-8080-ZN

CAC-4313

CAC-60

LA-1811-1

SUDL-6-1

LA- 1978

CAC- 1304-1

H-2099

SSN-62

CAC-4290-1

SSP-7813

CAC-333-1

SSF-1000

SSP-7821

CAC-1120

CAC-1155

C-GA-345

SSF-981

SS-2072

SS-2071

CAC-4296

SS-3222-CD

CAC-365

TIA-4150

SUDL-403-1

CAC-4221-1

LA-1531-1

CAC- 1085

STD575025

STD575026

SSP-9013

DESCRIPTION

Not used

Model No. Label

Hot Surface Label

Shroud - front

Performance Label

Warning Label

Bracket (2 used -included with #11)

Hex nut 1/4" 20 (2 used)

Tool tray

H.P. Label 3.5 H.P.

Rear shroud assembly (includes 2 ea. #7)

U-Channel isolator

Shoulder screw (2 used)

Isolator (2 used)

Air Tank

Nut 3/8"-16 (2 used)

Wheel (2 used)

Shoulder bolt 3/8"-16 X 2 1/4" (2 used)

Sears Craftsman Label

Rubber foot strip

Drain Tank Label

Handle

Adapter

Nylon spacer (2 used)

Check Valve

Nut sleeve assembly (for 3/8" O.D. Tube)

Shroud Plate

Screw (2 used)

Nut (tighten until it stops against head)

Silicone Sleeve

Outlet tube

Pressure Gauge (2 used)

Screw I/4,AB x 3/4" long

Nipple (318" NPT X 1 1/2" long)

Nipple

Regulator

Pipe plug 1/4" NPT

Manifold

Safety valve ASME

Not used

Cord assembly -line

Pressure switch

On-Off Label

Pressure relief tube (warm tube before installing on #50)

Nut (for 114" O.D. Tube)

Ferrule (for 1/4" O.D. Tube)

Tube insert

-3-

COMPRESSOR PUMP DIAGRAM

77 60 61

59 jt

66 67

-4-

PARTS LIST

KEY

NO.

+ 56

+ 57

+ 58

•60

•62

*65

*66

•76

+ 77

PART NUMBER

_°_

SSP-6088

CAC-4215-1

SSW-7367

KK-4315

DAC- 143

DAC-142

CAC- 1173-1

SSF-990

CAC-1122-U-1

SSF-6640

CAC-1175

CAC-4281-1

SSG-8156

C-MO-3020

SSW-5394

SSF-993

CAC-4086

SSF-3153

CAC-1148-1

SSF-3101

SS-6505-CD

DAC-140

DAC-144

H-5796

SSH-8

M-155730

MG-PERMLUBE

SS-2707

DESCRIPTION

Not used

Barbed Fitting

Cord assembly -motor

Strain relief (2 used)

Pressure release valve and mounting nut (included with #43)

Air Filter

Muffler screen

Intake muffler

Screw 1/4"-20 X 1 1/4" (2 used, torque 7-10 ft. Ibs.)

Head

Stud 1/4"-20 X 1 1/4" (2 used, torque 7-10 ft. Ibs.)

Head Gasket

Valve plate assembly (includes valves, restrictors & screws)

O-ring

Connecting rod assemlby (torque screw 30-35 in. Ibs.)

Cylinder sleeve (position locating mark toward motor}

Motor 3.5 HP

Terminal box cover

Ground screw

Eccentric/Flywheel bearing assy. (includes 1 ea. #72}

Screw (eccentric, torque 120-140 in. Ibs.)

Squirrel cage fan

Screw #10-24 X 3/8" long (torque 30-35 in. Ibs.)

Washer (1/4")

Flow Valve

Fastener Intake Filter (2 used)

NOT ILLUSTRATED

Air Hose Assembly (1/4" I.D. x 15')

Air Chuck

Parts Manual

General Manual

Drain Valve

*Key Nos. 65 & 66 can only be purchased as part of KK-4835 connecting rod kit.

X Key No. 72 can only be purchased as part of No. 70.

•Key Nos. 60, 62 & 76 can be purchased as KK-4987 Head/Gasket!Valve Kit.

-5-

SERVICE NOTES

-6-

SERVICE NOTES

-7-

SEARS

PARTS

MANUAL

SERVICE

MODEL NO.

HOW TO ORDER

REPAIR PARTS

FULL ONE YEAR

WARRANTY

AIR COMPRESSORS

CRAFTSMAN

PERMANENTLY LUBRICATED

AIR COMPRESSOR

Now that you have purchased your Sears Air

Compressor, should a need ever exist for repair parts or

service, simply contact any Sears Service Center and

most Sears, Roebuck and Co. stores. Be sure to provide

all pertinent facts when you call or visit.

The model number of your Sears Compressor can be

found on the label which is located on the rear of the

shroud.

WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE

FOLLOWING INFORMATION:

•PART NUMBER • PART DESCRIPTION

•MODEL NUMBER • NAME OF ITEM

If service or repair parts are required for the motor,

supply all motor nameplate information including

manufacturer's name.

All parts listed may be ordered from any Sears Service

Center and most Sears stores.

If the parts you need are not stocked locally, your order

will be electronically transmitted to aSears Repair Parts

Distribution Center for handling.

If this air compressor fails due to a defect in material or

workmanship within one year from the date of pur-

chase, RETURN IT TO THE NEAREST SEARS SERVICE

CENTER/DEPARTMENT THROUGHOUT THE UNITED

STATES AND SEARS WILL REPAIR IT, FREE OF

CHARGE.

If this air compressor is used for commercial or rental

purposes, the warranty will apply for ninety days from

the date of purchase.

This warranty gives you specific legal rights and you

may have other rights which vary from state to state.

Sears, Roebuck and Co., Chicago, IL 60684 U.S.A.
