Owner's Manual

Oil Lube Two Stage

Air Compressor

AiR COMPRESSOR

=Safety Guidelines

=Assembly

= Operation

=Maintenance

=Troubleshooting

= Repair Parts

CAUTION: Read the Safety Guidelines

and All Instructions Carefully Before

Operating.

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

Visit our Craftsman website: www.sears.com/craftsman

N004035 Rev.0 4/14/08

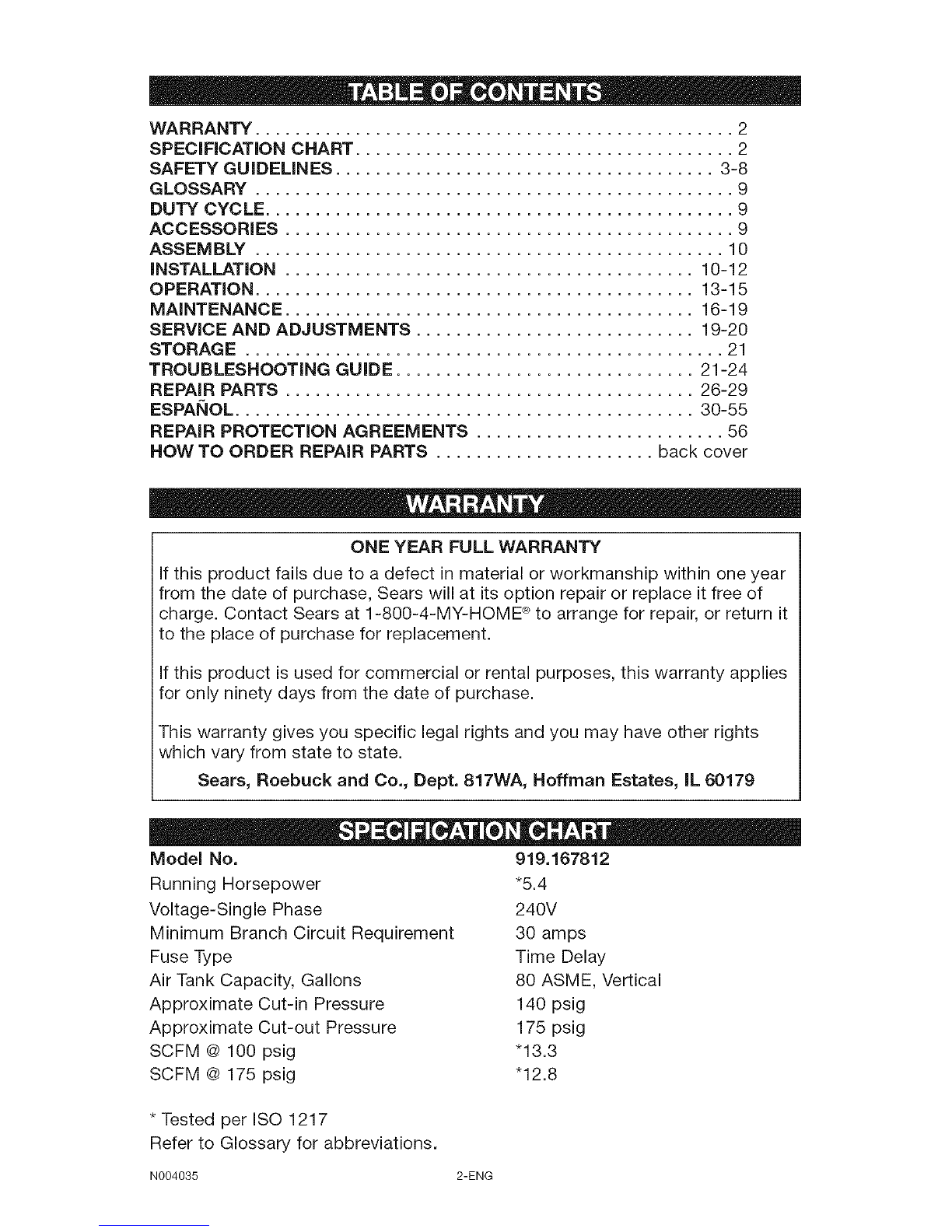

WARRANTY ................................................ 2

SPECiFiCATiON CHART ...................................... 2

SAFETY GUiDELiNES ...................................... 3-8

GLOSSARY ................................................ 9

DUTY CYCLE ............................................... 9

ACCESSORIES ............................................. 9

ASSEMBLY ............................................... 10

INSTALLATION ......................................... 10-12

OPERATION ............................................ 13-15

MAINTENANCE ......................................... 16-19

SERVICE AND ADJUSTMENTS ............................ 19-20

STORAGE ................................................ 21

TROUBLESHOOTING GUIDE .............................. 21-24

REPAIR PARTS ......................................... 26-29

ESPANOL .............................................. 30-55

REPAIR PROTECTION AGREEMENTS ......................... 56

HOW TO ORDER REPAIR PARTS ...................... back cover

ONE YEAR FULL WARRANTY

if this product fails clue to a defect in material or workmanship within one year

from the date of purchase, Sears will at its option repair or replace it free of

charge. Contact Sears at 1-800-4-MY-HOME ®to arrange for repair, or return it

to the place of purchase for replacement.

If this product is used for commercial or rental purposes, this warranty applies

for only ninety days from the date of purchase.

This warranty gives you specific legal rights and you may have other rights

which vary from state to state.

Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179

Model No.

Running Horsepower

Voltage-Single Phase

Minimum Branch Circuit Requirement

Fuse Type

Air Tank Capacity, Gallons

Approximate Cut-in Pressure

Approximate Cut-out Pressure

SCFM @ 100 psig

SCFM @ 175 psig

919.167812

*5.4

240V

30 amps

Time Delay

80 ASME, Vertical

140 psig

175 psig

"13.3

"12.8

* Tested per ISO 1217

Refer to Glossary for abbreviations.

N004035 2-ENG

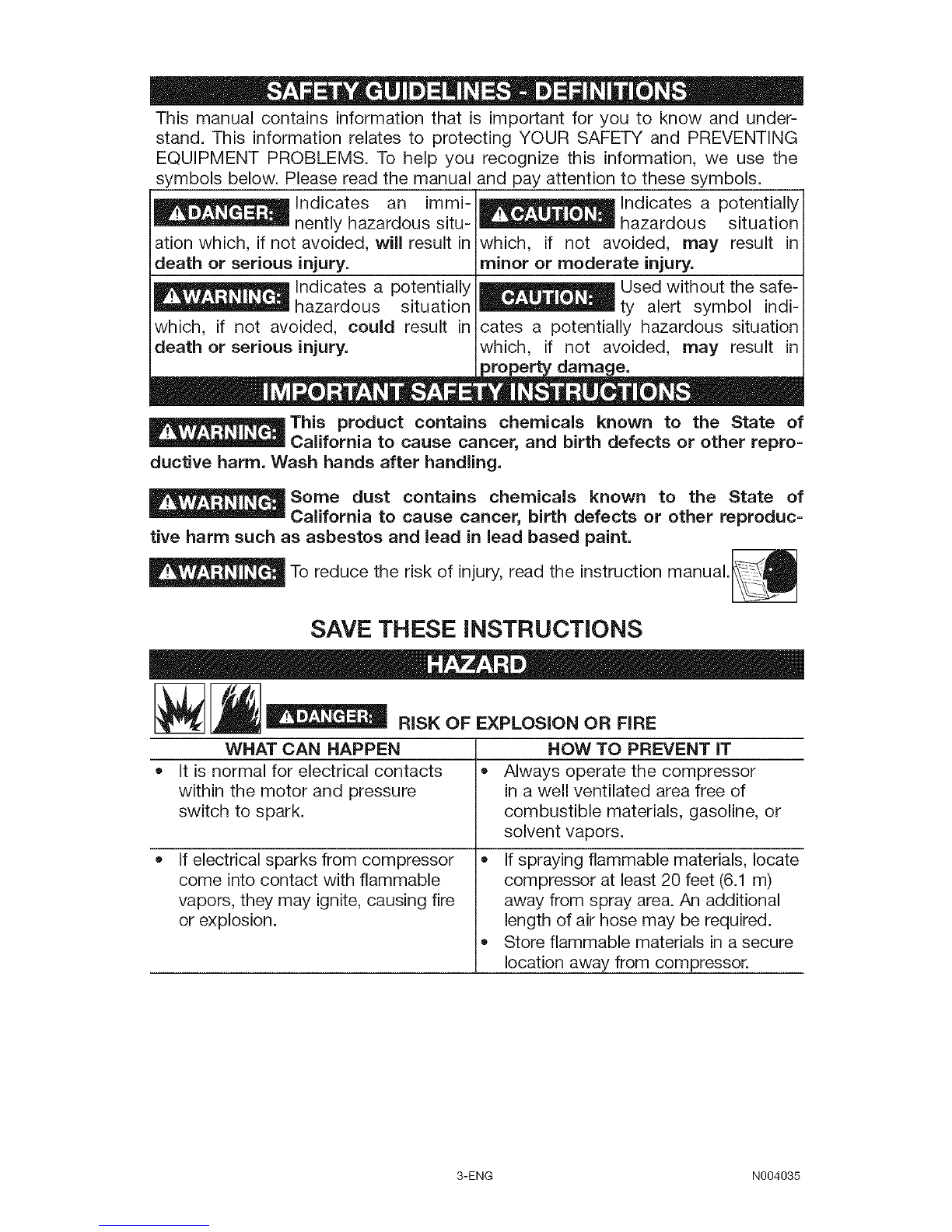

This manual contains information that is important for you to know and under-

stand. This information relates to protecting YOUR SAFETY and PREVENTING

EQUIPMENT PROBLEMS. To help you recognize this information, we use the

symbols below. Please read the manual and pay attention to these symbols.

i1_ Indicates an immi- _ Indicates a potentially

i = o - nentlyhazardoussitu- = " " " hazardous situation

iation which, if not avoided, will result in which, if not avoided, may result in

ideath or serious injury.

i1_ Indicates a potentially

hazardous situation

iwhich, if not avoided, could result in

death or serious injury,

minor or moderate injury,

Used without the safe-

ty alert symbol indi-

cates a potentially hazardous situation

which, if not avoided, may result in

property damage.

"0 = , ", = O

This product contains chemicals known to the State of

California to cause cancer, and birth defects or other repro-

ductive harm. Wash hands after handling.

Some dust contains chemicals known to the State of

California to cause cancer, birth defects or other reproduc-

tive harm such as asbestos and lead in lead based paint.

_To reduce the risk of injury, read the instruction manual._

SAVE THESE INSTRUCTIONS

' °- " RISK OF EXPLOSION OR FIRE

WHAT CAN HAPPEN

• It is normal for electrical contacts

within the motor and pressure

switch to spark.

• •

Ifelectrical sparks from compressor

come into contact with flammable

vapors, they may ignite, causing fire

or explosion.

HOW TO PREVENT IT

Always operate the compressor

in a well ventilated area free of

combustible materials, gasoline, or

solvent vapors.

Ifspraying flammable materials, locate

compressor at least 20 feet (6.1 m)

away from spray area. An additional

length of air hose may be required.

Store flammable materials in asecure

location away from compressor.

3-ENG N004035

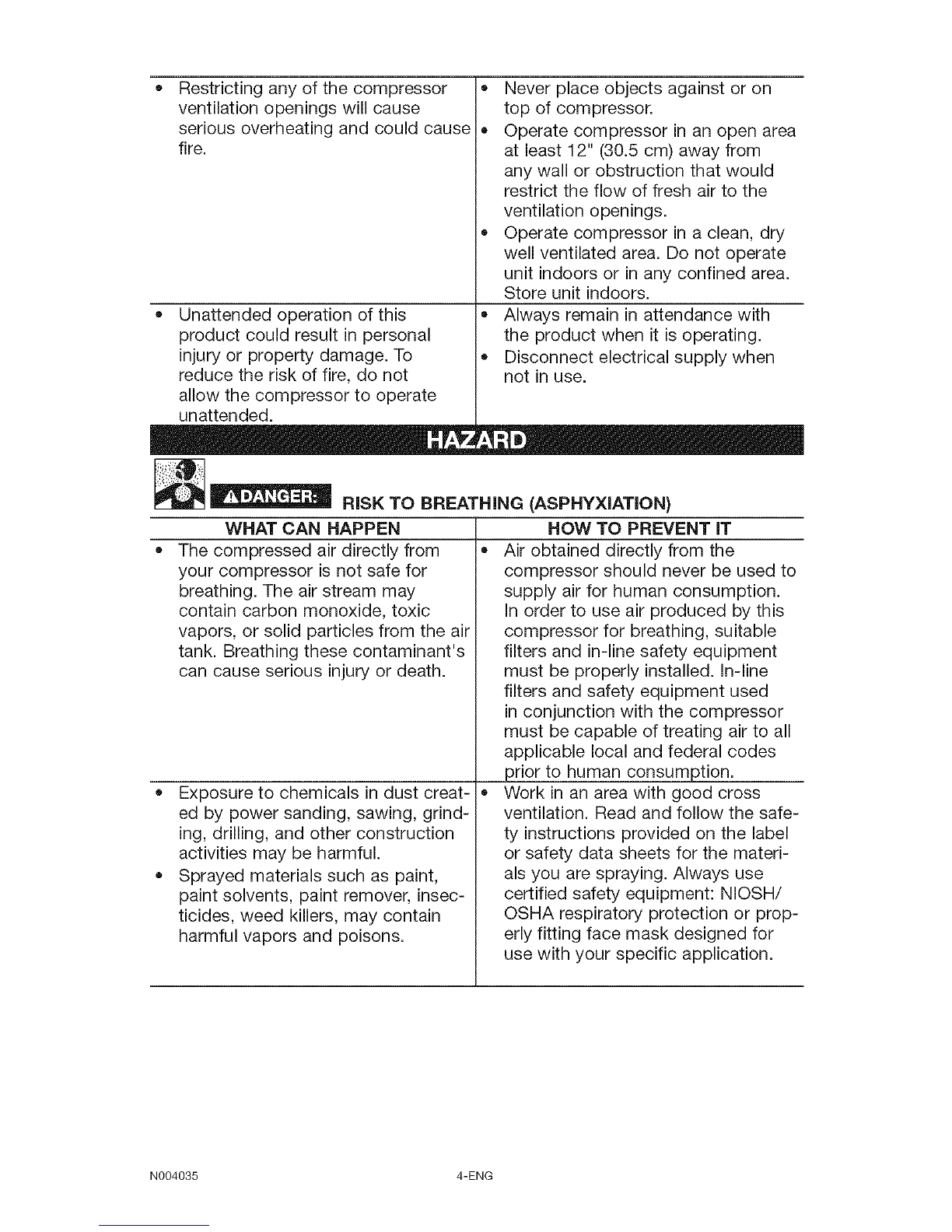

Restricting any of the compressor

ventilation openings will cause

serious overheating and could cause

fire.

• Unattended operation of this

product could result in personal

injury or property damage. To

reduce the risk of fire, do not

allow the compressor to operate

unattended.

__ RISK TO BREATHING (ASPHYXIATION)

Never place objects against or on

top of compressor.

Operate compressor in an open area

at least 12" (30.5 cm) away from

any wall or obstruction that would

restrict the flow of fresh air to the

ventilation openings.

Operate compressor in a clean, dry

well ventilated area. Do not operate

unit indoors or in any confined area.

Store unit indoors.

Always remain in attendance with

the product when it is operating.

Disconnect electrical supply when

not in use.

_"ID

WHAT CAN HAPPEN

The compressed air directly from

your compressor is not safe for

breathing. The air stream may

contain carbon monoxide, toxic

vapors, or solid particles from the air

tank. Breathing these contaminant's

can cause serious injury or death.

Exposure to chemicals in dust creat-

ed by power sanding, sawing, grind-

ing, drilling, and other construction

activities may be harmful.

Sprayed materials such as paint,

paint solvents, paint remover, insec-

ticides, weed killers, may contain

harmful vapors and poisons.

HOW TO PREVENT IT

Air obtained directly from the

compressor should never be used to

supply air for human consumption.

In order to use air produced by this

compressor for breathing, suitable

filters and in-line safety equipment

must be properly installed. In-line

filters and safety equipment used

in conjunction with the compressor

must be capable of treating air to all

applicable local and federal codes

prior to human consumption.

Work in an area with good cross

ventilation. Read and follow the safe-

ty instructions provided on the label

or safety data sheets for the materi-

als you are spraying. Always use

certified safety equipment: NIOSH/

OSHA respiratory protection or prop-

erly fitting face mask designed for

use with your specific application.

N004035 4-ENG

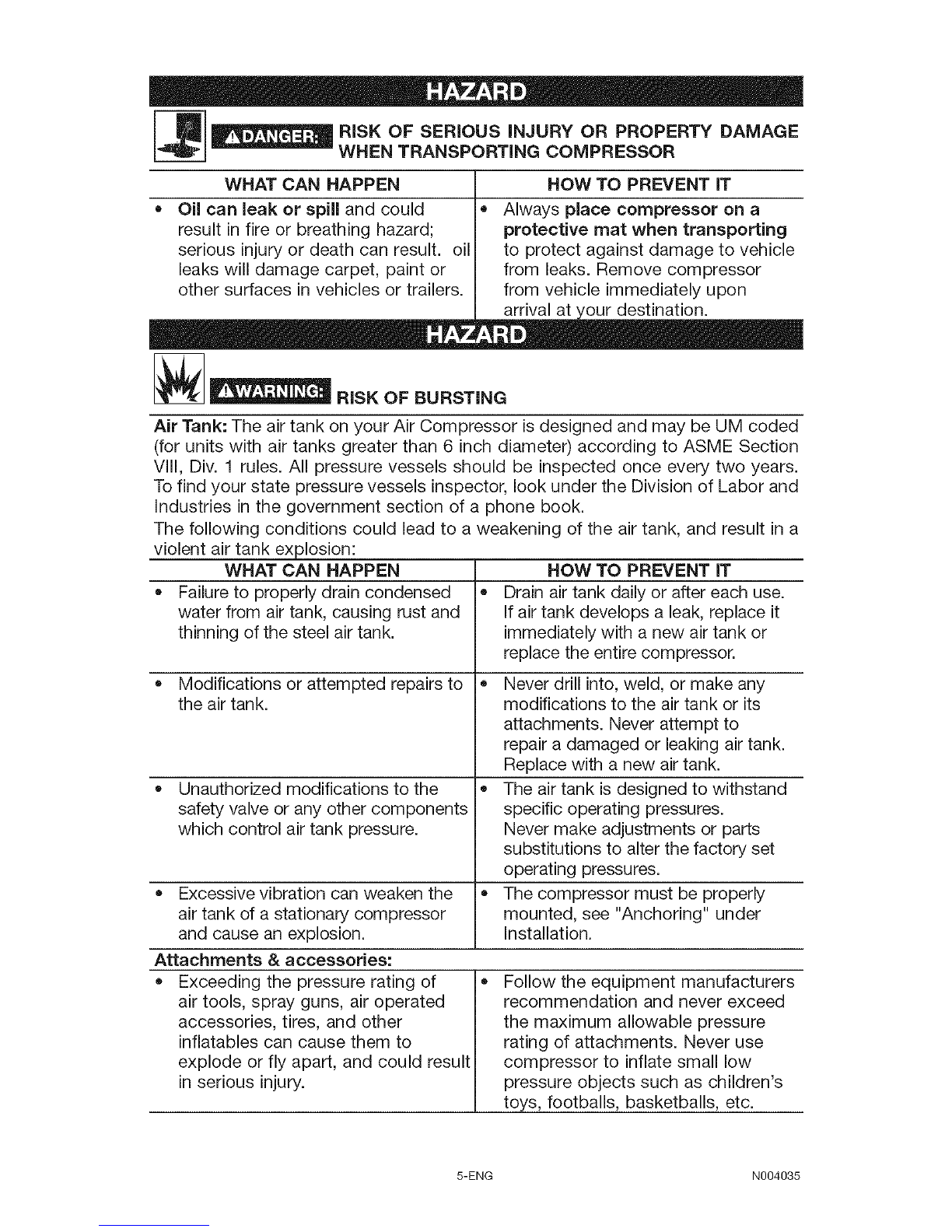

__ ISK OF SERIOUS iNJURY OR PROPERTY DAMAGE

WHEN TRANSPORTING COMPRESSOR

WHAT CAN HAPPEN

Oil can leak or spill and could •

result in fire or breathing hazard;

serious injury or death can result, oil

leaks will damage carpet, paint or

other surfaces in vehicles or trailers.

HOW TO PREVENT IT

Always place compressor on a

protective mat when transporting

to protect against damage to vehicle

from leaks. Remove compressor

from vehicle immediately upon

__ RISK OF BURSTING

Air Tank: The air tank on your Air Compressor is designed and may be UM coded

(for units with air tanks greater than 6 inch diameter) according to ASME Section

Viii, Div. 1 rules. All pressure vessels should be inspected once every two years.

Tofind your state pressure vessels inspector, look under the Division of Labor and

industries in the government section of a phone book.

The following conditions could lead to a weakening of the air tank, and result in a

violent air tank explosion:

WHAT CAN HAPPEN HOW TO PREVENT iT

Failure to properly drain condensed • Drain air tank daily or after each use.

water from air tank, causing rust and If air tank develops a leak, replace it

thinning of the steel air tank. immediately with a new air tank or

replace the entire compressor.

Modifications or attempted repairs to • Never drill into, weld, or make any

the air tank. modifications to the air tank or its

attachments. Never attempt to

repair a damaged or leaking air tank.

Replace with a new air tank.

Unauthorized modifications to the • The air tank is designed to withstand

safety valve or any other components specific operating pressures.

which control air tank pressure. Never make adjustments or parts

substitutions to alter the factory set

operating pressures.

Excessive vibration can weaken the • The compressor must be properly

air tank of a stationary compressor mounted, see "Anchoring" under

and cause an explosion, installation.

Attachments & accessories:

Exceeding the pressure rating of

air tools, spray guns, air operated

accessories, tires, and other

inflatables can cause them to

explode or fly apart, and could result

in serious injury.

Follow the equipment manufacturers

recommendation and never exceed

the maximum allowable pressure

rating of attachments. Never use

compressor to inflate small low

pressure objects such as children's

toys, footballs, basketballs, etc.

5-ENG N004035

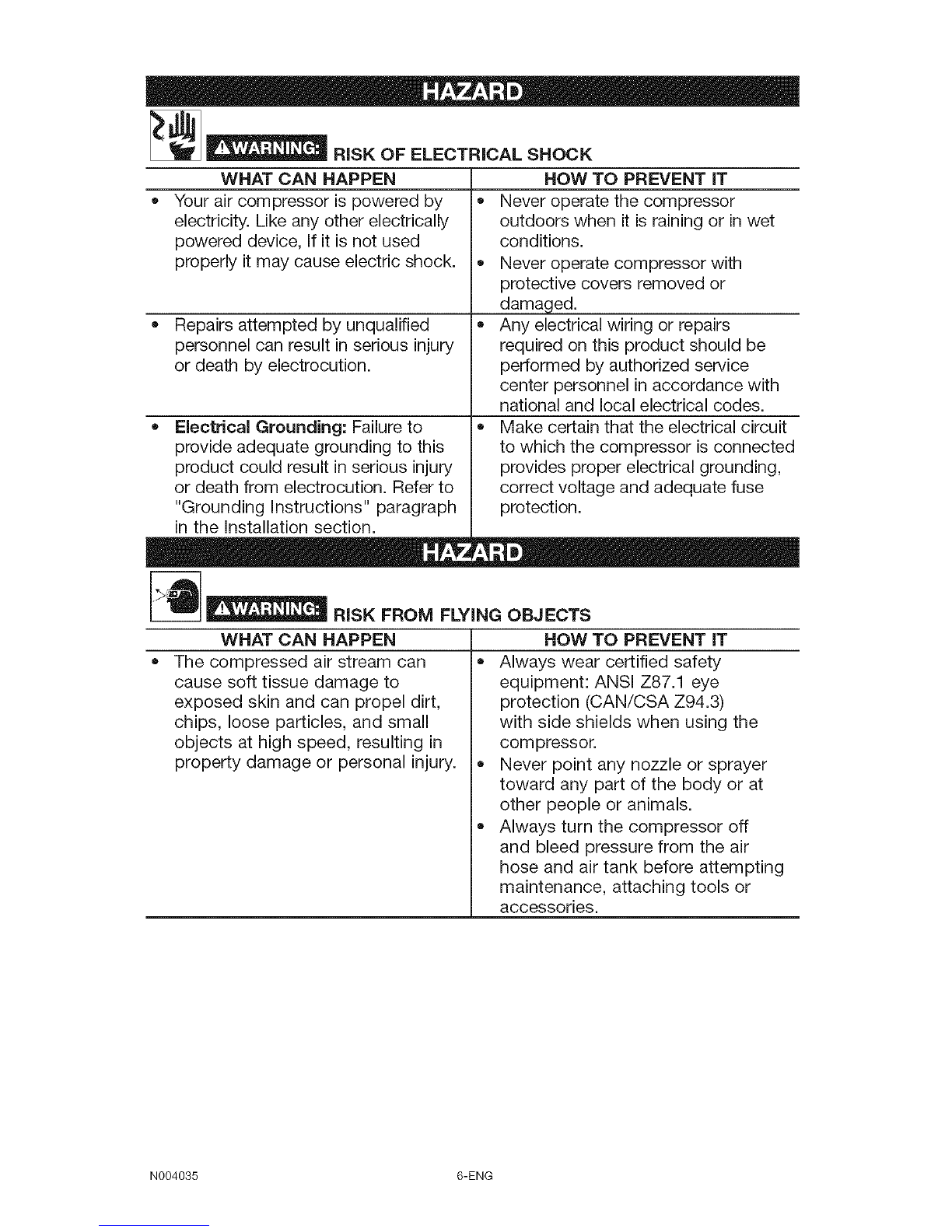

[__ RISK OF ELECTRICAL SHOCK

WHAT CAN HAPPEN

Your air compressor is powered by

electricity. Like any other electrically

powered device, If it is not used

properly it may cause electric shock.

• Repairs attempted by unqualified

personnel can result in serious injury

or death by electrocution.

Electrical Grounding: Failure to

provide adequate grounding to this

product could result in serious injury

or death from electrocution. Refer to

"Grounding Instructions" paragraph

in the Installation section.

HOW TO PREVENT iT

Never operate the compressor

outdoors when it is raining or in wet

conditions.

Never operate compressor with

protective covers removed or

damaged.

Any electrical wiring or repairs

required on this product should be

performed by authorized service

center personnel in accordance with

national and local electrical codes.

Make certain that the electrical circuit

to which the compressor is connected

provides proper electrical grounding,

correct voltage and adequate fuse

protection.

__ RiSK FROM FLYING OBJECTS

HOW TO PREVENT iT

Always wear certified safety

equipment: ANSI Z87.1 eye

protection (CAN/CSA Z94.3)

with side shields when using the

com pressor.

Never point any nozzle or sprayer

toward any part of the body or at

other people or animals.

Always turn the compressor off

and bleed pressure from the air

hose and air tank before attempting

maintenance, attaching tools or

accessories.

WHAT CAN HAPPEN

The compressed air stream can

cause soft tissue damage to

exposed skin and can propel dirt,

chips, loose particles, and small

objects at high speed, resulting in

property damage or personal injury.

N004035 6-ENG

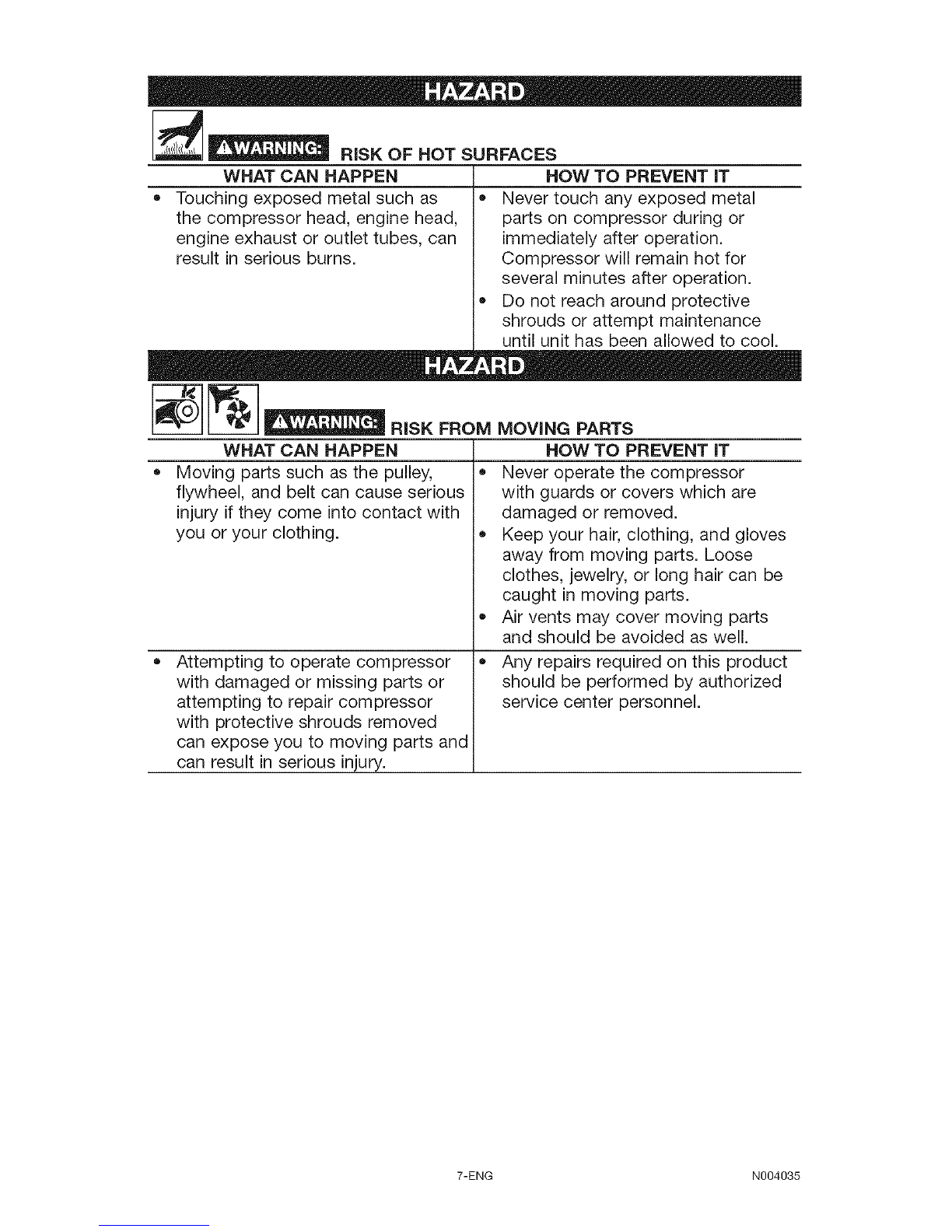

__ RiSK OF HOT SURFACES

WHAT CAN HAPPEN

Touching exposed metal such as

the compressor head, engine head,

engine exhaust or outlet tubes, can

result in serious burns.

E==I °,sKF°o.

WHAT CAN HAPPEN

• Moving parts such as the pulley,

flywheel, and belt can cause serious

injury if they come into contact with

you or your clothing.

HOW TO PREVENT IT

Never touch any exposed metal

parts on compressor during or

immediately after operation.

Compressor will remain hot for

several minutes after operation.

Do not reach around protective

shrouds or attempt maintenance

until unit has been allowed to cool.

_ m D

Attempting to operate compressor

with damaged or missing parts or

attempting to repair compressor

with protective shrouds removed

can expose you to moving parts and

can result in serious injury.

MOVING PARTS

HOW TO PREVENT IT

Never operate the compressor

with guards or covers which are

damaged or removed.

Keep your hair, clothing, and gloves

away from moving parts. Loose

clothes, jewelry, or long hair can be

caught in moving parts.

Air vents may cover moving parts

and should be avoided as well.

Any repairs required on this product

should be performed by authorized

service center personnel.

7-ENG N004035

__ RISK OF UNSAFE OPERATION

WHAT CAN HAPPEN

• Unsafe operation of your air

compressor could lead to serious

injury or death to you or others.

HOW TO PREVENT IT

• Review and understand all

instructions and warnings in this

manual.

Become familiar with the operation

and controls of the air compressor.

Keep operating area clear of all

persons, pets, and obstacles.

Keep children away from the air

compressor at all times.

Do not operate the product when

fatigued or under the influence of

alcohol or drugs. Stay alert at all

times.

Never defeat the safety features of

this product.

Equip area of operation with a fire

extinguisher.

Do not operate machine with missing,

broken or unauthorized

[__ RISK OF INJURY FROM LIFTING

HOW TO PREVENT iT

• The compressor is too heavy to

be lifted by one person. Obtain

assistance from others before lifting.

_ m D

WHAT CAN HAPPEN

Serious injury can result from

attempting to lift too heavy an

object.

_"" "RISK FROM NOISE

WHAT CAN HAPPEN HOW TO PREVENT IT

•Under someconditions and duration • Always wearcertified safetyequipment:

of use, noise from this product may ANSI$12.6 ($3.19)hearingprotection.

contribute to hearingloss.

SAVE THESE iNSTRUCTiONS

N004035 8-ENG

Become familiar with these terms

before operating the unit.

CFM: Cubic feet per minute.

SCFM: Standard cubic feet per min-

ute; a unit of measure of air delivery.

PSIG: Pounds per square inch gauge;

a unit of measure of pressure.

Code Certification: Products that

bear one or more of the following

marks: UL, CUL, ETL, CETL, have

been evaluated by OSHA certified

independent safety laboratories and

meet the applicable Underwriters

Laboratories Standards for Safety.

Cut-In Pressure: While the motor is

off, air tank pressure drops as you

continue to use your accessory. When

the tank pressure drops to a certain

low level the motor will restart auto-

the motor automatically restarts is

called "cut-in" pressure.

Cut-Out Pressure: When an air

compressor is turned on and begins

to run, air pressure in the air tank

begins to build. It builds to a certain

high pressure before the motor auto-

matically shuts off - protecting your

air tank from pressure higher than its

capacity. The high pressure at which

the motor shuts off is called "cut-out"

pressure.

Branch Circuit: Circuit carrying elec-

tricity from electrical panel to outlet.

To Lock Out Power: Place a lock on

the line power switch so no one else

can turn on the power.

matically. The low pressure at which

This air compressor pump is capable average duty cycle be maintained; that

of running continuously. However, to is, the air compressor pump should

prolong the life of your air compressor, not run more than 30-45 minutes in

it is recommended that a 50%-75% any given hour.

This unit is capable of powering the following Accessories. The accessories are

available through the current Power and Hand Tool Catalog or full-line Sears

stores.

Accessories

•In Line Filter

•Tire Air Chuck

•Quick Connector Sets (various

sizes)

•Air Pressure Regulators

•Oil Fog Lubricators

•Air Hose: 1/4", 3/8" or 1/2" I.D. in

various lengths

Refer to the selection chart located on

the unit to select the tools this unit is

capable of powering.

_The use of any

-- other accessory

not recommended for use with

this tool could be hazardous. Use

only accessories rated equal to

or higher than the rating of the air

compressor.

9-ENG N004035

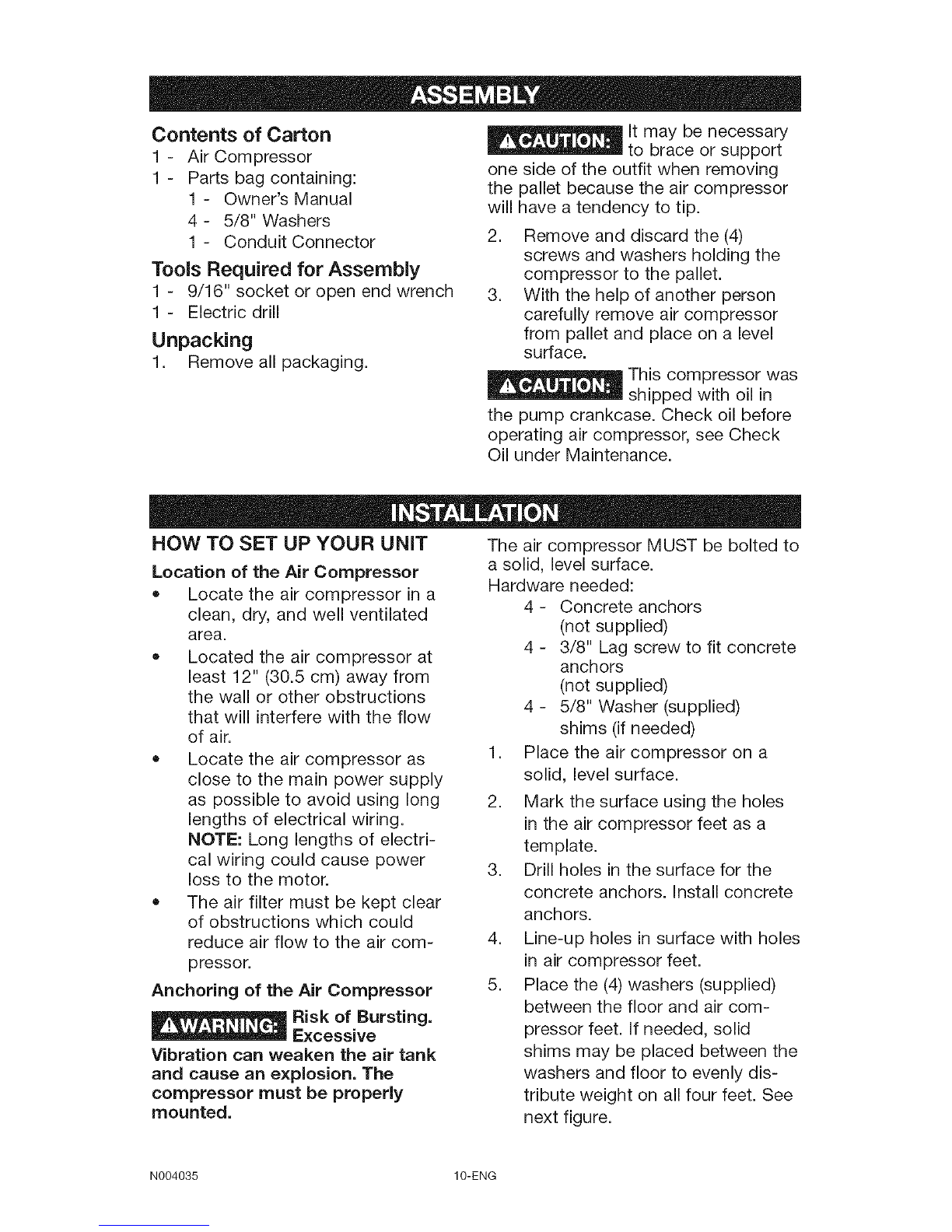

Contents of Carton

1 - Air Compressor

1 - Parts bag containing:

1 - Owner's Manual

4 - 5/8" Washers

1 - Conduit Connector

Tools Required for Assembly

1 - 9/16" socket or open end wrench

1 - Electric drill

Unpacking

1. Remove all packaging.

lt may be necessary

to brace or support

one side of the outfit when removing

the pallet because the air compressor

will have a tendency to tip.

2. Remove and discard the (4)

screws and washers holding the

compressor to the pallet.

3. With the help of another person

carefully remove air compressor

from pallet and place on a level

surface.

_This compressor was

__ shipped with oil in

the pump crankcase. Check oil before

operating air compressor, see Check

Oil under Maintenance.

HOW TO SET UP YOUR UNiT

Location of the Air Compressor

• Locate the air compressor in a

clean, dry, and well ventilated

area.

• Located the air compressor at

least 12" (30.5 cm) away from

the wall or other obstructions

that will interfere with the flow

of air.

• Locate the air compressor as

close to the main power supply

as possible to avoid using long

lengths of electrical wiring.

NOTE: Long lengths of electri-

cal wiring could cause power

loss to the motor.

• The air filter must be kept clear

of obstructions which could

reduce air flow to the air com-

pressor.

Anchoring of the Air Compressor

E__ Risk of Bursting.

__ Excessive

Vibration can weaken the air tank

and cause an explosion. The

compressor must be properly

mounted.

The air compressor MUST be bolted to

a solid, level surface.

Hardware needed:

4 - Concrete anchors

(not supplied)

4 - 3/8" Lag screw to fit concrete

anchors

(not supplied)

4 - 5/8" Washer (supplied)

shims (if needed)

1. Place the air compressor on a

solid, level surface.

2. Mark the surface using the holes

in the air compressor feet as a

template.

3. Drill holes in the surface for the

concrete anchors. Install concrete

anchors.

4. Line-up holes in surface with holes

in air compressor feet.

5. Place the (4) washers (supplied)

between the floor and air com-

pressor feet. If needed, solid

shims may be placed between the

washers and floor to evenly dis-

tribute weight on all four feet. See

next figure.

N004035 10-ENG

Altri manuali per 919.167812

Indice

Lingue:

Altri manuali Craftsman compressore d'aria

Craftsman

Craftsman 919.152145 Manuale utente

Craftsman

Craftsman 919.167600 Manuale utente

Craftsman

Craftsman 919.152141 Manuale utente

Craftsman

Craftsman 919.152163 Manuale utente

Craftsman

Craftsman 919.167320 Manuale utente

Craftsman

Craftsman 919.167783 Manuale utente

Craftsman

Craftsman 919.165511 Manuale utente

Craftsman

Craftsman CM0200141A Manuale utente

Craftsman

Craftsman 919.72458 Manuale utente

Craftsman

Craftsman 921.166360 Manuale utente

Craftsman

Craftsman 919.72755 Manuale utente

Craftsman

Craftsman 919.724110 Manuale utente

Craftsman

Craftsman 921.164710 Manuale utente

Craftsman

Craftsman 919.167342 Manuale utente

Craftsman

Craftsman PERMANENTLY LUBRICATED TANK MOUNTED AIR COMPRESSOR... Manuale utente

Craftsman

Craftsman 919.72427 Manuale utente

Craftsman

Craftsman 919.166701 Manuale utente

Craftsman

Craftsman 919.167270 Manuale utente

Craftsman

Craftsman 919.7243 Manuale utente

Craftsman

Craftsman 919.1762304 Manuale utente

Craftsman

Craftsman 919.168700 Manuale utente

Craftsman

Craftsman 919.184191 Manuale utente

Craftsman

Craftsman CMEC6150 Manuale utente

Craftsman

Craftsman 919.152160 Manuale utente

Manuali compressore d'aria popolari di altre marche

Sparmax

Sparmax DC-25XR Manuale utente

KAESER

KAESER M122 Manuale utente

GMC

GMC GAC1500 Manuale utente

Briggs & Stratton

Briggs & Stratton Air Compressor Manuale utente

Fini

Fini F3GST2TK Manuale utente

Industrial Air

Industrial Air CP1580325 Manuale di programmazione

Campbell Hausfeld

Campbell Hausfeld RP3300 Guida rapida

Ingersoll-Rand

Ingersoll-Rand UP6 20 HP Manuale utente

Hitachi

Hitachi EC99S Manuale dell'operatore

Parkside

Parkside PKO 270 A1 Manuale utente

Sullair

Sullair 185 Manuale utente

Clas Ohlson

Clas Ohlson QIE-ZTH-15 Manuale utente

Ferm

Ferm CRM1046 Manuale utente

BE AC153 Manuale utente

RIDGID

RIDGID OF25150A Manuale utente

Johnson Controls

Johnson Controls QUANTUM LX Manuale

Sears

Sears Craftsman 919.167463 Manuale utente

Ring Automotive

Ring Automotive RAC700 Manuale utente
