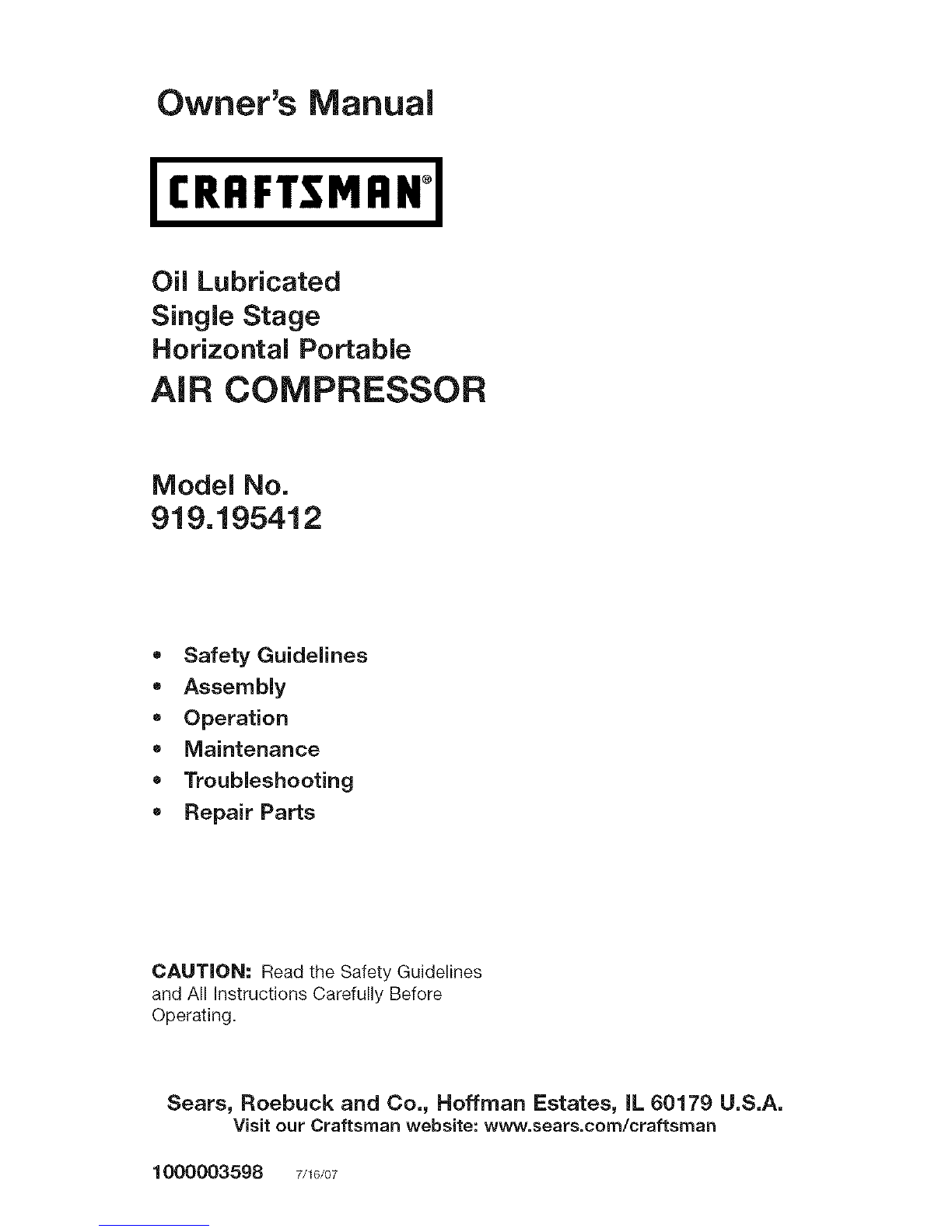

Craftsman 919.195412 Manuale utente

Owner's Manual

ICRRFTgMRNI

Oil Lubricated

Single Stage

Horizontal Portable

AiR COMPRESSOR

Model No.

919.195412

=Safety Guidelines

=Assembly

= Operation

=Maintenance

=Troubleshooting

=Repair Parts

CAUTION; Read the Safety Guidelines

and All Instructions Carefully Before

Operating.

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

Visit our Craftsman website: www.sears.com/craftsman

1000003598 7/16/o7

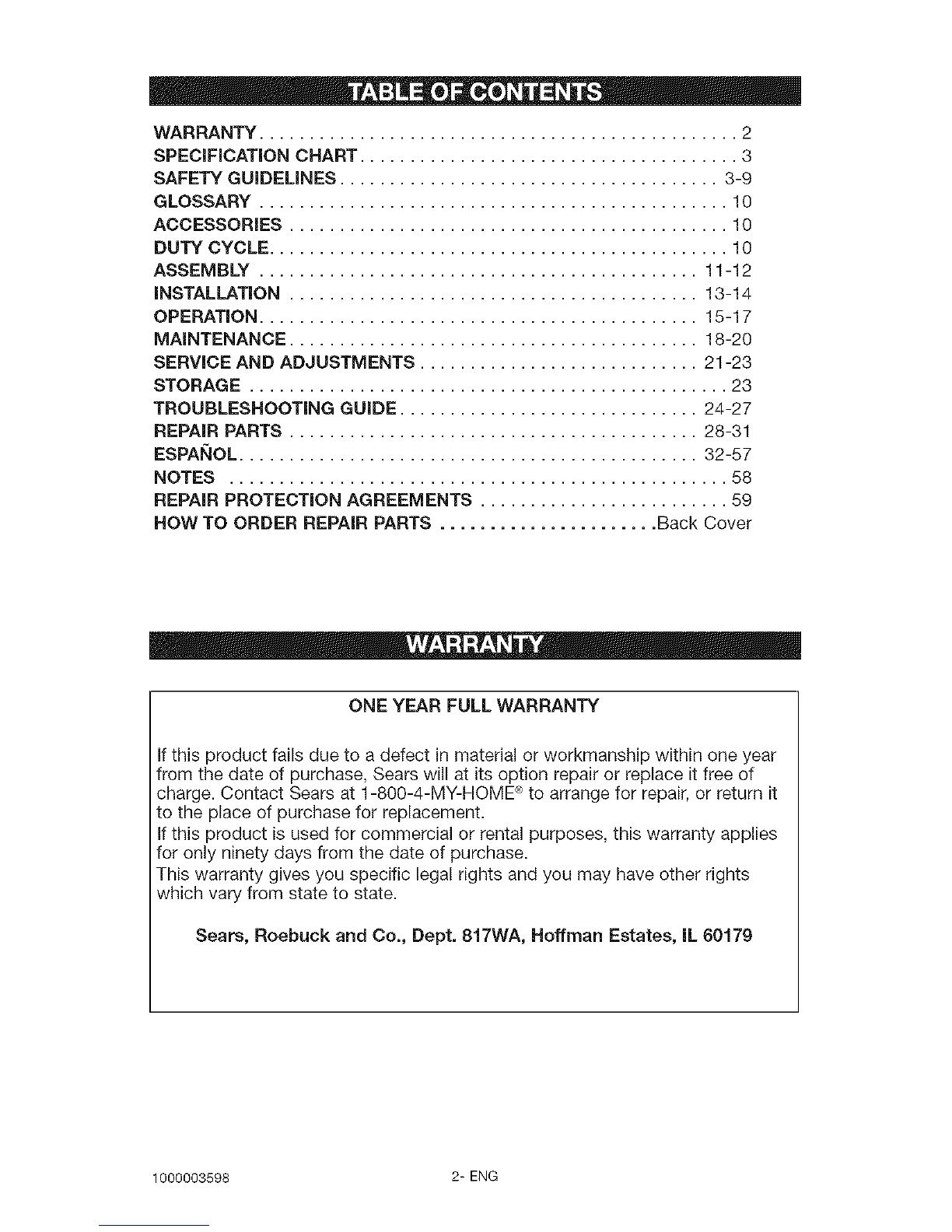

WARRANTY ................................................ 2

SPECiFiCATiON CHART ...................................... 3

SAFETY GUiDELiNES ...................................... 3-9

GLOSSARY ............................................... 10

ACCESSORIES ............................................ 10

DUTY CYCLE .............................................. 10

ASSEMBLY ............................................ 11-12

iNSTALLATiON ......................................... 13-14

OPERATION ............................................ 15-17

MAINTENANCE ......................................... 18-20

SERVICE AND ADJUSTMENTS ............................ 21-23

STORAGE ................................................ 23

TROUBLESHOOTING GUIDE .............................. 24-27

REPAIR PARTS ......................................... 28-31

ESPAI_OL .............................................. 32-57

NOTES .................................................. 58

REPAIR PROTECTION AGREEMENTS ......................... 59

HOW TO ORDER REPAIR PARTS ...................... Back Cover

ONE YEAR FULL WARRANTY

Ifthis product fails due to a defect in material or workmanship within one year

from the date of purchase, Sears will at its option repair or replace it free of

charge. Contact Sears at 1-800-4-MY-HOME ®to arrange for repair, or return it

to the place of purchase for replacement.

Ifthis product is used for commercial or rental purposes, this warranty applies

for only ninety days from the date of purchase.

This warranty gives you specific legal rights and you may have other rights

which vary from state to state.

Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179

1000003598 2-ENG

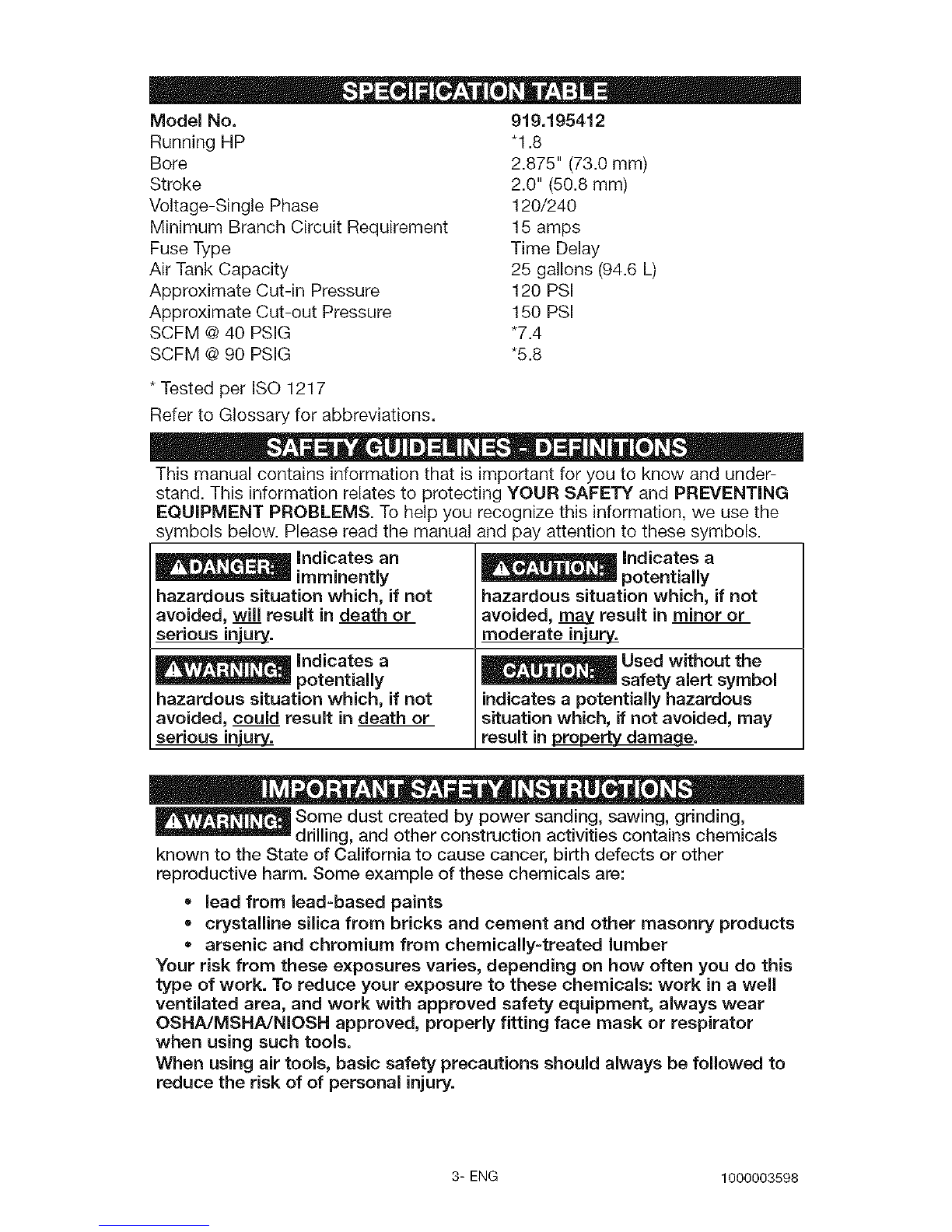

Model No. 919.1954t2

Running HP "1.8

Bore 2.875" (73.0 mm)

Stroke 2.0" (50.8 mm)

Voltage-Single Phase 120/240

Minimum Branch Circuit Requirement 15 amps

Fuse Type Time Delay

Air Tank Capacity 25 gallons (94.6 L)

Approximate Cut-in Pressure 120 PSi

Approximate Cut-out Pressure 150 PSi

SCFM @ 40 PSIG *7.4

SCFM @ 90 PSIG *5.8

* Tested per ISO 1217

Refer to Glossary for abbreviations.

This manual contains information that is important for you to know and under-

stand. This information relates to protecting YOUR SAFETY and PREVENTING

EQUIPMENT PROBLEMS. To help you recognize this information, we use the

symbols below. Please read the manual and pay attention to these symbols.

_ Indicates an

imminently

hazardous situation which, if not

avoided, will result in death or

serious in'u_.

_Indicates a

potentialmy

hazardous situation which, if not

avoided, could result in death or

serious in'u_.

_:_ Indicates a

potentially

hazardous situation which, if not

avoided, _ result in minor or

moderate injury.

_Used without the

safety alert symbol

indicates a potentially hazardous

situation which, if not avoided, may

result in l_#perty damag#_.

_Some dust created by power sanding, sawing, grinding,

drilling, and other construction activities contains chemicals

known to the State of California to cause cancer, birth defects or other

reproductive harm. Some example of these chemicals are:

• lead from lead-based paints

• crystalline silica from bricks and cement and other masonry products

® arsenic and chromium from chemically-treated lumber

Your risk from these exposures varies, depending on how often you do this

type of work. To reduce your exposure to these chemicals: work in a well

ventilated area, and work with approved safety equipment, always wear

OSNA/MSNA/NIOSN approved, properly fitting face mask or respirator

when using such tools.

When using air tools, basic safety precautions should always be followed to

reduce the risk of of personal injury.

3-ENG 1000003598

_This product contains chemicals, including lead, known to

the State of California to cause cancer, and birth defects

or other reproductive harm. Wash hands after handling.

Do not operate this unit until you read and _A

understand this instruction manual for safety,

operation and maintenance instructions.

SAVE THESE iNSTRUCTiONS

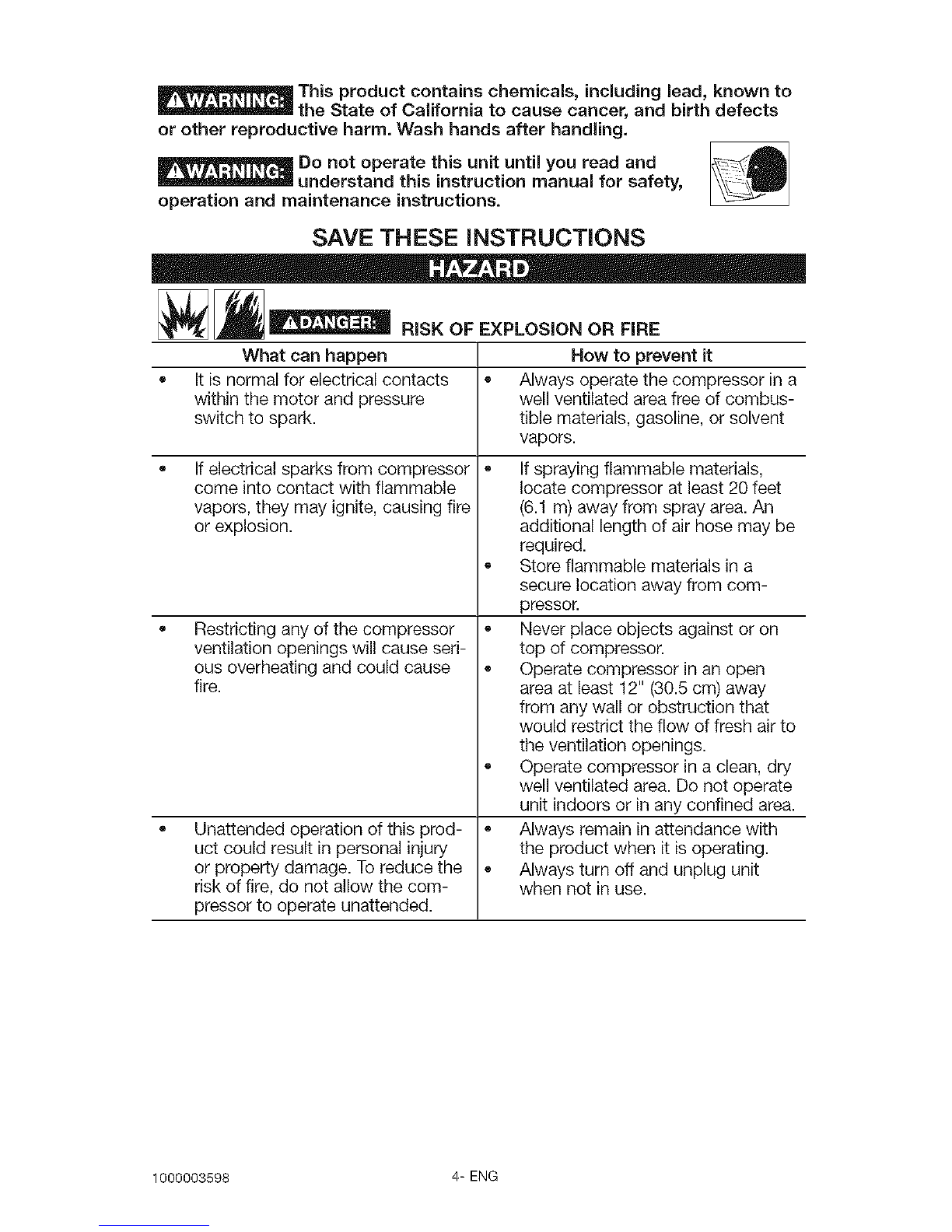

___ RISK OF EXPLOS,ON OR FiRE

What can happen

• Itis normal for electrical contacts

within the motor and pressure

switch to spark.

Ifelectrical sparks from compressor

come into contact with flammable

vapors, they may ignite, causing fire

or explosion.

How to prevent it

•Always operate the compressor in a

well ventilated area free of combus-

tible materials, gasoline, or solvent

vapors.

•If spraying flammable materials,

locate compressor at least 20 feet

(6.1 m) away from spray area. An

additional length of air hose may be

required.

•Store flammable materials in a

secure location away from com-

pressor.

•Never place objects against or on

top of compressor.

•Operate compressor in an open

area at least 12" (30.5 cm) away

from any wall or obstruction that

would restrict the flow of fresh air to

the ventilation openings.

• Operate compressor in a clean, dry

well ventilated area. Do not operate

unit indoors or in any confined area.

•Always remain in attendance with

the product when it is operating.

•Always turn off and unplug unit

when not in use.

Restricting any of the compressor

ventilation openings will cause seri-

ous overheating and could cause

fire.

Unattended operation of this prod-

uct could result in personal injury

or property damage. To reduce the

risk of fire, do not allow the com-

pressor to operate unattended.

1000003598 4-ENG

__ RISK TO BREATHING (ASPHYXiATiON)

What can happen How to prevent it

• The compressed air directly from Air obtained directly from the com-

your compressor is not safe for presser should never be used to

breathing. The air stream may con- supply air for human consumption.

tain carbon monoxide, toxic vapors, Inorder to use air produced by this

or solid particles from the air tank. compressor for breathing, suitable

Breathing these contaminants can filters and in-line safety equipment

cause serious injury or death, must be properly installed. In-line

filters and safety equipment used

in conjunction with the compressor

must be capable dtreating air to all

applicable local and federal codes

prior to human consumption.

• Sprayed materials such as paint, Work in an area with good cross

paint solvents, paint remover, insec- ventilation. Read and follow the

ticides, weed killers, may contain safety instructions provided on the

harmful vapors and poisons, label or safety data sheets for the

materials you are spraying. Always

use certified safety equipment:

OSHA!MSHA!NIOSH respiratory

protection designed for use with

your specific application.

[__ RISK OF SERIOUS iNJURY OR PROPERTY DAMAGE

WHEN TRANSPORTING COMPRESSOR

Oil can leak or spill and could

result in fire or breathing hazard;

serious injury or death can result.

oil leaks will damage carpet, paint

or other surfaces in vehicles or

trailers.

Always place compressor on a

protective mat when transport-

ing to protect against damage to

vehicle from leaks. Remove com-

pressor from vehicle immediately

upon arrival at your destination.

,* |

__ RISK OF BURSTING

Air Tank: The air tank on your Air Compressor is designed and may be UM coded

[for units with air tanks greater than 6" (152.4 mm) diameter] according to ASME

Section VIII, Div. 1 rules. All pressure vessels should be inspected once every two

years. Tofind your state pressure vessels inspector, look under the Division of Labor

and Industries in the government section of a phone book.

The following conditions could lead to a weakening of the air tank, and result in a

violent air tank explosion:

5-ENG 1000003598

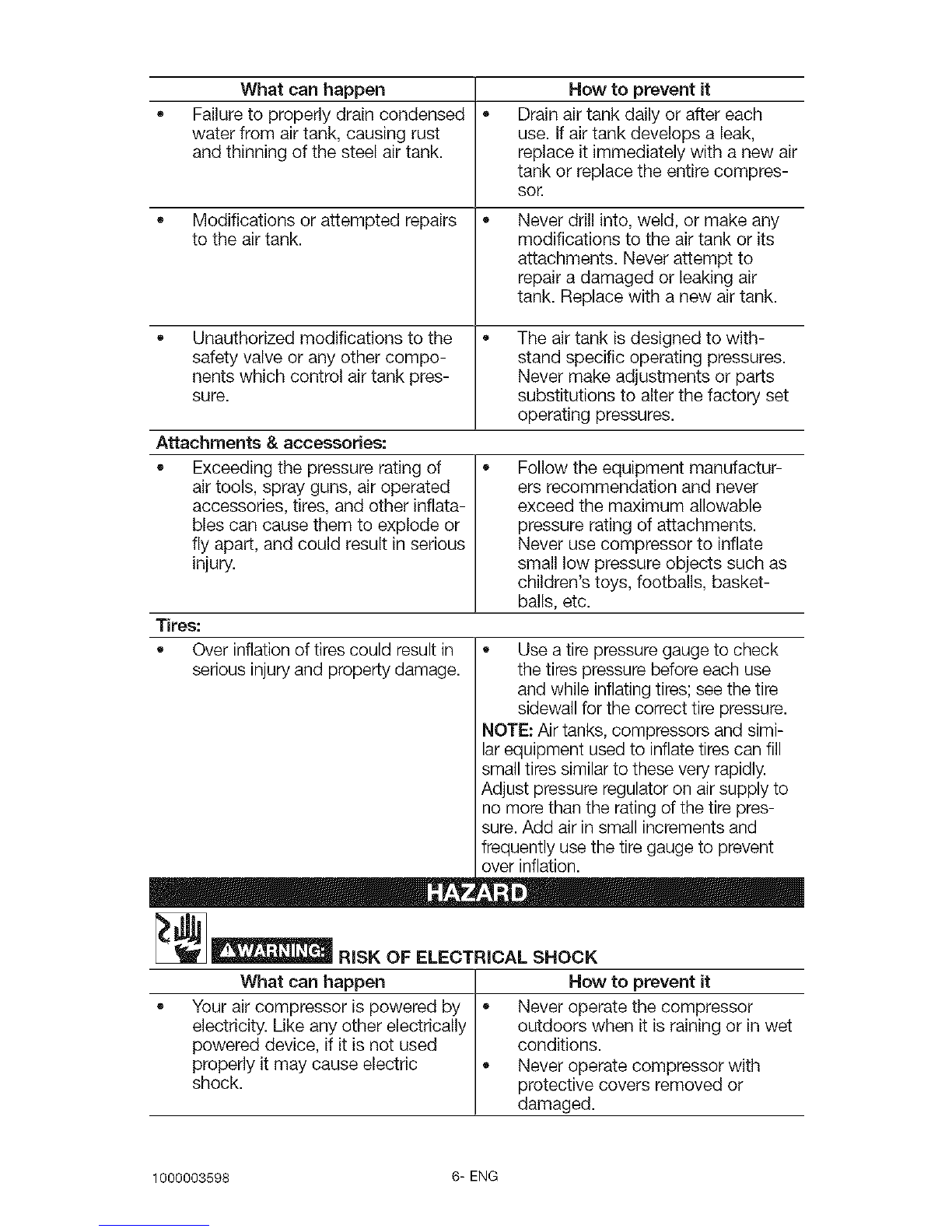

What can happen How to prevent it

• Failure to properly drain condensed • Drain air tank daily or after each

water from air tank, causing rust use. If air tank develops a leak,

and thinning of the steel air tank. replace it immediately with a new air

tank or replace the entire compres-

sor.

Modifications or attempted repairs Never drill into, weld, or make any

to the air tank. modifications to the air tank or its

attachments. Never attempt to

repair a damaged or leaking air

tank. Replace with a new air tank.

Unauthorized modifications to the • The air tank is designed to with-

safety valve or any other compo- stand specific operating pressures.

nents which control air tank pres- Never make adjustments or parts

sure. substitutions to alter the factory set

operating pressures.

Attachments & accessories:

Exceeding the pressure rating of

air tools, spray guns, air operated

accessories, tires, and other inflata-

bles can cause them to explode or

fly apart, and could result in serious

injury.

Tires:

Over inflation of tires could result in

serious injury and property damage.

Follow the equipment manufactur-

ers recommendation and never

exceed the maximum allowable

pressure rating of attachments.

Never use compressor to inflate

small low pressure objects such as

children's toys, footballs, basket-

balls, etc.

Use a tire pressure gauge to check

the tires pressure before each use

and while inflating tires; see the tire

sidewall for the correct tire pressure.

NOTE: Air tanks, compressors and simi-

lar equipment used to inflate tires can fill

small tires similar to these very rapidly.

Adjust pressure regulator on air supply to

no more than the rating of the tire pres-

sure. Add air in small increments and

frequently use the tire gauge to prevent

over inflation.

[__ RiSK OF ELECTRICAL SHOCK

What can happen How to prevent it

= Your air compressor is powered by • Never operate the compressor

electricity. Like any other electrically outdoors when it is raining or in wet

powered device, if it is not used conditions.

properly it may cause electric • Never operate compressor with

shock, protective covers removed or

damaged.

1000003598 6-ENG

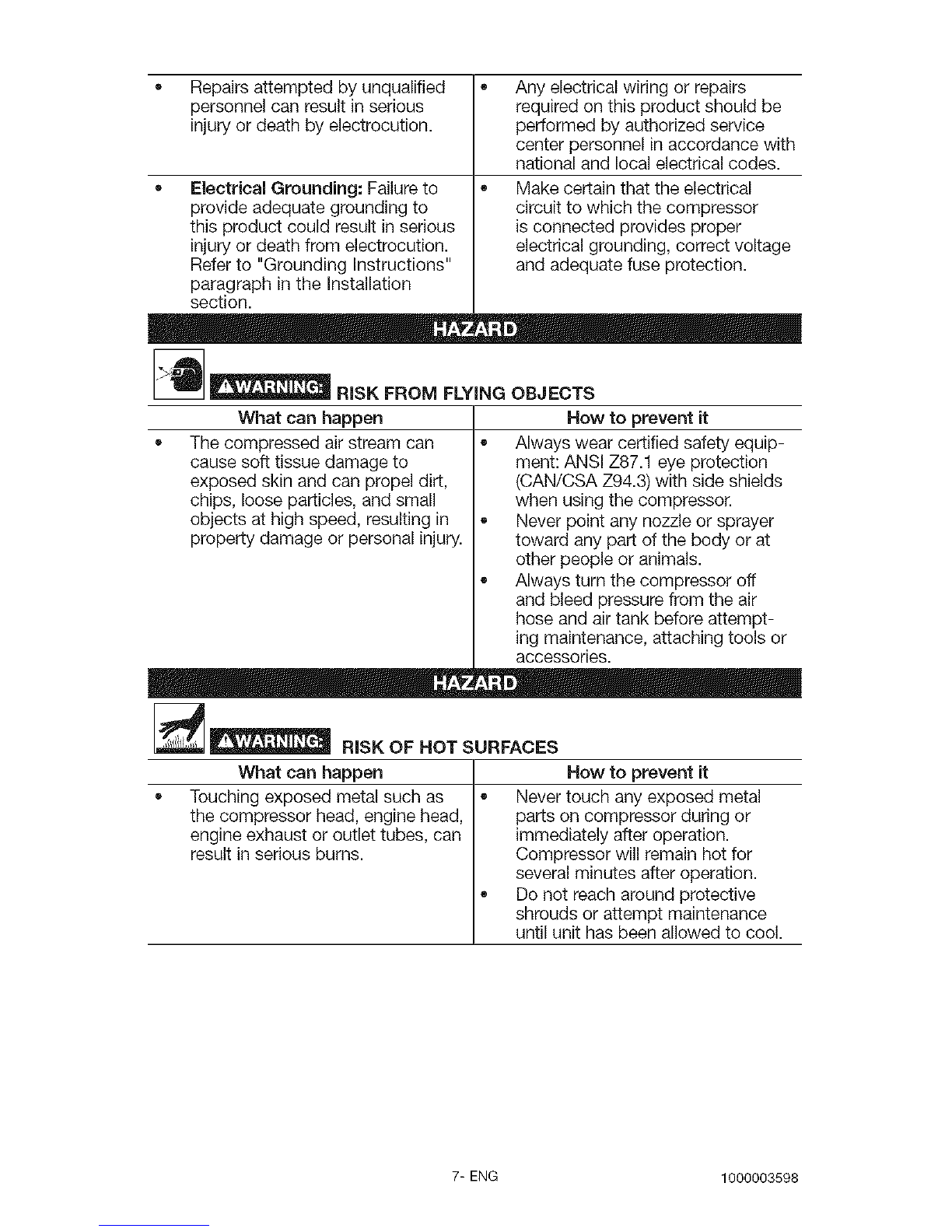

Repairs attempted by unqualified

personnel can result in serious

injury or death by electrocution.

•Electrical Grounding: Failure to

provide adequate grounding to

this product could result in serious

injury or death from electrocution.

Refer to "Grounding Instructions"

paragraph in the Installation

section.

Any electrical wiring or repairs

required on this product should be

performed by authorized service

center personnel in accordance with

national and local electrical codes.

Make certain that the electrical

circuit to which the compressor

is connected provides proper

electrical grounding, correct voltage

and adequate fuse protection.

__ RISK FROM FLYING OBJECTS

Now to prevent it

• = Always wear certified safety equip-

ment: ANSI Z87.1 eye protection

(CAN/CSA Z94.3) with side shields

when using the compressor.

Never point any nozzle or sprayer

toward any part of the body or at

other people or animals.

Always turn the compressor off

and bleed pressure from the air

hose and air tank before attempt-

ing maintenance, attaching tools or

accessories.

i _ i m D

RISKOFNOTSURFACES

What can happen

The compressed air stream can

cause soft tissue damage to

exposed skin and can propel dirt,

chips, loose particles, and small

objects at high speed, resulting in

property damage or personal injury.

What can happen

Touching exposed metal such as

the compressor head, engine head,

engine exhaust or outlet tubes, can

result in serious burns.

Now to prevent it

Never touch any exposed metal

parts on compressor during or

immediately after operation.

Compressor will remain hot for

several minutes after operation.

Do not reach around protective

shrouds or attempt maintenance

until unit has been allowed to cool.

7-ENG 1000003598

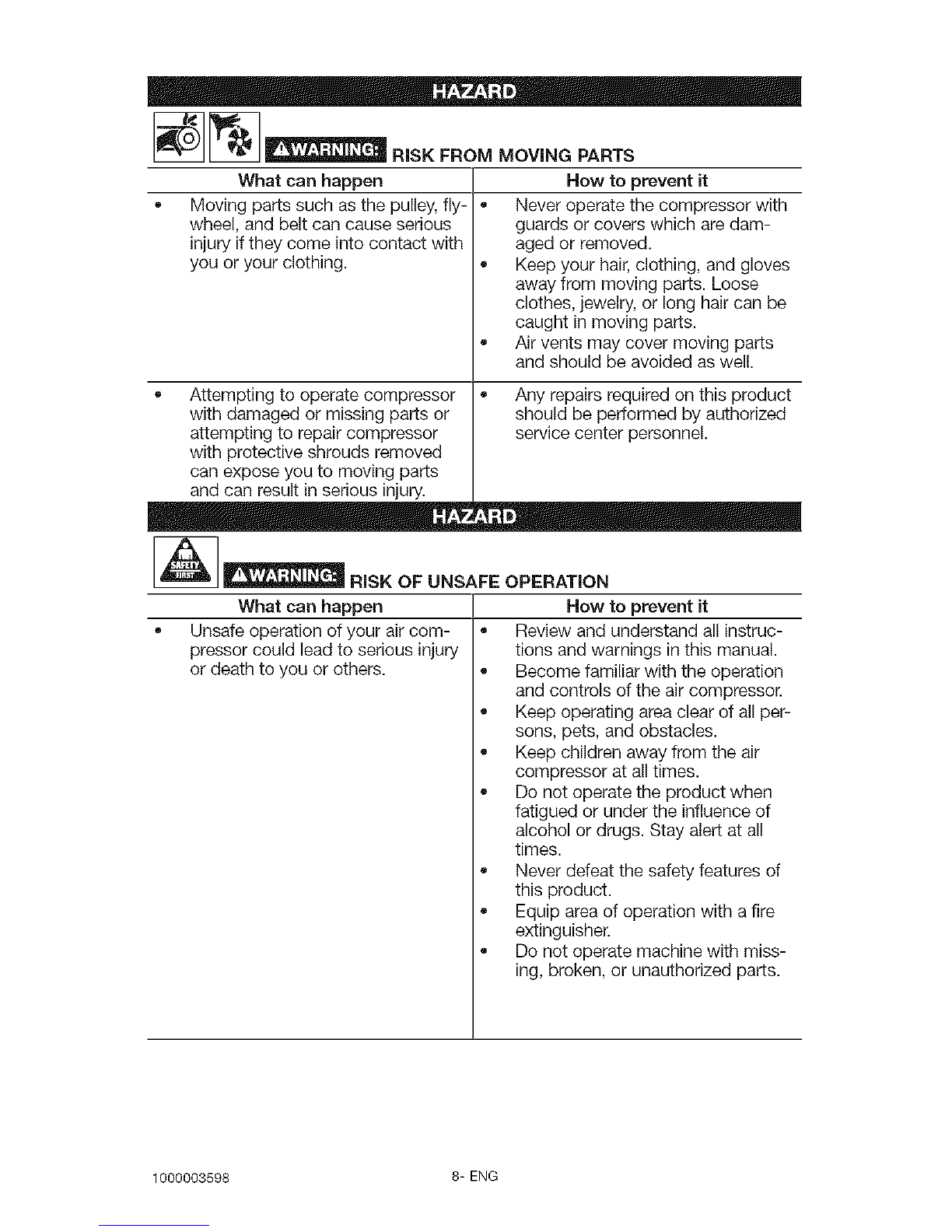

_[_ _ RiSK FROM MOVING PARTS

What can happen

Moving parts such as the pulley, fly-

wheel, and belt can cause serious

injuw if they come into contact with

you or your clothing.

Now to prevent it

Never operate the compressor with

guards or covers which are dam-

aged or removed.

Keep your hair, clothing, and gloves

away from moving parts. Loose

clothes, jewelry, or long hair can be

caught in moving parts.

Air vents may cover moving parts

and should be avoided as well.

• Attempting to operate compressor • Any repairs required on this product

with damaged or missing parts or should be performed by authorized

attempting to repair compressor service center personnel.

with protective shrouds removed

can expose you to moving parts

and can result in serious injuw.

[__ RISK OF UNSAFE OPERATION

What can happen Now to prevent it

Unsafe operation of your air com- • Review and understand all instruc-

presser could lead to serious injuw tions and warnings in this manual.

or death to you or others. • Become familiar with the operation

and controls of the air compressor.

• Keep operating area clear of all per-

sons, pets, and obstacles.

• Keep children away from the air

compressor at all times.

• Do not operate the product when

fatigued or under the influence of

alcohol or drugs. Stay alert at all

times.

• Never defeat the safety features of

this product.

• Equip area of operation with a fire

extinguisher.

• Do not operate machine with miss-

ing, broken, or unauthorized parts.

1000003598 8-ENG

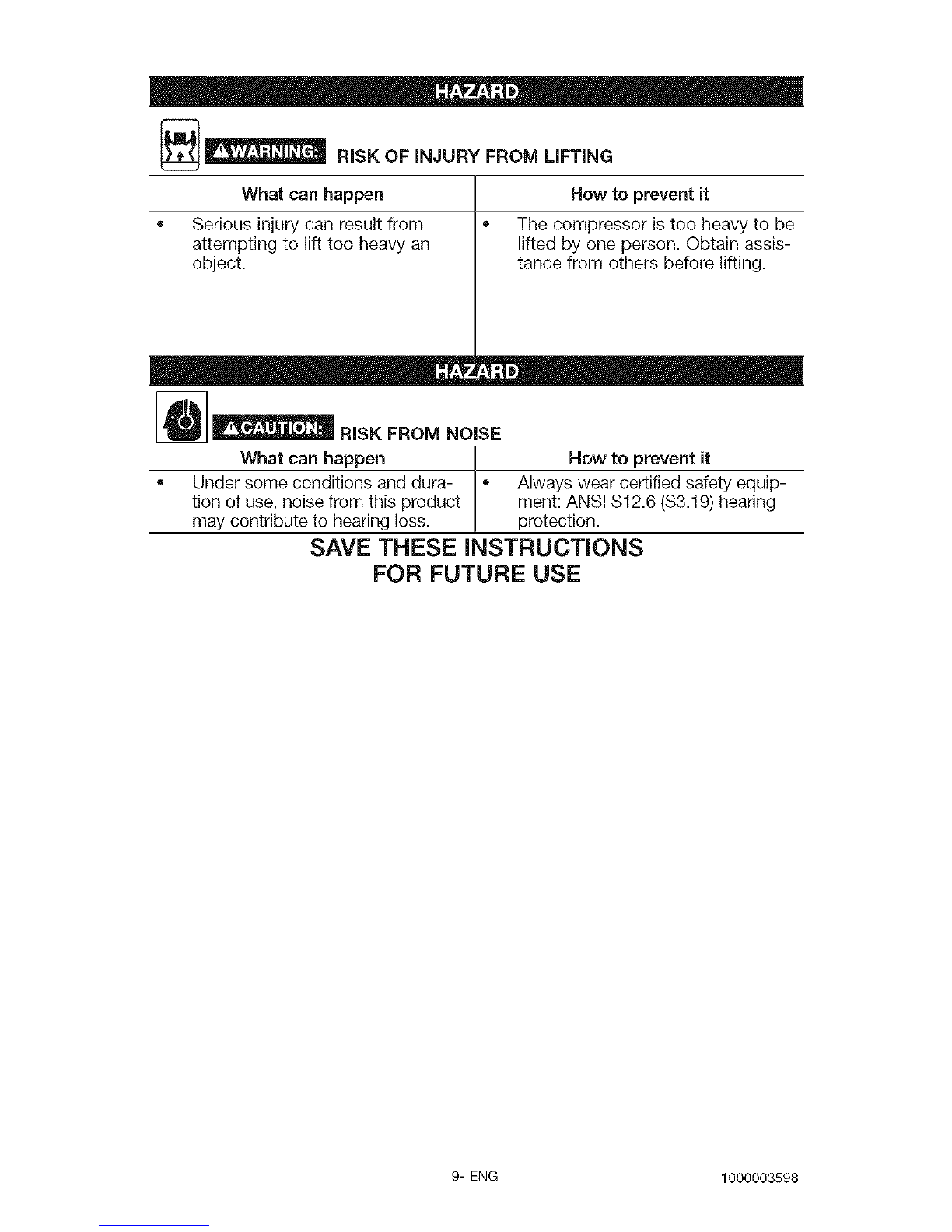

[__ RiSK OF iNJURY FROM LiFTiNG

What can happen

Serious injury can result from

attempting to lift too heavy an

object.

How to prevent it

The compressor is too heavy to be

lifted by one person. Obtain assis-

tance from others before lifting.

= D

RiSK FROM NOISE

What can happen •How to prevent it

Under some conditions and dura- Always wear certified safety equip-

tion of use, noise from this product merit: ANSi $12.6 ($3.19) hearing

may contribute to hearing loss. protection.

SAVE THESE INSTRUCTIONS

FOR FUTURE USE

9-ENG 1000003598

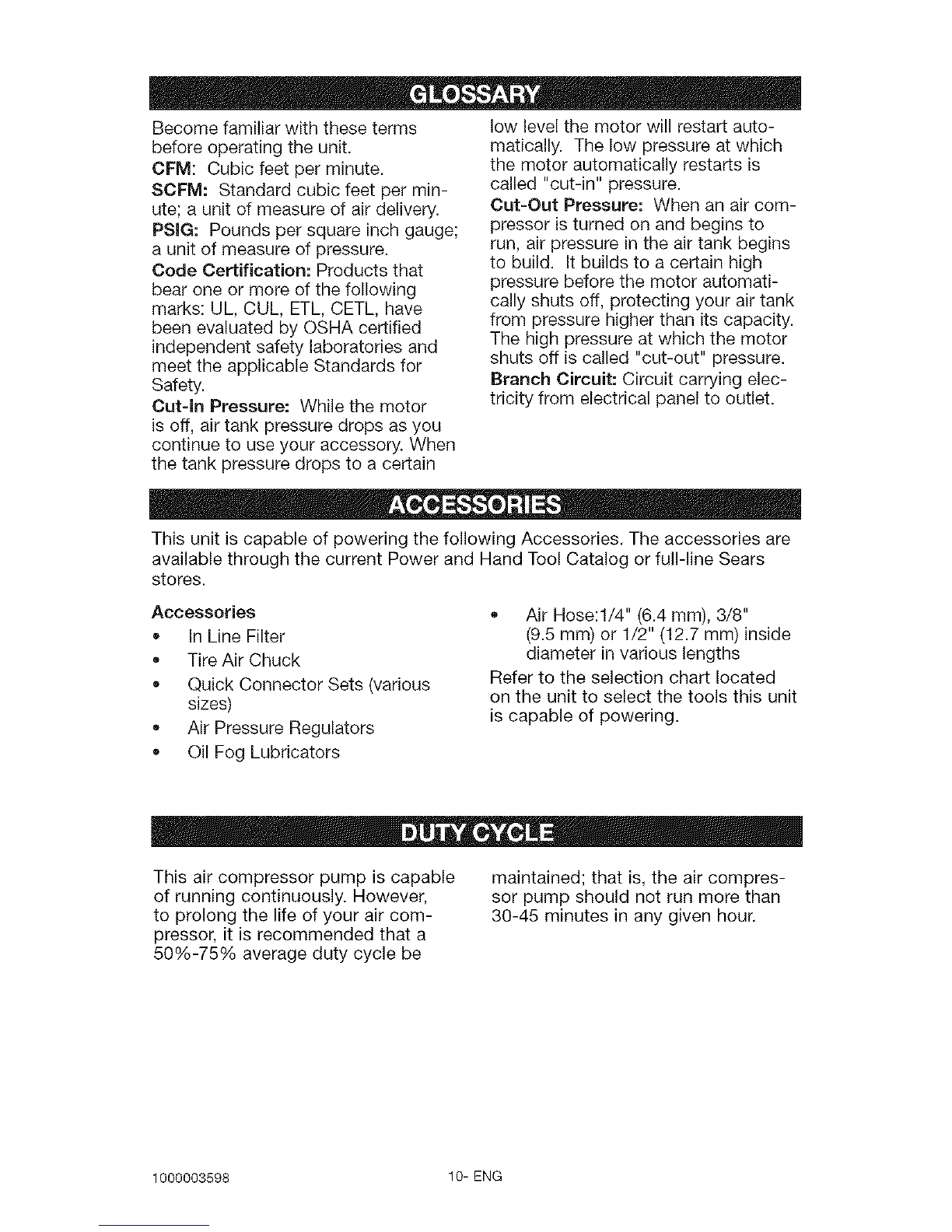

Become familiar with these terms

before operating the unit.

CFM: Cubic feet per minute.

SCFM: Standard cubic feet per min-

ute; a unit of measure of air delivery.

PSmG: Pounds per square inch gauge;

a unit of measure of pressure.

Code Certification: Products that

bear one or more of the following

marks: UL, CUL, ETL, CETL, have

been evaluated by OSHA certified

independent safety laboratories and

meet the applicable Standards for

Safety.

Cut-in Pressure: While the motor

is off, air tank pressure drops as you

continue to use your accessory. When

the tank pressure drops to a certain

low level the motor will restart auto-

matically. The low pressure at which

the motor automatically restarts is

called "cut-in" pressure.

Cut-Out Pressure: When an air com-

pressor is turned on and begins to

run, air pressure in the air tank begins

to build. It builds to a certain high

pressure before the motor automati-

cally shuts off, protecting your air tank

from pressure higher than its capacity.

The high pressure at which the motor

shuts off is called "cut-out" pressure.

Branch Circuit: Circuit carrying elec-

tricity from electrical panel to outlet.

This unit is capable of powering the following Accessories. The accessories are

available through the current Power and Hand Tool Catalog or full-line Sears

stores.

Accessories

•in Line Filter

Tire Air Chuck

Quick Connector Sets (various

sizes)

Air Pressure Regulators

Oil Fog Lubricators

Air Hose:l/4" (6.4 mm), 3/8"

(9.5 mm) or 1/2" (12.7 mm) inside

diameter in various lengths

Refer to the selection chart located

on the unit to select the tools this unit

is capable of powering.

This air compressor pump is capable

of running continuously. However,

to prolong the life of your air com-

pressor, it is recommended that a

50%-75% average duty cycle be

maintained; that is, the air compres-

sor pump should not run more than

30-45 minutes in any given hour.

1000003598 10-ENG

Altri manuali per 919.195412

Indice

Lingue:

Altri manuali Craftsman compressore d'aria

Craftsman

Craftsman 919.167342 Manuale utente

Craftsman

Craftsman 919.167620-C Manuale utente

Craftsman

Craftsman 919.727121 Manuale utente

Craftsman

Craftsman 921.16475 Manuale utente

Craftsman

Craftsman 921.152100 Manuale utente

Craftsman

Craftsman 919.167243 Manuale utente

Craftsman

Craftsman PERMANENTLY LUBRICATED TANK MOUNTED AIR COMPRESSOR... Manuale utente

Craftsman

Craftsman 919.195414 Manuale utente

Craftsman

Craftsman 919.167362 Manuale utente

Craftsman

Craftsman 919.727321 Manuale utente

Craftsman

Craftsman 919.184192 Manuale utente

Craftsman

Craftsman 919.167790 Operators Manuale utente

Craftsman

Craftsman 919.157251 Manuale utente

Craftsman

Craftsman 919.165511 Manuale utente

Craftsman

Craftsman 919.167220 Manuale utente

Craftsman

Craftsman 919.167360 Operators Manuale utente

Craftsman

Craftsman evolv 921.167500 Manuale utente

Craftsman

Craftsman 919.727110 Manuale utente

Craftsman

Craftsman 919.165330 Manuale utente

Craftsman

Craftsman 919.167812 Manuale utente

Craftsman

Craftsman 919.167242 Manuale utente

Craftsman

Craftsman 919.156640 Manuale utente

Craftsman

Craftsman 919.165230 Manuale utente

Craftsman

Craftsman 919.727360 Manuale utente

Manuali compressore d'aria popolari di altre marche

Sparmax

Sparmax DC-25XR Manuale utente

KAESER

KAESER M122 Manuale utente

GMC

GMC GAC1500 Manuale utente

Briggs & Stratton

Briggs & Stratton Air Compressor Manuale utente

Fini

Fini F3GST2TK Manuale utente

Industrial Air

Industrial Air CP1580325 Manuale di programmazione

Campbell Hausfeld

Campbell Hausfeld RP3300 Guida rapida

Ingersoll-Rand

Ingersoll-Rand UP6 20 HP Manuale utente

Hitachi

Hitachi EC99S Manuale dell'operatore

Parkside

Parkside PKO 270 A1 Manuale utente

Sullair

Sullair 185 Manuale utente

Clas Ohlson

Clas Ohlson QIE-ZTH-15 Manuale utente

Ferm

Ferm CRM1046 Manuale utente

BE AC153 Manuale utente

RIDGID

RIDGID OF25150A Manuale utente

Johnson Controls

Johnson Controls QUANTUM LX Manuale

Sears

Sears Craftsman 919.167463 Manuale utente

Ring Automotive

Ring Automotive RAC700 Manuale utente
