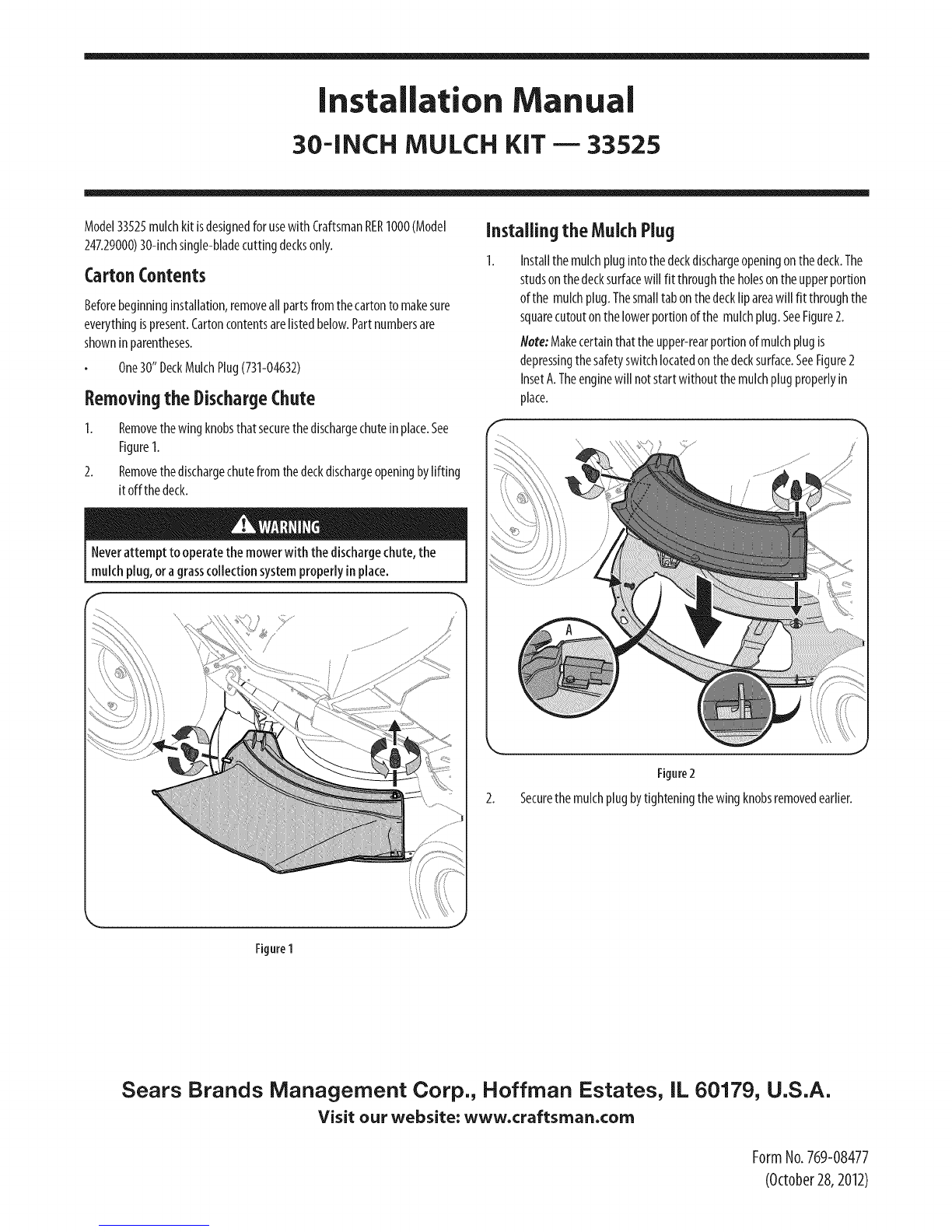

Installation Manual

30-iNCH MULCH KIT m33525

Model33525mulchkit isdesignedfor usewith CraftsmanRER1000(Model

247.29000)30-inchsingle-bladecuttingdecksonly.

CartonContents

Beforebeginninginstallation,removeall partsfromthecartonto makesure

everythingispresent.Cartoncontentsarelistedbelow.Partnumbersare

shownin parentheses.

One30"DeckMulchPlug(731-04632)

Removingthe DischargeChute

1. Removethewingknobsthatsecurethedischargechuteinplace.See

Figure1.

2. Removethedischargechutefromthedeckdischargeopeningbylifting

it offthe deck.

Neverattempt to operatethe mowerwith the dischargechute,the

mulchplug,or a grasscollection systemproperlyinplace.

Installingthe MulchPlug

1. Installthe mulchplugintothedeckdischargeopeningonthedeck.The

studsonthedecksurfacewill fit throughtheholesontheupperportion

ofthe mulchplug.Thesmalltabonthedecklipareawill fit throughthe

squarecutoutonthelowerportionofthe mulchplug.SeeFigure2.

Note:Makecertainthattheupper-rearportionofmulchplugis

depressingthesafetyswitchlocatedonthedecksurface.SeeFigure2

InsetA.Theenginewill notstartwithoutthemulchplugproperlyin

place.

2.

Figure2

Securethemulchplugbytighteningthewingknobsremovedearlier.

Figure1

Sears Brands Management Corp., Hoffman Estates, IL 60179, U.S.A.

Visit our website: www.craftsman.com

FormNo.769-08477

(October28,2012)

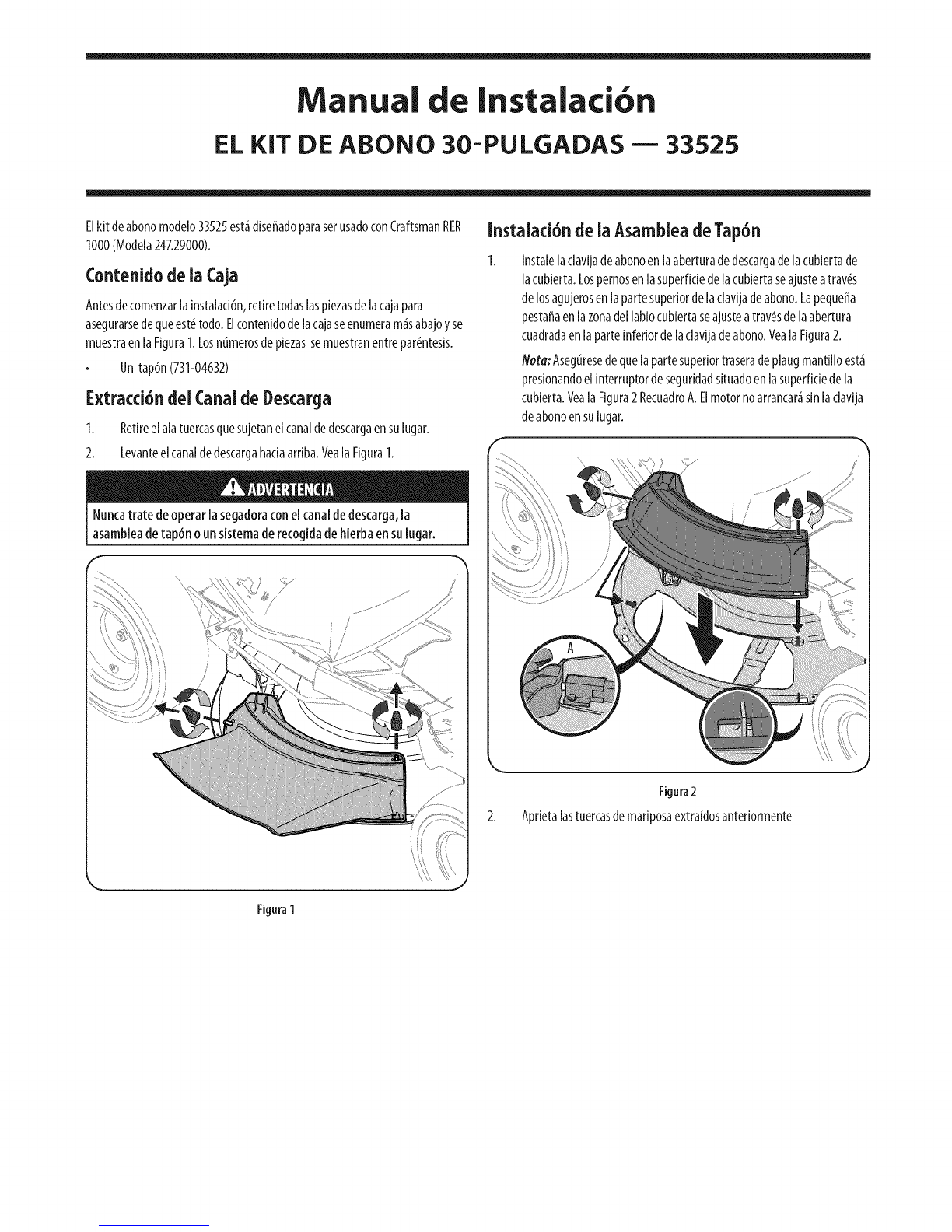

Manua[ de instalaci6n

EL KiT DE ABONO 30-PULGADAS = 33525

Elkit deabonomodelo33525est_idisehadoparaserusadoconCraftsmanRER

1000(Modela247.29000).

Contenidode laCaja

Antesdecomenzarlainstalad6n,retiretodaslaspiezasdelacajapara

asegurarsedequeest_todo.Elcontenidodelacajaseenumeram_isabajoyse

muestraenlaFigura1.Losnumerosdepiezassemuestranentrepar_ntesis.

Un tap6n(731-04632)

Extracd6ndelCanaldeDescarga

1. Retireelalatuercasquesujetanel canaldedescargaensulugar.

2. Levanteelcanaldedescargahadaarriba.Veala Figura1.

lnstalad6ndelaAsambleadeTap6n

Instalelaclavijadeabonoenlaaberturadedescargadelacubiertade

lacubierta.Lospernosenlasuperfidedelacubiertaseajusteatray,s

delosagujerosenlapartesuperiordelaclavijadeabono.Lapequeffa

pestahaenlazonadellabiocubiertaseajusteatray,sdelaabertura

cuadradaenla parteinferiordelaclavijadeabono.Veala Figura2.

Nora:AsegL_resedequelapartesuperiortraseradeplaugmantilloest(i

presionandoelinterruptordeseguridadsituadoenlasuperfidedela

cubierta.VealaFigura2RecuadroA.Elmotornoarrancakisinlaclavija

deabonoensulugar.

Nuncatrate deoperar[asegadoracone[canaldedescarga,[a

asambieadetap6nounsistemaderecogidadehierbaensu[ugar.

Figura2

Aprietalastuercasdemariposaextra[dosanteriormente

Figura1
