Craftsman 247.37109 Manuale utente

Sears Brands Management Corporation, Hoffman Estates, IL 60179, U.S.A.

Visit our website: www.craftsman.com

CAUTION: Before using

this product, read this

manual and follow all

safety rules and operating

instructions.

Operator’s Manual

• SAFETY

• ASSEMBLY

• OPERATION

• MAINTENANCE

• PARTS LIST

• ESPAÑOL, p. 37

21” SELF-PROPELLED MOWER

Model No. 247.37109

1/5/2010

FORM NO. 769-05739

PARTS LIST

22 21

42 20

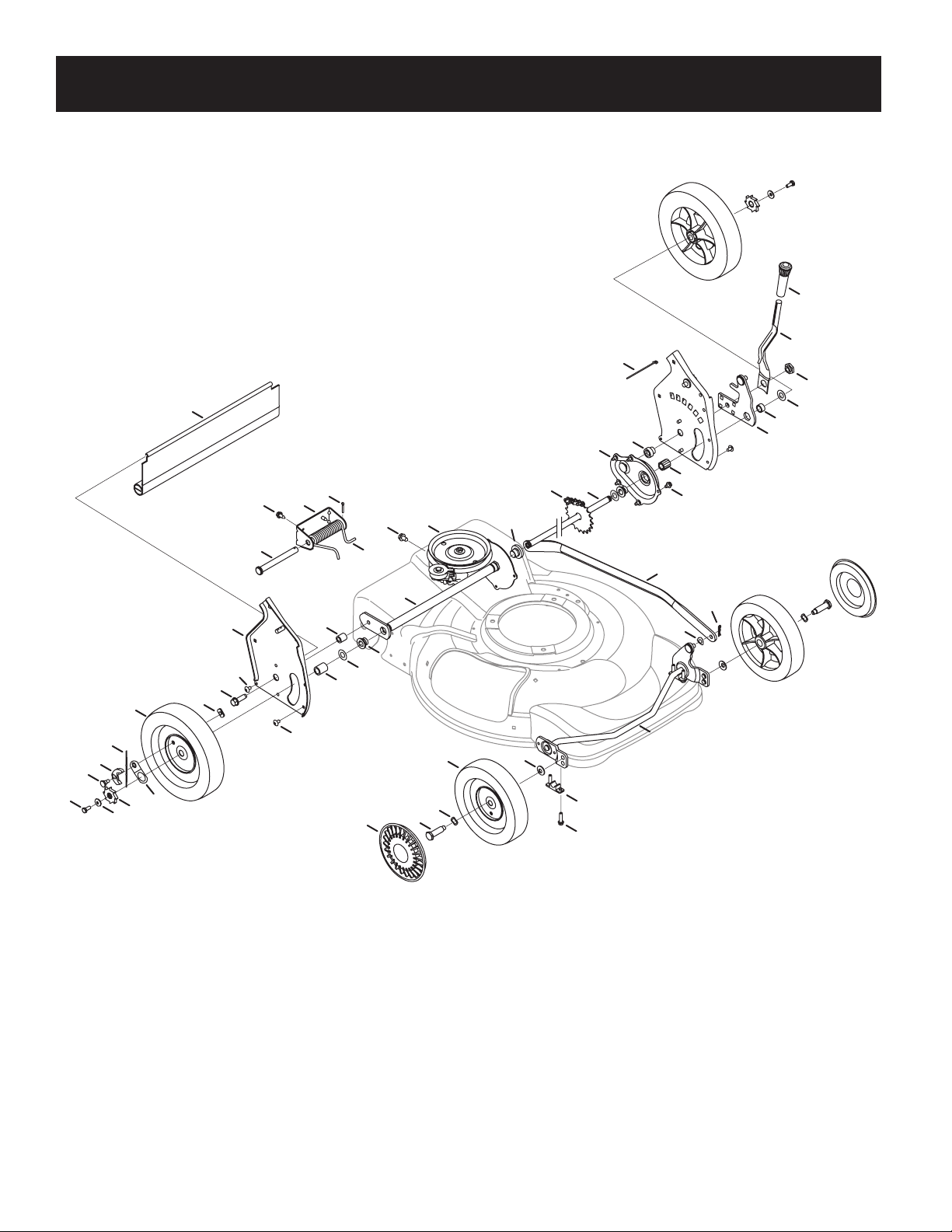

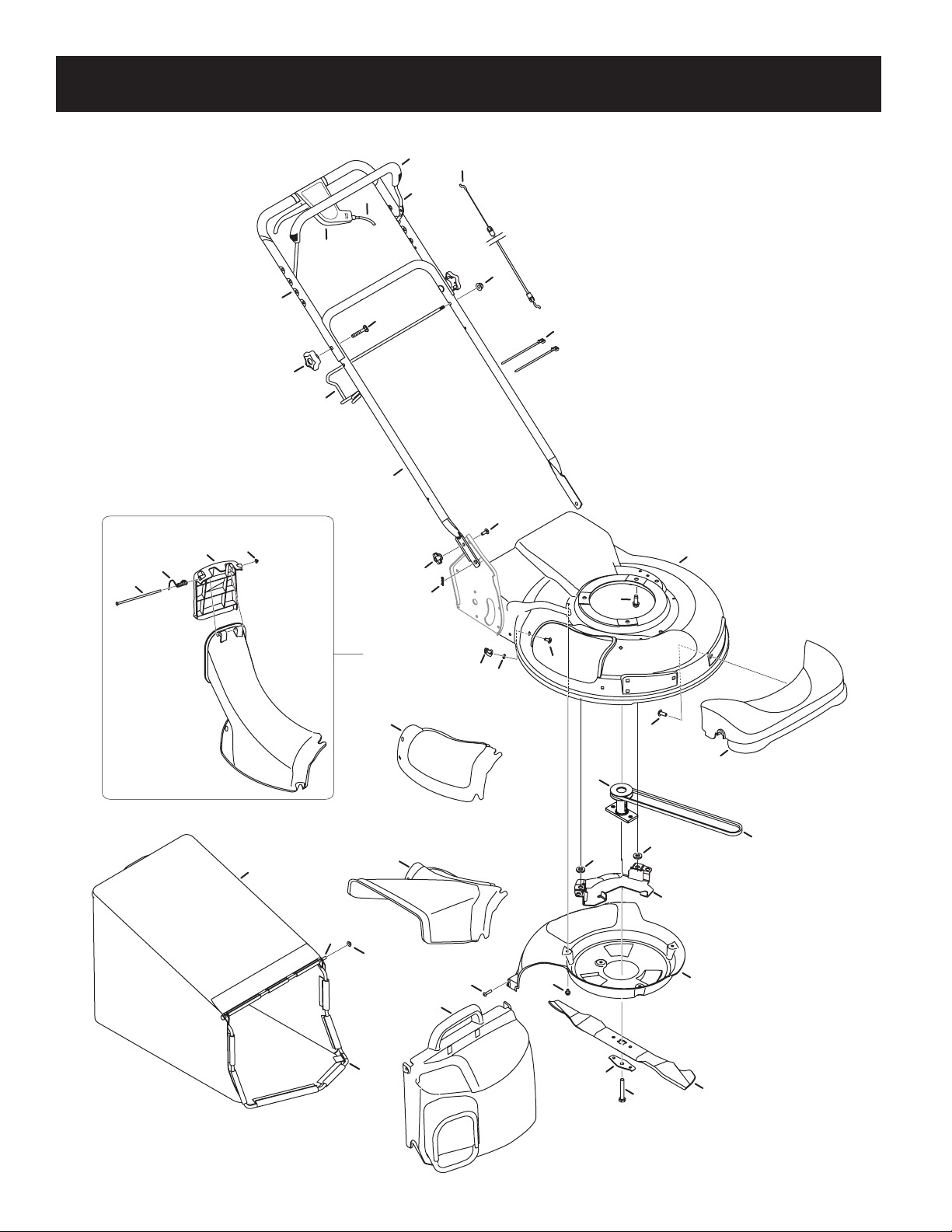

Craftsman Self Propelled Mower — Model No. 247.37109

PARTS LIST

Ref. No. Part No. Description

1747-0824-0637 Blade Control

2749-0439E-0637 Upper Handle

3712-04063 Flange Lock Nut, 5/16-18

4926-0240 Cable Tie

5746-0557 Control Cable

6710-0654A TT Screw, 3/8-16 x 1.00

7782-0078B-4028 21-inch Deck

8731-1836 Front Axle Cover

9710-1242 HL Screw, 5/16-14 x .750

10 736-3010 Washer, Flat, .407 x .812 x .135

11 747-0940A-0637 Grass Bag Support Rod

12 749-0907B Lower Handle

13 710 -1174 Carriage Bolt 5/16-18 x 2

14 731-1828 Rear Baffle

15 987-02221 Blade Adapter

16 942-0741A 21-inch Mulching Blade

17 710-1257 HH Cap Screw, 3/8-24 x 2.50

18 736-0524B Bell Blade Spacer

19 631-0071 Grass Bag Cover Assembly

20 710-0703 Carriage Screw 1/4-20 x .75

21 710-0653 TT Screw 1/4-20 x .375

Ref. No. Part No. Description

22 710-0895 HL Screw 1/4-15 x .75

23 747-0937-0637 Grass Bag Frame

24 747-0939 Grass Bag Pivot Rod

25 926-0106 Cap Speed Nut

26 964-04093A Grass Bag Assembly

27 731-1832 Side Discharge Chute

28 782-9063A-0637 Belt Keeper

29 954-0460 V-Belt

30 720-04072A Star Knob

31 931-1833A Mulch Cover

32 731-2623 Bail Cover

33 726-0233 Push Nut

34 753-06060 Drive Control Assembly

35 946-0711B Drive Cable

36 747-0965 Chute Door Pivot Rod

37 732-0819 Torsion Spring

38 731-1874A Top Discharge Door Chute

39 726-0111 Push Cap

40 931-0066 Top Discharge Chute Assembly

41 914-0104 Cotter Pin

42 912-0397 Wing Nut

Craftsman Self Propelled Mower — Model No. 247.3710

PARTS LIST

41 42

46 47

45 50

36 37

22 21

2627

18 19

23 32

Craftsman Self Propelled Mower — Model No. 247.37109

PARTS LIST

Ref. No. Part No. Description

1710-0751 HH Cap Screw 1/4-20 x .620

2736-0270 Bell Washer .265 x .75 x .062

3948-0318 Wheel Ratchet

4720-0223 Grip

5732-0803A Spring Lever

6938-0529 Shoulder Nut

7750-0515 Spacer .51 x .70 x .38

8741-0978 Hex Sleeve Bearing

9782-0565-0637 Single Lever Control Arm

10 914-0104 Hairpin Clip

11 936-0286 Bowed Washer

12 611-0064-0637 Front Axle Assembly

13 741-0492A Block Bushing

14 710-1241 Hex Screw 1/4-15 x 1

15 731-07001 Hubcap

16 938-0102 Shoulder Scr., .498x1.445x3/8-16

17 936-0504 Wave Washer .510 x .750 x .017

18 734-2004B Front Wheel

19 736-0105 Bell Washer .375 x .870 x .063

20 741-0324A Hex Flange Bearing

21 936-0369 Flat Washer .508 x 1 x .020

22 950-0151 Spacer .550 x .755 x 1.1

23 687-02494-0637 Handle Bracket Assy RH

23a 687-02495-0637 Handle Bracket Assy LH

24 710-1348 AB Screw 1/4-14 x .50

25 10622BP Plastic Ratchet Spring

Ref. No. Part No. Description

26 938-0137A Shoulder Scr., .340x.285x1/4-20

27 748-0381 Pawl - RH

27a 948-0188B Pawl - LH

28 16855 Ratchet Pawl Plate

29 734-2044A Rear Wheel

30 912-0414 Weld Nut

31 710-1315 TT Screw 3/8-16 x 1.25

32 750-0807 Spacer .385 x .625 x .700

33 732-0832 Torsion Spring RH

34 911-0835 Clevis Pin .500 x 4.62

35 710-1652 TT Screw 1/4-20 x .625

36 782-0568-0637 Lift Assist Spring Bracket

37 914-0474 Cotter Pin

38 731-06874 Trail shield

39 710-0779A AB Screw, #10-16 x .500

40 682-7526-0637 Transmission Axle Assembly

41 710-0604A TT Screw 5/16-18 x .625

42 918-0263A Transmission

43 941-0522 Hex Flange Bearing

44 913-0453 Chain

45 938-0012 Axle Assembly RR

46 682-7528-0637 Chain Cover Assembly

47 950-1056 Shoulder Spacer .385 x .715

48 725-0157 Cable Tie

49 682-0531-0637 RR Pivot Arm Assembly

50 710-0653 TT Screw, 1/4-20 x .375

Craftsman Self Propelled Mower — Model No. 247.37109

PARTS LIST

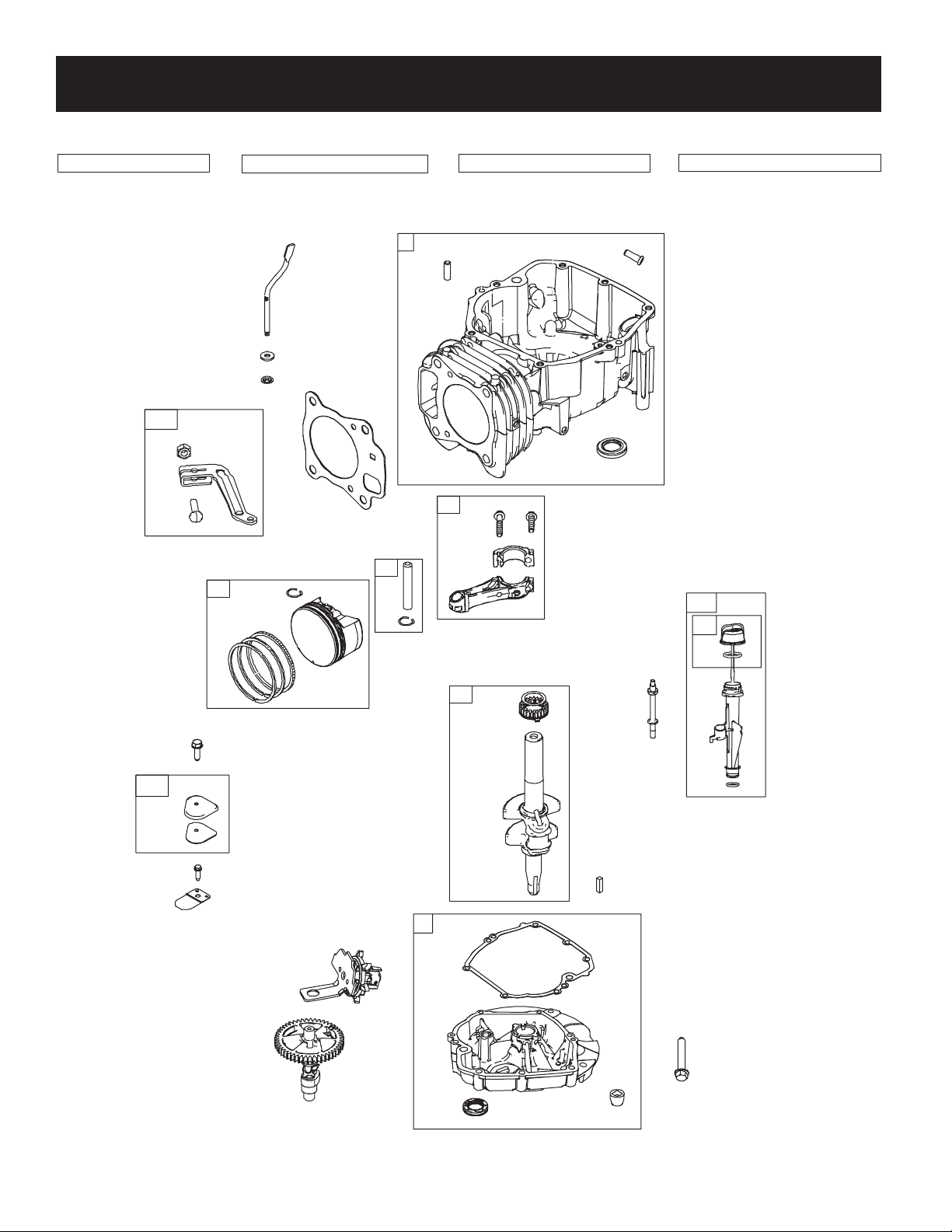

Craftsman Engine Model No. 111P02-0783-F1 For Craftsman Mower Model No. 247.37109

1058OPERATOR’SMANUAL

48 SHORTBLOCK 1329 REPLACEMENTENGINE 1330REPAIRMANUAL

718

741

32A

615

404

616

43 12

847

525

523

524

842

505

562

227

1430

1376

1375

1263

1264

287

PARTS LIST

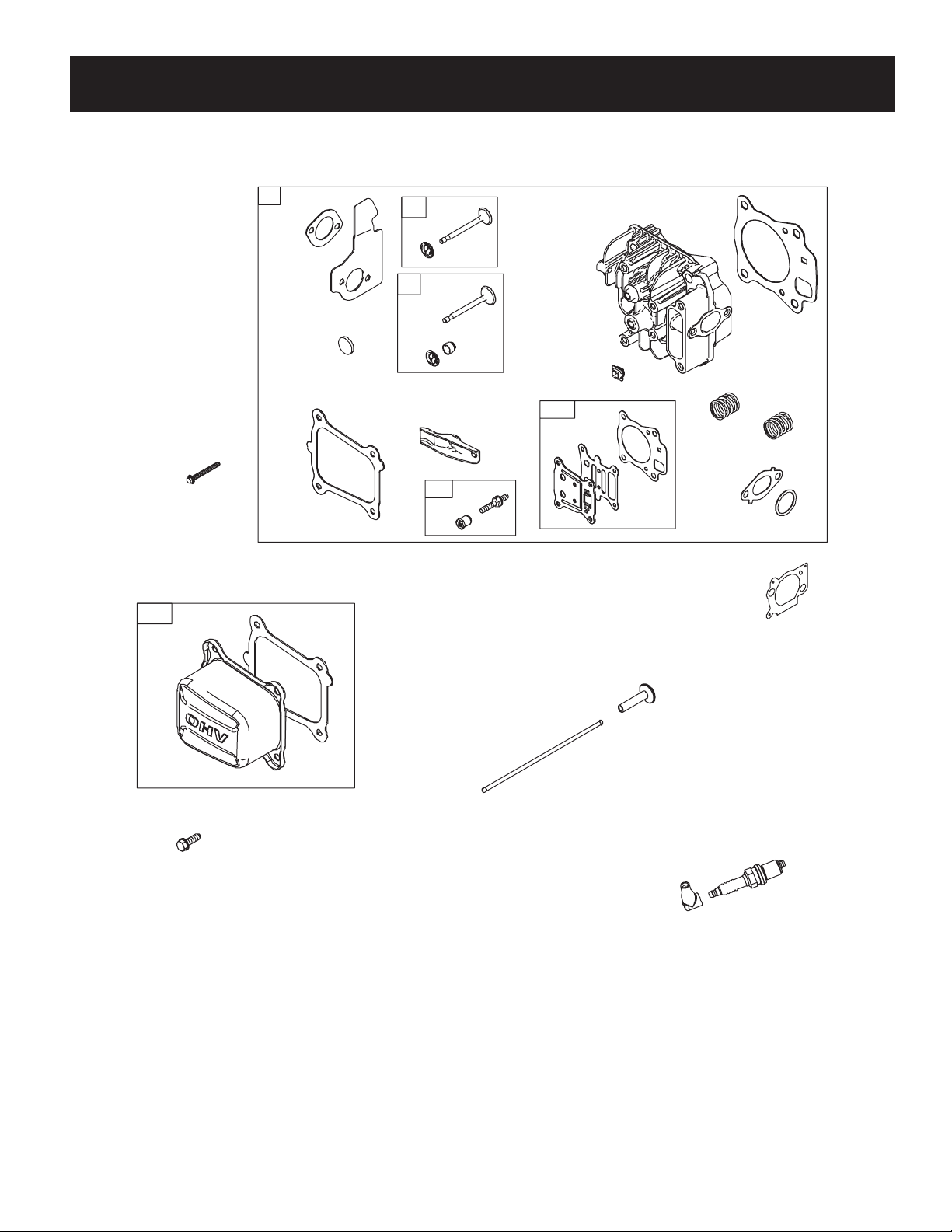

Craftsman Engine Model No. 111P02-0783-F1 For Craftsman Mower Model No. 247.37109

868

993

238

33 7

883

883A

1029

1034

886

192 830

623

1022

10231022

914

1026

163

635

337

PARTS LIST

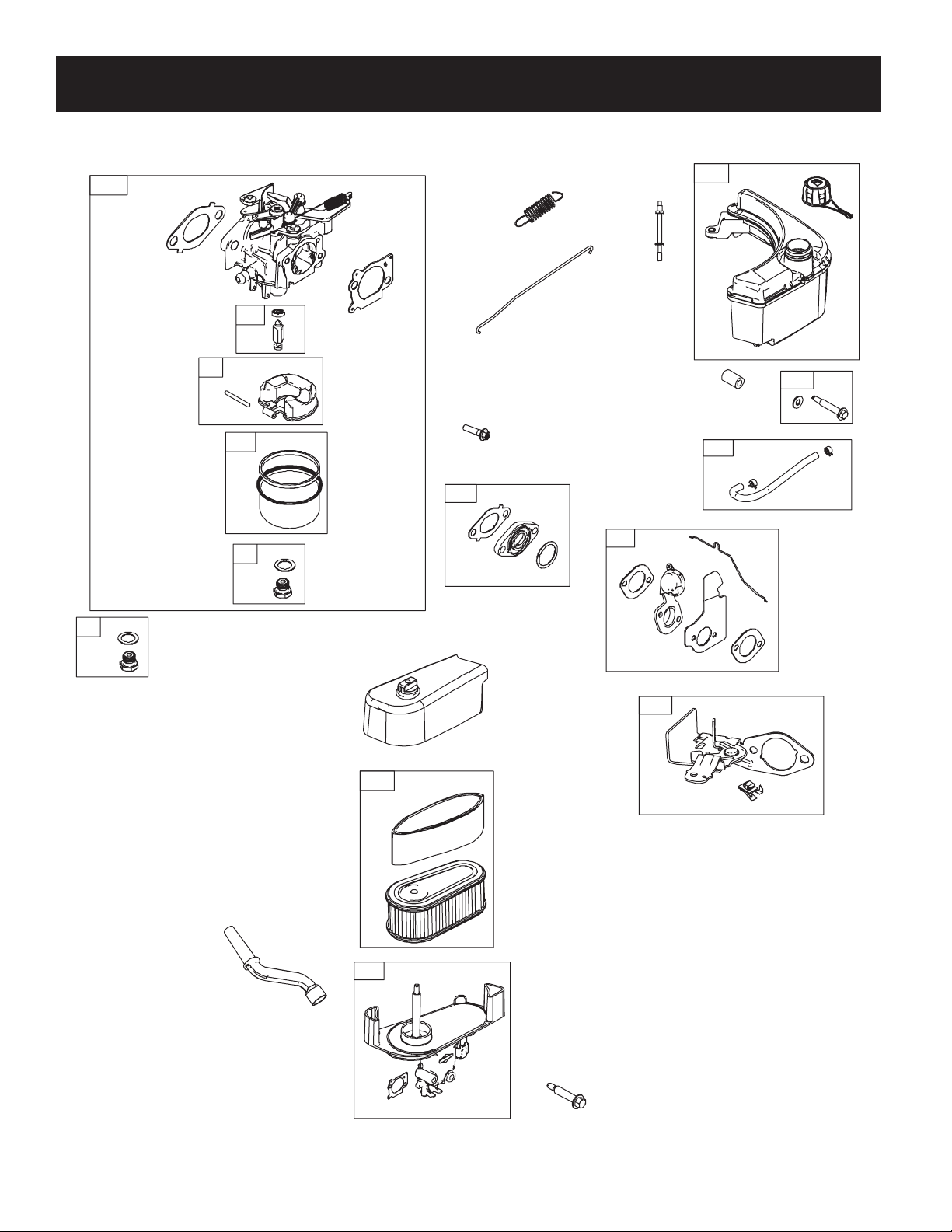

Craftsman Engine Model No. 111P02-0783-F1 For Craftsman Mower Model No. 247.37109

209

365

122

222

623

621

125

163

133

117

137

975

276

134

104

445

875

163

535

968

187

601

957

972

670

1059

202

118

276

291

216

883

883A

883

365A

190

PARTS LIST

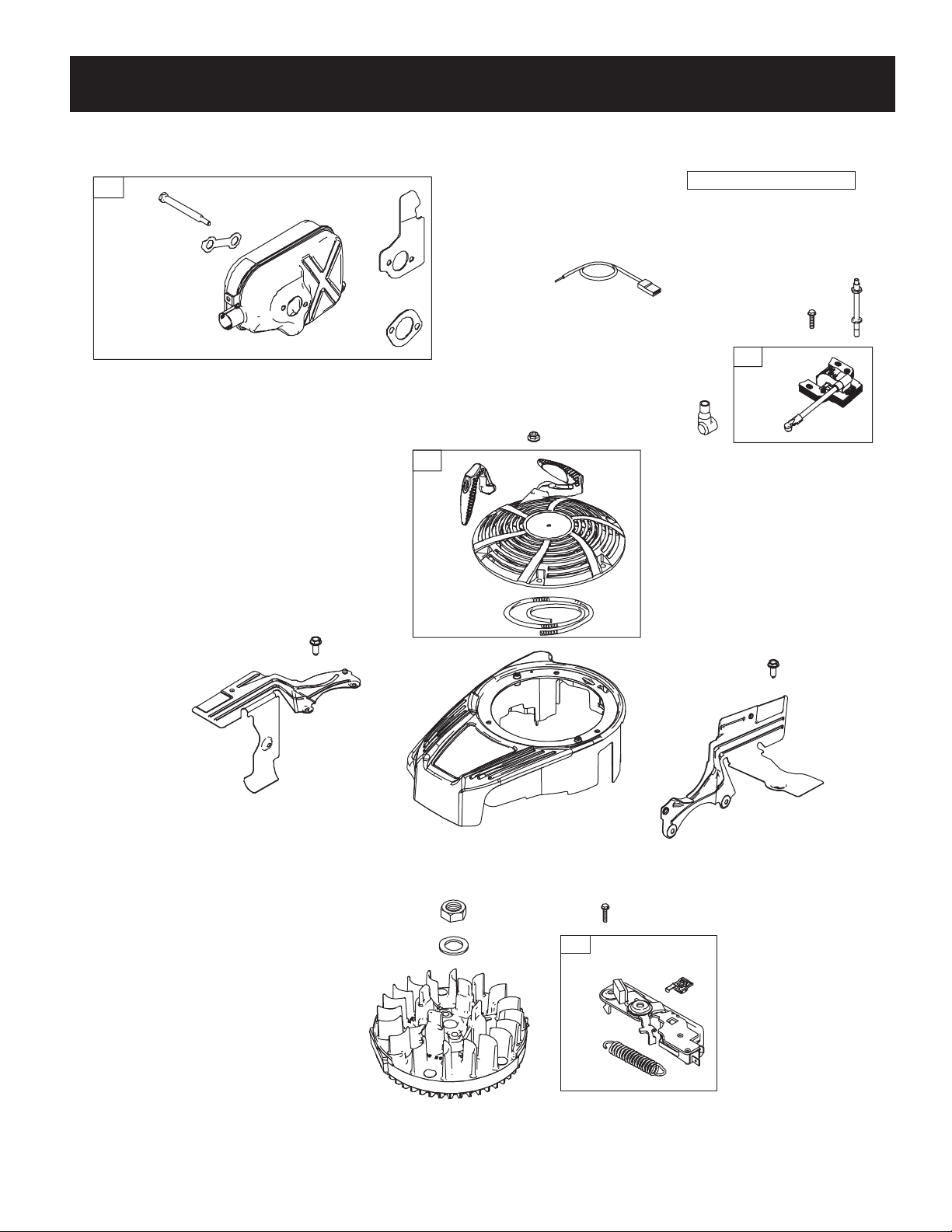

Craftsman Engine Model No. 111P02-0783-F1 For Craftsman Mower Model No. 247.37109

332

1036 EMISSIONSLABEL

745

356

334

608

592

923

922

621

300

613

883

883A

333

334A

307

306 304

635

PARTS LIST

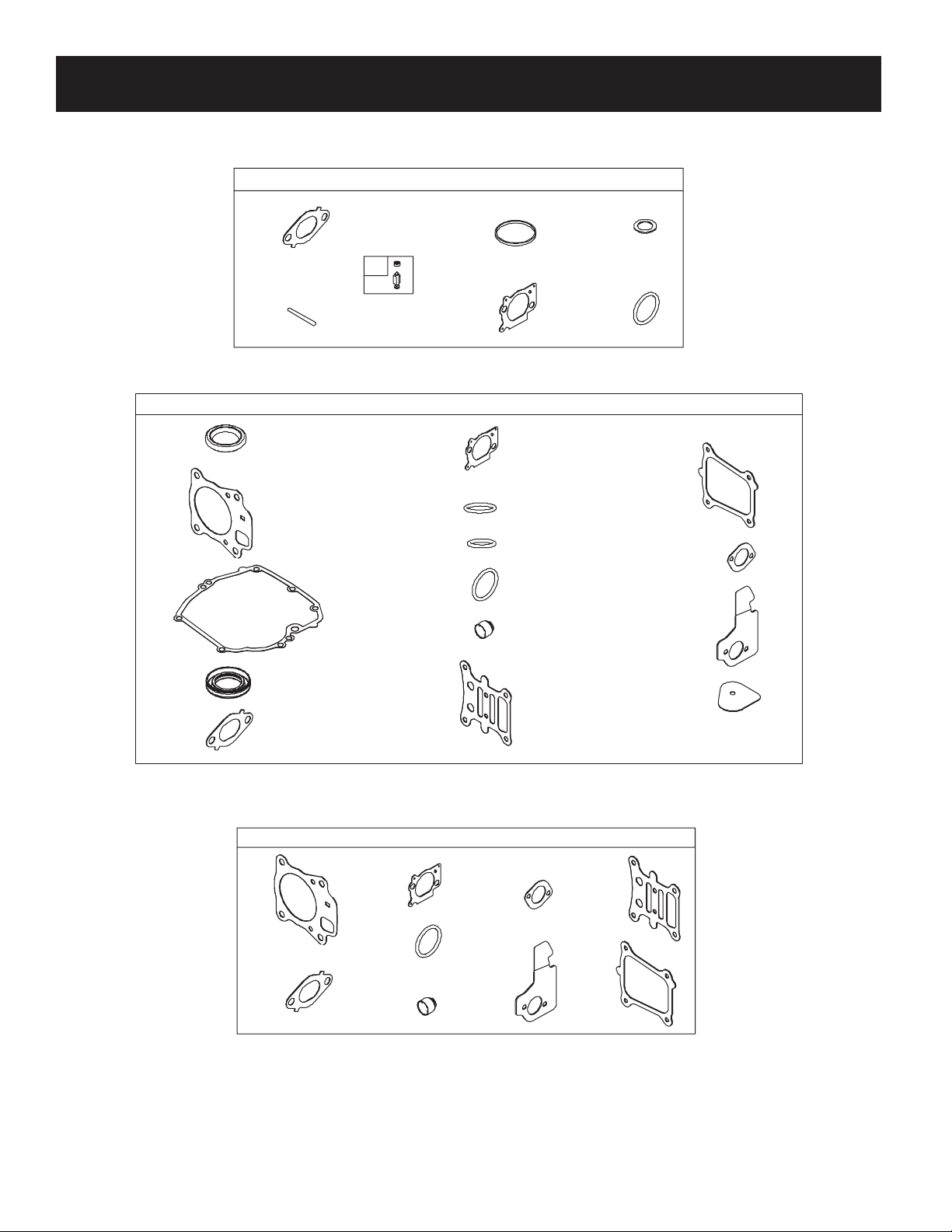

Craftsman Engine Model No. 111P02-0783-F1 For Craftsman Mower Model No. 247.37109

358 ENGINE GASKET SET

163

623

868

883

883A

1430

524

842

1022

993

1095VALVE GASKET SET

993

1022

883

883A

868

623

163

121 CARBURETOR OVERHAUL KIT

163 623

276

104

137

134
