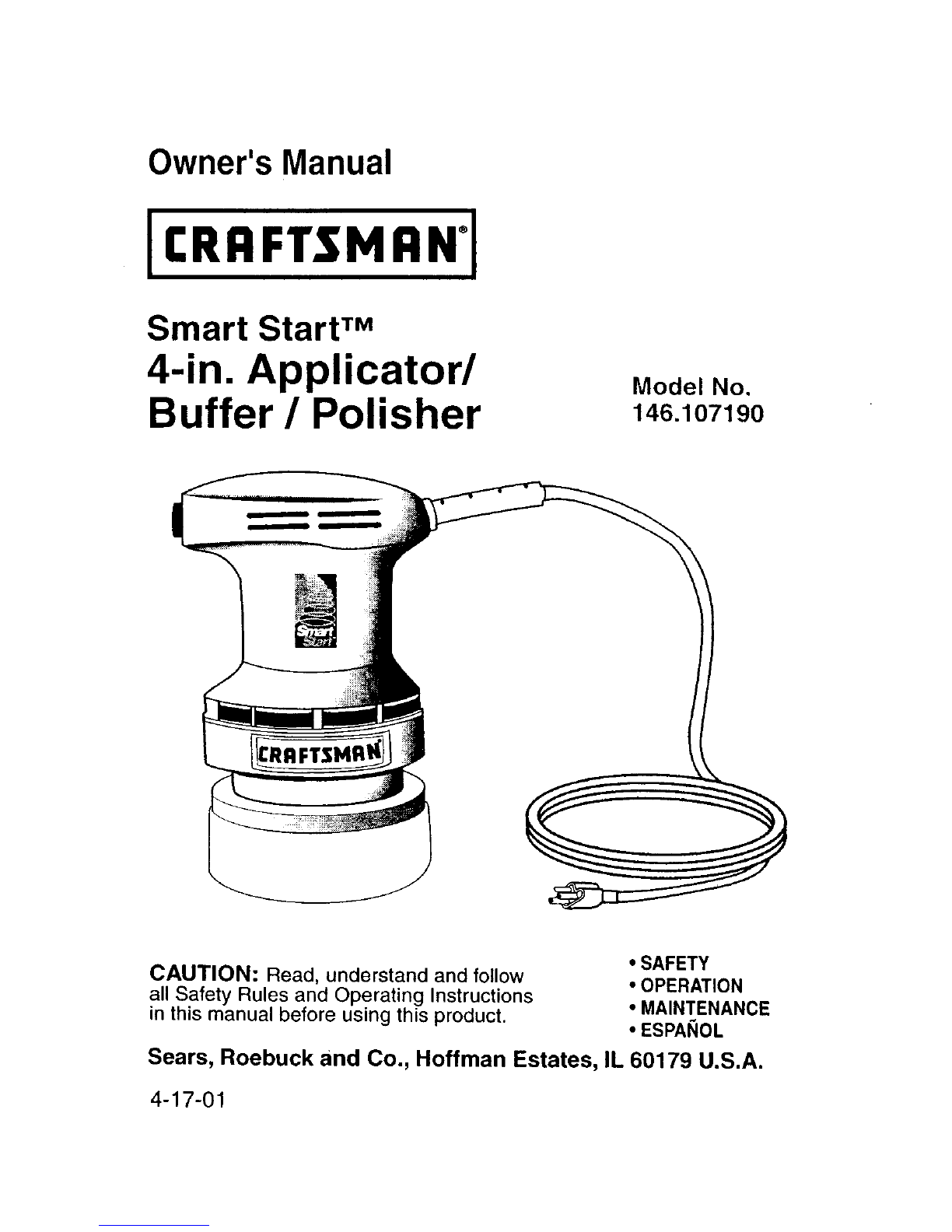

Craftsman 146.107190 Manuale utente

Owner's Manual

Smart Start TM

4-in. Applicator/

Buffer /Polisher Model No.

146.107190

CAUTION: Read, understand and follow

all Safety Rules and Operating Instructions

in this manual before using this product.

• SAFETY

• OPERATION

•MAINTENANCE

•ESPANOL

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

4-17-01

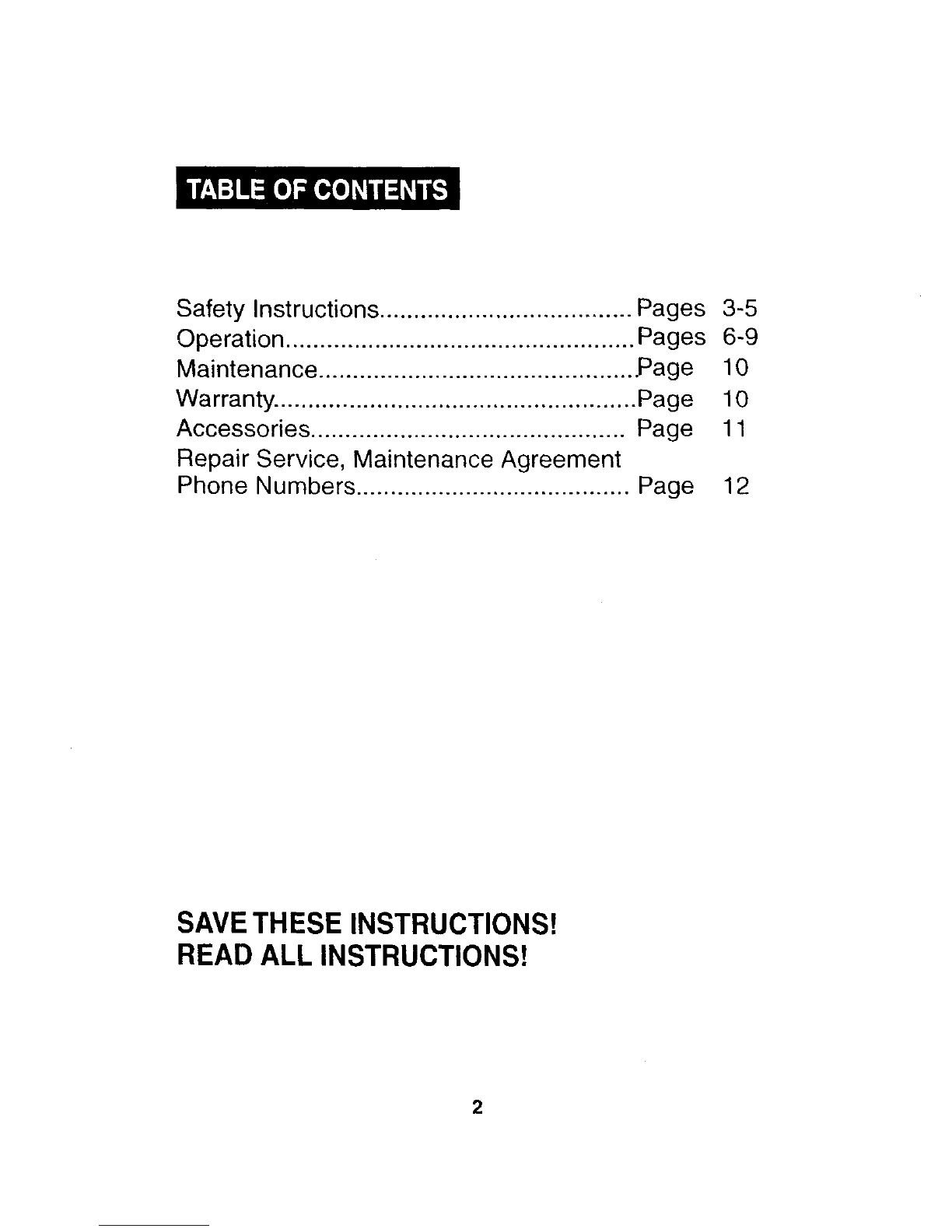

Safety Instructions ..................................... Pages 3-5

Operation ................................................... Pages 6-9

Maintenance .............................................. Page 10

Warranty. .................................................... Page 10

Accessories .............................................. Page 11

Repair Service, Maintenance Agreement

Phone Numbers ........................................ Page 12

SAVETHESE INSTRUCTIONS!

READ ALL INSTRUCTIONS!

I WARNING: BE SURE to read and understand all instructions. I

Failure to follow all instructions listed below may result in electricl

shock, fire and/or serious personal injury. |

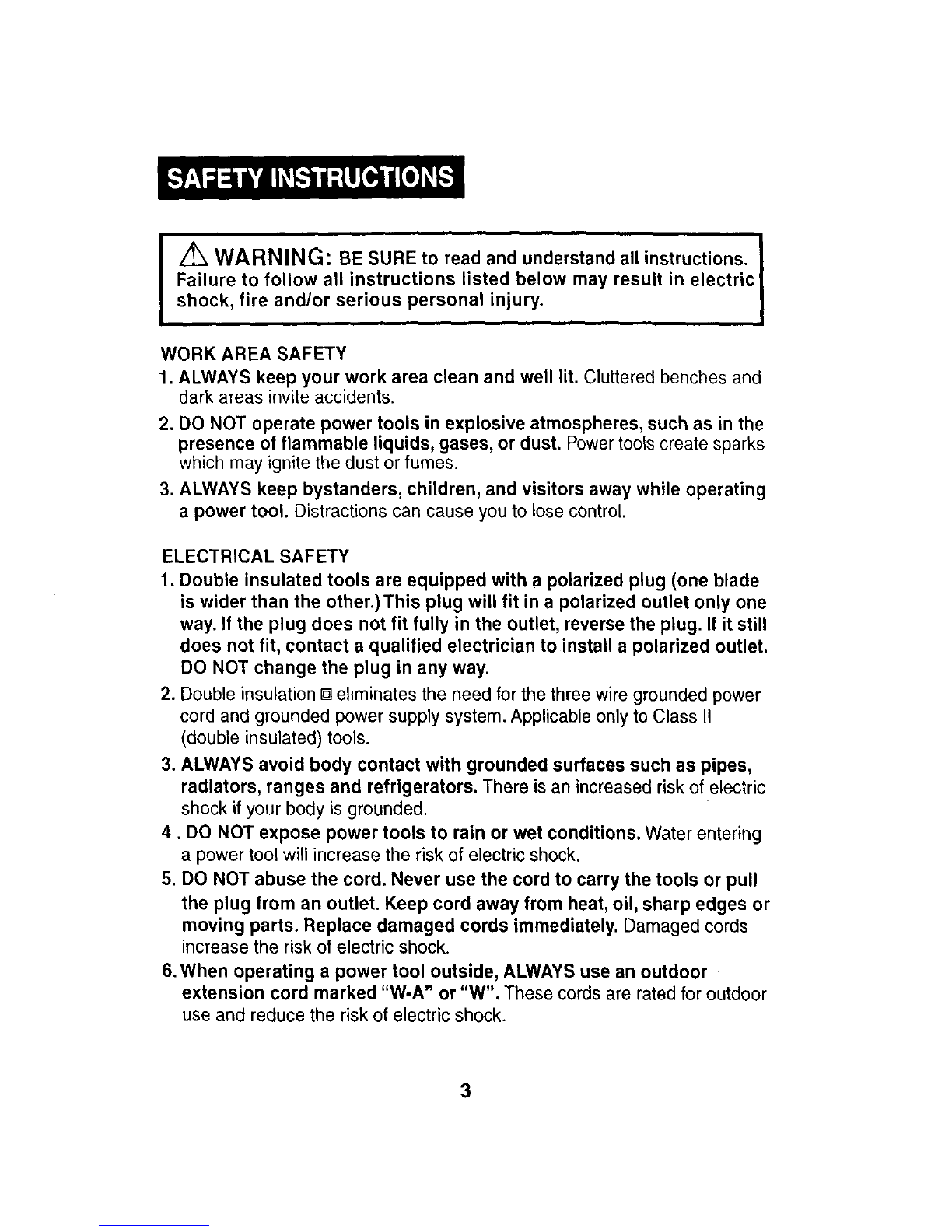

WORK AREA SAFETY

1. ALWAYS keep your work area clean and well lit. Cluttered benches and

dark areas invite accidents.

2. DO NOT operate power tools in explosive atmospheres, such as in the

presence of flammable liquids, gases, or dust. Power toolscreate sparks

whichmay ignitethe dust orfumes.

3. ALWAYS keep bystanders, children, and visitors away while operating

a power tool. Distractions can cause you to lose control.

ELECTRICAL SAFETY

1. Double insulated tools are equipped with a polarized plug (one blade

is wider than the other.)This plug will fit in a polarized outlet only one

way. If the plug does not fit fully in the outlet, reverse the plug. If it still

does not fit, contact a qualified electrician to install a polarized outlet.

DO NOT change the plug in any way.

2. Double insulation [] eliminates the need for the three wire grounded power

cord and grounded power supply system. Applicable only to Class II

(double insulated) tools.

3. ALWAYS avoid body contact with grounded surfaces such as pipes,

radiators, ranges and refrigerators. There is an increased riskof electric

shock if your body isgrounded.

4. DO NOT expose power tools to rain or wet conditions. Water entering

apower toolwill increase the riskof electricshock.

5. DO NOT abuse the cord. Never use the cord to carry the tools or pull

the plug from an outlet. Keep cord away from heat, oil, sharp edges or

moving parts. Replace damaged cords immediately. Damaged cords

increase the riskof electric shock.

6.When operating a power tool outside, ALWAYS use an outdoor

extension cord marked "W-A" or "W". These cords are rated for outdoor

use and reduce the riskof electric shock.

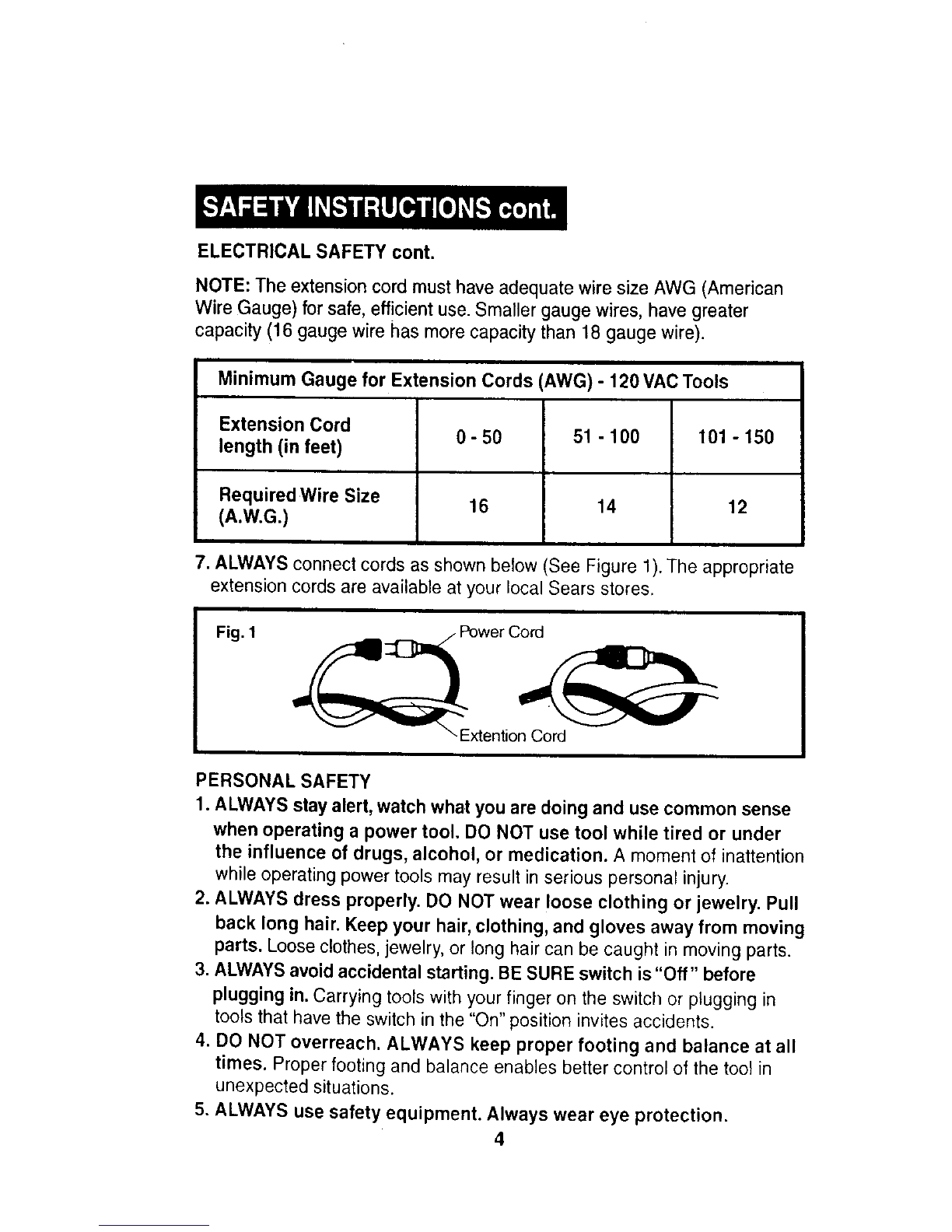

ELECTRICALSAFETYcont.

NOTE:The extension cord musthave adequate wire size AWG (American

Wire Gauge) for safe, efficient use. Smaller gauge wires, have greater

capacity (16 gauge wire has more capacity than 18 gauge wire).

Minimum Gauge for Extension Cords (AWG) -120 VACTools

Extension Cord

length (in feet) 0 - 50 51 - 100 101 - 150

Required Wire Size 16 14 12

(A.W.G.)

7. ALWAYS connect cords as shown below (See Figure 1). The appropriate

extension cords are available at your local Sears stores,

Fig. 1

Power Cord

xtentio_

PERSONAL SAFETY

1. ALWAYS stay alert, watch what you are doing and use common sense

when operating a power tool. DO NOT use tool while tired or under

the influence of drugs, alcohol, or medication. A moment of inattention

while operating power tools may result in serious personal injury.

2. ALWAYS dress properly. DO NOT wear loose clothing or jewelry. Pull

back long hair. Keep your hair, clothing, and gloves away from moving

parts. Loose clothes, jewelry, or long hair can be caught in moving parts.

3. ALWAYS avoid accidental starting. BE SURE switch is "Off" before

plugging in. Carrying tools with your finger on the switch or plugging in

tools that have the switch in the "On" position invites accidents.

4. DO NOT overreach. ALWAYS keep proper footing and balance at all

times. Proper footing and balance enables better control of the tool in

unexpected situations.

5. ALWAYS use safety equipment. Always wear eye protection.

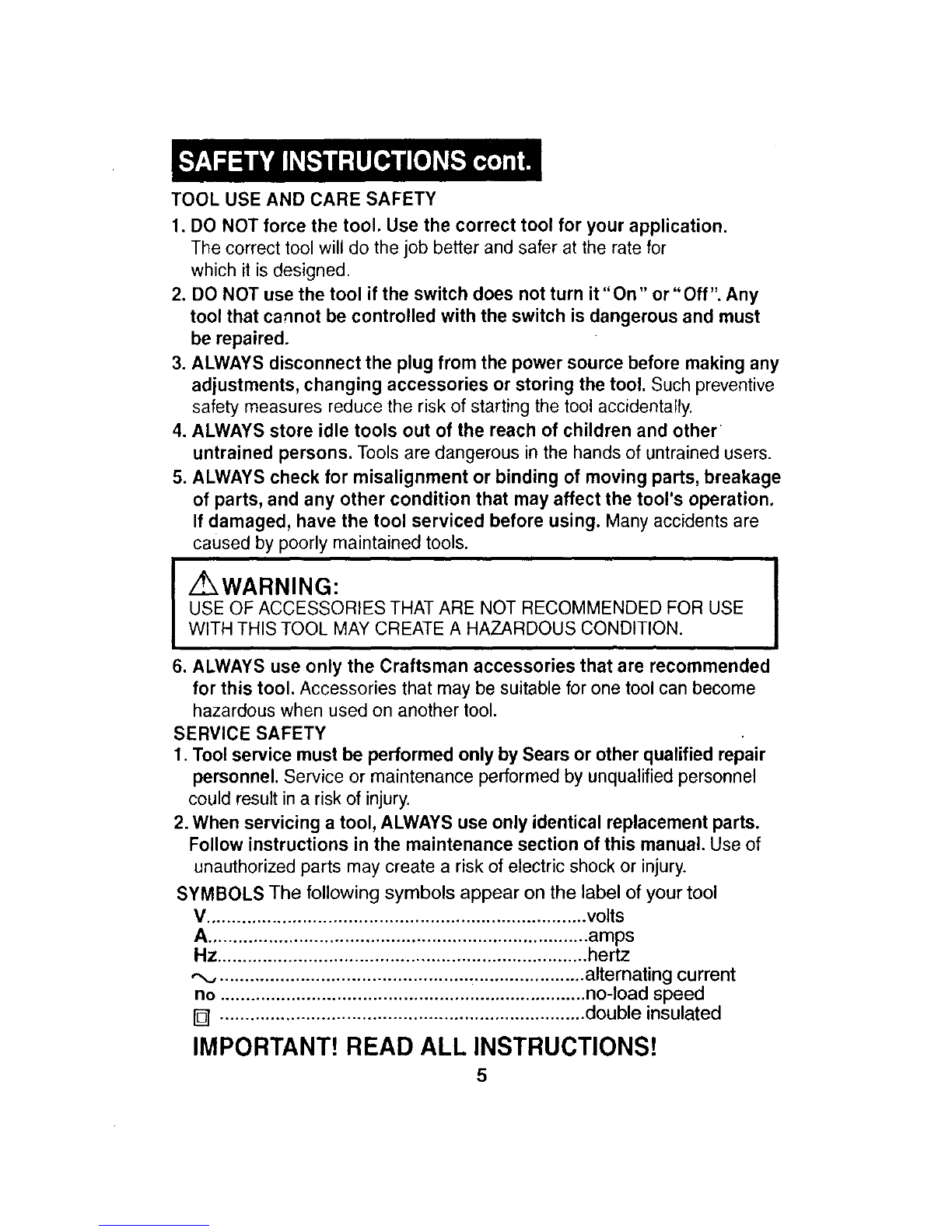

TOOL USE AND CARE SAFETY

1. DO NOT force the tool. Use the correct tool for your application.

The correct tool will do the job better and safer at the rate for

which it is designed.

2. DO NOT use the tool if the switch does not turn it "On" or "Off". Any

tool that cannot be controlled with the switch is dangerous and must

be repaired.

3. ALWAYS disconnect the plug from the power source before making any

adjustments, changing accessories or storing the tool. Such preventive

safety measures reduce the risk of starting the tool accidentally.

4. ALWAYS store idle tools out of the reach of children and other

untrained persons. Tools are dangerous in the hands of untrained users.

5. ALWAYS check for misalignment or binding of moving parts, breakage

of parts, and any other condition that may affect the tool's operation.

If damaged, have the tool serviced before using. Many accidents are

caused by poorly maintained tools.

I WARNING:

USE OF ACCESSORIES THAT ARE NOT RECOMMENDED FOR USE

WITH THIS TOOL MAY CREATE A HAZARDOUS CONDITION.

6. ALWAYS use only the Craftsman accessories that are recommended

for this tool. Accessories that may be suitable for one tool can become

hazardous when used on another tool.

SERVICE SAFETY

1. Tool service must be performed only by Sears or other qualified repair

personnel. Service or maintenance performed by unqualified personnel

could result in arisk of injury.

2. When servicing a tool, ALWAYS use only identical replacement parts.

Follow instructions in the maintenance section of this manual. Use of

unauthorized parts may create a risk of electric shock or injury.

SYMBOLS The following symbols appear on the label of your tool

V ........................................................................... volts

A........................................................................... amps

Hz ......................................................................... hertz

........................................................................ alternating current

no ........................................................................ no-load speed

[] ........................................................................ double insulated

IMPORTANT! READ ALL INSTRUCTIONS!

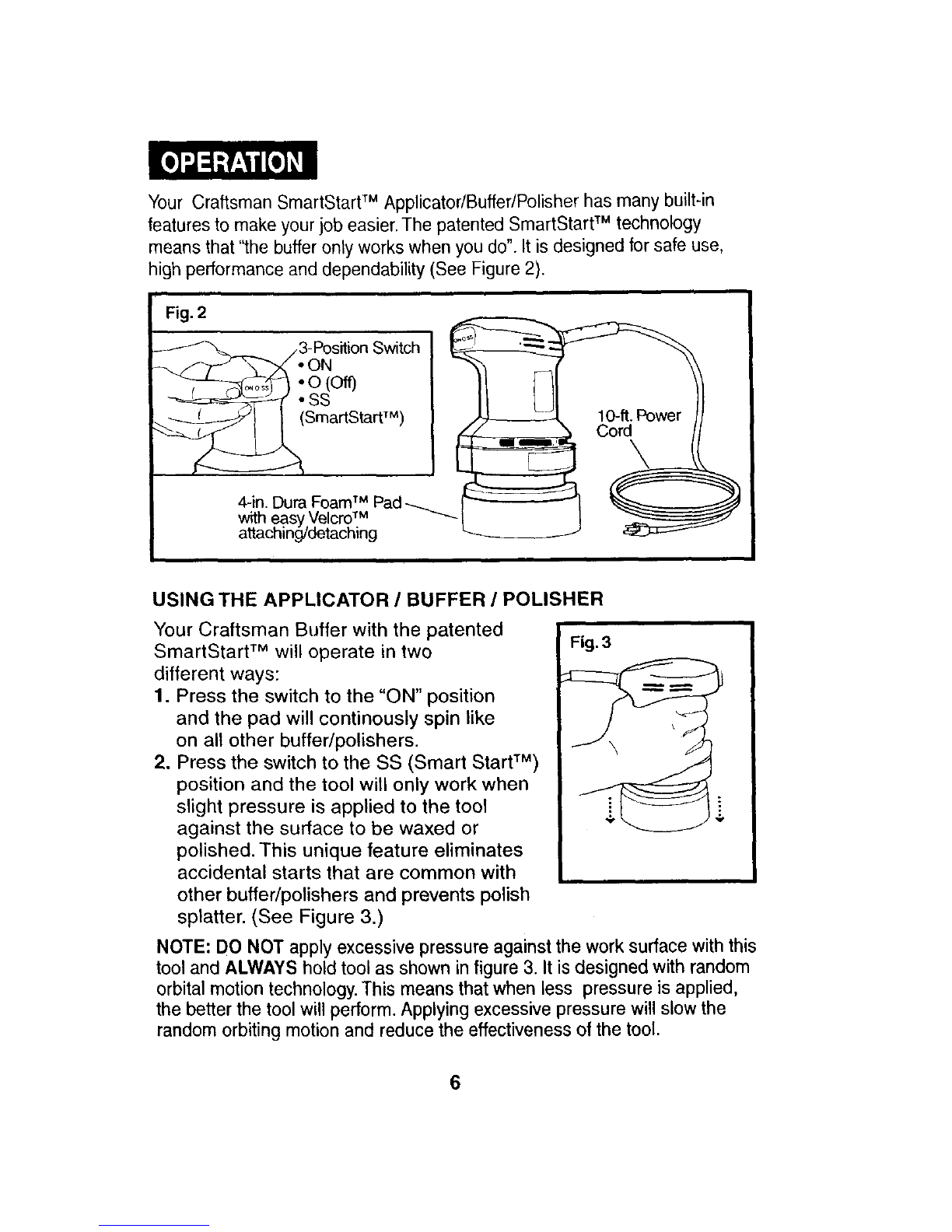

Your CraftsmanSmartStartTM Applicator/Buffer/Polisher has many built-in

features to make your job easier. The patented SmartStart TM technology

means that '"[he buffer only works when you do". It is designed for safe use,

high performance and dependability (See Figure 2).

Fig. 2

-_-_ /3-Position Switch _ __---_

_!O(%(SmartStart ) _ '_lO-ft

SS TM _-_

- I "C-orci P°wer /

4-in. Dura FoamTi Pad--._ _ _

with easy Velcro TM -'-'-- I

attachin_detaching L..

USING THE APPLICATOR /BUFFER /POLISHER

Your Craftsman Buffer with the patented

SmartStart TM will operate in two

different ways:

1. Press the switch to the "ON" position

and the pad will continously spin like

on all other buffer/polishers.

2. Press the switch to the SS (Smart Start TM)

position and the tool will only work when

slight pressure is applied to the tool

against the surface to be waxed or

polished. This unique feature eliminates

accidental starts that are common with

other buffer/polishers and prevents polish

splatter. (See Figure 3.)

NOTE: DO NOT apply excessive pressure against the work surface with this

tool and ALWAYS hold tool as shown in figure 3. It is designed with random

orbital motion technology. This means that when less pressure is applied,

the better the tool will perform. Applying excessive pressure will slow the

random orbiting motion and reduce the effectiveness of the tool.

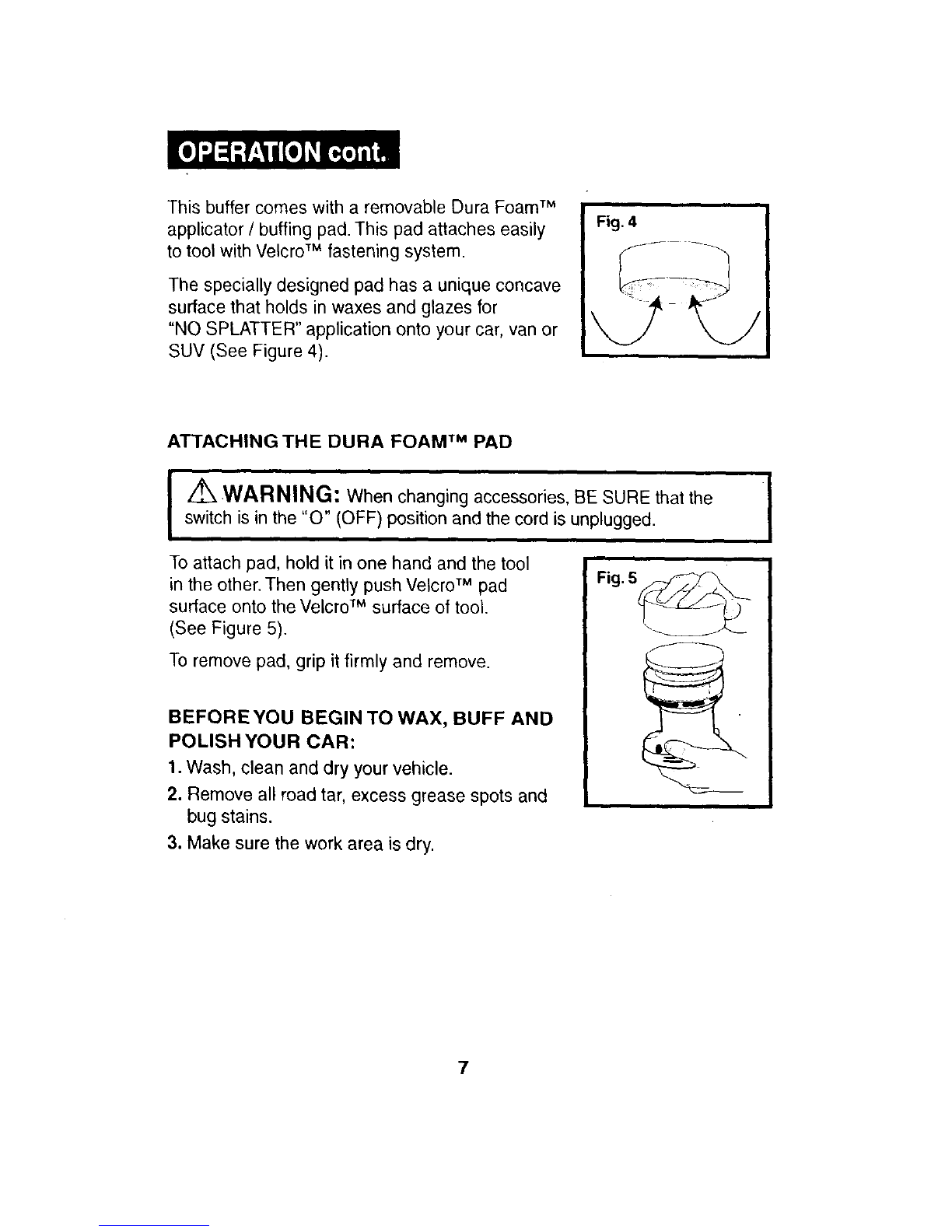

This buffer comes with a removable Dura Foam TM

applicator /buffing pad. This pad attaches easily

to tool with Velcro TM fastening system.

The specially designed pad has a unique concave

surface that holds in waxes and glazes for

"NO SPLATTER" application onto your car, van or

SUV (See Figure 4).

ATTACHINGTHE DURA FOAM TM PAD

I WARNING: When changing accessories, BE SURE that the

switch is in the "O" (OFF) position and the cord is unplugged.

To attach pad, hold it in one hand and the tool

in the other. Then gently push Velcro TM pad

surface onto the Velcro TM surface of tool.

(See Figure 5).

To remove pad, grip it firmly and remove.

BEFOREYOU BEGIN TO WAX, BUFF AND

POLISH YOUR CAR:

1. Wash, clean and dry your vehicle.

2. Remove all road tar, excess grease spots and

bug stains.

3. Make sure the work area is dry.

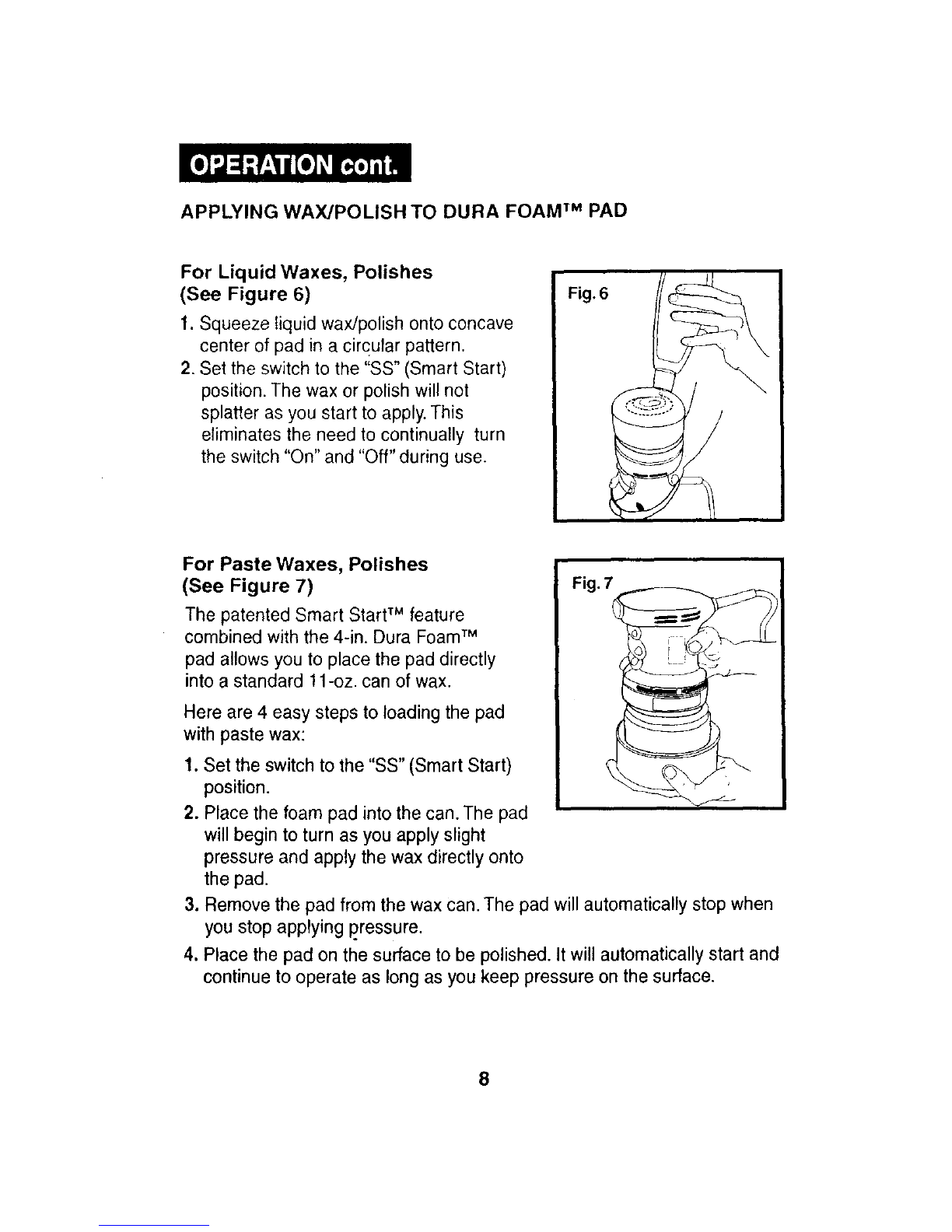

APPLYING WAX/POLISH TO DURA FOAM TM PAD

For Liquid Waxes, Polishes

(See Figure 6)

1. Squeeze liquid wax/polish onto concave

center of pad in a circular pattern.

2. Set the switch to the "SS" (Smart Start)

position. The wax or polish will not

splatter as you start to apply. This

eliminates the need to continually turn

the switch "On" and "Off" during use.

For Paste Waxes, Polishes

(See Figure 7)

The patented Smart StartTM feature

combined with the 4-in. Dura FoamTM

pad allows you to place the pad directly

into a standard 11-oz. can of wax.

Here are 4 easy steps to loading the pad

with paste wax:

1. Set the switch to the "SS" (Smart Start)

position.

2. Place the foam pad into the can. The pad

will begin to turn as you apply slight

pressure and apply the wax directly onto

the pad.

3. Remove the pad from the wax can. The pad will automatically stop when

you stop applying pressure.

4. Place the pad on the surface to be polished. It will automatically start and

continue to operate as long as you keep pressure on the surface.

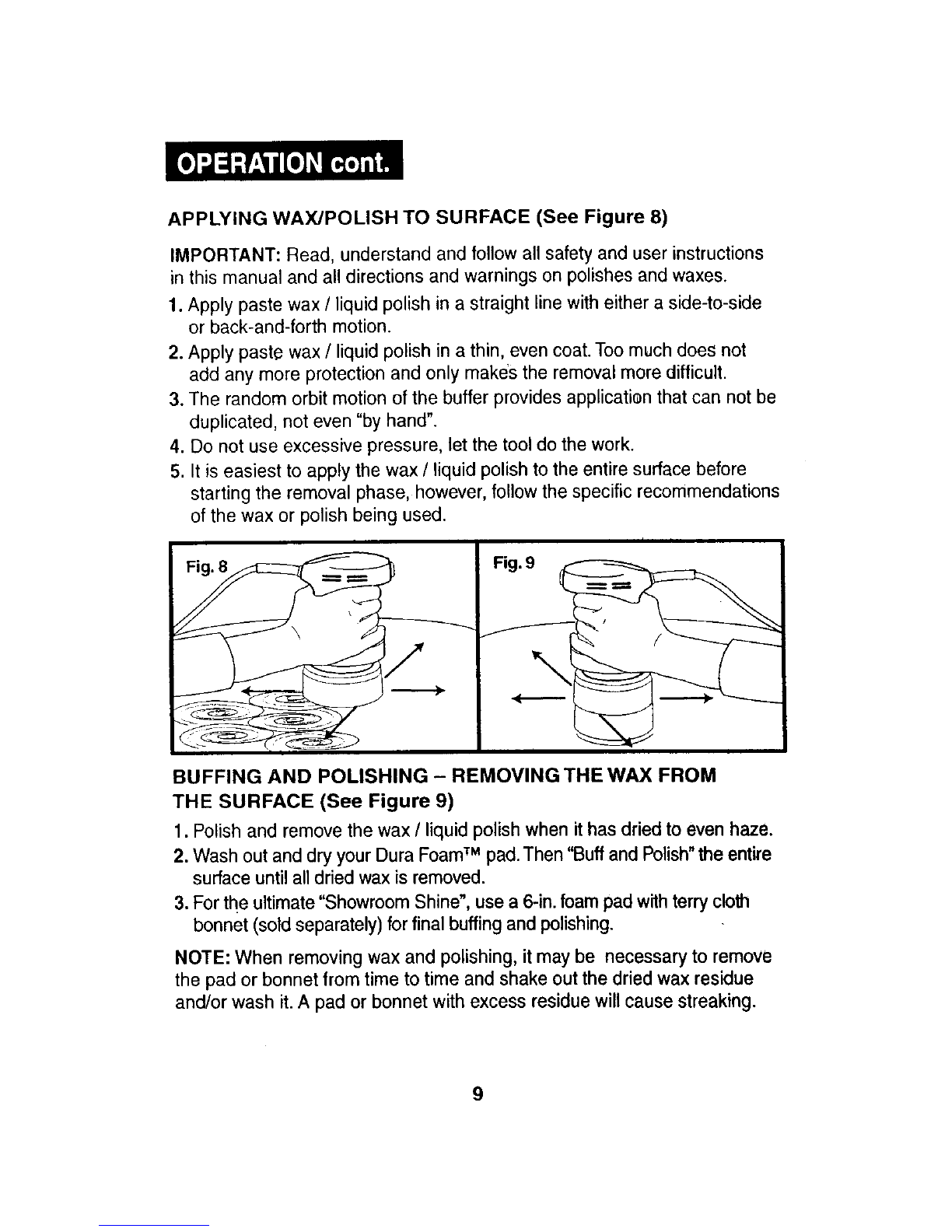

APPLYING WAX/POLISH TO SURFACE (See Figure 8)

IMPORTANT: Read, understand and follow all safety and user instructions

in this manual and all directions and warnings on polishes and waxes.

1. Apply paste wax /liquid polish in a straight line with either a side-to-side

or back-and-forth motion.

2. Apply past¢ wax /liquid polish in a thin, even coat. Too much does not

add any more protection and only makes the removal more difficult.

3. The random orbit motion of the buffer provides applicatien that can not be

duplicated, not even "by hand".

4. Do not use excessive pressure, let the tool do the work.

5. It is easiest to apply the wax /liquid polish to the entire surface before

starting the removal phase, however, follow the specific recommendations

of the wax or polish being used.

BUFFING AND POLISHING - REMOVING THE WAX FROM

THE SURFACE (See Figure 9)

1. Polish and remove the wax /liquidpolish when ithas dried to even haze.

2. Wash out and dry your Dura FoamTM pad. Then "Buff and Polish"the entire

surface until all dried wax is removed.

3. For the ultimate "Showroom Shine", use a 6-in. foam pad with terry cloth

bonnet (sold separately) for final buffing and polishing.

NOTE: When removing wax and polishing, it may be necessary to remove

the pad or bonnet from time to time and shake out the dried wax residue

and/or wash it. A pad or bonnet with excess residue will cause streaking.

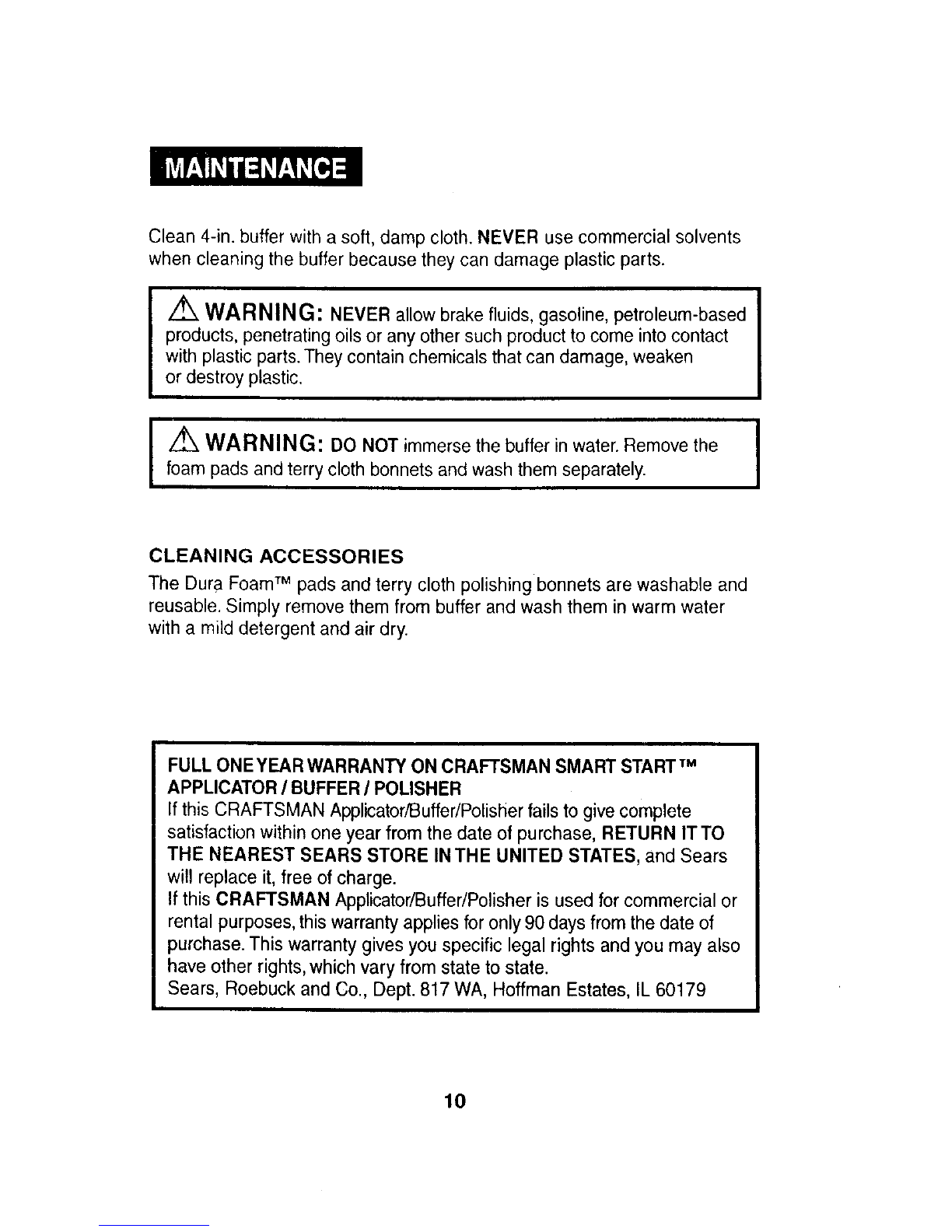

Clean 4-in. buffer with a soft, damp cloth. NEVER use commercial solvents

when cleaning the buffer because they can damage plastic parts.

Z_ WARNING: NEVER allow brake fluids, gasoline, petroleum-based

products, penetrating oils or any other such product to come into contact

with plastic parts. They contain chemicals that can damage, weaken

or destroy plastic.

IZ_ WARNING: DO NOT immerse the buffer in water. Remove the

foam pads and terry cloth bonnets and wash them separately. I

CLEANING ACCESSORIES

The Dura Foam TM pads and terry cloth polishing bonnets are washable and

reusable. Simply remove them from buffer and wash them in warm water

with a mild detergent and air dry.

FULL ONEYEAR WARRANTY ON CRAFTSMAN SMART STARTTM

APPLICATOR/BUFFER/POLISHER

Ifthis CRAFTSMAN Applicator/Buffer/Polisher fails to givecomplete

satisfaction withinone year from the date of purchase, RETURN ITTO

THE NEAREST SEARS STORE INTHE UNITED STATES, and Sears

will replace it,free of charge.

If thisCRAFTSMAN Applicator/Buffer/Polisher is usedfor commercialor

rentalpurposes, thiswarrantyappliesfor only90 daysfrom the date of

purchase.This warrantygivesyou specific legal rightsand you may also

have other rights,whichvary from state to state.

Sears, Roebuck and Co., Dept. 817 WA, Hoffman Estates, IL 60179

Indice

Lingue:

Altri manuali Craftsman Levigatrice

Craftsman

Craftsman 315.27984 Manuale utente

Craftsman

Craftsman 351.226061 Manuale utente

Craftsman

Craftsman 351.22632 Manuale utente

Craftsman

Craftsman 315.116900 Manuale utente

Craftsman

Craftsman 172.259270 Manuale utente

Craftsman

Craftsman 315.268192 Manuale utente

Craftsman

Craftsman 315.117280 Manuale utente

Craftsman

Craftsman 172.27673 Manuale utente

Craftsman

Craftsman 113.225930 Manuale utente

Craftsman

Craftsman CMEW231 Manuale utente

Craftsman

Craftsman 320.39592 Manuale utente

Craftsman

Craftsman 315.111770 Manuale utente

Craftsman

Craftsman 315.277012 Manuale utente

Craftsman

Craftsman 900.11647 Manuale utente

Craftsman

Craftsman 315.277140 Manuale utente

Craftsman

Craftsman 315.22420 Scheda tecnica

Craftsman

Craftsman CMXPTSG1014NB Manuale utente

Craftsman

Craftsman CYCLONE 900.11684 Manuale utente

Craftsman

Craftsman 315.117271 Manuale utente

Craftsman

Craftsman 320.39590 Manuale utente

Craftsman

Craftsman 351.215100 Manuale utente

Craftsman

Craftsman 315.115970 Manuale utente

Craftsman

Craftsman 351.217570 Manuale utente

Craftsman

Craftsman 27675 - Professional 5 in. 3.0 Amp Random Orbit... Manuale utente

Manuali Levigatrice popolari di altre marche

Oliver

Oliver 6305 Manuale utente

Jet

Jet 22-44 Pro-3 Manuale di servizio

Makita

Makita M9204 Manuale

Makita

Makita M9204 Manuale utente

Clarke

Clarke Woodworker CBS1-5B Manuale di istruzioni

Chicago Pneumatic

Chicago Pneumatic CP9778 Manuale utente

Nitto Kohki

Nitto Kohki BB-20 Manuale utente

Ferm

Ferm FEOS-135 Manuale utente

Unior

Unior 1510 Manuale utente

stayer

stayer ls1200 Manuale utente

Jet

Jet JSG-96 Manuale di servizio

Parkside

Parkside PDS 290 B2 Manuale utente

Status

Status XPA Series Manuale utente

Clarke

Clarke EZ Sand Manuale utente

CLAS

CLAS OP 1429 Manuale utente

Parkside

Parkside PEXS 270 Al Manuale utente

Makita

Makita 9207SPB Manuale utente

Flex

Flex ST 1005 VE Manuale utente
