Craftsman 315.212100 Manuale utente
Owner's Manual
IERRFTSMRN'I

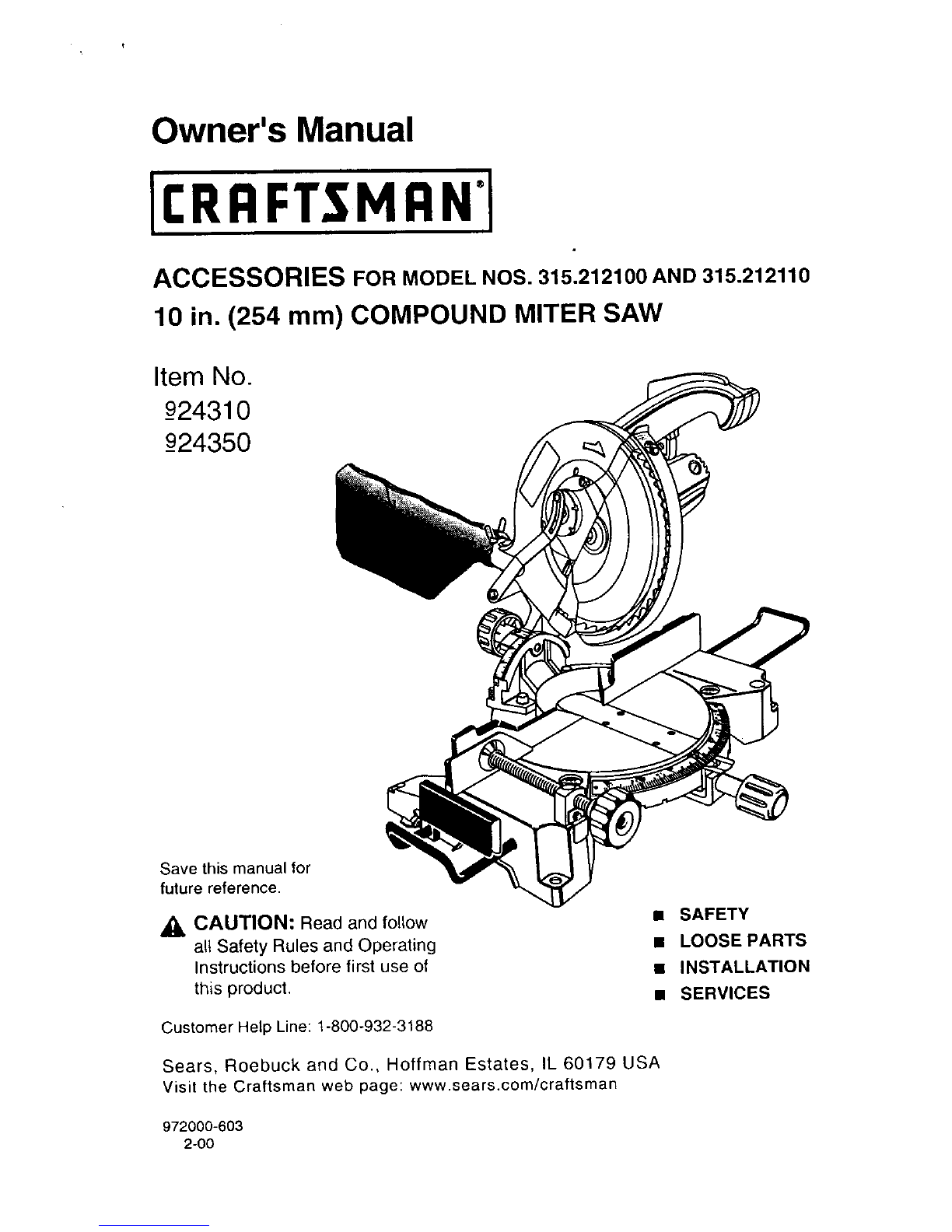

ACCESSORIES FOR MODEL NOS. 315.212100 AND 315.212110
10 in. (254 mm) COMPOUND MITER SAW
Item No.
_924310
_924350
Save this manual for
future reference.
_, CAUTION: Read and follow
all Safety Rules and Operating
Instructions before first use of
this product.
• SAFETY
•LOOSE PARTS
•INSTALLATION
•SERVICES
Customer Help Line: t-800-932-3188
Sears, Roebuck and Co., Hoffman Estates, IL 60179 USA
Visit the Craftsman web page: www.sears.com/craftsman
972000-603
2-00

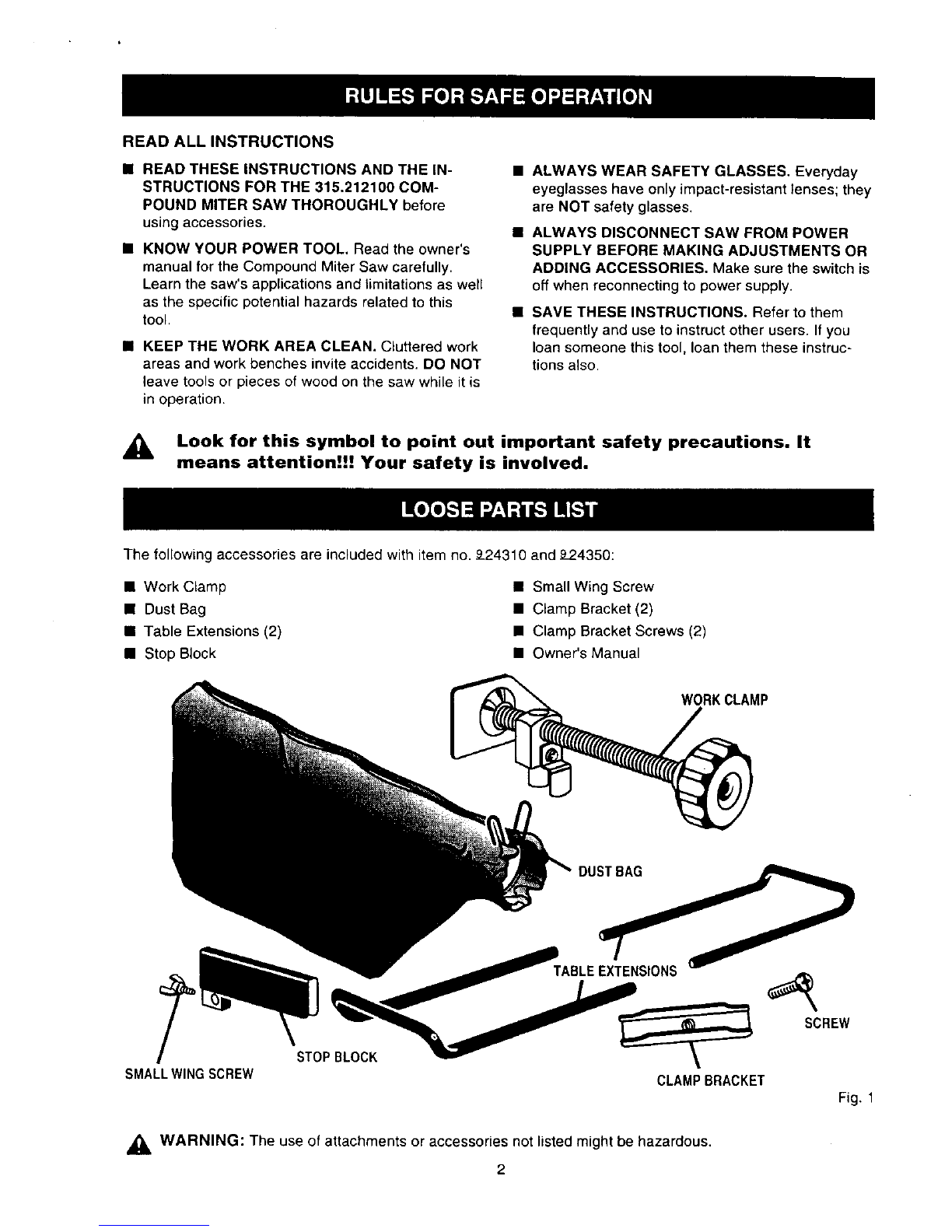

READ ALL INSTRUCTIONS
•READ THESE INSTRUCTIONS AND THE IN-
STRUCTIONS FOR THE 315.212100 COM-
POUND MITER SAW THOROUGHLY before
using accessories.
•KNOW YOUR POWER TOOL. Read the owner's
manual for the Compound Miter Saw carefully.
Learn the saw's applications and timitations as well
as the specific potential hazards related to this
tool,
•KEEP THE WORK AREA CLEAN, Cluttered work
areas and work benches invite accidents. DO NOT
leave tools or pieces of wood on the saw while it is
in operation.
•ALWAYS WEAR SAFETY GLASSES. Everyday
eyeglasses have only impact-resistant lenses; they
are NOT safety glasses.
•ALWAYS DISCONNECT SAW FROM POWER
SUPPLY BEFORE MAKING ADJUSTMENTS OR
ADDING ACCESSORIES. Make sure the switch is
offwhen reconnecting to power supply.
•SAVE THESE INSTRUCTIONS. Refer tothem
frequently and use to instructother users. If you
loan someone thistool, loan them these instruc-
tionsalso.
_k Look for this symbol to point out important safety precautions. It
means attention!!! Your safety is involved.
The following accessories are includedwith item no. 924310 and &2.4350:
• Work Clamp
• Dust Bag
• Table Extensions (2)
• Stop Block
• Small Wing Screw
• Clamp Bracket (2)
• Clamp Bracket Screws (2)
• Owner's Manual
WORKCLAMP
SMALL WINGBCREW
EXTENSIONS
S_CREW
STOPBLOCK
CLAMP BRACKET
Fig. 1
_1, WARNING: The use of attachments or accessories not listed might be hazardous.
2
_l, WARNING: To prevent accidental starting that
could cause possible serious personal injury,
assemble all parts to your saw completely before
connecting it to power supply. Saw should never
be connected to power supply when you are
assembling parts, making adjustments, installing
or removing blades or accessories, or when not
in use.

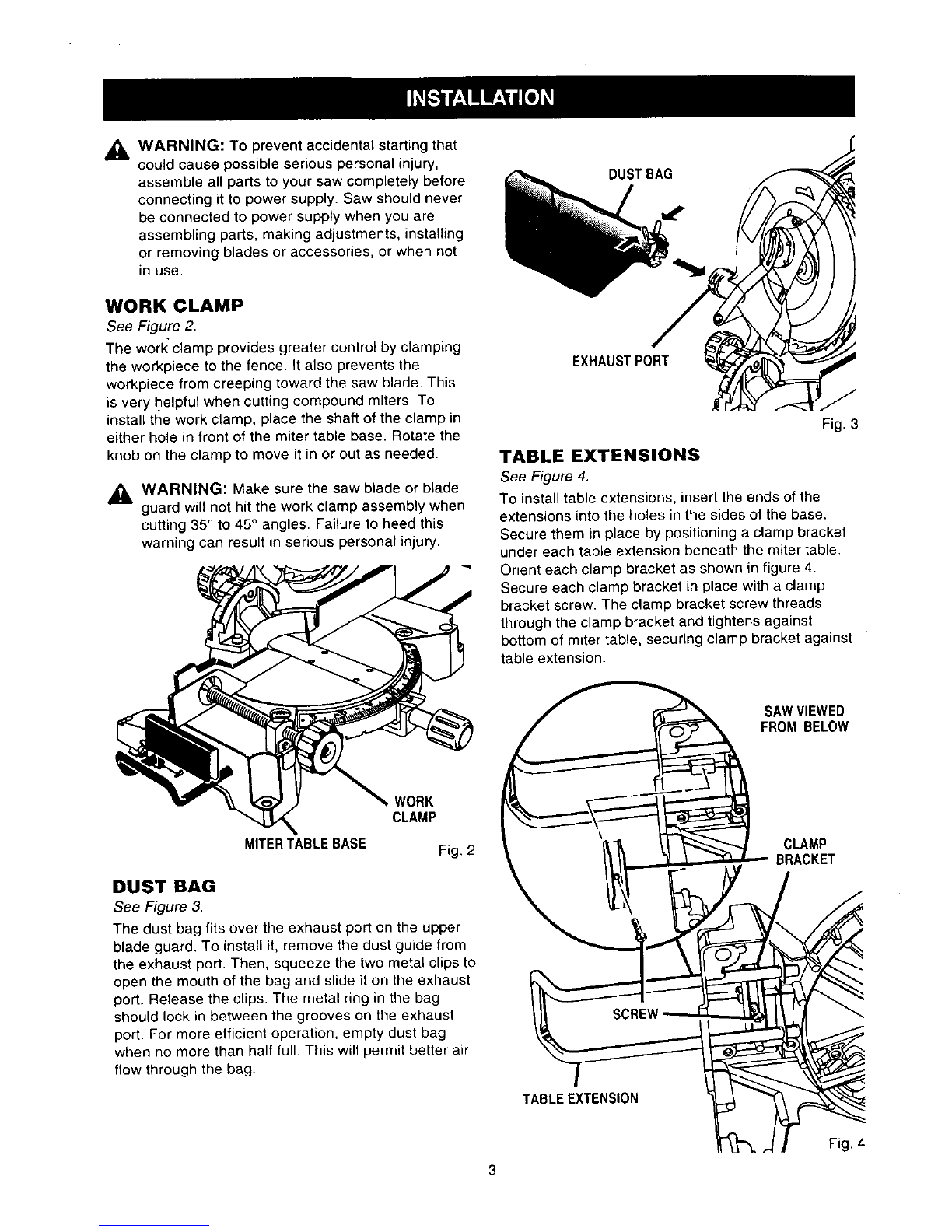

WORK CLAMP
See Figure 2.
The worl_ clamp provides greater control by clamping
the workpiece to the fence. It also prevents the
workpiece from creeping toward the saw blade. This
is very I?elpful when cutting compound miters. To
install the work clamp, place the shaft of the clamp in
either hole in front of the miter table base. Rotate the
knob on the clamp to move it in or out as needed.
_, WARNING: Make sure the saw blade or blade
guard will not hit the work clamp assembly when
cutting 35 ° to 45° angles. Failure to heed this
warning can result in serious personal injury.
WORK
CLAMP
MITER TABLE BASE Fig. 2
DUST BAG
See Figure 3.
The dust bag fits over the exhaust port on the upper
blade guard. To install it, remove the dust guide from
the exhaust port. Then, squeeze the two metal clips to
open the mouth of the bag and slide it on the exhaust
port. Release the clips. The metal ring in the bag
should lock in between the grooves on the exhaust
port. For more efficient operation, empty dust bag
when no more than half full. This will permit better air
flow through the bag.
DUST BAG
EXHAUST PORT
Fig. 3
TABLE EXTENSIONS
See Figure 4.
To install table extensions, insert the ends of the
extensions into the holes in the sides of the base.
Secure them in place by positioning a clamp bracket
under each table extension beneath the miter table.
Orient each clamp bracket as shown in figure 4.
Secure each clamp bracket in place with a clamp
bracket screw. The clamp bracket screw threads
through the clamp bracket and tightens against
bottom of miter table, securing clamp bracket against
table extension.
SAWVIEWED
FROMBELOW
CLAMP
BRACKET
TABLEEXTENSION
3
Fig. 4

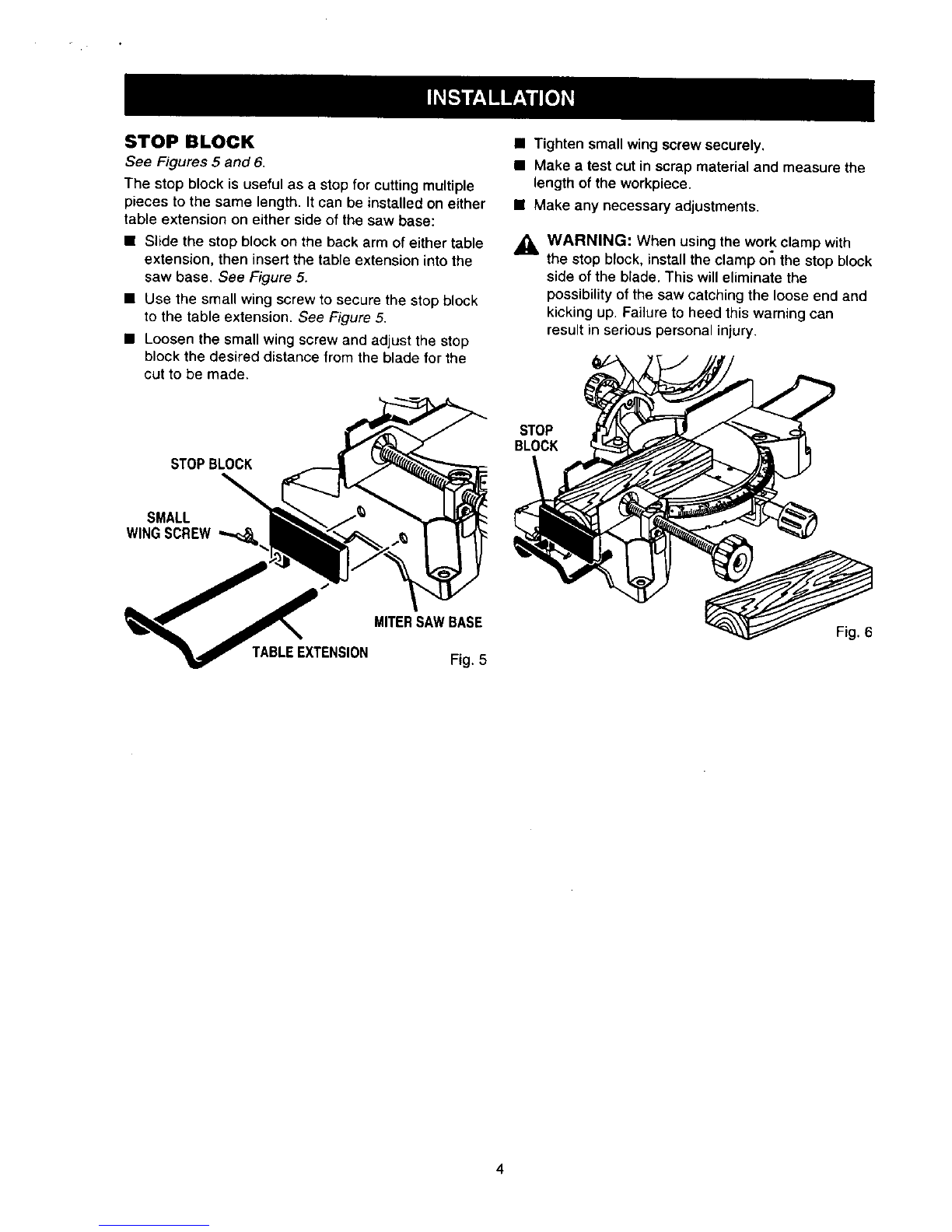

STOP BLOCK
See Figures 5 and 6.
The stop block is useful as a stop for cutting multiple
pieces to the same length. It can be installed on either
table extension on either side of the saw base:
• Slide the stop block on the back arm of either table
extension, then insert the table extension into the
saw base. See Figure 5.
• Use the small wing screw to secure the stop block
to the table extension. See Figure 5.
•Loosen the small wing screw and adjust the stop
block the desired distance from the blade for the
cut to be made.
STOPBLOCK
SMALL
WINGSCREW
MITERSAWBASE
EXTENSION Fig. 5
• Tighten small wing screw securely,
• Make a test cut in scrap material and measure the
length of the workpiece.
• Make any necessary adjustments.
_, WARNING: When using the work clamp with
the stop block, installthe clamp o_ the stop block
side of the blade. This will eliminate the
possibility of the saw catching the loose end and
kicking up. Failure to heed this warning can
result in serious personal injury.
STOP
BLOCK
Fig. 6
