Crane DN5800 Istruzioni per l'uso e l'installazione
M132.4 Page 1of 3June 25, 2019
SERVICE INFORMATION
104883 (M132.4)
MODELS AFFECTED: All BevMax 4/3/2 Classic Model Venders.
MODEL NUMBERS: DN5800/3800 – BevMax 4/3/2 Venders
Revised: 6/25/19
RE: Crane Merchandising Systems DN5800/3800-4/3/2 Validator Guard Assembly.
Reason: To provide installation instructions when installing the Validator Guard Assembly. If you have
any issues please contact your Crane Merchandising Systems Representative or the Technical Service
Department at 803-266-5001.
Order: 1 – 111250 (previous # 65701440) BevMax 4/3/2 Validator Guard Kit
Kit Contents:
1 – 104705 (previous # CR0013381) Assembly, Validator Guard BevMax 4/3/2
5 – 100267 (previous # 80030423) Screws, Phil Pan Sems #8-18X1/2”
1 – 104883 M132.x Installation Instructions
Figure 1
Note access hole for the
screw to the vertical
lamp assy.
M132.4 Page 2of 3June 25, 2019
SERVICE INFORMATION
Installation:
1. Unplug the vender.
2. A. If the Validator Guard 104705 (previous # CR0013381) Assembly did not arrive assembled,
assemble the parts as shown in Figure1. Do not tighten the Hex Nuts at this time.
B. If the Validator Guard Assembly arrived assembled, be sure the two Hex Nuts are not tight at
this time.
3. Orient the Validator Guard Assembly as shown in Figure 1.
4. Position the Validator Guard Assembly in position in the Vender Service Area so the left flange
points upward and the bottom of the plate rests just above the top edge of the Discharge Frame.
Figure 2
5. Check no wires are pinched, cut, or damaged in any way.
Figure 3
Note positioning of the
access hole for the
screw to the vertical
lamp assy.
M132.4 Page 3of 3June 25, 2019
SERVICE INFORMATION
6. Ensure the left & right front edges of the Validator Guard Assembly are even with the front edges
of the cabinet. See Figures 2 & 3.
7. Secure the Validator Guard Assembly in position with 5 Phil Pan Sems self-drilling Screws 100267
(previous # 80030423).

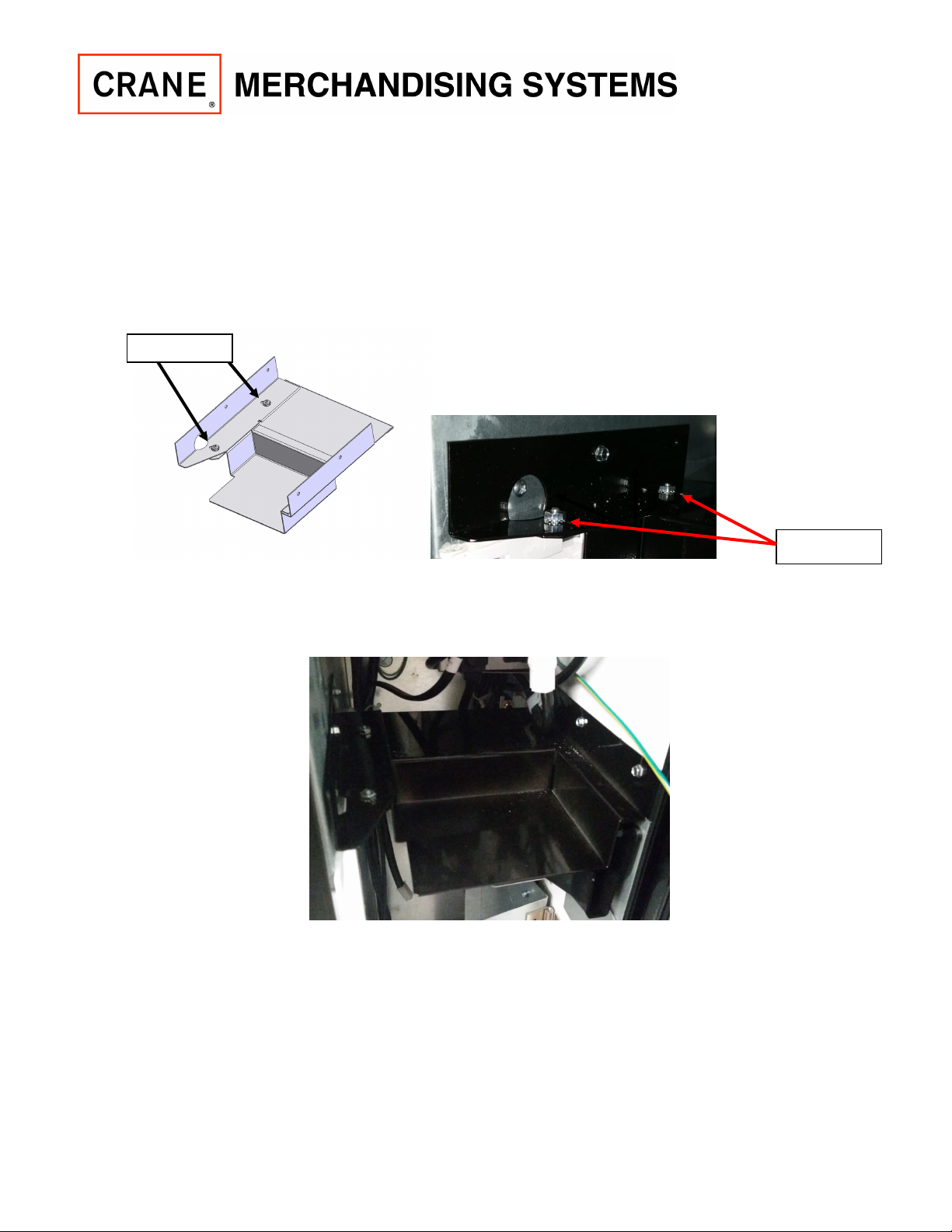

8. Tighten the 2 Hex Nuts on the Validator Guard Assembly. See Figure 4.
Figure 4
9. Close Service Door and confirm there is no interference with any parts on the Service Door or in
the Service Area of the Vender.
Figure 5
10. Plug in vender and test for proper operation.
Hex Nut
Hex Nut
