Creabest GSM-120W Manuale utente
Portable Solar Panel
Model:GSM-120W
GSM-120W
①
②
③
④

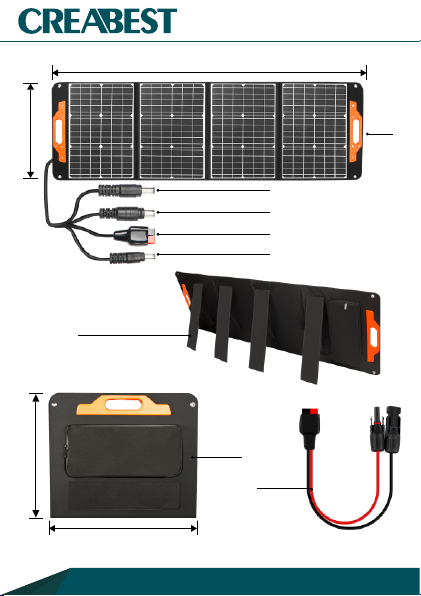

4x30 Watts Solar Panel
DC5525(5.5*2.5mm）
DC7909(7.9*0.9mm）
Anderson(Up&Down)
⑤
⑥
⑦
⑧
DC5521(5.5*2.1mm）
Stands
Suitcase with handle and pocket
Anderson Adapter, Compatible with MC4
www.creabest.de
Email:[email protected]
Technical details
Model:
Peak Power(Pm):
Solar Cell
Solar Cell Lamination:
Cell Efficiency:
Voltage at Max Power(Vmp):
Current at Max Power(Imp):
Open Circuit Voltage(voc):
Short Circuit Current(lsc):
USB-C:
Type-C:
Operating Temperature:
Folding Number:
Dimension(unfolded):
Dimension(folded):
Weight:
Warranty:
GSM-120W
120W
Single crystal
ETFE
UP to 19.6%
18V
6.7A
21.6V
8A
5V/3A 9V/2A 12V/1.5A Max
5V/3A 9V/2A 12V/1.5A Max
-10℃~+65℃
4
Dimension(unfolded): 159*55.5*0.4cm
Dimension(folded):55.5*43.5*2.2cm
5kg
24 Months
Introduction
Safety Tips
GSM-120W
www.creabest.de
Email:[email protected]
● Do not bend the solar panel.
● Do not soak the solar panel into water or any other liquid.
● Do not use or store this solar panel near fire or heater.
● Do not scratch the solar panel with sharp objects.
● Do not dissemble the solar panel by yourself.
● Do not put corrosive substance on this solar panel.
● Ensure shade from trees, buildings, and any other obstructions do not block sunlight
while using the panels.
● Do not use this product as a children's toy.
● Please note that the solar panel may be damaged by falling or impact.
● During recharging, keep your portable power station away from heat and direct
sunlight to extend its life span.
● The Creabest 120W solar panel is a foldable design with a handle.
● The ETFE laminated housing is tough enough to extend the life of the solar panel.
● The max power is 4*30W=120W, according to 8 hours of light a day, it can generate
up to 120*8=90W of power.
● This solar charger is equipped with QC 3.0 USB port and Type-C port, which is 3
times faster than ordinary solar panel speed for your smartphones, tablets, DV, etc.
● Including 4 in 1 cable: 5.5*2.1mm, 5.5*2.5mm, 7.9*0.9mm, 30A, Anderson. Suitable
for almost all power stations on the market.
2 in 1 MC4 cable/adapter: connect the solar charge controller
GSM-120W
www.creabest.de
Email:[email protected]

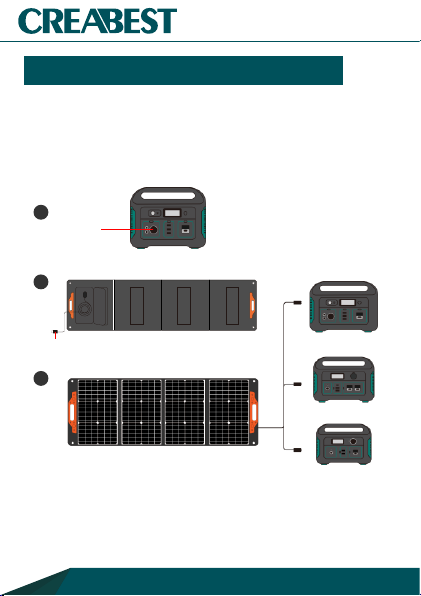

How to Charge a Solar Generator
1. Confirm the type of DC input port of the solar power station .
2. Find the DC interface on the back of the GSM-120W solar panel and select the
corresponding DC interface. (DC5521 5525 7909, XT60, etc.)
3. Connect the DC interface to the DC input of the solar power station.
DC interface
(Built-in DC cable)
2
1
3
DC input
（For example)
GSM-120W
How to Charge your 12V Battery
1. Prepare your charge controller, it is recommended to use 10A or larger.
2. Find the Anderson interface on the back of the GSM-120W solar panel, and connect
it with the included Anderson adapter cable (MC4 compatible).
3. Connect the MC4 connector end of the Anderson adapter cable to the MC4 cable
(corresponding to the positive and negative poles), and then to the solar charge
controller.
4. Use a cable to connect the charge controller to your battery
www.creabest.de
Email:[email protected]
1
2
MPPT
Anderson interface
Anderson adapter cable
(MC4 compatible)
3
4
GSM-120W
Warranty
The product is covered by a limited warranty from Creabest for the original purchaser
that covers the product from defects in workmanship and materials for24 months from
the date of purchase(damages from normal wear and tear, alteration, misuse, neglect,
accident, service by anyone other than authorized service center, or act of God are
not included).
During the warranty period and upon verification of defects, this product will be replaced
when returned with proper proof of purchasesuch (as an order number).
Q: What factors will affect the solar energy conversion rate?
A: 1. Weather conditions.
2. Working ambient temperature.
3. The length of the solar panel.
4. Angle from panel to sunlight
Q: How do I decide how many panels are needed for charging?
A: 1. The output power of the solar panel should meet the recommended voltage.
2. The maximum open circuit voltage cannot exceed the maximum input voltage of
the power station.
3. The total output current of the solar panel should be between the recommended
operating voltages. When multiple solar panels are used in series or in parallel, please
ensure that the accumulated maximum voltage and current of the solar panels does
not exceed the maximum voltage and current of the power station.
www.creabest.de
Email:[email protected]
FAQ (Frequently Asked Questions)
GSM-120W
www.creabest.de
Email:[email protected]
Q: Is it waterproof?
A: Yes, the product meet IP67 water proof. To maximize the life of your solar panel,
try not to get it wet or submerge the solar panel in water.
Q:How to clean the solar surface?
A: Dust and dirt on the surface should first be removed using a soft brush. Use a damp
cloth to wipe the surface of the solar module to remove any remaining dust or dirt.
Any guano or other adhesive should be removed as soon as possible from the solar
surface to avoid a reduction in performance.
Contact us
If you have any questions, request a replacement or refund for a defective product,
please email us. We will get back to you as soon as possible.
（Email:[email protected]）
