Building instructions Crossover L
Version 2.1
Building instructions Crossover L
Page 1
www.creativestructures.nl
Pre-assemble the lower sub proles (4x)
Step 1:
Locking pin
Short version
CS-0105
2x
Securing ring
CS-0248
2x
Lower (short) sub prole
CS-0055
T-Connector Lower Right
Marked with “LR”
CS-0057
T-Connector Lower Left
Marked with “LL”
CS-0052
LL
LR
Curvature has to point downwards
!
Building instructions Crossover L
Page 2
www.creativestructures.nl
Pre-assemble the upper sub proles (4x)
Step 2:
Upper (long) sub prole
CS-0054
T-Connector Upper Right
Marked with “UR”
CS-0056
T-Connector Upper Left
Marked with “UL”
CS-0051
UL
UR
Locking pin
Short version
CS-0105
2x
Securing ring
CS-0248
2x
Curvature has to point downwards
!
Building instructions Crossover L
Page 3
www.creativestructures.nl
Pre-assemble the sub frame
Step 3:
Sub frame center
CS-0334
Secure all parts with locking pins (short version)
and securing rings
!
Joint has to point downwards
!
Sub frame beam
CS-0335
4x
Sub frame connector
CS-0336
4x
Building instructions Crossover L
Page 4
www.creativestructures.nl

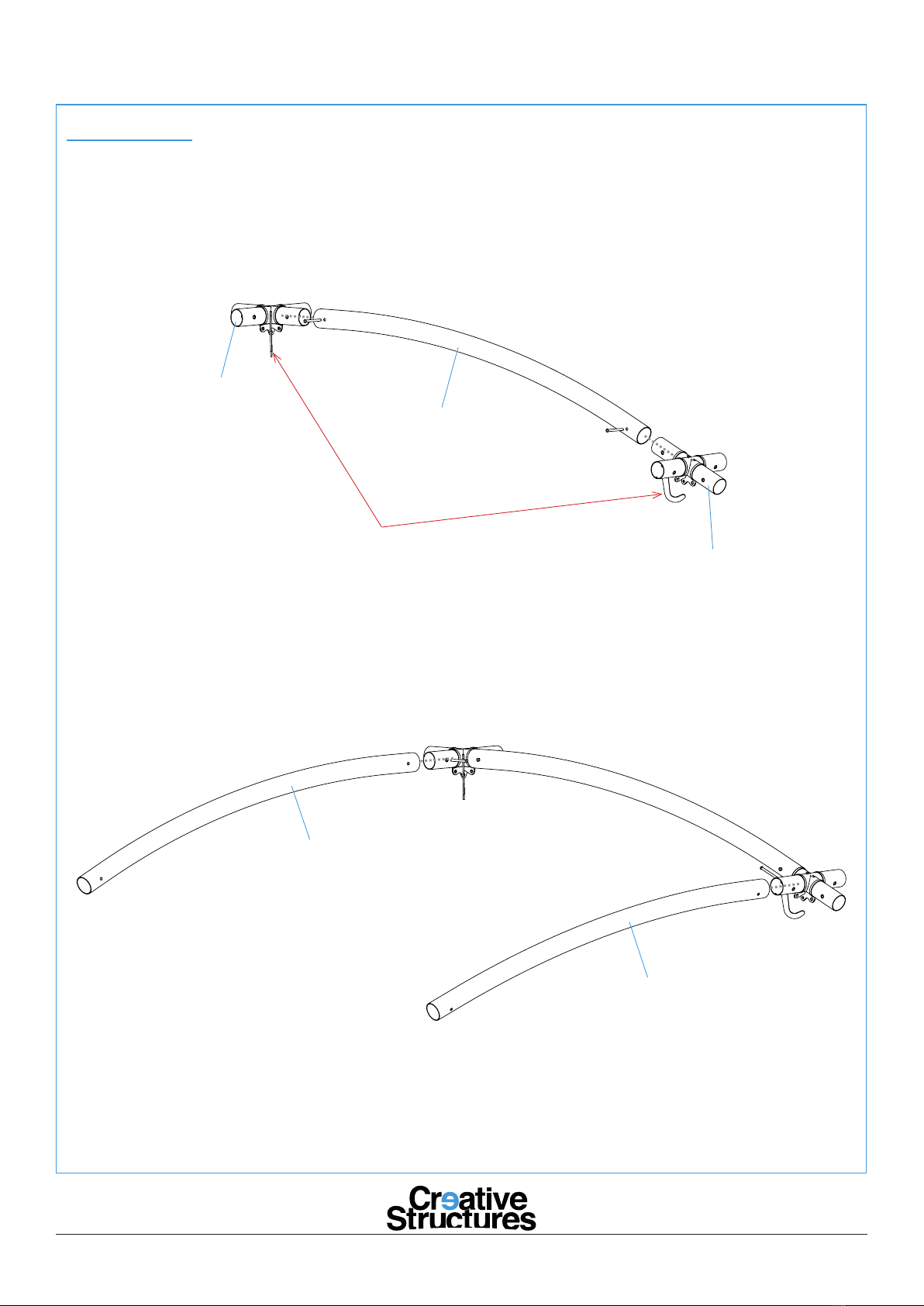

Assemble frame body
Step 4: Secure all parts with locking pins (long version)
and securing rings
!
Main prole
CS-0049
X-connector
CS-0050
X-connector
CS-0050
Hooks have to point inwards
!
Main prole
CS-0049
Main prole
CS-0049
Building instructions Crossover L
Page 5
www.creativestructures.nl
Secure all parts with locking pins (long version)
and securing rings
!
Main prole
CS-0049
X-connector
CS-0050
X-connector
CS-0050
Building instructions Crossover L
Page 6
www.creativestructures.nl

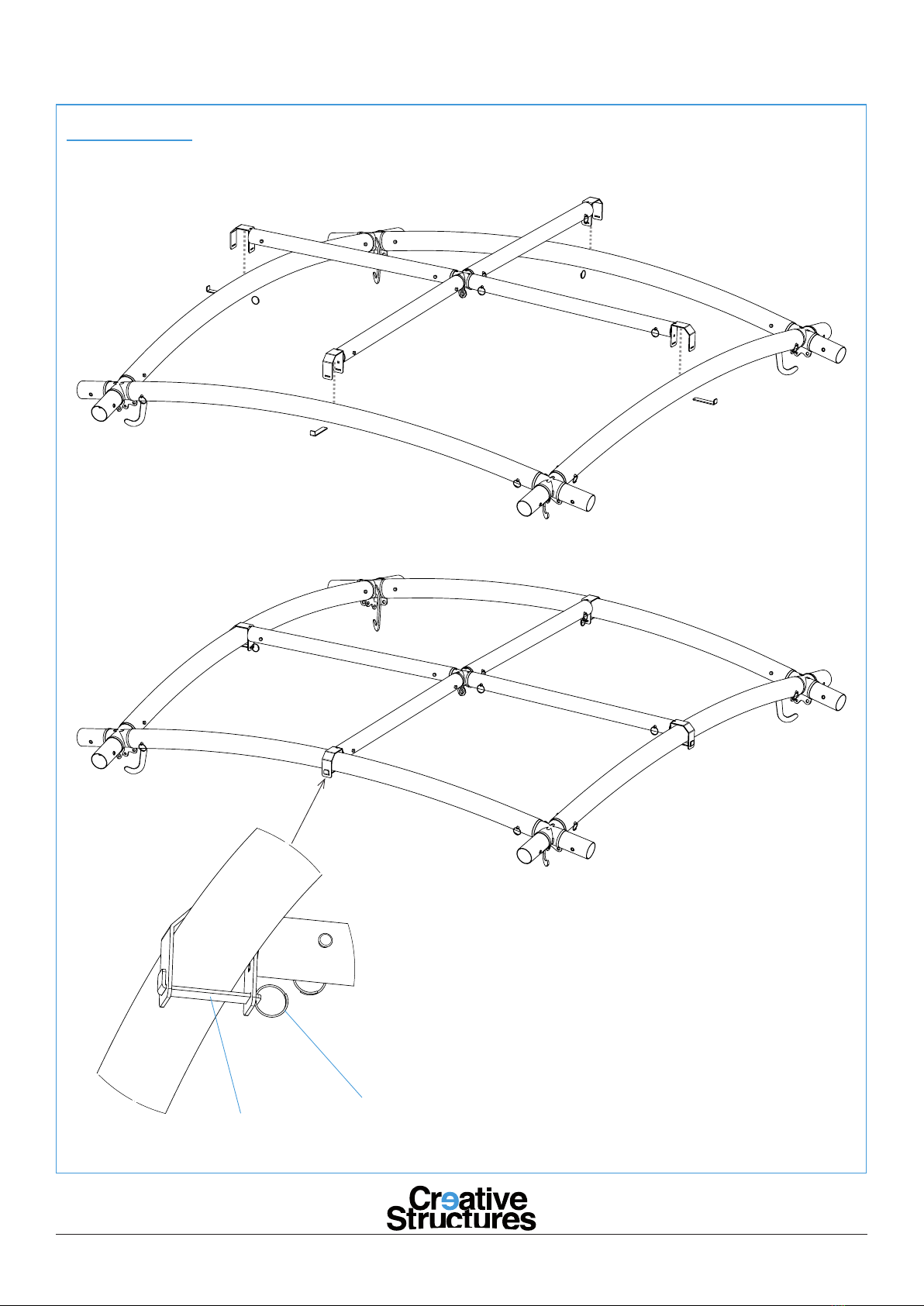

Mount sub frame at frame body
Step 5:
Locking strip
CS-0337
4x
Securing ring
CS-0248
4x
Building instructions Crossover L
Page 7
www.creativestructures.nl
While building, the structure has to be lifted multiple times so that the assembly can easily be done on oor level.
The structure is designed for two lifting methods:
1. Lifting from below (for example with a traverse lift) by using the subframe. Requirements lifting device:
• minimum lifting height: 6 meter
• minimum save working load: 300kg
2. Lifting from above (for example with a crane) by using lifting slings (2 meter, 1000 KG) and the hooks of the
X-connectors
Lifting:
Note: this lifting methode requires more
height for building
!
Building instructions Crossover L
Page 8
www.creativestructures.nl
Mount the rst end of the main cables
Step 6:
Main cable
4x per X-connector
CS-0086
Building instructions Crossover L
Page 9
www.creativestructures.nl
Step 7:
Mount the rst level of main proles
Main prole
CS-0049
8x
Secure all parts with locking pins (long version)
and securing rings
!
