English

Congratulations!

Thank you for purchasing Creative’s multi-format player, Creative Zen™ Sleek Photo. Read

on to learn how to get started with your new player!

To get the most out of your player, also read the comprehensive User’s Guide on your

Installation and Applications CD.

1. Organic Light Emitting Diode

(OLED) display

2. Play/Pause button

3. Next/Fast Forward button

4. Options button

5. Vertical Touch Pad

6. Menu/Back button

7. Previous/Rewind button

CLE_Marlin 2_QS.book Page 1 Friday, September 9, 2005 11:43 AM

Using the Vertical Touch Pad

In this document, we will use the term "Select," to mean that you should move your thumb

up and down the Vertical Touch Pad to scroll through menu options, and then select the

option by firmly tapping the Vertical Touch Pad.

6 5

21 43

1. Headphone jack

2. Microphone

3. Lock switch

To lock the buttons on your player,

slide the switch to the right.

4. Power button

For more information, see “Turn On

Player” on page 6.

5. Reset hole

6. Dock connector

Move your thumb up and

down the Vertical Touch Pad

to scroll through menu items.

To rapidly scroll through menu items,

hold down the top or bottom portion of

the Vertical Touch Pad with your thumb.

To select a menu item,

firmly tap the Vertical

Touch Pad.

CLE_Marlin 2_QS.book Page 2 Friday, September 9, 2005 11:43 AM

Getting Started

1Charge Your Player

The high performance lithium-ion battery supplied with your player needs to be fully

charged before you use it. The battery is fully charged in approximately two hours. To

charge your player's battery, connect the power adapter to the USB synchronization cable

and wall outlet. Connect the USB synchronization cable to the Dock connector on your

player as shown in the diagram below.

Removing the USB synchronization cable

When removing the USB synchronization cable, press the

two buttons on the sides of the USB synchronization cable

connector to release the self-lock structure.

1. Power adapter cable

2. Dock connector

3. USB synchronization

cable

CLE_Marlin 2_QS.book Page 3 Friday, September 9, 2005 11:43 AM

22 Set Up The Software

1. Turn on your computer.

You must log in as an administrator in Windows®before you can set up the software.

For more information, refer to your operating system's online Help.

2. Insert the Installation and Applications CD into your CD-ROM/DVD-ROM drive.

Your CD should start automatically. If it does not, follow the steps below:

i. Double-click the My Computer icon.

Alternatively, click Start → My Computer.

ii. Right-click the CD-ROM/DVD-ROM drive icon, and then click AutoPlay.

3. Follow the instructions on the screen to complete the installation. Select the Full

Installation option to automatically install Creative MediaSource™, Creative Media

Explorer and Creative Media Toolbox.

4. If prompted, restart your computer.

5. When your computer restarts, follow the product registration instructions on the

screen.

DO NOT connect your player to your computer before setting up the software.

You need an Internet connection to register your product.

CLE_Marlin 2_QS.book Page 4 Friday, September 9, 2005 11:43 AM

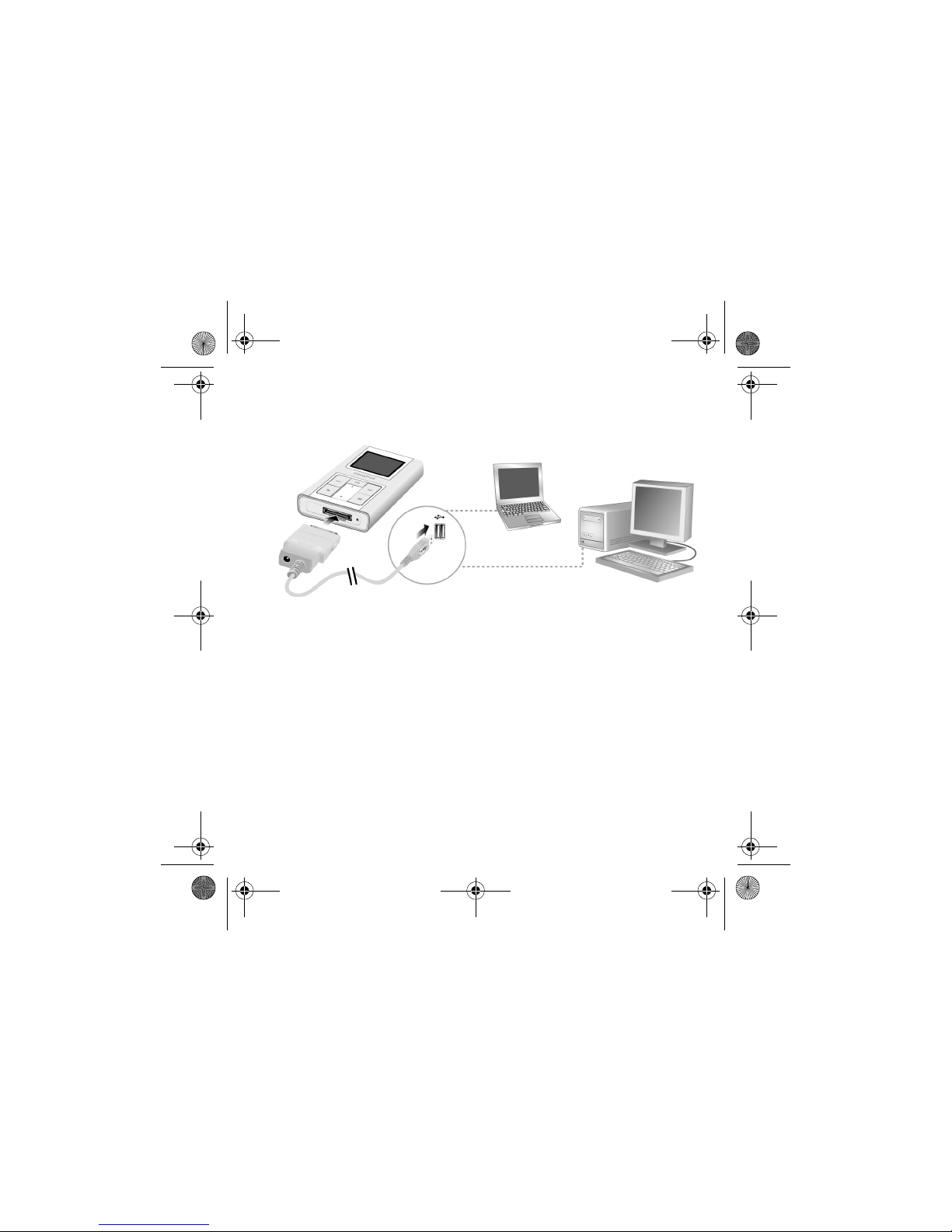

6. When prompted, connect your player to your computer’s USB port using the supplied

USB synchronization cable.

CLE_Marlin 2_QS.book Page 5 Friday, September 9, 2005 11:43 AM

3Tur n On Pl ayer

1. To turn on Zen Sleek Photo, press and hold the Power button until the OLED

lights up.

2. When you turn on your player for the first time, the menu will be in English. To change

the language:

i. Press and hold the Menu/Back button. The main menu appears.

ii. Select the System option.

iii. Select the Language option, and then select the language that you want.

For tips on using the Vertical Touch Pad, see “Using the Vertical Touch Pad” on page 2, or refer

to the User’s Guide on the Installation and Applications CD.

3. Congratulations! You can now use your player. Zen Sleek Photo is preloaded with

some music and photos to get you started immediately.

To start listening to music, connect the earphones and press the Play/Pause

button.

To start viewing photos in a slideshow, press the Menu/Back button, select

Photos and press the Play/Pause button.

To listen to your own music or view your own photos, proceed to the next step.

During playback, move your thumb up and down the Vertical Touch Pad to adjust the

volume.

CLE_Marlin 2_QS.book Page 6 Friday, September 9, 2005 11:43 AM

4Rip Music and Copy Files

Rip music from your CD collection to your player, or copy audio files (such as music you

have purchased online) from your computer. Before ripping or copying files, make sure your

player is connected to your computer as shown on page 5.

To rip music from your CD collection

1. Double-click the My Computer icon on your desktop.

Alternatively, click Start → My Computer.

2. Click the Creative Media Explorer icon.

3. Click the Rip Audio CDs button.

4. Follow the instructions on the screen.

If you are connected to the Internet, album information is automatically retrieved.

To copy audio files or photos from your computer

1. Double-click the My Computer icon on your desktop.

Alternatively, click Start → My Computer.

2. Click the Creative Media Explorer icon.

3. Click the Add Media button and follow the instructions on the screen.

Note that you can only transfer audio files or photos using the Add Media

button.

CLE_Marlin 2_QS.book Page 7 Friday, September 9, 2005 11:43 AM

To copy data files using Creative Media Explorer

1. Double-click the My Computer icon on your desktop.

Alternatively, click Start → My Computer.

2. Click the Creative Media Explorer icon.

3. Click the Browse Documents button.

4. Locate your data files and copy them to your player or computer using the

drag-and-drop method. You can also transfer audio files and photos using the Browse

Documents button.

5Disconnect Player

When you have finished transferring music, audio files or data files, disconnect Zen Sleek

Photo. DO NOT disconnect your player if you see the first picture below on the OLED.

Track or data file transfer is still in progress and disconnecting your player may damage the

content being transferred.

Wait until you see the second picture below before disconnecting your player.

Docked Docked
