Crestron CNXENET+ CNX Enhanced Ethernet Expansion Card

Contents

CNX Enhanced Ethernet Expansion Card: CNXENET+ 1

Description 1

Functional Description 1

Physical Description 1

Leading Specifications 2

Installation 3

Installation into CNMSX-AV/PRO 3

Installation onto CNRACKX Processor Card (CNXCPU) 5

Ethernet Wiring 8

Programming with SIMPL Windows 9

Configure CNXENET+ Program 9

TCP/IP Server and TCP/IP Client Symbols 10

Control System Ethernet Setup 11

Initial IP Setup 12

IP Table Setup 14

Communicating With the Control System via Ethernet 16

Setting a Control System Password via Ethernet 17

Troubleshooting Communications via Ethernet 18

Web Pages 19

Transferring Web Pages to the CNXENET+ 19

Using a Browser to View or Access Web Pages 21

Problem Solving 23

Troubleshooting 23

Further Inquiries 24

Future Updates 24

Return and Warranty Policies 25

Merchandise Returns / Repair Service 25

CRESTRON Limited Warranty 25

Glossary of Terms 26

Operations & Installation Guide – DOC. 8153A Contents •i

Crestron CNXENET+ CNX Enhanced Ethernet Expansion Card

CNX Enhanced Ethernet

Expansion Card: CNXENET+

Description

Functional Description

The CNX Enhanced Ethernet Expansion Card, CNXENET+, is an optional feature

designed specifically for Crestron’s CNMSX and CNRACKX control systems. This

field-upgradable expansion card connects directly to Crestron’s exclusive Direct

Processor Access (DPA) slot providing high-speed access directly to the system

processor. The CNXENET+ provides communication via Ethernet/local area

network (LAN) and wide area network (WAN) to any Crestron Internet protocol (IP)

control device. This allows remote diagnostics and upgrades, access to Crestron’s

network analyzer, and the ability to activate any device connected to the system.

As part of Crestron e-Control™, the CNXENET+ allows Internet connections to the

control system. The CNXENET+ contains a 2Mbyte file system that can be used as a

web server. Browser pages generated in VisionTools™ Pro-e (VT Pro-e) are stored

onboard and up to five users can simultaneously connect directly to the control

system. Systems can be accessed through the World Wide Web using industry

browsers such as Microsoft® Internet Explorer™ or Netscape® Navigator. For a

Crestron e-Control demonstration, go to www.crestron-econtrol.com.

Further information and additional Crestron e-Control software can be obtained from

the What’s New page (e-Control section) or Downloads page (ECONTROL Library)

of Crestron’s website (www.crestron.com). New users are required to register in

order to obtain access to the FTP site.

Physical Description

The CNXENET+, shown on the next page, is an expansion card that occupies the

DPA slot and connects directly to the control system’s processor. There are two

connectors located on the CNXENET+. An 8-wire RJ45 port for LAN connection is

available externally through the control system rear-panel or the CNX Control

Processor Card (CNXCPU) faceplate of the CNRACKX. Internally, one 26-pin

connector mates with the control system processor board or the CNXCPU board.

Two mounting brackets keep the card in place.

Operations & Installation Guide – DOC. 8153A CNX Enhanced Ethernet Expansion Card: CNXENET+ •1

CNX Enhanced Ethernet Expansion Card Crestron CNXENET+

CNXENET+ Physical Views

MOUNTING

BRACKET

Front View

26-PIN DPA

CONNECTOR

Side View Top View

LAN/DPA

PORT

2.95 in

(7.49 cm)

4.55 in

(11.56 cm)

1.13 in

(2.87 cm)

Leading Specifications

The table below provides a summary of leading specifications for the CNXENET+.

Dimensions and weight are rounded to the nearest hundredth unit.

Leading Specifications of the CNXENET+

SPECIFICATION DETAILS

Power Requirements 4 Watts (0.167 amps @ 24 VDC)

Network Type 10BaseT

Protocols TCP/IP, UDP/IP, ICMP (Ping), & HTTP

SIMPL™ Windows® Version 1.50.06 or later 1

CNMSX-AV/Pro Update File Version 51165X.UPZ or later 2

CNRACKX/-DP Update File Version 51165W.UPZ or later 2

Internet Explorer Version 4.0 or later

Netscape Navigator Version 4.5 or later

Dimensions & Weight Height: 1.13 in (2.86 cm)

Width: 2.95 in (7.49 cm)

Depth: 4.55 in (11.56 cm)

Weight: 2.10 oz (0.06 kg)

1 The latest software versions can be obtained from the What’s New page (SIMPL

Windows and VisionTools Pro-e sections) or Downloads page (SIMPLWIN and

TOUCHPNL Libraries) of Crestron’s website (www.crestron.com). New users are

required to register in order to obtain access to the FTP site.

2 Filenames for update files have a UPZ extension and can be obtained from the What’s

New page (Control Systems Update Files section) or Downloads page (OPSYS Library)

of Crestron’s website.

As of the date of manufacture, this unit has been tested and found to comply with

specifications for CE marking.

NOTE: This device complies with part 15 of the FCC rules. Operation is subject to

the following two conditions: (1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may

cause undesired operation.

2 •CNX Enhanced Ethernet Expansion Card: CNXENET+ Operations & Installation Guide – DOC. 8153A

Crestron CNXENET+ CNX Enhanced Ethernet Expansion Card

Installation

Installation into CNMSX-AV/PRO

Items 1 through 9 listed below for the installation of the CNXENET+ are either

attached to the card or already reside on the control system. The tools required are a

grounding strap, a #1 Phillips tip screwdriver, and a #2 Phillips tip screwdriver.

Follow the assembly procedure after this paragraph.

Referenced Items for CNMSX Installation

ITEM DESCRIPTION PART NUMBER QUANTITY

1Screw, 6-32 x 1/4"L, steel,

flat, phillips, undercut, black

SR06-32-0R2500-8 4

2Screw, 6-32 x 3/8"L, steel,

flat, phillips, undercut, black

SR06-32-0R3750-9 12

3 Control System Top Cover MTCV02376-1 1

4Screw, 6-32 x 1/4"L, zinc,

pan, phillips, black

SR06-32-0R2500-2 6

5 I/O Printed Circuit Board PA05632-1 1

6Screw, 4-40 x 3/8"L, steel,

pan, phillips, black

SR04-40-0R3750-3 2

7Washer, lock, steel, internal

tooth, #4, zinc

WA04LO-1 2

8 Plate, blank, metal, LAN/DPA MTPL02390-1 1

9 CNXENET+ ZA11281 1

CAUTION: The CNXENET+ and the control system contain electro-static

discharge (ESD) sensitive devices. Perform the following procedure while wearing a

grounding strap that is properly grounded or on a grounded work station to avoid

damaging the card and/or the control system.

CAUTION: Refer to the latest revision of the CNMSX Operations Guide (Doc.

8118) for proper turn-off and, if applicable, removal procedures. The latest software

version can be obtained from the Products page (PRODUCT MANUALS, Hardware

section) or Downloads page (MANUAL Library) of Crestron’s website

(www.crestron.com). New users are required to register in order to obtain access to

the FTP site.

NOTE: The unit shown in this procedure is a CNMSX-AV. The procedure is

identical for the CNMSX-PRO.

NOTE: It is assumed that the control system rack ear brackets are not attached

during this installation procedure.

1. As shown on the next page, place the control system right-side-up on a

flat surface and using a #2 Phillips tip screwdriver, remove four screws

from the top of the unit.

Operations & Installation Guide – DOC. 8153A CNX Enhanced Ethernet Expansion Card: CNXENET+ •3

CNX Enhanced Ethernet Expansion Card Crestron CNXENET+

CNMSX Installation (1 of 3)

REAR PANEL

(REFERENCE ONLY)

2. Remove six screws from each side of the control system.

3. Lift and remove control system top cover .

4. As shown below, remove six screws that secure I/O printed circuit

board to the control system.

CNMSX Installation (2 of 3)

REAR PANEL

(REFERENCE ONLY)

5. Slide the I/O printed circuit board toward the front panel of the

control system so that the rear connectors are clear of the rear panel

slots and reposition the I/O printed circuit board to gain access to the

LAN/DPA cover plate .

6. Using a #1 Phillips tip screwdriver, remove two screws and two

lock washers that secure the LAN/DPA cover plate to the control

system rear panel.

7. From inside the control system, remove the LAN/DPA cover plate .

8. For older model control systems, carefully push the computer interface

ribbon cable aside to make room for the CNXENET+. For newer

systems, make sure that cable does not interfere with CNXENET+

placement.

4 •CNX Enhanced Ethernet Expansion Card: CNXENET+ Operations & Installation Guide – DOC. 8153A

Crestron CNXENET+ CNX Enhanced Ethernet Expansion Card

9. As shown below, align the pins on the 26-pin DPA connector of the

CNXENET+ with the ETHERNET connector on control system

processor board.

CNMSX Installation (3 of 3)

26-PIN DPA

CONNECTOR

MOUNTING

BRACKETS

REAR PANEL

(REFERENCE ONLY)

NOTE: The DPA pins are more easily inserted by gently “rocking” the

CNXENET+ side-to-side while pressing onto DPA connector.

10. DO NOT force pins into connector and press CNXENET+ until pins

are fully seated. Make sure that the mounting brackets on CNXENET+

align with mounting holes of the control system. Make sure that the

LAN/DPA connector aligns with cut out.

11. From the control system rear panel, reinstall the two screws and

lock washers to secure CNXENET+ . Tighten the screws to

finger-tight then, using a #1 Phillips tip screwdriver, tighten the screws

an additional 1/8-turn.

12. Reposition the I/O printed circuit board connectors into the rear

panel slots and reinstall six screws to secure I/O printed circuit

board . Tighten the screws to finger-tight then, using a #2 Phillips

tip screwdriver tighten the screws an additional 1/8-turn.

13. Reinstall the control system top cover with six screws on each

side and four screws on top. Tighten the screws to finger-tight then,

tighten the screws an additional 1/8-turn.

Installation onto CNRACKX Processor Card

(CNXCPU)

The CNRACKX contains the CNXCPU Processor Card (the CNRACKX-DP

contains two CNXCPU’s) that features Crestron’s exclusive DPA (Direct Processor

Access) slot for Ethernet/LAN expansion of the control system. The CNXCPU

contains card mounting points, a LAN/DPA port opening, and a 26-pin female DPA

connector. The CNXENET+ is mounted to the faceplate of the CNXCPU and a

Operations & Installation Guide – DOC. 8153A CNX Enhanced Ethernet Expansion Card: CNXENET+ •5

CNX Enhanced Ethernet Expansion Card Crestron CNXENET+

26-pin male connector attaches to the DPA connector. Items 1 through 3 listed below

for installation onto the CNXCPU. The only tools required are a grounding strap and

a #1 Phillips tip screwdriver.

Referenced Items for CNXCPU Installation

ITEM DESCRIPTION PART NUMBER QUANTITY

1Screw, 4-40 x 1/4"L, steel,

pan, phillips, black

SR04-40-0R2500-11 2

2 Plate, blank, metal, LAN/DPA MTPL02390-1 1

3 CNXENET+ ZA11281 1

CAUTION: The CNXENET+ and the CNXCPU contain ESD sensitive devices.

Perform the following procedure while wearing a grounding strap that is properly

grounded or on a grounded work station to avoid damaging the card and/or the

CNXCPU.

1. Disconnect power from the control system.

2. At the CNXCPU, note the position of any attached cables and

disconnect each cable.

3. Loosen the CNXCPU thumb screws and pull outward to remove card.

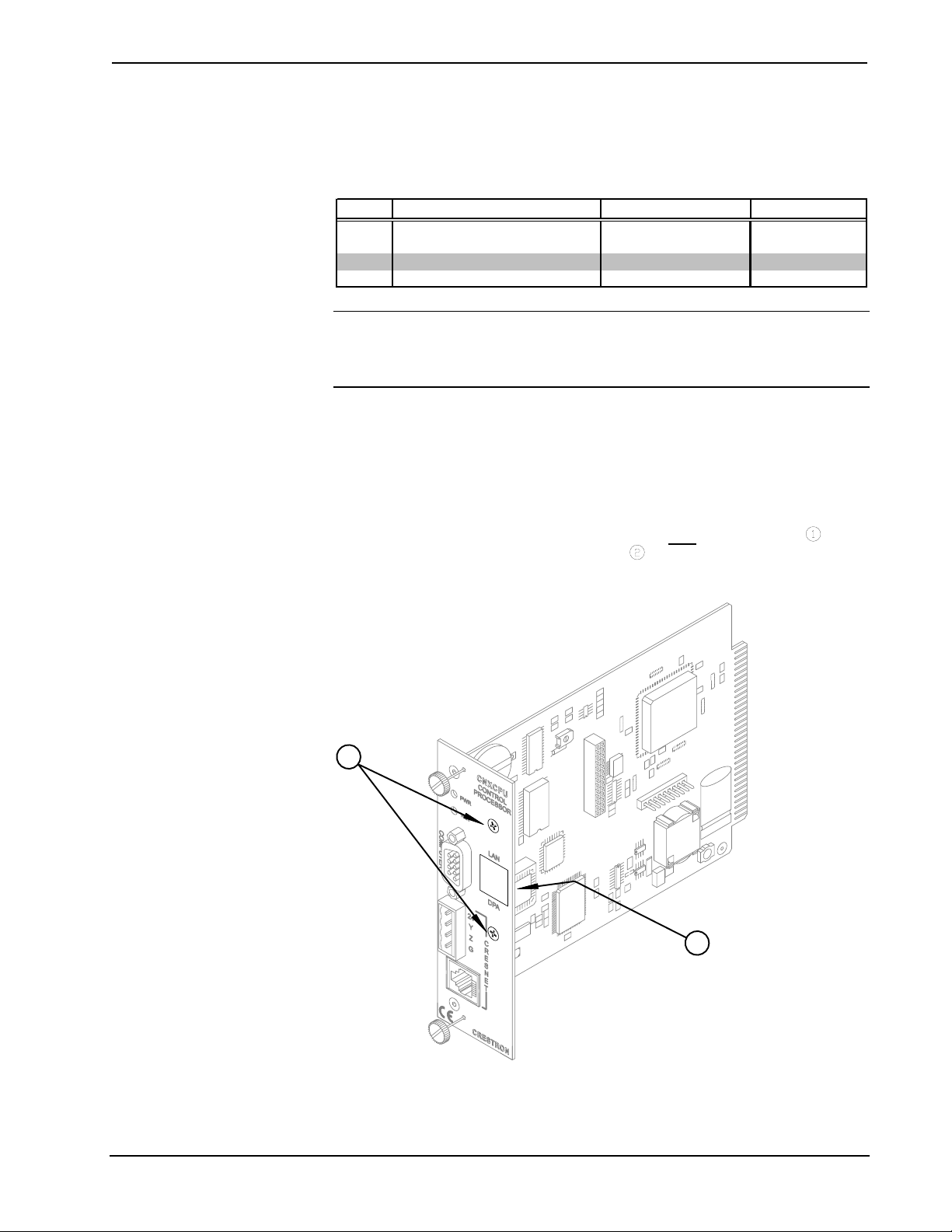

4. Refer to the diagram below. From the CNXCPU faceplate, use a #1

Phillips tip screwdriver and remove the two mounting screws that

secure the LAN/DPA cover plate and remove the plate.

CNXCPU Installation (1 of 3) – Remove Screws and Cover Plate

6 •CNX Enhanced Ethernet Expansion Card: CNXENET+ Operations & Installation Guide – DOC. 8153A

Altri manuali per CNXENET+

Indice

Altri manuali Crestron Hardware per computer

Crestron

Crestron CNX-PAD8A Manuale utente

Crestron

Crestron CNXCPU Come usare

Crestron

Crestron CNXCOM-2 Manuale utente

Crestron

Crestron 3 Series Manuale utente

Crestron

Crestron C2N-IO Manuale utente

Crestron

Crestron CNXIR-8 Manuale utente

Crestron

Crestron CNXRY-16 Manuale utente

Crestron

Crestron C2ENET-1 Come usare

Crestron

Crestron CP4-R Manuale utente

Crestron

Crestron CNX-PAD8 Manuale utente

Crestron

Crestron 4 Series Manuale utente

Crestron

Crestron C2IR-8 Come usare

Crestron

Crestron UPX-2 Manuale utente

Crestron

Crestron TPS-GA-TPI Manuale utente

Crestron

Crestron CNXAO-8 Manuale utente

Crestron

Crestron UPX-2 Manuale utente

Crestron

Crestron UPX-OS4GB-MSO-2007 Manuale utente

Crestron

Crestron DigitalMedia DMC-CPU3 Manuale utente

Crestron

Crestron CNXIO-16 Manuale utente

Crestron

Crestron Four-Way Coupler SRD-CPL-4 Manuale utente

Crestron

Crestron CP2 Manuale utente

Crestron

Crestron DVPHD Manuale utente

Crestron

Crestron DSP-860 Disegno dimensionale

Crestron

Crestron PC4-R Manuale utente

Manuali Hardware per computer popolari di altre marche

EMC2

EMC2 VNX Series Manuale del proprietario

Panasonic

Panasonic DV0PM20105 Manuale utente

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuale utente

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuale utente

Raidon

Raidon iT2300 Manuale utente

National Instruments

National Instruments PXI-8186 Manuale utente

Hauppauge

Hauppauge WinTV-HVR-2250 Manuale utente

Kontron

Kontron CP6002 Manuale utente

Manhattan

Manhattan 702843 Manuale utente

Aphex

Aphex 230 Manuale utente

AMD

AMD Phenom II Manuale operativo

Intel

Intel NUC 12 Pro Manuale utente

dbx

dbx Zone Pro 1260 Manuale utente

Galaxy

Galaxy GHDX2-2430S-24F4D Manuale utente

Intel

Intel AXXRMFBU4 Manuale utente

Kontron

Kontron DIMM-PC/MD Manuale utente

ST X-NUCLEO-SAFEA1B Istruzioni operative

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuale utente
