Crestron Flex UC-MM30-Z Manuale utente

The UC-MM30-Z(-I) Crestron Flex tabletop conferencing system

provides a small room video conference solution for use with Zoom

Rooms® software. It supports up to three video displays and features a

Crestron Flex tabletop conference device, a UC bracket assembly, and a

collaboration camera.

Minimum Requirements:

lA video display (not included) connected to the UC Engine. A second

or third display is optional.

lA Zoom Rooms account or activation code (not included)

In the Box

Tabletop Conference Device

1 Flex MM Tabletop Conference Device, Zoom Rooms

software (6511615 or 6511616)

1 PoE+ Injector (2055605)

2 Cable, CAT5e, RJ-45 - RJ-45, 11.8 ft (3.6 m) (2056204)

1 Cable, USB 2.0, A - Micro B, 5.8 ft (1.8 m) (2055579)

UC Bracket Assembly

1 UC Bracket Assembly with UC Engine and HDMI® content

ingest (UC-BRKT-200-S-Z-ASSY, 6512690)

2 Anchor, Drywall, Plastic, 3/8 in. x 1/2 in. (9.5mm x

12.7mm) (2052565)

1 Key, Anchor (4529654)

1 Power cord (2053985)

2 Screw, 8-AB x 1-1/2 in. (38.1 mm), Pan Head, Combo

(2052567)

4 Tie Wrap (2047935)

Additional Items

1 Collaboration camera (6510482)

1 Camera wall mount kit (6510998)

1 Cable, CAT5e, RJ-45 - RJ-45, 7 ft (2.1 m) (6509924)

1 Cable, DisplayPort™ to HDMI, 6 ft (1.8 m) (6508282)

1 Cable, HDMI, 20 ft (6.1 m) (6503567)

1 Cable, HDMI, 6 ft (1.8 m) (6503565)

1 Cable, USB 3.0, Right angle USB-C® to A, 6 ft (1.8 m)

(6511591)

1 Cable, USB Extension, USB Type A Male-to-Female, 15 ft

(4.6m) (6508260)

UC-MM30-Z(-I) QuickStart

Crestron Flex Tabletop Small Room Video Conference System for Zoom Rooms® Software

Mount Devices

Mount the UC Bracket Assembly

Mount the UC Bracket Assembly to VESA® compliant display devices, a

wall, or other building structure. Anchors and screws are supplied for

installation on walls 3/8 in. (9.5mm) to 3/4 in. (19mm) thickness.

CAUTION: Preinstalled screws may protrude from the back of the

UC Bracket Assembly. Exercise caution when handling the UC

Bracket Assembly to avoid scratching or damaging surfaces.

NOTE: The integrated cable tie wraps are reusable. Avoid damaging

the cable tie wraps.

Mount the Camera

Mount the included camera according to the UC-CAM-WMK Quick Start

(Doc. 8257).

UC-MM30-Z(-I) QuickStart

Crestron Flex Tabletop Small Room Video Conference System for Zoom Rooms® Software

Connect

Identify the UC Bracket Assembly

The UC Bracket Assembly is available in two models. Identify the model included with your Crestron Flex system. Tap or click the corresponding

image below to navigate to the appropriate connection instructions.

UC Bracket Assembly with HD-CONV-USB-200 UC Bracket Assembly with HD-CONV-USB-300

UC-MM30-Z(-I) QuickStart

Crestron Flex Tabletop Small Room Video Conference System for Zoom Rooms® Software

System Overview

For UC Bracket Assembly with HD-CONV-USB-200

When connections are complete, the system appears as shown below. Refer to Make Connections for detailed connection instructions.

UC-MM30-Z(-I) QuickStart

Crestron Flex Tabletop Small Room Video Conference System for Zoom Rooms® Software

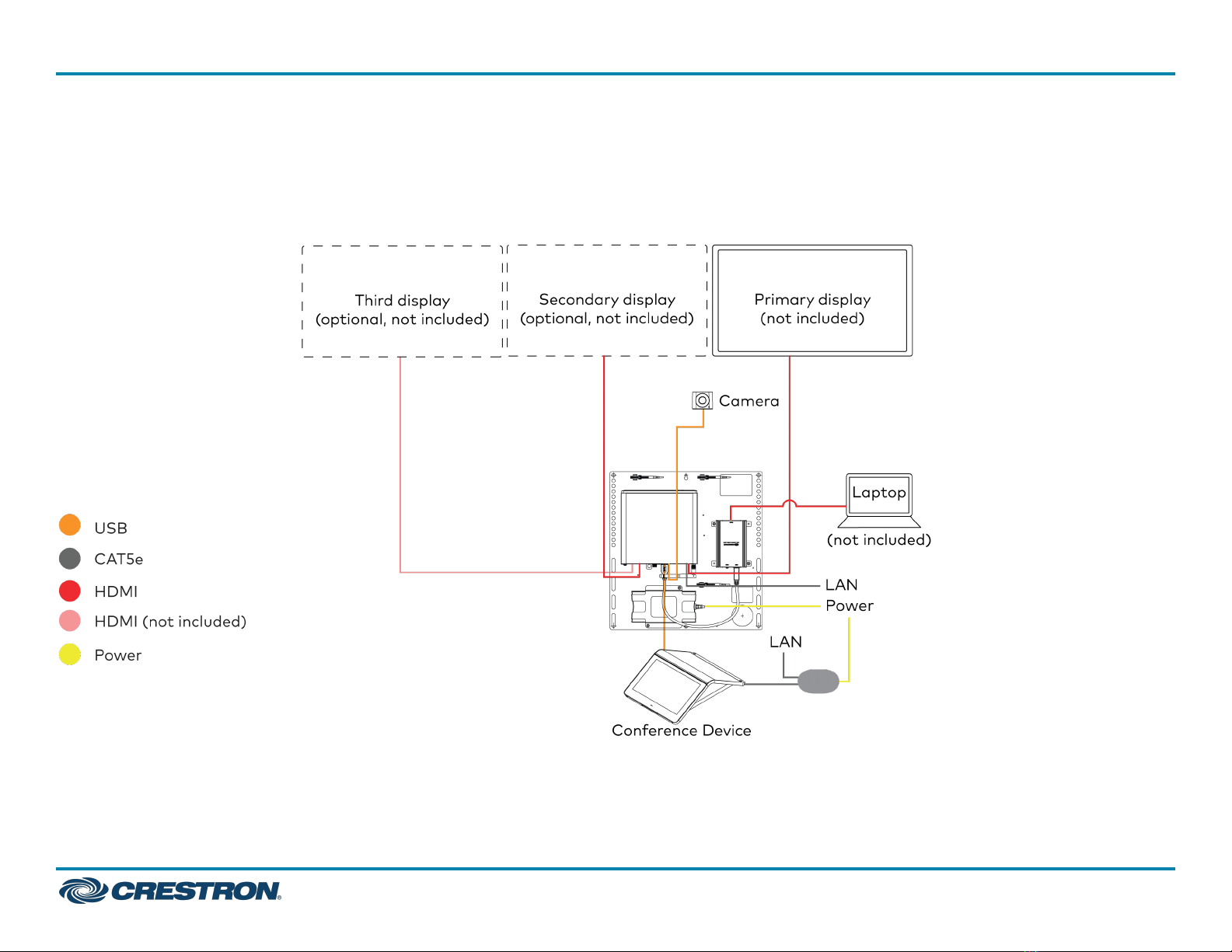

For UC Bracket Assembly with HD-CONV-USB-300

When connections are complete, the system appears as shown below. Refer to Make Connections for detailed connection instructions.

UC-MM30-Z(-I) QuickStart

Crestron Flex Tabletop Small Room Video Conference System for Zoom Rooms® Software

Make Connections

NOTE: For reference, the UC Bracket Assembly is shown with the HD-CONV-USB-200 in the following connection diagrams. Unless otherwise

indicated in this guide, the connections remain the same for the UC Bracket Assembly with HD-CONV-USB-200 and HD-CONV-USB-300.

1. Make UC Engine connections as shown in the following illustration.

UC-MM30-Z(-I) QuickStart

Crestron Flex Tabletop Small Room Video Conference System for Zoom Rooms® Software

2. Connect displays to the UC Engine.

UC-MM30-Z(-I) QuickStart

Crestron Flex Tabletop Small Room Video Conference System for Zoom Rooms® Software

3. Connect the camera to the UC Engine as shown in the image below. Do not connect the camera to any of the other USB ports.

UC-MM30-Z(-I) QuickStart

Crestron Flex Tabletop Small Room Video Conference System for Zoom Rooms® Software

4. Connect a laptop to the HD-CONV-USB-200 or HD-CONV-USB-300.

5. Bundle the cables to the bracket assembly with the integrated cable tie wraps. The cable tie wraps are reusable.

UC-MM30-Z(-I) QuickStart

Crestron Flex Tabletop Small Room Video Conference System for Zoom Rooms® Software

Configure

Apply Power

Press the power button on the bottom of the UC Engine and apply

power to all of the other devices in the system. The connected display

device will show a pairing code. The conference device will show a

prompt to enter a pairing code.

Use the conference device to sign in to the Zoom Rooms service using an

activation code or a Zoom Room Sign-In.

1. Tap Zoom and then tap OK. The device will reboot.

2. Enter the pairing code shown on the display to pair the device with

the UC Engine. The Zoom Rooms controller app is displayed.

3. Log in to the Zoom Rooms service with an activation code or Zoom

Rooms Credentials (email and password).

lActivation Code:

a. Tap Enter Activation Code.

b. Enter the 16-digit activation code provided by the

administrator to activate the Zoom Room that is assigned to

the activation code. The Zoom Rooms Conference Room screen

is shown on the display.

lSign In:

a. Tap Sign In.

b. Enter the Zoom Room credentials and tap Sign In.

c. Select the conference room name from the list and tapNext.

The Zoom Rooms Conference Room screen is shown on the

display.

4. Tap Settings. If a password is required, enter the password (the

default password is "1234"). The Settings screen is displayed.

5. Tap Microphone and select the conference device as the source.

6. Tap Speaker and select the conference device as the source.

7. Tap Meet Now to exit.

Configure the System

Connect a USB keyboard and mouse (sold separately) to a USB port on

the UC Engine to configure system features. For detailed information on

using Zoom Rooms, refer to the Zoom Rooms Help Center.

Factory Reset

A factory reset may be performed when troubleshooting the conference

device.

To perform a factory reset on the conference device:

1. Power cycle the device by disconnecting and reconnecting the CAT5e

cable from the conference device.

2. When the device powers on and the LEDs flash green, tap the button

below the Crestron® logo 10 times. A factory reset confirmation

screen appears.

UC-MM30-Z(-I) QuickStart

Crestron Flex Tabletop Small Room Video Conference System for Zoom Rooms® Software
