Crestron UC-B160-Z Manuale utente

The Crestron Flex Wall Mount UC Video Conference System for Zoom

Rooms™ software (UC-B160-Z) delivers a powerful, professional solution

for knowledge workers who want the Zoom Rooms software experience

in small to midsize meeting and conference rooms.

MinimumRequirements

lA video display, connected to the UC-ENGINE-Z.The system supports

a second display if desired.

lA Zoom Rooms account or activation code

View the Crestron Flex Pre-Deployment Checklist to help plan your

Crestron Flex installation.

In the Box

UC Engine Bracket Assembly

1 UC-BRKT-100-Z-ASSY (6511049)

1 Power cord

Mounting Hardware

UC Video Conference Smart Soundbar

1 UC-SB1-CAM-FLEX (6511046)

1 Power Cord

1 USBCable

Mounting Hardware

Touch Screen, 10.1 in., Black

1 TSW-1060-B-S (6507651)

1 Security Latch (4525305)

Mounting Hardware

Tabletop Kit for Touch Screen, Black

1 TSW-1060-TTK-B-S (6507729)

1 Template

Mounting Hardware

Accessories

1 PWE-4803RU, PoEInjector (6502429)

2 CBL-CAT5E-7, CAT5e cable, RJ-45-to-RJ-45, Black,

7 ft (2.1 m) (6509924)

1 CBL-HD-THIN-HS-6, Thin HDMI® cable,

6 ft (1.8 m) (6510946)

1 CBL-HD-20, HDMI cable, 20 ft (6.1 m) (6503567)

1 CBL-USBC-HD-9, USB 3.0 to HDMI Converter cable,

9 ft (2.7 m) (6510718)

1 DM-CBL-ULTRA-PC-20, DigitalMedia™ Ultra Patch cable,

20 ft (6.1 m) (6507640)

UC-B160-Z QuickStart

Crestron Flex Wall Mount UC Video Conference System for Zoom Rooms™ Software

Overview

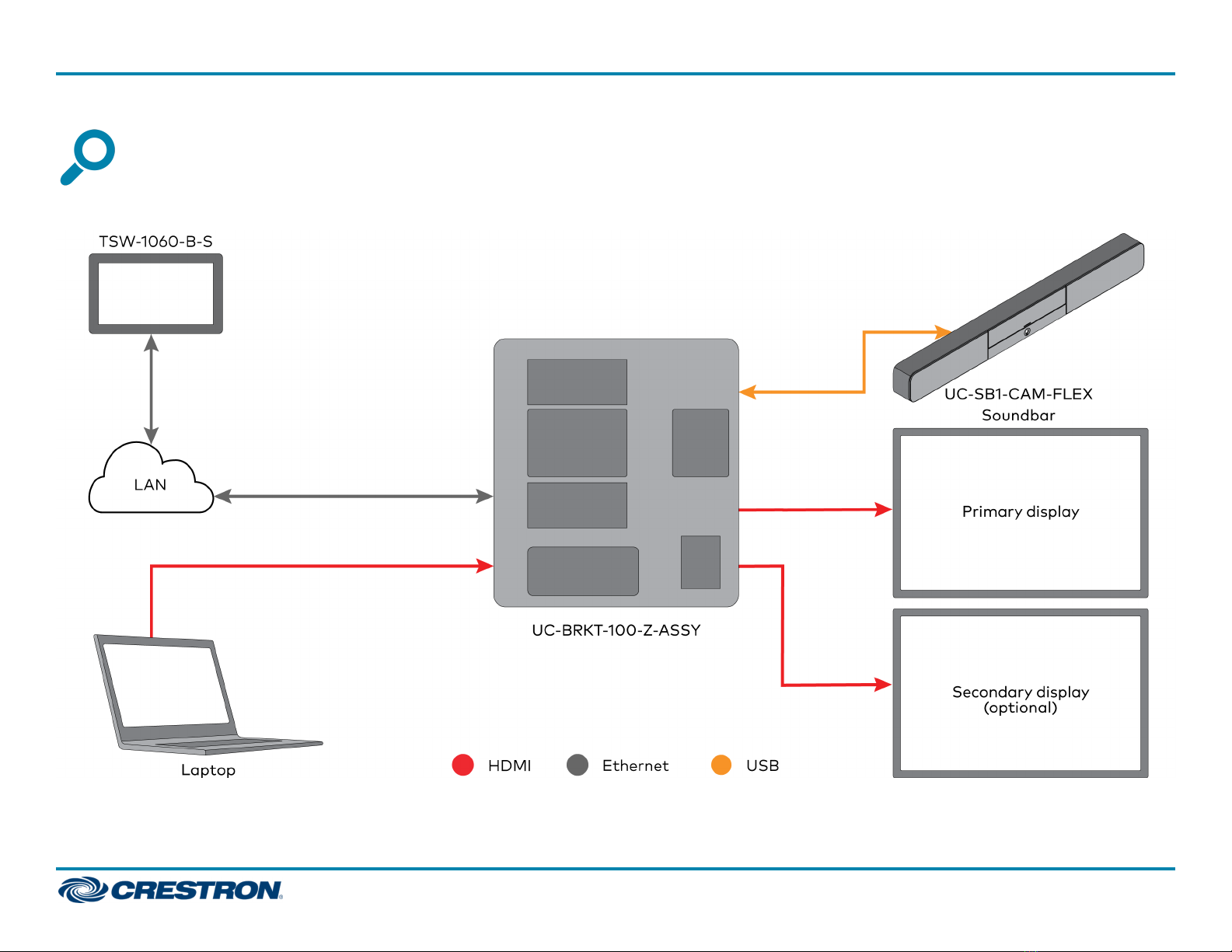

The following diagram illustrates standard system connections. The room display(s) and laptop are not included with this solution.

UC-B160-Z QuickStart

Crestron Flex Wall Mount UC Video Conference System for Zoom Rooms™ Software

Connect

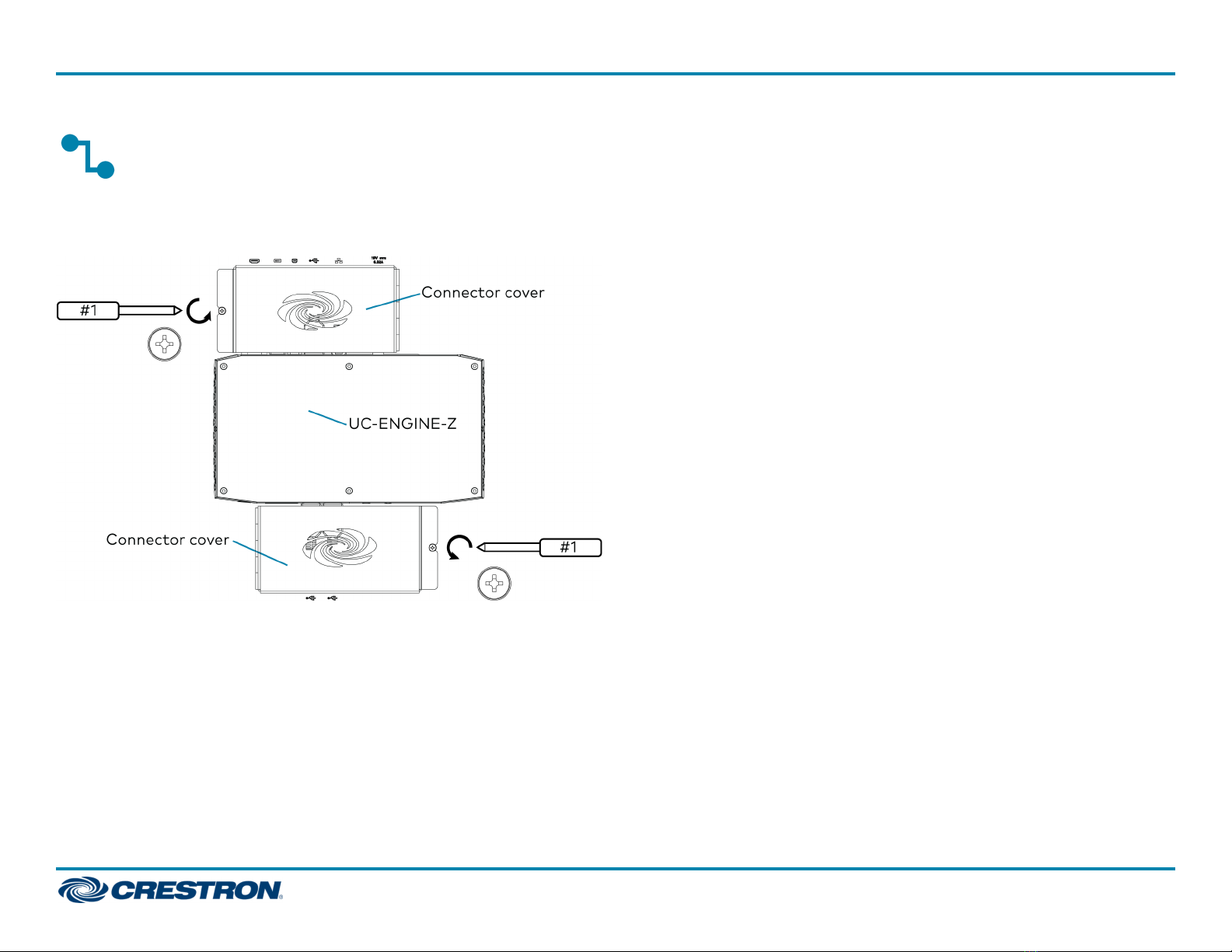

1. Remove the connector covers prior to making UC-ENGINE-Z

connections on the UC-BRKT-100-Z-ASSY bracket assembly.

UC-B160-Z QuickStart

Crestron Flex Wall Mount UC Video Conference System for Zoom Rooms™ Software

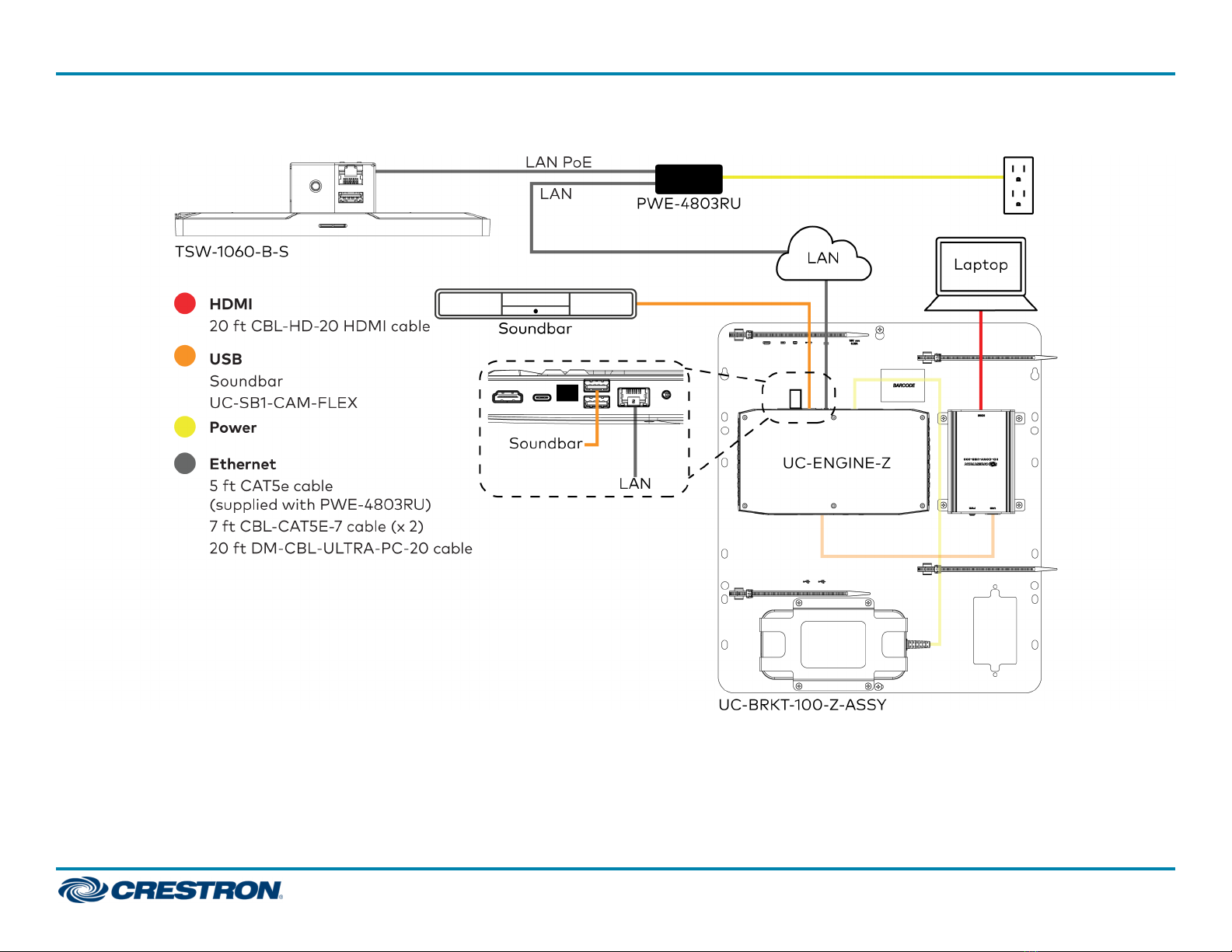

2. Make connections to the TSW-1060-B-S touch screen and UC-BRKT-100-Z-ASSY bracket assembly as shown in the following illustration.

UC-B160-Z QuickStart

Crestron Flex Wall Mount UC Video Conference System for Zoom Rooms™ Software

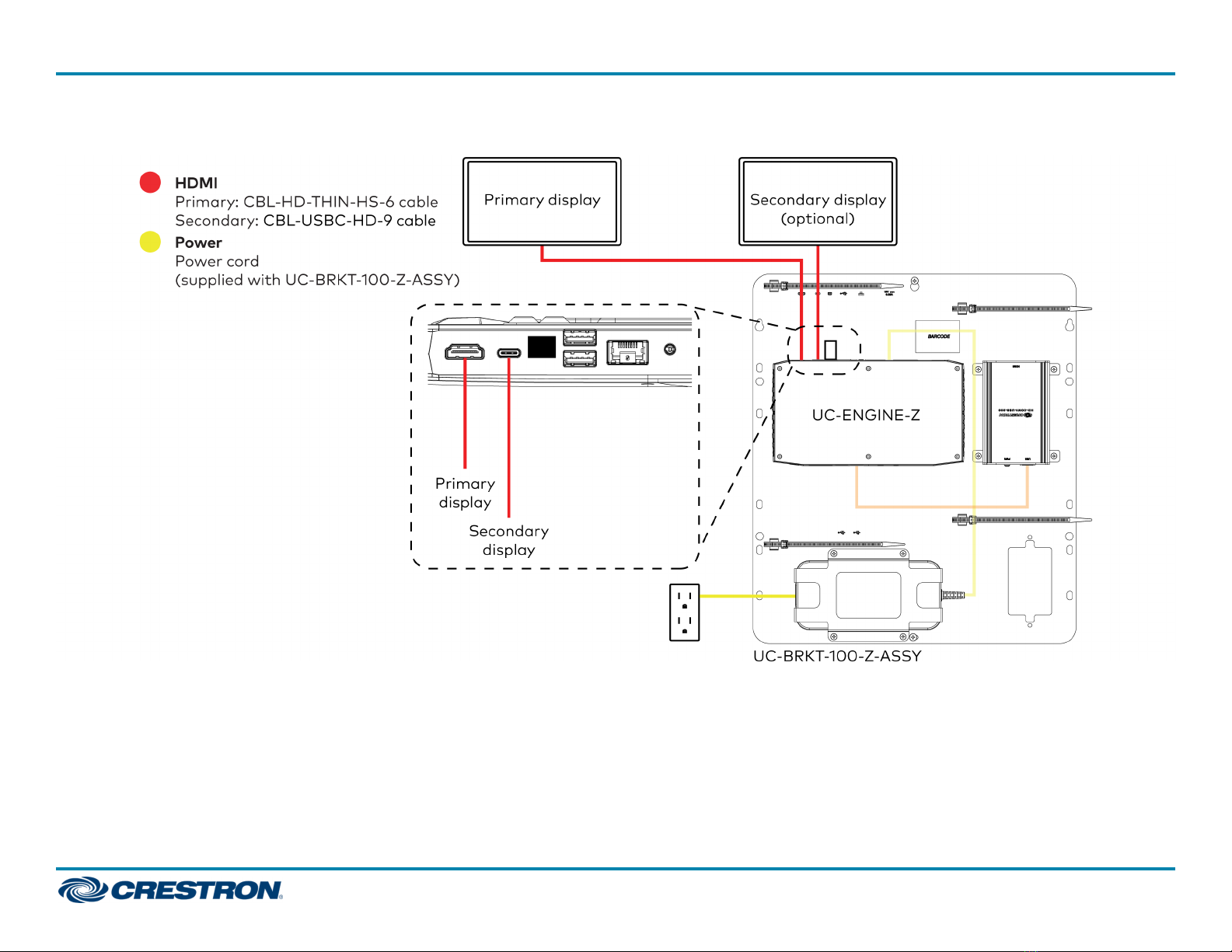

3. Connect the display devices to the UC-ENGINE-Z as shown below.

UC-B160-Z QuickStart

Crestron Flex Wall Mount UC Video Conference System for Zoom Rooms™ Software

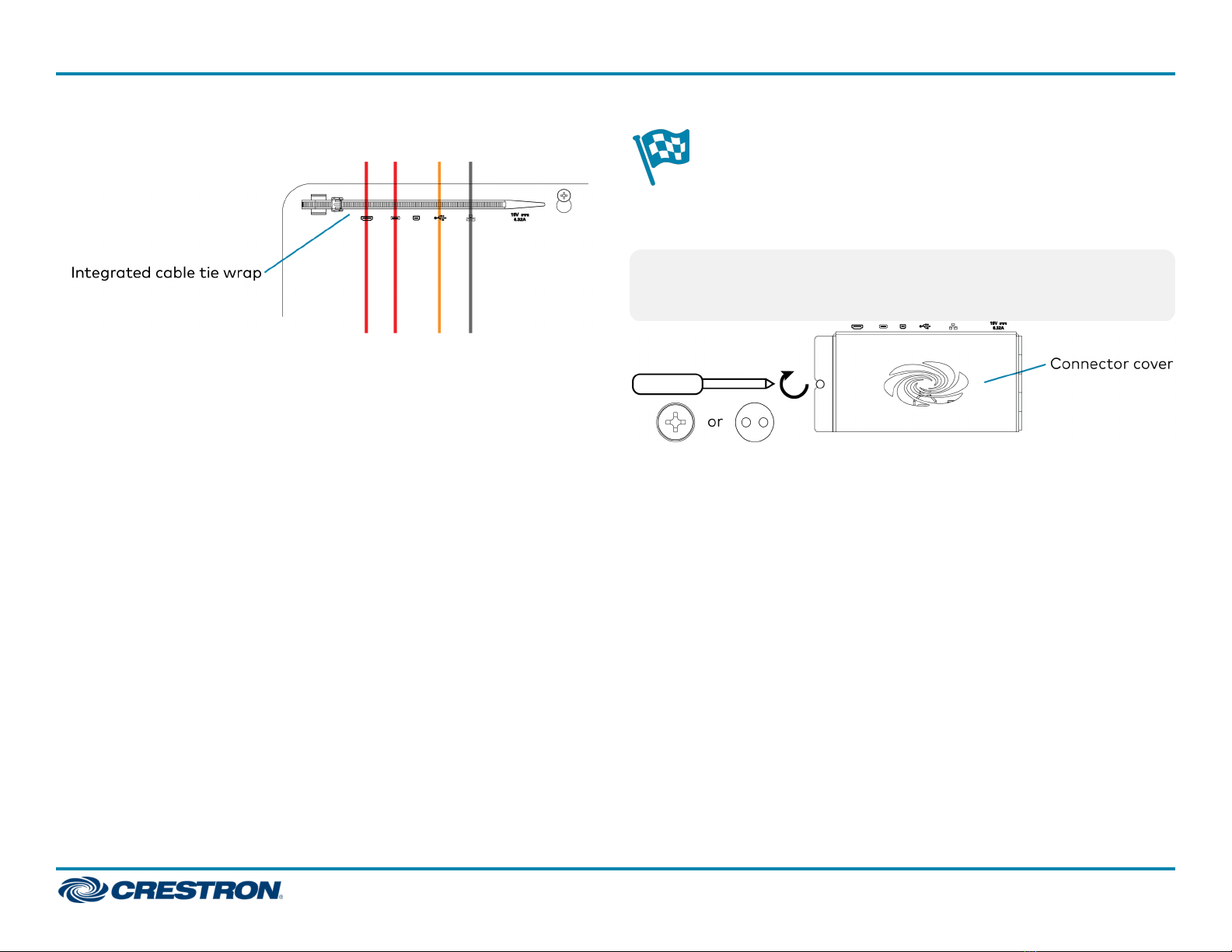

4. Bundle the cables with the integrated cable tie wraps. The cable tie

wraps are reusable.

Complete the Installation

After completing UC-ENGINE-Z connections, secure the connector

covers using a #1 Phillips head screwdriver to replace the screws.

NOTE: For additional security, replace the screws with the spanner

screws included with the bracket assembly. A 1/4 in. bit is also supplied

with the bracket assembly to install the spanner screws.

UC-B160-Z QuickStart

Crestron Flex Wall Mount UC Video Conference System for Zoom Rooms™ Software

Configure

Apply Power

Press the power button on the bottom of the UC-ENGINE-Z and apply

power to all of the other devices in the system. The connected display

device will show a pairing code.

Use the TSW-1060-B-S touch screen to sign in to the Zoom Rooms

service using an activation code or a Zoom Room Sign-In.

1. Tap Touch Here to Enable a Specific Application on the bottom of the

screen. A list of applications is displayed.

2. Tap Zoom Rooms and then tap Confirm. The TSW-1060-B-S touch

screen will reboot.

NOTE: Additional settings are available for switching between the

Zoom Rooms application and a custom user project. For details,

refer to the TSW-560/TSW-760/TSW-1060 Supplemental Guide

(Doc. 7927).

3. Enter the pairing code shown on the display to pair the TSW-1060-B-S

touch screen with the UC-ENGINE-Z. The Zoom Rooms controller app

is displayed.

4. Log in to the Zoom Rooms service with an activation code or Zoom

Rooms Credentials (email and password).

lActivation Code:

a. Tap Enter Activation Code.

b. Enter the 16-digit activation code provided by the

administrator to activate the Zoom Room that is

assigned to the activation code. The Zoom Rooms

Conference Room screen is shown on the display.

lSign In:

a. Tap Sign In.

b. Enter the Zoom Room credentials and tap Sign In.

c. Select the conference room name from the list and

tapNext. The Zoom Rooms Conference Room screen is

shown on the display.

5. Tap Settings. If a password is required, enter the password (default is

0000). The Settings screen is displayed.

6. Tap Microphone and select the soundbar as the source.

7. Tap Speaker and select the soundbar as the source.

8. Tap Meet Now to exit.

Configure the System

Connect a USBkeyboard and mouse (sold separately) to a USBport on

the UC-ENGINE-Z to configure system features. Refer to the Crestron

Flex UC Video Conference Systems Supplemental Guide (Doc. 8360).

UC-B160-Z QuickStart

Crestron Flex Wall Mount UC Video Conference System for Zoom Rooms™ Software

Visit the Product Page

Scan the QR code to visit the product page.

UC-B160-Z

www.crestron.com/model/6511052

Additional Information

Original Instructions

The U.S. English version of this document is the original instructions.

All other languages are a translation of the original instructions.

Crestron product development software is licensed to Crestron dealers and Crestron

Service Providers (CSPs) under a limited nonexclusive, nontransferable Software

Development Tools License Agreement. Crestron product operating system software is

licensed to Crestron dealers, CSPs, and end-users under a separate End-User License

Agreement. Both of these Agreements can be found on the Crestron website at

www.crestron.com/legal/software_license_agreement.

The product warranty can be found at www.crestron.com/warranty.

The specific patents that cover Crestron products are listed at

www.crestron.com/legal/patents.

Certain Crestron products contain open source software. For specific information, visit

www.crestron.com/opensource.

Crestron, the Crestron logo, and DigitalMedia are either trademarks or registered

trademarks of Crestron Electronics, Inc. in the United States and/or other countries.

HDMI and the HDMI logo are either trademarks or registered trademarks of HDMI

Licensing LLC in the United States and/or other countries. Zoom Rooms is either a

trademark or registered trademark of Zoom Video Communications, Inc. in the United

States and/or other countries. Other trademarks, registered trademarks, and trade

names may be used in this document to refer to either the entities claiming the marks

and names or their products. Crestron disclaims any proprietary interest in the marks

and names of others. Crestron is not responsible for errors in typography or

photography.

Doc ID 8468F

05/01/20

UC-B160-Z QuickStart

Crestron Flex Wall Mount UC Video Conference System for Zoom Rooms™ Software
