Crestron UC-M70-Z Manuale utente
The UC-M70-Z Crestron Flex tabletop conferencing system provides a
large room video conference solution for use with Zoom Rooms™
software. It supports single or dual video displays and features a
Crestron Flex tabletop conference device, UC bracket assembly, and an
AI collaboration camera.
Minimum Requirements:
lA video display connected to the UC Engine. A second display is
optional.
lA Zoom Rooms account or activation code
In the Box
Tabletop Conference Device
1 Tabletop Conference Device, Zoom Rooms Software
(6508227)
1 Cable, CAT5e, RJ-45 - RJ-45, 12 ft (3.7 m) (2033988)
1 Cable Retention Plate (2047908)
3 Tie Wrap (2047935)
UC Bracket Assembly
1 UC Bracket Assembly with UC Engine and HDMI® content
ingest (UC-BRKT-200-S-Z-ASSY, 6511479)
2 Anchor, Drywall, Plastic, 3/8 in. x 1/2 in. (9.5mm x
12.7mm) (2052565)
2 EDID passthrough (2055728)
1 Key, Anchor (4529654)
2 Screw, 8-AB x 1-1/2 in. (38.1 mm), Pan Head, Combo
(2052567)
4 Tie Wrap (2047935)
Additional Items
1 AIcollaboration camera (6512296)
1 Microphone pod (6508084)
1 Cable, CAT5e, RJ-45 - RJ-45, 7 ft (2.1 m) (6509924)
1 Cable, DisplayPort™ to HDMI, 6 ft (1.8 m) (6508282)
1 Cable, HDMI, 20 ft (6.1 m) (6503567)
1 Cable, HDMI, 6 ft (1.8 m) (6503565)
1 Cable, USB 2.0, A - Micro-B, 6 ft (1.8 m) (6510947)
1 Cable, USB Extension, USB Type A Male-to-Female, 15 ft
(4.6m) (6508260)
1 Power supply (6500187)
1
UC-M70-Z QuickStart
Crestron Flex Tabletop Large Room Video Conference System for Zoom Rooms™ Software
Mount Devices
Mount the UC Bracket Assembly
Mount the UC Bracket Assembly to VESA® compliant display devices, a
wall, or other building structure. Anchors and screws are supplied for
installation on walls 3/8 in. (9.5mm) to 3/4 in. (19mm) thickness.
CAUTION: Preinstalled screws may protrude from the back of the UC
Bracket Assembly. Exercise caution when handling the UC Bracket
Assembly to avoid scratching or damaging surfaces.
NOTE: The integrated cable tie wraps are reusable. Avoid damaging
the cable tie wraps.
Mount the Camera
Mount the included camera according to its documentation.
Install the Cable Retention Plate
The included cable retention plate provides tie-down points for cables
that connect to the Crestron® conference device.
Remove the adhesive backing from the cable retention plate and install
the plate on the underside of the conference device as shown in the
following diagram. Ensure the cable retention plate is firmly attached
before securing cables.
CAUTION: When turning over the device, place the device on a soft
surface to avoid damage.
NOTE: If a swivel mount kit (CCS-UCA-SMK) is to be used, use the
cable retention bracket included with the swivel mount kit as described
in the CCS-UCA-SMK DO Guide (Doc. 7882).
2
UC-M70-Z QuickStart
Crestron Flex Tabletop Large Room Video Conference System for Zoom Rooms™ Software
Make Connections

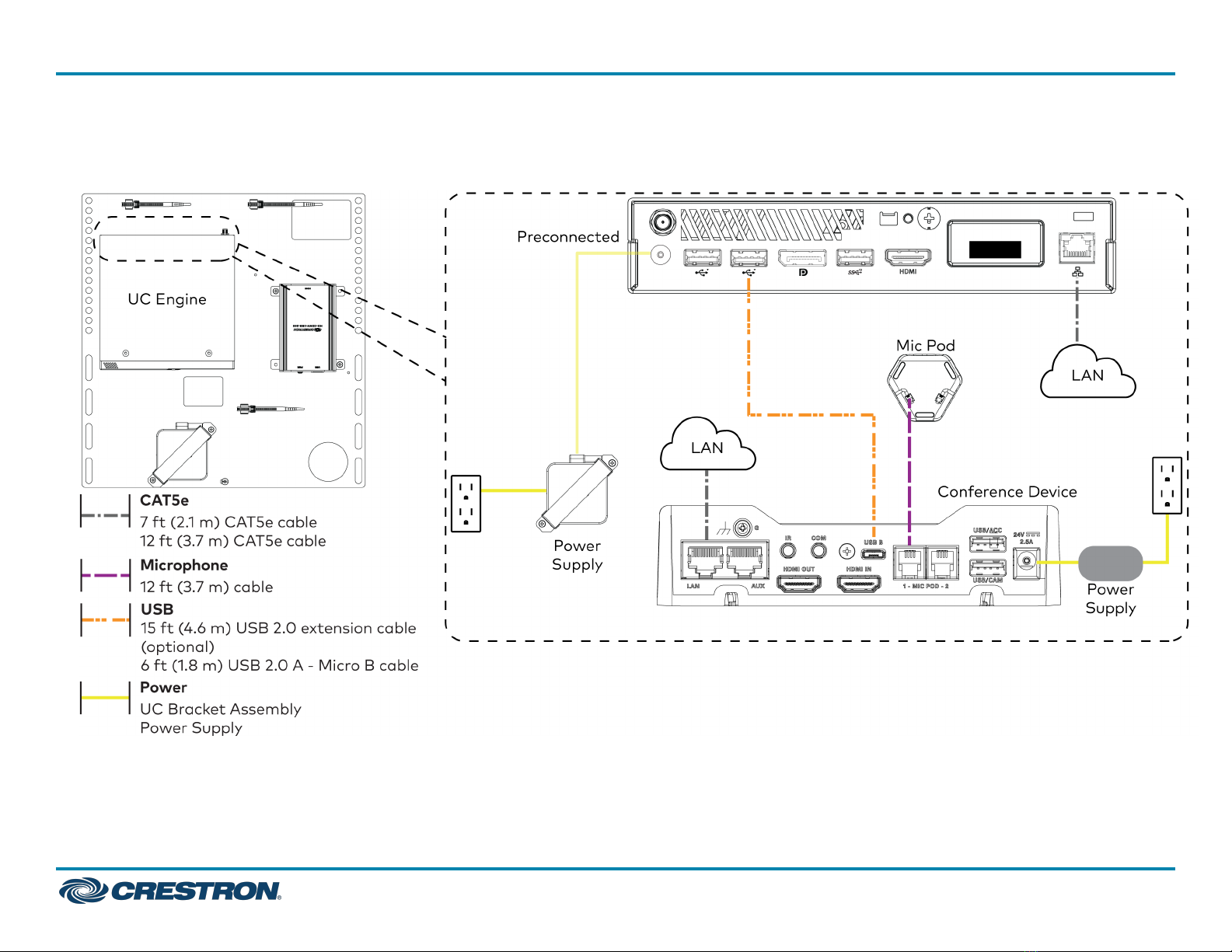

1. Make UC Engine connections as shown in the following illustration.
4
UC-M70-Z QuickStart
Crestron Flex Tabletop Large Room Video Conference System for Zoom Rooms™ Software

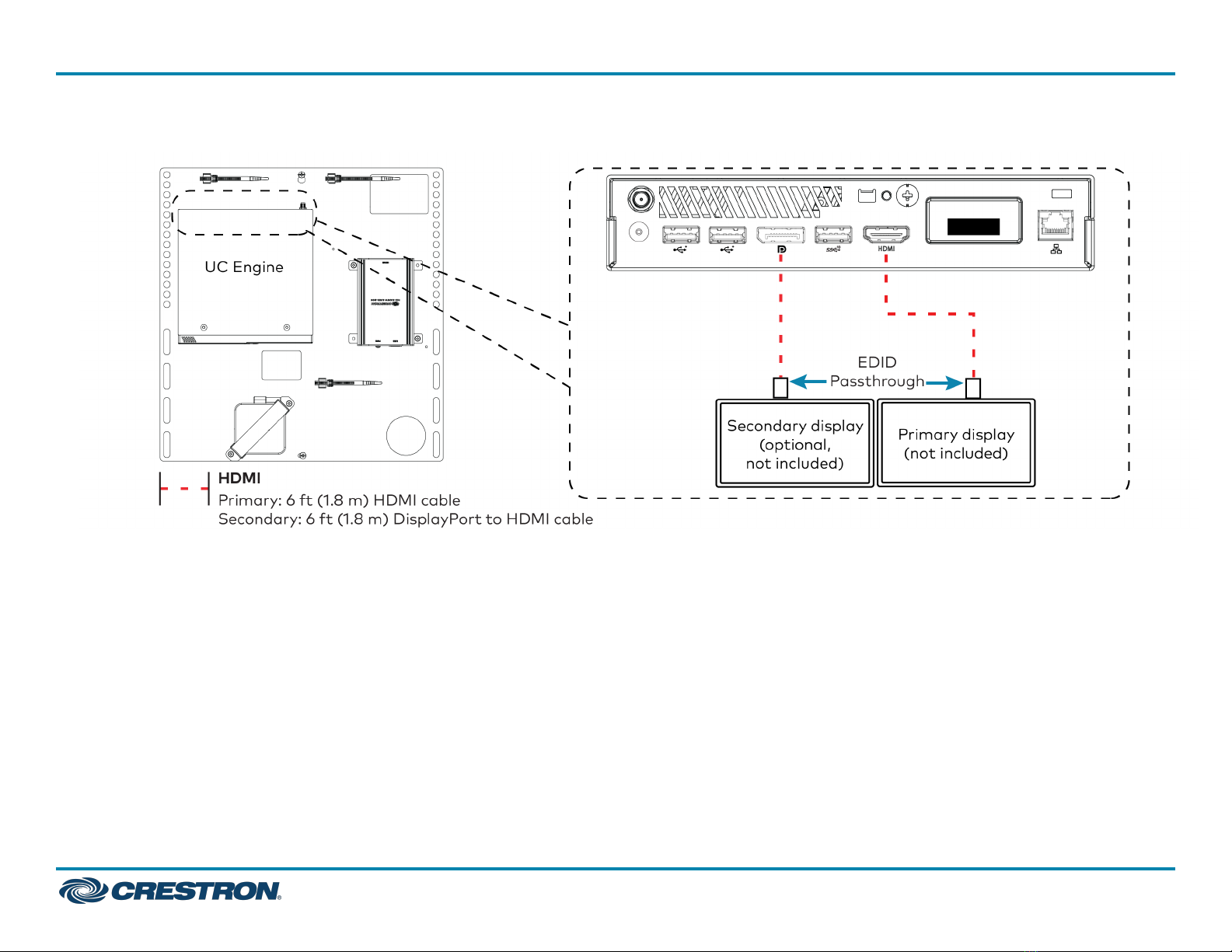

2. Connect displays to the UC Engine. Connect the EDID passthroughs to the displays.
5
UC-M70-Z QuickStart
Crestron Flex Tabletop Large Room Video Conference System for Zoom Rooms™ Software
3. Remove the screw from the connector cover (located below the UC Engine) using a Philips #1 screwdriver (not included). Open the connector
cover and retain the screw.
4. Connect the camera to the UC Engine as shown in the image below. Do not connect the camera to any of the other USB ports.
6
UC-M70-Z QuickStart
Crestron Flex Tabletop Large Room Video Conference System for Zoom Rooms™ Software
5. Reattach the connector cover using the screw removed in step 3.
6. Connect a laptop to the content ingest device (HD-CONV-USB-200).
7. Bundle the cables to the bracket assembly with the integrated cable tie wraps. The cable tie wraps are reusable.
7
UC-M70-Z QuickStart
Crestron Flex Tabletop Large Room Video Conference System for Zoom Rooms™ Software
Bundle Cables
Bundle the cables together and use a provided tie wrap to secure the
bundle to one of the positions on the cable retention plate at the rear of
the device. Avoid bundling power and data cables together.
Configure
Apply Power
Press the power button on the bottom of the UC Engine and apply
power to all of the other devices in the system. The connected display
device will show a pairing code. The conference device will show a
prompt to enter a pairing code.
Log In to the Zoom Rooms Service
Use the conference device to sign in to the Zoom Rooms service using an
activation code or a Zoom Room Sign-In.
1. Tap Zoom and then tap OK. The device will reboot.
2. Enter the pairing code shown on the display to pair the device with
the UC Engine. The Zoom Rooms controller app is displayed.
3. Log in to the Zoom Rooms service with an activation code or Zoom
Rooms Credentials (email and password).
lActivation Code:
a. Tap Enter Activation Code.
b. Enter the 16-digit activation code provided by the
administrator to activate the Zoom Room that is assigned to
the activation code. The Zoom Rooms Conference Room screen
is shown on the display.
lSign In:
a. Tap Sign In.
b. Enter the Zoom Room credentials and tap Sign In.
c. Select the conference room name from the list and tapNext.
The Zoom Rooms Conference Room screen is shown on the
display.
4. Tap Settings. If a password is required, enter the password (the
default password is "1234"). The Settings screen is displayed.
5. Tap Microphone and select the conference device as the source.
6. Tap Speaker and select the conference device as the source.
7. Tap Meet Now to exit.
Configure the System
Connect a USB keyboard and mouse (sold separately) to a USB port on
the UC Engine to configure system features. For detailed information on
using Zoom Rooms, refer to the Zoom Rooms Help Center.
8
UC-M70-Z QuickStart
Crestron Flex Tabletop Large Room Video Conference System for Zoom Rooms™ Software
Visit the Product Page
Scan the QR code to visit the product page.
UC-M70-Z
www.crestron.com/model/6511588
Additional Information
Original Instructions
The U.S. English version of this document is the original instructions.
All other languages are a translation of the original instructions.
Crestron product development software is licensed to Crestron dealers and Crestron
Service Providers (CSPs) under a limited nonexclusive, nontransferable Software
Development Tools License Agreement. Crestron product operating system software is
licensed to Crestron dealers, CSPs, and end-users under a separate End-User License
Agreement. Both of these Agreements can be found on the Crestron website at
www.crestron.com/legal/software_license_agreement.
The product warranty can be found at www.crestron.com/warranty.
The specific patents that cover Crestron products are listed at
www.crestron.com/legal/patents.
Certain Crestron products contain open source software. For specific information, visit
www.crestron.com/opensource.
Crestron and the Crestron logo are either trademarks or registered trademarks of
Crestron Electronics, Inc. in the United States and/or other countries. HDMI is either a
trademark or registered trademark of HDMI Licensing LLC in the United States and/or
other countries. DisplayPort and VESA are either trademarks or registered trademarks
of Video Electronics Standards Association in the United States and/or other countries.
Zoom Rooms is either a trademark or registered trademark of Zoom Video
Communications, Inc. in the United States and/or other countries. Other trademarks,
registered trademarks, and trade names may be used in this document to refer to either
the entities claiming the marks and names or their products. Crestron disclaims any
proprietary interest in the marks and names of others. Crestron is not responsible for
errors in typography or photography.
©2022 Crestron Electronics, Inc.
Doc. 8798D
02/02/22
9
UC-M70-Z QuickStart
Crestron Flex Tabletop Large Room Video Conference System for Zoom Rooms™ Software
