Crestron CH-HREL8-D6 Manuale utente

Crestron CH-HREL8-D6

Electrical Control Interface (DIN Rail)

Operation Guide

CH-HREL8-D6 Product Manual

Crestron International • 2 Oude Keerbergsebaan • 2820 Rijmenam • Belgium

Tel: +32 15 50 99 50 • [email protected] • www.crestron-int.be

Contents

Description 3

Functional Description…………………………………………………….3

Usage……………………………………………………………………….3

Technical data……………………………………………………………..4

Front View………………………………………………………………….4

Setup 5

Example wiring diagram…………………………………………………..5

Cresnet connections………………………………………………………6

Cresnet ID………………………………………………………………….7

Method A viewport…………………………………………………..7

Method B Toolbox…………………………………………………...8

Programming 9

Configuration Manager........................................................................9

Programming Manager..................................................................... 10

Example Program............................................................................. 10

Problem Solving 11

Troubleshooting.................................................................................11

Futher Inquiries.................................................................................12

CH-HREL8-D6 Product Manual

Crestron International • 2 Oude Keerbergsebaan • 2820 Rijmenam • Belgium

Tel: +32 15 50 99 50 • [email protected] • www.crestron-int.be

Description

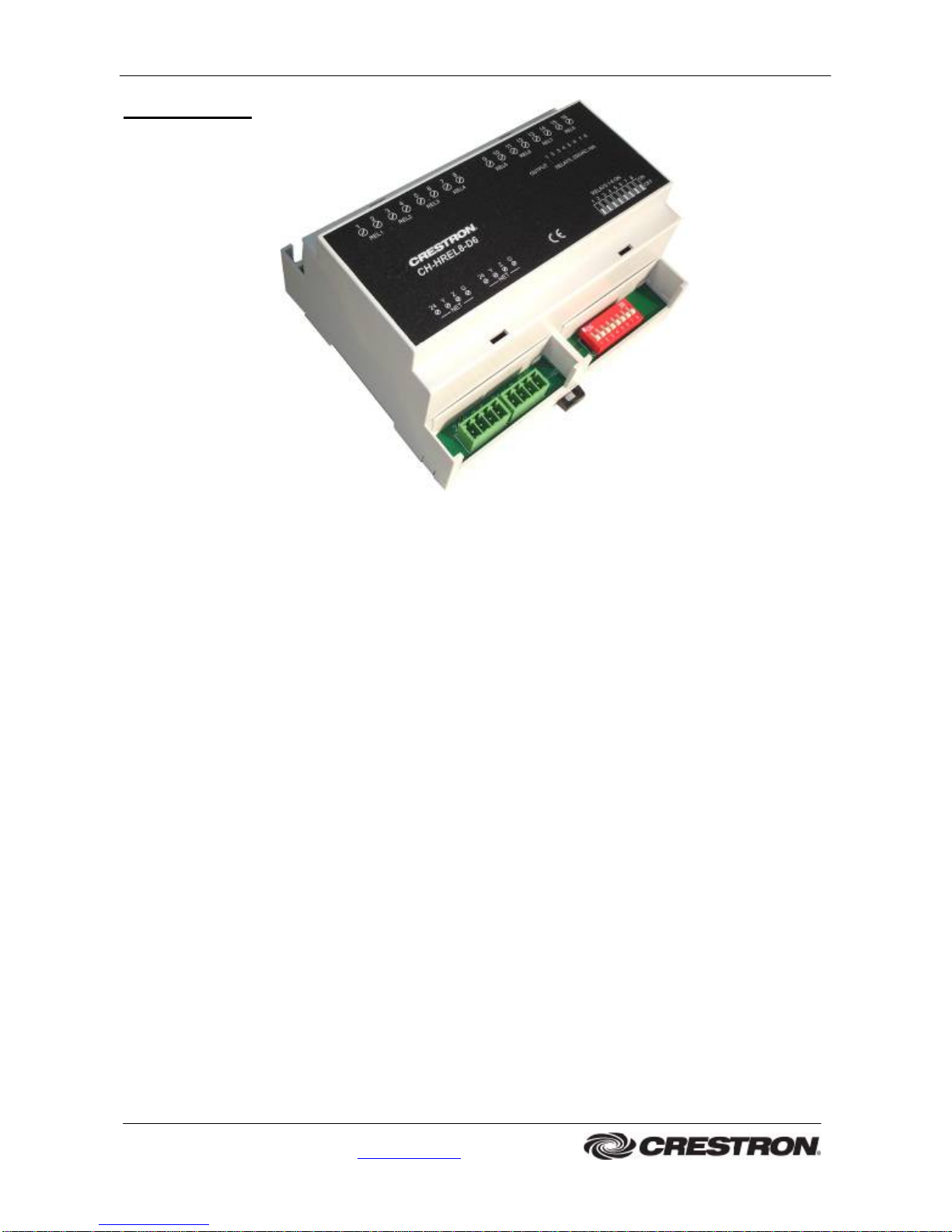

Figure 1: CH-HREL8-D6

Functional Description

The CH-HREL8-D6 is a Cresnet relay interface (Figure 1).

•8 single pole single throw high voltage relays.

•Each relay can handle 16Amp at 250V and is protected with a VDR (385 Volts).

•Red LED feedback per relay + manual override per relay with dip switches.

•Interface connects directly to Cresnet. Two 4-pole Phoenix connectors on board for

easy daisy-chaining of multiple interfaces. Cresnet addressing through software.

•DIN rail mountable universal casing to fit in any standard electrical cabinet. Takes 6

DIN modules in the cabinet.

Usage

Typical applications : Light switching

HVACcontrol

DIA–FILMprojectors

A/Vpowercontrol

....

!!! IMPORTANT!!!

Do NOT use the CH-HREL8-D6 for MOTOR control or other inductive loads.

Use the CH-HMOT2-D9 for these types of applications.

CH-HREL8-D6 Product Manual

Crestron International • 2 Oude Keerbergsebaan • 2820 Rijmenam • Belgium

Tel: +32 15 50 99 50 • [email protected] • www.crestron-int.be

Technical data

Dimensions : 106 x 90 x 58 mm ( L x B x H )

DIN norm : 6 Modules 106 mm, DIN43880

Cut-out size electrical cabinet : 106 mm x 45 mm (L x H)

Weight : 320 g

Color : Enclosure, grey RAL7035 , front black

Material : Self-extinguishing NORYL

Mounting : DIN rail DIN EN 50022

Connectors for relays : Phoenix 0.2 to 4mm2 cable section

Connectors Cresnet / Inputs : Mini Phoenix 3.5mm

Addressing Cresnet : through Crestron viewport or Toolbox

Power : 24 VDC, Cresnet

Power consumption : max. 170mA

Cresnet Power factor : 4W

Crestron Device Library : CNWM-LT9

Relays : 8 single pole single throw highvoltage

relays 250VAC / 16A

( For RESISTIVE LOADS ONLY!!! ) with

VDR 385V protection per relay.

Status : 1 blue LED for Power status

: 8 red LED’s for Relay status

Test / Override : each relay has a separate override

switch

Includes : Interface with 2x 4-pole

Mini-Phoenix connectors

Front view

Figure 2: Front view CH-HREL8-D6

CH-HREL8-D6 Product Manual

Crestron International • 2 Oude Keerbergsebaan • 2820 Rijmenam • Belgium

Tel: +32 15 50 99 50 • [email protected] • www.crestron-int.be

Setup

Example wiring diagram

Figure 3: Connection diagram CH-HREL8-D6

CH-HREL8-D6 Product Manual

Crestron International • 2 Oude Keerbergsebaan • 2820 Rijmenam • Belgium

Tel: +32 15 50 99 50 • [email protected] • www.crestron-int.be

Cresnet Connections

Note: Before making any connections, CRESTRON recommends that all power is off

and the installer reviews the latest revision of the network interconnection drawing

(DOC5411i).

Refer to figure 4 and connect the CH-HREL8-D6 to the Cresnet network via a Cresnet

network cable (CRESNET cable). This cable is not supplied with the CH-HREL8-D6 but

can be obtained from Crestron International.

Figure 4: CH-REL8-D6, Cresnet Hook-up

CH-HREL8-D6 Product Manual

Crestron International • 2 Oude Keerbergsebaan • 2820 Rijmenam • Belgium

Tel: +32 15 50 99 50 • [email protected] • www.crestron-int.be

Cresnet ID

Every equipment and user interface within the network requires a unique identity code

(NET ID). These codes are recognized by a two-digit hexadecimal number from 03 to FE.

The NET ID of each unit must match an ID code specified in the Simpl Windows program.

Use the following method’s to change NET ID of the CH-HREL8-D6.

Method A: (Viewport)

1. Ensure that the CH-HREL8-D6 is connected to the control system.

2. Open the Crestron viewport and connect to the control system (RS-232 or IP)

3. From the viewport menu, select Functions -> Set network ID.

The software checks the network and then opens the “Set Network ID” window.

4. In the “Set Network ID” window, select the CNMW-LT9 from the current network

devices text window (Figure 5).

5. Select the new NET ID for the CH-HREL8-D6 from the choose the new network ID

for the selected device (HEX): text box.

6. Click the Set ID to initiate the change. This will display the “ID command has been

set” window.

7. In the “Command complete” window, click OK.

8. In the current network devices text window, verify the net NET ID code.

9. In the “Set network ID” window, click close.

Figure 5: Set Network ID (viewport)

CH-HREL8-D6 Product Manual

Crestron International • 2 Oude Keerbergsebaan • 2820 Rijmenam • Belgium

Tel: +32 15 50 99 50 • [email protected] • www.crestron-int.be

Method B: (Toolbox)

1. Ensure that the CH-HREL8-D6 is connected to the control system.

2. Open Crestron Toolbox and connect to the control system via

Tools -> Manage Address Book

3 After setting the correct parameters, click OK to return to the Crestron Toolbox

main window.

4 Click Tools | Network Device Tree, or click the network device tree icon to display

the “Network Device Tree” window (Figure 6). Use the Address Book icon or the

drop-down list at the lower left of the window to select the appropriate address for

the devices in the system. Communications are confirmed when the network

devices are displayed.

Figure 6: Network Device Tree (Toolbox)

5 To view a specific device, expand the network device tree by clicking +. Expand the

network device tree until the device to be managed is selected. Right-click the

desired NET ID to open the sub-menu.

Figure 7: Change Network ID (Toolbox)

CH-HREL8-D6 Product Manual

Crestron International • 2 Oude Keerbergsebaan • 2820 Rijmenam • Belgium

Tel: +32 15 50 99 50 • [email protected] • www.crestron-int.be

Programming

The next subsections describe a sample SIMPL Windows program that utilizes a

CH-HREL8-D6. It provides a description of how to actually create the SIMPL Windows

program.

NOTE: The following descriptions assume that the reader has knowledge of SIMPL

Windows. If not, please refer to the extensive help information provided with the software.

Minimal software requirements

SIMPL Windows 2.01.06

Ops. for CNX: 5.12.63X/W

Ops. for “2” series: C2-1014.cuz

*check website www.crestron.com for leatest OPS and software versions*

Configuration manager

A CH-HREL8-D6 needs to be defined as a CNWM-LT9 in Simpl Windows (Figure 8).

Figure 8: Hardware configuration

CH-HREL8-D6 Product Manual

Crestron International • 2 Oude Keerbergsebaan • 2820 Rijmenam • Belgium

Tel: +32 15 50 99 50 • [email protected] • www.crestron-int.be

Programming manager

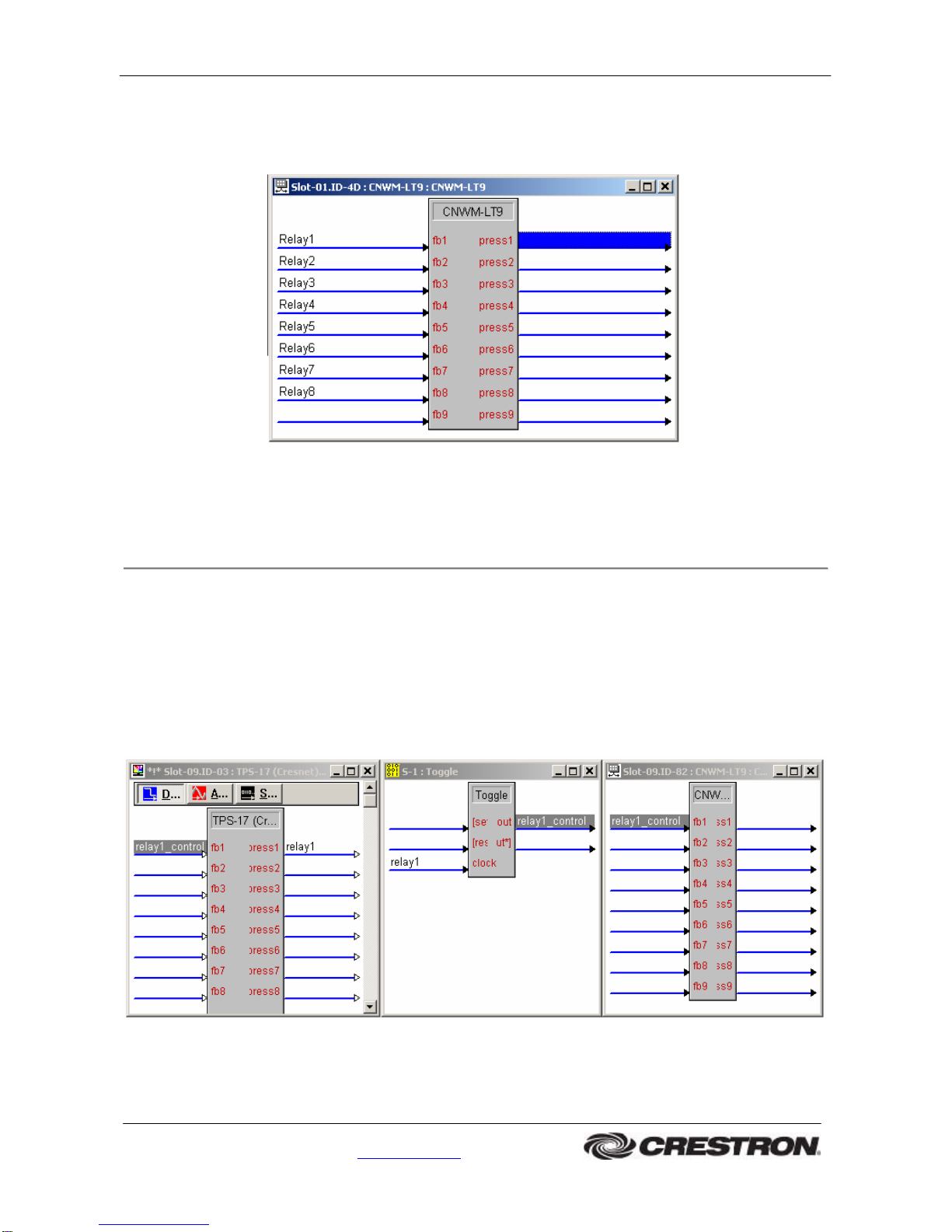

The CNWM-LT9 symbol has 9 digital press and 9 fb (feedback) signals (Figure 9).

Figure 9: CNMW-LT9 symbol

*The first 8 fb signals (fb1-fb8) represent the 8 relays of the CH-HREL8-D6

The press signals (press1 – press9) are not used by the CH-HREL8-D6.

Example Program

Control a relay

This basic example illustrates how the first relay of a CH-HREL8-D6 can be controlled via

a single press on a button located on a touchpanel or keypad. The toggle symbols keeps

the relay open or closed (Figure 10).

Figure 10: Example program
