Crestron DM-NVX-E30 Manuale utente

DM-NVX-E30(C)

DigitalMedia™ 4K60 4:4:4 HDR

Network AV Encoder

Web interface Guide

Crestron Electronics, Inc.

The product warranty can be found at www.crestron.com/warranty.

The specific patents that cover Crestron products are listed at patents.crestron.com.

Certain Crestron products contain open source software. For specific information, please visit www.crestron.com/opensource.

Crestron, the Crestron logo, Crestron Toolbox, and DigitalMedia are either trademarks or registered trademarks of Crestron Electronics, Inc. in

the United States and/or other countries. Dolby and Dolby Atmos are either trademarks or registered trademarks of Dolby Laboratories in the

United States and/or other countries. DTS HD and DTS:X are either trademarks or registered trademarks of DTS, Inc. in the United States and/or

other countries. HDMI is either a trademark or registered trademark of HDMI Licensing LLC in the United States and/or other countries. Other

trademarks, registered trademarks, and trade names may be used in this document to refer to either the entities claiming the marks and names

or their products. Crestron disclaims any proprietary interest in the marks and names of others. Crestron is not responsible for errors in

typography or photography.

This document was created by the Software Tools department at Crestron.

2•DM-NVX-E30(C)

Table of Contents

Introduction.............................................................................................................................................. 4

Easy Configuration Guide.................................................................................................................... 7

Status........................................................................................................................................................ 11

Stream...................................................................................................................................................... 14

HDMI Input............................................................................................................................................. 18

Output....................................................................................................................................................... 22

Network.................................................................................................................................................... 24

Device....................................................................................................................................................... 29

3•DM-NVX-E30(C)

Introduction

The DM-NVX-E30(C) is a compact video encoder designed to function as a transmitter

featuring support for HDR10 and HDCP 2.2.

Web-based Configuration Interface

The web-based configuration interface of the DM-NVX-E30(C) consists of web pages that

allow viewing status information of the DM-NVX-E30(C) and configuration of its network,

and device settings.

Accessing the Web-based Configuration interface of DM-NVX-E30(C)

The web-based configuration interface is accessed from a web browser. The following

table lists various operating systems and the corresponding supported web browsers.

Operating System and Supported Web Browsers

OPERATING SYSTEM SUPPORTED WEB BROWSERS

Windows® operating system

Chrome™ web browser, version 31 and later

Firefox® web browser, version 31 and later

Internet Explorer web browser, version 11 and later

Microsoft Edge web browser

OS X® operating system Safari® web browser, version 6 and later

Chrome™ web browser, version 31 and later

Firefox® web browser, version 31 and later

To access the user interface, do either of the following:

•Open it directly in a web browser

•Open a web browser from within the Crestron Toolbox™ application.

Opening directly in Web Browser

1. Press the Setup button on the DM-NVX-E30(C) to display the IP address on the HDMI

output or use the front panel of the DMF-CI-8 chassis for DM-NVX-E30C

2. Open a compatible web browser.

3. Enter the IP address of the DM-NVX-E30(C)

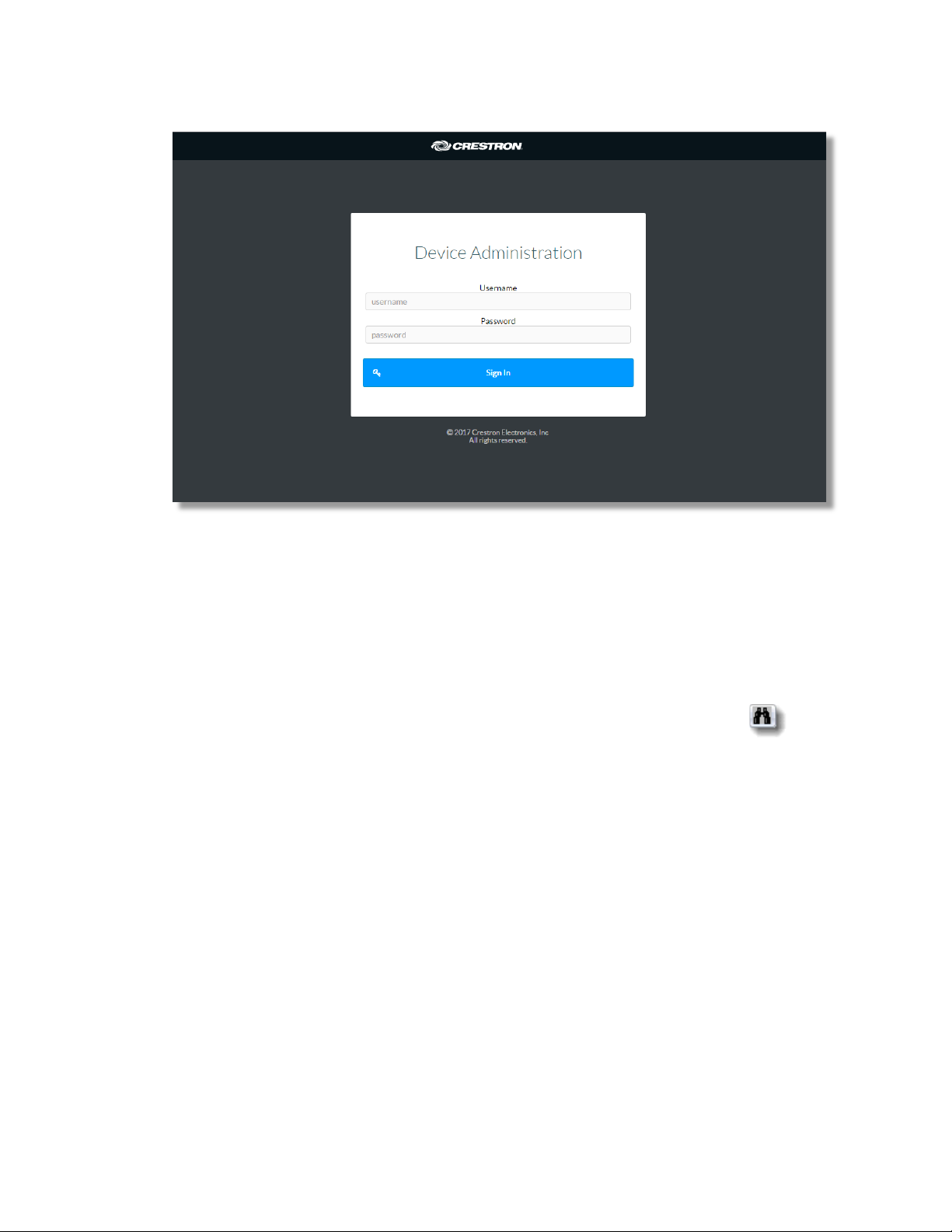

4. Enter your credentials in the Device Administration dialog (Note that the user

name and password are case sensitive). The default user name is admin, and the

default password is admin.

NOTE: For enhanced security, it is recommended that the default password is

changed.

4•DM-NVX-E30(C)

5. Click Sign In.

Opening a Web Browser from within the Crestron Toolbox™ Application

To access the user interface by opening a web browser within the Crestron Toolbox™

application, do the following:

1. Open the Crestron Toolbox™ application.

2. From the Tools menu, select Device Discovery Tool. You can also access the

Device Discovery Tool by clicking the Device Discovery Tool button in the

toolbar of Crestron Toolbox.

NOTE: The security software running on the computer may send a program alert

that there was an attempt of the Crestron Toolbox application to connect to the

network. Allow the connection, so that the Device Discovery Tool can be used.

The DM-NVX-E30(C) is discovered and is listed in the device list on the left-hand

side of the screen. The associated host name, IP address, and firmware version are

also displayed.

3. In the Device Discovery Tool list, double-click on your DM-NVX-E30(C) device

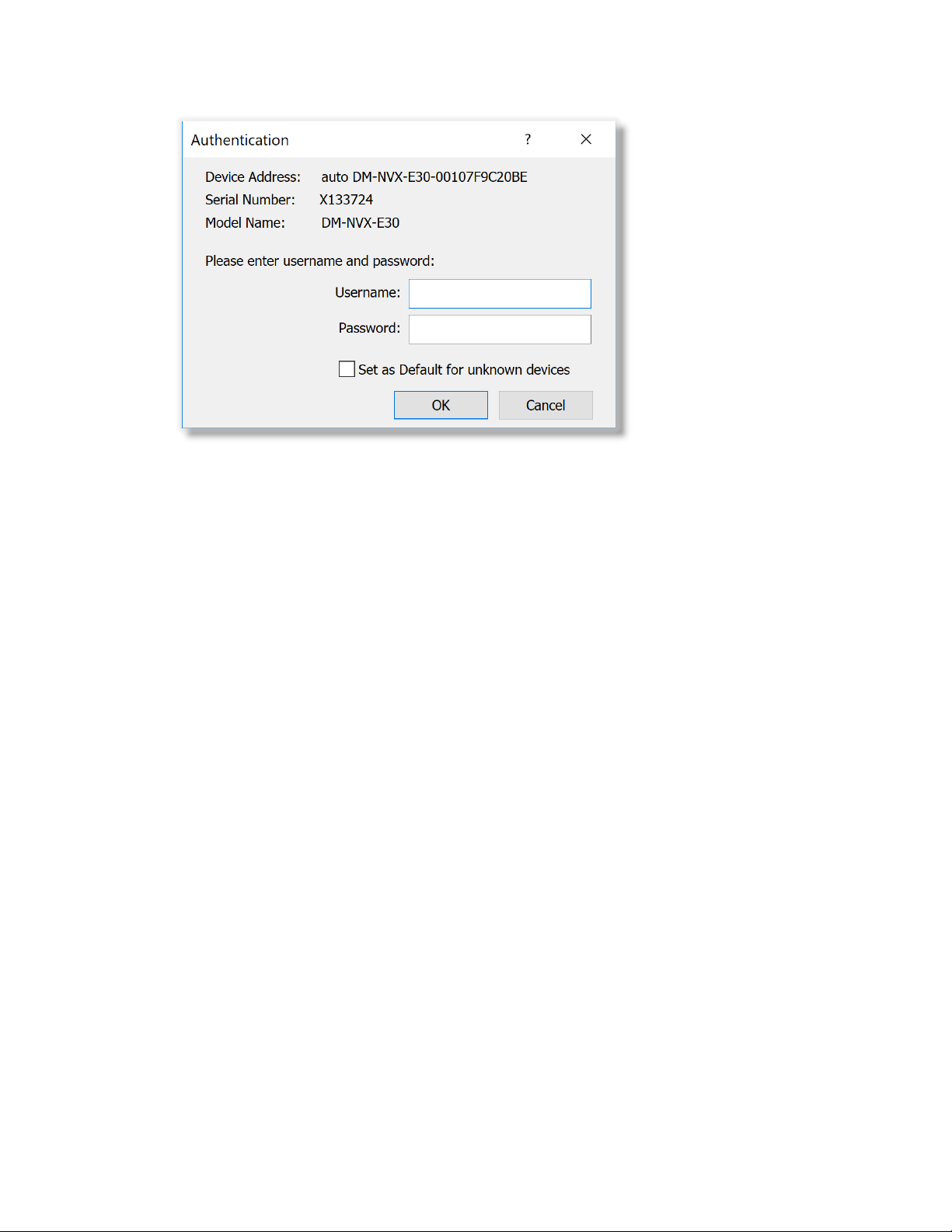

4. Enter your credentials in the Authentication dialog that opens and click 'Log In'

5•DM-NVX-E30(C)

5. Click the Web Configuration button in the Configuration page displayed on the left

hand side of the Device Discovery Tool.

6•DM-NVX-E30(C)

Easy Configuration Guide

How to Log in to DM-NVX-E30(C) using Active Directory credentials

There are two ways to login using Active Directory credentials: by using Active Directory

user, or by using Active Directory Group user.

To log in as Active Directory User:

Pre-requisites: Users are already created on Active Directory server

1. Log in to DM-NVX-E30(C)

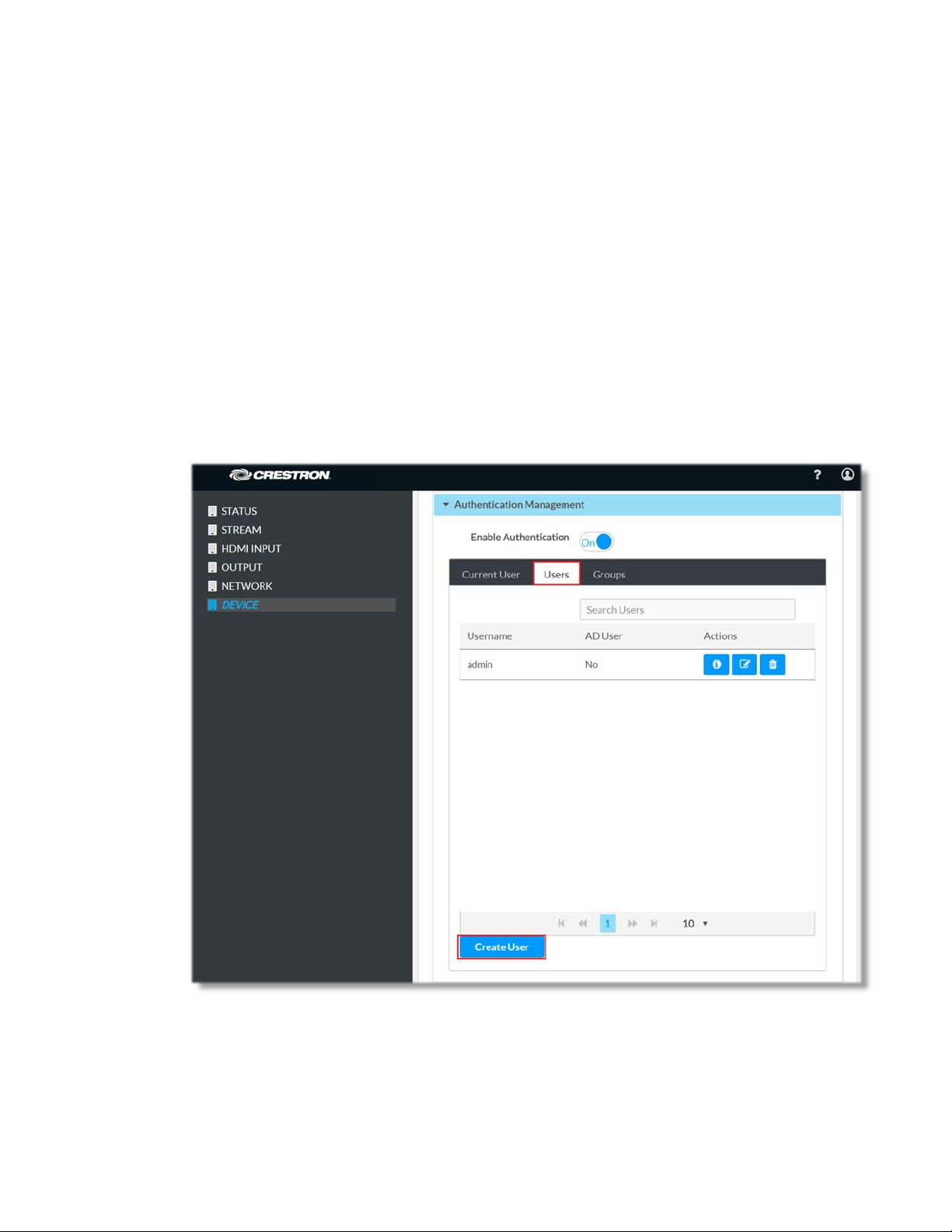

2. Navigate to the Device page, click on Authentication Management and select

the Users tab

3. Click on Create User button

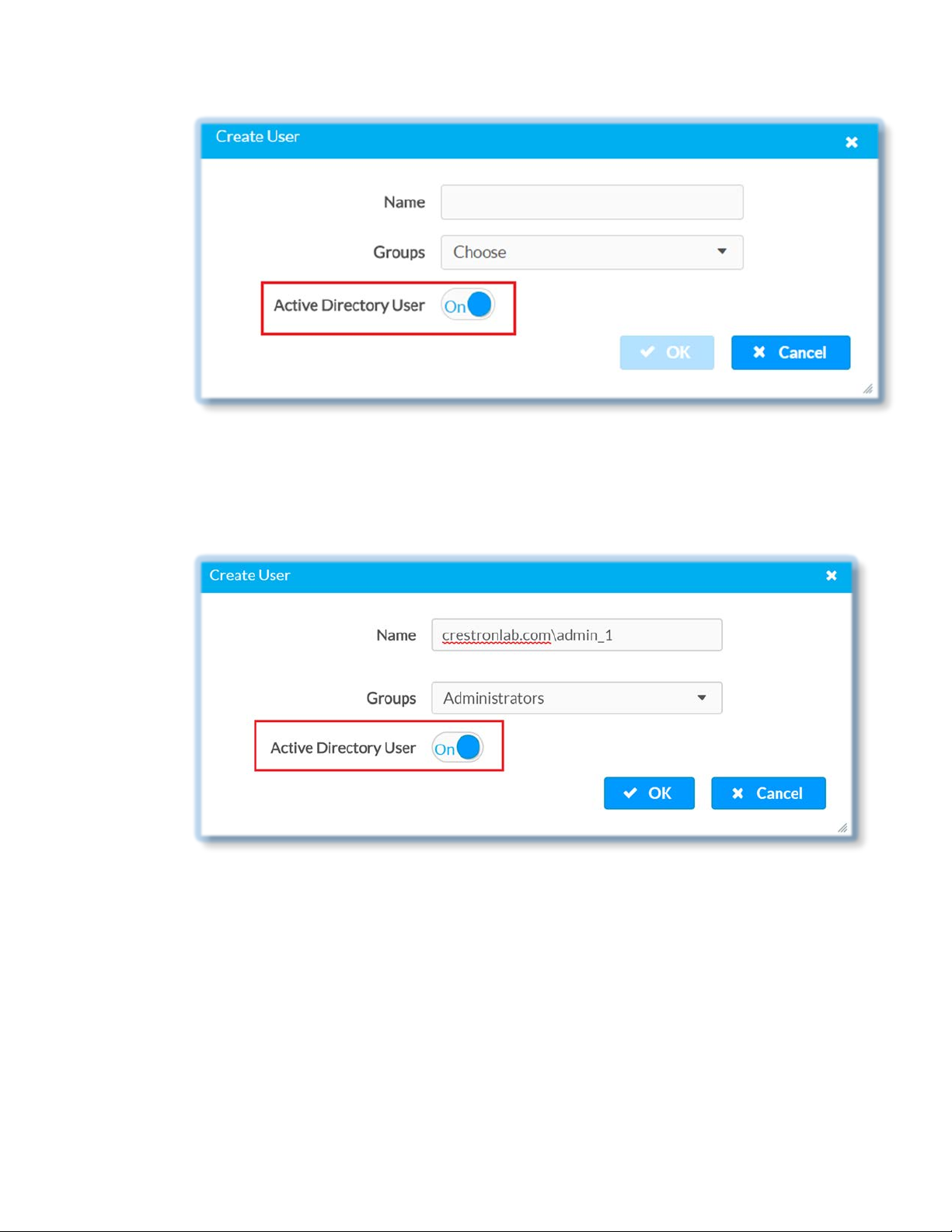

4. In Create User dialog, set the Active Directory User slider for Active

Directory to “ON”

7•DM-NVX-E30(C)

5. Enter the name of the user in the Name text field using the following format

“Domain name\username”, for example “crestronlab.com\admin_1”

6. Select Administrators in the Groups drop-down list, so that the Active Directory

user will have administrator privileges

7. Log in to DM-NVX-E30(C) using Active Directory user credentials i.e

“crestronlab.com\admin_1”

To log in as Active Directory Group User

Pre-requisites:

•Active Directory Users & Active Directory Groups are already created on AD server.

•Active Directory users are assigned to specific Active Directory Groups, for

example: Active Directory Group : Engineering_Group, Active Directory User :

user1

8•DM-NVX-E30(C)

1. Log in to DM-NVX-E30(C)

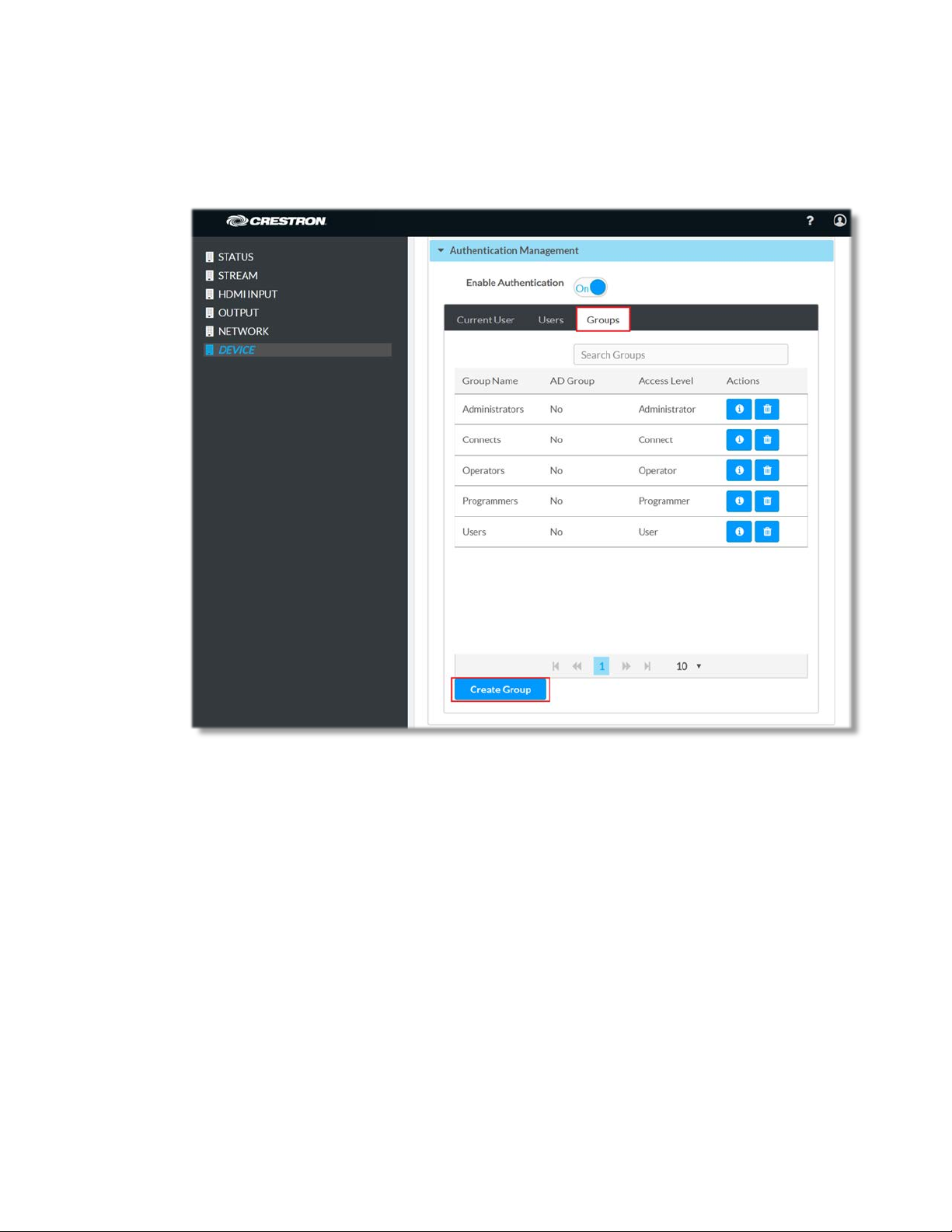

2. Navigate to the Device page, click on Authentication Management and select

the Groups tab

3. Click on Create Group button

4. In Create Group dialog, set the for Active Directory Group slider to “ON”

5. Enter the name (case sensitive) of the Active Directory group in the Name text

field

6. Select “Administrators” from the Access Level drop-down list so that the Active

Directory group will have administrator privileges

9•DM-NVX-E30(C)

7. Log in to DM-NVX-E30(C) using Active Directory Group User credentials, i.e.

‘crestronlab.com\user1’ .

10 •DM-NVX-E30(C)
