CrestronMMK-6X-DSW & WMKM-6X-DSW

MudMountKitsfortheTPS-6X-DSW

InstallationGuide

Crestron MMK/WMKM-6X-DSW Mud Mount Kits for the TPS-6X-DSW

Contents

Mud Mount Kits for the TPS-6X-DSW: MMK-6X-DSW & WMKM-6X-DSW 1

Description.................................................................................................................................1

Setup..........................................................................................................................................2

Supplied Hardware......................................................................................................2

Installation...................................................................................................................4

Resources.................................................................................................................................12

Industry Compliance .................................................................................................12

Reference Documents................................................................................................12

Further Inquiries........................................................................................................12

Future Updates ..........................................................................................................12

Return and Warranty Policies..................................................................................................13

Merchandise Returns / Repair Service ......................................................................13

CRESTRON Limited Warranty.................................................................................13

All brand names, product names and trademarks are the property of their respective owners.

Installation Guide – DOC. 6779A Contents •i

Crestron MMK/WMKM-6X-DSW Mud Mount Kits for the TPS-6X-DSW

Mud Mount Kits for the

TPS-6X-DSW:

MMK-6X-DSW & WMKM-6X-DSW

Description

Mud Mount Kits are the preferred mounting option for the TPS-6X-DSW when the

cutout made in the drywall for docking station installation is too large. These kits

provide support for additional plastering that can be applied to hide large

irregularities in the cutout.

NOTE: If mounting into a material other than drywall (for example, wood lectern,

concrete or rock) use the cutout template, available in the post-construction kit

WMKM-6X-DSW. For concrete and rock mounting material, allow for proper

ventilation before mounting the TPS-6X-DSW.

There are two Mud Mount Kits. The MMK-6X-DSW is a pre-construction

accessory. Pre-construction refers to framed walls prior to hanging drywall. This

accessory must be used with either the Pre-Construction Mount Kit (PMK-6X-DSW)

or Back Box (BB-6X-DSW).

The WMKM-6X-DSW is a post-construction kit. Post-construction refers to framed

walls with drywall hung. This accessory is designed with a mounting plate so that it

can be placed anywhere on a wall without the support of a stud.

NOTE: Since the TPS-6X-DSW contains moving parts, mounting to a stud offers

more support and is therefore highly recommended. Although Crestron®offers the

post-construction WMKM-6X-DSW mounting option, a mounting option that is

secured to a stud, such as the BB-6X-DSW or PMK-6X-DSW is highly

recommended.

NOTE: If necessary, consult the latest revision of the TPS-6X-DSW Operations and

Installation Guide (Doc. 6708) for a complete list of mounting options. The

document is available from the Crestron website (http://www.crestron.com/manuals).

Installation Guide – DOC. 6779A Mud Mount Kits for the TPS-6X-DSW: MMK-6X-DSW & WMKM-6X-DSW •1

Mud Mount Kits for the TPS-6X-DSW Crestron MMK/WMKM-6X-DSW

Setup

Supplied Hardware

The MMK-6X-DSW consists of three parts. These parts produce an assembly that

attaches to the BB-6X-DSW or PMK-6X-DSW. The WMKM-6X-DSW consists of

six parts, three of which make up the MMK-6X-DSW, as well as a mounting plate, a

set of mounting screws and a cutout template.

The mounting plate provides the necessary support for post-construction

applications. An overlay cutout template (4506370) is supplied which is similar to a

frame, the inner area of the frame is the shape of the required opening. Remove the

center of the frame in order to use the template, refer to the illustration on page 4.

Supplied Hardware for the MMK-6X-DSW and WMKM-6X-DSW

DESCRIPTION PART NUMBER QUANTITY

Metal, Plate, Mud Ring 2022809 1

Metal Plate, Adjustment 2017631 2

Hardware, Metal, Push-On 2004121 4

Metal, Plate, Mounting

(WMKM-6X-DSW only) 2022811 1

Screw, #06-32 x 1 1/2”, Pan, Phil

(WMKM-6X-DSW only) 2007254 4

Overlay, Template, Wall Cutout

(WMKM-6X-DSW only) 4506370 1

The dimensions of the MMK-6X-DSW and WMKM-6X-DSW are shown below and

on the next page.

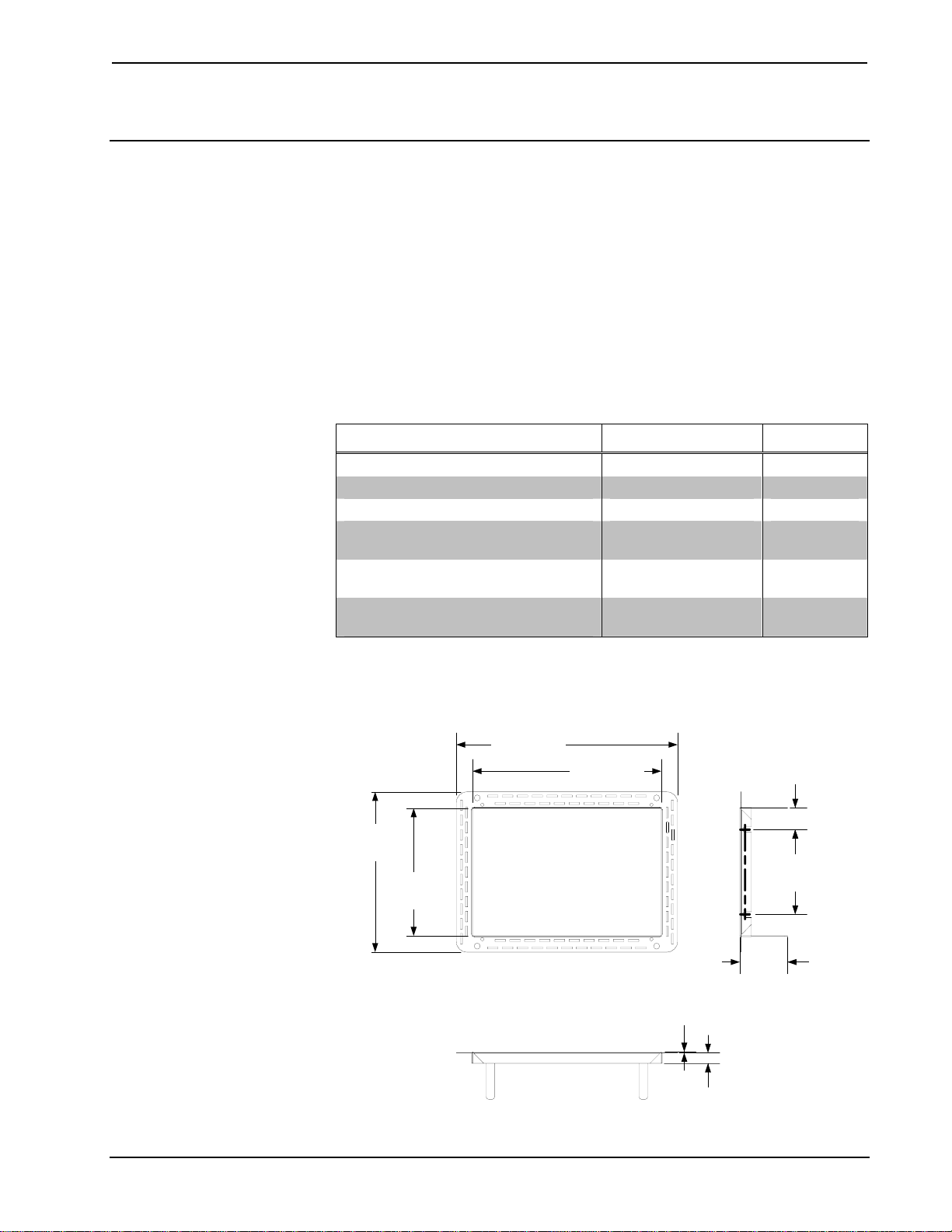

Dimensional Drawing – Mud Ring Plate

6.03 in

(15.31 cm)

7.57 in

(19.22 cm)

10.46 in

(26.57 cm) 8.92 in

(22.66 cm) 1.03 in

(2.63 cm)

2.26 in

(5.73 cm)

4.00 in

(10.16 cm)

0.50 in

(1.27 cm)

0.05 in

(0.13 cm)

2 •Mud Mount Kits for the TPS-6X-DSW: MMK-6X-DSW & WMKM-6X-DSW Installation Guide – DOC. 6779A

Crestron MMK/WMKM-6X-DSW Mud Mount Kits for the TPS-6X-DSW

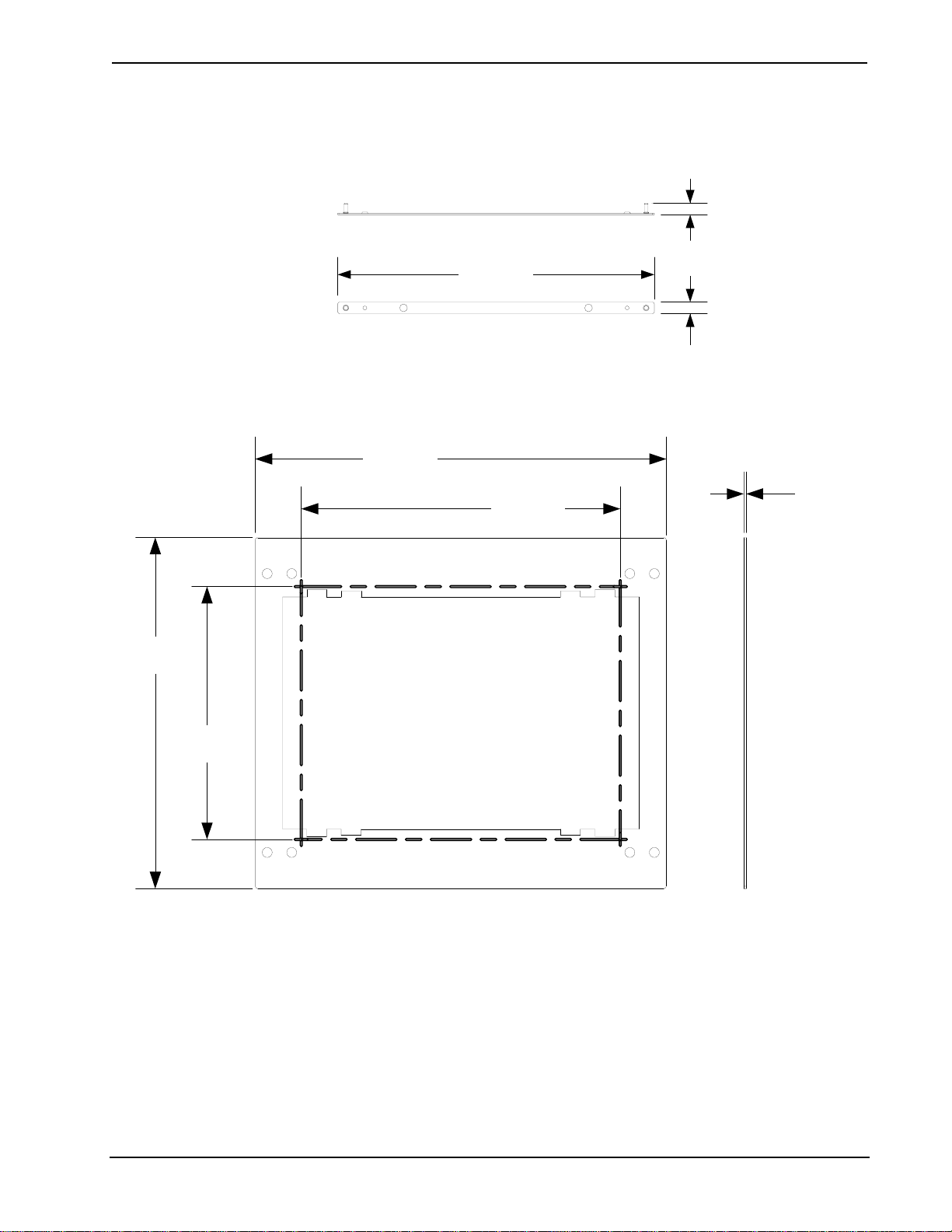

Dimensional Drawing – Adjustment Plate

0.38 in

(0.95 cm)

0.38 in

(0.95 cm)

10.24 in

(26.01 cm)

Dimensional Drawing – Mounting Plate

10.31 in

(26.19 cm)

8.00 in

(20.32 cm)

0.06 in

(0.15 cm)

8.82 in

(22.39 cm)

6.35 in

(16.13 cm)

Installation Guide – DOC. 6779A Mud Mount Kits for the TPS-6X-DSW: MMK-6X-DSW & WMKM-6X-DSW •3

Mud Mount Kits for the TPS-6X-DSW Crestron MMK/WMKM-6X-DSW

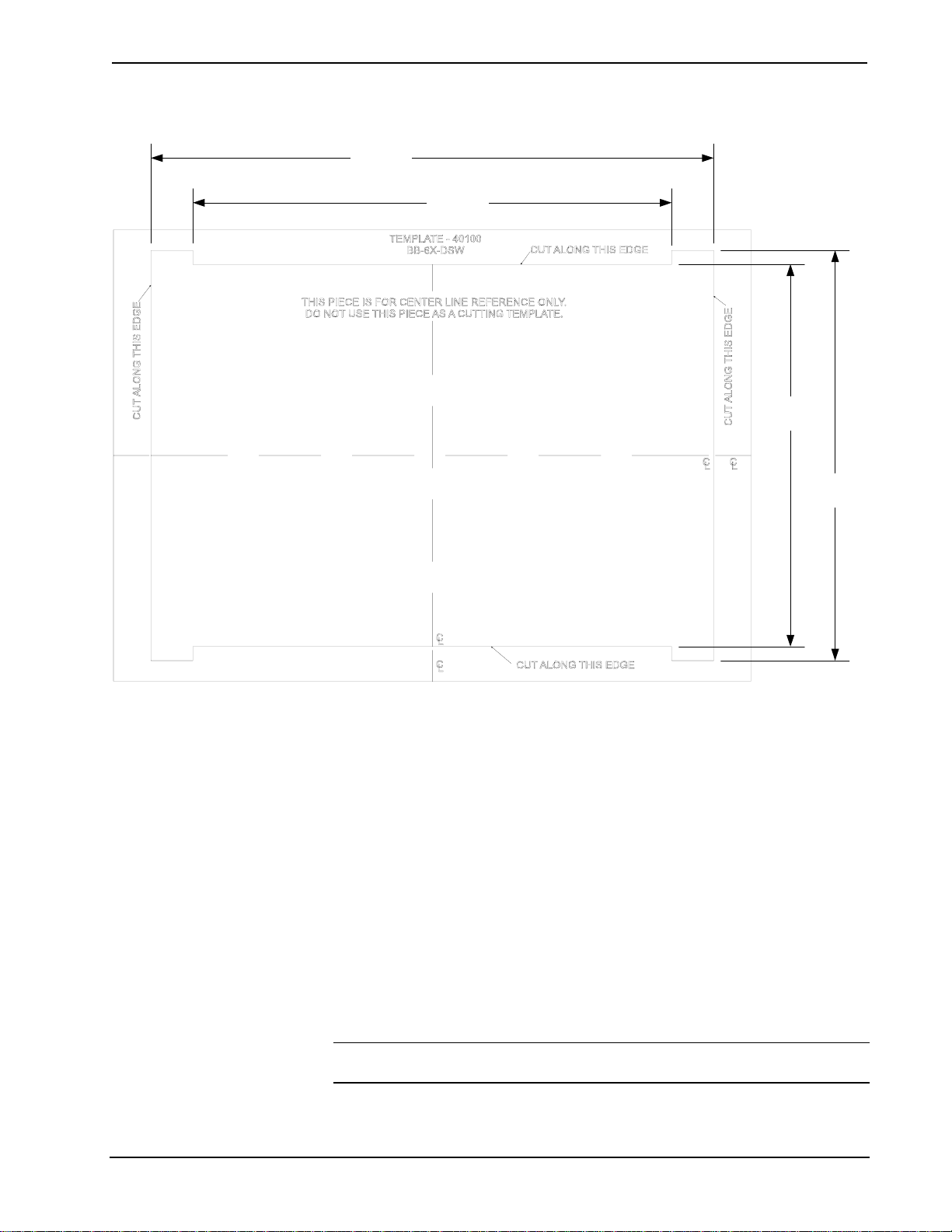

Drywall Cutout Template and Dimensions (supplied with WMKM-6X-DSW only)

7 11/16 in

(196 mm)

9 1/16 in

(230 mm)

6 9/16 in

(167 mm)

6 1/8 in

(156 mm)

Installation

This section provides an installation procedure for each Mud Mount Kit. The

“MMK-6X-DSW Procedure” starts below and the “WMKM-6X-DSW Procedure”

starts on page 7. Be sure to review each procedure before starting.

MMK-6X-DSW Procedure

This section provides the necessary steps for the assembly of the MMK-6X-DSW

with either the BB-6X-DSW or PKM-6X-DSW. It is assumed that the BB-6X-DSW

or PKM-6X-DSW has been secured to the stud according to the instructions in the

latest revisions of their Installation Guides (Doc. 6728 and Doc. 6778 respectively).

It is also assumed that drywall is in place and a cutout for the TPS-6X-DSW is made

in the drywall.

Complete the steps in the order provided. The only tools or materials required and

not supplied are four standard drywall screws, #2 Phillips screwdriver, a level and

tools/material to apply drywall joint compound.

CAUTION: Allow an air gap of at least 12 inches (30.48 cm) in the wall cavity

above and below the TPS-6X-DSW for heat dissipation.

4 •Mud Mount Kits for the TPS-6X-DSW: MMK-6X-DSW & WMKM-6X-DSW Installation Guide – DOC. 6779A

Crestron MMK/WMKM-6X-DSW Mud Mount Kits for the TPS-6X-DSW

NOTE: The illustrations in this procedure show the installation of the

MMK-6X-DSW with the PMK-6X-DSW. Even though the illustrations only show

the PMK-6X-DSW, they are identical for the BB-6X-DSW.

1. Pass an adjustment plate through the opening and align its two center holes

with the top two pins on the PMK-6X-DSW. Verify that the pins on the

adjustment plate are not between (facing) the adjustment plate and the

PMK-6X-DSW. Refer to the illustration below for visual guidance.

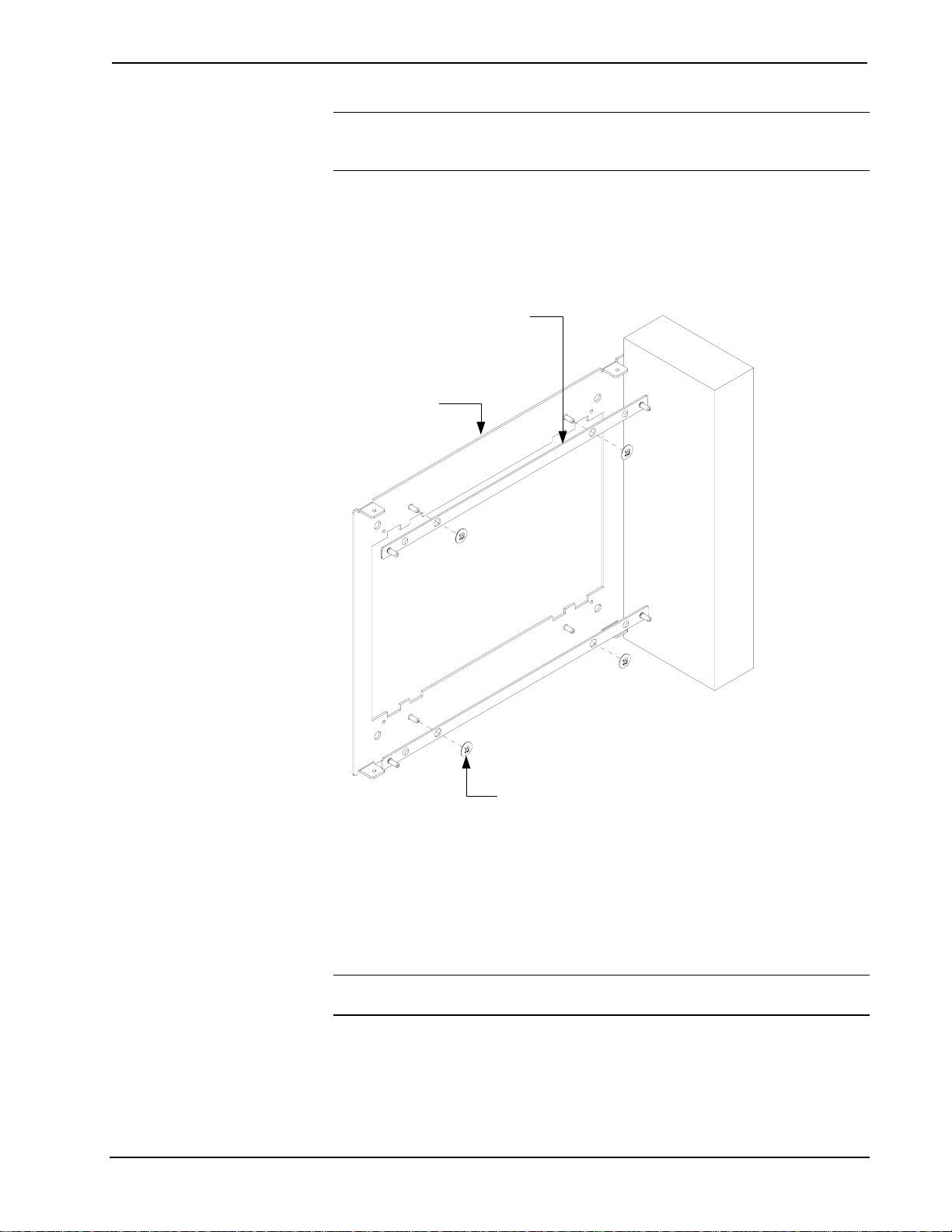

Secure Adjustment Plates to PMK-6X-DSW (or BB-6X-DSW)

PMK-6X-DSW

ADJUSTMENT PLATE(2)

(2017631 )

PUSH-ON FASTENER (4)

(2004121 )

NOTE: BACK VIEW

OF INSTALLATION.

2. Slide a push-on fastener over each pin of the PMK-6X-DSW (or

BB-6X-DSW) to loosely secure the adjustment plate and the mounting

plate. Do not push the push-on fasteners all the way down onto the pins.

Slide them on enough to keep the adjustment plate and mounting plate as

one adjustment/mounting plate assembly.

3. Use the second adjustment plate and repeat steps 1 and 2 using the lower

two PMK-6X-DSW (or BB-6X-DSW) pins.

NOTE: When installing into the PMK-6X-DSW, verify that the 18 AWG bus wire

securing the cables for the TPS-6X-DSW remains attached.

4. Insert the symmetrical mud ring plate into the opening, as shown in the

illustration on the following page.

Installation Guide – DOC. 6779A Mud Mount Kits for the TPS-6X-DSW: MMK-6X-DSW & WMKM-6X-DSW •5

Mud Mount Kits for the TPS-6X-DSW Crestron MMK/WMKM-6X-DSW

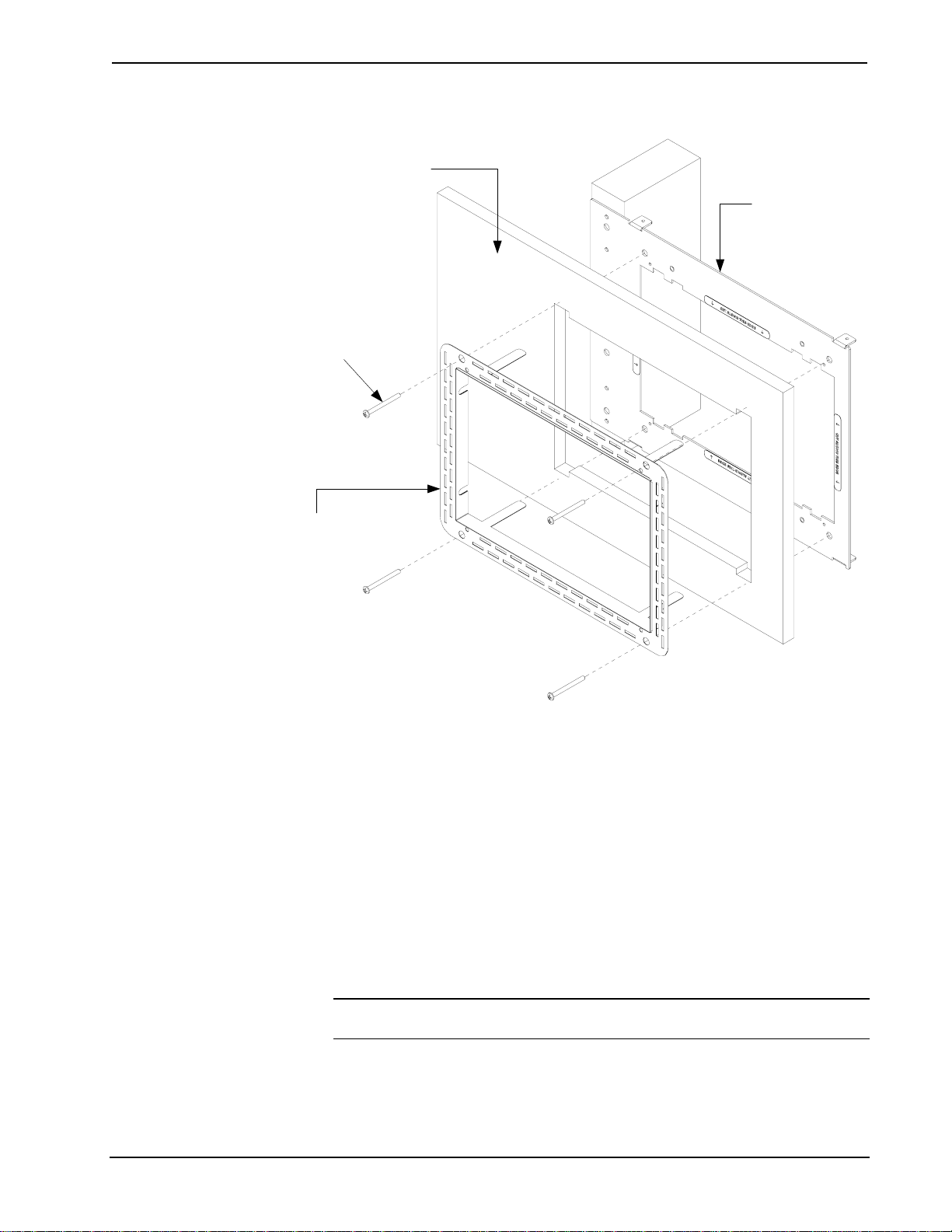

Insert and Secure Mud Ring Plate into PMK-6X-DSW (or BB-6X-DSW)

PMK-6X-DSW

DRYWALL

MUD RING PLATE

(2022809 )

DRYWALL SCREWS

(NOT INCLUDED)

SCREW LENGTH SHOULD NOT

EXCEED DRYWALL THICKNESS

BY MORE THAN1/2" (13 MM).

5. When the mud ring plate is in position, bend the top two flanges of the plate

upward and the bottom two flanges downward.

• If mounting into the PMK-6X-DSW, bend the flanges approximately

90 degrees.

• If mounting into the BB-6X-DSW, bend the flanges back as far as they

can go.

6. Use four standard drywall screws (length should not exceed drywall

thickness by more than 1/2 inch) to secure the mud ring plate to the rest of

the assembly. The screws pass through the clearance holes in the

PMK-6X-DSW (or BB-6X-DSW) and are secured in the extruded holes of

the adjustment plates.

7. Verify that the mud ring plate is level.

NOTE: Do not overtighten screws. Doing so may over-dimple or rip the mud ring

plate.

8. Use a #2 Phillips screwdriver and tighten the drywall screws by hand so that

they slightly dimple into the holes in the mud ring plate.

6 •Mud Mount Kits for the TPS-6X-DSW: MMK-6X-DSW & WMKM-6X-DSW Installation Guide – DOC. 6779A

Crestron MMK/WMKM-6X-DSW Mud Mount Kits for the TPS-6X-DSW

9. Apply drywall joint compound as needed to finish the cutout. Avoid

covering the four tapped mounting holes.

10. Run the necessary cables for the TPS-6X-DSW and secure them behind the

drywall.

11. When dry, the wall mount docking station can be installed using the four

tapped holes in the PMK-6X-DSW. Refer to the latest revision of the

TPS-6X-DSW Operations and Installation Guide (Doc. 6708) for

installation instructions. Refer also to the comprehensive illustration below.

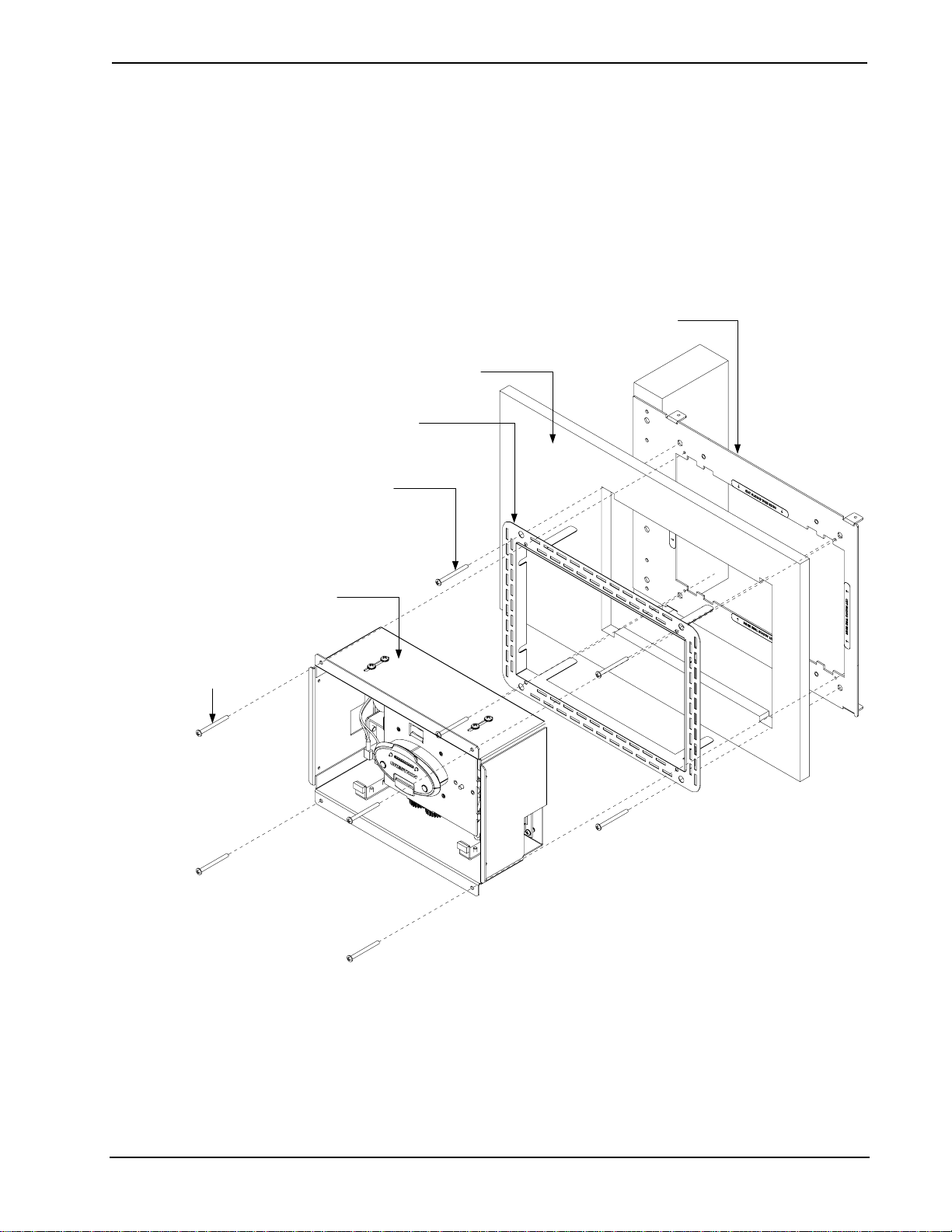

TPS-6X-DSW Mounting Using MMK-6X-DSW – Exploded View

TPS-6X-DSW

SCREW (4) #06-32 1 1/2"

PAN HEAD(2007254 )

DRYWALL

DRYWALL SCREWS(NOT INCLUDED)

SCREW LENGTH SHOULD NOT

EXCEED DRYWALL THICKNESS BY

MORE THAN1/2" (13 MM).

PMK-6X-DSW NOTE: REQUIRED

ADJUSTMENT

PLATES AND

PUSH-ON

FASTENERS NOT

SHOWN.

MUD RING PLATE

(2022809 )

WMKM-6X-DSW Procedure

This section provides the necessary steps for the assembly and installation of the

WMKM-6X-DSW into a wall. Review the procedure and complete the steps in the

order provided. The only tools or materials required and not supplied are a drywall

saw or equivalent, a level, four standard drywall screws, #2 Phillips screwdriver and

tools/material to apply drywall joint compound.

Installation Guide – DOC. 6779A Mud Mount Kits for the TPS-6X-DSW: MMK-6X-DSW & WMKM-6X-DSW •7

Mud Mount Kits for the TPS-6X-DSW Crestron MMK/WMKM-6X-DSW

CAUTION: Allow an air gap of at least 12 inches (30.48 cm) in the wall cavity

above and below the TPS-6X-DSW for heat dissipation.

1. Insert the two pins on one adjustment plate into the top two outer holes

on the mounting plate, as shown in the illustration below.

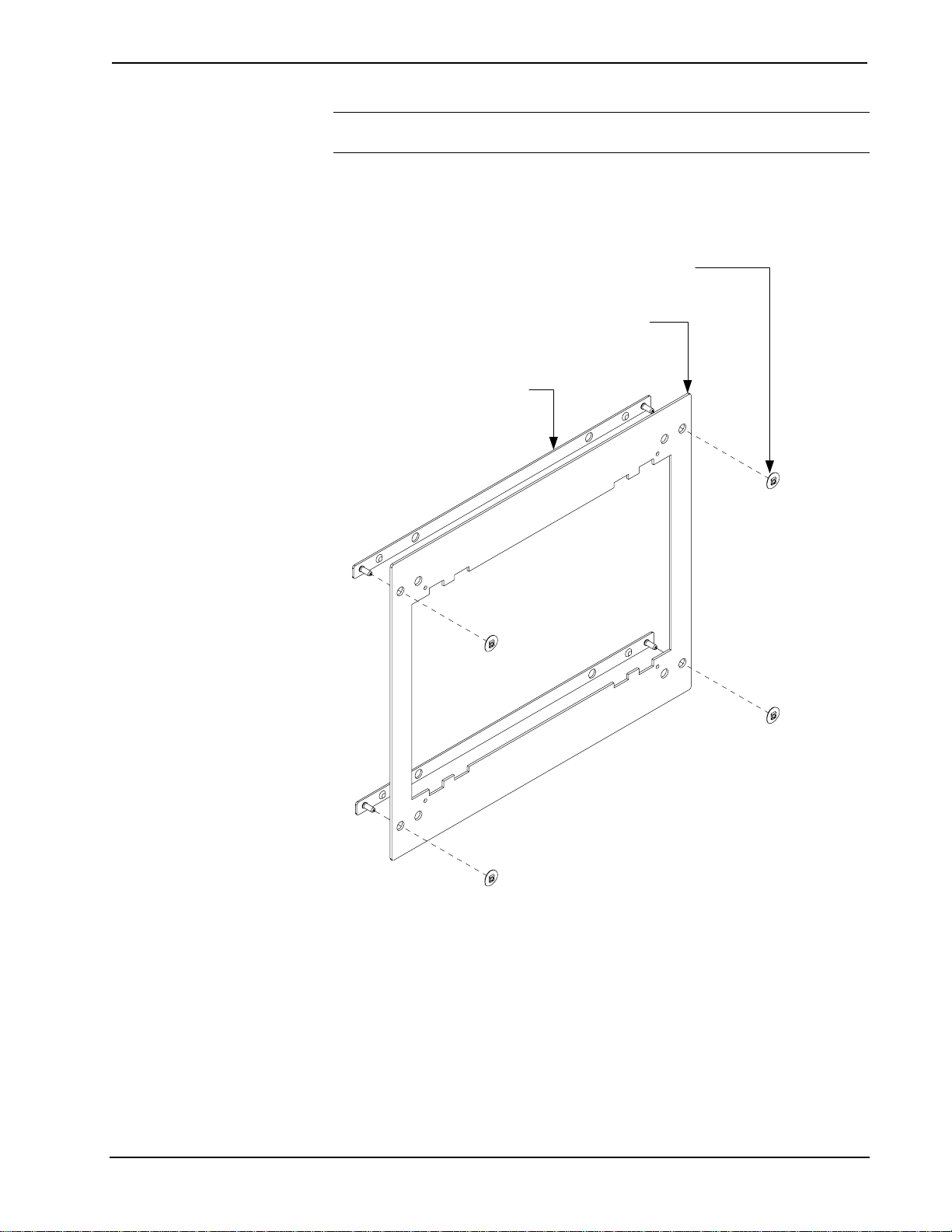

Create the Adjustment/Mounting Plate Assembly

ADJUSTMENT PLATE(2)

(2017631 )

MOUNTING PLATE

(2022811 )

PUSH ON FASTENER(4)

(2004121 )

2. Slide a push-on fastener over each pin on the adjustment plate to

loosely secure the adjustment plate and the mounting plate. Do not

push the push-on fasteners all the way down onto the pins. Slide them

on enough to keep the adjustment plate and mounting plate as one

adjustment/mounting plate assembly.

3. Use the second adjustment plate and repeat steps 1 and 2 using the

lower two holes on the mounting plate.

4. Locate an area on the wall that is free of miscellaneous wiring and

studs.

5. Make a small hole near the middle of the designated site; verify that the

location is suitable.

8 •Mud Mount Kits for the TPS-6X-DSW: MMK-6X-DSW & WMKM-6X-DSW Installation Guide – DOC. 6779A

Altri manuali per TPS-6X-DSW

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Crestron Rack e supporto

Crestron

Crestron TMK-2000L Manuale utente

Crestron

Crestron RMK-3100L Manuale utente

Crestron

Crestron TMK-4L Manuale utente

Crestron

Crestron PMK-17L Manuale utente

Crestron

Crestron TST-600-DSW-PMK Manuale utente

Crestron

Crestron WMKB-1000L Manuale utente

Crestron

Crestron TST-902-DSW Disegno dimensionale

Crestron

Crestron MMK-17L Manuale utente

Crestron

Crestron CCS-UC-200-WSTND Manuale utente

Crestron

Crestron CCS-TS-6500-MCK Manuale utente

Crestron

Crestron SMK-12 Manuale utente

Crestron

Crestron RMK-6L Manuale utente

Crestron

Crestron RMK-4000L Manuale utente

Crestron

Crestron UCA-SMK-UC2 Manuale utente

Crestron

Crestron UCA-RMK-1U Manuale utente

Crestron

Crestron MMK-15L Manuale utente

Crestron

Crestron TSW-560-TTK Disegno dimensionale

Crestron

Crestron CT-1000 Manuale utente

Crestron

Crestron TSW-UMB-70-BBI Manuale utente

Crestron

Crestron TSS-752-MSMK Manuale utente

Crestron

Crestron RMK-15L Manuale utente

Crestron

Crestron TS-70 Series Manuale utente

Crestron

Crestron TMK-6X-DSW Manuale utente

Crestron

Crestron PMK-3100L Manuale utente

Manuali Rack e supporto popolari di altre marche

Salamander

Salamander Acadia AC/W/L400/WH Manuale utente

Fohhn

Fohhn VAT-09 Guida utente

ricoo

ricoo FS0522 Manuale utente

AMSOIL

AMSOIL BMK-22 Guida rapida

Kargo Master

Kargo Master 48220 Manuale utente

Milestone AV Technologies

Milestone AV Technologies SIMPLICITY SLF2 Manuale utente

ricoo

ricoo S1222 Manuale utente

Ready-Set-Mount

Ready-Set-Mount RSMCM602 Manuale utente

VidaBox

VidaBox VB MNT FFS2 Manuale utente

Welch Allyn

Welch Allyn 48960 Manuale utente

Arkon

Arkon CM035-ST-2 Manuale utente

PROEL

PROEL PLWIN60C Manuale utente

Agilent Technologies

Agilent Technologies E2609B Manuale utente

Mustang

Mustang MV-ARM4 Manuale utente

Mounting Solutions

Mounting Solutions WRM-320 Manuale utente

Pyle

Pyle PMKSPAD1 Manuale utente

ShelterIt

ShelterIt 21208 Manuale utente

SPL

SPL RackPack?4 1040 Manuale utente
