Crestron TPS-IMPC Manuale utente

Crestron TPS-IMPC

Interface Module

Operations Guide

This document was prepared and written by the Technical Documentation department at:

Crestron Electronics, Inc.

15 Volvo Drive

Rockleigh, NJ 07647

1-888-CRESTRON

All brand names, product names and trademarks are the property of their respective owners.

Crestron TPS-IMPC Interface Module

Contents

Interface Module: TPS-IMPC 1

Introduction......................................................................................1

Features & Functions.............................................................1

Specifications.........................................................................1

Physical Description ..............................................................2

Industry Compliance..............................................................7

Setup.................................................................................................7

Network Wiring.....................................................................7

Hardware Hookup..................................................................8

Problem Solving.............................................................................10

Troubleshooting...................................................................10

Further Inquiries ..................................................................11

Future Updates.....................................................................12

Return and Warranty Policies ........................................................13

Merchandise Returns / Repair Service ................................13

CRESTRON Limited Warranty ..........................................13

Operations Guide - DOC. 6162 Contents •i

Crestron TPS-IMPC Interface Module

Interface Module: TPS-IMPC

Introduction

Features & Functions

The TPS-IMPC is an interface module designed for, and included with

the CrestronTPS-3000, TPS-5000, and TPS-6000 tilt touchpanels. The

sleek design of the touchpanel base left little room for all the connectors

that define the touchpanel's versatility. Furthermore, since the panel is not

a stationary user interface, it is impractical to have an excessive amount

of cable connections directly to the touchpanel. As a result, it was

necessary to connect the touchpanel to an interface module that could

offer additional space for interconnections.

Specifications

The following table provides a summary of specifications for the

TPS-IMPC.

Specifications of the TPS-IMPC

SPECIFICATION

DETAILS

Optional Power Pack PW-2420RU

(PWI-2420RU for international use)

Dimensions & Weight Height: 1.25 in (3.18 cm)

Width: 5.82 in (14.79 cm)

Depth: 3.50 in (8.89 cm)

Weight: 12.5 oz (0.36 kg)

Operations Guide - DOC. 6162 Interface Module: TPS-IMPC •1

Interface Module Crestron TPS-IMPC

Physical Description

The TPS-IMPC, shown in the following diagram, is supplied with the

TPS-3000, TPS-5000, and TPS-6000 tilt touchpanels. The module is

housed in a black enclosure with a silk-screened top panel. An AC

adapter port, network connector, and video input connectors are located

on one side of the unit. The opposite side provides a video input signal

selector switch, audio input connectors, microphone output connectors,

and audio/network/video connections to the touchpanel. The TPS-IMPC

also has mounting feet to secure the unit to a mounting surface.

Physical Views of the TPS-IMPC

FOR BOTH SIDES OF THE UNIT

THESE DIMENSIONS ARE THE SAME

Ø 0.16 in

(0.41 cm)

6 PLACES

0.27 in

(0.69 cm)

1.12 in

(2.84 cm)

1.14 in

(2.89 cm)

5.82 in

(14.78 cm)

5.32 in

(13.52 cm)

0.25 in

(0.64 cm)

3.50 in

(8.89 cm)

2.81 in

(7.12 cm)

1.25 in

(3.18 cm)

Ports

There are nine ports that serve various functions on the TPS-IMPC. Refer

to the following diagrams and descriptions of each port.

2 •Interface Module: TPS-IMPC Operations Guide - DOC. 6162

Crestron TPS-IMPC Interface Module

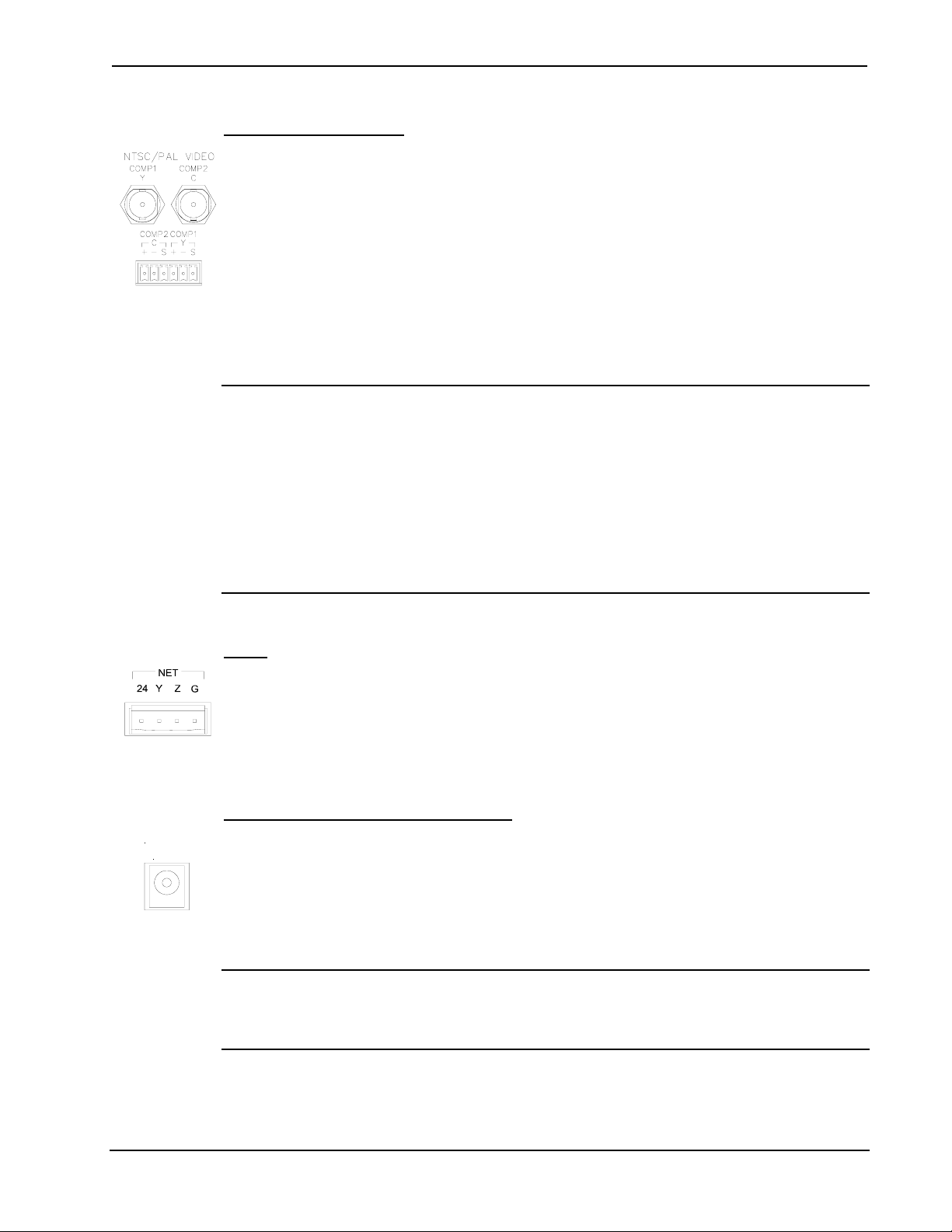

NTSC/PAL VIDEO

The NTSC/PAL video input consists of three connectors; two BNC

connectors for unbalanced video signals and one 6-pin mini-connector

for twisted pair wiring of balanced video signals. The video signal is

connected to these ports and requires a TPS-3000 or installation of the

TPS-VID-1 or TPS-VID-2 video card in a TPS-5000 or TPS-6000

touchpanel to display video. Consult the latest revision of the TPS-3000

Operations Guide (Doc. 6076) or TPS-VID-1/2 Operations & Installation

Guide (Doc. 6059) for details. Use either the two BNC connectors or the

six-pin connector for twisted pair wiring when connecting a video source.

NOTE: BNC connectors are physically located next to the twisted pair

connectors. Image is for illustration purposes only. Refer to the physical

view of the TPS-IMPC on page 2 for actual connector positions.

NOTE: The TPS-IMPC allows the use of either balanced or unbalanced

signals for video input. To select the signal type to be used, the DIP

switches located next to the MIC port must be set in the correct position.

Refer to “BAL/COAX” on page 6 for more information.

NET

This four-pin connector is used to connect to other Cresnetperipherals

in a system and provide network power to the touchpanel if an external

power pack is not used. If making network connections to a control

system or Cresnet peripherals, refer to “Network Wiring” on page 7.

24 VDC, 2.0A (Power Supply)

24VDC

2.0A

This female connector is used to supply 24 VDC power to the

TPS-IMPC and the touchpanel from an optional power pack (Crestron

model PW-2420RU). When power is supplied to the TPS-IMPC through

this connector, a Cresnet power connection is not required to display

video on the touchpanel.

CAUTION: Use only Crestron power supplies for Crestron equipment.

Failure to do so could cause equipment damage or void the Crestron

warranty.

Operations Guide - DOC. 6162 Interface Module: TPS-IMPC •3

Interface Module Crestron TPS-IMPC

CAUTION: If power is provided to the TPS-IMPC from the +24VDC on

a Cresnet connector or the PW-2420RU, power must not be applied to

the power input on the touchpanel base.

NOTE: When power is supplied through this connector, Crestron

recommends disconnecting the +24 VDC on the Cresnet connector (if it

is connected).

NOTE: Use care in wiring installations to avoid applying 24 VDC power

to Cresnet wiring from multiple sources.

NET/VIDEO (To Panel)

VIDEO

NET/

This 10-pin RJ-45 connection mates with the TPS-3000, TPS-5000, or

TPS-6000 touchpanel. Refer to the descriptions and pinout table that

follow this paragraph. The 10-pin net/video cable assembly to connect

the touchpanel to the TPS-IMPC is supplied. Even though the 8-pin audio

cable may fit into the port, do not use it.

This port provides the Cresnet connection to the touchpanel. This port

also provides composite or S-video input for the built-in video card (with

the purchase of a TPS-3000 or installation of the TPS-VID-1/2 in a

TPS-5000 or TPS-6000 touchpanel). Consult the latest revision of the

TPS-3000 Operations Guide (Doc. 6076) or TPS-VID-1/2 Operations &

Installation Guide (Doc. 6059) for details.

NET/VIDEO Pinouts

TYPE PIN DESIGNATION DESCRIPTION

1 +24V Power (Network)

2 GND Ground (Network)

3 C+ Chrominance (Positive) /Composite 2

4 C- Chrominance (Negative) /Composite 2

5 Y Data (Network)

6 Z Data (Network)

7 Y+ Luminance (Positive)/Composite 1

8 Y- Luminance (Negative)/Composite 1

9 GND Ground (Network)

10-pin RJ-45

Pin 1 Pin 1

10 +24V Power (Network)

To determine the location of pin 1, hold the cable so that the end of the

10-pin RJ-45 connector is facing away from you, with the clip side down

and the copper side up. The copper connector on the far left is pin 1.

4 •Interface Module: TPS-IMPC Operations Guide - DOC. 6162

Crestron TPS-IMPC Interface Module

CAUTION: The 10-pin RJ-45 net/video connector cable supplied by

Crestron is a custom cable and is the only one that should be used. The

end of the cable has a metal shield that is required to protect the

equipment. Using non-Crestron cables will result in damage to the

product.

AUDIO (To Panel)

AUDIO

This 8-pin RJ-45 mates with the TPS-3000, TPS-5000, or TPS-6000

touchpanel. The 8-pin audio cable assembly is supplied. Even though the

10-pin net/video cable may fit into the port, do not use it. This port

provides audio input to the touchpanel and microphone output from the

touchpanel. A description of the pinouts is shown in the following table.

AUDIO Pinouts

TYPE PIN DESIGNATION DESCRIPTION

1L+ Left Input (Positive)

2 L- Left Input (Negative)

3 GND/Shield Audio Input Ground/Shield

4 R+ Right Input (Positive)

5 R- Right Input (Negative)

6 GND/Shield Mic Output Ground/Shield

7 M+ Mic Output (Positive)

Front

Top

8 M- Mic Output (Negative)

To determine the location of pin 1, hold the cable so that the end of the

8-pin RJ-45 connector is facing away from you, with the clip side down

and the copper side up. The copper connector on the far left is pin 1.

AUDIO INPUT

The port mates with a six-pin connector (supplied) and provides balanced

and/or unbalanced audio input. Description of the pinouts is shown in the

following table.

Operations Guide - DOC. 6162 Interface Module: TPS-IMPC •5

Interface Module Crestron TPS-IMPC

AUDIO INPUT Pinouts

PIN DESCRIPTION

S Shield

R + Right Positive

R - Right Negative

L + Left Positive

L- Left Negative

S Shield

MIC OUT

The port mates with a three-pin connector (supplied) and produces line

level differential output. Description of the pinouts is shown in the

following table.

MIC OUT Pinouts

PIN DESCRIPTION

+ Positive

- Negative

S Shield

BAL/COAX

While not a port, these DIP switches are used to select which video

connections (balanced or unbalanced) to use when receiving video

signals. When used with a TPS-VID-2, each composite video signal can

come in on either the twisted pair (balanced) or coaxial (unbalanced)

connector. When used with a TPS-VID-1, the video signal (S-video or

composite) can be received over the twisted pair (balanced) or coaxial

(unbalanced) connectors. As long as a switch is in the appropriate

position, a signal can be connected to either the BNC or twisted-pair

connector.

To select the twisted pair connector for balanced video, the DIP switch

for the respective video source must be in the “UP” position. To use the

coaxial connector(s) for unbalanced video, the DIP switch must be in the

“DOWN” position.

6 •Interface Module: TPS-IMPC Operations Guide - DOC. 6162

Indice

Altri manuali Crestron Apparecchiature di registrazione

Crestron

Crestron C2N-UNI8IO Come usare

Crestron

Crestron 3 Series Manuale utente

Crestron

Crestron TPS-XVGA Come usare

Crestron

Crestron CNSNET Manuale utente

Crestron

Crestron PSPHD Manuale utente

Crestron

Crestron TPS-XVGAL Manuale utente

Crestron

Crestron HD-XSP Manuale utente

Crestron

Crestron TPMC-CH-IMW Manuale utente

Crestron

Crestron TPMC-L-IMC Manuale utente

Crestron

Crestron TPMC-CH-IMC Manuale utente

Crestron

Crestron TPS-IMC-BV Manuale utente

Crestron

Crestron 1 Beyond Automate VX Series Manuale utente

Crestron

Crestron TPS-TPI Manuale utente

Crestron

Crestron TPS-IMC Manuale utente

Crestron

Crestron C2N-DAP8RC Manuale utente

Crestron

Crestron V24-IMCW-C Manuale utente

Crestron

Crestron DIN-DALI-2 Manuale utente

Crestron

Crestron HD-XSP Come usare

Crestron

Crestron TST-600-IMCW Manuale utente

Crestron

Crestron CAPTURE-HD Manuale utente

Crestron

Crestron CAPTURE-HD Manuale utente

Crestron

Crestron Green Light GLS-EM-CTI Manuale utente

Crestron

Crestron C2N-CAMIDSPT Manuale utente

Crestron

Crestron C2N-UNI8IO Istruzioni operative originali

Manuali Apparecchiature di registrazione popolari di altre marche

KV2 Audio

KV2 Audio 500 Series Manuale utente

Robotics Technologies

Robotics Technologies microBus-Cam II Manuale utente

Seca

Seca 460 Manuale utente

Cognex

Cognex MVS-8000 Series Manuale utente

Mect

Mect MPNC006 Series Manuale utente

Bad Caf

Bad Caf THE LEASH Manuale utente

Strymon

Strymon NIGHTSKY Manuale utente

Mitsubishi Electric

Mitsubishi Electric 16CH DIGITAL RECORDER DX-TL5000U Manuale utente

Tews Technologies

Tews Technologies TPMC465 Manuale utente

Honeywell

Honeywell Excel 50 Manuale utente

SeaLevel

SeaLevel COMM+8.LPCI Manuale utente

Arturia

Arturia AUDIOFUSE STUDIO Manuale utente

Rukra

Rukra RK-1240 Manuale utente

Samson

Samson SCOM Manuale utente

Dynacord

Dynacord DPS260 Manuale utente

Nice

Nice Core Manuale utente

Pyle Pro

Pyle Pro PSS8 Manuale utente

RF-System

RF-System TinyGate Manuale per l'uso e la cura
