Crestron Thermostat Quick Start Guide

Thermostat Quick Start Guide – Doc. 6145A CHV-TSAT and CHV-THSTAT Series •

Crestron Quick Start Thermostat

CHV-TSTAT and CHV-THSTAT Series

Step 2

Thermostat System Connections

Mounting

Screws

(not provided)

Wall Anchors

(not provided)

Backplate

Panhead

6/32 x 1 in

Single-gang

electrical box

(not provided)

Stud

Step 1

Thermostat Mounting

Backplate

For Additional details, refer to the latest version of

the Operations and Installation Guide, Doc. 8163

TOP

HUM

RHU

RSR

RS1

RS2

24(C)

24(R)

24V

NETWORK

Y/Y1

W/W1

Backplate

24(R) - 24 VAC reference terminal. Can be connected to RH or RC

by P4 jumper setting (refer to following page), or tied directly

to power source

24(C) - 24 VAC common terminal supplies remote 24 VAC power

to thermostat

RS2 - Remote Sensor terminal - Connect the sensor from RS2 to RSR

RS1 - Remote Sensor terminal - Connect the sensor from RS1 to RSR

RSR - Remote Sensor Returns - Common sensor terminal

RHU - Reference for humidifier

HUM - Energized (connected) to RHU during humidity call

W2 - Heat (stage two), energized (connected) to RH during a call for

second stage heat in heat/cool systems

W/W1 - Heat (single stage)/heat (stage one) energized

to RH during a call for heat in heat/cool systems or aux heat

in heat pump systems

B - Energized to RC during non-cooling modes

O- Changeover control, energized to RC during cooling modes

Y2 - Compressor (stage two), energized to RC on two-stage

systems on call for second stage

Y/Y1 - Compressor (stage one), energized to RC when

compressor (or first stage) is run

G- Fan, energized to RC during call for fan

RC - Reference Cool, used for calls to cooling system

RH - Reference Heat, used for calls to heating system

Network Connection

for Crestron

Installer Only

NOTE:

Fill the Electrical Box

with Thermal

Insulation Material

Quick Start Guide Crestron Thermostat

•CHV-TSTAT and CHV-THSTAT Series Thermostat Quick Start Guide – Doc. 6145A

NOTE: Ensure that the power circuits are shut off at the source before connecting the thermostat.

Provide disconnect means and overload protection as required for the power supply.

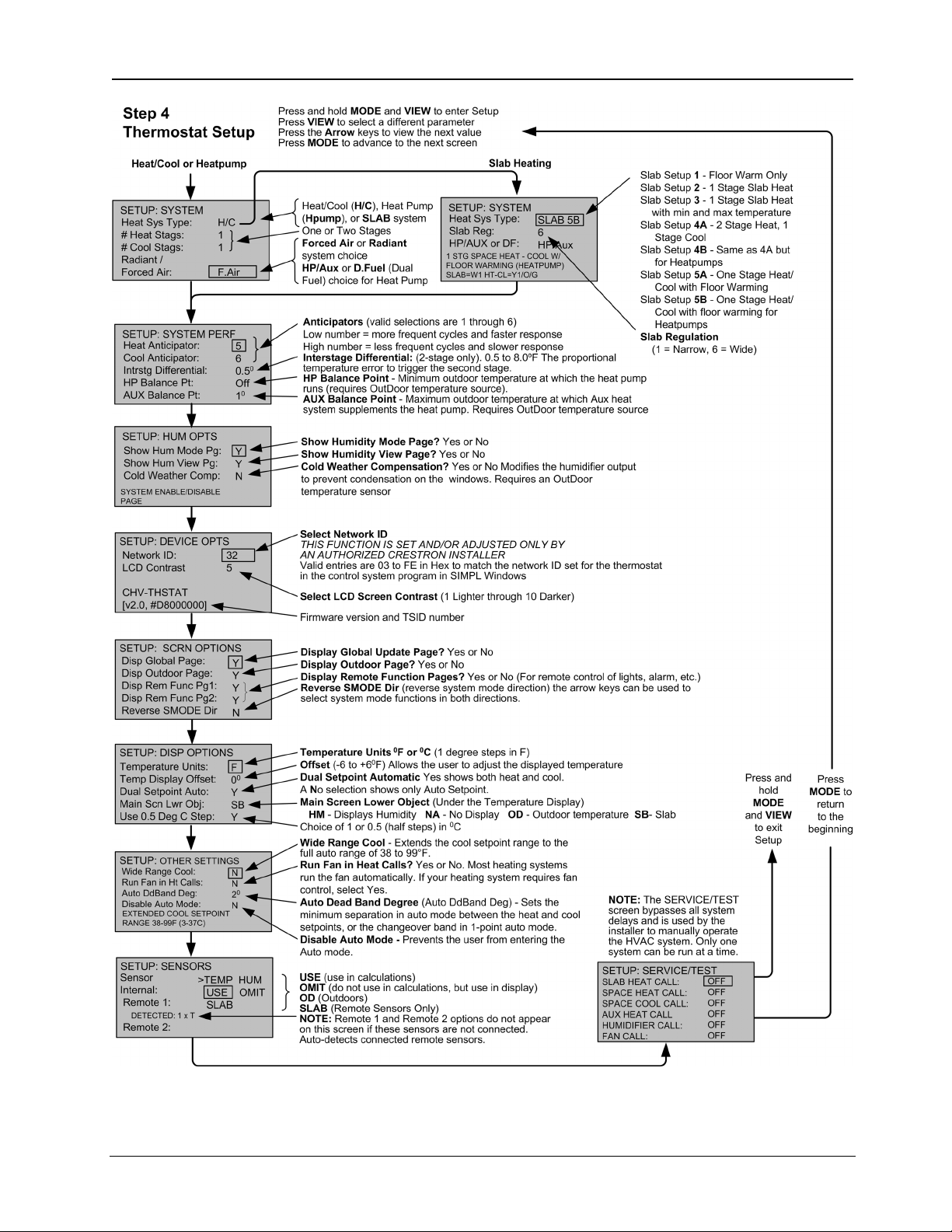

Crestron Thermostat Quick Start Guide

Thermostat Quick Start Guide – Doc. 6145A CHV-TSAT and CHV-THSTAT Series •

Quick Start Guide Crestron Thermostat

Crestron Electronics, Inc. Thermostat Quick Start – DOC. 6145A

15 Volvo Drive Rockleigh, NJ 07647 08.04

Tel: 888.CRESTRON

Fax: 201.767.7576 Specifications subject to

www.crestron.com change without notice.

Global Update

SEND

MODE

VIEW T

CRESTRON

Use the up and down arrow buttons

to make a selection.

Press MODE to step to the next

screen.

Press MODE to return to Main Screen

Press VIEW to set the humidity

setpoint, see the outdoor

temperature, and see text messages

from the system

Press VIEW

to return to

Main Screen

Use the up and

down arrow

buttons to

adjust the

Humidity Set

Point level

View the outdoor

temperature

(if an outdoor

sensor has been

installed) and

outdoor humidity

(if available)

View text messages sent from the control

system when part of a Cresnet system

Step 5

Thermostat Operation

MODE and VIEW

Main Screen

Press the down

arrow to activate

System Mode

HEAT COOL AUTO OFF

AUX HEAT ONLY

Slab System Mode

HEAT OFF

Floor Warming

76 0F820F

Air System Mode

HEAT COOL AUTO OFF

Slab System Mode

HEAT OFF

Crestron Sys

ONLINE HOLD

Humidifier

ENABLED DISABLED

Fan Mode

AUTO ON

Humidity

30%24 %

Outdoor

Messages

Emergency Gen in Use

<CLR

SLAB 3

System

SLAB 1

System

Heat/Cool,

Heatpump &

SLAB 4 Systems

System Mode

HEAT OFF

SLAB 2

System

SLAB 5

System

Floor Warming

76 0F820F

System Mode

HEAT OFF

The displayed Mode screens

depend on the type of system. 76oF

43 %

76oF

HEATING

HEAT ONLY

NET FAULT

H1 H2 AX

MODE

VIEW T

CRESTRON

76oF

43 %

76oF

HEATING

HEAT ONLY

NET FAULT

H1 H2 AX
