CrimeStopper CS-2000 Manuale

CS-2000 Series II

REMOTE CONTROL ALARM SYSTEM

INSTALLATION & OPERATING INSTRUCTIONS

INTRODUCTION

CONGRATULATIONS on your choice of a Gargoyle™ Remote Alarm System by Crimestopper Security

Products Inc. This booklet contains the information necessary for installing, using, and maintaining your alarm

system. If any questions arise, contact your installation dealer or Crimestopper Security Products Inc. at the

Tech Support number below.

*IMPORTANT INFORMATION: Primary and Optional Features:

-PRIMARY: These are features that must be connected in order for the system to operate properly; i.e. the

Siren, L.E.D., +12V Power, Ground, Doorpin, Override/Program/Valet Button etc.

-OPTIONAL: These are features to be connected if desired or agreed upon by the installing dealer. These

features may also require additional parts and/or labor fees. Consult with your installer beforehand; i.e. Door

Locks, Flashing Lights, Starter disable, Hood/Trunk trigger, and Auxiliary Remote Outputs etc.

This device complies with FCC Rules part 15. Operation is subject to the following

two conditions: 1) This device may not cause interference, and (2) this device

must accept any interference that may be received, including interference that may

cause undesired operation. The manufacturer is not responsible for any radio or

TV interference caused by unauthorized modification to this equipment. Such

modification could void the user's authority to operate the equipment.

TECH SUPPORT

Mon-Fri 8:00 AM-4:30 PM Pacific Time

(800) 998-6880

REV. A 02.2003 S/W:

TABLE OF CONTENTS

Installation Cautions & Warnings…….………………………………………………………………………………2

Control Module & Component Mounting……………...………………………..……………………….…………..3

Wiring……..……………………………………………………………………………………………………….…….4-5

Power Door Lock Wiring...……………………………………………………….………..……………………………6

Transmitter Programming………………………………………………………………………………………………7

Option Programming…………………………………………….……………………………….………………….8-10

Custom Override……...………………………………………….……………………………….……………………11

Remote Control……………………………………..……………………………………………………….………….12

Operating Instructions………………………..……………………………………………………………..…….12-14

Car Jack Protection……………………………………………………………………………………………………15

System Wiring Diagram……………………………………………………………………………………….………16

INSTALLATION CAUTIONS & WARNINGS

BEFORE BEGINNING, check all vehicle manufacturer cautions and warnings regarding electrical service (AIR

BAGS, ABS BRAKES, ENGINE COMPUTERS, BATTERY etc.).

WE RECOMMEND the use of a VOLT/OHM METER to test and verify wiring circuits. Test lights or illuminated

probes can cause damage to on-board computer or engine management systems.

DO NOT exceed maximum output ratings or damage may occur. Electrical current limits for this alarm are

listed where applicable on the system diagram (Pg. 16). If you are unsure about the current load, of a specific

circuit on your vehicle, measure the load first with an amp-meter before connecting.

WE RECOMMEND that the MAIN SYSTEM FUSE be REMOVED before jump starting, using a battery

charger, or changing the battery. A voltage surge or high boost condition could damage alarm circuits.

DO NOT ROUTE ANY WIRING THAT MAY BECOME ENTANGLED with brake, and gas pedals, steering

column, or any other moving parts in the vehicle.

CONTROL MODULE MOUNTING

DO NOT Mount the control unit in the engine compartment!

DO NOT Mount the control unit or wiring harness where they can become entangled with moving parts

such as brake/gas/clutch pedals, or the steering column!

The alarm control module should be mounted in a concealed location. The Placement of the module will

affect the distance from which the remote transmitter can control the unit. The antenna wire should be routed

away from any metal if possible. Do not alter the length of the antenna wire or route it with other wires. Do

not ground the antenna wire. Fasten the module to a bracket or wire harness using the cable ties provided.

Underdash Mounting: If you are locating the control unit underdash, mount it as high as possible, not easily

located by an intruder.

Driver’s Side Underdash mounting provides an easy location for wiring most of the system’s connections,

however this is a common location for an intruder to check for an alarm after breaking into the vehicle. The

left side of the vehicle may contain more metal and or wiring that will create interference and decrease the

operating range of the system.

Passenger Side underdash is a good location, however some extra wiring may be needed to extend wires

across from the driver’s side.

Under-seat / Center Console mounting is also a possibility, but NOT RECOMMENDED. The system’s

transmitter range will be reduced by the metal structures of the seat or center console and the unit may also

be exposed to moisture from spilled drinks etc. Moisture or water damage is not covered under the warranty

and will be subject to repair charges. Under seat or console mounting will create more difficulty if you need to

access the unit for service or want to add-on features or connections later. Use this location as a last resort.

COMPONENT MOUNTING

SIREN: Mount the siren under the hood to an inner fender-well, wheel-well, or other body surface with the

open end facing downward.

LED: Mount the red LED in a visible location on the dashboard or console.

Shock Sensor: Mount the included shock sensor with wire ties to an under dash wire harness or fasten with

screws to firewall or side paneling. Use the adjustment screw to set the sensitivity of the sensor.

Valet/Override/Program Button: Mount the Valet/Override/Program push-button in a hidden but accessible

location. It is REQUIRED for emergency disarm, programming, and valet mode.

WIRING

GREEN WIRE: (-) DOOR TRIGGER

Identify the wire that reads ground when any door is open and 12 volts when all doors are closed. Some

vehicles may have isolated door triggers. In this case you may need to run additional wires from other doors

or go directly to the wire that triggers the vehicle’s interior dome light. One vehicle will not require the use of

BOTH door trigger wires.

VIOLET WIRE: (+) DOOR TRIGGER

Same as the GREEN wire above except this wire is used for vehicles that show a positive voltage (12 volts)

when the door is open and a ground when doors are closed as in many Ford, Lincoln, and Mercury vehicles.

BLACK WIRE: SYSTEM CHASSIS GROUND

The Black wire MUST be connected the CHASSIS METAL of the vehicle. Scrape away any paint or debris

from the connection point and use a star washer to ensure a good connection. Keep the ground wire short.

YELLOW WIRE: IGNITION SWITCHED “ON” AND “START” +12 VOLTS

Connect to an IGNITION wire (or fuse in the fuse box) that shows +12 Volts when the key in both “On” and

“Start” (WHEN CRANKING) positions.

GRAY WIRE: (-) AUX REMOTE OUTPUT 1 (Optional, may require a relay)

Connect to the Negative trunk release circuit or to the activation circuit of an auxiliary module or device. If the

circuit requires +12V, then a relay is required. RELAY WIRING: Connect the Gray wire to terminal 85, connect

relay terminals 86 and 87 to +12V constant power. Connect terminal 30 of the relay to the +12V positive

device/circuit to be activated.

BLUE WIRE: (-) HOOD/TRUNK TRIGGER (Optional)

Input trigger for a grounding hood or trunk pin switch. Connect to existing hood and trunk pin switches that

read ground when open. If no existing switches are available, install new pin switches if desired. Note: DO

NOT mount new pin switches in water pathways.

BLACK/WHITE WIRE: (-) DOME LIGHT ILLUMINATION OUTPUT (Optional, may require a relay)

Negative Dome Light System: Connect directly to dome light activation circuit.

Positive Dome Light System: Connects to terminal 85 of a relay. Connect terminals 86 & 87 to +12V

Constant. Connect terminal 30 to the dome light activation circuit.

NOTE: A relay may still be required on Negative Dome Light Systems if there are many dome lights to turn

on. (Minivans, SUV’s & Luxury vehicles) Follow the relay wiring steps for positive, but connect terminal 87 to

Ground.

WIRING

BROWN/WHITE WIRE: (-) HORN PULSE / CHIRP OUTPUT (Optional, may require a relay)

Connect to the Negative Horn Trigger wire usually located near the steering column. If the vehicle horn circuit

requires +12V, then a relay is required. RELAY WIRING: Connect the Brown/White wire to terminal 85,

connect relay terminals 86 and 87 to +12V constant power. Connect terminal 30 of the relay to the +12V

positive device/circuit to be activated.

ORANGE WIRE: (-) NEGATIVE ARMED OUTPUT / STARTER DISABLE (500mA Ground, Optional)

This wire becomes a (-) Ground output when system is armed. This output is used for disabling the starter or

to activate optional devices such as extra sensors, LED’s, window roll-up modules, voice modules etc. For

starter kill, cut starter wire and connect between 87A and 30 on relay. Connect orange wire to 85 and connect

86 to an Ignition source that has voltage in the ON and CRANKING position. (See wiring diagram for relay

configuration-Pg. 16)

WHITE/RED WIRE: (-) AUX REMOTE OUTPUT 2 (Optional, may require a relay)

This wire connects the same way as Remote Output 1 see GRAY WIRE last page.

BLUE/WHITE WIRE: NOT USED / NO CONNECTION

BROWN WIRE: (+) SIREN OUTPUT (3 Amp Max.)

Connect to RED siren wire from the Siren in the engine compartment.

WHITE WIRE: +12V FLASHING PARKING LIGHT OUTPUT

Connect to the switched parking light wire at back of light switch. If this is not possible, connect directly to one

of the parking lights at the front of the vehicle. European vehicles require separate right and left circuits. Use

a dual relay or 2 diodes to separate the output signal.

RED WIRE: +12V POWER INPUT (15 amp fuse)

Connect to +12 Volt source with supplied fuse & holder. Recommended location for this connection is at the

vehicle battery positive terminal.

SHOCK SENSOR: The sensor supplied with

this system does not require any additional

wiring. Simply mount the sensor in a suitable

location, plug it in, and adjust sensitivity.

2 PIN PLUG (BLUE): PROGRAM/OVERRIDE PUSH-BUTTON

2 PIN PLUG (RED): LED INDICATOR (RED FLASHING LIGHT)

4 PIN SENSOR PLUG: WHITE Wire: Negative Pre-Warning,

BLUE Wire: Negative Trigger, BLACK Wire: Sensor

Ground, RED Wire Sensor +12V Power

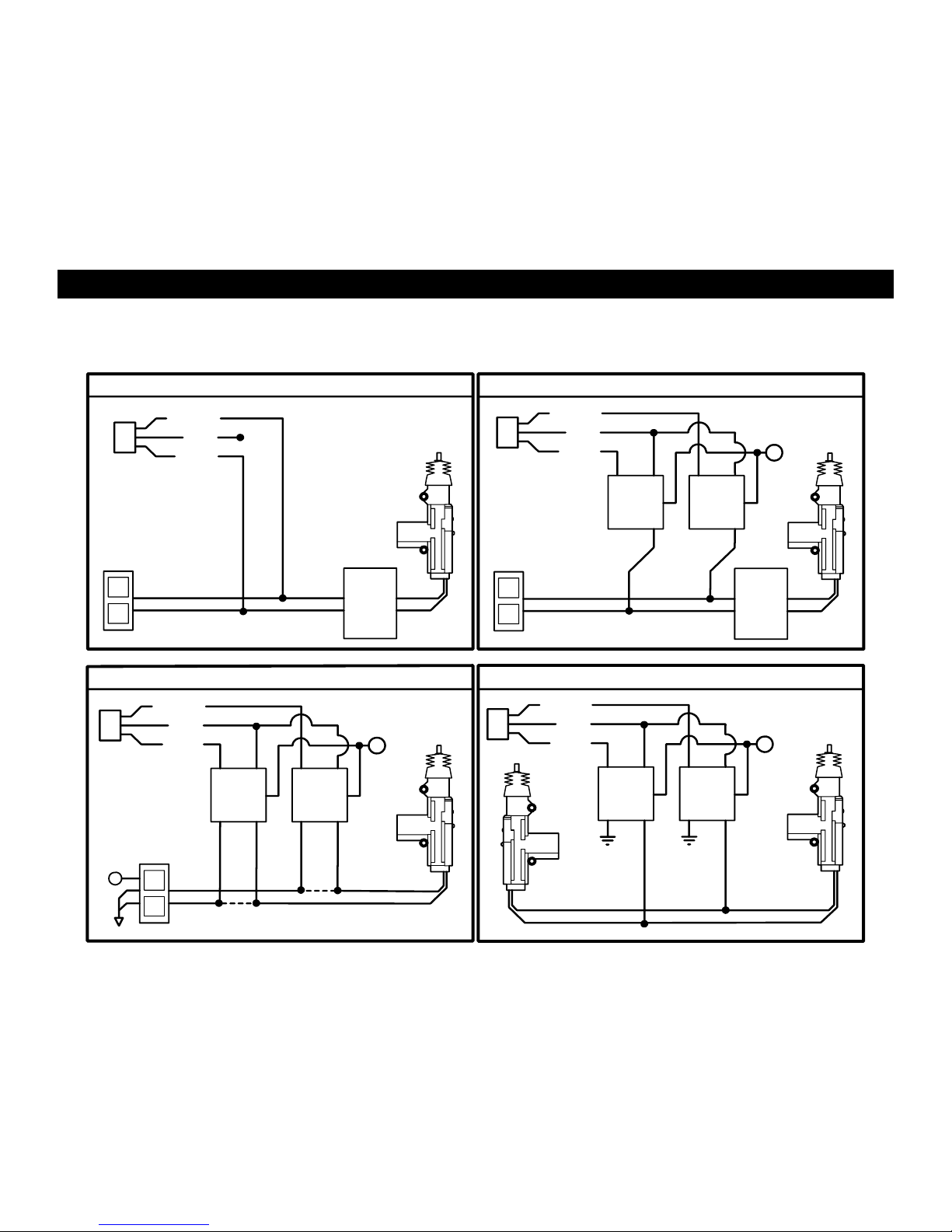

POWER DOOR LOCK WIRING

3 PIN DOOR LOCK PLUG (Optional):

GREEN: (-) Negative LOCK Pulse, RED: +12V Coil Power for relays, BLUE: (-) Negative UNLOCK Pulse

NEGATIVE TRIGGER DOORLOCK WIRING POSITIVE TRIGGER DOORLOCK WIRING

GREEN

GREEN FUSED

RED +12VRED

BLUE +

BLUE

858685

8787

3087A30

87A

FACTORY

POWER

LOCKING

UL UL

RELAYS RELAYS

ADDING AFTERMARKET DOOR LOCK MOTORSREVERSE POLARITY DOOR LOCK WIRING

GREEN

GREEN FUSED

FUSED RED

RED +12V

+12V

BLUE

BLUE +

86858685

8787

3087A3087A

CUT

MASTER

SWITCH

REMOTE TRANSMITTER PROGRAMMING

1. Turn Ignition ON and OFF 3 times quickly, leaving it ON the 3rd time. (ON/OFF, ON/OFF, ON) You should

hear (3) chirps.

2. Press the Program/Override Button 5 times and you should hear 5 light flashes and 5 siren chirps.

3. Press #1 (LOCK/UNLOCK) Button on the new transmitter. Siren chirps one time for Code-learn

confirmation. Press #1 Button on a second, third or fourth remote at this time (If needed).

4. Turn off Ignition. Siren will chirp 3 times and lights will flash 3 times for exit confirmation

Note 1: This system will learn a total of 4 transmitters max.

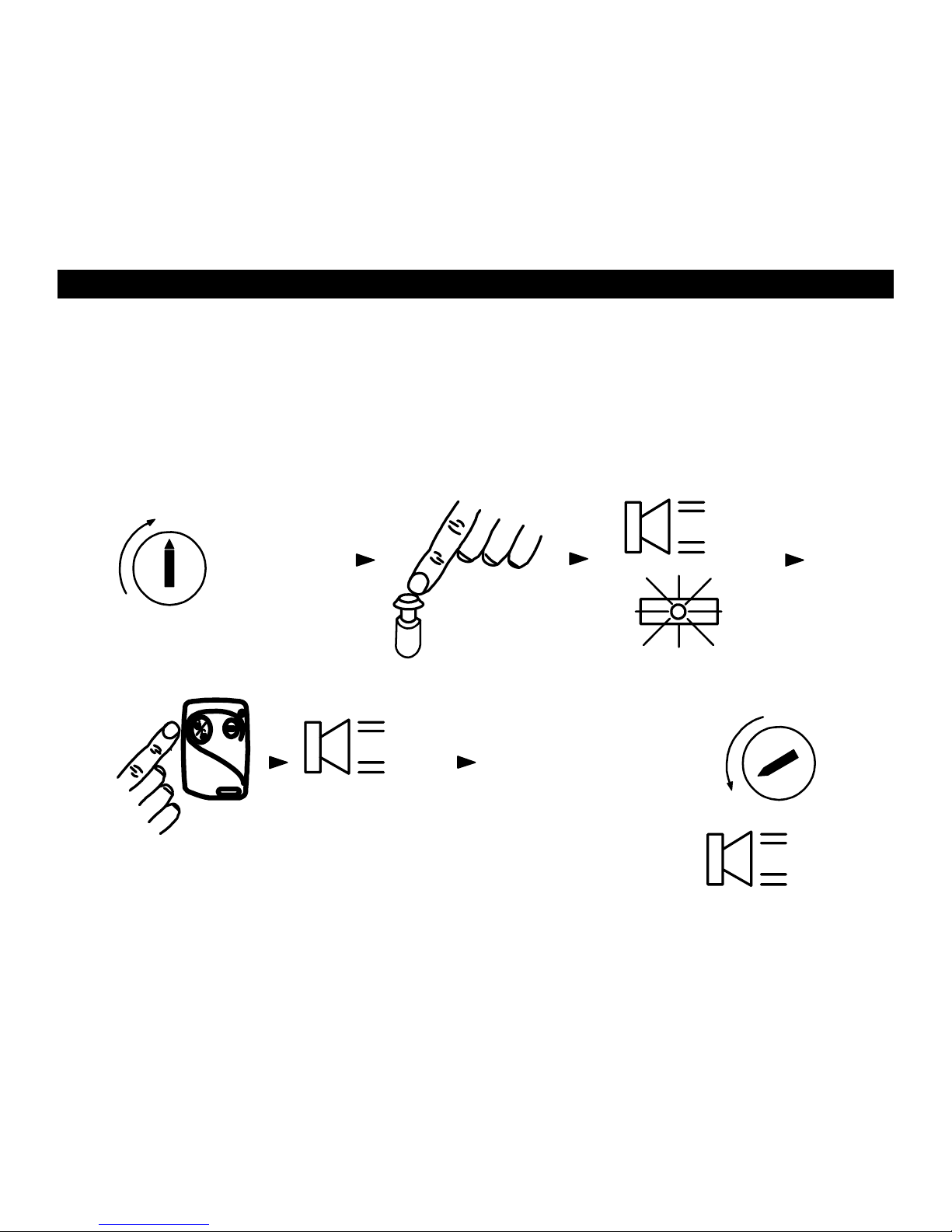

DIAGRAM:

IGN

OFF

TURN IGN. ON

3 TIMES:

ON, OFF

ON.

5 CHIRPS

PRESS

BUTTON

5 TIMES

PRESS LOCK/UNLOCK

BUTTON

1 CHIRP

5 FLASHES

(CODE LEARNED)

IGN

OFF

PRESS LOCK

ON ANOTHER

REMOTE

3 CHIRPS

OPTION PROGRAMMING

1. Turn the Ignition ON and press the Override/Program button 5 times. You should hear a long confirmation chirp.

2. Within the next few seconds, press the Override/Program button [again] the number of times that corresponds to

the feature list below. The siren will chirp for each button press. DO NOT LOSE COUNT!!

3. When you get to the desired option number, press the appropriate button on the transmitter according to the chart

below. Turn Ignition off. See Below for Option numbers, descriptions, and values. (Button 1 gives a single light

flash/chirp, Button 2 gives two light flashes/chirps, and Buttons (1+2) together gives three light flashes/chirps.)

4. Change ONE option at a time repeating steps 1-3 as needed. When you are finished customizing options, check

operation to see if the option(s) have changed.

PROGRAMMING OPTIONS CHART * = Default Settings

Option # Option Description BUTTON 1

LOCK

BUTTON 2

UNLOCK

BUTTONS (1+2)

TOGETHER

1. Factory Horn Chirps / Pulses Pulse with trip

only

Arm/Disarm Chirps

& Pulse with trip

Arm/Disarm/Warn Chirp &

Pulse with trip *

2. Passive Arming /

Passive Chirp Countdown

ON OFF* Passive Arm with

Chirp Countdown

3. Passive Lock / Cust. Override ON OFF* Custom Override

4. Ignition controlled Locks ON* OFF Ignition Lock Only

5. 10/60 Sec. Door Open Warning 10 Sec. 60 Sec.*

6. Active Re-Arm Enabled* Disable

7. Double Unlock Pulse Disabled* Enable

8. Silent Arm/Disarm

(Chirp Defeat w/Button 1)

Disabled* Enable

9. Parking Lights on with disarm Enabled* Disable

10. Disarm with trunk pop Disable Enabled*

11. Silent Arm/Disarm with Remote

(Button #2)

Enabled* Disable

12. Door Lock Pulse Time 0.7 Sec.* 3 Sec.

13. Type of Carjack Protection Active* Passive Full-Time

14. Carjack Features Enable/Disable Disabled* Enable

15. Arm/Disarm with Ignition ON

(**Overrides Carjack functions)

Disabled* Enable**

NOTE: Options can be instantly restored to Factory Default Values: To restore default values: Perform step #1 above,

then press buttons (1+2) together. The siren will chirp 4 times and lights will flash 4 times. Turn OFF Ignition. All

programming options should be restored to “*” values (See chart above).

OPTION PROGRAMMING

1. HORN CHIRPS / PULSES

This option controls the system’s Horn-honk output. There are 3 selections: Button 1 (Lock) = Horn Pulse only

when alarm is tripped. Button 2 (Unlock) = Horn Chirps for Arm / Disarm and Pulse when tripped. Buttons

(1+2) = Horn Chirps for Arm, Disarm, and Pre-warning protection. The horn output pulses when triggered.

2. PASSIVE ARMING / CHIRP COUNTDOWN

This option controls the Passive (Automatic) Arming feature. If ON, arming will occur 30 Seconds after the

ignition is turned off and the last door has been closed. The LED will begin flashing rapidly while counting

down. If a door is reopened, the system will wait (LED solid) for the door or zone to close before arming. The

unit will chirp once and flash the lights once. Doors will lock if passive locking is selected. Factory default

setting is OFF. If Passive Chirp countdown is selected, the System will produce a siren chirp every 2 seconds

during countdown until the system arms.

3. PASSIVE LOCKS / CUSTOM OVERRRIDE (SEE CUSTOM OVERRIDE SECTION, NEXT PAGE)

This option controls whether the doors will lock when Passive Arming occurs. Note: This feature may

increase the risk of locking keys in the vehicle.

4. IGNITION-CONTROLLED LOCKS

This option controls whether the locks are controlled by Ignition. There are 3 selections: Button 1 (Lock) =

Lock/Unlock with vehicle Ignition. Button 2 (Unlock) = No ignition locks. Buttons (1+2) = Ignition lock only.

Doors will not lock if they are open to prevent locking the keys in.

5. 10/60 Sec. DOOR OPEN WARNING

This setting changes the delay time in which the alarm system begins to monitor the Door circuit. This option

can prevent the alarm from giving warning chirps on vehicles with a delayed dome light.

6. ACTIVE RE-ARMING

Active Re-arming allows the system to re-arm itself 30 seconds after disarmed with the transmitter if a door

has not been opened. This is handy if the vehicle is accidentally disarmed (via the Transmitter in your pocket)

without you knowing it. If Chirp Countdown selected the system will chirp every 2 seconds during the 30

second count down to active re-arming.

7. DOUBLE UNLOCK PULSE

The unit will send 2 unlock pulses when the #2 Unlock button is pressed. This feature may be required for

interfacing this alarm with an existing Factory Keyless Entry or Alarm system in a vehicle. These systems are

found on some Nissan, VW, Toyota, and Lexus vehicles.

OPTION PROGRAMMING

8. SILENT ARMING /DISARMING (CHIRP DEFEAT)

With this feature, the system can be programmed to Arm and Disarm without the siren chirp using the regular

Lock/Unlock Button. Flashing parking lights will be the only Arm/Disarm confirmation.

9. PARKING LIGHTS ON WITH DISARM

Keeps parking lights on instead of 2 flashes when system is disarmed to assist in locating your vehicle in a

crowded parking lot or structure. Light will stay on for 30 Sec. or until Ignition is turned on.

10. DISARM WITH AUX. OUTPUT 1 (TRUNK POP)

Controls whether the system will or will not DISARM when the trunk pop or AUX. feature is used. When the

feature is turned on the unit will DISARM when opening trunk or using an auxiliary device controlled by the

Gray output wire.

11. SILENT ARM / DISARM WITH REMOTE BUTTON #2 (QUICK PRESS)

With this feature, the system can be programmed to Arm and Disarm without a siren chirp using a short press

and release of Button #2 on the remote transmitter.

12. DOOR LOCK/UNLOCK PULSE TIME

Controls the amount of time (0.75 sec. or 3 sec.) for the lock/unlock pulse. The 3 sec. setting may be required

for 1980’/90’s European Vehicles that require a long pulse to do Vacuum door lock systems.

13. ACTIVE, PASSIVE, or FULL-TIME CARJACK PROTECTION

This feature controls the type of Carjack protection the alarm will provide. There are 3 selections: Button 1

(Lock) = Active protection. Button 2 (Unlock) = Passive protection. Buttons (1+2) = Full-Time protection.

Option number 14 must be enabled to allow Carjack functions to operate. See Operation Instructions:

Carjack.

14. CARJACK FEATURES

This option controls the unit’s Car Jack features. Enable or Disable Carjack (Turn ON or OFF) with this option.

Altri manuali per CS-2000

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali CrimeStopper Allarme auto

CrimeStopper

CrimeStopper CS-9206SE Manuale

CrimeStopper

CrimeStopper Rage CS-2009 Manuale utente

CrimeStopper

CrimeStopper CAS-968 Manuale utente

CrimeStopper

CrimeStopper SP-402 Manuale utente

CrimeStopper

CrimeStopper SecurLinc CS-2008PC Manuale

CrimeStopper

CrimeStopper CS-9702 Guida rapida

CrimeStopper

CrimeStopper RS-300 Manuale utente

CrimeStopper

CrimeStopper SP-302 Manuale utente

CrimeStopper

CrimeStopper CS-8700 Manuale utente

CrimeStopper

CrimeStopper CS-9002 Manuale di servizio

CrimeStopper

CrimeStopper OnGuard CS-2200WST Manuale utente

CrimeStopper

CrimeStopper CoolStart RS-1604TW1 Manuale utente

CrimeStopper

CrimeStopper CS-2002DPII Manuale utente

CrimeStopper

CrimeStopper Fortress FS-20 Manuale utente

CrimeStopper

CrimeStopper Fortress FS-30 Manuale utente

CrimeStopper

CrimeStopper CS-882 OEM Manuale utente

CrimeStopper

CrimeStopper CS-9602PI Istruzioni operative

CrimeStopper

CrimeStopper CS-2005.FM Istruzioni per l'installazione

CrimeStopper

CrimeStopper CS-9604PI Manuale utente

CrimeStopper

CrimeStopper CS-2015.FM.RevB Manuale utente

CrimeStopper

CrimeStopper CS-9228MX Manuale utente

CrimeStopper

CrimeStopper CS-9600 Scheda tecnica

CrimeStopper

CrimeStopper SP-100 Manuale utente

CrimeStopper

CrimeStopper CS-883 OEM Manuale utente

Manuali Allarme auto popolari di altre marche

Clifford

Clifford 3606X Manuale utente

Ultra Start

Ultra Start 2500M SERIES Manuale utente

Ultra Start

Ultra Start 650 Series Manuale utente

Audiovox

Audiovox Prestige Platinum+ APS-511C Manuale utente

Sparkrite

Sparkrite SRA8 Manuale utente

Viper

Viper 4708V Manuale utente

Federal Signal Corporation

Federal Signal Corporation Pathfinder Siren Series Manuale

Falcon

Falcon Predator XL3 Guida utente

Audiovox

Audiovox Auto Security XR91 Istruzioni operative

Clifford

Clifford Sabre II Manuale utente

Ultra Start

Ultra Start 450 SERIES Manuale utente

Scytek electronic

Scytek electronic Vectra X3 Manuale utente

Excalibur

Excalibur AL-1860-EDPB Manuale utente

Clifford

Clifford CYBER 2 Manuale utente

Gemini

Gemini 7057 Manuale utente

FlashLogic

FlashLogic FLRSBA PRESTIGE Manuale utente

Magicar

Magicar FAI-440 Manuale utente

Clifford

Clifford Nova 3 Manuale utente
