OPERATION MANUAL
crooza®
BATTERY-POWERED ELECTRIC VEHICLE
MODEL: MABU-01
www.crooza.de
The children must operate the vehicle under adult supervision.
This vehicle is not allowed to be used as a means of transportation and cannot be
operated in public streets.
WARNING: Never leave charging unattended.
Read this manual carefully before the operation.
- 1 -
OVERVIEW
Instructions 2
Components/Assembly Materials 3
General Overview 5
Charging Batteries 6
Assembly Instructions 7
Attaching Batteries 13
Maintenance and Disposal of the Batteries 14
Instructions For A Safe Operation 15
Operating Mode 16
Maintenance Instructions 17
Troubleshooting 18
- 2 -
Technical Data
Item no MABU-01
Age properly 3-7 Years old
Vehicle Size 1070 x 720 x 670 mm
Net weight 20 kg
Load capacity 40 kg
Environment temperature 0-40 °C
Speed Ca. 3,5-7 km/h
Battery 12V10AH
Charger input Input: AC220V~240V/50Hz~60Hz
Motor 2 x 30Watt
Charging lifetime approx. 300
Charging time 18-22 Hours, never more than 30 hours once.
SAFE OPERATION
WARNING
PREVENTING INJURIES
•The vehicle must be operated only under adult supervision!
•Never use the vehicle in darkness!
•Operate the vehicle only in safe areas!
E.g: In areas
- without swimming pools or ponds. Risk of drowning!
- without slopes!
- far from stairs, ramps, streets and boulevards!
•Operating Directives:
Ensure that the following rules are followed for a safe operation:
- Always sitting properly on the seat, getting on and off only when the vehicle is off.
- No driving without shoes.
- Only one (1) child must drive the vehicle.
OPERATION IS AT USER’S RISK. PARENTS ARE RESPONSIBLE FOR THEIR CHILDREN.
INSTRUCTION
•Small items are included in the package at delivery status. Assembling must be conducted by adults.
•The charger must be used only in a dry environment.
- 3 -
Components/Assembly Materials
•Check if all the parts are available. Keep the package until you complete assembling and become sure
that there are no parts missing.
•Some parts are hidden under the seat. Lift the seat to get the batteries and other assembly parts.
•The surfaces of the metal parts are covered with lubricant for protection. Before installing, clean the
lubricant residues on metal parts by rubbing them with a cloth.
Chassis Handle bar Seat
2 x Front tire Setting plate 2 x Pin for Rear Wheel
2 x Rear tire Frontal covering Bumper
- 4 -

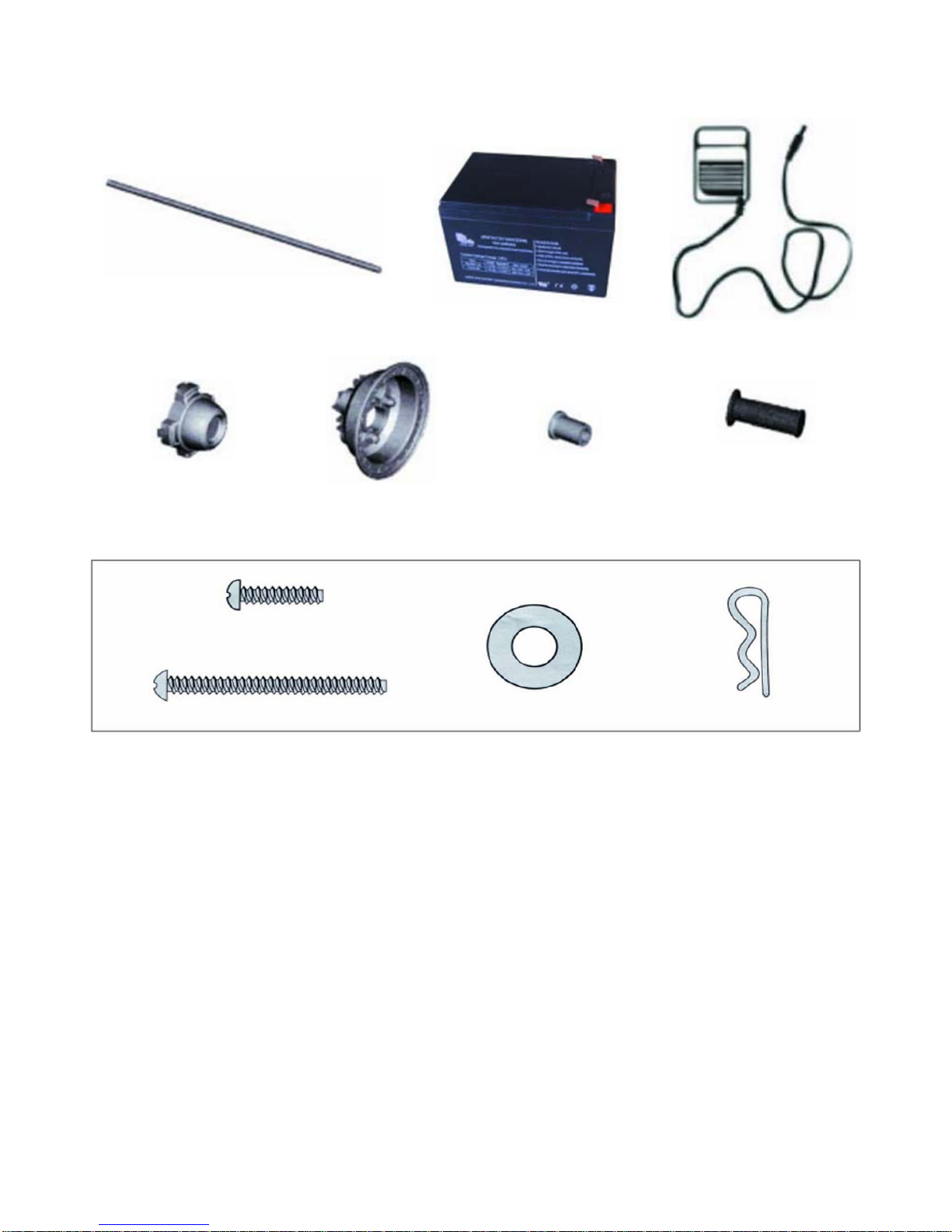

Rear axle 12 Volt Battery 12 Volt Charger
4 x Hub cap 4 x Wheel cap 4 x Centering sleeve 2 x Handle
Diverse Screws, Washers und Fixing pins
Screws Washer Fixing pin
- 5 -

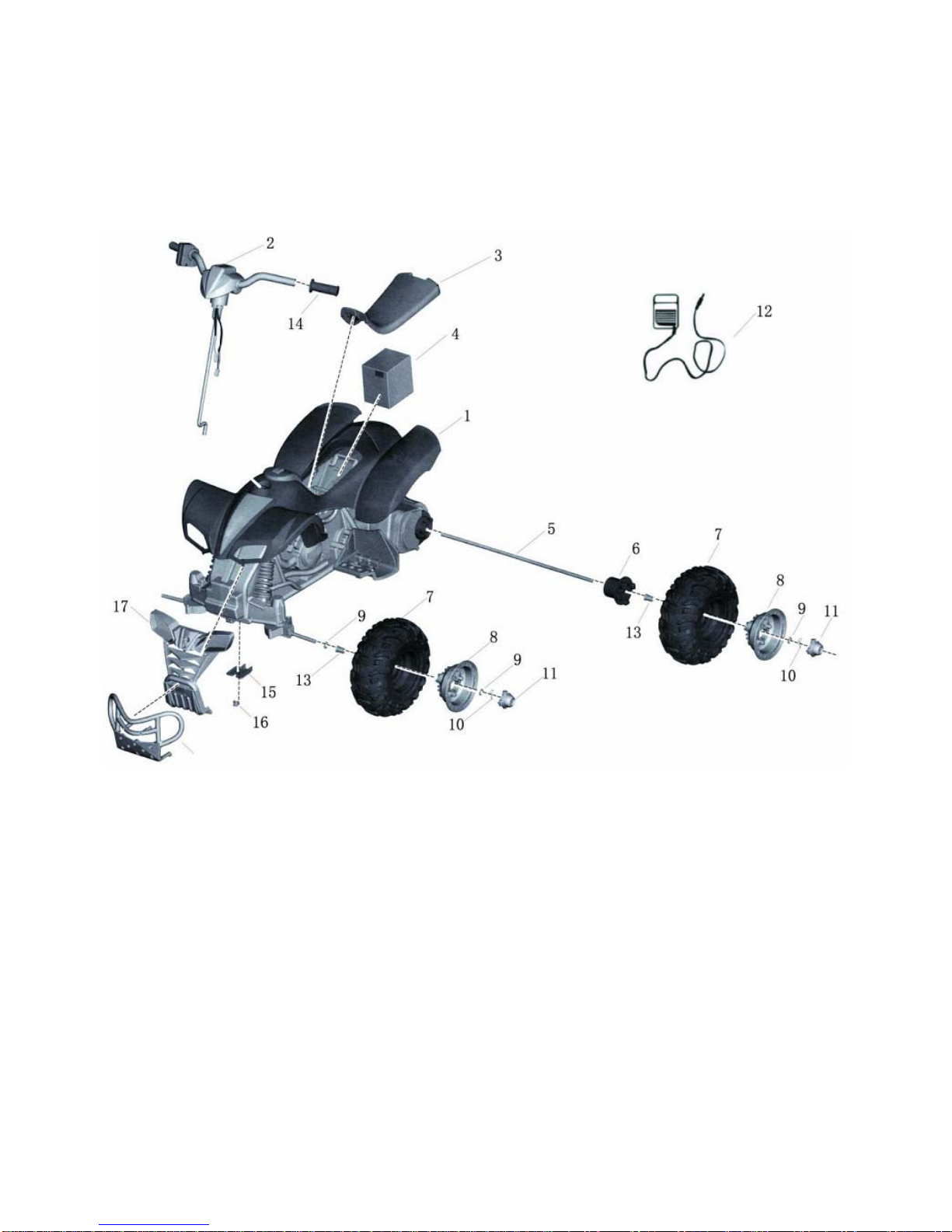

General Overview
The parts shown here are also on the other side of the vehicle.
18
1. Vehicle chassis
2. Handle bar
3. Seat
4. 12 Volt Battery
5. Rear axle
6. Pin for rear wheel (x2)
7. Tire (x4)
8. Wheel cap (x4)
9. Washer (x6)
10. Fixing pin (x4)
11. Hub caps (x4)
12. 12 Volt Charger
13. Centering sleeve (x4)
14. Handle (x2)
15. Handle bar plate
16. Setting plate handle rod
17. Frontal covering
18. Bumper
- 6 -
Charging the Batteries
ELECTRIC SHOCK
WARNING
•Unfixed batteries may fall off the overturned vehicle and cause injury. Ensure that the batteries have been fixed
carefully.
•FIRE PREVENTION
- The electric system of the vehicle is not allowed to be altered. Alterations may lead to fire, black-out of the
electric systems and serious injuries.
- Using wrong batteries and chargers may lead to fire, explosion and serious injuries.
- Only adults are allowed to handle batteries. The batteries, which are quite heavy, are filled with electrolyte.
Leaking batteries may lead to serious injuries.
- Do not let your children to charge the batteries. Only adults are allowed to charge the batteries. Only adults are
allowed to charge the batteries and the charging process must be supervised continuously. Children may
get injured by an electric shock.
- Before charging the batteries, read the safety instructions about batteries.
- Please check the batteries, cable connections and the connector of the charger before charging the batteries. If
you find any defects, do not charge them until they are repaired by an expert.
- The motors produce HEAT! Be careful during the contact with the motors.
WARNING
The charger must be used only in a dry environment.
- The battery has a thermal fuse. The thermal fuse moves back on its own and disrupts the operation when there
is an overload or an adverse condition. If the fuse blows out, take the foot from pedal and wait for approx. 25
seconds before the vehicle is operated again. In order to avoid repeated operational disruptions, ensure that the
vehicle doesn’t carry more than 40 kg. Avoid unfavorable conditions such as slopes or solid objects like walls.
Otherwise, the wheels may stand still and the motors may get overcharged. Teach your child to keep the vehicle
still before changing the direction.
- If the fuse doesn’t comply with the normal operational conditions, contact your service.
- Before the first operation, the batteries must be charged 18-22 hours once.
- While being charged, the batteries must stand vertical.
- The charger is not a toy.
- The batteries mustn’t be short-circuited.
- The batteries mustn’t be taken out of the vehicle for charging.
- Charging through contaminated socket can lead to short-circuit and other defects. Therefore, it must be
refrained.
- The charging process must be carried out safely, far from easily inflammable materials. Look out excessive
smoke and heat generation.
- The charging process must be conducted continuously under adult supervision.
- 7 -
ASSEMBLY INSTRUCTIONS
•Insert the connecter A into the charger jack.
•Then connect the charger to the socket on the wall.
•The vehicle must be turned off!
Instructions:
- Use the charger only on one wall socket. Because of its own
weight, the charger mustn’t be connected to an overhead
socket.
- If the wall socket has a switch, ensure that it is on and there is
power supply.
- Charge the batteries 18-22 hours before the first operation.
Do not charge them longer than 30 hours once.
- When the batteries are completely empty, charge them at
least 14 hours. Do not charge them longer than 30 hours
once.
- After charging, disconnect the connector from the vehicle and
the charger from the socket.
WARNING
In the loose delivery status of the vehicle,
children may hurt themselves with sharp parts
or electric components.
Please be careful while opening the package,
assembling the small parts and attaching or
handling the batteries (especially when you are
assembling the vehicle with your child).
1.
Connect a fixing pin to the end of the rear axle.
- 8 -
2.
- Attach a washer to the rear axle.
- Put a hubcap.
- Put a tire marked ‘L’.
- Pull a pin through (with the ring end as shown).
- Connect all the parts.
4.
- Bring the other rear wheel pin on the rear axle. Ensure
that the rear wheel pin is set on the motor correctly.
- Pull a pin with the ring end inwards as shown above.
- Put a tire marked ‘R’ with the flat side inwards as shown
above.
- Then, attach a wheel cap with the vaulted side outwards
as shown.
- Put a washer.
5.
- Finish assembling the rear axle by fixing everything with
a fixing pin.
3.
- Lay the vehicle down on its top side.
- Position the rear axle as shown. Ensure that the rear
wheel pin is set on the motor correctly.
- 9 -

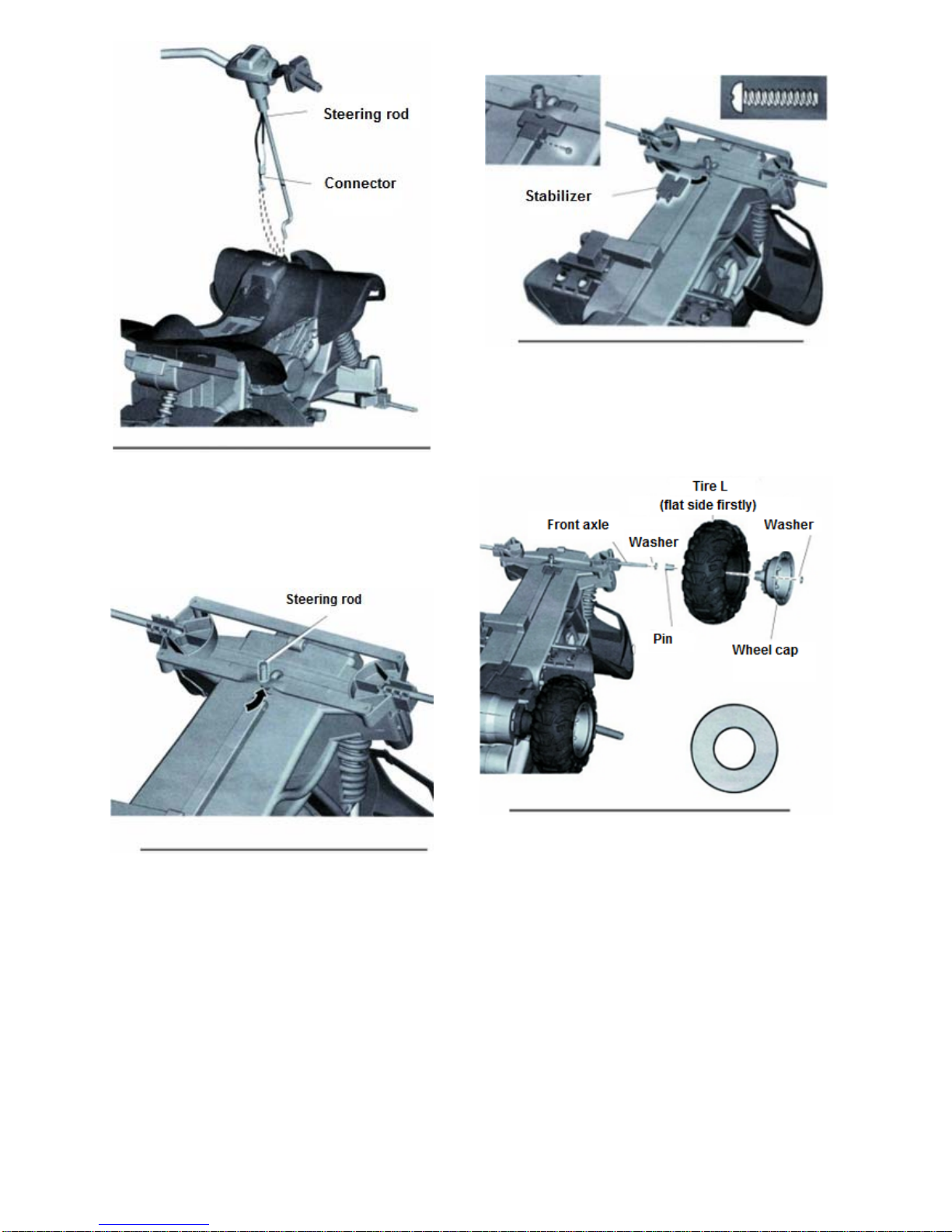

6.
- Put the rod of the handle bar in the opening on
the front side of the vehicle.
8.
- Attach Stabilizer/Setting plate as shown.
- Put a screw through the opening and fix it.
9.
- Attach a washer to the front axle.
- Pull a pin through (with a ring end firstly).
- Pull a tire marked ‘L’ with the flat side inwards as shown
above.
- Finish the formation with a wheel cap.
- Attach all the parts to each other and put a washer.
7.
- Lift the front part of the vehicle carefully. Ensure
that the control rod is set completely and
correctly.
- Press the wishbone until the control rod is set in
the related place.
