Instruction Manual

Model 2082-141-47

1:1 Redundant Unit Controller

January 2014, Rev. 0

EXECUTE

MODEL 2082

CROSS TECHNOLOGIES INC.

CONTROLLER

UNIT 1 UNIT 2

450

470

POWER

STATUS

MODE

212

ALARM

STDBY

ONLINE

MANUAL

LOCAL

REMOTE

AUTO

PATH

1>1

Data, drawings, and other material contained herein are proprietary to Cross Technologies, Inc., but may be

reproduced or duplicated without the prior permission of Cross Technologies, Inc. for purposes of operating

the equipment.

When ordering parts from Cross Technologies, Inc., be sure to include the equipment model number,

equipment serial number, and a description of the part.

CROSS TECHNOLOGIES, INC.

6170 Shiloh Road

Alpharetta, Georgia 30005

(770) 886-8005

FAX (770) 886-7964

Toll Free 888-900-5588

WEB www.crosstechnologies.com

E-MAIL [email protected]

INSTRUCTION MANUAL

MODEL 2082-141-47 Redundant Unit Controller

TABLE OF CONTENTS PAGE

Warranty 2

1.0 General 3

1.1 Equipment Description 3

1.2 Technical Characteristics 4

1.3 Control & Operation 5

1.4 Setup/Testing 6

1.5 M&C Interface 12

1.6 Environmental Use Information 14

2.0 Installation 15

2.1 Mechanical 15

2.2 Rear I/O’s 16

2.3 Front Panel Controls, Indicators 18

2.4 Installation/Operation 19

2.5 Menu Settings 20

3.0 Ethernet Interface Installation & Operation 26

WARRANTY - The following warranty applies to all Cross Technologies, Inc. products.

All Cross Technologies, Inc. products are warranted against defective materials and workmanship for a period

of one year after shipment to customer. Cross Technologies, Inc.’s obligation under this warranty is limited

to repairing or, at Cross Technologies, Inc.’s option, replacing parts, subassemblies, or entire assemblies.

Cross Technologies, Inc. shall not be liable for any special, indirect, or consequential damages. This

warranty does not cover parts or equipment which have been subject to misuse, negligence, or accident by the

customer during use. All shipping costs for warranty repairs will be prepaid by the customer. There are not

other warranties, express or implied, except as stated herein.

CROSS TECHNOLOGIES, INC.

6170 Shiloh Road

Alpharetta, Georgia 30005

(770) 886-8005

FAX (770) 886-7964

Toll Free 888-900-5588

WEB www.crosstechnologies.com

E-MAIL [email protected]

2082-141-47 Manual, Rev. 0 Page 2 01/15/14

MODEL 2082-141-47 Redundant Unit Controller

1.0 General

1.1 Equipment Description

The Model 2082-141-47 Redundant Unit Controller is used to power, monitor and control LNA or LNB

amplifiers configured in 1:1 redundancy. Front panel LEDs indicate power, status (online, standby, alarm), and

mode (auto, manual, local, remote). Up to 600 ma is available to power each amplifier and +47 VDC (1.5A) is

provided for waveguide switch drive. The Model 2082-141-47 has +47 volts common and the 2082-141-47P

has ground common. LNA or LNB current is measured and a fault is signaled if the current deviates from user

selected thresholds. Multi-function switches select Auto, Local, or Remote operation, and the signal path in the

Manual mode. Remote operation via the RS232/RS485 M&C interface allows selection of the signal path.

Ethernet is available as option, -W8, -W18, or -W28. Contact closure to ground inputs allow selection of

Local/Remote, and Auto/Manual Modes. An LCD display shows each amplifier’s current, and signal path.

Form C relay contact closures indicate amplifier and power supply status, waveguide switch position, Auto,

Remote, and Manual operation. Connectors are DB37 for contact closure I/Os, MS3112E16-23S for the

amplifier plate signals, and DB9s for monitor and control and auxiliary external contact closure alarm inputs.

The 2082-141-47 is housed in a 1RU chassis and is powered by redundant power supplies fed by separate,

fused 100-240 ±10% VAC AC input connectors.

EXECUTE

MODEL 2082

CROSS TECHNOLOGIES INC.

CONTROLLER

UNIT 1 UNIT 2

450

470

POWER

STATUS

MODE

212

ALARM

STDBY

ONLINE

MANUAL

LOCAL

REMOTE

AUTO

PATH

1>1

FRONT PANEL

AC1

GND I/O FUSE

UNIT 1

PLATE ASSYAC2

GND

15 23

46789

15 2

46789 FUSE

UNIT 2

5 23

420212223

10 789 25262728

1115 12

1314 30313233

19 16

1718 242934353637

F2F1

MONITOR

AND

CONTROL

J3A

EXT

ALARM

J3B VDC VDC

DS2DS1J2

REAR PANEL - Shown with optional Ethernet Connector (J2)

FIGURE 1.1 Front and Rear Panels

FIGURE 1.2 Block Diagram

2082-141-47 Manual, Rev. 0 Page 3 01/15/14

1.2 Technical Characteristics

2082-141-47 Manual, Rev. 0 Page 4 01/15/14

ut Closure Alarm O

tion: Call Cross Technolo

ies

Other O

tions

Ethernet with Direct TCP/IP InterfaceW28-

LNA/LNB Power

Switch Drive Characteristics

Alarm and Control

M&C

Controls

Indicators

Controls

Others

*+10˚C to +40˚C; Specifications subject to change without notice 2012 Cross Technologies, Inc.

1:1 Redundant Unit Controller

Ground Common2082-141-47P

1:1 Redundant Unit Controller

+47 VDC Common2082-141-47

Models

Ethernet with SNMP

(

and MIB

)

InterfaceW18-

Remote M&C Ethernet O

tions

Ethernet with Web Browser InterfaceW8-

Redundant 100-240 ±10% VAC, 47-63 Hz, 150 Watts max.

ower su

liesPower

1 RU, 19 inch standard chassis, 1.75” high x 16.0” deepSize

MS3112E16-23SAm

Plate Connector

DB9

femaleM&C Connector

DB9, femaleExternal Alarm

DB37, femaleParallel I/O Connector

Red LEDʼs, External Form C contact closure, M&C serial

(for amplifiers, Ext. and Summary alarm)

Alarm Status

Yellow LED, External Form C contact closure, M&C serialManual Select Status

Yellow LED, External Form C contact closure, M&C serialRemote Select Status

Green LEDʼs

(

PS1, PS2

)

, External Form C contact closure, M&C serial

Mode Select Local/Remote, Auto/Manual push-button switches, contact closures,

or remote selection.

Power On Status

47 Volts

(

1.5 Am

)

Drive Volta

TABLE 1.0 2082-471-47 Switch Specifications*

900 baud rate, no

arit

, 8 data bits, 1 start bitM&C Si

nal

RS232C or RS485, Selectable, Ethernet O

tionalM&C Interface

Form C rela

: 100 VDC, 0.5A, 3W max.Alarm Output Si

nal

100 ms max.

based on switch s

ecificationsTotal Switch over time 50 ms max.Fault Detection time

2, Primar

& Backu

Number Powered

+15 ±1 Volts/0.6 am

s max., each unitOut

ut Volta

e/Current

1.3 Control & Operation

The 2082-141-47 Redundant Unit Controller is designed to be 'controlled' either Locally or Remotely

(Local/Remote) and the 'switching' is either Automatic or Manual (Auto/Manual). The controller defaults to

Local (control)/Auto (switching) mode. These are described in more detail below.

1.3.1 Local/Remote (Control) Mode

Local mode is the default 'control' mode of the controller. When the unit is in the local mode it will ignore any

serial commands it receives through serial M&C connector J3 or through the ethernet interface. Local mode

means control of the system is managed with front panel commands and external “ground to activate” inputs.

A grounded external input will override the front panel input that controls the same function. The following

table describes the “ground to activate” pins located on the DB37 parallel I/O connector and their function.

When the unit is in the remote mode it will respond only to serial M&C commands or ethernet Webpage and

SNMP commands.

Auto/Manual Select: Ground to activate Manual Mode.18

FunctionDB37 (J1) Pin

1.3.2 Auto/Manual (Switching) Mode

Auto mode is the default 'switching' mode of the controller. When in the auto mode the controller is

continuously monitoring the status of AMP1 and AMP2. If a fault is detected from AMP1 then AMP2 is

switched into the signal path of the faulted unit.

Manual mode may be set via a front panel command, an M&C port command, or by grounding the

AUTO/MAN external input (J1, pin 18). When the controller is in the manual mode it ignores fault and alarm

inputs and allows the user to manually operate the waveguide switch.

There are 3 methods available to manually operate the waveguide switch.

Method 1 is locally from the front panel interface. The unit must be in Manual Mode and Local Mode to use

this method.

Method 2 is remotely from the serial M&C or Ethernet (optional) interface. The unit must be in Manual Mode

and Remote Mode to use this method.

Method 3 allows the user to physically (“manually”) turn the waveguide switch by hand. The unit must be in

Manual Mode but may be in either Local or Remote Mode when using this method.

2082-141-47 Manual, Rev. 0 Page 5 01/15/14

1.4 Setup/Testing

At the time of installation / testing the user needs to verify that the controller is properly installed and that the

'back-up' signal path and LNA are functioning properly. The 2082-141-xx must first be properly wired to a

waveguide switch in order to perform any testing. The 2082-141-xx will not send any waveguide switch

control signals if the unit cannot read a valid position from the waveguide switch(s). The switch position read

from the waveguide switch is displayed on the bottom line of the main LCD display screen. If “ERROR!” is

displayed then the unit cannot read a valid position.

From the optional Webpage Interface there is a Switch Position status field. If “ERROR!” is displayed in that

field then the unit cannot read a valid position.

From the optional SNMP interface there is an Object ID named switchPos2082141. If the value 99 is read

from that object ID then the unit cannot read a valid position.

The 2082-141-xx reads the waveguide switch position through the MS connector J4 on the rear panel.

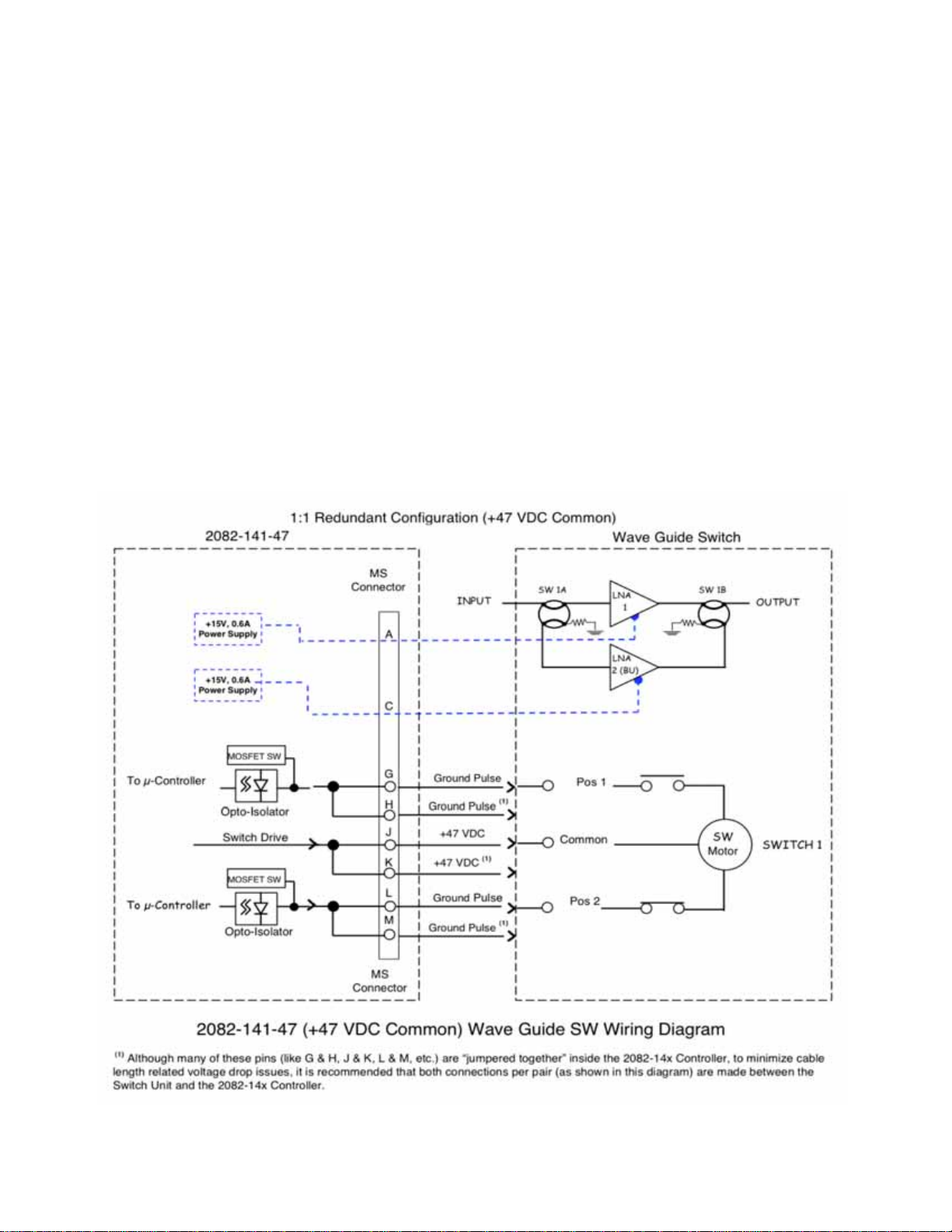

Typical waveguide switch wiring for Models 2082-141-47, 2082-141-47P are shown in the following 2

diagrams:

2082-141-47 Manual, Rev. 0 Page 6 01/15/14

The micro controller in the 2082-141-xx determines the switch position by detecting the presence of switch

common voltage on either Pos1 or Pos2. If no presence of switch common voltage is detected then the

position is reported as “ERROR!”. The 2082-141-xx will not send waveguide switch control signals if it

cannot determine a valid switch position.

There are three possible methods for a user to override auto switching while in Manual mode to perform

waveguide switch testing. These methods are referred to as LOCAL (which provides two (2) possible ways)

and REMOTE (one (1) way). These are described below.

2082-141-47 Manual, Rev. 0 Page 7 01/15/14

1.4.1 LOCAL. As mentioned above, local provides two possibilities to override auto switching. The first is

via the Front Panel Menu and the second is via the Manual Override Knob located on the waveguide switch

(if so equipped.) Both of these require that the 2082-141-47 be placed in the MANUAL MODE.

1.4.2 Front Panel Menu.

To override auto switching via the Front Panel Menu …

1) Place the unit in MANUAL MODE.

2) The LCD display will display the following message showing the current location of the switch:

Manually Set

POS=1>1 R

3) You may now select switch positions using the UP/DOWN switch. For a 2082-141-47, 1 for 1

controller, the switch position choices are: 1>1 (Primary active), or 2>1 (Backup active).

4) Once the Switch position is selected, push the PROGRAM/EXECUTE switch to go to the next menu.

5) Use the LEFT/RIGHT switch to move the cursor to R (return), then push the PROGRAM/EXECUTE

switch to jump to the SAVE SETTINGS menu.

1.4.3 Manual Override Knob.

To override auto switching via Manual Override Knob …

1) Place the unit in MANUAL MODE.

2) The LCD display will display the following message showing the current location of the switch:

Manually Set

POS=1>1 R

3) Once testing has been completed, the 2082-141-47 Redundant Unit Controller should be restored to

AUTO mode.

2082-141-47 Manual, Rev. 0 Page 8 01/15/14

1.4.4 REMOTE

To override auto switching remotely…

[The unit must be in the REMOTE mode to execute any remote commands.]

From the serial M&C Interface:

1) SET the unit to MANUAL mode through the following command…

{aaC9x}

where x = 1 sets switch to MANUAL.

2) To manually test the switches, send the following remote M&C command to the unit.

{aaCAx}

where x = 1 sets switch to position 1 (Primary active),

and x = 2 sets switch to position 2 (Backup active.)

3) When testing is completed, return the unit to AUTO mode through the following command…

{aaC9x}

where x = 0 sets switch to AUTO.

From the (optional) Ethernet Interface:

Webpage:

1. Select “Manual” control mode.

2. Select “Remote” control mode.

3. Select the desired set position, either 1 to 1 or 2 to 1.

4. Click “Update Other”.

SNMP:

1. Set ObjectID ctrlMode to 1 (MANUAL).

2. Set ObjectID ctrlSource to 1 (REMOTE).

3. Set ObjectID switchPos to the desired position, either 1 (AMP1 to 1) or 2 (AMP2 to 1).

2082-141-47 Manual, Rev. 0 Page 9 01/15/14

1.5 M&C Interface

1.5.1 Remote Serial Interface

Protocol: RS232C, 9600 baud rate, no parity, 8 data bits, 1 start bit, and 1 stop bit.

(RS232C, RS422, or RS485 - option Q)

Connectors: Rear panel, DB9 female

1.5.2 Status Requests Table 1.1 lists the status requests for the 2082-141-47 and briefly describes them.

*PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below,

should be used ONLY when RS-485, (OPTION-Q), is selected.

TABLE 1.1 2082-141-47 Stattus

Status Requests

TABLE 1.1 2082-141-47 Status Requests

Command Syntax * Description

Model and Firmware version {aaSM} Returns {aaSMbbbbbbbbvercccc} where:

• bbbbbbbb = Model number

• cccc = Firmware version

AMP1 Status {aaS1} Returns {aaS1bbbcccdd} where:

• bbb = AMP1 measured current

• ccc = AMP1 nominal current setting

• dd = AMP1 window

AMP2 Status {aaS2} Returns {aaS2bbbcccdd} where:

• bbb = AMP2 measured current

• ccc = AMP2 nominal current setting

• dd = AMP2 window

Controller Status {aaS4} Returns {aaS4bcdefg} where:

• b = 0 if in AUTO, 1 if in MANUAL

• c = 0 if in LOCAL, 1 if in REMOTE

• d = 0 if PRIORITY1, 1 if PRIORITY2

• e = 0 if no backup, 1 if AMP1 backed up

• g = Power Supply 2 Status: 0 = good, 1 = alarm

• f = Power Supply 1 Status: 0 = good, 1 = alarm

2082-141-47 Manual, Rev. 0 Page 10 01/15/14

TABLE 2.1 J3A

TABLE 2.1 J3A Monitor & Control Pinout

Pin Function

1 RS422/RS485 Tx-

2 RS232C Tx, RS422/RS485 Tx+

3 RS232C Rx, RS422/RS485 Rx+

4 RS422/RS485 Tx-

5GND

6NotUsed

7NotUsed

8NotUsed

9NotUsed

Indice

Altri manuali Cross Technologies Controllori

Cross Technologies

Cross Technologies 2082-14 Series Manuale utente

Manuali Controllori popolari di altre marche

Digiplex

Digiplex DGP-848 Istruzioni operative

YASKAWA

YASKAWA SGM series Manuale utente

Sinope

Sinope Calypso RM3500ZB Manuale utente

Isimet

Isimet DLA Series Style 2 Manuale di installazione

LSIS

LSIS sv-ip5a Manuale utente

Rockwell Automation

Rockwell Automation 1769-L31 Manuale utente

Airflow

Airflow Uno hab Manuale utente

ABB

ABB ACS580-01 drives Manuale utente

Panasonic

Panasonic GM1 Series Manuale utente

Emerson

Emerson SW93 Manuale utente

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuale utente

Panasonic

Panasonic FP? Positioning Unit RTEX Manuale utente

Samson

Samson Type 5824 Manuale di servizio

Alpha IP

Alpha IP MIOB 21001 Manuale utente

Siemens

Siemens OpenAir GMA 1 Series Manuale utente

Surecom

Surecom SR-629 Manuale utente

Fishman

Fishman TriplePlay Manuale utente

Regulus

Regulus SRS1 T Manuale utente
