1.1 Product overview
The 96HD sensor housing is a modular stainless steel
assembly which dismantles to allow plug in sensors to be
replaced easily. The 96HD can accommodate flammable,
thermal conductivity, toxic and oxygen sensors. It is used
throughout Crowcon’s range of gas detectors and may also
be used to replace older gas detectors previously
manufactured by Crowcon or its’ competitors. Once
assembled the 96HD is certified EEx d IIC T6 and may be
used in a zone 1 or 2 hazardous area when terminated in a
suitable certified junction box.
1.2 Product description

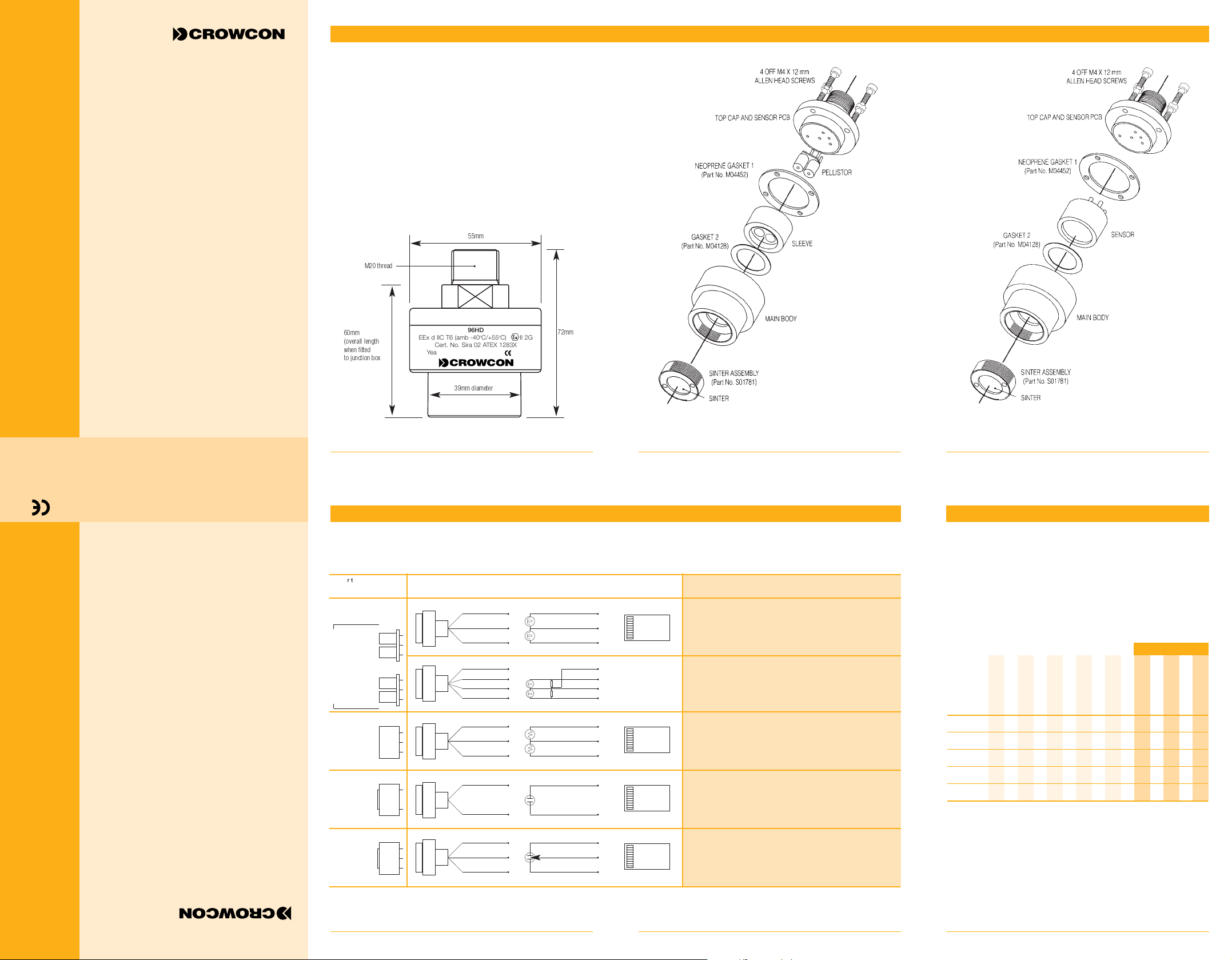

Diagrams 1, 2 and 3 detail the 96HD sensor housing.
appropriate certified junction box/amplifier and connected in accordance
with the information in Table 1, below.
Part Nos.
S01749 96HD/FL
S01750 96HD/HS
S01751 96HD/CO
S01752 96HD/AM
S01753 96HD/OX
S01754 96HD/TC
96HD
Sensor Housing
instructions
Installation, operating and maintenance
instructions, MO7181 21 3
456
Crowcon Detection Instruments Ltd
2 Blacklands Way
Abingdon Business Park
Abingdon
Oxfordshire OX14 1DY, UK
Tel: +44 (0)1235 553057
Fax: +44 (0)1235 553062
email: [email protected]
internet: http://www.crowcon.com
2. ELECTRICAL CONNECTIONS
The 96HD is supplied with either 2, 3 or 4, colour coded, flying wires
depending on the sensor fitted. Wires must be terminated at an
Diagram 3: 96HD sensor housing with toxic sensor.Diagram 2: 96HD sensor housing with flammable sensor.Diagram 1: 96HD dimensions
Table 1: Application summary.
Gas Detection You Can Trust
Gas Detection You Can Trust
1180
3. REPLACEMENT/RETROFIT APPLICATIONS
96HD may be easily retrofitted to any system previously supplied
by Crowcon. This allows customers to upgrade old disposable
detectors to the serviceable 96HD, thus reducing the on going cost of
ownership of the system. While the 96HD is electrically identical to older
products mechanical changes have been essential to obtain certification
to the latest standards. Table 2 summarises the compatibility of the
96HD with older detectors. If the detector you are using is not listed or
you require assistance please contact Crowcon.
1. INTRODUCTION
55mm
72m
m
39mm diameter
M20 thread
60mm
(overall length
w
hen fitted
t
o
junction box
96HD
EEx d IIC T6 (amb -40oC/+55oC) II 2G
Cert. No. Sira 02 ATEX 1283X
Year 01 Construction XXXX 1180
Sensor type Electrical connections Amplifier Notes/applicable products
and part number
Pellistor
S01-637/letter
AVQ21T
B300P
CVQ8
DVQ16
EVQ22
FVQ25
GVQ41
HVQ1
Thermal
conductivity
S01-638
Oxygen
E01-488
Toxic
E01-229/HS
E01-344/CO
E01-618/AM
Flamgard 4/20 (fomerly EXD90/FL)
DI9 or DI5/6 replacement (3-wire)
96HD (3-wire) used in Flamgard EXE, D, Plus
81HD replacement (4-wire)
LR version used for 73GW, 74GW, 72FP
TCgard (formerly EXD90/TC)
Txgard-D/OX (formerly EXD90/OX)
Txgard-D/HS (formerly EXD90/HS)
Txgard-D/CO (formerly EXD90/CO)
Txgard-D/AM (formerly EXD90/AM)
EXD90/FL
S01-633
EXD90/TC
S01-636
EXD90/OX
S01-756
EXD90/TOX
S01-755
27R used with 73
GW, 74 GW, 72FP.
This version is called
96 HD/LR
1k used with 83GW
GMS 1,4
FL/3
Detector
Common
Reference
Red -ve
Green
Black +ve
FL/4
Detector
Resistors
Common
Reference
OX
Cathode electrode
Anode electrode
TOX
Counter electrode
Sensing electrode
Ref electrode
TC
Detector
Common
Reference
Red
GreenSensing
Counter
Reference
Cathode
Anode
Blue
Red
Green
Red
Det
Ref
Det
Ref
Orange
Yellow
Blk
Blue
Blue
Red
1
2
3
4
1k 27R/LR
1k 27R/LR
DI9 ✓✓✓✗*1 ✓✓✓✗*3
DI 5/6 ✓✓✓✗*1 ✓✓*2 ✓*2 ✗*3
81HD ✓✓✓✗*1 ✓✓✓✗*3
73HT ✓✓✓✗*1 ✓n/a n/a ✗*3
96HT ✓✓✓✗*1 ✓n/a n/a ✗*3
Certification
Electrical
Performance
Dimensions
Calibration
Equipment
Weatherproof cap
or spray deflector
Collector cone
Flow adaptor
Accessories
Table 2: 96HD capability guide
✓= identical or superior performance
✗= not directly compatible
Notes:
*1 = Wherever possible dimensions have been maintained to be
compatible with existing accessories.
*2 = Existing accessories may be used with the addition of an adaptor
(Crowcon part no. C01664).
*3 = Contact Crowcon.
987 10
4.3 Sensor replacement/servicing of detectors
WARNING
This work should be carried out by Crowcon or an approved
service centre unless suitable training has been received.
The 96HD sensor housing allows the user to replace the
sensors, gaskets and sinter if necessary. An exploded view of the 96HD
sensor housing is given in Diagram 2 for reference. The following
procedure may be followed when servicing a 96HD device.
aOpen the 96HD sensor housing by removing the four Allen head
screws from the Top Cap with a 3mm Allen key.
bRemove the sensor from the Top Cap PCB. Flammable sensors
have an extra black sleeve which may be separate from the sensor.
This is normal and the sleeve may be re-used.
cFit the replacement sensor checking the part number is correct. This
part number is labelled on the main body of the detector.
Observe pin alignment with PCB.
dInspect the gaskets and replace if necessary.
e The sinter assembly will only need to be replaced if it has become
blocked by dust or oil. Such blockage causes the response time of
the detector to be slow and may affect sensitivity. To remove the
sinter a removal tool (Part # M01614) is required. Loctite No 243
must be used on the sinter assembly threads to maintain
certification.
fRe-assemble the 96HD housing taking time to ensure that the 3 mm
Allen head screws are securely fixed into position.
gThe 96HD is ready for use with the appropriate detector/system.
4. OPERATION
4.1 Setting up
Please refer to the original instruction manual as this procedure may vary
depending on the type of equipment the 96HD is connected to.
4.1.1 Flammable sensors only
If 96HD is used to replace flammable detectors connected to
conventional control equipment (ie 3 wire mV bridge configuration) the
correct bridge voltage must be applied to the detector. This varies
depending on the sensor fitted and is summarised in Table 3. Sensor
part number labels are located on the outside of the 96HD housing.
Sensor Element Bridge Volts Comment
Part No. (V dc)
S01-637/A VQ21T 2.0 Poison resistance alternative
B300P 2.0 Poison resistance
CVQ8 2.5 Lead resistance
DVQ16 2.5 Early model
EVQ22 2.0 Low power for
marine applications
FVQ25 2.0 For halogens
GVQ41 2.0 For ammonia/aviation fuel
HVQ1 2.0 Early model
Table 3: Bridge voltage requirements for flammable sensors.
The voltage must be measured in the junction box between the red (-ve)
and black (+ve) wires and should be +/- 0.1 V dc of the stated value. For
setting up instructions refer to the original equipment instruction manual.
Site practices will dictate the frequency with which detectors are tested.
Crowcon would recommend that detectors be gas tested at least every
6 months and re-calibrated as necessary. To re-calibrate a detector refer
to the original equipment instruction manual.
Area Classifications:-
Zone 0: An area classified, as Zone 0 will have ignitable
concentrations of flammable gases, vapours or
liquids present continuously or for long periods of
time under normal operating conditions.
Zone 1: An area classified, as Zone 1 is likely to have
ignitable concentrations of flammable gases,
vapours or liquids present under normal operating
conditions.
Zone 2: An area classified, as Zone 2 is not likely to have
ignitable concentrations of flammable gases,
vapours or liquids present under normal operating
conditions.
11
NOTES
5. SPARE PARTS AND ACCESSORIES
Description Part number
Sensors:
Flammable (0-100% LEL) S01637/letter
See sensor
replacement
label on detector
Thermal conductivity (0-100% vv binary gas) S01638 / TC
Oxygen (0-25% vv) E01488 / OX
Toxic (0-25 ppm hydrogen sulphide) E01229 / HS
Toxic (0-250 ppm carbon monoxide) E01344 / CO
Toxic (0-50 ppm ammonia) E01735 / AM
Accessories:
Collector cone C01051
Weatherproof cap C01442
Swivel mounting bracket C01340
96HD to DI5/6, DI8 adaptor C01664
Service items:
Sinter removal tool M01614
Loctite No. 243 Contact Crowcon
Sinter assembly S01781
Gasket 1 M04452
Gasket 2 M04128
Calibration gas Contact Crowcon
6. SPECIFICATION
Material 316 Stainless steel
Dimensions Max diameter 55mm (2.2 inches)
Overall length 72mm (2.8 inches)
(60mm (2.4 inches) fitted to junction box)
Weight 0.5 kg (1.1 lbs)
Electrical Output Sensor dependent
Operating temperature Flammable -40 to +55oC (-40 to 131oF)
Toxic -10 to +55oC (14 to 131oF)
Humidity 0-99% RH non-condensing
Degree of protection IP66 when fitted with weatherproof cap
and connected to suitable junction box
Approval code II 2 G EEx d IIC T6 (+55oC)
Safety Certificate No. Sira02ATEX1283X
Standards EN50014, EN50018, EN50270
Zones Certified for use in Zone 1 or Zone 2
areas. (see area classifications section)
Gas groups IIA, IIB, IIC
Termination Must be used with suitable certified
junction box or transmitter/amplifier
Note: The 96HD detector must be effectively earthed for electrical
safety and to limit the effects of radio frequency interferance. This may
be achieved by mounting the 96HD into an earthed Exd junction box or
an Exe plastic junction box fitted with an earth continuity plate. There
are no internal connections to the 96HD head body.
