Crux CFD-03E Manuale utente

- Specially designed for the Ford truck for an OEM look.

- 160 degree wide view angle for excellent visibility.

- Super CMOS technology provides a sharper picture day and night.

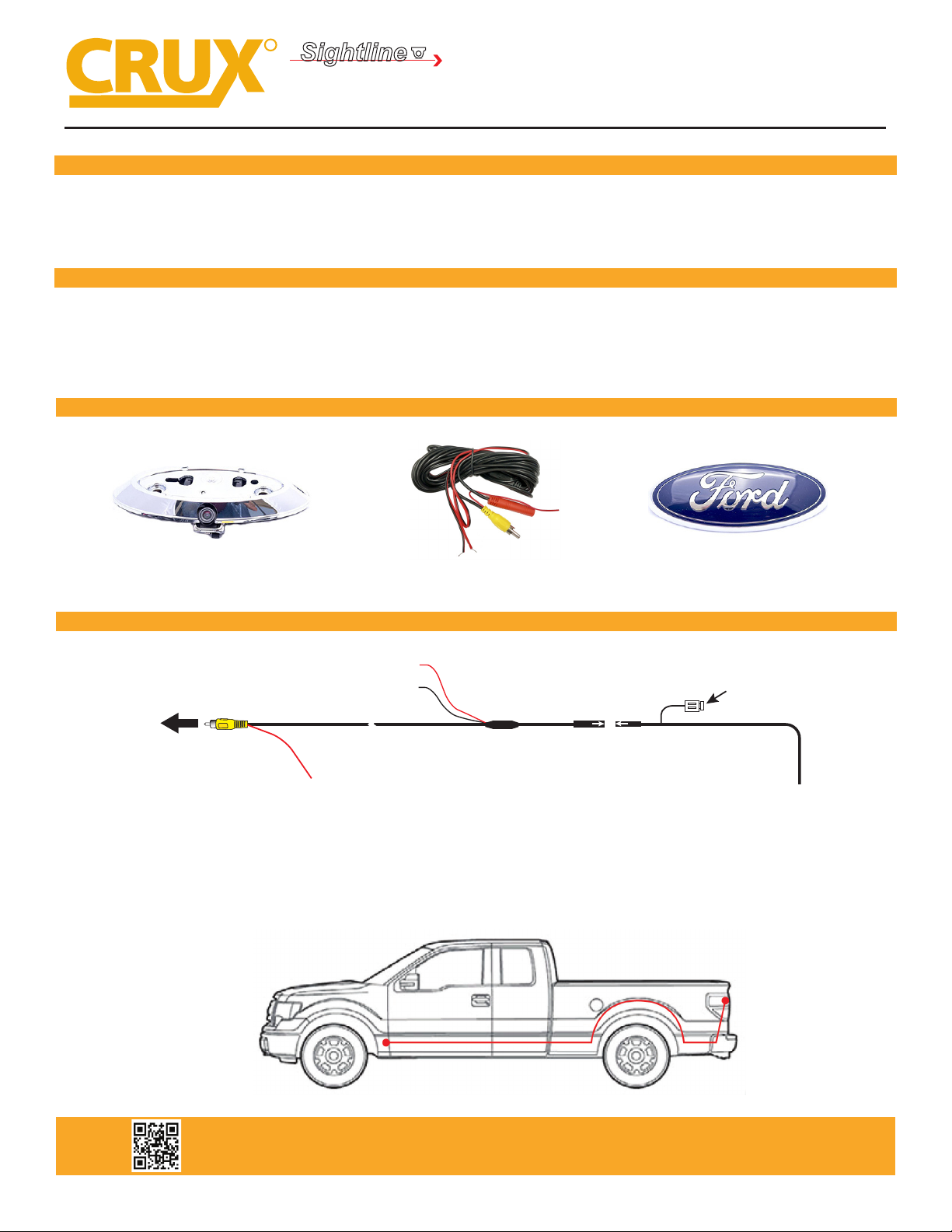

PRODUCT FEATURES:

PARTS INCLUDED:

CFD-03E CAMERA BASE EXTENSION CABLE OEM FORD EMBLEM

*NOTE: To power the camera, use RED Wire A or B. If tapping power from the radio or RVC Interface, make sure to

insulate RED Wire A to avoid it from shorng. If you will be tapping power from the reverse light +12V, insulate RED

Wire B to avoid it from shorng. With either connecon the Black GROUND wire needs to be connected to a solid chassis

ground. For vehicles with manual transmission, we recommend tapping +12V power from the reverse light.

PARKING LINES: Unplug the jumper to turn on parking guide lines.

Crux Interfacing Solutions • 6860 Canby Ave., Suite 116, Reseda, CA 91335

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.052318

CFD-03E

FORD Emblem Camera

for Select Ford Trucks

INTERFACING SOLUTIONS

Sightline

CAMERAS

WHITE Wire

Parking Guideline

(see Instructions below)

Regulator

Extension Coax Cable

GROUND

RED Wire (A)*

RED Wire (B)*

Make sure the arrows

line up and push in

the connectors well.

To Aftermarket Radio

Backup Camera Input

Reverse Camera Interface

Backup Camera Input

WIRING DIAGRAM:

1 / 2

VEHICLE APPLICATIONS:

FORD

2004 - 2012 F-150

2008 - 2014 F-250

2008 - 2014 F-350

Crux Interfacing Solutions • 6860 Canby Ave., Suite 116, Reseda, CA 91335

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.052318

CFD-03E

FORD Emblem Camera

for Select Ford Trucks

INTERFACING SOLUTIONS

Sightline

CAMERAS

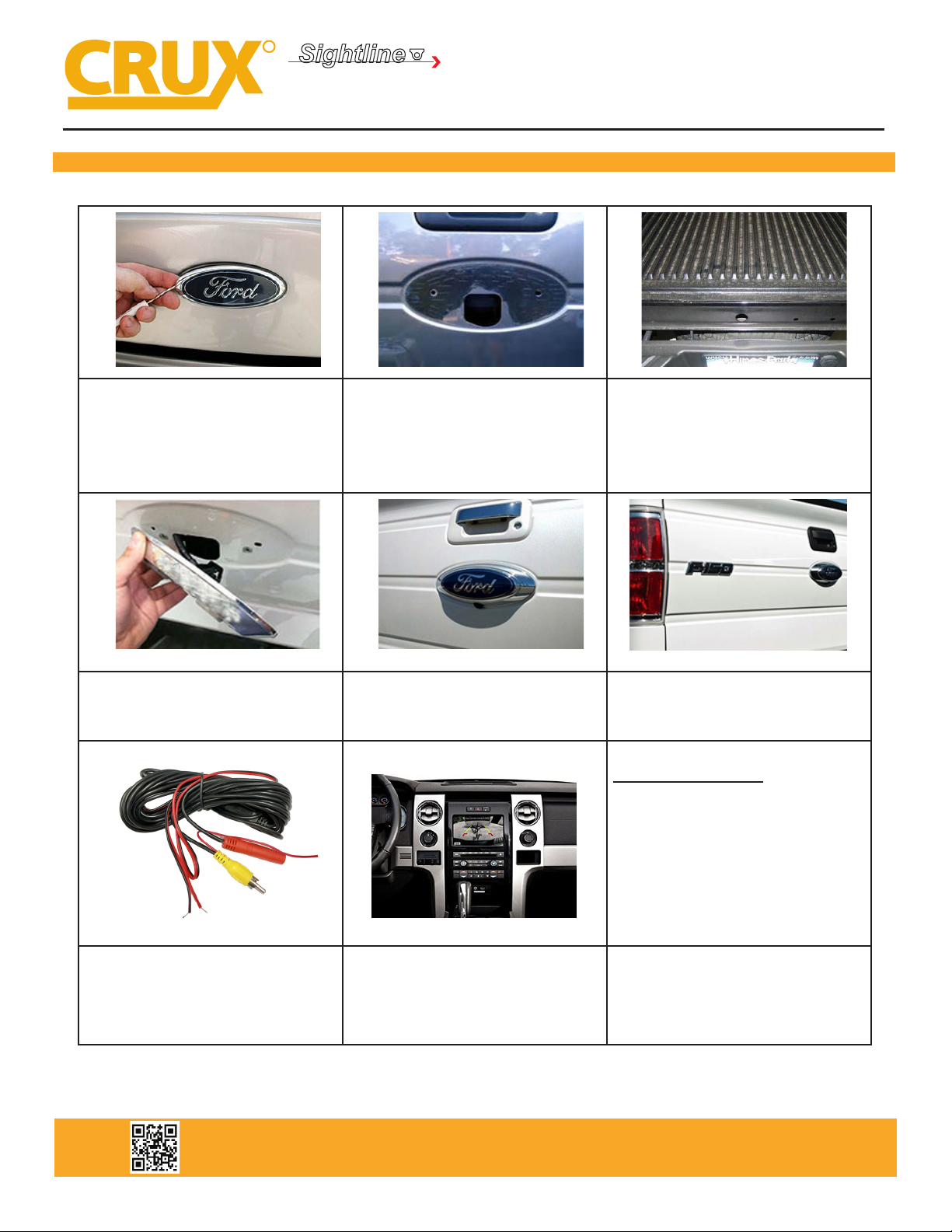

INSTALLATION PROCEDURE:

1. Remove the Ford Emblem. 2. The OEM holes behind the emblem

will look like this. If your tailgate does

not have these holes, you need to cut

a hole using a drill and the hole saw.

Use a le to smooth out the edges.

3. Some trucks have a hole on the bed

behind the tailgate like on the picture

above. If your truck does not have this

hole, use the hole saw to drill one. Use

a le to smooth the edges.

4. Route the wiring through the tailgate

hole down the opening at the base of

the tailgate.

5. Press in the emblem to cover the

base.

6. Route the harness through the hole

on the truck bed and run it towards the

front of the truck.

Camera Specicaons:

Resoluon: 420 TV Lines

Pixels: 656 x 492

Viewing Angle: 170-degrees

Minimum Illuminaon: 0.2 Lux

Shuer Speed: 1/60s-20us

Voltage: 12V Negave Ground

7. Tap +12V from the reverse light wire

using the supplied 3 . power plug or

use the power extension wire built into

the video cable to tap to the reverse

signal wire from an aermarket radio.

8. To integrate the CFD-03E back-up

camera with the MyFord Touch 8”

screen radio of select 2011-up Ford

vehicles, use part# RVCFD-79 Rear-View

Integraon Kit (not included).

2 / 2
