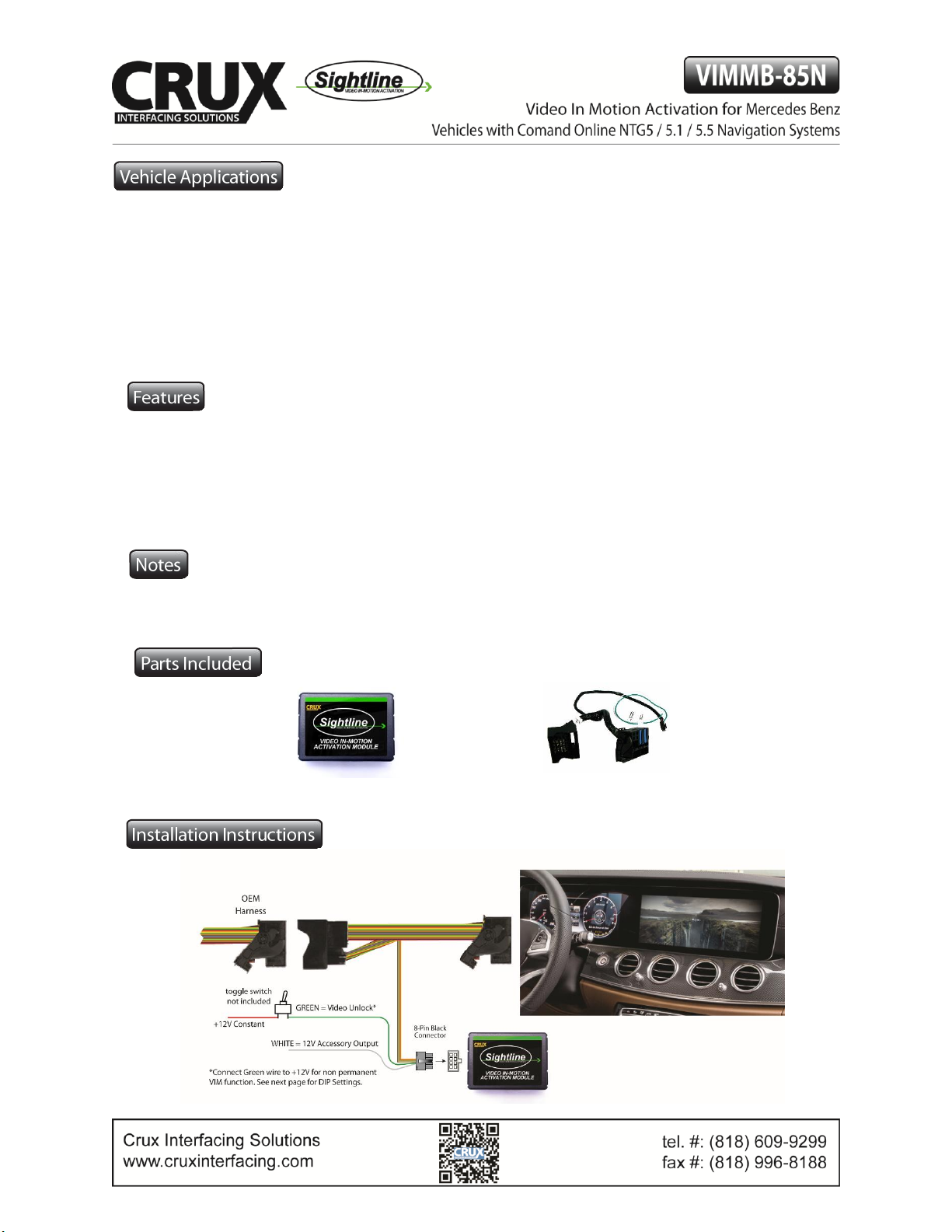

Crux Sightline VIMMB-85N Manuale utente
MERCEDES BENZ
2016 –2017 A Class (W176)
2015 –2017 B Class (W246)
2015 –2017 C Class (W205 / W202)
2015 –2017 CLA Class (C117)
2015 –2017 E Class (W212)
2017 E Class (W213) w/ Comand Online NTG5.5
2016 –2017 E Class Coupe (C207)
2016 –2017 GLA Class (X156)
2016 –2017 GLC Class (X253)
2016 –2017 GLS Class (X166)
2014 –2017 S Class (W222)
2014 –2017 C Class (W447)
-Retains functionality of Factory-installed Navigation System for passenger access at anytime.
-Allows onscreen access to Factory Bluetooth Keypad*.
-Allows for Navigation Destination Address Entry at anytime*.
-Plug & Play Installation.
*Subject to capability of Factory-installed Navigation System.
- Compatible with Comand Online NTG5, NTG5.1 and NTG5.5 systems.
- Interface does not have a video input
VIMMB-85N MODULE
MB-85N HARNESS
1 / 2
Rev.022017

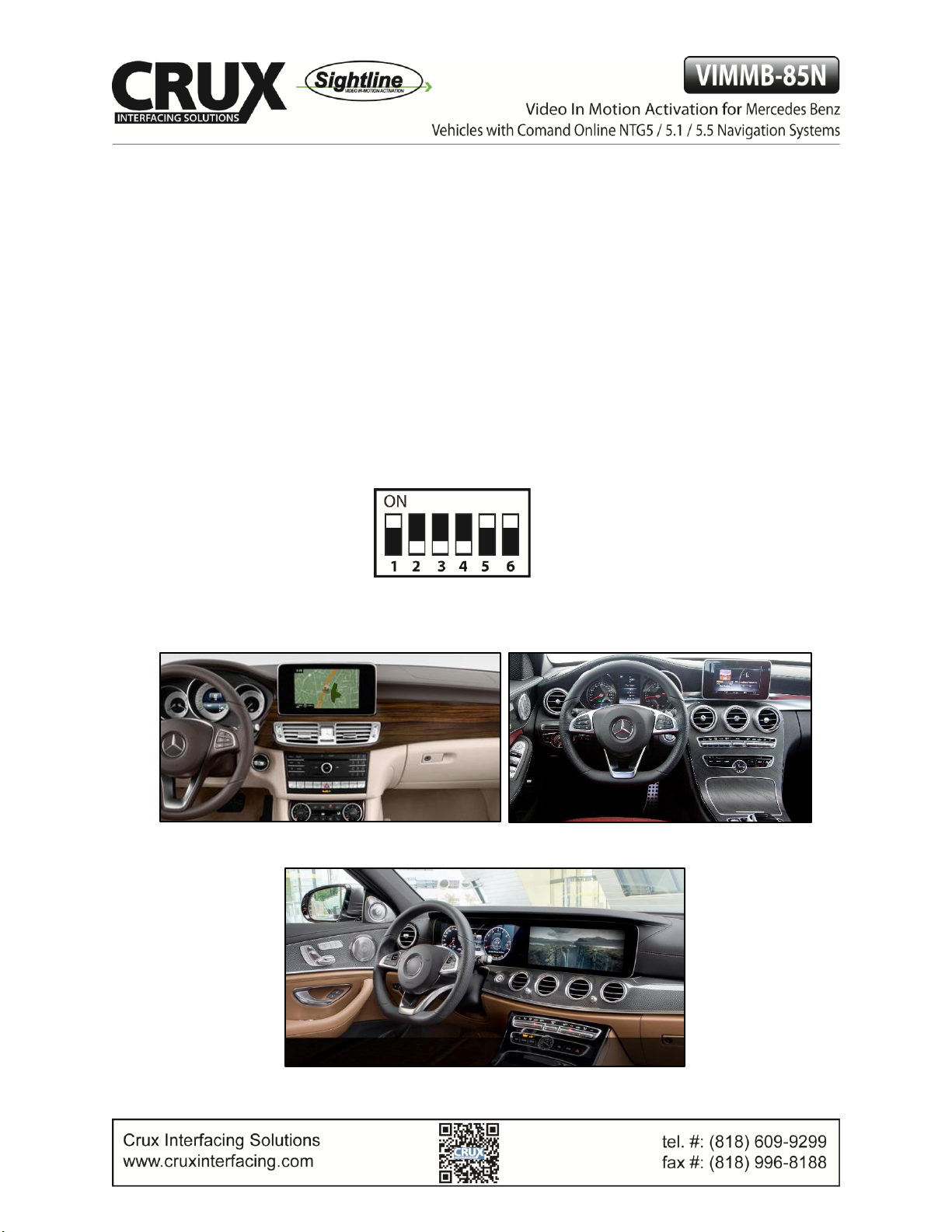

INSTALLING THE INTERFACE:
1. The installation is made behind the headunit (not the display).
2. Remove the headunit to gain access to the Quadlock connector.
3. Remove the factory connector from the headunit.
4. Make the T-Harness connections behind the factory headunit.
5. Set the DIP Switches. See settings below.
6. Connect the Green wire for a non permanent VIM option. The White wire can be used to power
an accessory such as a DVD player. Test the system before re-installing the factory headunit.
DIP SWITCH SETTINGS:
1. To enable the non-permanent video-in-motion feature, set DIP switch 1 to “ON”. Use a toggle
switch (not included) and connect the Green wire to +12V constant to enable VIM.
2. Switches 5 and 6 are defaulted to “ON”, test the video in-motion feature before placing the radio
back into the dash. If there is no display on the screen please set switches “5” and “6” to “OFF”.
1. On = VIM Enabled
2. Not Used
3. Not Used
4. Not Used
5. On
6. On
COMPATIBLE RADIOS:
NTG5 System
NTG5.1 System
NTG5.5 System
2 / 2
Rev.022017
