Crystal CHP075PX Manuale utente
Please read and understand ALL the instructions
before installation and use.
-1-
This is for information purposes only as all our PX models are below the 7kgs threshold of R32Gas.
Regulation (EU) n° 517/2014 of 16/04/14 on fluorinated greenhouse gases and
repealing Regulation (EC) n° 842/2006
Leak checks
1. Operators of equipment that contains fluorinated greenhouses gases in quantities of 5 tons of CO2, equivalent or more and not
contained in foams shall ensure that the equipment is checked for leaks.
2. For equipment that contains fluorinated greenhouse gases in quantities of 5 tons of CO2equivalent or more, but of less than 50
tons of CO2equivalent: at least every 12 months.
Picture of the equivalence CO2
1. Load in kg and Tons amounting CO2.
Load and Tons amounting CO2
Frequency of test
From 7
to
75 kg load = from 5 at 50 Tons
Each year
Do not release R32 coolant liquid into the atmosphere. This is a fluoride greenhouse effect gas covered by the
Kyoto agreement with a global warming potential (GWP) = 675 - (see the European Community regulations on
fluoride greenhouse effect gases Regulation (EU) No 517/2014).
Concerning the Gas R32, 7.40kg amounting at 5 tons of CO2, commitment to check each year.
Training and certification
1. The operator of the relevant application shall ensure that the relevant personnel have obtained the necessary certification, which
implies appropriate knowledge of the applicable regulations and standards as well as the necessary competence in emission
prevention and recovery of fluorinated greenhouse gases and handling safety the relevant type and size of equipment.
Record keeping
1. Operators of equipment which is required to be checked for leaks, shall establish and maintain records for each piece of such
equipment specifying the following information:
a) The quantity and type of fluorinated greenhouse gases installed;
b) The quantities of fluorinated greenhouse gases added during installation, maintenance or servicing or due to leakage;
c) Whether the quantities of installed fluorinated greenhouse gases have been recycled or reclaimed, including the name and
address of the recycling or reclamation facility and, where applicable, the certificate number;
d) The quantity of fluorinated greenhouse gases recovered
e) The identity of the undertaking which installed, serviced, maintained and where applicable repaired or decommissioned the
equipment, including, where applicable, the number of its certificate;
f) The dates and results of the checks carried out;
g) If the equipment was decommissioned, the measures taken to recover and dispose of the fluorinated greenhouse gases.
2. The operator shall keep the records for at least five years, undertakes to carry out the activities for operators and shall
keep records for at least five years.
*Please note*:
-2-
12. WIFI function
ATTENTION: This manual includes all the necessary information the use and
installation of your heat pump .
1.
The installer must read the manual and attentively follow the instructions for
implementation and maintenance.
2.The installer is responsible for the installation of the product and should follow all the
instructions ANY errors due to an installation that does not follow the manual guidelines
will VOID the Warranty.
Any use that does not conform to its manufacturing purpose will be regarded as dangerous
and will VOID any Warranties.
for
Thank you for choosing our CHP-PX range for your swimming pool heat pump for your pool heating
needs, it will heat your water and keep the temperature constant when ambient temperatures are at
-20℃to 43℃. As long as the H/P unit purchased has been sized correctly to your specific
requirements, with adequate pool & plumbing, insulation and an insulated cover is used. Please
call supplier to discuss.
INDEX:
1. Specification
2. Dimension
3. Stock advice
4. Installation
5. Adjust the by-pass kit
6. Initial operation
7. Controller Operation
8. Electrical Wiring
9. Malfunction and Trouble shooting
10. Exploded view
11. Maintenance
WARNING :
Please always keep heat pump in well ventilated place and away from anything which could cause fire.
Do not braze or weld the pipe if there is refrigerant inside machine. Please do not charge the gas when in
a confined space.
Please always empty the water in the heat pump during winter time if not in use or when the ambient
temperature drops below 3℃, the Titanium Exchanger will be damaged by being frozen, in such cases,
your warranty will be VOID.
Please always turn off & isolate the power supply if you want to open the cabinet to reach inside the heat
pump.
Please keep the display controller in a dry area to protect the display controller from being damaged by
humidity, such damage will VOID the Warranty for the display.
The action of filling gas must be conducted by a professional with an R32 operating license.
-3-
1. Specification
Model
CHP075PX
CHP095PX
CHP115PX
CHP135PX
CHP165PX
CHP205PX
CHP255PX
CHP305PX
* Performance at Air 28℃, Water 28℃, Humidity 80%
Heating capacity
kW
7.5-2.3
9.5-2.4
11.5-2.9
13.5-3.2
17.1-3.7
20-4.6
25.5-5.9
30-6.7
Power
consumption
kW
1.19-0.15
1.51-0.15
1.83-0.18
2.14-0.2
2.76-0.23
3.28-0.29
4.18-0.37
4.91-0.42
C.O.P.
16-6.3
16-6.3
16-6.3
16-6.3
16-6.2
16-6.1
16-6.1
16-6.1
* Performance at Air 15℃, Water 26℃, Humidity 70%
Heating capacity
kW
5-2.1
6.8-2.2
8.2-2.3
10.1-2.4
12-3.2
15-3.9
19-4.8
23.5-5.5
Power
consumption
kW
1.11-0.26
1.45-0.28
1.74-0.29
2.15-0.3
2.55-0.4
3.19-0.49
4.04-0.6
5.0-0.69
C.O.P.
8-4.5
8-4.7
8-4.7
8-4.7
8-4.7
8-4.7
8-4.7
8-4.7
Voltage
V
220V-240V/50Hz or 60Hz/1PH
Rated current
A
5.0
6.7
8.2
9.5
11.5
14.9
18.6
22.3
Min. MCB fuse
A
16
16
16
25
25
30
30
40
Main cable
mm2
1.5
2.5
2.5
2.5
4
4
4
6
Advised pool volume
(with pool cover)
m³
11-26
12-34
14-62
16-65
24-86
54-118
63-132
70-182
Advised waterflux
m3/
h
2.6
2.9
3.8
4.2
4.7
5.2
8.2
10.3
Water pressure drop
Kpa
12
12
14
15
15
18
18
18
Water connection
mm
48.3/50
No. of Fan
1
2
Noise level(10m)
dB(
A
)
≤ 25
≤ 25
≤ 27
≤ 28
≤ 30
≤ 32
≤ 32
≤ 33
Noise level(1m)
dB
(A
)
32-45
32-46
33-46
34-48
34-48
35-50
35-50
36-52
* Dimension/ Weight
Net weight
kg
56
68
73
78
98
117
128
130
Gross weight
kg
68
73
78
83
113
135
146
148
Net dimension
mm
855*325*565
986*352*672
1040*355*895
1040*355*
1295
Packing
dimension
mm
925*417*616
1051*435*717
1140*480*917
1105*470*
1322
* Above data may be modified without notice.
-4-
2. Dimension (unit: mm)

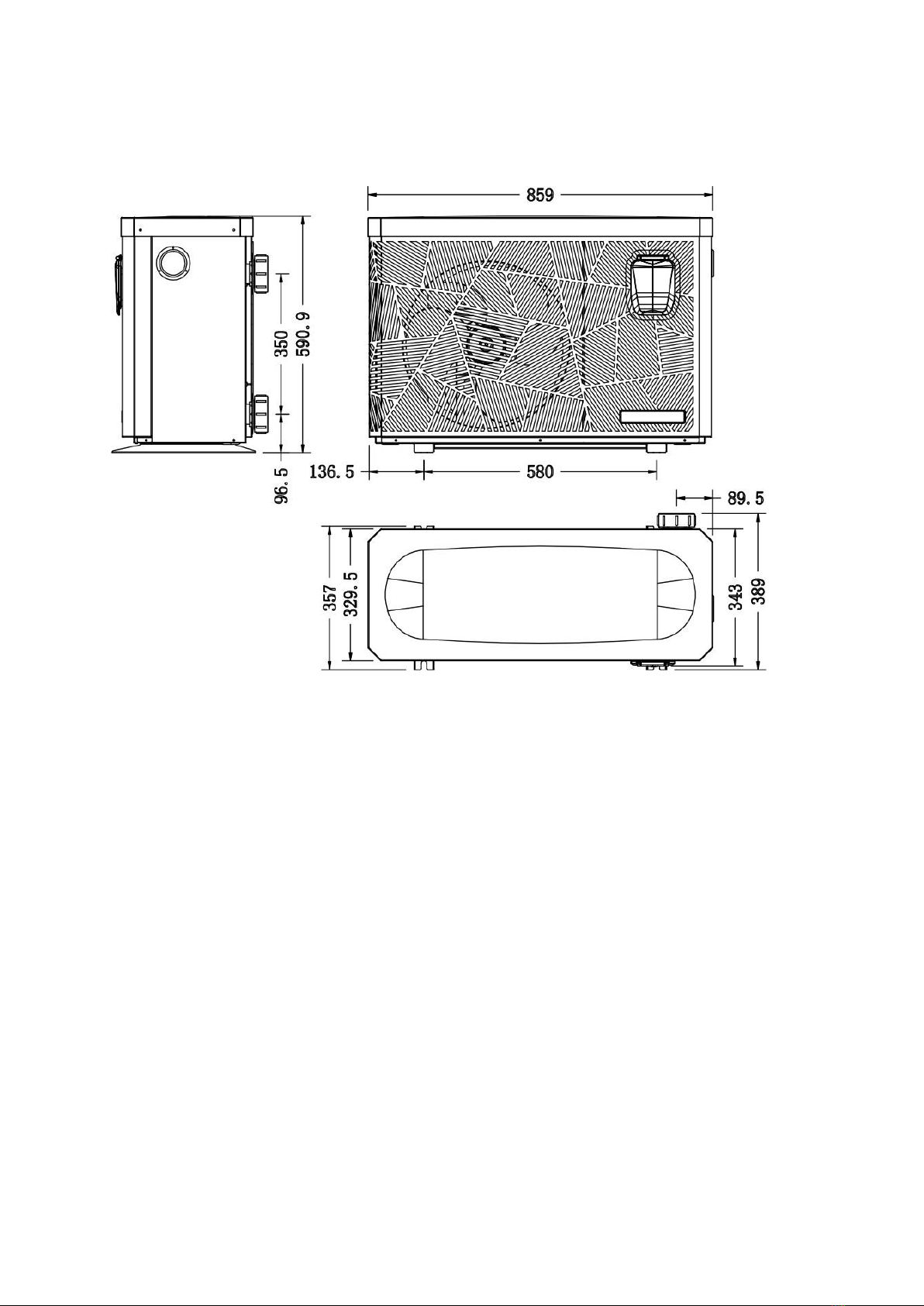

2.1 Model: CHP075PX, CHP095PX
-5-

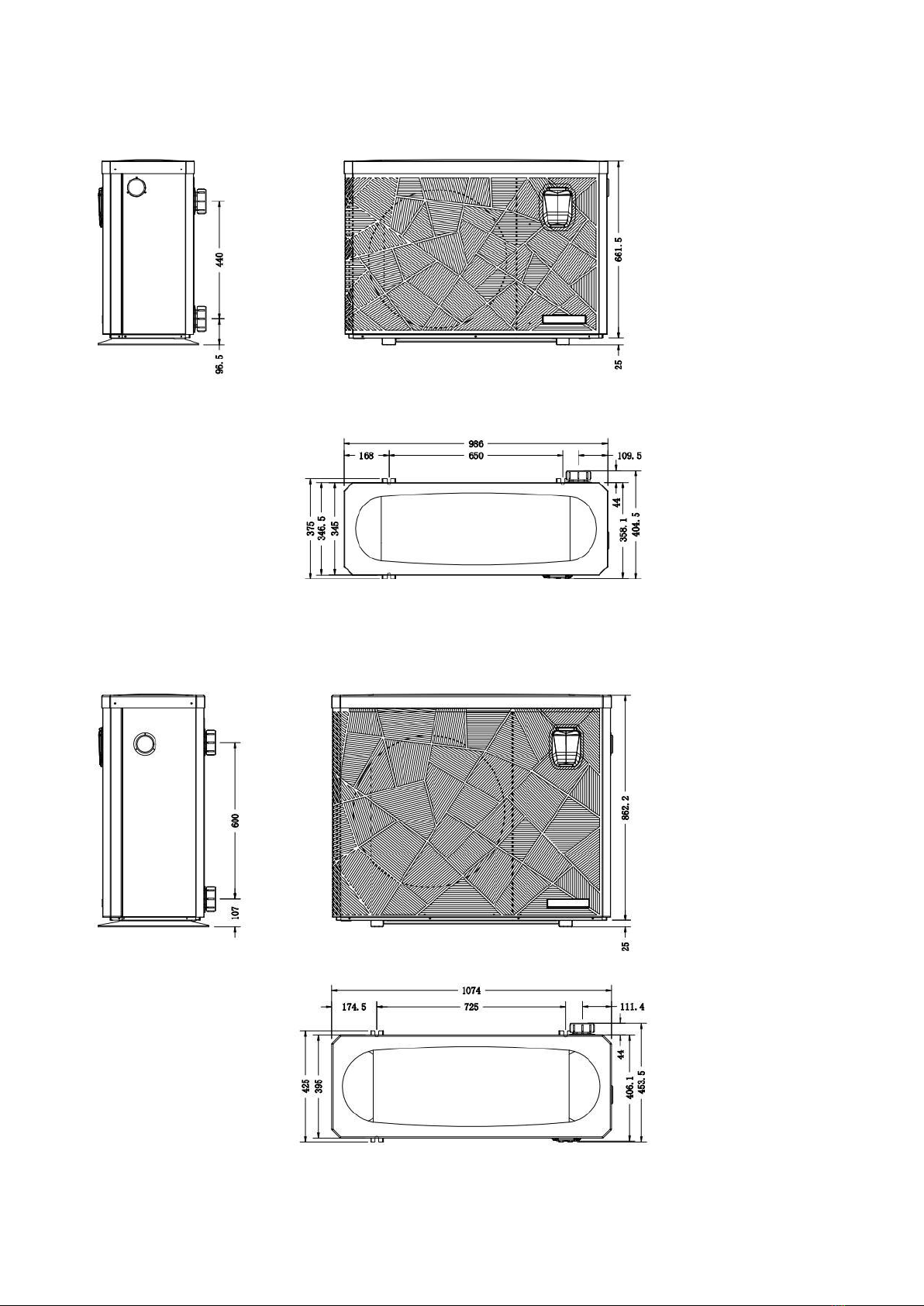

2.2 Model: CHP115PX, CHP135PX, CHP165PX.
2.3 Model: CHP205PX, CHP255PX
-6-

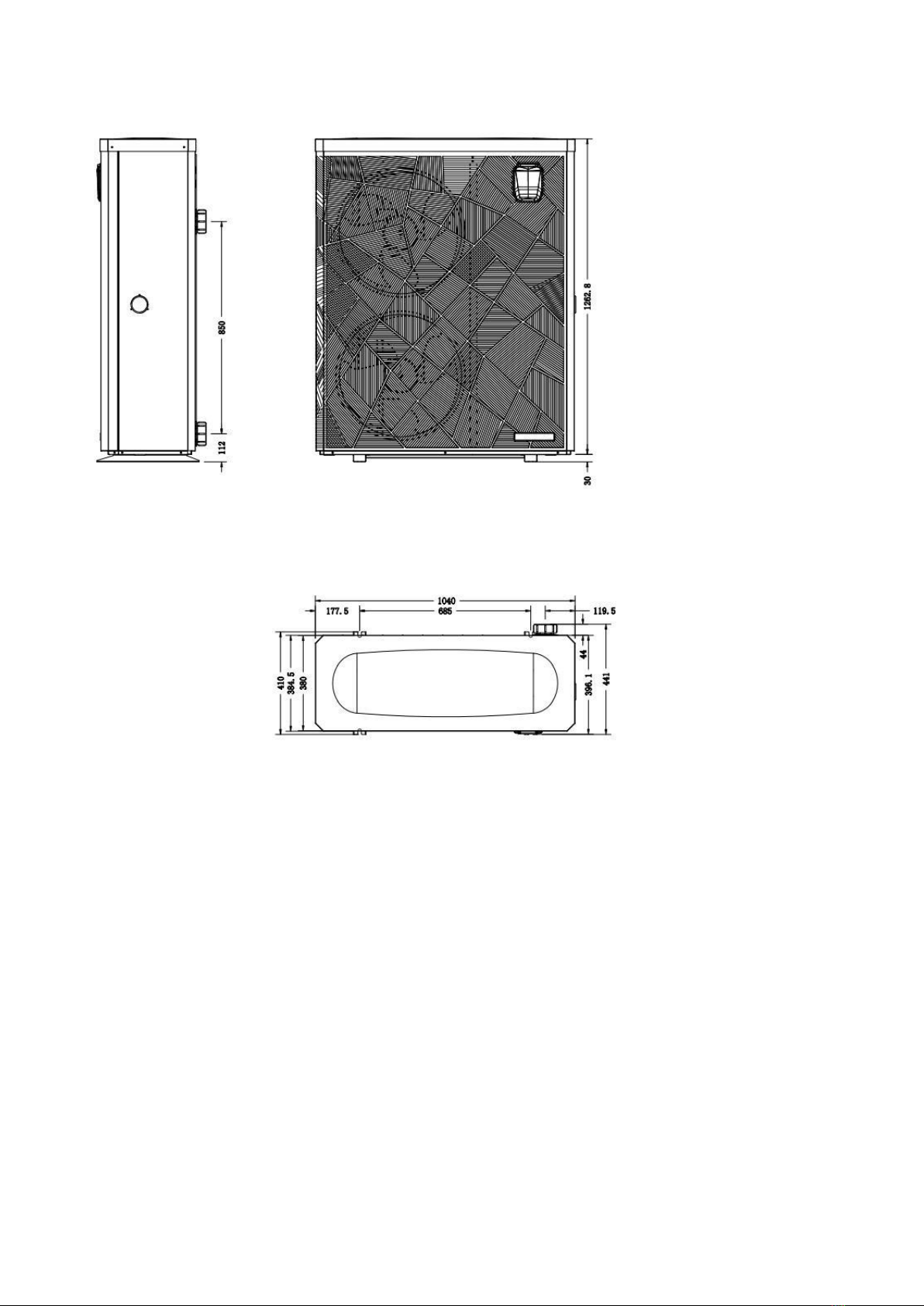

2.4 Model: CHP305PX.
-7-
3. Stock advice for R32 models
The warehouse should be bright, spacious, open, well ventilated, have ventilation
equipment and no fire source.
*VERY IMPORTANT* Heat pumps must be stored and transferred in a vertical position in its
original packaging. If this is not the case, the heat pump cannot be operated until a
minimum period of 24hrs has passed with the unit upright, before the unit can have the
electrical power turned on.
Smoking and the use of flames are prohibited near R32machine.
Water connections are not to be used as load bearing handles. The manufacturer does not accept
"ANY" responsibility for "ANY" damage to the water pipes.
4. Installation

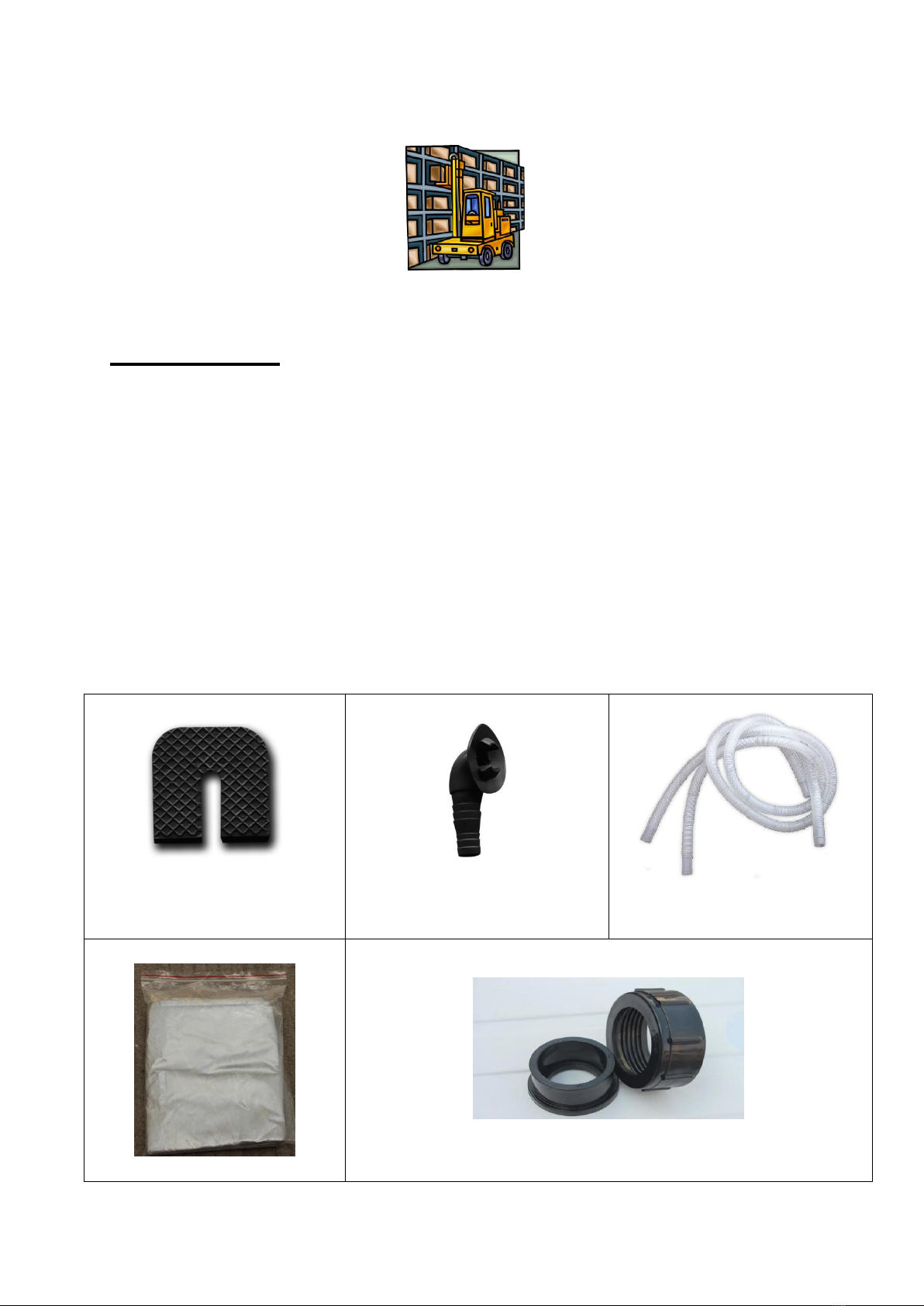

4.1 Accessories list
Anti-vibration base, 4 pcs
Draining plug, 2 pcs
Water drainage pipes, 2 pcs
Winter Cover, 1 pc
Water connection assembly, 4 sets （2 sets 48.3mm, 2 sets 50mm )
-8-

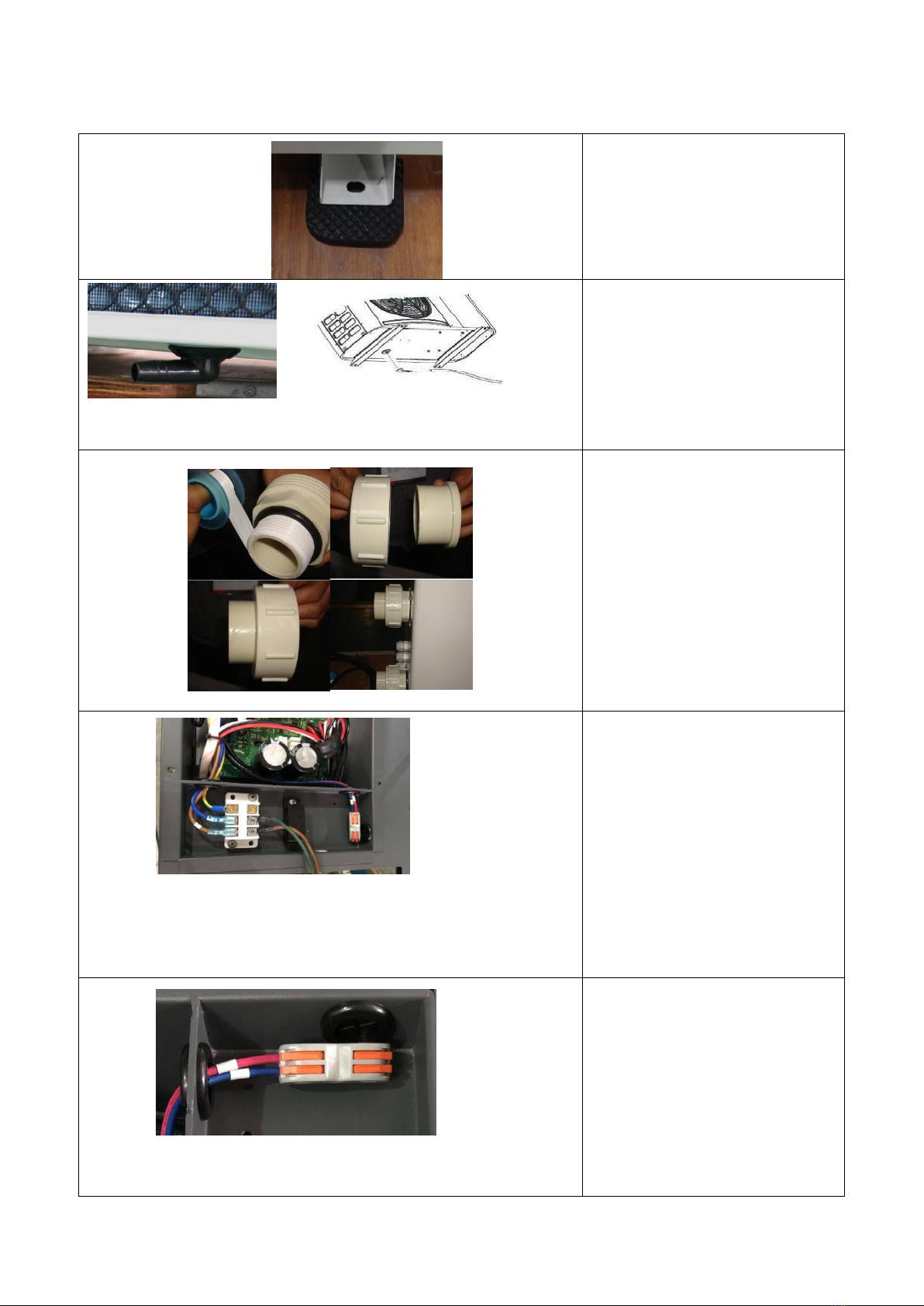

4.2 Accessories Installation
Anti-vibration bases
1. Take out 4 Anti-vibration
bases
2. Install them on the bottom of
machine.
Note: Lift the heat pump to install the draining plug. Never
overturn the heat pump, it could damage the compressor.
Draining plug (NOT winter use
see further info regarding winter
use)
1. Install the draining plug under
the bottom panel
2. Connect with a water pipe to
drain out the water.
Water Inlet & outlet junction
1.Use the pipe tape to connect
the water Inlet & outlet junction
onto the heat pump.
2.Install the two joints like the
picture shows.
3. Screw them onto the water
Inlet & outlet junction.
NOTE: Please check for any shipping moved/damaged pipe work
etc. that is too close to other items that may cause vibration and
rubbing as this would be classed as shipping damage and "NOT"
a warranty issue.
Mains Cable wiring
1. Open the top cover of the
heat pump.
2.Connect the cables in the
correct terminal according to
electric diagram.
3. Please take note of length of
cable runs and possibly
upgraded cable requirement.
NOTE: Any damage caused or PCB`s damaged by doing this
will VOID the warranty.
Filtration pump wiring (Dry
contact)
1. Open the top cover of the
heat pump.
2. Connect the cables in the
correct terminal according to
electric diagram.
