Page 2 U S E R MA N U A L AUTOSAT 2CONTROL

AUTOSAT 2CONTROL U S E R MA N U A L PAGE 3

Index

1Please read this first......................................................................................................5

1.1 Important Note:......................................................................................................5

1.2 Safety considerations ...........................................................................................6

1.3 Important operating considerations.....................................................................6

1.4 Disposal considerations .......................................................................................7

1.5 General considerations.........................................................................................7

2Figure Control Panel......................................................................................................8

3Sequence of automatic satellite search .......................................................................9

4Operating instructions ................................................................................................10

4.1 Quick reference ................................................................................................... 10

5Handling the operating instructions...........................................................................11

5.1 How to select a particular menu.........................................................................11

5.2 Menu details.........................................................................................................12

5.2.1 Main menu .....................................................................................................12

5.2.2 Fine positioning..............................................................................................12

5.2.3 Satellite ..........................................................................................................13

5.2.4 Parameter ......................................................................................................13

5.2.5 Search mode..................................................................................................14

5.2.6 Backlight.........................................................................................................15

5.2.7 Manual Elevation of the Antenna....................................................................15

5.2.8 Manual Azimuth of the Antenna......................................................................16

5.2.9 SkewMotion (Option)......................................................................................16

5.2.10 Manual Skew (Option)....................................................................................16

5.2.11 Language.......................................................................................................17

5.2.12 Factory settings..............................................................................................17

5.3 Special functions.................................................................................................17

5.3.1 Direct selection of fine tuning..........................................................................17

5.3.2 Direct alternation between two satellites.........................................................17

6Mounting instructions.................................................................................................18

6.1 Choice of installation site ...................................................................................18

6.2 External unit.........................................................................................................18

6.3 Mounting the external unit..................................................................................19

6.4 Cable connection to the Control unit.................................................................21

6.5 Figure Control unit connectors ..........................................................................21

6.5.1 Sketch of connector housing (rear view!!).......................................................22

6.6 Power supply.......................................................................................................22

7Connection and initial operation ................................................................................23

7.1 Mounting the control unit....................................................................................23

7.1.1 Satellite aerial connector ...............................................................................23

7.1.2 Connection external motor unit.......................................................................24

7.1.3 Connection power supply ...............................................................................24

7.1.4 Connecting an external control panel..............................................................24

7.1.5 Initial operation...............................................................................................24

8Fault elimination..........................................................................................................25

9Specification................................................................................................................26

Page 4 U S E R MA N U A L AUTOSAT 2CONTROL

AutoSat 2 CONTROL

Dear Customer,

congratulations, that you have decided on a AutoSat 2 CONTROL. This User

Manual should help you, to utilise the functions of your new satellite system

optimally.

We have kept the operational details as understandable as possible, while

keeping them short.

The functional range of your device will be expanded steadily with software

updates. That way there may be additional operational steps, which are not

explained in this user manual or the operation of functions already available

may change. For this reason you should visit the Crystop homepage

www.crystop.de from time to time, to download the current user manual.

We wish you much joy with your AutoSat 2 satellite system!

Your

Crystop Team

AUTOSAT 2CONTROL U S E R MA N U A L PAGE 5

1 Please read this first

Before commencing the installation, check the consignment for

completeness.

The following items are contained in the shipment:

1 Control unit box

1 External unit and satellite aerial (dish or flat aerial)

1 Connecting cable for power supply, 0.5 m length

1 12-way connector housing

4 Hexagonal screws M6 x 22 A2

4 Washers M6, A2

4 Self-locking nuts M6, A2

12 Self-tapping screws 3,9x25

1 Cable gland feed through for the roof

1 Remote control (optional)

1 Analog or digital receiver (optional)

1 User manual

1.1 Important Note:

Before installation and start-up of your AutoSat 2, please read this user manual

carefully.

Always make sure (even when your AutoSat 2 will be retracted by your starter key) that the

system has really retracted when starting your vehicle. In case of interrupted supply voltage,

for instance, the aerial can no longer be automatically retracted.

Very important: The external unit must be mounted on the vehicle roof with the aerial

retracted in a direction opposite to the driving direction, as otherwise one cannot rule out

that the aerial will be blown up by wind during high-speed driving.

When transporting the vehicle on a train, the aerial must be fixed in the retracted position

by additional suitable means (expander belts, etc.), due to railway wagons being turned

around when re-coupling.

Do not clean your AutoSat 2 external unit with a steam cleaner. The rubber seals used

for sealing will be OK for rain and water spray but cannot survive a water jet with a pressure

of several bars. The use of drive-in wash stations is deprecated and is entirely at your own

risk.

A condition for satellite reception is free sight to the satellite, i.e. even trees cannot be

penetrated by a satellite signal !!

Page 6 U S E R MA N U A L AUTOSAT 2CONTROL

1.2 Safety considerations

For your protection, read the safety considerations carefully before you start running your

new equipment.

The manufacturer accepts no liability for damages arising from faulty handling and failure to

comply with safety provisions.

If the equipment has been modified, Crystop is no longer responsible for ensuring, that the

legal requirements (i.e. equipment and product safety laws, electromagnetic compatibility)

are complied with. On resale of the modified equipment, the person responsible for the

modification becomes the manufacturer and is liable accordingly. Furthermore the Crystop

Guarantee becomes inapplicable, which may lead to a loss of warranty rights.

AutoSat 2 is designed solely for installation and operation in motor vehicles and caravans.

The D+ conductor should always be connected.

The screws of the external unit should be checked regularly for tightness.

1.3 Important operating considerations

Installation location/ Ventilation

Like any electronic device, the AutoSat control unit produces heat. However the heat

produced is innocuous and is discharged effectively. Do not place any objects on the device.

Maintain a space of 5 cm above the device to allow the heat produced in the device to

discharge.

Do not place burning objects, i.e. burning candles on the device.

The rubber feet of the device may cause a colour change in treated furniture surfaces. If

necessary, place the device on an appropriate mat.

Supply voltage

Operate the control unit with a voltage of 12 to 14.4 V DC only. Never open the device. If

repair becomes necessary, it should be carried out be trained personnel.

Moisture

Protect the device from moisture, drips and splashes and do not place objects containing

liquids, i.e. vases on it.

Heat/Radiation

Do not place the control unit near a heating element or in direct sun light.

In the following cases disconnect the device from the power supply and ask an expert

for help:

> the device was subjected to moisture i.e. liquid got inside.

> on major malfunction.

> on major external damage.

WARNING:

In order to prevent damage to your vehicle roof, your AutoSat2 should not be

operated in high winds and gusts.

AUTOSAT 2CONTROL U S E R MA N U A L PAGE 7

1.4 Disposal considerations

The packaging of your unit consists exclusively of reusable materials which should be

recycled.

Make sure, that empty batteries from the remote control unit are not disposed in the

household rubbish, but are returned for disposal as hazardous waste to a dealer.

1.5 General considerations

Always make sure (even when your AutoSat 2 will be retracted by your starter key) that the

system has really retracted when starting your vehicle. In case of interrupted supply voltage,

for instance, the aerial can no longer be automatically retracted.

A condition for satellite reception is free sight to the satellite, i.e. even trees cannot be

penetrated by a satellite signal !!

At the edges of the reception area, signal quality may be improved by turning the LNB:

South western Europe (i.e. Agadir, Canaries): turn LNB by approx.35° clockwise (looking

from LNB to mirror).

North eastern Europe (i.e. Greece, Western Russia): turn LNB um approx. 15° anti-

clockwise.

For Australia consult the Intellisat LNBF POLARISATION Satellite Signal Location Map.

Page 8 U S E R MA N U A L AUTOSAT 2CONTROL

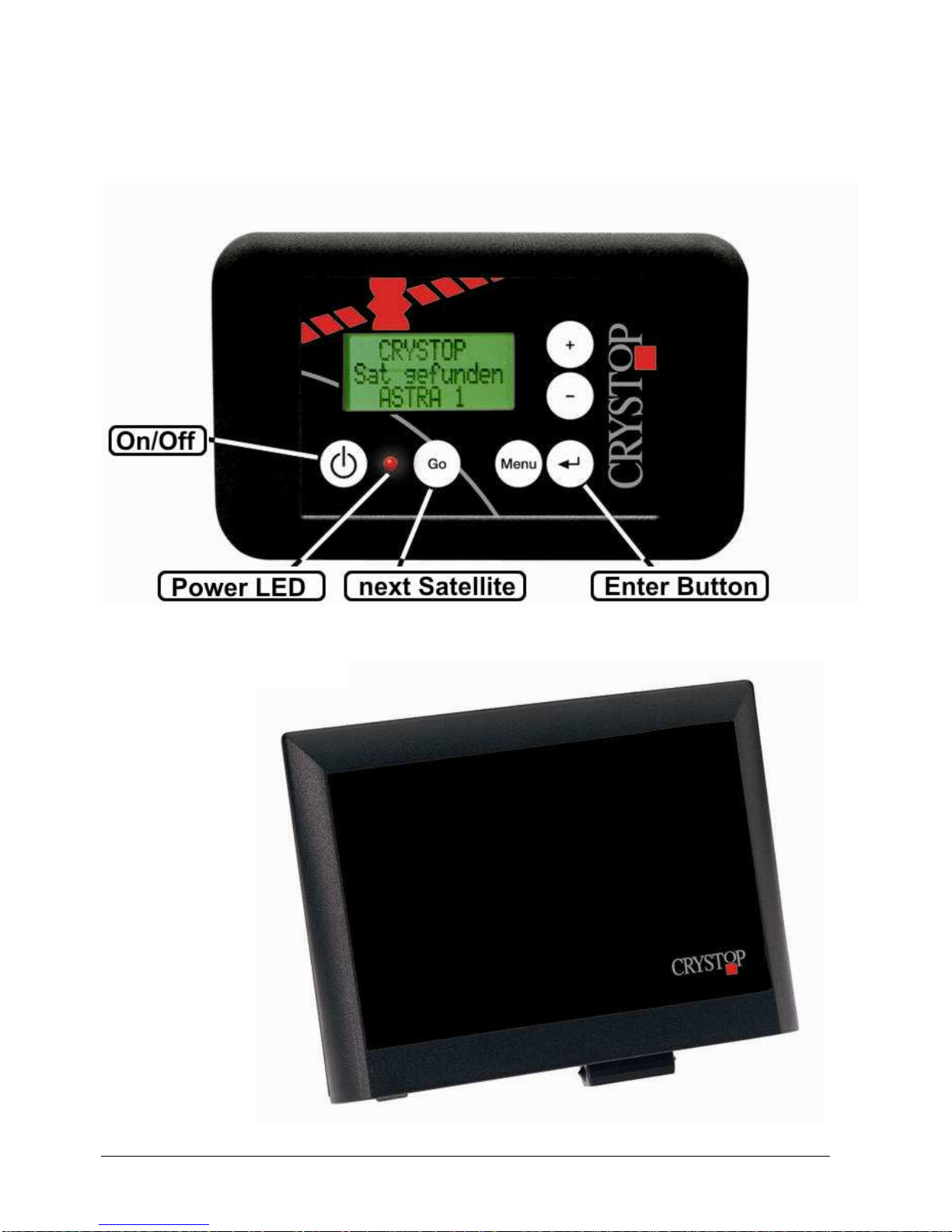

2 Figure Control Panel

Figure Control-Box

AUTOSAT 2CONTROL U S E R MA N U A L PAGE 9

3 Sequence of automatic satellite search

The AutoSat 2 Control satellite system is turned on with the “On / Off” button on the

control unit. After turn on, the satellite to be searched for will be shown in the display (factory

setting ASTRA1 or the last received). In the top right of the display 5 seconds are now

counted down, during which time you may call up the main menu via the “Menu” button.

If no button is pressed, the satellite search starts (LED next to the “On / Off” button goes

out).Once a satellite has been found, fine positioning is carried out. After this (LED lights up

again) the words “SATELLITE FOUND” are shown in the display and the aerial signal is

switched to the receiver.

Now 120 seconds of delay are counted down in the display. During this time the main menu

may be called or the next satellite may be searched for. If no button is pressed within 120

seconds, the control unit switches itself off.

If the receiver is set to a program of the requested satellite, the program will now be visible

on the TV set. Should this not be the case, there is a possibility, that the control unit has

found a different satellite. By pressing the “Sat” button, the search may be continued.

AUSTRALIAN version:

to take affect you have to press down this button for longer than five seconds.

If on the other hand, the satellite system has found the right satellite and you nevertheless

press the “Sat” button, then the requested satellite will not be found, since incorrect

positions for further searches are precluded.

Therefore first check for other programs on the satellite by stepping the receiver to other TV

stations for that satellite if no program is visible initially.

If you want to change to a different satellite after the control unit has switched itself off, you

must switch it on again first.

After switching off the satellite receiver, the LED next to the “On / Off” button (or on the

optional remote control) starts to blink, as a reminder, that the antenna is still extended. To

retract the antenna you must activate the control unit by pressing the “On / Off” button once

and then press it again to retract the antenna. On reaching the parking position, the AutoSat2

Control switches itself off completely.

You will find a detailed description of all functions on the following pages.

AUS

Page 10 U S E R MA N U A L AUTOSAT 2CONTROL

4 Operating instructions

4.1 Quick reference

Function Description Operation

Switch on

“On / Off“ button

The satellite system is switched on with the

”On / Off“ button on the control unit or on the

optional remote control unit.

Retract antenna

+ Switch off

“On / Off“ button

If the control unit is switched off (display off) the

“On / Off“ button is pressed twice - once to

switch the control unit on and another time to

retract the antenna and switch off. If the control

unit is already on (display on) the “On / Off“

button needs to be pressed only once.

Change Satellite

“Sat“ button

If the currently found satellite is not the one you

require, then a search for the next satellite is

initiated by pressing the “Sat“ - button.

AUSTRALIAN version: to take affect you

have to press down this button for longer

than five seconds.

Menu button

“Menu“ button

By pressing the “Menu“ button, the main menu

is displayed. All operating functions are called

via the main menu.

Inputs are saved by pressing the “Menu“

button again.

Minus button

“Minus“ button

The “Minus“ button goes one step back for

Menu selection or reduces input values by 1.

Plus button

“Plus“ button

The “Plus“ button goes one step forward for

Menu selection or increases input values by 1.

Enter

“Enter“ button

The “Enter“ button confirms a Menu selection.

Indice

Manuali Controllori popolari di altre marche

Digiplex

Digiplex DGP-848 Istruzioni operative

YASKAWA

YASKAWA SGM series Manuale utente

Sinope

Sinope Calypso RM3500ZB Manuale utente

Isimet

Isimet DLA Series Style 2 Manuale di installazione

LSIS

LSIS sv-ip5a Manuale utente

Rockwell Automation

Rockwell Automation 1769-L31 Manuale utente

Airflow

Airflow Uno hab Manuale utente

ABB

ABB ACS580-01 drives Manuale utente

Panasonic

Panasonic GM1 Series Manuale utente

Emerson

Emerson SW93 Manuale utente

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuale utente

Panasonic

Panasonic FP? Positioning Unit RTEX Manuale utente

Samson

Samson Type 5824 Manuale di servizio

Alpha IP

Alpha IP MIOB 21001 Manuale utente

Siemens

Siemens OpenAir GMA 1 Series Manuale utente

Surecom

Surecom SR-629 Manuale utente

Fishman

Fishman TriplePlay Manuale utente

Regulus

Regulus SRS1 T Manuale utente
