Quick Start Guide
CR-JB100
CR-JB100 Quick Start Guide
About the CM-Zx-Debug V1.4
•Debugger 보드 목적 : CM-Z100, CM-Z101 보드의 모든 기능을 검증하기 위한 보드
•주의 사항 :
ØCM-Z100, CM-Z101보드에 장착시 인쇄면에 맞추어 장착할 것
ØCM-Zx-SERIAL 출력 전류가 낮기 때문에 오직 CM-Z100, CM-Z101만연결 합니다.
ØCM-Zx-SERIAL은연결하지 않는다
•Battery DC Power Select Switch
•Battery Connector
•DC 5V Connector
•USB Power Connector
•CM-Z10x Connector
•Jumper
•CM-Z10x External Connector
•Debug RS232 Connector
•CC-Debugger Connector
•Reset Switch
CR-JB100 Quick Start Guide
Getting Started
Boards : CM-CC-DEBUGGER, CM-Zx-Debug, CR-JB100
Cables : 8Pin Cable, 10Pin Cable
Documentation : Quick Start Guide (this document)
CR-JB100 Quick Start Guide
Get to Know the CR-JB100
8Pin Connector
B2B Expansion Connector : 2x11
CC2530 Zigbee SoC
/ 256KB Flash
CC2592 Range Extender
Expansion Antenna Connector
Chip Antenna
CR-JB100 Quick Start Guide
Get to Know the CR-JB100
SHIELD_CAN 18.0mm
25.0mm
36.0mm
SHIELD_CAN 23.0mm
CR-JB100 Quick Start Guide
Get to Know the CR-JB100
(2 –3.6V)
(UART_RX)
(UART_TX)
CR-JB100 Quick Start Guide
Get to Know the CM-Zx-Debug V1.4
BATTERY
DC POWER
SELECT SWITCH
BATTERY
CONNECTOR
DC 5V
CONNECTOR
USB POWER
CONNECTOR
1: PWR
2: DD
3: DC
4: GND
5: P0.0
6: RESET
7: RX(CZ10x)
8: TX(CZ10x)
CZ10x
CONNECTOR
DEBUG RS232
CONNECTOR
RESET SWITCH
DEBUG
CONNECTOR
JUMPER
CM-Z10x
EXTERNAL
CONNECTOR
CR-JB100 Quick Start Guide
Test Manual

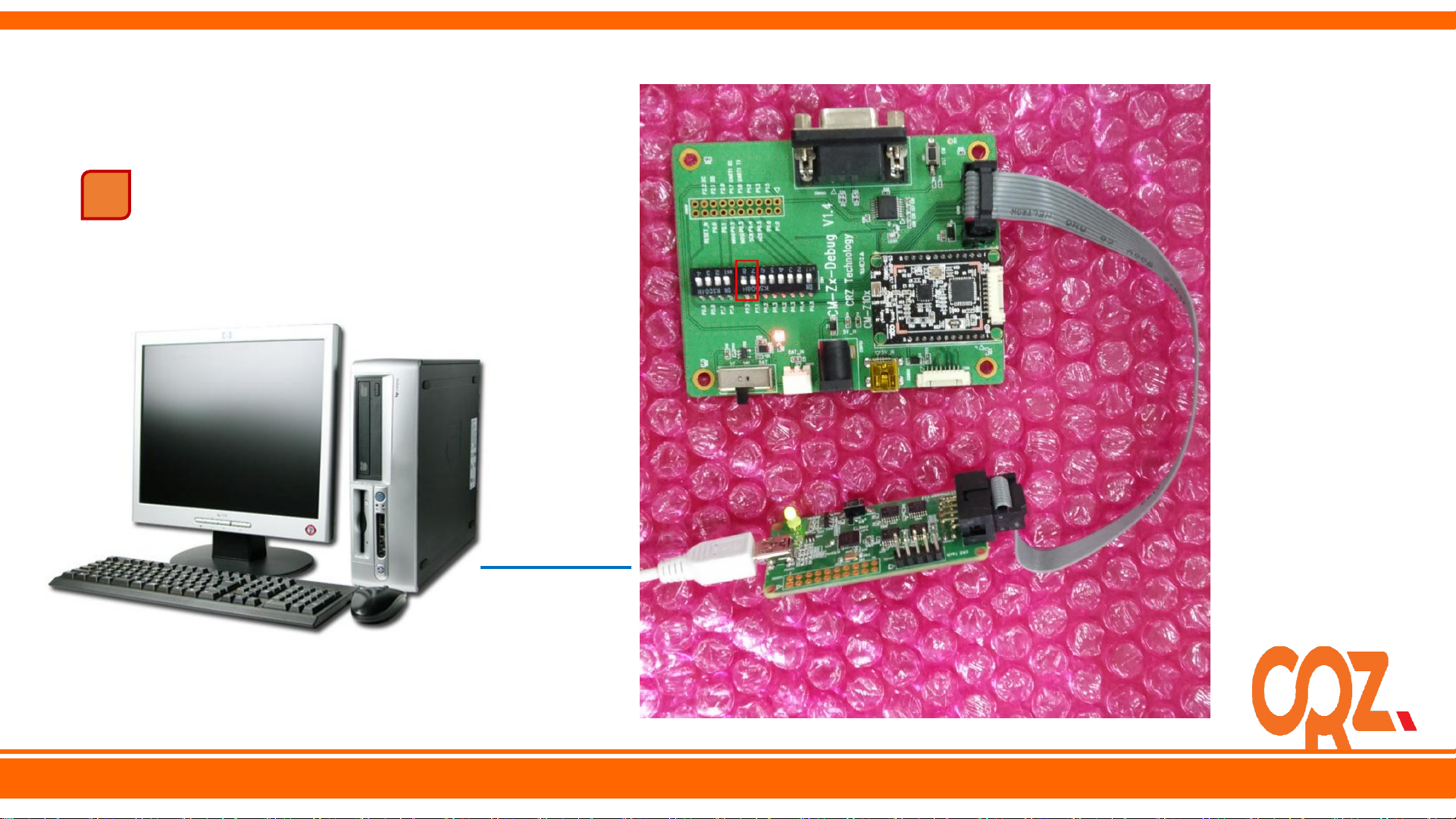

3 보드와 컴퓨터 연결
그림과 같이 연결합니다.
USB
