Paragon Premium Locking Floor Stand
PAD-PARAFU
INSTALLATION - MANUAL
INSTALLATION:
1.Installing Holder to Floorstand
1A. Align VESA plate from universal security holder (B) to VESA plate of floor stand (A). With the provided
screws (E) and rotate in with the provided allen key (F) turn it in clockwise through the VESA from universal
security holder (B) to the threaded VESA 100mm X 100mm holes until securely tightened.
A
B
E
CONTENTS:
x1
Universal
Security Holder
B
x1
VESA
Floor Stand
A
x4
M5 X6
E
x1
Security
Lock Key
D
Foam
Pads
C
1mm 5mm 10mm 15mm
x1
Allen Key
F
x1
Weighted
Cable
G
2. Inserting Tablet to Holder & Attaching Foam Pad
3. Securing the Holder
B B
B
C
C
A
D
D

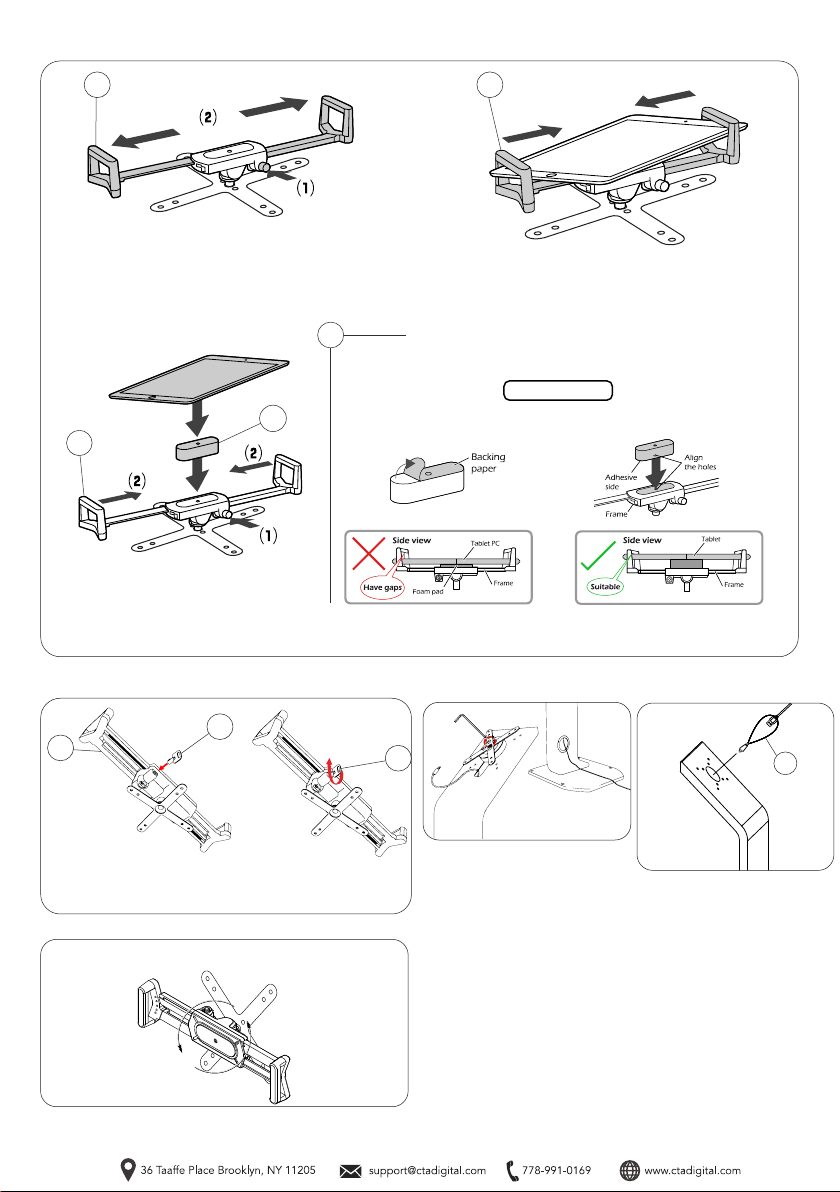

2A. Press and hold the button (1) to release arms
then adjust the arms(2) until tablet can fit
2C. Insert the tablet then retract the arms until the
tablet and holder fits securely.
2B. Insert the tablet in Security Universal
Holder (B) with the correct foam pad (C).
Identify the right foam pad by testing your
tablet with various pieces until you find the
one that fits securely and snug.
**Tablet for illustration only and not included
3A. Insert the key (D) to the key opening and
rotate clockwise 360 degrees to lock and secure it.
Rotation Adjustability
Adjust the thickness with foam pads
Use the foam to adjust the thickness between the tablet and the holder.
1. Tear o the backing paper on
the foam pad.
2. Stick the foam pad to the frame
as shown.
Paste Method
Rotate and adjust to preferred portrait or landscape
orientation for preferred setup.
4A.Take the provided allen key tool and rotate clockwise the
screws that are attaching the X-VESA joint together as
illlustrated. Once all screws are out, remove the X-VESA
adapter.
4B. Insert cable from top attached to provided fish style
weighted cable. Slowly filter cable through the body from
top and work your way through to the bottom opening.
Remove weighted cable from cable. Connect cable to
power source and device and you’re ready to go.
4. Cable Routing through Floor Stand
G
