Cub Cadet Yanmar Ex450 Scheda tecnica

Form No. 769-04711

(03/09)

Ex450

Ex Series Ex32002

INSTRUCTIONS FOR PARTS LIST MANUAL

ENGINE SECTION - PAGES 3 THROUGH 26

TRACTOR SECTION - PAGES 27 THROUGH 181

EXAMPLE - FIGURE & REFERENCE NUMBERS

Ex Series Ex45

FIG. NO.GROUP NAME

1 CYLINDER BLOCK

2 GEAR HOUSING

3 MOUNTING FLANGE & OIL SUMP

4 CYLINDER HEAD & BONNET

5 SUCTION MANIFOLD

6 EXHAUST MANIFOLD & SILENCER

7 CAMSHAFT & DRIVING GEAR

8 CRANKSHAFT & PISTON

9 HYDRAULIC PUMP

10 BALANCER

11 LUBRICATING OIL SYSTEM

12 COOLING WATER SYSTEM

13 FUEL INJECTION PUMP

14 GOVERNOR

15 FUEL INJECTION VALVE

16 STARTING MOTOR

17 GENERATOR

TRACTOR SECTION STARTS ON PAGE 34

ENGINE SECTION INDEX

Sc Series Sc24004

NOTES:

Ex Series Ex450

REF

NO. PART NUMBER DESCRIPTION QTY

1 CY-729659-01570 BLOCK ASSY, CYLINDER 1

4 CY-129001-01250 PLUG, 50 1

5 CY-171051-01921 PLUG, NPTF1 1

6 CY-129150-02020 BOLT, METAL CAP 10

9 CY-129795-02412 BUSH, CAMSHAFT A 1

10 CY-27241-300000 PLUG 30 8

11 CY-124060-01050 PLUG, PT1/8 1

12 CY-124160-01910 PLUG, PT1/4 2

13 CY-27241-120000 PLUG, 12 2

23 CY-129150-02931 METAL ASSY, THRUST 2

26 CY-129001-02931 MAIN BEARING SET 5

29 CY-129150-01200 BOLT, CYLINDER HEAD 18

30 CY-129407-01340 GASKET, HEAD 1

31 CY-119309-01810 PLUG 1

32 CY-129150-02871 MAIN METAL US=0.25 5

35 CY-129150-02941 BEARING, THRUST.25OS 1

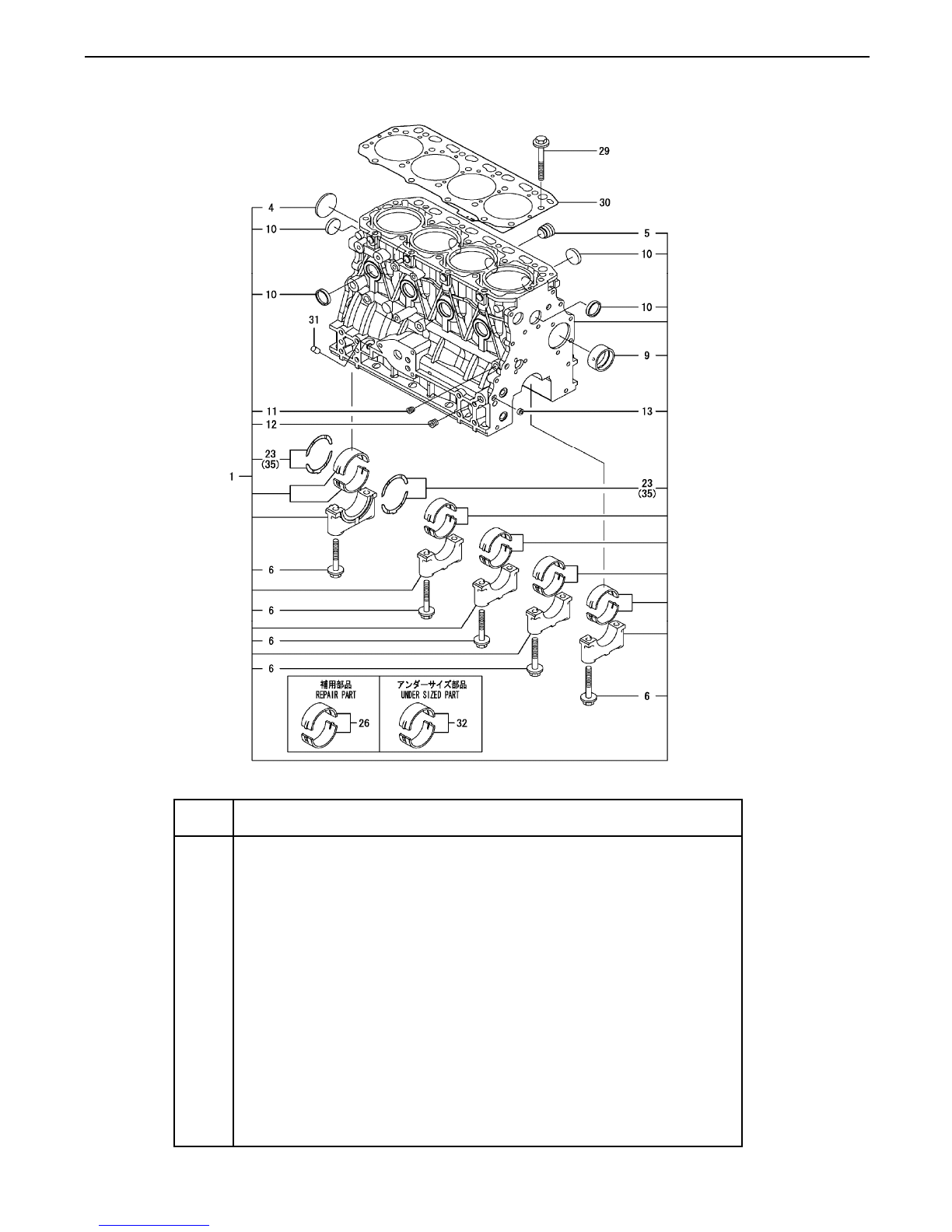

FIG.1.CYLINDER BLOCK

Ex Series Ex450

REF

NO. PART NUMBER DESCRIPTION QTY

1 CY-729008-01500 HOUSING ASSY, GEAR 1

3 CY-119934-01800 SEAL, OIL 1

4 CY-129008-01520 FLANGE, GEAR CASE 1

5 CY-119802-01561 STUD, M8X25 3

6 CY-129150-01580 STUD 8 X 30 1

7 CY-124160-01751 COVER, FILLER 1

8 CY-124240-01871 COVER, PUMP 1

9 CY-129795-01950 PIPE, KNOCK 2

10 CY-119609-32040 O-RING P16 2

11 CY-121850-51960 O-RING, F.I.PUMP 1

12 CY-22190-080002 SEAL WASHER 8S 4

13 CY-22190-080002 SEAL WASHER 8S 1

14 CY-24311-000320 O-RING 1A P-32.0 1

15 CY-26106-080162 BOLT M 8X 16 PLATED 4

16 CY-26106-080162 BOLT M 8X 16 PLATED 3

17 CY-26106-080302 BOLT M 8X 30 PLATED 1

18 CY-26106-080552 BOLT M 8X 55 PLATED 10

19 CY-26106-080852 BOLT M 8X 85 PLATED 3

20 CY-26306-080002 NUT, M8 3

21 CY-129150-91400 GEAR, UNIT 1

23 CY-24341-000240 O-RING 1A S-24.0 1

24 CY-26106-060162 BOLT M 6X 16 PLATED 2

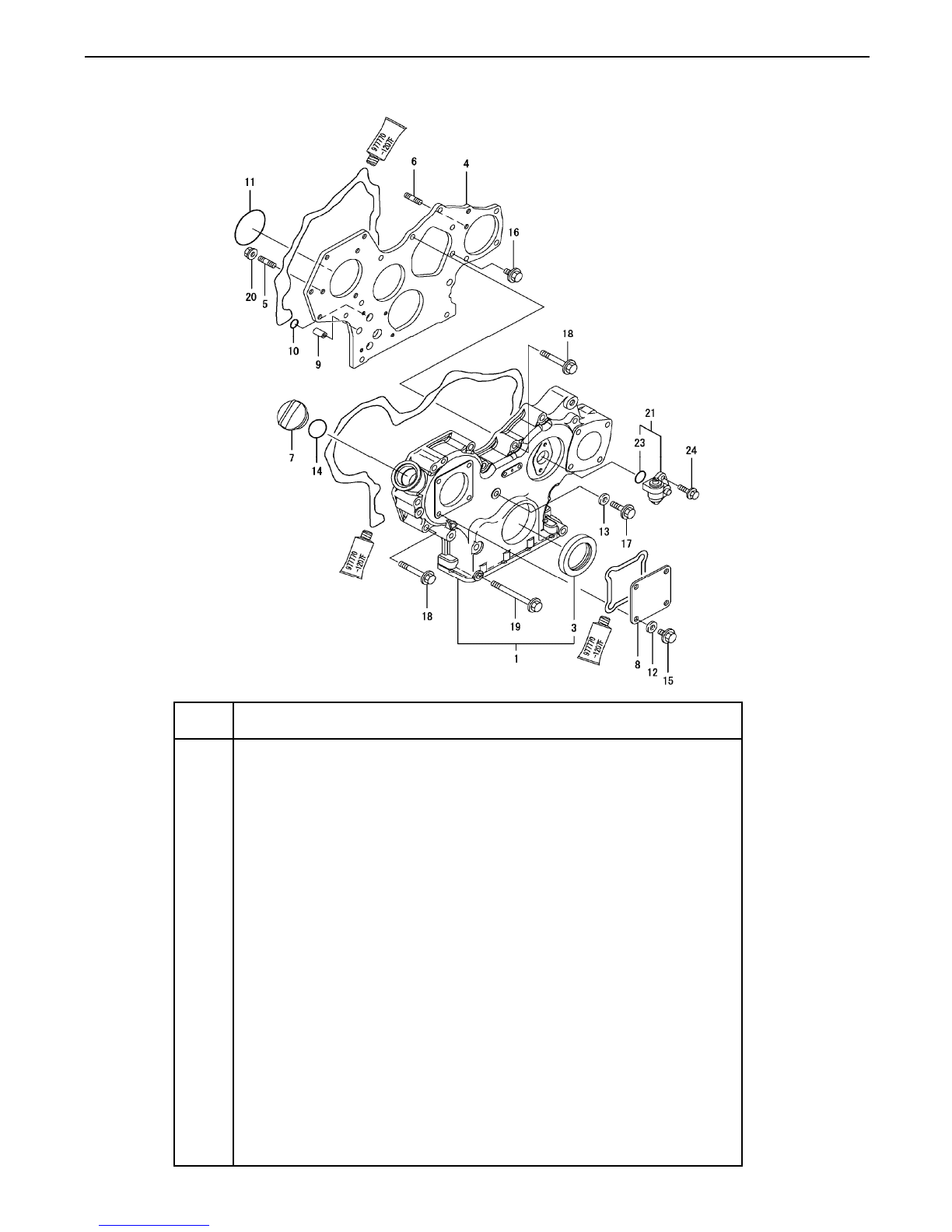

FIG. 2. GEAR HOUSING

Ex Series Ex450

REF

NO. PART NUMBER DESCRIPTION QTY

1 CY-129100-01580 PARALLEL PIN, M8X16 2

2 CY-129126-01600 FLANGE, MOUNTING 1

3 CY-26206-100202 BOLT M10X20 8

4 CY-129550-01702 SUMP, LUB.OIL 1

5 CY-729429-01721 COVER ASSY, OIL SUMP 1

6 CY-105425-01690 PLUG, M16 1

8 CY-22190-160002 WASHER, 16 1

9 CY-129555-01750 PIPE, KNOCK 1

10 CY-26106-080122 BOLT M 8X 12 PLATED 20

11 CY-26106-080502 BOLT M 8X 50 PLATED 8

12 CY-26106-081002 BOLT M 8X100 PLATED 14

13 CY-26106-081202 BOLT M 8X120 PLATED 4

14 CY-129100-01580 PARALLEL PIN, M8X16 2

15 CY-729402-01650 CASE ASSY, OIL SEAL 1

17 CY-129120-01780 SEAL, OIL 1

18 CY-129486-01670 BOLT, M8X30 9

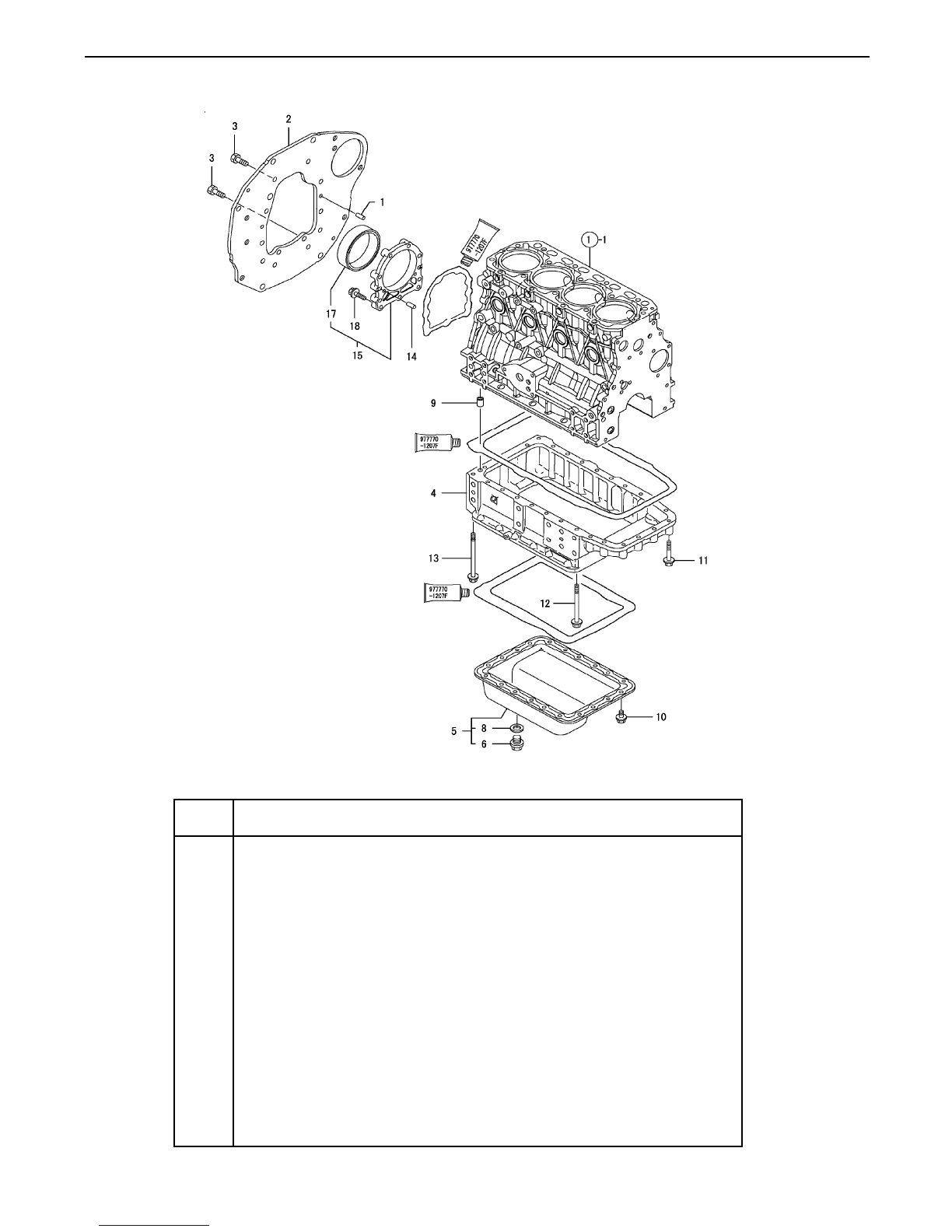

FIG. 3. MOUNTING FLANGE & OIL SUMP

Ex Series Ex450

REF

NO. PART NUMBER DESCRIPTION QTY

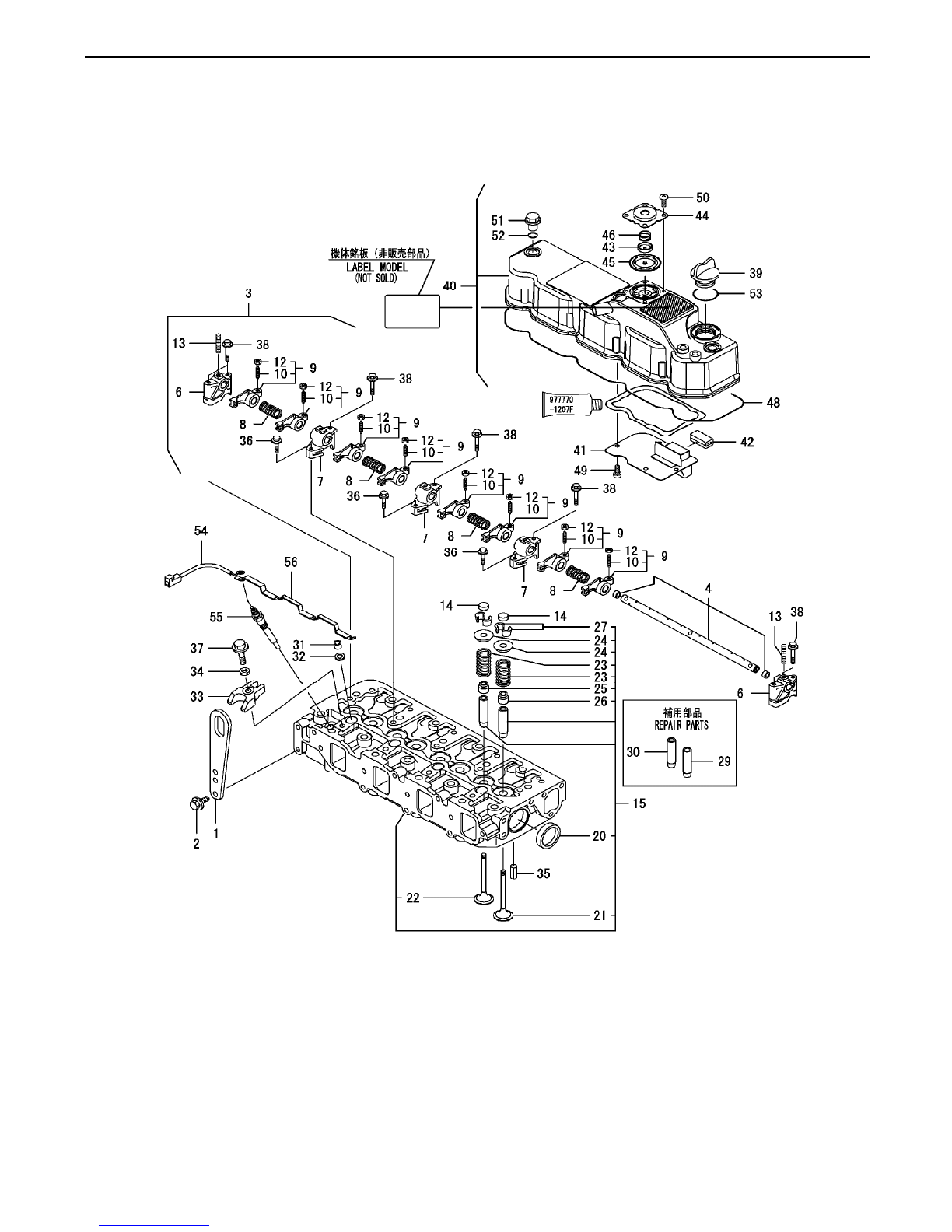

FIG. 4. CYLINDER HEAD & BONNET

Ex Series Ex450

REF

NO. PART NUMBER DESCRIPTION QTY REF

NO. PART NUMBER DESCRIPTION QTY

1 CY-129900-07900 LIFTER, ENGINE 1 32 CY-119625-11880 SEAT, NOZZLE 4

2 CY-26106-080142 BOLT 8X 14 PLATED 2 33 CY-129004-11900 RETAINER, NOZZLE 4

3 CY-129601-11241 SHAFT ASSY, ROCKER 1 34 CY-120270-54410 WASHER, INJECTOR 4

4 CY-129601-11251 SHAFT, ROCKER ARM 1 35 CY-22351-060012 SPRING PIN 6X12 2

6 CY-119802-11260 SUPPORT, ARM A 2 36 CY-26106-080252 BOLT M 8X 25 PLATED 3

7 CY-119802-11270 SUPPORT, ARM B 3 37 CY-26106-080352 BOLT M 8X 35 PLATED 4

8 CY-129150-11280 SPRING, SHAFT 4 38 CY-26106-080502 BOLT M 8X 50 PLATED 7

9 CY-129004-11650 ARM KIT, ROCKER 8 39 CY-124160-01751 COVER, FILLER 1

10 CY-129150-11230 SCREW, VALVE ADJUST 8 40 CY-129601-11350 BONNET ASSY, HEAD 1

12 CY-129150-11750 NUT, M8 8 41 CY-129004-03010 PLATE, BAFFLE 1

13 CY-26226-080182 STUD M 8X 18 PLATED 3 42 CY-129150-03070 BAFFLE, BREATHER 1

14 CY-129150-11370 CAP, VALVE 8 43 CY-119802-03110 PLATE, CENTER 1

15 CY-129604-11700 HEAD ASSY, CYLINDER 1 44 CY-119802-03121 COVER, DIAPHRAGM 1

20 CY-27241-400000 PLUG 40 2 45 CY-119802-03130 DIAPHRAGM 1

21 CY-129005-11100 VALVE, INTAKE 4 46 CY-119802-03141 SPRING, DIAPHRAGM 1

22 CY-129100-11112 VALVE, EXHAUST 4 48 CY-129601-11310 GASKET, BONNET 1

23 CY-129795-11120 SPRING, VALVE 8 49 CY-22857-500100 SCREW, M5X10 4

24 CY-129795-11180 RETAINER, SPRING 8 50 CY-22857-500100 SCREW, M5X10 4

25 CY-121400-11340 SEAL, VALVE STEM 4 51 CY-124160-11360 KNOB 3

26 CY-124460-11340 SEAL, VALVE STEM 4 52 CY-24311-000120 PACKING, P 12.0 3

27 CY-27310-080001 COTTER, 8 8 53 CY-24311-000320 O-RING 1A P-32.0 1

29 CY-120130-11860 GUIDE, VALVE 4 54 CY-119803-77830 HARNESS, GLOW PLUG 1

30 CY-129150-11810 GUIDE, EXHAUST VALV

4 55 CY-129008-77800 PLUG, GLOW 4

31 CY-119802-11870 PROTECTOR, NOZZLE 4 56 CY-129604-77821 CONNECTOR, GLOW PLU

FIG. 4. CYLINDER HEAD & BONNET

Ex Series 10 Ex450

THIS PAGE INTENTIONALLY LEFT BLANK
