CUE Lighting CREUS Manuale utente
CREUS
RGB DOME LED LIGHT
User's Manual
Read this manual before using. Do not attempt to open the housing
or repair this device by yourself without contact us!
General instructions
Unpacking:
Thank you for purchasing the CREUS. Please read user guide for safety and before using
the product. Keep this manual for future reference. This includes operation modes
programs and effects. The light has passed functionality tests before delivery. Please check
the contents after unpacking. Immediately upon receiving
a fixture, carefully unpack the box. Check the box contents to ensure that all parts are present
and that they are in good condition. If any part appears damaged from shipping, or if the
box shows signs of mishandling, notify the dealer immediately.
1. LED Light: 1PCS 2. Power Cable: 1PCS
3. User Guide: 1PCS
Safety Notice:
Please read the following safety information carefully.
Page 1
Troubleshooting
LCD Digital display function:
1. If the power supply indicator doesn't light up and the light doesn't work, please AOO1----------------A511
check the power supply, the input voltage and the fuse. AXXX A1 X Red LED ON
2. In Stand-Alone operation, if the power supply indicator is lit up and sound A2X Green LED ON
active indicator isn't lit up, but the laser is shut off it could be because: A3X Blue LED ON
A. Because sound is too small to make laser shut off in sound active, please A4X 3 color LED Jumping
increase the music volume or increase audio sensitivity with sensitivity knob, A5X 7 color LED Jumping
please check as below. A6X Fade
B. Please check if unit has been set up in slave mode, then set up in master mode. A7X Strobe
3. In Master-Slave operation, slave unit doesn't function, please check as below. S1X Sound Active
A. Make sure there's only one master in the chain, and the others are set in slave mode. S2X Sound Active Jumping
B. Make sure to control the unit without DMX console controlling.
C. Make sure to take a good quality power cable and connection.
Warranty Warnings:
1. Damages caused by the disregard of this user manual are not subject to Warranty.
The dealer will not accept liability for any resulting defects or problems.
2. Please do not modify the unit in any way for
safety reasons. Please note that damages caused by manual modifications on the
device or unauthorized operation by unqualified persons will invalidate warranty.
3. If this device will be operated in any way different to the one described in this
manual, it may suffer damages and the guarantee becomes void. Furthermore, any
other operation may lead to dangers like short-circuit, burns, electric shock, etc.
Should you have any problems please contact your local Cue Lighting dealer
Page 5 Page 2
Feature:
◆With the newest LED technology, this LED light can create an amazing and romantic
lighting effect.
◆It has over 200 beams of LED lighting from the transparent case. The beams on the wall look
like handreds of flowers drifting round and round.
◆Compact and lightweight, exquisite appearance, small size, streamline design, attractive
effects.
◆Clear and sharp lighting effects even without fog/smoke
◆Easy to use, plug and play
◆LCD digital display, manual function: color selection, jumping, dimmer, strobe, Sound
Active
◆Stable working, no hassle on warranty
◆Automatic rotation once power on
◆Built-in microphone can trigger external sound
Specification:
◆LED power output:3x1W (Red:1W*1,Green:1W*1,Blue:1W*1)
◆long life working hours:20000 H
◆Rotation angle: 180°
◆Cooling system: air cool
◆Working environment temperature: 0℃-40℃
◆Operation Modes: AUTO, Sound
◆Input Voltage: 90V-240V AC 50-60Hz
◆LED Light size: 185*185*150mm
◆Net weight: 0.5Kg
◆Gross Weight: 0.8Kg
◆Volume weight: 1.6kg(/5000) on inner gift box, 23.6kg(/5000) on outer carton box.
◆Gift box size: 188x188x157mm(0.006m³)
◆Outer carton box size: 565x380x480mm(0.11m³), 18pcs/CTN
Fixture Apperance Function & Setting
Sound Active

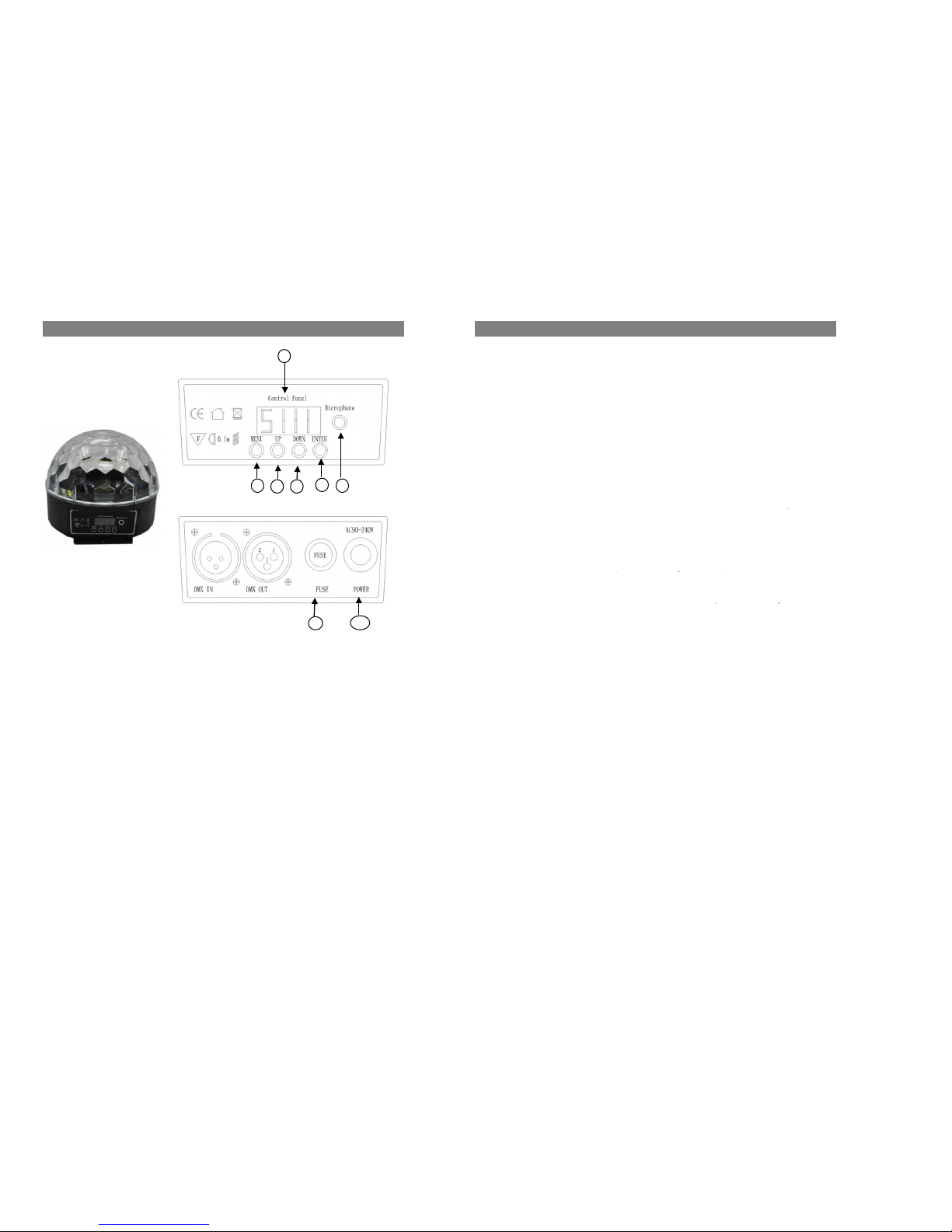

Front Panel Figure The light is controlled by the level of sound. Via an in-built mic
Control how sensitive the unit is from the sound sensitivity knob
clockwise direction to increase the fixture’s sensitivity to sound, the knob in the counter
clockwise direction to decrease.
AUTO
Auto cycles the built-in programs without the need for music
Rear Panel Figure The mode allows a single unit to react to the beat of the music in the master mode.
1. Install the units in a horzontal position
2. Set dipswitch to select Sound Active or AUTO mode.
3. Turn on the unit power, the unit begins, reset, then the unit begins working.
4. The unit will react to the low frequencies of music via the internal microphone.
Adjust the audio sensitivity knob on the back of the unit to make the unit more or less
sensitive in sound active.The panel has an LED indicating sound active.
1. working mode selection
2. UP (previous or speedy)
2. DOWN (next or slower)
4. Enter for confirmation 5. Built-in Michrophone 6.Digital LCD display
10. Power Cable
9. Fuse
Page 3 Page 4
1
2
3
5
4
6
9
10
