INSTRUCTION AND

RECIPE BOOKLET

For your safety and continued enjoyment of this product,

always read the instruction book carefully before using.

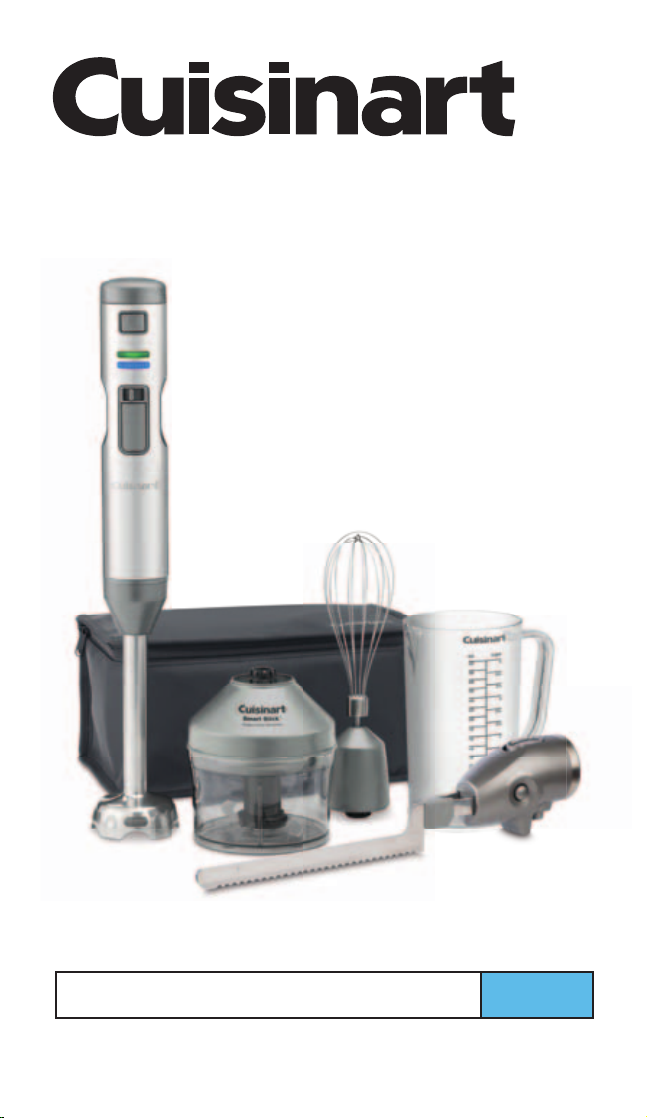

Cordless Smart Stick®Hand Blender and Knife

CSB-300C

IMPORTANT SAFEGUARDS

When using an electrical appliance, basic safety precautions should

always be taken, including the following:

WARING: Read all safety warnings and instructions. Failure to

follow the warnings and instructions may result in electric shock,

fire and/or serious injury.

1. READ ALL INSTRUCTIONS.

2. To protect against electrical shock, do not put the charger handle

or motor body of this hand blender in water or other liquids. The

drive shaft of this appliance, where blades are interchanged, has

been designed for submersion in water or other liquids. Never

submerge any other portion of this unit. If hand blender falls into

liquid, remove immediately. Carefully remove, clean and dry unit

thoroughly before continuing.

3. This appliance should not be used by children. To avoid possible

accidental injury, close supervision is necessary when any

appliance is used by or near children or individuals with certain

disabilities.

4. Do not operate in the presence of explosive and/or flammable

fumes.

5. To avoid the possibility of personal injury, always unplug the unit

from the charger before attaching or removing blades and/or

attachments for cleaning or any other purpose.

6. Illuminated lights indicate unit is ready to operate. Avoid any

contact with blades or movable parts.

7. Once blender is unlocked and/or powered on, avoid any contact

with blades or moveable parts.

8. Avoid contact with moving parts. Keep hands, hair, clothing, as

well as spatulas and other utensils away from attachments and

mixing container during operation to reduce risk of injury to

persons, and/or damage to the appliance. A spatula may be used,

but must be used only when the unit is not operating.

9. Remove detachable shaft from the power handle before washing

the blades or shaft.

10. Blades and accessory attachments are SHARP. Handle carefully.

Always handle blades with hand away from cutting edge. Always

store blades with cutting edge away from you.

11. When mixing liquids, use a tall container or make small quantities

at a time to reduce spillage and possibility of injury.

12. Charger should be plugged into an electrical outlet away from sink

or hot surface.

13. Do not use an extension cord. Plug charger directly into an

electrical outlet.

14. Do not attempt to use this charger with any other product. Also,

do not attempt to charge the batteries with any other charger.

15. Do not charge batteries with charger plugged into an outdoor

outlet.

16. Do not use appliance for other than intended use.

17. Do not operate any appliance with a damaged cord or plug, or

after the appliance has malfunctioned or has been dropped or

damaged in any way, or is not operating properly. Return the

appliance to the nearest Cuisinart Repair Center for examination,

repair, or mechanical or electrical adjustment.

18. The use of attachments or accessories not recommended by

Cuisinart may cause fire, electrical shock or risk of injury.

19. Make sure the appliance is off and the motor/blade/attachment

has stopped completely before putting on or taking off attach-

ments, and before cleaning.

20. This appliance is intended for household use only and is not for

commercial or outdoor use.

21. Do not use this hand blender for other than its intended use of

preparing foods and beverages.

22. Use extra care when working with hot liquids to avoid

splattering.

23.

To reduce the risk of fire or electric shock, do not operate any

heating appliance beneath or near the charging unit.

24. Do not mount or store/unit over or near a portion of a heating or

cooking appliance, or a sink or washbasin.

25. Unplug the charger from the outlet before attempting any routine

cleaning of the charger.

26. Do not operate a damaged charger. Have damaged charger

replaced immediately.

27. Do not incinerate the hand blender, even if it is severely damaged.

The batteries can explode in a fire.

28.

This product contains lithium batteries which must be recycled at

the end of the life of the hand blender and disposed of properly.

(See Disposal/Recycling of Batteries, page 44.) Do not incinerate or

compost batteries, as they will explode at high temperature.

29. Leaks from battery cells can occur under extreme conditions. If

the liquid gets on the skin, (1) wash quickly with soap and water or

(2) neutralize with mild acid such as lemon juice or vinegar. If the

liquid gets into eyes, flush them immediately with clean water for a

minimum of 10 minutes. Seek medical attention.

30. Prevent unintentional starting. Never press the Auto Lock/Unlock

switch on the power handle or electric knife attachment while

pressing the Power On switch or trigger unless you are ready to

use your blender or knife.

31. Recharge only with the charger specified by the manufacturer. A

charger that is suitable for one type of battery pack may create a

risk of fire when used with another battery pack.

32.

Use appliances only with specifically designated battery packs.

Use of any other battery packs may create a risk of injury and fire.

33. Under abusive conditions, liquid may be ejected from the battery.

Avoid contact with such liquid. If contact accidentally occurs,

flush with water. If liquid contacts eyes, seek medical help. Liquid

ejected from the battery may cause irritation or burns.

34. Do not use a battery pack or appliance that is damaged or

modified. Damaged or modified batteries may exhibit

unpredictable behavior resulting in fire, explosion or risk of injury.

35. Do not expose a battery pack or appliance to fire or excessive

heat. Exposure to fire or temperatures above 265°F (130°C) may

cause an explosion.

36. Have servicing performed by a qualified repair person using only

identical replacement parts. This will ensure that the safety of the

product is maintained.

37. Recommended ambient charging temperature 50°F−104°F

(10°C− 40°C).

38. Recommended storage temperature (10°C− 40°C) (50°F− 104°F).

39. Use only the power adapter (10.0VDC/1000mA output) supplied

with this product.

40. Any other servicing should be performed by an authorized

service representative.

41. To reduce the risk of injury, never place chopper/grinder

attachment cutting blade assembly on cup shaft without first

putting chopper cup properly in place.

42. Be certain the chopper/grinder attachment cover is securely

locked in place before operating appliance. Do not attempt to

remove cover until blade has stopped rotating.

43. Check chopping cup for presence of foreign objects before using.

44. Do not operate your appliance in an appliance garage or under a

wall cabinet. When storing in an appliance garage, always unplug

the unit from the electrical outlet. Not doing so could

create a risk of fire, especially if the appliance touches the walls of

the garage or the door touches the unit as it closes.

SAVE THESE INSTRUCTIONS

FOR HOUSEHOLD USE ONLY

Note: The unit comes with overload protection feature if unit stops are

unexpectedly, it must be reset by recharging for a few seconds.

CONTENTS

Important Safeguards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Unpacking Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Features and Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Blending Attachment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Chopper/Grinder Attachment . . . . . . . . . . . . . . . . . . . . . . . . . 8

Reversible Blade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Whisk Attachment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Knife Attachment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Blending and Mixing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Chopping/Grinding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Whisking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Carving and Slicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Cleaning and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Tips and Hints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Frequent Uses for Chopper/Grinder Attachment . . . . . . . . . . . . . . 15

Recipes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Disposal/Recycling of Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

UNPACKING INSTRUCTIONS

Place the package containing the Cuisinart

Cordless Rechargeable

Hand Blender on a sturdy surface. Unpack the Hand Blender from its

box by removing the storage pouch containing the power handle,

blending shaft, knife attachment and whisk. Remove all support materials

from the box. Save packaging for possible repacking of the unit.

NOTE: All blades are extremely sharp. Be careful when removing

and/or handling.

Before using the Cuisinart®Cordless Rechargeable Hand Blender for

the first time, we recommend that you wipe the unit with a clean,

damp cloth to remove any dirt or dust. Dry it thoroughly with a soft

absorbent cloth. To clean all parts see instructions on page 11. Read

all instructions completely for detailed operating procedures.

INTRODUCTION

Introducing another first from Cuisinart. Your new Cordless

SmartStick®Hand Blender and Knife is also a full size, full-power

Electric Knife. Slip our exclusive new attachment onto the power

handle to carve meat or slice bread. With no cord to get in the way,

you can slice a smoked turkey, or blend and whisk right in a bowl on

the counter or pot at the stove. Want to do even more? Attach the

handle onto the chopper/grinder and find out what we mean when we

say we’ve just taken multifunctionality over the top!

FEATURES AND

COMPONENTS

1. Power Handle

No cord! Operates on two rechargeable 4.0 volt

lithium-ion batteries, with power button within

easy reach. Shaped like a stirring utensil for

comfortable control.

a. Auto Lock/Unlock Button for safe operation.

b. Battery Indicator Lights. Red/Low: Less than

25%. Orange/Normal Use Range: 25–75%.

Green/High: 75–100%.

c. Blue Speed Indicators. Five bars light up to

indicate low to high speed selection.

d. Speed Control. Push button to left or right to

select speed.

e. Power On Button. Press and hold before or

right after pushing Auto Lock/Unlock switch.

NOTE: Operation stops instantly and locks

when Power button is released.

2. Blending Shaft

Detachable 8¾ in. (22 cm) shaft with stainless

steel blade and blade guard snaps on and off

power handle for easy operation and cleanup.

3. Electric Knife Assembly

Snaps onto the power handle creating a

full-size, electric carving knife.

4. Chopper/Grinder Attachment

Chop, mince and grind with the Cuisinart®

chopper/grinder attachment. Chopper/grinder

attaches to the power handle in place of the

blender shaft or whisk attachment.

5. Whisk Assembly

Whisk attachment snaps into the power handle

housing. This attachment is great for whipping

cream, egg whites and other delectable treats.

6. Mixing/Measuring Beaker

Beaker is marked for liters and cups for

convenient measuring. Use for drinks,

shakes, salad dressings, etc. Designed

for easy gripping and drip-free pouring.

7. Charger Port

Located on back of the power handle

at the top.

8. Storage Pouch

Interior dividers safely store power

handle, blending, shaft, knife and whisk.

1. a.

BEFORE YOU BEGIN

Before using the Cuisinart®Cordless SmartStick®Hand Blender and

Knife for the first time, we recommend that you wipe the unit with a

clean,damp cloth to remove any dirt or dust. Dry it thoroughly with

a soft, absorbent cloth. Handle carefully. Wash the blending blade,

whipping attachment, chopper cup and blade, mixing beaker, knife

blades and detachable shaft by hand or in the dishwasher (upper rack

only). Dry thoroughly before use.

Read all instructions completely for detailed operating procedures.

The batteries in your Cuisinart®Cordless SmartStick®Hand Blender

and Knife have not been fully charged. Before the first use of this

appliance, the batteries must be charged until the green light goes on.

See Charging and Battery Life below.

CHARGING YOUR

BLENDER/BATTERY LIFE

The batteries in your Cuisinart®Cordless SmartStick®Hand Blender

and Knife have not been fully charged. Before the first use of this

appliance, the batteries must be charged until the GREEN battery

indicator light illuminates. With a full charge, your stick blender will run

for approximately 20 minutes, depending on load. Your stick blender

will be fully charged in approximately 2-2.5 hours. You can “quick

charge” your stick blender for 5 minutes of run time in 30 minutes.

Battery Life Indicator Lights: Green: When the unit displays a green

power light, you are between 100% and 75% of battery power

Orange: When illuminated in Orange, you are between 75% and 25%

of battery power. When Red, you are at less than 25% and will need

to charge soon.

Note: do not leave your stick blender uncharged for an

extended period of time, as it will affect the life of the

rechargeable battery.

ASSEMBLY

BLENDING ATTACHMENT

Align the motor body housing with the

blending shaft and push the pieces together

until you hear and feel them click together.

It may be helpful to press the release button

when assembling.

Release

button

CHOPPER/GRINDER

1. Place the chopping/grinding blade assembly

into center of the chopping cup over metal

blade shaft.

2. Place your ingredients into the chopper cup.

Close cover, rotating clockwise to lock in

place.

3. Connect the power handle to the top of the

chopping cup cover until you hear a slight

click.

REVERSIBLE BLADE

The chopper/grinder attachment is equipped

with a reversible blade – sharp on one side and

blunt on the other. The blade is attached to a

plastic ring that slides over the plastic blade

shaft, so it can be easily turned over to select

the appropriate blade. To reverse the blade, see

detailed instructions below. Also see Frequent

Uses for Chopper/Grinder (page 15).

Assemble the parts.

1. Place the chopping cup on a flat, dry, stable surface.

2. The metal blade assembly shaft (A) is attached to the bottom of

the chopping cup. If not already in place, slide the fully assembled

blade assembly (B) over the top of the metal blade assembly shaft.

2a. Put together the blade assembly if not

assembled: Very carefully connect the blade

ring (C) to the plastic blade shaft (D). Line up

the blade ring opening with the plastic sheath.

There are notches (E) on opposite sides of the

interior of the ring. These fit over ridges on the

sides of the plastic blade sheath (G). Let the

blade ring slide to the bottom of the plastic

shaft. HOLD THE BLADE RING BY THE

CENTRAL HUB HOLDING RIBS (grips) (F) ONLY.

DO NOT TOUCH THE RAZOR-SHARP BLADES. Pick up the blade

ring by its hub holding ribs (grips) and turn it very slightly

clockwise. This locks it in place on the plastic blade sheath and

prevents it from sliding up during processing. Note these important

features of the blade ring. The blade ring can be placed over the

plastic blade shaft in two different ways:

If you hold it this way (A), you will see the

word “Sharp” on the blade. Assemble the

blade this side up to use the sharp edge.

If you hold it this way (B), you will see no

writing on the blade. Assemble the blade

this side up to use the blunt edge.

chopping

cup cover

(See the section on processing food, page 16, for information

about when to use the blunt edge.)

REMOVING CHOPPER/BLADE ASSEMBLY

To remove rotate assembly right or left to release from the cup shaft.

WHISK ATTACHMENT ASSEMBLY

Align the motor power handle with the assembled whisk attachment

and push the pieces together until you hear and feel them click

together. It may be helpful to press the release button when

assembling.

Note: Whisk and gearbox are detachable from one another.

KNIFE ATTACHMENT

1. Before first use, separate the blades and wash them in hot, soapy

water or in the dishwasher. CAUTION: BLADES ARE SHARP.

HANDLE WITH CARE. Dry thoroughly.

2. The two blades must be attached before inserting into the

gearbox. Lock the blades together by inserting the rivet on one

blade into the keyhole of the other blade.

3. Holding the blades with the serrated edge facing down, insert

blades into the gearbox until you hear a click. The blades may not

line up evenly when properly inserted. CAUTION: THE BLADES

ARE VERY SHARP. BE CAREFUL WHEN HANDLING THEM.

A BLADE SHEATH IS INCLUDED TO PROTECT YOU AND

YOUR KNIFE BLADE.

B. BLUNT SIDE UP

SHARP SIDE

OPERATION

TURNING CORDLESS RECHARGEABLE HAND BLENDER

ON/OFF

The power handle lets you operate the blender, chopper whisk

and knife. Keep hands, hair, clothing and other utensils away from

all blades.

BLENDING AND MIXING

The blending shaft is specially designed for mixing and stirring

all kinds of foods, including salad dressings, smoothies, shakes,

powdered drink products and sauces. It is ideal for combining dry

ingredients, and can also be used to make mayonnaise, too. The

blade mixes and stirs while adding only a minimum of air to your

mixture. A gentle up-and down motion is all you need to thoroughly

blend the most flavourful, full-bodied liquid recipes. To avoid

splatter, be sure the protective blade guard on the blending shaft

remains submerged in the liquid while blending. Never remove it

from liquid while the motor is running.

Insert the blending attachment into the power handle. (See Assembly

for Blending Attachment, page 7.) Insert blending shaft into mixture to

be blended. Press and hold the Auto Lock/Unlock button and press

and Power On button to turn motor on. Once motor is on, you can

release the Auto Lock/Unlock button. You can also press the Power

button first, holding it down as you press the Auto Lock/Unlock

button to turn motor on. Do not hold Power button down for more

than 2 minutes at a time. To turn the blender motor off, release the

Power On button.

CAUTION: DO NOT PUT FINGERS NEAR BLADE. TO DISLODGE

FOOD, UNPLUG HAND BLENDER FROM THE OUTLET FIRST.

CHOPPING AND GRINDING

Put the chopping cup firmly on a flat sturdy surface like a countertop.

Be sure the blade is assembled to use the blade edge that is

appropriate for the food to be processed.

Put food unto the chopping cup. Be sure the food is cut into small

uniform pieces and the cup is not overloaded.

Put the chopper/grinder cover on top of the chopping cup. Be sure

the cover is properly seated. Then attach power handle to the cup

cover.

NOTE: To pulse – hold the Auto Lock/Unlock button down while

pressing and releasing the Power On button. Due to the powerful

motor provided with this unit, Cuisinart recommends using one hand

to support the chopper/grinder during operation. When you have

finished processing, release Power On button to turn motor off.

WHEN THE BLADE STOPS MOVING, remove the power handle from

the chopper/grinder cover, and remove the cover from the

chopping cup.

Indice

Altri manuali Cuisinart Miscelatore

Cuisinart

Cuisinart SmartPower CPB-300 Manuale utente

Cuisinart

Cuisinart Smart Stick CSB-75C Series Manuale operativo

Cuisinart

Cuisinart CSB-78 - Cordless Rechargeable Hand Blender Manuale di servizio

Cuisinart

Cuisinart SmartPower SPB-7 Series Manuale di installazione e funzionamento

Cuisinart

Cuisinart Hurricane Pro CBT-2000C Manuale utente

Cuisinart

Cuisinart SMARTPOWER PREMIER CBT500L Manuale di servizio

Cuisinart

Cuisinart PowerEdge 09CE13231 Manuale di servizio

Cuisinart

Cuisinart ReMix7.5 Manuale di servizio

Cuisinart

Cuisinart SMARTPOWER SPB-7C Series Manuale di servizio

Cuisinart

Cuisinart SmartStick CSB-100 Manuale utente

Cuisinart

Cuisinart Smart Stick CSB-77 Manuale utente

Cuisinart

Cuisinart SPB-600C Manuale utente

Cuisinart

Cuisinart Hurricane Pro CBT-2000 Manuale utente

Cuisinart

Cuisinart RPB-100XA Manuale operativo

Cuisinart

Cuisinart CPB-300P1 Manuale di servizio

Cuisinart

Cuisinart Tasty HB200T Manuale utente

Cuisinart

Cuisinart SMARTPOWER SPB-7C Series Manuale di servizio

Cuisinart

Cuisinart SPB-7CH - SmartPower Electronic Blender Manuale di servizio

Cuisinart

Cuisinart CBT-500 SERIES Manuale operativo

Cuisinart

Cuisinart Mini Prep Pro ECH4 Series Manuale utente

Cuisinart

Cuisinart CB-1400 Series Manuale di servizio

Cuisinart

Cuisinart EVOLUTIONX RPB 100 Manuale operativo

Cuisinart

Cuisinart SMARTPOWER CLASSIC SPB-6SS Series Manuale di servizio

Cuisinart

Cuisinart VELOCITY Manuale utente

Manuali Miscelatore popolari di altre marche

ROTOR

ROTOR 1125.201 Manuale utente

Braun

Braun Multiquick 5 Vario series Manuale utente

ARENDO

ARENDO MIRA 305424 Manuale utente

CHEF-BUILT

CHEF-BUILT CCB-3500 Manuale utente

Viconte

Viconte VC-4406 Manuale utente

Oster

Oster BLSTAB-CB0 Manuale utente

HOFFEN

HOFFEN MC-3005 Manuale utente

Black & Decker

Black & Decker BLC18750DM Manuale utente

Sunbeam

Sunbeam 4182 Manuale utente

Bialetti

Bialetti FMX35 Manuale utente

Black & Decker

Black & Decker BL8000 Manuale utente

Duronic

Duronic BL530 Manuale utente

Exquisit

Exquisit MS 3002 wes Manuale utente

Lumme

Lumme LU-KP1891A Manuale utente

Binatone

Binatone HB-735 Manuale utente

Moulinex

Moulinex LM936E10 Manuale utente

Oster

Oster VERSA Manuale di installazione e funzionamento

Ninja

Ninja NN210Q Manuale utente
