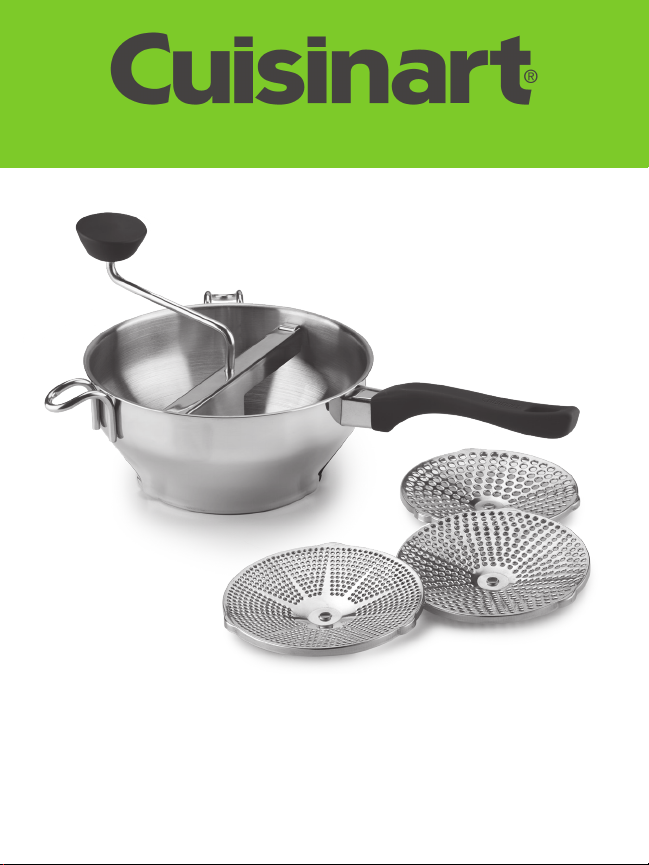

Cuisinart CTG-00-FM2 Manuale utente

Instruction Booklet

CTG-00-FM2

STAINLESS STEEL FOOD MILL

CONTENTS

Important Safeguards ..............................2

Assembly & Use Instructions ......................3–4

Changing Discs ...................................4

Safety & Cleaning Rules ..........................4–5

Food Tips ........................................5

Warranty.......................................6–7

SAVE THESE

INSTRUCTIONS

Please read the following operational information before using the Stainless

Steel Food Mill.

Important Safeguards:

Read and follow operating instructions and warnings to familiarize

yourself with the food mill before using. Review instructions and

warnings periodically to maintain awareness.

Before Using:

Wash all parts of the food mill with hot, soapy water, rinse, and wipe

dry.

Assembly & Use Instructions

1. Place the milling disc of your choice

into the center of the food mill with

the dome-shaped surface facing up.

2. Insert the handle pin into the center

hole of the milling disc.

3. Position the locking bar so that both

sides are located beside both locking

tabs.

4. Firmly push down on the locking bar

and rotate clockwise, until it is lined

up with the locking tabs.

5. Slowly release the locking bar and

make sure it is properly connected

to the locking tabs.

6. Place the food mill over a bowl or

saucepan and add the food to be

milled into the food mill.

7. Turn the handle clockwise, turning

the blades over the milling disc to

mill the food.

8. The mashed food will fall through

the perforations and into the bowl.

It may be necessary to scrape food

off of the outside of the milling disc

and into the bowl using a rubber

spatula.

9. Discard any skin, seeds or fiber left

in the food mill after mashing is

complete.

Handle

Milling

Disc

Locking

Tab

Locking

Tab

Handle

Assembly

Handle

Blades

Locking

Bar

Figure 1

Figure 2

10. It is best to clean the food mill immediately after use to prevent food from

drying in the holes of the milling disc.

Changing Discs

1. Carefully press down on the locking bar and rotate the locking bar

counterclockwise to release the handle assembly from the food

mill housing.

2. Remove the milling disc from the bottom of the food mill housing.

3. Place the new milling disc into the center of the food mill with the

dome-shaped surface facing up.

4. Follow the assembly instructions numbers 2–5 to complete the

assembly of the food mill.

Safety & Cleaning Rules

1. Before and after each use, disassemble and wash all parts of the

food mill that come into contact with food. Wash in hot, soapy

water. Rinse with clear water. Dry immediately. The food mill is

top-rack dishwasher safe.

2. Check that all parts are operating properly and perform the

intended functions. Check for alignment of moving parts or any

other conditions that may affect the operation. If the product is not

working properly contact Consumer Service.

3. Never use fingers to scrape food away from the milling disc while

PRIOR TO USING

It is best to pre-soften some foods prior to use. If the food is

firm, like potatoes, apples and pears, remember to soften them

by steaming or baking until tender before using them in the

food mill.

the unit is in operation. Severe injury may result.

4. Do not attempt to grind bones, nuts or other hard items. Grinding

food other than what the food mill was intended for will void the

warranty.

5. The manufacturer declines any responsibility in the case of

improper use of this unit.

Food Tips

• No peeling or coring required to make your favorite applesauce!

Use the fine disc for smooth; medium disk for chunky.

• Add just the right texture to your mashed potatoes with the

medium or coarse disc.

• Make homemade gnocchi quickly and easily; the medium disc is

ideal for ricing potatoes.

• Purée tomatoes without time-consuming prep. Skins and seeds

are removed when milling, making creating a delicious tomato-

based sauce simple.

• Make homemade baby food with your own carefully selected

ingredients; use the fine disc to purée peas, carrots, squash and

more.

• Turn blueberries, strawberries and raspberries into preserves,

jellies and jams with the medium and fine discs.

WARRANTY

LIFETIME WARRANTY (U.S. and Canada ONLY)

Cuisinart®Tools & Gadgets are warranted to be free of defects in

material and workmanship under normal home use from the date of

original purchase throughout the original purchaser’s lifetime.

HASSLE-FREE REPLACEMENT WARRANTY

Your ultimate satisfaction in Cuisinart products is our goal, so if your

Cuisinart®Tool or Gadget should fail within the generous warranty

period, we will repair it or, if necessary, replace it at no cost to you. To

obtain a return shipping label, email us at

www.cuisinart.com/customer-care/product-return. Or call our

toll-free customer service department at 1-800-726-0190 to speak

with a representative. This warranty excludes damage caused by

accident, misuse or abuse, including damage caused by overheating,

and it does not apply to scratches, stains, discoloration or other

damage to external or internal surfaces that does not impair the

functional utility of the tool/gadget. This warranty also expressly

excludes all incidental or consequential damages. Some states do not

allow the exclusion or limitation of incidental or consequential

damages, so the foregoing limitation or exclusion may not apply to

you. This warranty gives you specific legal rights, and you may also

have other rights, which vary from state to state.

CALIFORNIA RESIDENTS ONLY

California law provides that for In-Warranty Service, California

residents have the option of returning a nonconforming product (a) to

the store where it was purchased or (b) to another retail store which

sells Cuisinart®products of the same type. The retail store shall then,

according to its preference, either repair the product, refer the

consumer to an independent repair facility, replace the product, or

refund the purchase price less the amount directly attributable to the

consumer’s prior usage of the product. If the above two options do

not result in the appropriate relief to the consumer, the consumer may

then take the product to an independent repair facility, if service or

repair can be economically accomplished. Cuisinart, and not the

consumer, will be responsible for the reasonable cost of such service,

repair, replacement or refund for nonconforming products under

warranty.

California residents may also, according to their preference, return

nonconforming products directly to Cuisinart for repair, or if

necessary, replacement, by calling our Consumer Service Center toll-

free at 1-800-726-0190. To obtain a return shipping label, email us at

www.cuisinart.com/customer-care/product-return. Cuisinart will

be responsible for the cost of the repair, replacement, and shipping

and handling for such nonconforming products under warranty.

East Windsor, NJ 08520

Printed in China

20CT073968

Cuisinart offers an extensive assortment of top quality products to

make life in the kitchen easier than ever. Try some of our other

countertop appliances and cookware, and Savor the Good Life®.

www.cuisinart.com

IB-14166

Coffeemakers Food

Processors

Toaster Ovens Wafflemakers Cookware Ice Cream

Makers
