General instructions
Use only the supplied pressure regulator.
This appliance is suited for propane or butane gas.
Check that there are no kinks in the gas hose.
Keep the griddle away from (easily) flammable material.
Do not move the gas griddle during use.
Always close the tap on the gas cylinder if the griddle is no longer being used.
Parts sealed by the manufacturer or his agent must not be altered by the user. It is
necessary to use protective gloves when handling particularly hot components.
Any modification of the appliance may be dangerous. Turn off the gas supply at the gas
container after use.
GAS GRILL
INSTRUCTION MANUAL
MODEL: CGG2
WARNING: FOR OUTDOOR USE ONLY
PLEASE KEEP THE MANUAL FOR FUTURE REFERENCE!
- 1 -
Grill part:
Item Description
Connecting the gas bottle
1 = main tap
2 = pressure regulator
3 = gas hose
4 = gas bottle
Attach the pressure regulator to the gas bottle using the large brass nut.
Always ensure that the rubber-sealing washer
is present in the nut.
Tighten the nut well. Note that the nut has a left-
hand thread. Check the
connections for leaks using a soap and water solution.
Pls note that the length of the hose do not more 1.5m. It is necessary to
change the flexible tube when the national conditions require it.
The gas bottle max 15kgs
Pls keep the gas cylinder at least 50cm away from grill when using.

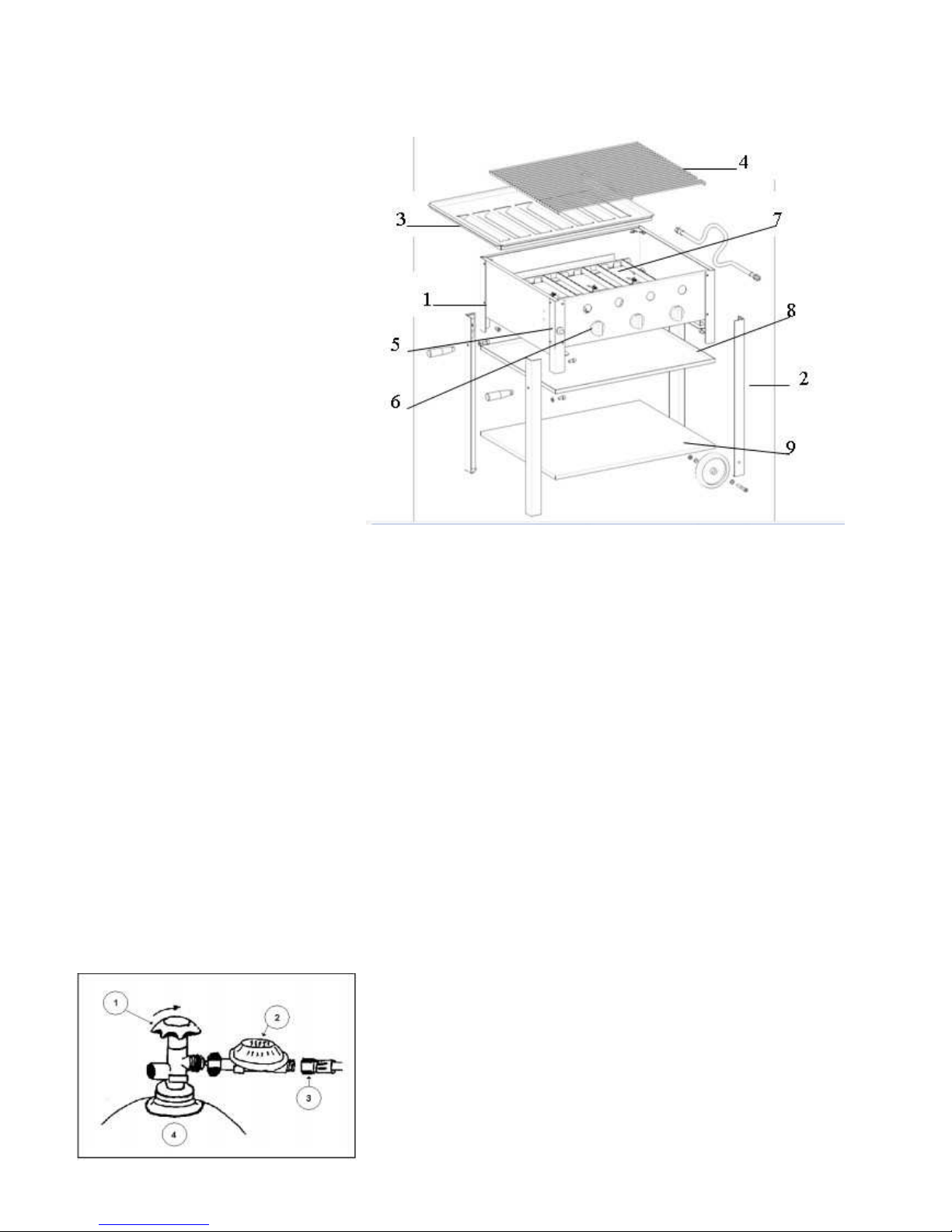

1 Panel
2 Grill stand
3 Flame tamp
4 Grid
5 Ignitor
6 Knob
7 U-Burner
8 Drip pan
9 Stand pan
- 2 -
WARNING: Keep the gas cylinder away from the fire.
Leak Testing
Never use a naked flame to check for leaks
The valve of the gas cylinder should be in the OFF position at this point of the leak test
Once the soapy solution is applied to the gas connections, the valve of the gas cylinder needs to be
turned to the ON position.
Soap bubbles will begin to form is the soapy solution if a leak is present.
In case of a leak, turn off the gas supply. Tighten any leaking fittings, then turn the gas supply
on and recheck.
Igniting the gas griddle
Place the grill grid.

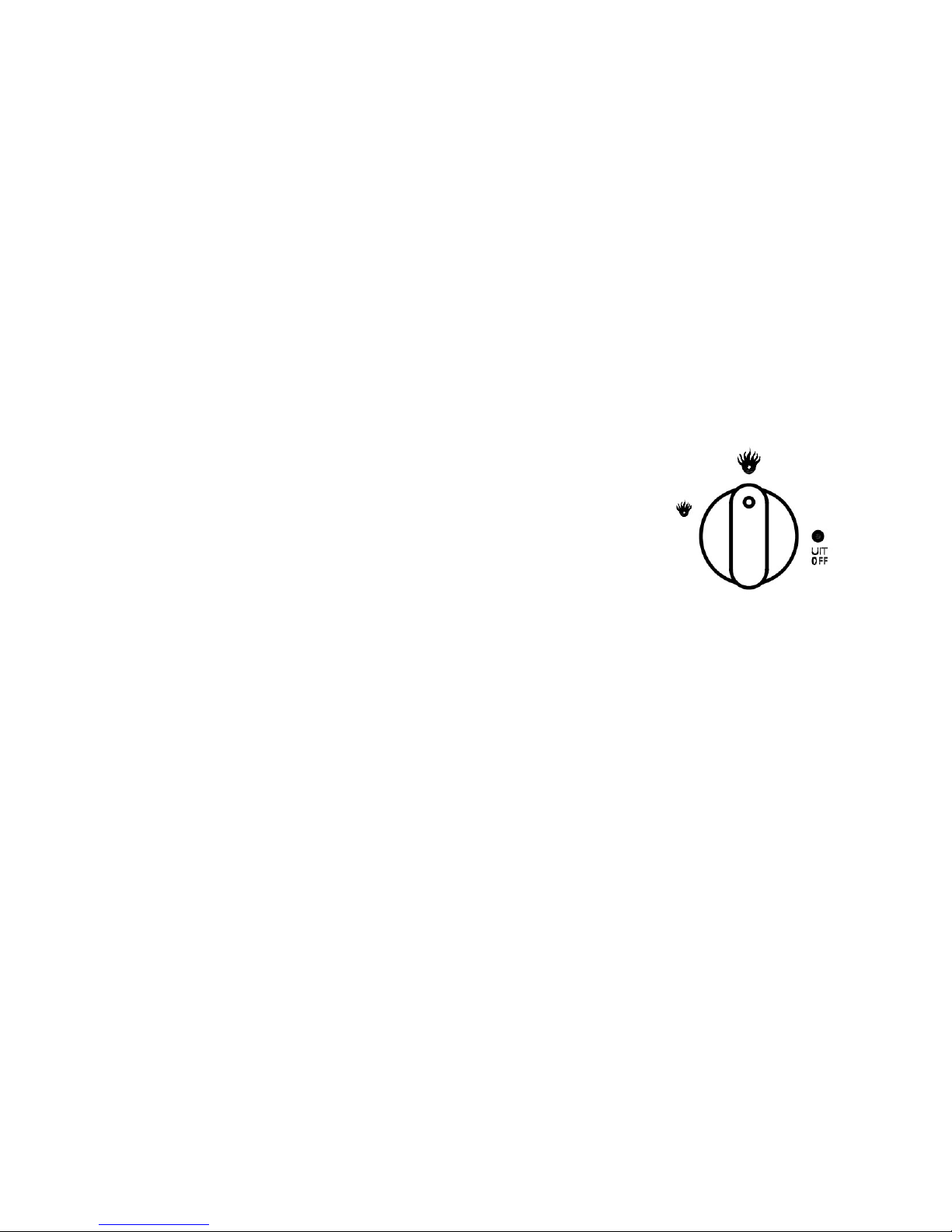

Turn the knob to the “normal” position. Keep the knob pressed and press the ignition button a few times
until the burner is burning completely. Keep the knob pressed in for approximately a further 10 seconds.
The burner will continue to burn.(see pic.)
Turning off the gas griddle
Turn the knob completely to the right. The burner will go out.
(Note! After turning off the burners, wait approximately 10 minutes before reigniting the burners.
After turning off the burners, always turn off the main tap on the gas cylinder!
Maintenance
To enjoy years of outstanding performance from your grill, make sure you perform the following maintenance
activities on a regular basis:
Keep exterior surfaces clean
Use warm soapy water for cleaning. Never use flammable or corrosive cleaning agents.
While washing your unit, be sure to keep area around the burner and pilot assembly dry at all times. If
the gas control is exposed to water in any way. DO NOT try to use it. It must be replaced.
Airflow must be unobstructed. Keep controls, burner and circulation air passageways clean.
Carbon deposits may create a fire hazard. If any carbon deposits develop, clean and engine with warm
soapy water
- 3 -
Comment
It is to be recommended to replace the gas hose after 3 or 4 years by one delivered by the
manufacturer (see date shown on hose). The gas hose becomes porous after a time.
Only replace the pressure regulator by one delivered by the manufacturer.
Consult the local regulations, these may differ.
Always store gas bottles upright, even when empty.
Fault Possible cause Fault Possible cause
Defective igniter Gas cylinder is (almost) empty
Defective thermocouple Kink in gas hose
Dirty sparking plug
Defective pressure regulator
Empty gas cylinder
The main gas tap in the gas
cylinder is not fully open
Kink in gas hose Main jet clogged
Burner will not ignite:
Clogged jet
Burner dose not burn fully:
Defective gas tap
Gas Grill
K1102
Country
SE-DK-FI -IS-NO AT-CH-DE-ES-FR-GR
PL CZ-FR-GB-GR-IE-PT
AT-CH-DE-NL
Output
10KW 10KW 10KW 10KW 10KW
Category
I
3B/P(30)
I
3B/P(50)
I
3B/P(37)
I
3P(37)
I
3P(50)
Jet
φ1.12 mm φ0.98 mm φ1.04 mm φ1.12 mm φ1.04 mm
Consumption
728
g/h 728 g/h 728 g/h 728 g/h 728 g/h
Set up for
G30/G31-30 mbar G30/G31-50 mbar G30/G31-37 mbar G31-37 mbar G31-50 mbar
- 4 -
Gas Grill
K1103
Country
SE-DK-FI -IS-NO AT-CH-DE PL CZ-FR-GB-GR-IE-PT
AT-CH-DE-NL
Output
10KW 10KW 10KW 10KW 10KW
Category
I
3B/P(30)
I
3B/P(50)
I
3B/P(37)
I
3P(37)
I
3P(50)
Jet
φ0.94 mm φ0.80 mm φ0.88 mm φ0.94 mm φ0.88 mm
Consumption
728 g/h 728 g/h 728 g/h 728 g/h 728 g/h
Set up for
G30/G31-30 mbar G30/G31-50 mbar G30/G31-37 mbar G31-37 mbar G31-50 mbar
Disposal
At the end of its life span, dispose of the appliance in accordance with the then applicable rules and regulations.
Warnings: Use Outdoor Only!
Read the instructions before using this appliance.
Accessible parts may be very hot, keep young children away.
