Cuisinart Gourmet 710 Manuale utente
Manual Revision #: 09152014 AT
ASSEMBLY
MANUAL
READ AND SAVE MANUAL FOR FUTURE REFERENCE.
Assemble your grill immediately.
Missing or damaged parts should be claimed within 30 days of purchase.
For product inquiries, parts, warranty and troubleshooting support, please call 1-800-309-3452.
www.cuisinartbbqs.com
LIMITED 5-YEAR WARRANTY
Cuisinart®Gourmet 710 85-3108-6 (G53501) Propane
85-3109-4 (G53502) Natural Gas
2
THIS MANUAL MUST REMAIN WITH THE PRODUCT AT ALL TIMES
CUISINART®CUSTOMER CARE HOTLINE
1-800-309-3452
HEAVY ARTICLE NEEDS 2 TO LIFT
Sharp edges. Wear gloves when assembling
your grill.
Read and follow all safety statements,
assembly instructions, use and care directions
before attempting to assemble and cook.
This manual should be kept with the BBQ at
all times.
CAUTION DANGER
DANGER
CAUTION
CAUTION
Failure to follow all of the Manufacturer’s
instructions could result in hazardous fires,
explosions, property damage, or serious
personal injury or even death.
Follow all leak check procedures carefully prior
to operation of barbecue, even if grill was dealer
assembled. Do not try lighting this BBQ without
reading the Lighting Instructions section of the
Safety and Care Manual that accompanies this
grill.
WARNING
INSTALLER OR
ASSEMBLER/CONSUMER
1. If you smell Gas:
a. Shut off gas to the appliance
b. Extinguish any open flame
c. Open lid
d. If odor continues, keep away from the
appliance and immediately call your gas
supplier or your fire department
2. Do not store or use gasoline or other
flammable liquids or vapours in the vicinity of
this or any other appliance.
3. An LP cylinder not connected for use shall
not be stored in the vicinity of this or any
other appliance.
1. Do not store or use gasoline or other
flammable liquids or vapours in the vicinity of
this or any other appliance.
2. An LP cylinder not connected for use shall
not be stored in the vicinity of this or any
other appliance.
Avoid burns. The stainless steel and steel
surfaces of this barbecue can become extremely
hot, in direct sun and while the barbecue is in
operation.
To ORDER non-warranty replacement parts or accessories,
or to register your warranty, please visit us on the web at
www.cuisinartbbqs.com
THIS BARBECUE IS FOR OUTDOOR USE ONLY
1
HARDWARE PACK
1/4-20UNCx38 Screw
X 8
ST4.2X10 Tapping Screw
X 4
φ5 Washer
X 10
1/4-20UNCx16 Screw
X 18
φ7 Lock Washer
X 26
Fiber Washer
X 4
NO.10-24UNCx13 Screw
X 10
φ7 Washer
X 22
φ5 Lock Washer
X 10
M4 Wing Nut
X1
Control Knob
X 1
1 2 3
4 5 6
7 8 9
10 11 12
13
Venturi Clip, Side Burner
X 1
U Pin
X 1
No. Description Part Number Qty.
1 1/4-20UNCx38 Screw 20120-13038-250 8
2 1/4-20UNCx16 Screw 20120-13016-250 18
3 NO.10-24UNCx13 Screw 20124-10013-250 10
4ST4.2X10 Tapping Screw 22500-42010-137 4
5φ7 Lock Washer 41400-07000-250 26
6φ7 Washer 40300-07000-250 22
7Fiber Washer G466-0042-9000 4
8φ5 Lock Washer 41400-05000-250 10
9φ5 Washer 40300-05000-250 10
10 M4 Wing Nut 33301-04000-032 1
11 Control Knob G618-0014-9000 1
12 U Pin G350-0026-9000 1
13 Venturi Clip, Side Burner G405-0019-9200 1
Tools Needed for Assembly
• #2 Phillips screwdriver (long and short)
• ¼” Slotted screwdriver (long and short)
• Adjustable wrench
• Pliers
• Rubber Mallot
For correct hardware assembly, always
position the lock washer between the screw
and the flat washer.
Note: Do not fully tighten all the nuts
during this initial stage
Caution:
Sheet metal can cause injury. Wear gloves when installing this grill.
Lock Washer
Flat Washer
Screw
BEFORE ASSEMBLING THE BARBECUE, READ THESE INSTRUCTIONS CAREFULLY.
Assemble the barbecue on a flat, clean surface. Grill is heavy. Two people are recommended
to complete assembly.
2
Item No. Qty. Description Part No.
AA 1 Top lid G535-2000-01
AB 1 Lid Handle G535-0002-01
AC 2 Lid Handle End Cap G358-0004-01
AD 1 Thermometer G512-0085-01
AE 2 Screw for Top Lid G359-0030-01
AF 2 Lid Bumper G527-0002-01
AG 1 Logo Plate G618-0054-01
BA1 1 Burner Box Assembly G535-3600-01
BA2 1 Burner Box Surround G535-3100-01
BB 3 Main Burner G525-3800-02
BC 1 Carryover Assembly G535-0033-01
BD 3 Flame Tamer G525-0015-01
BE 3 Cooking Grate G525-0016-01
BF 1 Warming Rack G525-0017-01
BG 1 Match Holder G501-0068-01
BH 2 Lid Support Pin G525-0014-02
CA 1 Manifold Assembly, LP G535-3300-01
CB 1 Regulator G510-0006-01
CC 1 Side Burner Valve, LP G535-0007-01
CD 1 Metal Hose G508-0024-01
CE1 1 Electronic Ignition Assembly G535-0031-01
CE2 1 Electronic Ignition Battery Cap G535-0031-02
CF 3 Electrode Set, Main Burner G525-0030-01
CG 4 Control Knob G618-0014-01
CH 4 Bezel, Control Knob G525-0012-01
CI 1 Control Panel G535-0008-01
CJ 1 Front Brace G535-5000-01
CK 1 Grease Tray G350-4400-01
CL 1 Upper Back Panel G535-0013-01
CM 1 Heat Shield G525-0022-01
CN 1 Left Track G515-0024-01
CO 1 Right Track G515-0025-01
CP 1 Lower Back Panel G535-0012-01
PARTS LIST (PROPANE) FOR 85-3108-6 (G53501)
Item No. Qty. Description Part No.
DA 1 Side Shelf Table - Right G535-0400-01
DB 1 Side Shelf Fascia - Right G535-0500-01
DC 1 Side Burner Drip Pan G515-0083-02
DD 1 Side Burner G453-3400-01
DE 1 Electrode Set, Side Burner G515-0039-01
DF 1 Lid, Side Burner G501-0070-02
DG 1 Cooking Grate, Side Burner G501-0077-01
DH 1 Side Shelf Table - Left G535-0600-01
DI 1 Side Shelf Fascia - Left G535-0700-01
EA 1 Left Cart Side Panel G535-0009-01
EB 1 Right Cart Side Panel G535-0010-01
EC 1 Bottom Shelf - LP G535-0300-01
ED 2 Wheel with Lock G350-0023-01
EE 2 Wheel G350-0024-01
EF 1 Left Door Assembly G535-6000-01
EG 1 Right Door Assembly G535-7000-01
EH 2 Door Handle G517-0011-01
EI 4 Door Magnet Assembly G501-00F2-03
F1 1 Hardware pack G535-B001-01
F2 1 Assembly Manual G535-M001-01
F3 1 Safe Use and Care Manual G535-M001-02
F4 1 Tank Screw G505-0047-01
3
BH
CN
CO
DC
DF
EI
EI
BE
BA1
CI
AF
AE
BF
AB
AA
CM
DD
BC
EC EB
CH
DG
EG
EA
DI
EH
CF
BB
DH
CG
AD
AG
BD
BG
BA2
AC
AC
BH
CA
CB
CC
CD
CE2
CE1
CJ
CK
CL
CP
DA
DB
DE
ED
EE
EF
EH
EXPLODED DIAGRAM (PROPANE)
FOR 85-3108-6 (G53501)
Hardware
Pack
Tank
Screw
Assembly
Manual
Safe Use
& Care
Manual
EXTRAS
F1 F4F2 F3
4
PARTS LIST (NATURAL GAS) FOR 85-3109-4 (G53502)
Item No. Qty. Description Part No.
AA 1 Top lid G535-2000-01
AB 1 Lid Handle G535-0002-01
AC 1 Lid Handle End Cap G358-0004-01
AD 1 Thermometer G512-0085-01
AE 2 Screw for Top Lid G359-0030-01
AF 2 Lid bumper G527-0002-01
AG 1 Logo Plate G618-0054-01
BA1 1 Burner Box Assembly G535-3600-01
BA2 1 Burner Box Surround G535-3100-01
BB 3 Main Burner G525-3800-02
BC 1 Carryover Assembly G535-0033-01
BD 3 Flame Tamer G525-0015-01
BE 3 Cooking Grate G525-0016-01
BF 1 Warming Rack G525-0017-01
BG 1 Match holder G501-0068-01
BH 2 Lid Support Pin G525-0014-02
CA 1 Manifold Assembly, NG G535-1200-01
CB 1 Natural Gas Hose G501-0099-01
CC 1 Side Burner Valve, NG G535-0022-01
CD 1 Metal Hose G508-0024-01
CE1 1 Electronic Ignition Assembly G535-0031-01
CE2 1 Electronic Ignition Battery Cap G535-0031-02
CF 3 Electrode Set, Main Burner G525-0030-01
CG 4 Control Knob G618-0014-01
CH 4 Bezel, Control Knob G525-0012-01
CI 1 Control Panel G535-0008-01
CJ 1 Front Brace G535-5000-01
CK 1 Grease Tray G350-4400-01
CL 1 Upper Back Panel G535-0013-01
CM 1 Heat Shield G525-0022-01
CN 1 Left Track G515-0024-01
CO 1Right Track G515-0025-01
CP 1 Lower Back Panel G535-0012-01
Item No. Qty. Description Part No.
DA 1 Side Shelf Table - Right G535-0400-01
DB 1 Side Shelf Fascia - Right G535-0500-01
DC 1 Side Burner Drip Pan G515-0083-02
DD 1 Side Burner G453-3400-01
DE 1 Electrode Set, Side Burner G515-0039-01
DF 1 Lid, Side Burner G501-0070-02
DG 1 Cooking Grate, Side Burner G501-0077-01
DH 1 Side Shelf Table - Left G535-0600-01
DI 1 Side Shelf Fascia - Left G535-0700-01
EA 1 Left Cart Side Panel G535-0009-01
EB 1 Right Cart Side Panel G535-0010-01
EC 1 Bottom Shelf - NG G535-0800-01
ED 2 Locking Wheel G350-0023-01
EE 2 Wheel G350-0024-01
EF 1 Left Door Assembly G535-6000-01
EG 1 Right Door Assembly G535-7000-01
EH 2 Door Handle G517-0011-01
EI 4 Door Magnet Assembly G501-00F2-03
F1 1 Hardware Pack G535-B001-01
F2 1 Assembly Manuals G535-M001-01
F3 1 Safe Use and Care Manual G535-M001-02
5
BH
CN
CO
DC
DF
EI
EI
BE
BA1
CI
AF
AE
BF
AB
AA
CM
DD
BC
EC EB
CH
DG
EG
EA
DI
EH
CF
BB
DH
CG
AD
AG
BD
BG
BA2
AC
AC
BH
CA
CB
CC
CD
CE2
CE1
CJ
CK
CL
CP
DA
DB
DE
ED
EE
EF
EH
EXPLODED DIAGRAM (NATURAL GAS)
FOR 85-3109-4 (G53502)
Hardware
Pack
Assembly
Manual
Safe Use
& Care
Manual
EXTRAS
F1 F2 F3
6
Separate the 2 different types of wheels:
2 Locking Wheels (ED) and 2 Regular Wheels
(EE).
Insert the U Pin (#12) into one of the regular
Wheels (EE), as shown in image B. Attach the
Regular Wheel (EE) to the front of the Bottom
Shelf (EC), and use the U Pin (#12) to secure
and tighten.
Repeat for remaining 3 Wheels (EE & ED).
NOTE: Regular Wheels (EE) need to be
assembled to the front of the Bottom
Shelf (EC), and Wheels with Lock (ED)
need to be assembled to the back of
the Bottom Shelf (EC), as shown in
image A.
a. Ensure that the wheels are rmly locked in
the “ON” position before continuing.
b. Assemble the Left Cart Side Panel (EA) and
the Right Cart Side Panel (EB) to the Bottom
Shelf (EC).
6
X 1
YOU WILL NEED:
1.
2.
Back view
Front view
Close up
Close up
ED
EE
EC
EE
EB
EB
EA
EC
12
EC
12
B
B
A
A
ASSEMBLY INSTRUCTIONS
6
X 6 X 6 X 6
YOU WILL NEED:
2 5 6
7
Attach the Front Brace (CJ) to the Left and
Right Cart Side Panels (EA and EB).
TIP: One person should align the left side,
while the second person assembles the
right side.
c. Assemble the Lower Back Panel (CP)
to the Left Cart Side Panel (EA) and Right
Cart Side Panel (EB).
6
X 2 X 2 X 2
YOU WILL NEED:
3.
2.
Back view
Close up
Close up
CJ
CP
CJ
EA
EA
EB
EA
CP
CP
EC
EB
EB
1 5 6
B
D
A
C
ASSEMBLY INSTRUCTIONS
YOU WILL NEED:
6
X 4 X 4 X 4
2 5 6
TIP: The top of the lower back panel (CP) can
be identied by the four recesses located
on the top of this part.
TIP: The bottom of the front brace (CJ) can be
identied by the four recesses located on
the bottom of this part.

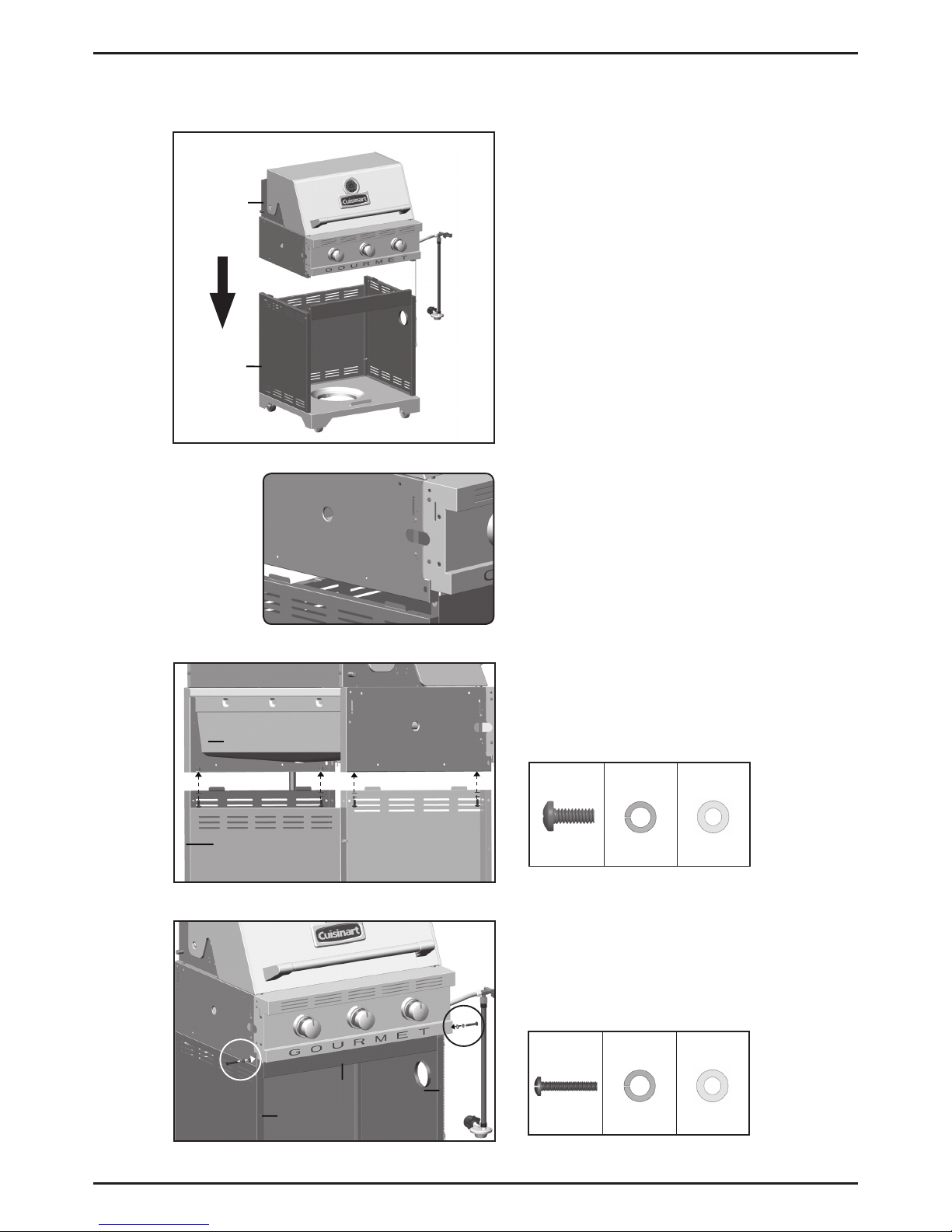

8
ASSEMBLY INSTRUCTIONS
Back view
Front view
EB
EA
EB
EA
B
C
A+B
CJ
6
X 2 X 2 X 2
YOU WILL NEED:
YOU WILL NEED:
1 5 6
b. Assemble Burner Box Assembly (A and B) to
the Left and Right Cart Side Panels (EA and
EB), as shown.
c. Assemble the front of the Burner Box
Assembly (A and B) to the Front Brace (CJ),
as shown.
Close up - left outside view
THIS STEP REQUIRES 3 PEOPLE.
DO NOT ATTEMPT ALONE. EXTREMELY
HEAVY.
a. Position the Top Lid and Burner Box
Assembly (A and B) onto Cart Assembly (C),
as shown.
4.
A
C
A+B
Front view
6
X 4 X 4 X 4
2 5 6
Indice
Altri manuali Cuisinart Griglia
Cuisinart
Cuisinart GR-11 Manuale di installazione e funzionamento
Cuisinart
Cuisinart CPG-256 Manuale utente
Cuisinart
Cuisinart Contact Griddler GR-12S Series Manuale di servizio
Cuisinart
Cuisinart CCG-190RB Manuale utente
Cuisinart
Cuisinart CGG-180 Assembly and Manuale utente
Cuisinart
Cuisinart GAS0356AS Manuale utente
Cuisinart
Cuisinart CGG-7400 Manuale utente
Cuisinart
Cuisinart GAS9456AF Manuale utente
Cuisinart
Cuisinart C782IRS-R Manuale utente
Cuisinart
Cuisinart BG036-G Manuale utente
Cuisinart
Cuisinart C550S Manuale utente
Cuisinart
Cuisinart WM-SW2 Manuale di servizio
Cuisinart
Cuisinart GR47BU Manuale utente
Cuisinart
Cuisinart CCG-100 Manuale utente
Cuisinart
Cuisinart GAS0256AF Manuale utente
Cuisinart
Cuisinart CR-8C Manuale operativo
Cuisinart
Cuisinart C790SR Manuale utente
Cuisinart
Cuisinart CPG-4000 Manuale utente
Cuisinart
Cuisinart Griddler Deluxe Manuale utente
Cuisinart
Cuisinart CERAMIC 900 Manuale utente
