Cuisinart ICE50BCU Manuale utente

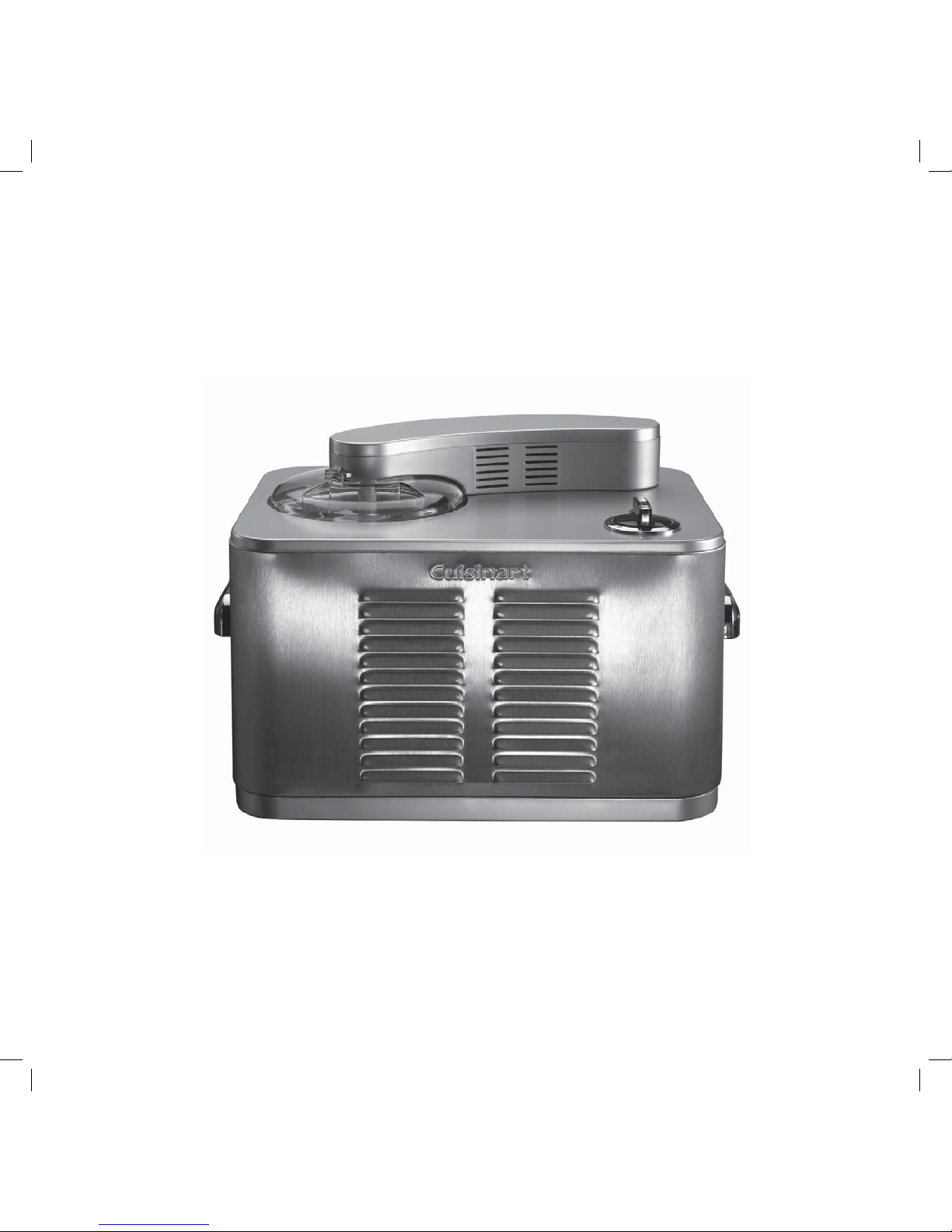

Ice Cream Professional

ICE50BCU

Congratulations on your purchase of the Cuisinart Ice Cream Professional.

For over 30 years Cuisinart’s aim has been to produce the very nest kitchen equipment

so that cooks at home as well as professional chefs have the tools to express their

creativity.

All Cuisinart products are engineered for exceptionally long life, and designed to be

easy to use as well as to give excellent performance day after day.That is why they have

come to be regarded as the dening machines in their eld by chefs across the world.

Whatever you cook, cook it better with Cuisinart.

Contents

Product Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Safety Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Instructions for Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

A Assembling the Ice Cream Professional . . . . . . . . . . . . . . . . . . . . . . . . . . 8

B Dismantling the Ice Cream Professional . . . . . . . . . . . . . . . . . . . . . . . . . . 9

C Making Frozen Desserts and Drinks . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

D Hints and Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Cleaning & Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

UK Wiring Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

UK After Sales Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Recipes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Product Description

Stem

Motor Arm

Heavy Duty Compressor

(not shown)

Mixing Pad

Housing Base

Lid

Timer Dial

Mixing Bowl

Carefully read all the instructions thoroughly before using the appliance and keep in a safe place

for future reference

Safety Cautions

Always follow these safety cautions when using this appliance to avoid personal injury or damage to the appliance.

This appliance should be used only as described within this instruction book.

ßDo not immerse the base in water, any other liquid or in a dishwasher.

ßTo clean base, disconnect from the mains, clean using a damp cloth. Allow to dry thoroughly before re-use.

ßAlways disconnect the appliance immediately after use.

ßAlways unplug from the mains when not in use and before cleaning.

ßNever disconnect the plug by pulling on the mains lead.

ßAlways ensure that your hands are dry before removing the plug from the mains socket.

ßAvoid contact with moving parts. Keep hands, hair, clothing and spatulas and other utensils away during

operation to reduce the risk of injury and/or damage to the appliance.

ßNever use a scourer to clean appliance.Wipe with a warm moist cloth.

ßDo not allow the lead to overhang the edge of the table or work surface.

ßThis appliance should not be used by adults or children whose lack of experience, product knowledge or

disability might cause a hazard, unless they have been correctly instructed and are adequately supervised.

ßChildren should always be supervised to ensure that they do not play with this product.

ßDo not use this appliance if the lead is damaged. In the event of damage the lead must be replaced by a special

lead available from the manufacturer or its service agent. (See ‘’UK After Sales Service” section).

ßDo not use the appliance if it has fallen or shows signs of damage. Discontinue use immediately. (See ‘’UK After

Sales Service” section).

ßNo repair can be carried out by the user. Return the appliance to ‘’Cuisinart Service Centre’’ for inspection

and repair or replacement. (See ‘UK After Sales Service’’ section).

ßUse this appliance only as described within these instructions for use. Retain these for future reference.

ßFor indoor use only.

ßFor domestic use only.

ßThe appliance should remain upright at all times. If the appliance is turned on its side or upside down, you will

need to put it in an upright position and wait 24 hours before using.

ßThis appliance complies with the basic requirements of Directives 04/108/EEC (Electromagnetic Compatibility)

and 06/95/EEC (Safety of domestic electrical appliances) amended by Directive 93/68/EEC (CE Marking).

ßDo not use any attachments other than those recommended or sold by Cuisinart.

ßWARNING: A cut off plug inserted into a 13 amp outlet is a serious safety (shock) hazard. Ensure the cut

off plug is disposed of safely.

ßWARNING: Polythene bags over the product or packaging may be dangerous. To avoid danger of suffocation,

keep away from babies and children. These bags are not toys.

ßThe symbol on the product or on its packaging indicates that this product may not be

treated as household waste. Instead it should be handed over to an appropriate collection point for the

recycling of electrical and electronic equipment. By ensuring this product is disposed of

correctly, you will help prevent potential negative consequences for the environment and human health,

which could otherwise be caused by inappropriate waste handling of this product. For more detailed

information about the recycling of this product, please contact your local council office or your

household waste disposal service.

Instructions for Use

Before rst use, clean the lid, mixing bowl and mixing paddle in warm soapy water.

N.B. Do not clean any of the part with abrasive cleaners, hard implements or in the dishwasher.

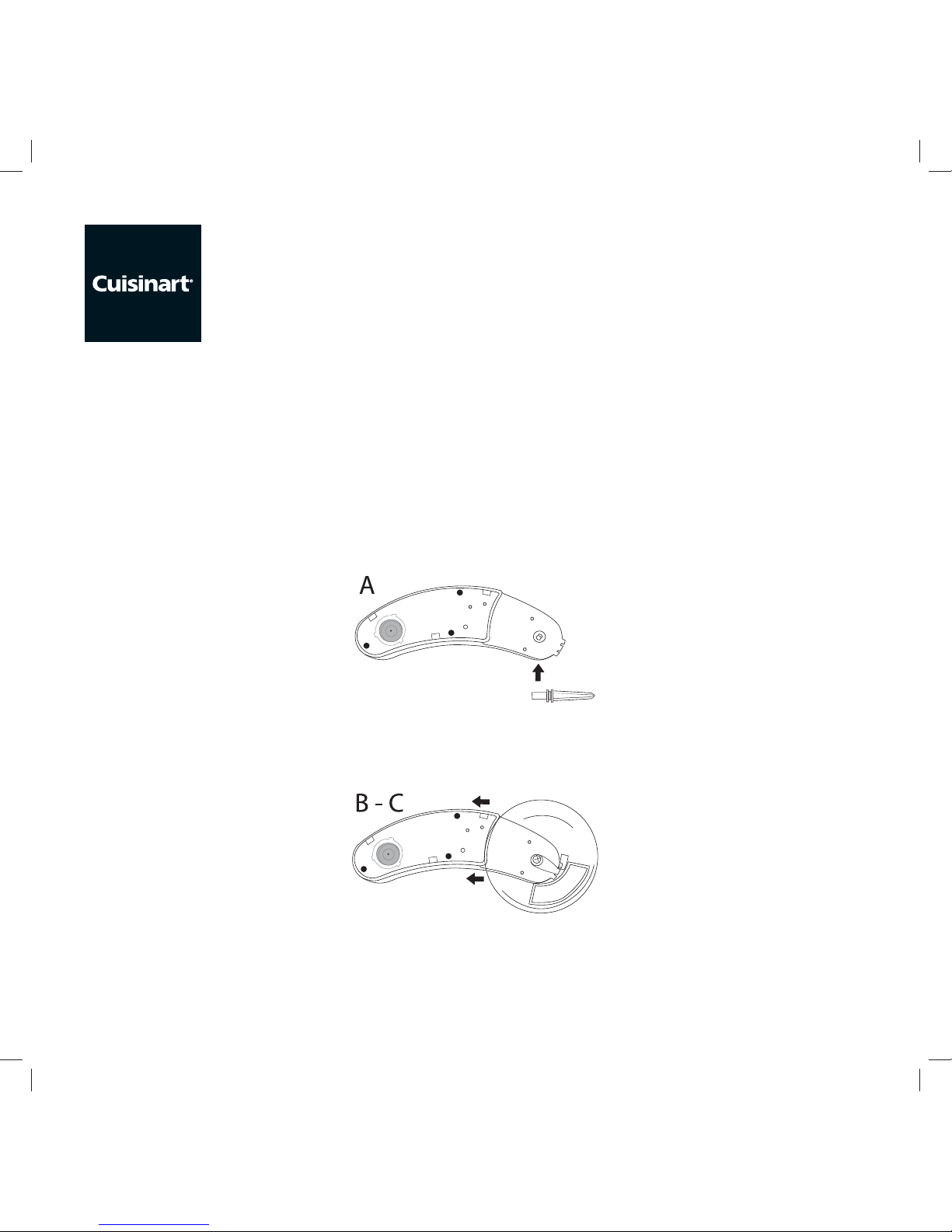

A Assembling the Ice Cream Professional

ßTake the motor arm and place smooth side face down on a at surface so that the holes are visible on

top.

ßAlign the at end of the stem with the cut out in the motor arm, and push into position.

ßPlace the domed side of the lid face down over the top of the stem until resting on the motor arm with

the opening. Align the plastic ridge on the top of the lid with the bracket on the edge of the motor arm.

Push the lid back until locked into place. This will secure the lid to the motor arm.

ßAlign the mixing paddle with the top of the stem and push into place.

N.B. There should be a 1cm gap between the bottom of the paddle and the bottom of the stem.

ßPlace the mixing bowl into the housing base. Turn the motor arm over and attach to the top of the base

with the mixing paddle in the mixing bowl.

B Dismantling the Ice Cream Professional

ßCarefully lift out the motor arm and lid from the top of the unit by lifting upwards.Turn over and lay on a

at surface.

ßCarefully remove the mixing padding by lifting upwards. Slide the lid away from the motor arm so that the

round cut of the lid is directly around the bottom of the stem. Lift lid over and off of the stem.

ßPull the stem out away from the motor arm.

ßFinally, carefully lift the mixing bowl out of the housing base.

C Making Frozen Desserts or Drinks

WARNING: This appliance should remain upright at all times. If appliance is turned on its side or upside

down, you will need to put in an upright position and wait 24 hours before using.

ßFirstly, prepare the ingredients required for your recipe, following the recipes in this instruction book or

your own.

ßPlace the mixing bowl in the housing base.

ßPour the ingredients into the mixing bowl.

ßAssemble the mixing arm and t to the top of the appliance.

ßTurn the dial to required time, 35-45 minutes for a soft dessert, 45-60 minutes for a hard dessert. The

mixing process will begin. The unit will automatically stop mixing and turn itself off when the set time has

elapsed, an audible tone will sound to alert you.

N.B. if the frozen dessert reaches maximum thickness before the set time has elapsed, the unit will stop

mixing. If you do not shut off the timer manually it will continue counting down to ‘0’ and will then shut

itself off.

D Hints and Tips

ßProcessing time depends on the recipe, the amount of dessert being made and the temperature of the

ingredients being use. All recipes take between 35 and 60 minutes.

ßSoft ice cream takes between 35-45 minutes.

ßHard ice cream takes 45-60 minutes.

ßYour Ice Cream Professional makes ice cream using fresh natural ingredients, i.e. without the preservatives

etc as found in commercial ice creams.Therefore it will not have the same hard consistency, for a rmer

consistency, transfer the dessert to an airtight container and store in the freezer for at least 2 hours be-

fore serving.

ßAdd other ingredients e.g. chocolate chips and nuts approximately 5 minutes before the mixing is com-

plete. Once the dessert or drink has begun to thicken, add the ingredients through the lid whilst mixing

continues.

ßNuts and other ingredients should be no larger than a chocolate chip.

ßYou should begin with a maximum of 1 litre of mixture in the Ice Cream Professional.

ßSome recipes use precooked ingredients. For best results, the mixture should be chilled overnight before

using.

ßPrior to freezing, most mixed recipes may be stored in the refrigerator for up to 3 days.

ßYou may substitute lower fat creams and milk for double cream and whole milk used in many recipes.

However, the higher the fat content the richer and creamier the result. Using lower fat substitutes may

change the taste, consistency and texture of the dessert. When substituting ingredients, ensure you use

the same quantity of the substitute as the original ingredient required.

ßYou may also substitute articial sweeteners for sugar. If the recipe is to be precooked, add the sweetener

after the heating process is complete (the ingredients have been cooked). Stir the mixture thoroughly to

dissolve the sweetener.
