CULUS FlexShade F MO Series Manuale di programmazione

Overview - Components

CAUTION

Read and understand all warnings

(Page 2 of this document)

before beginning installation.

Contents

Overview - Components.......................................................................................1

PLEASE READ - Important Safety and Installation Information ....................2

PLEASE READ - Field Adjustments, Cleaning and Maintenance...................2

Section 1 - Idler-End and Operator End Assemblies ......................................3

Section 2 - Mounting / Assembly........................................................................4

Section 3 - Fascia Attachment............................................................................5

Section 4 - Dual Roller Surface Headbox Installation.....................................6

Section 5 - Pocket Headbox Installation...........................................................7

Section 6 - Fabric/Roller Assembly Alignment ................................................8

Section 7 - Limit Switch Adjustments ...............................................................9

Section 8 - Electrical Connections............................................................... 9-10

Section 9 - Dimensions .................................................................................11-12

TOOLS

REQUIRED

POWER DRILL

PENCIL

TAPEMEASURE

HARDWARE

(by others)

LEVEL

PLIERS

FLEXSHADE F*MO

Locking

Ring

SHADE FABRIC

Motor

Plate

Idler End

Bracket

Spanner

Wrench

Motor End

Bracket

Coupler

Bracket

Assembly

}

Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385

draperinc.com | 765.987.7999 | 800.238.7999

Dual Roller Coupled

Motorized FlexShade®

(Standard Hardware)

INSTRUCTIONS

INSTALLATION & OPERATION

If you have any difﬁculties installing or servicing your

Dual Roller Coupled Motorized FlexShades®, call your dealer or Draper, Inc.

PERSONNEL

REQUIRED

WARNING

Improper installation and use of the Dual Roller Coupled Motorized FlexShade®can result in serious injury or death. Primarily, injuries can occur if the unit falls

due to imprecise installation, mishandling of the unit during installation or installation on an insufﬁcient wall or ceiling structure. Please use extreme care.

Please read the following installation guidelines thoroughly and follow them

carefully. Failure to do so may cause product to fall or otherwise fail, and could

result in serious injury.

Installation and calibration of the unit should only be performed by an

authorized, qualiﬁed, and experienced professional. In particular, electrical work

and wiring [indicated in diagram by dashed lines] must be completed only by a

qualiﬁed professional electrician who has read this manual completely and is

familiar with the construction and operation of this equipment and the hazards

involved.

Do not afﬁx the unit to wall or ceilings that have inadequate strength to

permanently hold the unit during use. It is the owner’s and installer’s

responsibility to conﬁrm the wall or ceiling to which the unit attaches is

sufﬁcient to permanently hold the weight and stress loads of the unit at all times.

Draper®, Inc., is not responsible for improper installation, application, testing, or

workmanship related to the product at place of installation.

It is the installer’s responsibility to ensure appropriate fasteners are used for

mounting.

All brackets, fascia, headboxes, pockets, wall clips, and other hardware must be

installed level. Unit must be level and square.

Never leave the area while operating the unit during installation, maintenance, or

normal operation, unless it is secure and safe.

Before testing or operation, carefully inspect the entire area and path of the

shade and areas underneath the shade to be sure no persons or objects are in

the area.

Turn off power and any nearby equipment or cables carrying electricity before

connecting switches, wires, controls, or electrical components.

Ensure the limit switches are pointed down or accessible when placing the

motor in brackets/endcaps.

10.

All motors should be tested and limits set using test cord before shades are

wired.

11.

Do not wire motors in parallel without written permission from Draper, Inc.

12.

During testing or operation, carefully watch the surrounding area for any

potential safety concerns including nearby persons or objects.

13.

After installation, the entire system, including all sensors, should be carefully

tested to ensure safe and normal operation. Extreme care should be taken

during testing to remain clear of moving parts to avoid possible injury.

14.

Operation of unit should be performed only by authorized and qualiﬁed

personnel, who have been trained in the safe and effective operation of the unit

and understand its safety features.

15.

The safety features of the unit , including sensors, should never be disabled,

bypassed, or overridden. The system should not be operated until all safety

features, including the sensors, are properly and completely installed,

calibrated, and tested.

16.

Unit may need to comply with local, state, or district rules and regulations, in

particular when installed in schools. All applicable rules and regulations should

be reviewed before installation and use.

17.

Failure to precisely follow installation guidelines invalidates all warranties.

18.

Custom products/installations may not be reﬂected in this manual. Call Draper,

Inc., if you have questions about the installation of custom products or any

questions about your installation.

Before Beginning Installation

Look for any job site conditions that could interfere with installation or operation

of the system.

Read carefully and be sure to understand all installation instructions and all

related operations manuals. These instructions are intended to serve as a guide

for the installer and owner. They should be followed closely and combined with

the expertise of experienced qualiﬁed installers. Draper, Inc., is not responsible

for improper installation, application, testing, or workmanship related to the

product at place of installation. Please retain all instructions for future use.

Open cartons lengthwise.

Locate and lay out all pieces.

Inspect all boxes to ensure you have received the proper shade and parts.

Controls may be shipped separately, or in same carton as shade.

If you have any difﬁculties with installing, servicing, or operating your shade, call

your dealer or Draper, Inc., 765-987-7999.

Important Safety Information Important Safety Information

PLEASE READ - Important Installation Information

Caution:

Inspect all boxes to ensure you have received the proper shades and parts.

Controls may be shipped separately, or in same carton as shades.

Open cartons lengthwise.

Before mounting shades, verify measurements on label provided with shade,

and ensure unit is installed at correct width.

Before connecting switches, controls, or electrical, ensure that power is

turned OFF. Wiring indicated in diagram by dashed lines must be completed

by an electrician.

Do not wire motors in parallel without written permission from Draper.

All endcaps, fascia, pocket headbox, and other hardware must be installed

level. Shades must be level and square.

Read the following installation guidelines thoroughly and follow them

carefully. Failure to do so may cause product to fall or otherwise fail,

and invalidates warranty.

Installer is responsible for selecting mounting hardware appropriate for

site conditions.

PLEASE READ - Safety Information

PLEASE READ - Field Adjustments

Each Draper Solar Control Shade is tested to ensure

proper operation. Even with this testing, some ﬁeld

adjustments may be needed for telescoping.

If the shade is telescoping, place a piece of high

quality gaffer tape about 1"

(25mm)

wide on the

exposed roller

(where the fabric will cover it)

on the side

that the fabric will be drawn toward. For example: if

the fabric is tracking to the left, place the tape on the

right side.

PLEASE READ - Cleaning and Maintenance

Window covering products manufactured by Draper, when properly installed, should require no

operational maintenance or lubrication.

Most standard Draper fabrics may be cleaned at the window by vacuuming with a soft brush

attachment. They also may be cleaned by using a sponge or soft cloth and mild solution of warm soapy

water. A mild dishwashing liquid is recommended. A clean dry cloth is recommended for the metal ﬁnish.

Please Note: Exceptions are Flocké and Phifer SW7000®fabrics, which must be cleaned with a dry

art sponge.

(SheerWeave®is a registered trademark of Phifer®Incorporated. Flocké®is a registered trademark of

Mermet®Incorporated.)

page 2 of 12

Dual Roller Coupled Motorized FlexShade®

(Standard Hardware)

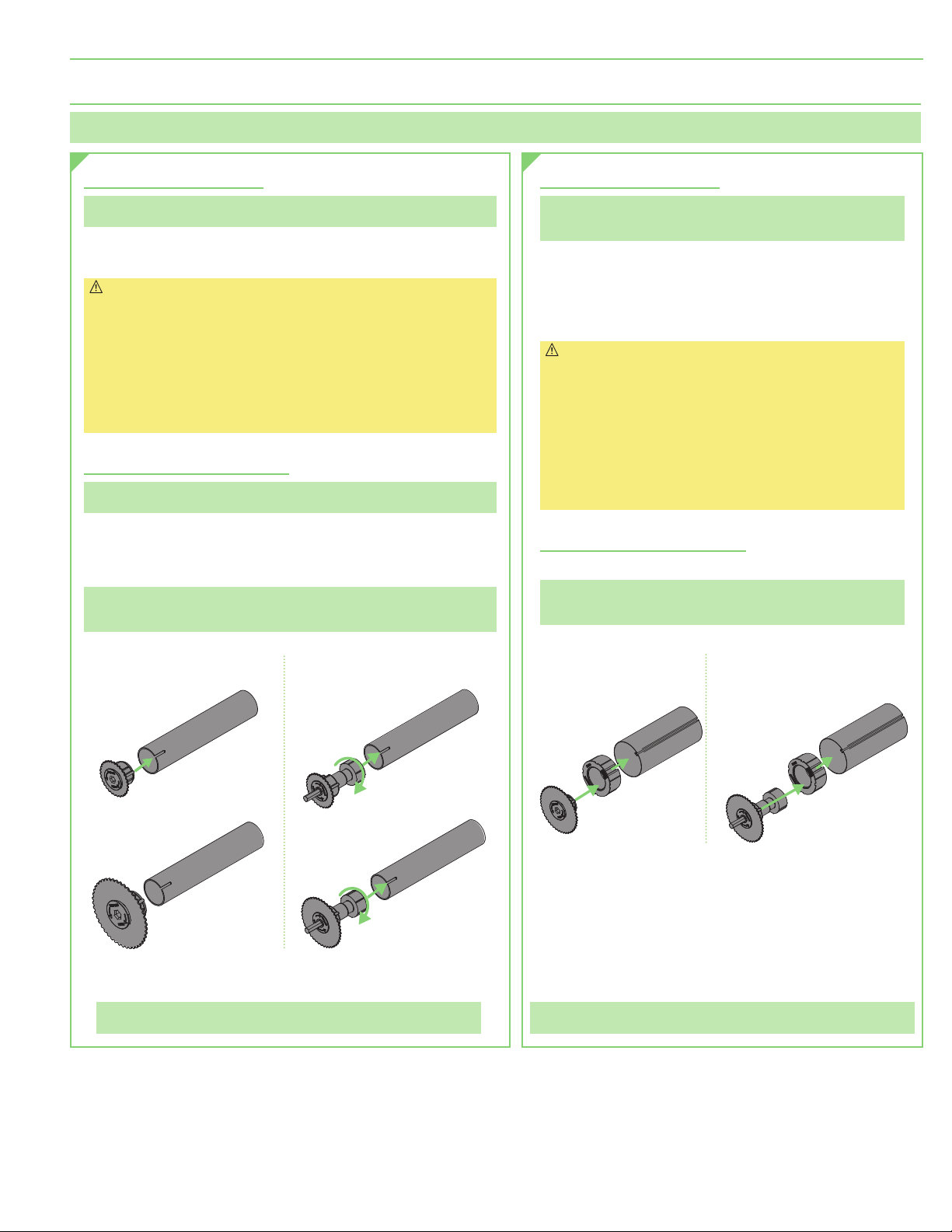

Section 1 - Idler-End and Operator End Assemblies

Please Note: The operator will already be installed in the operator-end roller; the sliding pin idler will also be installed in the idler-end roller. It is only necessary to

install the coupler assemblies.

(51 mm)

Idler-End Assembly

Please Note: Notches in the tube need to be lined up with the "keys" on the

couplers.

Insert coupler assembly into roller. Making sure the notch in the tube is lined

up with the "key" on the coupler, press until the assembly is fully seated in

the roller.

Caution:

• Ensure the locking ring on the idler-end coupler assembly is fully tightened

before installing roller into brackets. There should be no play in the locking

ring. If the locking ring is loose, then the idler is in "height adjustment"

mode.

• Wear a heavy glove on the hand used to grip the locking ring.

• Tighten the locking ring until it is fully locked and it cannot rotate any

further. Check to ensure it is tight and will not work loose. If locking ring

cannot be tightened by hand, use a ﬂat screwdriver or other tool to assist.

(51 mm)

Operator-End Assembly

Please Note: Operator-end coupler assemblies will not slide straight into the

roller tube.

Insert assembly into the roller, with the "key" slightly off center from the

notch.

Once assembly is far enough in that the ribs are past end of the notch, rotate

the coupler until the notch is lined up with the "key" on the coupler.

Please Note: If the assembly will not fully seat in the roller, retract the shaft

(if applicable)

and tap the assembly with a rubber mallet. Be careful not to

damage the coupler.

(76 mm)

Idler-End Assembly

Please Note: The retractable shaft needs to be pointing toward

the opposite end of the motor and oriented that direction for the

whole unit.

Insert coupler assembly adapter into roller. Making sure the notch

in the adapter is lined up with the notch in the coupler, press until

the adapter is fully seated in the roller.

Insert coupler assembly into adapter. Making sure the notch in the

inside of the adapter is lined up with the "key" on the coupler, press

until the assembly is fully seated.

Caution:

• Ensure the locking ring on the idler-end coupler assembly is fully

tightened before installing roller into brackets. There should be no

play in the locking ring. If the locking ring is loose, then the idler is

in "height adjustment" mode.

• Wear a heavy glove on the hand used to grip the locking ring.

• Tighten the locking ring until it is fully locked and it cannot rotate

any further. Check to ensure it is tight and will not work loose. If

locking ring cannot be tightened by hand, use a ﬂat screwdriver

or other tool to assist.

(76 mm)

Operator-End Assembly

Follow the same steps used for the idler-end.

Please Note: If the assembly will not fully seat in the roller, retract

the shaft

(if applicable)

and tap the assembly with a rubber mallet. Be

careful not to damage the coupler.

C177.059SA

C177.062SA

C177.058SA

C177.061SA

Idler End Coupler

Operator End Coupler

C103.069

C177.061SA

AND

C103.069

C177.062SA

AND

Idler End Coupler

Operator End Coupler

Figure 1a

Figure 1b

Please Note: The retractable shaft must point toward the opposite end of

the motor and oriented in that direction for the entire unit.

Please Note: The retractable shaft must point toward the opposite end of

the motor and oriented in that direction for the entire unit.

page 3 of 12

Dual Roller Coupled Motorized FlexShade®

(Standard Hardware)

Section 2 - Mounting / Assembly

(Requires two (2)

installers)

Section 2.1 - Operating the Retractable Coupler Shaft

(Fig. 2)

Please Note: Custom products/installations may not be reﬂected by this document.

Draper®Coupled FlexShades utilize a locking retractable shaft

(Fig. 1)

to hold roller assemblies

in place and link panels together. The retractable coupler shaft on has three distinct positions:

fully extended, intermediate, and fully retracted.

Caution:.Installation of this product requires two people.

Caution: Before beginning installation, practice extending and retracting the coupler shaft in a fabric/roller assembly, following

instructions in the "Operating the Retractable Coupler Shaft" section below.

Caution: All motors should be tested and limits set using test cord before electrician wires shade.

Please Note: Custom products/installations may not be reﬂected by this document. Call Draper, Inc. with any questions about

product installation.

Section 2.3 - First

(Operator-end)

Fabric Roller Assembly

(Fig. 4)

If desired, the proper location of the coupler bracket assembly can be veriﬁed.

Otherwise, proceed to step 2.

Section 2.2 - Operator-end Bracket Assembly

(Fig. 3)

Before mounting shades, verify measurements on the card provided with the

shade, and ensure the brackets are installed at the correct width.

Measure and mark wall, jamb, or ceiling for placement of mounting brackets or

endcaps. Mark a level line across all windows to ensure a level installation. Mark

the outer edges of the operator- and idler-end brackets or endcaps, and the

center locations of the coupler brackets. Locations are determined by:

Operator-end panel width;

Intermediate panel width

(s)

; and

Idler-end panel width.

Mount the operator-end bracket assembly

(Fig. 3 for bracket/endcap types)

Ensure the outside edge is aligned with the marked location.

Please Note: There is no retractable shaft in

the idler end assembly on the idler end shade

(furthest from the operator)

. This idler assembly

utilizes a sliding pin and retainer clip.

Please Note: These instruction steps are for installing endcaps/brackets one at a time. Brackets/

endcaps may also all be installed at the same time, prior to installing roller/fabric assemblies. If

brackets/endcaps are installed ﬁrst, please be certain of measurements and locations. For best results,

assemble the unit on a ﬂat, clean surface and verify measurements before attaching brackets/endcaps.

Caution: During installation and adjustment of coupled shades, ﬁngers may

slip, causing possibly severe cuts and/or scrapes. Wear gloves that are

ﬂexible enough to adjust the metal wheel but strong enough to prevent

scrapes from surrounding metal or other surfaces.

Please Note: Installer is responsible for selecting mounting hardware

appropriate for site conditions.

Installer #1 attaches

the operator end to the

operator-end bracket.

Installer #2 slides the coupler

bracket onto the coupler shaft of

the fabric/roller assembly to be

installed, and holds in place.

Verify and mark location

and set fabric/roller

assembly aside.

Install ﬁrst coupler bracket assembly to mounting surface.

Ensure the operator-end fabric/roller assembly's coupler shaft is completely retracted

(see "Operating the Retractable Shaft" and Fig. 2)

Raise ﬁrst rear/upper fabric/roller assembly into place. While Installer #1 inserts the operator end of

fabric/roller assembly into the operator-end bracket, Installer #2 lifts the coupler end up next to the

coupler bracket assembly, then extends the coupler shaft to the intermediate position by rotating the

ring clockwise about

⁄

of a turn

(see "Operating the Retractable Shaft" and Fig. 2)

. This will hold the ﬁrst unit

in place during installation of the next panel.

For motorized shades, connect power so the shade can be operated and adjusted.

Operate the shade to ensure proper fabric tracking and to set up and down limits

(see sections on limit adjustment and ﬁeld adjustments)

Raise shade to upper limit.

To retract the coupler shaft from fully extended to the intermediate position, grasp the roller

with one hand while rotating the metal ring counterclockwise

(as viewed facing the coupler assembly)

approximately ½ of a turn with the other; this will leave the shaft extended approximately ½"

(13mm)

To retract the coupler shaft fully, rotate the metal ring counterclockwise

(as viewed facing the coupler

assembly)

an additional

⁄

of a turn.

To lock shaft in place when extended, rotate metal ring clockwise ¼ turn.

Idler-end Coupler Bracket Motor End

Endcap Fascia Assembly-Fascia Endcap Fascia

Figure 4

EXT END

RETR ACT

EXT END

RETR ACT

PERSONNEL

REQUIRED

Figure 2

Figure 3

page 4 of 12

Dual Roller Coupled Motorized FlexShade®

(Standard Hardware)

Section 3 - Fascia Attachment

Section 2.5 - Final

(Idler-end)

Fabric/Roller Assembly

(Fig. 6)

If desired, the proper location of the next bracket assembly can be veriﬁed.

Otherwise, proceed to Step 2.

Install idler-end bracket/endcap assembly.

Retract coupler shaft of previously installed roller to the intermediate position

(see "Operating the Retractable Shaft" and Fig. 2)

. The end of the coupler shaft should be ﬂush

with the outside edge of the bearing.

Lift both ends of the idler-end fabric/roller assembly into place and align between the

brackets/endcaps.

Section 2.4 - Intermediate Fabric/Roller Assembly

(Fig. 5)

Please Note: Skip this section if your unit only has two panels

If desired, the proper location of the next bracket can be veriﬁed. Otherwise, proceed to step 2.

Install the next coupler bracket to mounting surface.

The end of the previously-installed coupler shaft should be ﬂush with the outside edge of the

bearing. If it is extended beyond the bearing, you can retract the coupler shaft of the previously

installed roller to the intermediate position

(see "Operating the Retractable Shaft" and Fig. 2)

Lift both ends of the intermediate fabric/roller assembly into place and align between the rear/

upper brackets.

Installer #1 fully extends coupler shaft of previously installed roller by rotating the metal ring clockwise about 180° when viewing the face of the coupler

assembly

(see "Operating the Retractable Shaft" and Fig. 2)

, until the shaft extends fully into the receiver of the fabric/roller assembly being installed.

Installer #2 extends the coupler shaft of the fabric/roller assembly being installed to the intermediate position by rotating the ring clockwise about 120°

(see

"Operating the Retractable Shaft" and Fig. 2)

so the end of the shaft is ﬂush with the outside edge of the bearing.

Operate the shade to ensure proper fabric tracking.

Lower the unit

(all shades will operate simultaneously)

to lower limit.

If needed, the fabric panel heights can be adjusted so that the bottom edges of the fabric panels are aligned. On large units, this procedure should be done

on only one panel at a time to minimize the amount of fabric weight that must be supported during the adjustment procedure.

(See Section 6, "Fabric/Roller Assembly Alignment")

for instructions.

10.

Repeat steps above under "Second Fabric/Roller Assembly" for additional intermediate panels.

Installer #1 places the idler-end sliding shaft onto the idler-end bracket

(Fig. 6)

. Lock shaft in place by placing retaining clip on shaft.

Installer #2 fully extends coupler shaft of previously installed roller by rotating the metal ring clockwise about ½ of a turn when viewing the face of the

coupler assembly

(see "Operating the Retractable Shaft" and Fig. 2)

, until the shaft extends fully into the receiver of the idler-end fabric/roller assembly.

Caution: Ensure shaft is locked in place with retaining clip on shaft.

Operate the unit to ensure proper fabric tracking.

Lower the unit

(all shades will operate simultaneously)

to lower limit.

If needed, the fabric panel heights can be adjusted so that the bottom edges of the fabric panels are aligned. On large units, this procedure should be

done on only one panel at a time to minimize the amount of fabric weight that must be supported during the adjustment procedure.

(See

Section 6, "Fabric/Roller Assembly Alignment")

10.

Repeat steps followed for rear/upper fabric/roller assemblies under First

(Operator-end)

Fabric/Roller Assembly, Second Fabric/Roller Assembly and

Final

(Idler-end)

Fabric/Roller Assembly sections above for lower/front fabric/ roller assemblies.

Place groove along top of fascia over endcaps, and snap into place

(Fig. 7)

. Fascia is not fully seated until it clicks into place on both ends. Once

in place, check for secure ﬁt. If not secure, secure with appropriate fastener

(not included)

Figure 5

EXTE ND

RETR ACT

EXTE ND

RETR ACT

EXTE ND

RETR ACT

EXTE ND

RETR ACT

EXTE ND

RETR ACT

EXTE ND

RETR ACT

EXTE ND

RETR ACT

EXTE ND

RETR ACT

Figure 7

Figure 6

STEP 2

Clicks into place

STEP 1

page 5 of 12

Dual Roller Coupled Motorized FlexShade®

(Standard Hardware)

Section 4 - Dual Roller Surface Headbox Installation

Please Note: Installer

must provide

adequate clearance

for removal of Roller

Assembly during

installation and

maintenance.

Please Note: Headbox MUST BE mounted directly to

ceiling or wall, or to a continuous blocking that has

been secured to building structure.

1. Place endcaps into

top/back cover

piece of surface

headbox.

2. Using pre-drilled

holes in endcaps,

mark headbox for

drilling.

3. Drill holes in back

(wall mount)

or top

(ceiling mount)

top/back cover of

surface headbox.

4. Attach endcaps and top/back

cover piece to wall or ceiling,

using mounting hardware

appropriate for site conditions.

Please Note: A minimum of

two

(2)

screws is required for

each endcap.

Next, mount roller assemblies

(Section 2)

BACK

COVER

IDLER ENDCAP

& COVER

TOP

COVER

BACK

COVER

BACK

COVER

IDLER

ENDCAP

& COVER

OPERATOR

ENDCAP & COVER

TOP COVER

Figure 8-A Figure 8-B

Figure 8-C

page 6 of 12

Dual Roller Coupled Motorized FlexShade®

(Standard Hardware)

Headbox

Clip

(With

optional

tile support)

Headbox

Clip

(Without

optional

tile support)

(76mm)

Closure

Panel

(76mm)

Closure

Panel

WALL

Brackets mounted

to continuous

blocking

(by others)

secured to

building

structure.

Ceiling

(by others)

5. Mount endcaps using

appropriate fasteners

for surface

(Section 1)

6. Mount pocket

closure.

(Fig. 9-D)

Figure 9-D

2. Mark location of optional

pre-drilled pocket

mounting holes and

bracket mounting holes

on top side of headbox

on mounting surface.

1. Lift headbox into

mounting position.

3. Drill small

starter hole

(if necessary)

in mounting

surface. 4. Mount pocket

headbox using

appropriate

fasteners for

surface.

OPTIONAL VENT HOLES

POCKET

MOUNTING

HOLES

ENDCAP

MOUNTING

HOLES

Section 5 - Pocket Headbox Installation

PLEASE NOTE:Installer must provide adequate clearance for

removal of Roller Assembly during installation and maintenance.

PLEASE NOTE: Headbox must be mounted directly to ceiling, or

to a continuous blocking that is secured to building structure.

Figure 9-A

Figure 9-B

Figure 9-C

page 7 of 12

Dual Roller Coupled Motorized FlexShade®

(Standard Hardware)

Please note: If needed, the fabric panel heights can be adjusted so that the bottom edges of the fabric panels are aligned. On large units, this procedure should be

done on only one panel at a time to minimize the amount of fabric weight that must be supported during the adjustment procedure. Install and adjust rear/upper

panels before beginning on lower/front panels.

Section 6 - Fabric/Roller Assembly Alignment

(Steps are shown for right-hand operators)

6.Operate the unit

to check for proper

fabric position,

tracking, etc.

7.Install

next panel.

2.Push the fabric/roller assembly approximately

⁄

(5mm)

toward the operator-end of the unit.

The fabric/roller assembly will

move approximately

⁄

(5mm)

toward the

operator end.

3.Rotate the fabric/roller

assembly in either

direction to raise or lower

the fabric panel.

4.Allow the fabric/

roller assembly

to move back

5.Tighten the locking ring by ﬁrmly rotating

it approximately ¼ turn clockwise

(reverse of step 1)

Caution: Ensure the locking ring on the idler-end coupler assembly is

fully tightened following height adjustment. Wear a heavy glove to grip

the locking ring. Tighten the locking ring until it is fully locked and will

not rotate any further. Ensure that it will not loosen. If it cannot be

tightened by hand, use a ﬂat screwdriver or other tool to assist.

and away from the operator

end of the unit, and check

position of fabric panels.

LOCK

UNLOCK

LOCK

UNLOCK

LOCK

UNLOCK

LOCK

UNLOCK

LOCK

UNLOCK

LOCK

UNLOCK

Operator Panel

Location of next panel

1.Unlock height adjuster mechanism

(or coupler shaft receiver)

located at the operator-end of fabric

roller assembly being adjusted by

rotating the metal ring

approximately ¼ turn

counterclockwise when

viewing the face

of the

coupler

assembly.

Please note: Do not use this procedure

to adjust the operator-end assembly.

Use the limits to set the down travel of

the operator-end assembly.

Figure 10

Figure 12

Figure 13

Figure 14

Figure 11

page 8 of 12

Dual Roller Coupled Motorized FlexShade®

(Standard Hardware)

Section 7 - Limit Switch Adjustments

Section 7.1 - Standard and Quiet Motors

(All procedures shown are for Standard Roll. Invert orientation for Reverse Roll)

Push Button Limits

Fully depress both limit switch push buttons, then

operate wall switch to make sure system works properly.

Raise shade to desired “up” stop position.

Set upper limit by depressing proper

(back)

push button.

Lower shade to desired “down” stop position.

Set lower limit by depressing proper

(front)

push button.

Screw-Type Limits

Determine which direction of fabric travel corresponds

with arrows on motor.

Operate shade to desired “down” stop position.

Set limit by turning proper socket toward “+” to lower limit, and “-” to raise it.

Operate shade to desired “up” stopping position. Set limit by turning proper screw

toward “-” to raise limit, and “+” to lower it.

Section 7.2 - Limit Adjustments: RS485 Motors

For limit setting instructions on these motors, see instructions packaged with the RS485 Address/Limit Setting Tool

(part# C156.241)

Section 7.3 - Limit Switch Adjustments: RTS Motors

For limit setting instructions on these motors, see Radio Frequency Remote Control Programming Instructions

(FS_MO_RFRC_ProgInst)

Section 7.4 - Limit Switch Adjustments: IntelliFlex I/O Motors

For limit setting instructions on these motors, see instructions packaged with the Motor Limit Setting Tool

(part# C202.030)

Caution:

- Be sure all switches are in “off”

position before adjusting limit

switches.

- Be prepared to shut off

manually while testing.

- Shade may be damaged by

running shade fabric down too

far to expose roller.

- If using a group control system,

each limit switch must be set

prior to connecting to system.

- Motor must be installed so limit

switches are pointed down.

Figure 15

GLASS SIDE

ROOM SIDE

Front

Back

Bottom View

Side View

GLASS SIDE

ROOM SIDE

Front

Back

Bottom View

Side View

Screws

Front

Back

Bottom View

Side View

GLASS SIDE

ROOM SIDE

Screws

Front

Back

Bottom View

Side View

GLASS SIDE

ROOM SIDE

PUSH BUTTON LIMITS Standard right-hand

motor conﬁguration shown

SCREW-TYPE LIMITS Standard right-hand

motor conﬁguration shown

Section 8 - Electrical Connections

Shade operates on 110-120V, 60 Hz. current. Shade is shipped with internal wiring complete and control switch

(es)

fully boxed, and standardly supplied with a 6'

(1.8 m)

cable lead. Longer lead can be substituted by removing two screws in motor end of roller, removing lead, plugging new lead in, and replacing screws. Wire to connect

shade to switch

(es)

and switch

(es)

to power supply should be furnished by installer.

Connections should be made in accordance with attached wiring diagram, and wiring should comply with national and local electrical codes. DO NOT wire motors in

parallel without written permission from Draper®.

All operating switches should be “off” before power is connected.

Please Note: For low-voltage wiring requirements, Draper recommends consulting with a professional low-voltage electrical contractor. It is very important that

shielded and stranded CAT 5 cable be used to prevent any electrical interference.

Please Note: A Draper Motor Test Cable

(Part# 503109)

and M12 Pigtail

(Part# C107.089.60)

are available for temporary power for testing and limit setting.

IMPORTANT: To reduce the risk of electric shock, equipment that features a grounding type attachment plug has a third

(grounding)

pin on the attachment plug.

This plug will ONLY ﬁt into a grounding type outlet. If the plug does not ﬁt into the outlet, a qualiﬁed electrician must install the proper outlet.

Do not change the plug in any way.

Do not use an extension cord. If the power supply cord is too short, a qualiﬁed electrician must install an outlet near the drapery operator.

page 9 of 12

Dual Roller Coupled Motorized FlexShade®

(Standard Hardware)

Data Cable Pin-Out - RJ45 ConnectorMOTOR Pin-Out - RJ9 Connector

4 - GROUND - (BROWN)

3 - POWER + (BLUE)

2 - DATA - (ORANGE)

1 - DATA + (ORANGE/WHITE)

2 - DATA - (ORANGE)

3 - N/A (GREEN/WHITE)

4 - POWER + (BLUE)

5 - POWER + (BLUE/WHITE)

6 - N/A (GREEN)

7 - GROUND - (BROWN/WHITE)

8 - GROUND - (BROWN)

Section 8 - Electrical Connections

(Continued)

Dashed Wiring

by Electrician

NOTE: Test shade operation

If shade direction does not

correspond with the switch

orientation, turn power off.

Consult a licensed electrician to

switch the red and black

wires from the motor to the switch.

Do not wire motors in parallel without

written permission from Draper

Controls & System Overview

Sonesse®120VAC Motors

W B R G

Control

Switch

Single Gang

Box (by others)

120V

MOTOR

110-120V Line

M12

Connector

M12 Connector for 3-Wire Motors

2 - WHITE

1 - BLACK

4 - GREEN 3 - NOT USED

2 - WHITE

1 - BLACK

3 - NOT USED

4 - GREEN

2 - WHITE

To Switch

& 120VAC

Motor

60"

1.5 m

Standard

12"

30.5 cm

Standard

WBG

Ø0.61” 15.5 mm

2 - WHITE

1 - BLACK

3 - RED4 - GREEN

2 - WHITE

1 - BLACK

3 - RED4 - GREEN

2 - WHITE

WBRG

To Switch

& 120VAC

Motor

60”

1.5 m

Standard

12”

30.5 cm

Standard

M12 Connector for 4-Wire Motors

Ø0.61” 15.5 mm

Dashed Wiring

by Electrician

Controls & System Overview

Sonesse®RTS 120VAC Motors

M12 Connector

B W G

RTS

MOTOR

120V

110-120V Line

DecoFlex

Wire Free Keypad

Telis 1

RF Remote

STOP

Data Cable

with RJ45

Connector

Data Hub

Bus Power

Supply

M12

Connectors

RS485

110VAC

Motor

RS485

110VAC

Motor

Controls & System Overview

Sonesse®485 120VAC Motors

BUS OUT

to next

DATA HUB

BUS IN

STOP

SDN DecoFlex

Keypad

110V

Outlet

110-120V Line110-120V Line

LAN

Dashed Wiring

by Electrician

Data Cable

with RJ45

Connector

Data Hub

Bus Power

Supply

RS485

110VAC

Motor

RS485

110VAC

Motor

Controls & System Overview

Sonesse®485 120VAC Motors

BUS OUT

to next

DATA HUB

BUS IN

STOP

SDN DecoFlex

Keypad

110V

Outlet

110-120V Line110-120V Line

LAN

Dashed Wiring

by Electrician

Sonesse®is a registered

trademark of Somfy®

Systems, Inc.

page 10 of 12

Dual Roller Coupled Motorized FlexShade®

(Standard Hardware)

Indice

Altri manuali CULUS Supporto TV

CULUS

CULUS Kanto PDX680 Manuale utente

Manuali Supporto TV popolari di altre marche

Ergotron

Ergotron Neo Flex Cantilever UHD Manuale utente

StarTech.com

StarTech.com FPCEILBTB Manuale utente

VonHaus

VonHaus 05/038 Manuale utente

Techlink

Techlink ECHO TV Manuale utente

Sandstrom

Sandstrom SSTVMC12X Manuale utente

Sony

Sony SU-WL700 Guida

ICW

ICW SCACC18 Manuale utente

LG WM-L640V Manuale utente

Gembird

Gembird WM-65ST-01 Manuale utente

ERARD

ERARD FiTUP XXL 035320 Manuale utente

PEERLESS

PEERLESS PLCK-1 Guida

Kanto

Kanto RCF180 Manuale utente

GEM

GEM GEM GP001 Manuale utente

Gladiator Joe

Gladiator Joe GJ0A0053 Manuale utente

Vivotek

Vivotek AM-105 Manuale utente

Vivo

Vivo VESA STAND-VAD1B Manuale utente

AmazonBasics

AmazonBasics B07QG3LMG4 Manuale utente

Secura

Secura QLF210 Manuale utente
