Curtis MILANO G3 Manuale utente

MILANO G3 DIGITAL COFFEE BREWING SYSTEM

ITEM NO

PROJECT

DATE

MODEL: TPC15T TWIN, TPC15S SINGLE

Blending the

Art of Coffee...

with the Science

of Brewing.

THE ART — Contemporary, beautiful

design adds a touch of elegance to

any operation.

THE SCIENCE — Master rich and

robust flavor every time with precise

control over all aspects of brewing

provided by user-friendly G3

Technology.

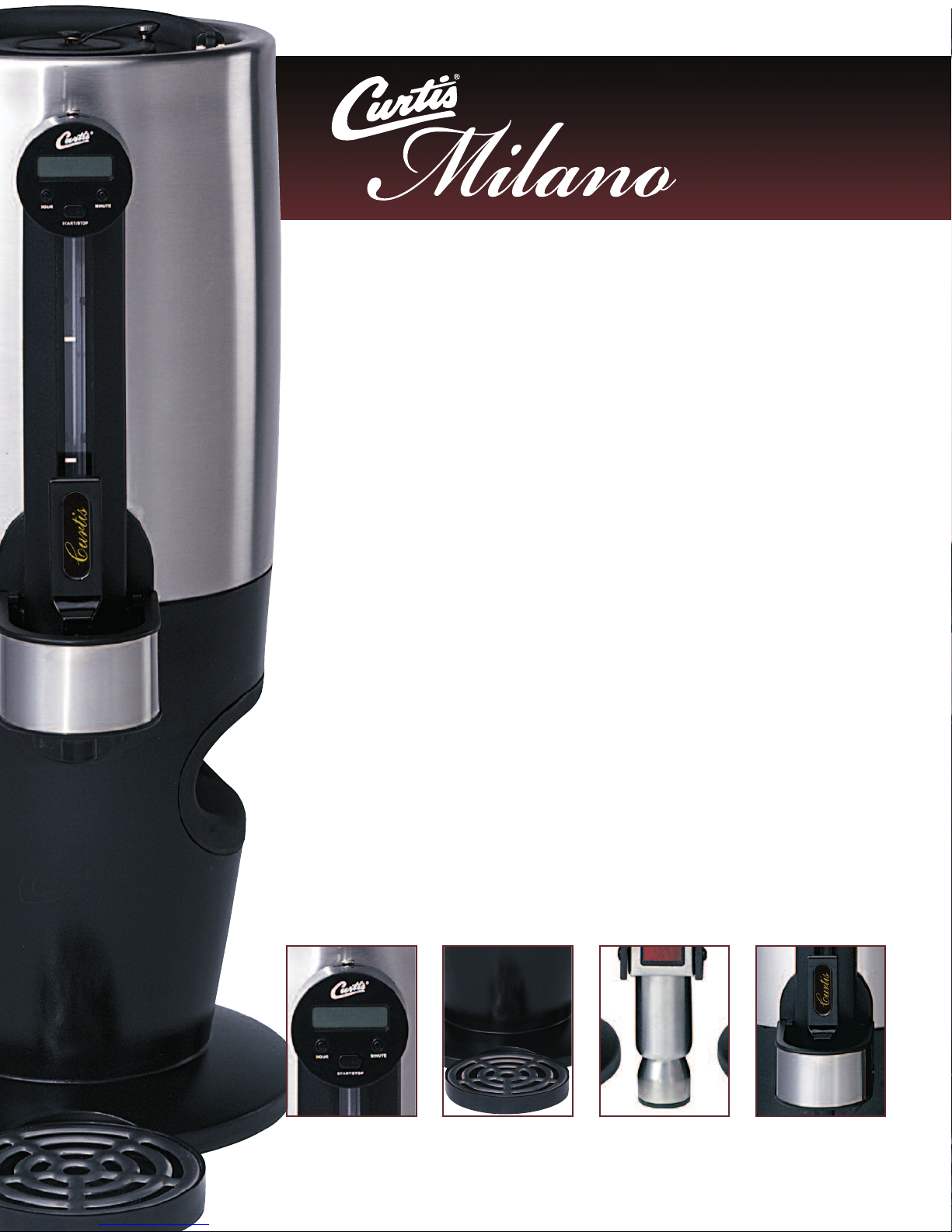

The Art of Coffee

Curtis Milano Server

Integral Quality Timer Nesting Drip Tray European-Styled Legs Contemporary Faucet & Guard

The new, sophisticated Curtis

Milanoembodies elegance with

an unparalleled, inspiring design

that takes gourmet coffee service

to the next level. Your customers

will be naturally drawn to the

elegant, conical shaped stainless

steel servers that makeevery

station beautiful. Theservers

are complemented by the

contemporary brewing system

featuringblack side panels with

burgundy accents.

Enjoy maximum handling

convenience provided by side

curvatures and an integral handle

located at thetop of the server.

Integral quality timers ensure

optimum coffee quality. Plus,

the round drip trays “nest” to the

base, so they stay in place to

catch every drip. And, its

hide-away cover contains a

convenientsparesightglass

and cleaning brush.

With all of these features and

more, the Curtis Milano has the

looks and the brains to satisfy

your customers like never before.

The Science of Brewing

Smarter Features

- Smart server design uses vacuum

insulation maximizing heat

retention.

-Brew through server lids lock in

temperature and flavor.

- Integral faucet and guard. Faucet

guard drops down for ease of cleaning.

-Centrally located hot water spout

for instant hot beverages and

hot water needs.

- Unique deep bed, high capacity

gourmet brew cones ensure

maximum flavor extraction.

- European-styled 4” adjustable

legs conform to requirements

while adding to the Milano’s

style.

- Angled LCD display for easy

viewing.

- Common parts and front access

create an easy to service unit.

- Nationwide network of factory

trained service professionals.

Curtis G3 Technology

With Generation Three Technology, the Curtis® Milano puts brewing mastery at

the users’ finger tips. Create signature flavor profiles with precise, digital control

over theentirebrewing process. Customize pre-infusion, pulse brewing, water

bypass, cold brew lock-out and many more settings for optimal flavor. Save your

settings for consistently great coffee every time.

G3 Technology also offers a variety of easily modifiable pre-programmed brewing

recipes. Choose from Gourmet Standard, Dark Roast, Light Roast, High Yield, Filter

Pack andDecaf. Andwith its scroll-through menu, it’s easy to

fine-tune the brewing process for your exacting gourmet profile.

G3 Digital Control Module

Brew-Through Lid/

Integral Handle

Deep-Bed Gourmet Brew Cone Instant Hot Water Angled LCD Display Side Carrying Handle

- Proprietary Heating

Algorithm maintains

brew temperatureto ensure

optimal flavor extraction.

-Simple,easy-to-understand

graphic overlay.

- Fully customizable brew

settings can be set for each

individual brew button.

- All brewer functions are

clearly displayed in real

time.

- Automatic notification

of preventative

maintenance needs or

service requirements.

36.375”

(92.4 cm)

20.375”

(51.7 cm)

6.25”

(15.9 cm)

33.25”

(84.5 cm)

4" –5"

ADJUSTABLE

HEIGHT LEG

24.375”

(61.9 cm)

36.375”

(92.4 cm)

13.125”

(28.3 cm)

20.25”

(51.4 cm)

20.375”

(51.8cm)

5”

(12.7 cm)

4.75”

(12.1 cm)

Ø5”

(Ø 12.7 cm)

13.75”

(35.0 cm)

9.5”

(24.1 cm)

22.5”

(57.2 cm)

8.125”

(20.6 cm)

9”

(22.9 cm)

8.875”

(22.5 cm)

TPC15T Twin

36.375”

(92.4 cm)

11”

(27.9 cm)

6.25”

(15.9 cm)

33.25”

(84.5 cm)

4" –5"

ADJUSTABLE

HEIGHT LEG

24.375”

(61.9 cm)

36.375”

(92.4 cm)

13.125”

(28.3 cm)

20.25”

(51.4 cm)

5”

(12.7 cm)

4.75”

(12.1 cm)

TPC15S Single

TLCG15

Server

WILBUR CURTIS COMPANY, INC.

6913 Acco Street, Montebello, CA 90640-5403

Telephone: 800-421-6150 · 323-837-2300

Fax: 323-837-2406

www.wilburcurtis.com

Specifications

Batch

Brewing

Selections Finished Brewing

Capacity

Dimensions

(HxWxD) Voltage

Power

Requirements

Water Source

Shipping

Wt. (lbs.)

w/o server

Cube

(cu. ft.)

TPC15T Twin

63Gal. (1.5 per side)

36.375” x 20.375” x 20.25”

220V/Single Phase*

3WirePlus Ground 5100W/7600W***

”Compression 68 14.3

TPC15S Single

61.5 Gal.

36.375” x 11” x 20.25”

220V/Single Phase**

3Wire Plus Ground 4300W

”Compression 56 8.15

TLCG15 Server

-- 1.5 Gal.

22.5” x 9.5” x 13.75” -- -- -- 14 3.7

*Optional 220VAC/3 Phase—Specify 3 Wire or 4 Wire Plus Ground. **Optimal Dual Voltage 120/220VAC

***Field convertible to higher wattage.

Field Changeable

Enhanced Recovery Circuitry

Curtis MilanoTwin* units ship standard with a robust 5000 watts

of recovery power. Should you have a higher rated circuit at the

installation, a single connection change*** boosts the Milano

to a powerful 7500 watts providing enhanced recovery and

brewing speed.

NOTE: *220VAC/Single Phase Models Only

***Should be connected only by a qualified installation technician.
